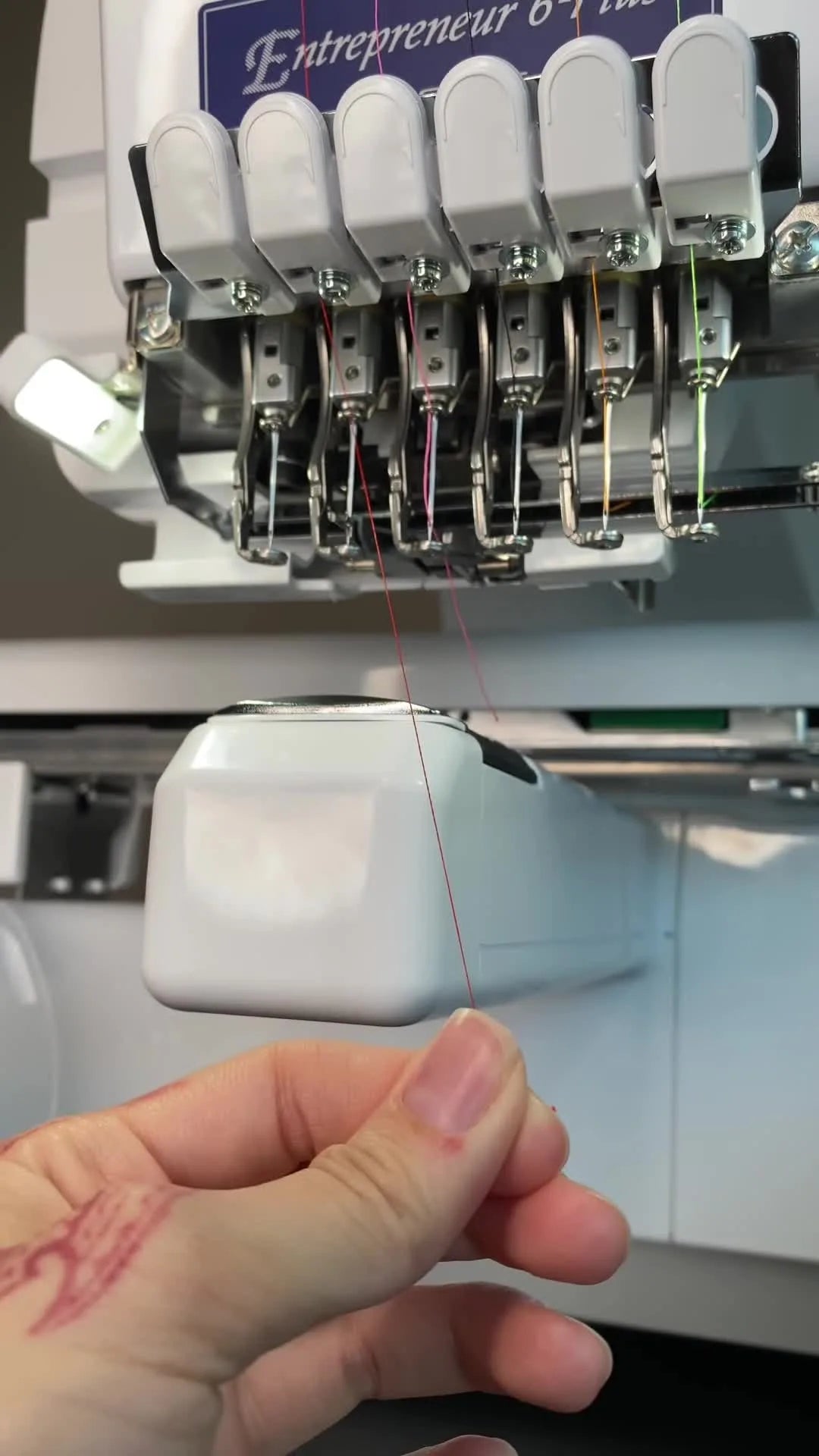

Threading Needle #5 on the Brother PR670E Without the Usual Headache (and Why It Matters for Clean Stitching)

If you’ve ever stared at a multi-needle head and thought, “I’m one wrong move away from a bird’s nest,” you’re not alone. I have spent two decades in embroidery shops, and I can tell you: The Brother PR670E is a workhorse, but it is a machine of physics, not magic. It only behaves when the thread path is clean, consistent, and matched to the correct needle position.

In this post, I am rebuilding the video’s exact process for threading needle #5. But I am going deeper. I am adding the sensory checks (what you should feel and hear) and the safety protocols that keep you from chasing phantom tension problems later. If you are running a 6 needle embroidery machine for gifts, Etsy orders, or shop work, this is the "do it right once, save hours later" skill set you need.

The Calm-Down Primer: What “Correct Threading” Looks Like on a Brother PR670E

Threading isn’t just “getting thread to the needle.” On a brother pr670e embroidery machine, correct threading is a precise engineering requirement. Before your hands move, your eyes must visualize this standard:

• The Geometry: The thread follows the printed arrows/lines for the selected needle number exactly.
• The Engagement: The thread is deeply seated in the pre-tension and main tension discs (not floating beside them). Tactile Cue: It should feel like flossing teeth—snapping into place.
• The Metering: The take-up lever path forms a clean down–up–down route (resembling a tall “N” shape).
• The Clearance: The thread is positioned correctly behind the needle bar hardware so it won’t snag when the machine cycles at 1000 stitches per minute (SPM).

When any one of those is off by a few millimeters, the machine may still stitch for a moment—then you get breaks, looping, or intermittent "shredding." These look like tension problems, but they are actually routing errors.

The “Hidden” Prep Pros Do First: Spool, Path, and a 10-Second Snag Test

Before you touch the tension knobs, set yourself up so the thread feeds smoothly. Multi-needle machines punish sloppy spool setup because the thread has a longer journey and more places to catch.

Prep Checklist: The "Zero-Fail" Protocol

• Consumables Check: Have your tweezers, lint brush, and spare needles (75/11) ready. A burred needle will shred even perfect threading.
• Spool Pin Logic: Confirm you are using the #5 spool pin and the #5 labeled guides. Mixing paths is the #1 rookie error.
• The "Puddle" Test: Pull 12–18 inches (30–45 cm) of thread off the spool. It should unwind smoothly without jerking. If it catches on the spool nick, flip the spool over.
• Path Isolation: Ensure the thread is not crossing or "kissing" adjacent threads on the stand.
• Tool Readiness: Locate the white plastic forked threading tool (you will need it near the needle bar).
• Debris Check: Glance at the needle area. If there looks like "grey fuzz" near the threader, clear it. That fuzz is friction.

Commercial Insight: If you are doing frequent color changes for logos or names, your biggest profit killer is not "stitching time"—it is "setup time." Struggling to clamp thick jackets or re-hooping slippery silks drains efficiency. This is why professional shops eventually upgrade to SEWTECH Magnetic Hoops.

• The Pain: Traditional hoops leave "hoop burn" marks and require strong wrists to close.
• The Fix: SEWTECH Magnetic Hoops snap shut automatically, adjusting to different fabric thicknesses instantly without distortion. It’s a Level 1 hardware upgrade that fixes a Level 10 frustration.


Start at the Top: Thread Tree Routing on Spool Pin #5 (Back-to-Front Matters)

Place the spool on the number 5 pin. Then route the thread through the upper thread tree mast holes from back to front, exactly as shown in the diagram.

Two practical notes from the field on Why this physics matters:

1. Twist Prevention: Thread has a natural twist. Going back-to-front helps neutralize the thread's tendency to curl before it enters the tension discs. It is about control.
2. Lane Discipline: Keep the thread isolated. On brother multi needle embroidery machines, “one thread crossing another” creates static and friction. This leads to intermittent breaks that vanish when you pause the machine (because the tension relaxes), making them a nightmare to diagnose.


Follow the Printed Arrows Like a Map: Pre-Tension and Main Tension Knobs for Needle #5

The video’s key instruction here is simple and correct: follow the printed arrows and lines for needle #5. But let's add the sensory detail.

Route the thread:

1. Around the upper pre-tension knob (wrap clockwise as shown).
2. Down and around the main tension dial for the same needle path.




The "Floss" Technique (Sensory Check): Experienced operators don't just "place" the thread; they "seat" it.

• Action: Hold the thread taut with both hands (one hand near the spool, one near the tension dial).
• Sensation: Firmly pull the thread into the tension discs. You should feel a distinct resistance or a subtle "click" as it slides between the metal plates.
• Verification: If the thread feels loose or floats on top, you will get loops on the back of your embroidery (bird nesting). The tension assembly must "grab" the thread to control it.

Warning: Mechanical Safety
Keep fingers, loose sleeves, jewelry, and long hair away from the needle area and moving mechanisms. Never reach into the head or grab a thread tail while the machine is cycling or while the auto-threader is moving. A 1000 SPM needle impacts 16 times per second.

The Take-Up Lever “N-Path”: The One Route That Prevents Random Loops

From the tension area, the path becomes vertical. The video shows the thread going:

1. Under the bottom metal guide.
2. Down, then back up through the take-up lever eyelet.
3. Then back down behind the front cover guide plate.


The Physics of the "N" Shape: This down–up–down route creates the "N". The take-up lever is the metering device of the machine. It pulls the slack tight after every stitch. If you skip the take-up lever eyelet, the thread stays slack, and the hook assembly below will jam instantly.

• Visual Check: Look sideways at the lever. Is the thread inside the eyelet hole?


The Needle Bar Guide Hole Above Needle #5: Small Target, Big Consequences

Next, pass the thread through the small hole on the black metal bracket directly above needle #5.

This guide is easy to underestimate, but it is critical for high-speed stability.

• Why it matters: It dampens the "whip" effect. Without this guide, the thread vibrates violently at high speeds, leading to fraying or shredding directly above the needle eye.
• Symptom of failure: If your thread shreds only on dense satin columns, check this guide first.

The White Forked Threading Tool: The Trick That Stops Snags Behind the Needle Bar

Now use the white plastic forked tool provided in your SEWTECH or Brother toolkit:

• Action: Catch the thread between the two prongs.
• Action: Push it backward so it hooks behind the small metal bar on the needle driver.
• Check: Confirm the thread comes out on the correct side after hooking.


Cognitive Friction Reducer: This step feels awkward the first 5 times. That is normal. The clearance is tight. The tool is your "finger extension" designed to place the thread where your hands cannot reach without bending the wire guides.

Touchscreen Control: Selecting Needle #5 and Waking Up the Auto-Threader

On the LCD home screen:

1. Press the spool/needle icon.
2. Select needle number 5.
3. Press the automatic threading button (needle-and-thread icon).


Auditory Cue: You should hear a mechanical whir and a solid clunk as the threading hooks rotate and extend near the needle.

Workflow Tip: Always select the needle on-screen before you start messing with the thread near the needle. Troubleshooting becomes impossible if you are physically threading #5 but the machine thinks you are working on #4.

Wrap the Auto-Threader Hooks the Video’s Way: Right-to-Left, Under the Cutter, Then Back Up

With the hooks extended, manually guide the thread:

1. Under the two extended prongs (hooks) from right to left.
2. Under the small cutter blade on the left.
3. Bring it back up over the top so the mechanism cuts the excess thread.


Precision Moment: This is the most delicate part of the process. The thread must be taut across the hooks. If it is loose, the hook will miss the thread when it retracts, and the needle will remain unthreaded.

The Final Button Press: Let the PR670E Pull the Loop Through the Needle Eye

Press the threading button on the screen again. The hooks retract and pull the thread loop through the eye of needle #5.

Success Metric: At this point, you should see a clean loop through the needle eye—no frayed tail, no half-caught strand. The tail should be short (about 3-4cm) and cleanly cut.

Setup Checklist: The “Before You Stitch” Confirmation That Prevents 80% of Re-Threads

Do NOT press "Start" yet. Perform this 5-second Pre-Flight Check:

• [ ] Selection: Is Needle #5 selected on the screen?
• [ ] Tension: Is the thread deeply seated in the tension discs? (Did you feel the resistance?)
• [ ] Metering: Is the Take-up lever eyelet threaded (the "N" path)?
• [ ] Stability: Is the thread through the small guide hole above needle #5?
• [ ] Clearance: Is the thread behind the needle driver bar (using the white tool)?
• [ ] Final: Did the auto-threader leave a clean loop in the eye?

The Production Bottleneck: If you pass this checklist but still dread the next step—hooping—you have a workflow imbalance. Hooping standard frames accurately takes skill and time.

• Solution: Many professionals utilize workflow tools like magnetic embroidery hoops for brother machines. By using a SEWTECH Magnetic Hoop, you reduce the strain on your wrists and eliminate the need to tighten screws, allowing you to focus purely on the threading and design.

The “Why It Works”: Thread Control, Friction Points, and Consistency

Here is the principle that explains almost every threading-related headache: The thread path is a controlled series of friction points.

• Too little friction? The thread goes slack, creating loops (bird nests).
• Too much friction? The thread stretches and snaps (shredding).
• Inconsistent friction? You see wavy borders and poor registration.

Expert Reality Check:

• Speed: Start new designs at 600-800 SPM. Do not jump to 1000 SPM until you verify the thread path is stable.
• Thread Type: Polyester is forgiving. Rayon is beautiful but fragile—slow down (500-600 SPM) if using Rayon on needle #5.

When Something Feels “Off”: Fast Troubleshooting for Brother PR670E

The video shows the ideal scenario. Here is the real world diagnostic map. Follow this order (Least Invasive to Most Invasive).

Decision Tree: Choosing Stabilizer and Hooping Strategy

Bad threading is often blamed when the real culprit is Fabric Instability. If your foundation moves, the thread breaks.

Q1: Is the fabric stretchy (T-shirts, knits)?

• YES: You Must use Cutaway stabilizer. Tearaway will fail, causing registration errors and thread breaks.
  • Upgrade: Use a SEWTECH Magnetic Hoop to hold the knit without stretching it out of shape (common with screw hoops).
• NO: Go to Q2.

Q2: Is the fabric thick (Carhartt jackets, Canvas, Towels)?

• YES: Use Tearaway or Cutaway.
  • Upgrade: This is the #1 use case for Magnetic Hoops. Standard hoops pop off thick seams; magnets hold through layers effortlessly.
• NO: Go to Q3.

Q3: Are you running repeats (Team uniforms, 50+ shirts)?

• YES: You need speed.
  • Upgrade: Consider a SEWTECH Hooping Station or standardized magnetic frames to slash 30% off your production time.

Warning: Magnetic Field Safety
Magnetic embroidery hoops from brands like SEWTECH or mighty hoop magnetic embroidery hoops use industrial-strength magnets.
* Pinch Hazard: They snap shut with force. Keep fingers clear.
* Medical Device: Keep at least 6 inches away from pacemakers.

Operation Checklist: The “Real-Time” Thread Change Habit

Speed comes from rhythm, not rushing. Use this checklist to build muscle memory:

1. [ ] Tail Length: Pull a consistent 4-inch tail before routing.
2. [ ] Smooth Path: Ensure the thread path is flat and untwisted at the mast.
3. [ ] Visual Confirmation: Look at the needle eye. Is the loop clear?
4. [ ] Clearance: Is the work area clear of scissors or spare bobbins?
5. [ ] Tension Check: Pull the thread gently at the needle. Does it feel like it has drag (good) or is it totally loose (bad)?

The Upgrade Path: When Better Hooping and Better Machines Actually Pay You Back

Once you thread needle #5 cleanly, the next bottleneck is rarely “threading skill”—it’s the physics of your equipment.

Here is the logical path for growing your business:

• Level 1: Stability. If you struggle with hoop burn or re-hooping thick items, upgrading to SEWTECH Magnetic Hoops is the most cost-effective fix. It solves the physical struggle of the clamp.
• Level 2: Workflow. If hooping takes longer than stitching, look into Hooping Stations to standardize placement. Terms like hoop master embroidery hooping station appear frequently in industry searches for a reason—consistency sells.
• Level 3: Capacity. If your single PR670E is running 8 hours a day and you are turning away orders, you have outgrown your hardware. This is when adding a second machine—like a SEWTECH Multi-Needle unit—doubles your output without doubling your labor.

Threading is just the first step. Mastering the workflow is how you turn thread into profit.

FAQ

• Q: What is the correct threading standard for needle #5 on the Brother PR670E embroidery machine to prevent false “tension problems”?
  A: Correct threading on the Brother PR670E needle #5 means the thread follows the printed #5 path exactly and is fully seated in every friction point.
  • Follow the printed arrows/lines for needle #5 from the spool pin through pre-tension, main tension, take-up lever, and the needle-area guides.
  • “Floss” the thread into the tension discs by pulling it taut so it snaps between the plates (not riding beside them).
  • Confirm the take-up lever forms the down–up–down “N-path” and the thread is inside the take-up lever eyelet.
  • Success check: The thread feels like it has consistent drag (not totally loose), and the path looks clean with no thread floating outside guides.
  • If it still fails… Rethread from the spool again; a few millimeters off the guide/tension discs can cause breaks, loops, or shredding.
• Q: What prep checks should be done before threading needle #5 on a Brother PR670E 6-needle embroidery machine?
  A: A fast prep routine prevents most “mystery” thread breaks on the Brother PR670E before tension adjustments are even considered.
  • Gather tools/consumables: tweezers, lint brush, and spare 75/11 needles.
  • Pull 12–18 inches (30–45 cm) from the spool to confirm smooth feed; flip the spool if it jerks or catches.
  • Keep the #5 thread isolated so it does not cross or rub adjacent threads on the stand.
  • Clear visible grey fuzz/lint near the needle/threader area to reduce friction.
  • Success check: The thread pulls off smoothly in one continuous motion without snagging or “pulsing.”
  • If it still fails… Replace the needle first; a burred needle can shred thread even with perfect routing.
• Q: How do Brother PR670E auto-threader hooks get loaded for needle #5 when the auto-threader keeps missing the needle eye?
  A: Brother PR670E auto-threader misses usually happen because the thread is not held taut across the hooks during the right-to-left wrap.
  • Select needle #5 on the LCD first, then extend the auto-threader.
  • Guide the thread under the two extended prongs from right to left, then under the small cutter blade, then back up so the mechanism can cut.
  • Hold the thread slightly taut across the hooks before pressing the threading button again.
  • Success check: A clean loop appears through the needle eye with a short, cleanly cut tail (about 3–4 cm).
  • If it still fails… Re-extend the threader and repeat with more tension on the thread across the hooks (loose thread is the common cause).
• Q: What causes bird nesting (loops under the fabric) on a Brother PR670E after threading needle #5, and what is the fastest fix?
  A: Bird nesting on a Brother PR670E after a thread change is most often “zero top tension” caused by the thread not being seated in the tension discs.
  • Stop and rethread completely for needle #5; do not just tug at the needle end.
  • Pull the thread into the tension discs using the flossing motion until distinct resistance is felt.
  • Verify the take-up lever eyelet is threaded (missing the lever creates instant slack and jams).
  • Success check: The thread has noticeable drag when pulled gently near the needle, and stitches stop forming loose loops on the underside.
  • If it still fails… Confirm the thread is following the printed #5 arrows and was not accidentally routed on another needle’s path.
• Q: Why does thread shred immediately on a Brother PR670E needle #5, especially on dense satin columns?
  A: Immediate shredding on Brother PR670E needle #5 commonly points to a damaged needle or a missed needle-area guide that lets the thread whip at speed.
  • Change to a fresh 75/11 needle (a burred needle can shred instantly).
  • Recheck the small guide hole on the black bracket above needle #5; it stabilizes the thread at high speed.
  • Confirm the thread is placed behind the needle driver bar using the white forked threading tool (wrong side can snag).
  • Success check: The thread runs without fuzzing/fraying above the needle eye during the first stitches.
  • If it still fails… Reduce speed to a safe starting point (the post recommends starting new designs around 600–800 SPM; rayon often needs 500–600 SPM) and re-verify the full route.
• Q: What needle-area safety rules should be followed when threading a Brother PR670E auto-threader on needle #5 at high speed?
  A: Keep hands and anything loose away from the needle area whenever the Brother PR670E is cycling or the auto-threader is moving.
  • Stop the machine before reaching near the needle bar, threader, or moving mechanisms.
  • Keep fingers, sleeves, jewelry, and hair clear; do not grab thread tails while the machine is in motion.
  • Use the white forked tool as intended instead of forcing fingers into tight clearances.
  • Success check: Threading is completed with no need to “catch” moving parts by hand, and the auto-threader cycle finishes without interference.
  • If it still fails… Power down and re-attempt threading slowly; do not troubleshoot with the head moving.
• Q: What magnetic hoop safety precautions should be used with industrial-strength magnetic embroidery hoops during Brother PR670E workflow upgrades?
  A: Magnetic embroidery hoops can snap shut with pinch force and must be kept away from medical devices.
  • Keep fingers clear when closing; let the magnets seat without trying to “soft close” them.
  • Maintain at least 6 inches distance from pacemakers and similar medical devices.
  • Treat magnetic hoops as a workflow tool for thick or stretchy materials, not as a toy; store them so they cannot clamp unexpectedly.
  • Success check: The hoop closes cleanly without finger contact and holds the fabric securely without repeated re-hooping.
  • If it still fails… Switch back to a safer handling position (flat table, two-hand placement) before attempting another closure.
