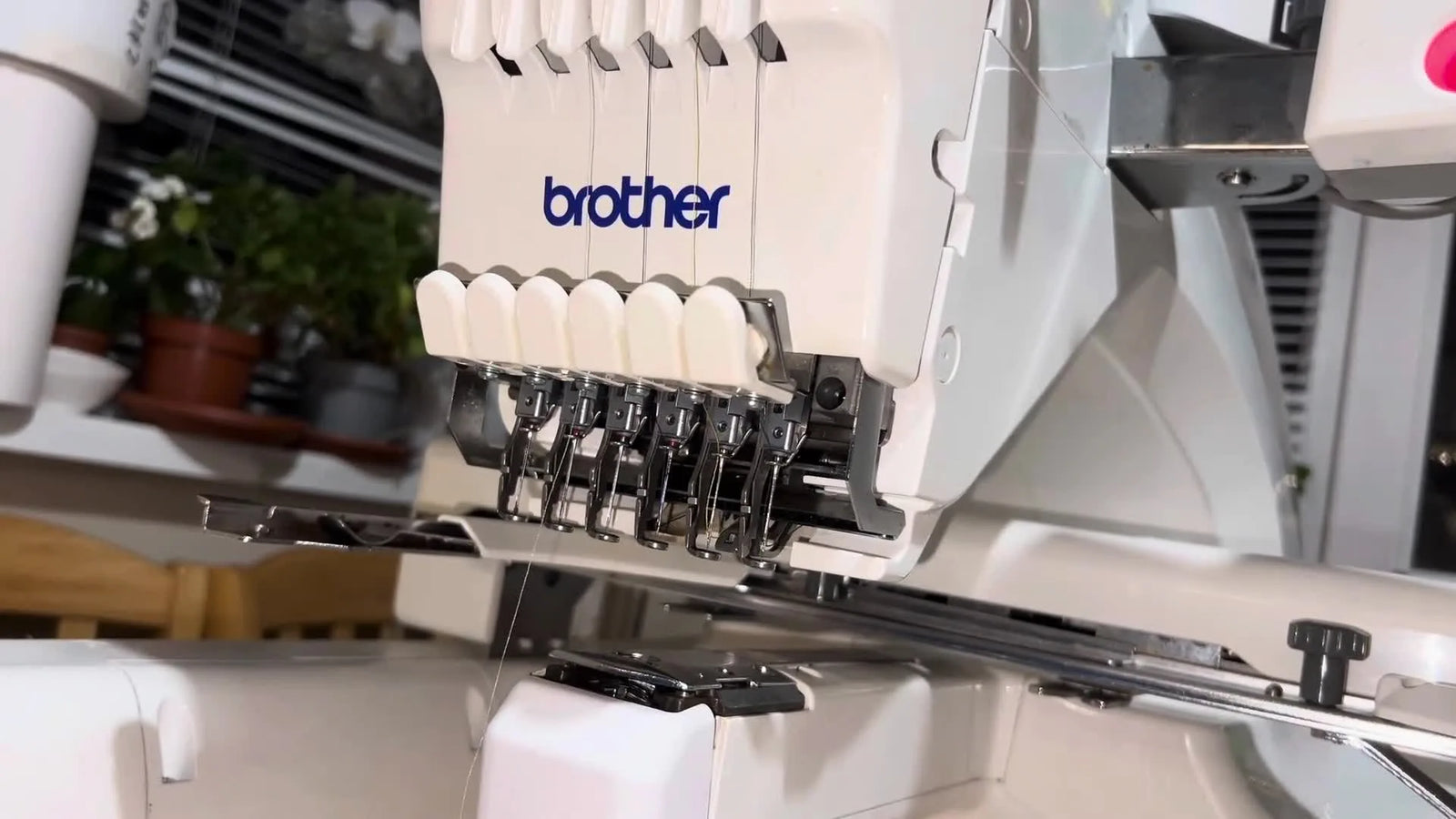

Threading Needle #4 on a Brother PR Series: The 5-Minute Ritual That Prevents Breaks, Birdnests, and Bad Tension

Mastering the Beast: A Veteran’s Guide to Threading Needle #4 on Brother PR Series Machines

If you have ever stared at the front of a Brother PR multi-needle machine thinking, "I know I threaded it... so why does it still feel wrong?" you are not alone. This is the "Imposter Syndrome" stage of machine embroidery, and it happens to everyone—from hobbyists in spare bedrooms to shift managers in high-volume production floors.

Multi-needle machines are engineering marvels, but they are brutally honest. Unlike a domestic sewing machine that might forgive a sloppy tension path, a brother multi needle embroidery machine requires precision. One missed guide, one lazy wrap on the tension knob, or a thread that sits on the tension disc rather than in it, will result in immediate consequences: looping, shredding, false thread breaks, or an auto-threader that cycles perfectly but leaves the needle empty.

This guide is not just a manual; it is a recalibration of your workflow. We will rebuild the exact Needle #4 thread path—clean, repeatable, and verifiable. We will apply the sensory checks (what it should feel and sound like) that veterans use to keep machines running smoothly.

Don't Panic: The Physics of the Thread Path

On a Brother PR Series head (and similar commercial platforms), threading problems are rarely mysteries. They are almost always physics problems caused by "Visual Approximation"—thinking the thread is seated when it is actually floating.

The culprit is usually one of these five "Silent Killers":

1. The Pre-Tension Miss: Thread floating above the plates.
2. The Tension Knob Shortcut: Failing to complete the full wrap sequence.
3. The Take-Up Snag: Thread catching on the plastic casing instead of the lever eye.
4. The Parallax Error: Putting thread through hole #3 or #5 because look angles are deceptive.
5. The Handoff Failure: Missing the tiny needle-clamp hook, rendering the auto-threader useless.

The good news? Once you learn the tactile feedback of a "seated" thread, you can thread Needle #4 in under 45 seconds with your eyes half-closed.

Phase 1: The "Hidden" Prep (Tools, Light, and The Canvas)

Before you touch a spool, you must set the stage. In professional shops, we call this "Zero-State."

Thread Quality is Non-Negotiable: Multi-needle machines have long thread paths (often 2-3 feet of travel). This amplifies the impact of cheap thread. Use high-quality polyester or rayon (like Madeira, Robinson-Anton, or similar) as demonstrated. If your thread has slubs or inconsistent diameter, it will jam in the tension discs.

The Visibility Problem: The workspace on PR heads can be dark, and the localized grey metal makes contrasting thread difficult to see.

• Action: If you cannot clearly see the numbered holes, get a magnetic LED task light.
• Tool: Keep curved tweezers at the machine. Your fingers are too bulky to navigate the needle bar area without blocking your own view.

Prep Checklist (Pre-Flight):

• Select Needle #4: Ensure the screen indicates Needle 4 is the active position (this aligns the distinct mechanical wipers).
• Inspect the Path: Blow out the tension discs with canned air (gently) to remove lint buildup.
• Check the Concierge: Have your tweezers, snips, and fresh needles within arm's reach.
• The "Floss" Test: Before threading, pull a yard of thread off the cone. It should unspool without jerking. If it catches on the cone, use a thread net.


Phase 2: The High Road (Spool Stand to Pre-Tension)

The journey begins at the back. Gravity and drag are your enemies here.

1. Mount the Cone: Place your spool on Pin #4. Ensure it seats fully.
2. The Overhead Setup: Locate the tall metal guide bar. Count the holes from the left (or follow the diagram on your machine's screen) to locate the #4 position.
3. The Trajectory: Pass the thread from back to front.
   • Why? This specific angle prevents the thread from whipping around the guide bar during high-speed travel (800+ SPM).

This overhead step is where laziness creeps in. Do not "borrow" the neighboring guide because it looks closer. Cross-threading here creates "Sympathetic Vibration"—where Needle 4 pulls on Needle 3, causing tension glitches on both.

Phase 3: The Gatekeeper (The Pre-Tensioner)

Now, move to the upper guide system on the head. This is the first point of tension control.

1. The Eyelet: Pass thread through the white ceramic/plastic eyelet (Guide #4).
2. The Pre-Tension Plates: You will see a small metal button-like structure.
3. The Critical Action: Slide the thread under the metal guide and over, flossing it specifically between the two metal plates.

Sensory Check:

• Sound: You might hear a faint metallic click or zing as it seats.
• Feel: Hold the thread before the eyelet and pull it after the plates. You should feel a smooth, light drag. If it pulls freely like it's cutting through air, you missed the plates. Try again.

If you skip this, the main tension knob has to do 100% of the work, leading to erratic stitchouts.

Phase 4: The Main Tension (The "Two-Wrap" Rule)

This is the heart of the system. The main tension knob regulates how tight your top stitch is.

1. Route: Bring the thread down to Tension Knob #4.
2. The Action: Wrap the thread clockwise around the disc. The video and best practices dictate a Full Second Wrap (essentially 1.5 to 2 turns depending on the specific model generation).
   • Expert Note: Why wrap twice? Commercial tension knobs are slippery. A single pass often allows the thread to slide without engaging the check spring. Two wraps ensure the thread drives the tension wheel.
3. Exit: Guide the thread down and around the corresponding pin/plate below the knob.

The "Spider Web" Test: After wrapping, gently pull the thread downwards.

• Good: It feels firm, like pulling a spider web—taut but elastic.
• Bad: It feels loose or inconsistent.
• Fix: If loose, unwrap and "floss" it deeply into the discs again.

Warning (Physical Safety): Keep fingers clear of the take-up levers while threading. If the machine accidentally triggers or initializes, the levers move with enough force to break a finger. Always ensure the machine is in a "Lock" or "Stop" state if possible.

Phase 5: The Check Spring and Take-Up Lever

Logic dictates the thread must go up before it goes down to the needle.

1. The Channel: Pull the thread down the vertical channel, under the U-turn guide, and back up.
2. The Check Spring: Somewhere in this U-turn is a subtle spring wire (the check spring). As you pull up, listen for a light click or verify the spring bounces up. This spring acts like a shock absorber for the thread.
3. The Take-Up Lever: Pass the thread through the eye of the take-up lever from right to left.
   • The Trap: It is very easy for the thread to snag on the plastic casing behind the lever.
4. Verification: Look at the lever from the side. You should see a clean line of thread passing through the metal eye hole. If the thread looks bent or snagged, fix it now.

Expected Outcome: You should see a clean inverted "V" shape.

Phase 6: The Lower Guides (Avoiding Parallax Error)

Gravity takes over again. We are heading to the needle bar.

1. The Descent: Bring the thread straight down the channel.
2. The Numbered Bar: You will see a black metal strip above the needles with numbered holes.
3. The Target: Identify Hole #4.
   • The Hack: Do not look straight on; parallax will trick you. Look from slightly to the side or use your fingernail to trace the line down from the tension knob.
4. The Action: Pass thread through Hole #4 from top to bottom.

Visibility Tip: If you are running a brother pr1055x or similar 10-needle machines, the crowd of needles makes this harder. Use your tweezers to push the thread through the hole rather than struggling with thick fingertips.

Phase 7: The "Handoff" (Needle Clamp Hook)

This is the step that separates the pros from the frustrated. The auto-threader cannot find the thread unless you place it exactly here.

1. The Loop: Create a small loop in the thread with your fingers.
2. The Target: Locate the tiny metal hook on the needle clamp (the chunk of metal holding the actual needle).
3. The Maneuver: Slide the thread behind and into this guide hook.
   • Note: It is often a "Right-to-Left" or "Top-to-Bottom" motion depending on the specific clamp version.
   • Feedback: You should feel a tiny snap as it seats.

Why this fails: If the thread rests on top of this guide, the auto-threader hook will swing past it, grabbing nothing.

Phase 8: The Auto-Threader Sequence

Now, we let the robotics take over.

1. The Cross: Guide the thread across the front of the auto-threader mechanism (usually marked with arrows).
2. The Cutter: Pull the thread firmly to the left into the built-in cutter. Snap—cut the tail.
3. The Button: Press the automatic threading button.
   • Action: The machine makes a whir-clunk noise. The hook passes through the eye, grabs the thread, and pulls a loop back.


Phase 9: Final Logic Check (Trust, But Verify)

Do not assume the machine succeeded just because it made a noise.

1. Visual Inspection: Look at the needle eye. Do you see a loop of thread sticking out the back?
2. The Pull Through: Use your tweezers to grab that loop and pull the tail completely through.
   • Why? If you leave a loop, the first stitch will snag it, creating a "birdnest" instantly.


The "Why It Works" (Cognitive Anchoring)

Understanding the mechanism reduces anxiety.

• Pre-Tension eliminates "whip" from the cone.
• Main Tension (Double Wrap) provides the drag necessary to tighten the knot.
• Check Spring absorbs the slack when the needle punches down.
• Take-Up Lever pulls the knot tight after the stitch is formed.
• Needle Guide aligns the thread so it enters the fabric vertically, not at an angle.

If you have tension issues, 90% of the time it is because one of these checkpoints was missed.

Troubleshooting Matrix: Symptom → Root Cause → Quick Fix

Stop guessing. Use this logic flow to diagnose threading issues on the fly (Low Cost to High Cost).

Pro Tip: If the thread shreds, change the needle. A $0.50 needle is cheaper than ruining a $20 garment.

Stabilizer Decision Tree: The Invisible Foundation

You can have perfect threading, but if your stabilization is wrong, you will get puckering (the "bacon" effect) or registration errors.

Decision Tree: Fabric Type → Stabilizer Choice

1. Is the fabric unstable/stretchy? (T-shirts, Polos, Knits)
   • YES: Use Cut-Away stabilizer (2.5oz or 3.0oz). Why? Knits need permanent support.
   • NO: Go to step 2.
2. Is the fabric dense/stable? (Canvas, Denim, Caps)
   • YES: Use Tear-Away. Why? The fabric can support the stitches; the backing just aids proper hooping.
   • NO: Go to step 3.
3. Does the fabric have a pile/nap? (Towels, Velvet, Fleece)
   • YES: Used Cut-Away (bottom) + Water Soluble Topping (top). Why? Topping prevents stitches from sinking into the fluff.

Setup Checklist: The 60-Second "Pre-Flight"

Execute this checklist before every single run. It prevents 95% of disasters.

Setup Checklist:

• Eye Check: Thread is clearly through the needle eye.
• Tail Check: Tail is pulled through (3-4 inches) and not tangled in the wiper.
• Path Check: Thread is properly seated in Pre-Tension and Main Tension (Double Wrap).
• Obstruction Check: Hoop path is clear; fabric isn't bunched under the arm.
• Needle Check: Needle is straight and inserted fully (orientation correct).


The Upgrade Path: Scaling from Frustration to Profit

Tweezers and good threading habits are your "Level 1" upgrades. But if you are doing this for profit, you will eventually hit a ceiling on physical efficiency.

The Hoop Bottleneck: Traditional screw-tighten hoops are slow and can cause "hoop burn" (permanent rings) on sensitive fabrics.

• The Upgrade: Many professionals switch to magnetic embroidery hoops. They snap on instantly, hold thick garments like Carhartt jackets firmly without forcing the screws, and eliminate hoop burn.
• Safety Note: These magnets are industrial strength.

Warning (Magnet Safety): Magnetic hoops generate powerful fields. Keep them away from pacemakers, ICDs, and magnetic storage media (credit cards/hard drives). Watch your fingers—they can pinch severely if they snap together unexpectedly.

The Machine Limit: If you find yourself spending more time changing thread cones than stitching, or if you are refusing orders because your single-needle or 6-needle machine can't keep up with the volume, it may be time to look at capacity.

• The Solution: Production-grade multi-needle machines (like the SEWTECH ecosystem) offer higher needle counts (10+ needles) and larger embroidery fields. This reduces downtime for color changes and re-hooping.
• The Keyword: Look for terms like hooping station for machine embroidery; often, the station combined with magnetic hoops is the secret to doubling your daily output without buying a new machine immediately.

If you are currently on a brother pr 680w or similar, adding magnetic hoops (specifically compatible brother pr1055x hoops) is the most cost-effective "speed boost" you can buy.

Operation Checklist: The First 30 Seconds

The first 30 seconds of a design tell you everything. Do not walk away to get coffee yet.

Operation Checklist:

• Listen: Is the sound rhythmic and smooth (thump-thump-thump) or harsh and clanking?
• Watch: Is the thread feeding off the cone steadily? (No jerky "dancing" on the cone).
• Inspect: After the first few color fills, pause. Is the coverage solid? Are there loops?
• Bobbin: Check the back. Is the white bobbin thread roughly 1/3 of the width?


Conclusion: Confidence in Consistency

Mastering Needle #4 is the same as mastering Needle #1 or #10. It is about respecting the geometry of the machine. When you stop "guessing" and start "verifying" with tactile pulls, visual checks, and proper checklists, the machine stops being a source of fear and starts being a tool of profit.

Remember: Thread the path, trust the physics, and keep your tweezers handy. Happy stitching.

FAQ

• Q: On a Brother PR Series multi-needle embroidery machine, why does Needle #4 keep looping on top of the design right after re-threading?
  A: Re-seat the Needle #4 thread into the pre-tension plates and the main tension discs—looping on top almost always means the thread is floating instead of seated.
  • Re-thread the pre-tensioner by “flossing” the thread between the two metal plates (not above them).
  • Re-wrap the main tension knob for Needle #4 clockwise using the full second wrap, then pull down to confirm consistent drag.
  • Re-check the take-up lever eye to make sure the thread is inside the metal hole, not caught on plastic behind it.
  • Success check: A gentle pull after the tension knob feels firm and elastic (the “spider web” feel), not airy or inconsistent.
  • If it still fails: Blow lint out of the tension area gently and re-thread again slowly, verifying each guide by sight and feel.
• Q: On a Brother PR Series machine, what is the fastest way to confirm the Needle #4 thread is actually seated in the pre-tension plates (not missed)?
  A: Use a pull-and-feel test immediately after the pre-tension plates—don’t rely on looks alone.
  • Pull the thread with one hand before the pre-tensioner and the other hand after it.
  • Re-seat by sliding the thread under and over the metal guide so it lands between the plates.
  • Listen closely while seating; a faint metallic “click/zing” may happen when the thread drops into place.
  • Success check: The thread has smooth, light drag; if it pulls like it’s cutting through air, the plates were missed.
  • If it still fails: Improve visibility with a dedicated task light and use curved tweezers to place the thread precisely.
• Q: On a Brother PR Series machine, why does the Needle #4 auto-threader cycle but the needle eye is still empty?
  A: Seat the thread into the Needle #4 needle-clamp guide hook first—the auto-threader cannot grab thread that is resting on top of that hook.
  • Create a small loop of thread near the needle area to gain control.
  • Slide the thread behind and into the tiny metal guide hook on the needle clamp (use tweezers if fingers block the view).
  • Lay the thread across the front of the auto-threader path as indicated, then cut the tail using the built-in cutter before pressing the button.
  • Success check: A visible loop appears at the back of the needle eye; pull the loop fully through with tweezers.
  • If it still fails: Re-check the lower numbered guide hole alignment for Needle #4 (parallax can put the thread into the wrong hole).
• Q: On a Brother PR Series machine, what is the correct success check after auto-threading Needle #4 to prevent an instant birdnest?
  A: Always pull the auto-threaded loop fully through the needle eye—leaving a loop is a common cause of immediate nesting.
  • Inspect the needle eye for a loop sticking out the back right after the auto-threader finishes.
  • Grab the loop with tweezers and pull the tail completely through.
  • Leave a 3–4 inch tail and keep it clear of moving parts before starting the design.
  • Success check: A single clean tail is fully through the needle (no loop left behind) and the first stitches form without tangling.
  • If it still fails: Re-check the handoff step at the needle-clamp hook and confirm the thread is not snagged at the take-up lever.
• Q: On a Brother PR Series multi-needle embroidery machine, what is the biggest finger-safety risk when threading Needle #4 near the take-up lever area?
  A: Keep fingers clear of the take-up levers while threading—the lever movement can be forceful if the machine initializes or moves unexpectedly.
  • Stop and lock/stop the machine state before putting hands near the lever and needle bar area.
  • Use curved tweezers to guide thread through tight spaces instead of fingertips.
  • Verify thread placement by looking from the side so hands don’t block the view (and don’t drift into moving zones).
  • Success check: Hands never enter the lever travel path, and threading is completed with tools rather than fingers near moving parts.
  • If it still fails: Slow down and re-thread with better lighting so you are not “fishing” blindly around the lever.
• Q: When should embroidery operators switch from screw-tighten hoops to magnetic embroidery hoops to reduce hoop burn and speed up hooping?
  A: Switch to magnetic embroidery hoops when screw hoops are causing hoop burn or slowing production—magnetic hoops snap on fast and reduce fabric marking on sensitive materials.
  • Identify the trigger: frequent hoop marks on garments or excessive time spent tightening/loosening hoops.
  • Try a Level 1 fix first: optimize hooping technique and stabilizer choice for the fabric to reduce distortion.
  • Move to Level 2: use magnetic hoops to clamp consistently without over-tightening and to speed garment loading.
  • Success check: The fabric holds firmly without visible ring damage, and hooping time drops noticeably compared with screw hoops.
  • If it still fails: If the real bottleneck is constant thread/color changes or limited capacity, consider a higher-needle-count production machine as the next step.
• Q: What magnet safety rules should embroidery shops follow when using magnetic embroidery hoops?
  A: Treat magnetic embroidery hoops as industrial-strength magnets—keep them away from pacemakers/ICDs and protect fingers from pinch points.
  • Keep magnetic hoops away from pacemakers, ICDs, and magnetic storage media such as credit cards and hard drives.
  • Separate and assemble the hoop halves slowly and deliberately to avoid sudden snap-together pinches.
  • Store magnetic hoops so they cannot jump together unexpectedly (especially around tools and metal surfaces).
  • Success check: No accidental snap closures occur during handling, and magnets are kept clear of medical devices and magnetic media.
  • If it still fails: Implement a dedicated storage spot and handling routine so magnets are never left loose on the machine table.
