Threading a ZSK Embroidery Machine Without the Headache: The Exact Upper Thread Path That Prevents Breaks

If your ZSK suddenly starts snapping thread, shredding needles, or throwing thread-break alarms, don’t assume the machine “went bad.” In my 20 years on the production floor, the fastest fix is almost always the same: re-thread the head slowly and correctly. One missed hole or one wrong wrap direction can turn a stable setup into chaos.

This post rebuilds the exact threading sequence shown in the video—clean, repeatable, and with checkpoints so you know you’re right before you hit Start.

Start Calm: Threading a ZSK Embroidery Machine Is a System, Not a Guessing Game

When operators panic, they tend to “shortcut” the path—skipping a guide, wrapping the wrong side of a wheel, or pulling thread at an angle. That’s how you get inconsistent tension and random breaks that feel impossible to diagnose.

If you’re running a zsk embroidery machine, treat threading like a reset ritual: you’re restoring a known mechanical path so the tensioners, sensor, check spring, and take-up lever can do their jobs in the order they were designed to.

Warning: Mechanical Safety First. Keep hands, tweezers, and scissors clear of moving parts. Never thread with the machine running, and avoid reaching near the needle/presser foot area if the head could cycle unexpectedly. A needle puncture at 1000 SPM is a serious injury.

The “Hidden” Prep Pros Do First: Cones, Ends, and a No-Fray Thread Tip

Before you touch the tensioners, set yourself up for success. The video shows two small habits that prevent 80% of threading frustration:

1) Make the thread end behave. Twist the end with your thumb and forefinger to stiffen it when you need to hit small holes. If the end is fuzzy, it will fight you. 2) Cut clean (or lightly wet) before the needle eye. A clean end slides through guides and the needle eye without snagging.

Even though the video focuses on threading, here’s the shop reality: fraying often starts upstream—at the cone, at a rough cut, or from dragging the thread across a sharp edge while you’re rushing.

Prep Checklist (do this before you route anything)

• Consumables Check: Have you checked your needles? If a needle has hit the hoop previously, change it now.
• Thread Cone: Seated fully on the correct pin.
• Thread Condition: End is cut clean (no broomed fibers).
• Technique: If the end is soft/fuzzy, twist it to stiffen it before small holes.
• Tools: Tweezers are within reach (they’re not “optional” on busy days).
• Free Motion: You can pull 12–18 inches of thread freely off the cone without jerks.


Thread Stand & Rear Rack Guides: The Vertical-Line Rule That Saves Your Tension

The video starts at the back of the machine for a reason: if the thread doesn’t rise straight up from the cone to the correct rear guide holes, you’ve built a tension problem into the system before you even reach the tensioners.

What to do (exactly as shown):

• Place the cone on its pin.
• Take the beginning of the thread.
• Route it straight up into the correct holes in the rear rack guide bar.
• Follow the vertical line directly above that cone position.

Why this matters (expert insight): A sideways angle adds drag that changes as the cone unwinds. That means your “tension” isn’t just the tensioner knobs—it’s also friction and geometry. On industrial heads, tiny friction changes become visible stitch changes fast.

Checkpoint: The Visual Plumb Line. When you pull the thread gently, it should feed smoothly and stay aligned with the holes above its cone—no sawing across metal edges.

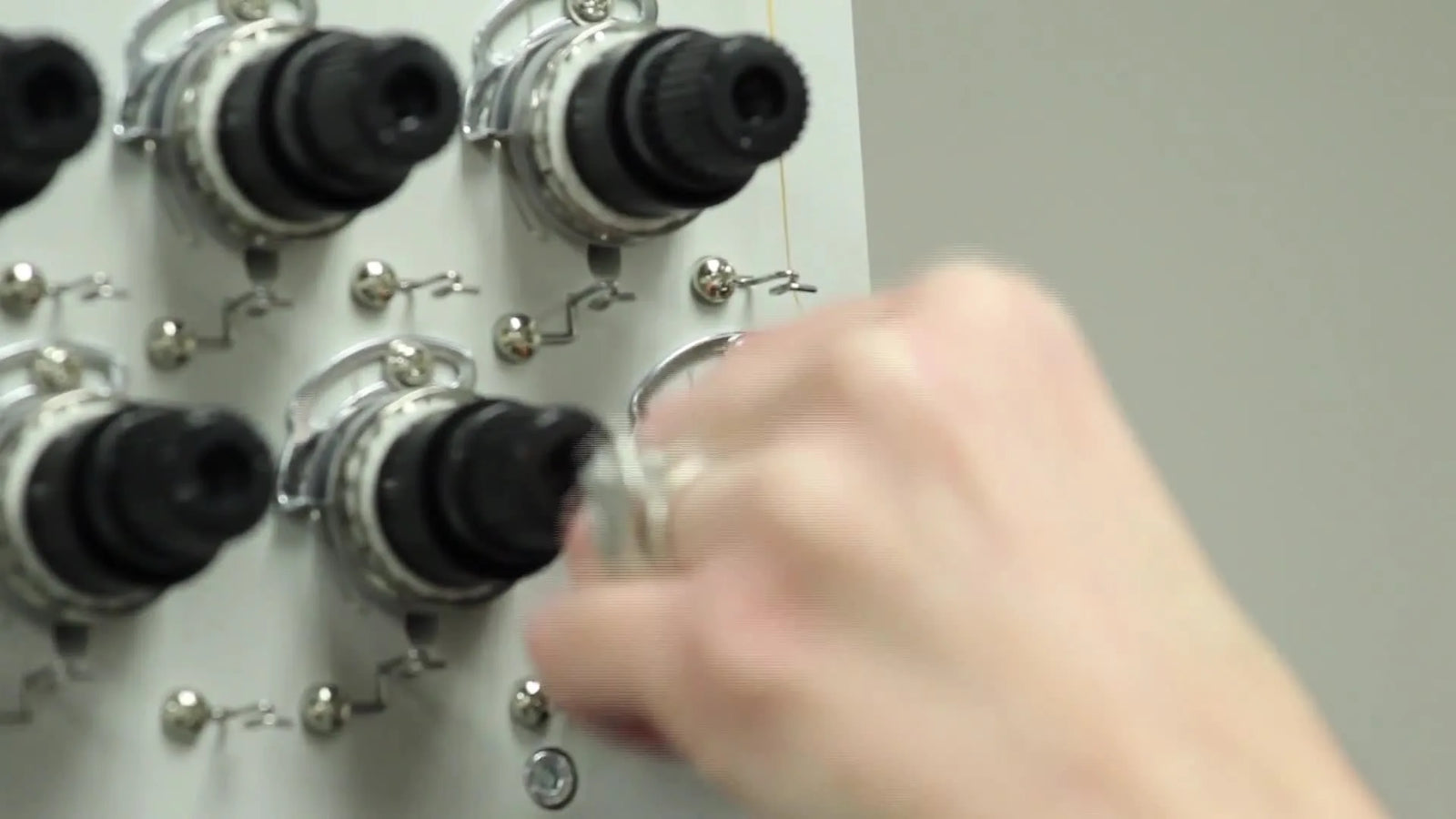

First Pre-Tensioner on the ZSK Tensioner Bank: Clockwise Seating That Actually Holds

After the rear guides, the video moves to the front top tensioner bank. This is where ZSK heads differ from many home machines.

Threading the first (top) tensioner: 1) Twist the thread end to stiffen it. 2) Go from back to front through the top hole. 3) Pull the front washer back against the spring. 4) Slide the thread between the washers and move it to the right side—the video calls this clockwise. 5) Go front to back through the bottom hole.

Pro tip pulled from the demonstration: if your fingers feel too big for the holes, use tweezers. It’s faster than fighting it.

Expected outcome: The "Floss" Feel. After this first tensioner, you should feel the thread start to “behave”—not tight yet, but no longer completely free-spooling.

Second Pre-Tensioner: The Counter-Clockwise “Opposite Move” Most People Get Wrong

The second tensioner looks similar, which is exactly why people thread it wrong.

Threading the second tensioner (opposite direction): 1) Pass the thread top to bottom. 2) Pull the washer forward. 3) Move the thread to the LEFT side—the video calls this counter-clockwise. 4) Pass front to back through the bottom hole.

The instructor notes you should start feeling real tension here.

Expert insight: these two pre-tensioners are doing early stabilization—smoothing out micro-surges from the cone and rear guides so the sensor and main tensioner see a consistent feed. If you seat one on the wrong side, you can get “mystery” tension swings that show up as looping, breaks, or inconsistent satin density.

Thread Break Sensor Wheel: One Full Wrap That Prevents False Alarms

Next is the white plastic wheel—the thread break sensor.

As shown in the video:

• Enter the groove on the right side.
• Wrap around the wheel one full rotation.
• Come down and move to the left of the guide pin.

Expected outcome: The Solid Track. The thread must sit cleanly in the groove.

Watch out: if you miss the groove or don’t complete the wrap, the sensor may not “read” movement correctly, and you can get nuisance thread-break stops even when the thread is intact.

Odd vs Even Needle Hardware on ZSK: Spot the Pigtail Layout Before You Thread the Main Tensioner

The video calls out a detail that matters on real production floors: odd and even needles don’t have identical pigtail placement.

What the instructor says to watch for:

• On some (odd) needles you’ll see a pigtail, then a tensioner, then a pigtail.
• On some (even) needles you may see a tensioner, then a pigtail and a pigtail.

Practical takeaway: Don’t “thread by muscle memory” across heads. Look at the hardware in front of you and follow the path that matches that needle position.

If you operate zsk embroidery machines in a multi-head or multi-needle environment, this is one of the most common reasons one needle behaves differently than the rest after a rethread.

The Main Rotary Tensioner: The 1.5-Wrap Rule That Makes Tension Repeatable

This is the heart of the system in the video: the main rotary tensioner wheel and the check spring.

Threading the main tensioner (exact sequence shown): 1) Pass through the pigtail (the video shows going behind it, pulling toward you, then wrapping through). 2) Enter the groove on the right side of the rotary wheel. 3) Wrap one full circle (360°) plus another half circle—total 1.5 rotations.

Why 1.5 wraps matters (expert insight):

• Safety Zone: A single wrap may not create enough consistent friction for stable stitch formation.
• Overkill Zone: Too many wraps can over-drag the thread, increasing heat and fray risk.
• Sweet Spot: The “1.5” is a repeatable baseline. It gives you predictable resistance so knob adjustments actually mean something.

Checkpoint: Smooth Resistance. Pull the thread—resistance should feel smooth, not jerky. Jerky usually means you’re not seated in the groove or you crossed the wraps.

Check Spring (Picking Spring): Right-to-Left Routing That Prevents Loops and Slack

After the 1.5 wraps, the video routes through the check spring.

As shown: guide the thread right-to-left through the check spring loop.

Expected outcome: The Dance. When you pull the thread, you should visibly see the spring move up and down.

Why this matters (expert insight): The check spring is your shock absorber. During stitch formation, the system needs controlled give-and-take. If the spring isn’t engaged correctly, you can get:

• Momentary slack that shows up as loops.
• Inconsistent top tension.
• A “snap” feeling as the take-up lever tries to recover slack too late.


Take-Up Lever Guards: The V-Path That Keeps Thread From Jumping Out Under Speed

The video then routes through the plastic separator/guard area and into the take-up lever.

Follow the path exactly: 1) Go down the right side of the plastic guard. 2) Go right-to-left through the guide. 3) Go up the left side of the guard. 4) Pass right-to-left through the take-up lever eyelet.

You’ll see a clean “V” shape down and back up.

Expert insight: this guard path isn’t cosmetic—it’s a containment system. At production speeds (900+ SPM), thread can whip violently. The guard keeps the thread tracking where it belongs so it doesn’t hop out of the take-up lever or rub a sharp edge.

Lower Guides to the Needle Bar: Top-to-Bottom Routing That Prevents Side Drag

Now you’re approaching the needle area.

As shown in the video:

• Pass top-to-bottom through the flat guide plate.
• Then pass top-to-bottom through the guide on the needle bar.

The instructor mentions pulling through extra thread to confirm everything is flowing smoothly.

Checkpoint: The Drag Test. You should be able to pull a longer length through without sudden catches. If you feel a "snag" or a "tick," stop. Don’t “power through” it, because that’s how you create a frayed spot that breaks mid-design.

Needle Clamp Pigtail: The Tiny Wire Guide That Stops Thread Whip Near the Needle

The video shows a small pigtail on the needle clamp—easy to miss, and easy to thread incorrectly.

As demonstrated:

• Locate the small pigtail on the needle clamp.
• Push the thread to the left of the pigtail, behind it, around, and through.

Expert insight: this last guide is about stability. Near the needle, thread movement is aggressive. The pigtail reduces whip and keeps the thread entering the needle eye in a controlled line to prevent shredding.

Needle Eye on a ZSK: Front-to-Back Only, Then Park It Under the Presser Foot Spring

Final step in the video:

1) Cut the thread clean (or lightly wet it). 2) Thread the needle from FRONT to BACK. 3) Make sure the thread does not twist around the needle shaft. 4) Bring the thread under the presser foot and into the holding spring.

Expected outcome: the thread tail is controlled and won’t get sucked into the first stitches to cause a "birds nest."

If you’re doing embroidery machine zsk setups for multiple needles, build a habit: always confirm front-to-back at the needle eye before you move to the next position.

Setup Checklist: A 30-Second Pull Test That Catches 90% of Threading Errors

Before you stitch, do a quick “pull test” with your fingers.

Setup Checklist (quick verification)

• Verticality: Thread rises vertically from cone to rear rack holes (no sideways angle).
• Top Tensioner (CW): First pre-tensioner is seated to the right/clockwise side.
• Bottom Tensioner (CCW): Second pre-tensioner is seated to the left/counter-clockwise side.
• Sensor: Wheel is wrapped one full rotation in the groove.
• Main Wheel: Main rotary tensioner has 1.5 wraps in the groove.
• Spring Action: Check spring moves visibly when you pull thread.
• Lever V-Shape: Take-up lever is threaded right-to-left; guard path forms a clean V.
• Needle: Threaded front-to-back; tail is parked under the presser foot spring.


Troubleshooting ZSK Threading Problems: Symptom → Cause → Fix (Fast, No Guessing)

You don’t need ten theories. You need a clean symptom map.

1) Symptom: “Bad tension” or stitches look inconsistent

• Likely cause: Thread is not going straight up from the cone to the correct rear guide holes, creating an angle. Or, missed the 1.5 wrap.
• Fix: Re-route so the thread follows the vertical line. Verification: Check the 1.5 wrap on the main wheel.

2) Symptom: You can’t get the thread through small holes / it keeps splitting

• Likely cause: Frayed thread end.
• Fix: Twist the end to stiffen it; use tweezers; cut clean; lightly wet before the needle eye.

3) Symptom: Thread-break sensor stops the machine even when thread looks intact

• Likely cause: Sensor wheel not wrapped correctly in the groove or not a full rotation.
• Fix: Rethread the sensor wheel—enter on the right side groove, wrap one full turn, exit down and left of the pin.

4) Symptom: Thread feels “grabby” or jerky when you pull it by hand

• Likely cause: Thread crossed itself on the main rotary tensioner groove or missed a guide.
• Fix: Re-do the 1.5 wrap carefully and confirm the check spring moves smoothly.

If you’re searching for zsk embroidery machine troubleshooting, start here first—thread path errors are the cheapest problems to fix and the most common.

The “Why” Behind This Thread Path: Friction, Slack Control, and Repeatability Under Production Speed

The video shows the path; here’s what it’s accomplishing mechanically (in general terms—always defer to your specific ZSK manual for your model):

• Rear vertical alignment reduces variable friction as the cone unwinds.
• Two pre-tensioners stabilize feed before the sensor and main tensioner.
• Sensor wheel wrap ensures the machine can reliably detect movement.
• Main rotary tensioner (1.5 wraps) creates a repeatable friction baseline.
• Check spring engagement manages slack during stitch formation.
• Take-up lever + guard path keeps thread contained so it can’t jump out at speed.
• Needle clamp pigtail + front-to-back needle threading stabilizes the final approach into the needle.

This is why “almost right” threading still fails: each stage is compensating for a different kind of motion—cone feed, tension smoothing, sensing, slack recovery, and high-speed whip.

Decision Tree: When Threading Is Correct but Results Still Look Wrong (Thread + Needle + Stabilizer Choices)

Threading is the foundation, but production quality also depends on matching consumables to the job. Use this quick decision tree to choose a stable baseline.

A) Are you seeing fraying or frequent top-thread breaks even after a perfect rethread?

• YES: Try a fresh needle first (a damaged eye acts like a knife). Then check thread quality.
• NO: Go to B.

B) Are stitches looping on top or looking loose?

• YES: Re-check check spring engagement and the 1.5 wrap on the main tensioner; then verify the thread is seated between washers on both pre-tensioners.
• NO: Go to C.

C) Is the fabric shifting, puckering, or distorting (even with correct threading)?

• YES: This is likely a stabilizer or hooping issue.
  • Stable woven: Standard cutaway/tearaway usually works.
  • Stretchy knit: Needs solid support (Cutaway) + consider Magnetic Hoops to prevent hoop burn.
  • Delicate: Needs careful hooping to avoid marks.

If your shop is scaling, build a “material recipe card” per product: fabric type + needle + thread + stabilizer. That’s how you stop re-learning the same lesson every order.

The Upgrade Path: When Your Real Bottleneck Isn’t Threading—It’s Hooping and Throughput

Threading correctly keeps the head stable. But if you’re running production, your profit often leaks somewhere else: hooping time, rehooping errors, and operator fatigue.

If you’re building a machine embroidery hooping station or researching a better hooping station for machine embroidery, here’s the practical “tool upgrade” logic I recommend:

• Scenario trigger: You’re spending more time loading garments than stitching, or you’re seeing hoop marks ("hoop burn") and inconsistent placement.
• Judgment standard: Track one job for a day—if hooping/rehooping consumes a painful chunk of labor, that’s your ROI target.
• Optional upgrade paths (The Solution):
  1. Level 1 (Stability): Start with Magnetic Hoops. For industrial multi-needle production, magnetic frames reduce hooping struggle and speed up repeatability—especially on thick or awkward items where traditional hoops fail or leave marks.
  2. Level 2 (Capacity): If you’re scaling beyond hobby volume, a high-productivity multi-needle platform (like SEWTECH’s Value-Focused Multi-Needle Machines) can be the next step to increase your SPM and output when order volume demands it.
  3. Level 3 (Consistency): Don’t ignore basics. Consistent embroidery thread and the right stabilizer/backing reduce rework, which is the most expensive “invisible” cost in a shop.

Warning: Magnetic Safety. Magnetic hoops use powerful industrial magnets. Keep them away from pacemakers and implanted medical devices to prevent interference. Watch your fingers—these magnets snap together with significant force (pinch hazard).

Operation Checklist (what to do every time you rethread and restart)

• Full Path: Rethread the entire path if you suspect a mistake—don’t “patch” just one section.
• Pull Test: Pull-test the thread and confirm smooth, consistent resistance (not loose, not stuck).
• Spring Check: Confirm the check spring visibly moves when you pull.
• Containment: Confirm the take-up lever is threaded right-to-left and the thread is contained by the guards.
• Tail Park: Thread the needle front-to-back and park the tail under the presser foot spring.
• Test Stitch: Run a short test stitch before committing to a full garment run.

FAQ

• Q: What are the fastest prep checks before threading a ZSK embroidery machine to prevent thread breaks and needle shredding?
  A: Do a 60-second consumables-and-thread-end reset before touching the tensioners—most “mystery” breaks start here.
  • Change the needle if the needle may have hit the hoop previously.
  • Cut the thread end clean; if the end is fuzzy, twist it to stiffen it (or lightly wet it) before small holes and the needle eye.
  • Pull 12–18 inches of thread off the cone to confirm the feed is smooth with no jerks.
  • Success check: The thread end is firm (not broomed) and feeds smoothly off the cone without catching.
  • If it still fails: Re-check the full thread path from the cone to the rear rack guides for side drag.
• Q: How can ZSK embroidery machine operators verify correct thread routing from the cone to the rear rack guides to avoid inconsistent tension?
  A: Follow the “vertical-line rule”—the thread must rise straight up to the correct rear guide holes with no sideways angle.
  • Align the thread path directly above the cone position and route through the correct rear rack guide holes.
  • Pull the thread gently and watch for any sawing across metal edges or drifting sideways.
  • Success check: The thread tracks smoothly in a straight line and does not rub an edge as it feeds.
  • If it still fails: Re-seat the cone on the correct pin and re-route again before adjusting any tension knobs.
• Q: What is the correct ZSK pre-tensioner threading direction for the first and second pre-tensioners to prevent “mystery” tension swings?
  A: Thread the first pre-tensioner clockwise/right-side seating and the second pre-tensioner counter-clockwise/left-side seating—mixing them up causes instability.
  • Seat the thread between the washers on the first pre-tensioner and move it to the right (clockwise) before exiting through the lower hole.
  • On the second pre-tensioner, seat between the washers and move it to the left (counter-clockwise) before exiting.
  • Success check: After the first pre-tensioner the thread feels more controlled, and after the second pre-tensioner you can feel real, steady tension (not free-spooling).
  • If it still fails: Rethread both pre-tensioners from scratch using tweezers to avoid missing the washer gap.
• Q: Why does a ZSK thread break sensor wheel cause false thread-break alarms, and how should the ZSK sensor wheel be wrapped?
  A: False alarms usually happen when the thread is not seated in the groove or not wrapped a full rotation on the ZSK thread break sensor wheel.
  • Enter the groove on the right side of the white sensor wheel.
  • Wrap one full rotation around the wheel, then exit down and to the left of the guide pin.
  • Success check: The thread sits cleanly in the sensor groove and tracks consistently when you pull by hand.
  • If it still fails: Re-check upstream tensioners and guides—jerky feeding can also make the sensor “think” the thread stopped.
• Q: What is the ZSK main rotary tensioner “1.5-wrap rule,” and how can ZSK operators confirm the wrap is correct?
  A: Use 1.5 wraps in the groove on the ZSK main rotary tensioner wheel to create repeatable, stable resistance.
  • Enter the groove on the right side of the rotary wheel.
  • Wrap one full circle (360°) plus another half circle (total 1.5 rotations) without crossing the thread.
  • Pull thread by hand and confirm the check spring is engaged right-to-left afterward.
  • Success check: Resistance feels smooth (not jerky), and the check spring visibly moves up and down when you pull.
  • If it still fails: Remove the wraps and redo them carefully—crossed wraps or a missed guide commonly creates “grabby” pull.
• Q: What ZSK threading mistakes cause looping or slack, and how should the ZSK check spring and take-up lever guards be routed?
  A: Looping and slack often come from incorrect ZSK check spring engagement or incorrect take-up lever/guard routing at speed.
  • Route the thread through the check spring loop right-to-left so the spring can “dance.”
  • Follow the guard path to form a clean V shape and pass through the take-up lever eyelet right-to-left.
  • Pull a longer length of thread through the lower guides and stop immediately if you feel a tick or snag.
  • Success check: The check spring moves visibly, the thread stays contained in the guard path, and the pull feels consistent with no sudden catches.
  • If it still fails: Rethread the entire path (do not patch one section) and re-check the 1.5 wrap on the main rotary wheel.
• Q: What safety rules should be followed when threading a ZSK embroidery machine needle area to avoid injury and bird’s nests on startup?
  A: Never thread a ZSK embroidery machine with the machine running, and always finish with correct needle threading and tail parking to prevent a startup nest.
  • Keep hands, tweezers, and scissors away from moving parts; avoid reaching near the needle/presser foot area if a head could cycle unexpectedly.
  • Thread the needle front-to-back only and ensure the thread does not twist around the needle shaft.
  • Park the thread tail under the presser foot and into the holding spring before pressing Start.
  • Success check: The thread tail is controlled under the presser foot spring and does not get sucked into the first stitches.
  • If it still fails: Stop immediately and rethread slowly—one missed guide or wrong wrap direction can trigger rapid breaks and alarms.
