Threading a Smartstitch Multi-Needle Machine Without the Headache: The Fast “Tie & Pull” Swap + the Full Re-Thread That Actually Works

If you’ve ever stared at a multi-needle head and felt that cold drop in your stomach thinking, “One wrong move and I’ll be chasing thread breaks all day,” you’re not alone. Threading isn’t just a chore; it’s a controlled friction system where physics meets art.

Understanding this system transforms fear into mastery. Whether a sensor wheel won’t spin freely, a knot hangs up, or you’re trying to swap colors fast, the difference between a nightmare shift and a profitable one is often just technique.

This guide rebuilds the video into a shop-floor "white paper" workflow. We cover Method 1 for rapid color swaps (the "Tie and Pull") and Method 2 for a clean manual re-thread—calibrated with the sensory checks (what to feel and hear) that professionals rely on.

Calm the Panic: What the Smartstitch Thread Path Is Really Doing (and Why Your “One Small Wrap” Matters)

A Smartstitch multi-needle machine isn’t just a collection of "guides and holes." It is a precise highway of tension. The path combines guides (alignment), tension discs (metered resistance), the clamp post (feed stabilization), and the break sensor wheel (movement detection).

Here is the physics: The sensor wheel needs the correct wrap angle (friction) and direction to "read" the thread moving.

• Too loose? The wheel slips, the machine thinks the thread is broken, and it stops falsely.
• Too tight? The drag creates tension issues, leading to snapped threads or birdnests.

When you operate a multi thread embroidery machine, stop thinking of threading as "putting string in a hole." Think of it as calibrating a precise instrument. If you get the geometry right, the machine wants to sew perfectly.

The “Hidden” Prep Pros Do First: Cones, Order, and a Clean Thread Tail Before You Touch the Needle

Before attempting Method 1 or Method 2, you must clear the runway. Experienced operators know that 80% of threading failures happen because of what happens before the thread hits the tension discs.

The "Hidden Consumables" Kit

Don't just use your fingers. Have these ready:

• Sharp curved snippers (dull scissors fray thread, causing eyelet jams).
• Tweezers (for grabbing the thread loop at the needle eye).
• Stabilizer scraps (for test stitching).

Prep checklist (Pre-Flight Protocol)

• Cone Stability: Confirm the cone is seated flat on the rack pin. If it wobbles, the thread feeds jerkily.
• The "Unwind" Test: Pull 12 inches of thread off the cone. It should flow off the top without catching on the cone's bottom notch or sticker.
• Untangle First: Find the old thread tail and untie it from the needle first. Never pull backwards from the cone; always pull thread through the machine in the direction of the stitch.
• Isolation: If swapping multiple needles, work one position at a time. Crossing threads on the rack is the #1 cause of mysterious tension changes.

A common question: Do spool colors have to match the machine positions exactly? No. The machine doesn't have eyes; it has logic. You map the color to the needle number on the screen. Focus on clean routing, not color-coding the rack.

The 60-Second Color Swap: “Tie and Pull” Threading on a Smartstitch Multi-Needle Head (Method 1)

This is the "Pro's Shortcut." You use this when the machine is already threaded correctly, and you simply need to change the supply cone. It uses the old thread as a guide to pull the new thread through the complex tension path.

When to use Method 1

• Rapid color changes between jobs.
• You are confident the current thread path is clean and unobstructed.
• Criteria: You are running a 15 needle embroidery machine and cannot afford 20 minutes of downtime to re-thread manually.

Method 1 — Step-by-step with Sensory Anchors

1. Mount the New Cone: Place the new spool on the pin.
   • Check: Ensure it is stable.
2. The Surgeon's Knot: Cut the old thread near the cone. Tie the new thread to the old thread tail using a Square Knot (reef knot).
   • Why: A square knot is small and tight. bulky knots will get stuck in the tension discs.
   • Action: Trim the loose ends of the knot short (3mm) so they don't catch.
3. The "Slow Drag": Go to the needle area. Unthread the needle eye manually. Then, pull the old thread gently.
   • Sensory Check: You should feel a smooth, consistent resistance—like pulling dental floss.
   • Visual Check: Watch the knot travel. It should pass through the tension wheel and guides.
4. The Needle Pass: Once the knot reaches the needle, stop. Cut the knot off. Thread the final inch through the needle eye manually.
   • Note: Never try to force a knot through the needle eye itself; it can bend the needle bar or burr the eye.

Warning: Needle Safety Zone.
Keep fingers clear of the needle point. When trimming thread near the foot, use your snippers carefully. A common injury occurs when an operator instinctively reaches for a "thread loop" while the machine is paused but not locked out, potentially risking a puncture if a start button is bumped.

The biggest “Tie & Pull” pitfall

Speed Kills Quality. If you yank the thread, the knot will whiplash through the tension discs, potentially popping out of the check spring or jumping off the sensor wheel. Pull slowly and steadily.

When You Must Re-Thread: Manual Smartstitch Threading From Scratch (Method 2) That Prevents False Breaks

Method 2 is your "Factory Reset." Use this after a thread break, a birdnest, maintenance, or when you suspect the "Tie and Pull" method missed a guide.

For users of the smartstitch s1501, mastering this manual path is mandatory. It is the only way to guarantee the machine is returning to factory specs.

The Tube-and-Tool Move: Thread Guides, White Tubes, and the Wire Threading Tool (Method 2, Part 1)

The white guide tubes (conduits) protect the thread from tangling on its way to the tension assembly. The challenge is gravity. We use a Wire Threading Tool to defeat it.

Method 2 — Part 1 steps

1. Rack Eyelet: Pass thread through the overhead rack eyelet first.
2. Access: If necessary, remove the side cover of the thread pipe (as noted in the video) to see clearly.
3. The Reverse Feed: Insert the long wire threading tool into the white tube from the bottom (exit) pushing up to the top (entrance).
4. The Hook & Pull: Hook the thread onto the tool at the top. Gently pull the tool back out from the bottom, bringing the thread with it.




Setup checklist (The friction audit)

• Clear Exit: Thread is fully through the tube, not caught on the tube lip.
• The "Floss" Test: Hold the thread at the cone and the tube exit. Floss it back and forth.
  • Sensory Check: It should slide silently. If you feel "grittiness" or "sawing," the tube may be kinked or dirty. Clean it or re-route.
• Isolation: The thread is not twisted around a neighbor’s tube (common on 15-needle heads).


The Tension Disc “Floss” Moment: Seating Thread Under the Chrome Plate and Deep Between the Discs

This is the single most critical point for stitch quality. 90% of "loose loops" on top of the fabric are caused by failure here.

The Physics: The tension discs squeeze the thread to create the drag required for a tight stitch. If the thread sits on top of the discs, zero tension is applied.

The Action: "Snap and Seat"

1. Pass the thread under the silver/chrome guide plate.
2. Bring it up and around the main tension knob.
3. The Move: Grasp the thread with both hands (one above, one below) and pull it firmly into the discs.
   • Sensory Anchor: You must feel it "pop" or slide deeply between the metal plates. It should feel like flossing tight teeth.
   • Visual Check: The thread should disappear between the plates, not float on the edge.

Pro Tip: Thread quality matters. If you run commercial machines like the smartstitch 1501, ensure your cones are consistent. Mixing cheap, linty thread with premium polyester can cause variable friction, making tension adjustments impossible.

The Non-Negotiable Wrap Counts: Smartstitch Thread Clamp (2x Clockwise) + Break Sensor Wheel (1.5 Rounds Right-to-Left)

Geometry acts as the software's eyes. The machine cannot see the thread; it feels the rotation of the sensor wheel. You must adhere to the engineering spec.

A) Thread clamp winding (The Stabilizer)

• Located immediately below the tension knob.
• Action: Wind exactly two (2) times, Clockwise.
• Why: This prevents the thread from lashing out of the tension discs during high-speed jumps (800+ SPM).

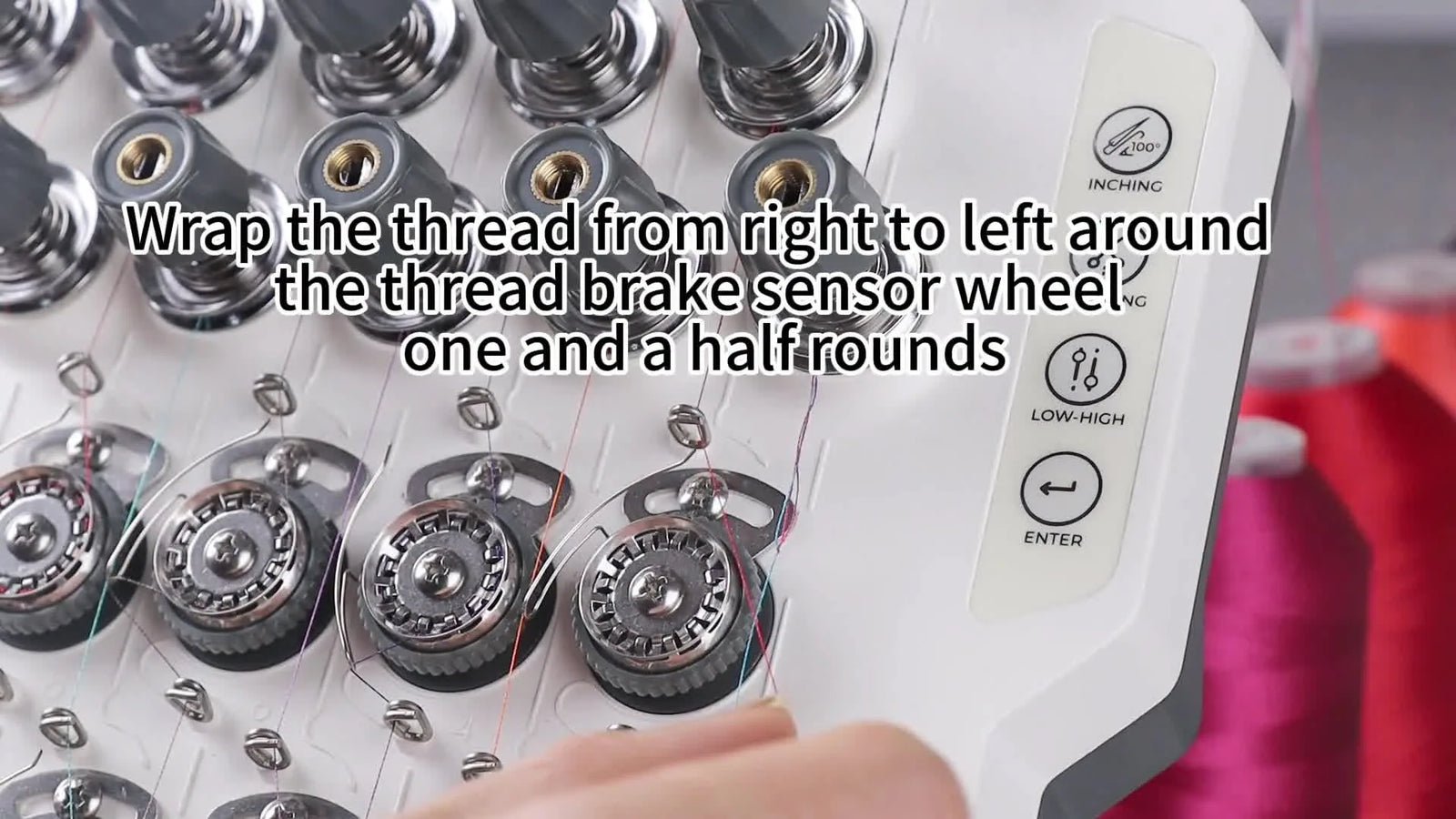

B) Thread break sensor wheel (The Reader)

• Action: Wrap from Right to Left.
• Count: Exactly one and a half rounds (1.5).
• Visual: The thread enters on the right, goes around a full circle, and exits on the left.


Verification check (The "Spin" Test)

Gently pull the thread downwards.

• Sensory Check: The sensor wheel should rotate smoothly with the thread.
• Auditory Check: It should be silent—no squeaking or grinding.

Note on Compatibility: Users transitioning from brother multi needle embroidery machines often get this wrong. Brother machines often require fewer wraps or use optical sensors. Always trust the manual for your specific machine.

Warning: Magnetic Field Safety.
If you upgrade to magnetic hoops (like those used on SEWTECH or Smartstitch machines) to speed up hooping, keep the magnets away from pacemakers, insulin pumps, and credit cards. The clamping force is industrial-grade—watch your fingers to avoid severe pinching.

The Needle Bar Route That Stops Random Breaks: Eyelets, Right-to-Left Holes, and the Final Clip

Gravity takes over here. We need to guide the thread to the needle eye without it whipping around.

1. Upper Eyelets: Pass through the top row.
2. Middle Guide: Follow the path (usually Right to Left).
3. Check Spring (The Take-Up Lever): Ensure the thread passes through the eye of the take-up lever. Crucial: If you miss this lever, the thread will break instantly upon starting.
4. Needle Bar Guide: Pass through the small wire loop just above the needle clamp.
5. Needle Eye: Thread from Front to Back.
6. The Retainer: tuck the tail into the small spring clip (picker) behind the needle bar.

That final clip is not decoration. It holds the tail so the first stitch catches the bobbin thread cleanly. Without it, the thread tail can get sucked into the fabric, causing a messy "birdnest" on stitch #1.

The Clean Finish That Keeps Your Next Run Faster: Tail in the Clip, Trim, and Move On

We finish with discipline.

• Secure the tail in the holding spring.
• Trim the excess to about 3 cm (1.2 inches).


Operation checklist (End-of-Threading Sanity Check)

Before you press start, verify these 5 points. If one is wrong, the machine pauses.

1. [ ] Discs: Thread is "flossed" deep between tension discs (not floating).
2. [ ] Clamp: Post has exactly 2 clockwise wraps.
3. [ ] Sensor: Wheel has 1.5 wraps (Right-to-Left) and spins freely.
4. [ ] Lever: Thread is definitely through the Take-Up Lever eye.
5. [ ] Needle: Threaded Front-to-Back, tail secured in the clip.

The “Why It Keeps Happening” Insight: Friction, Drag, and the Small Mistakes That Multiply in Production

When threading issues repeat, it is rarely "bad luck." It is physics.

• Micro-Drag: A tiny burr on a guide eyelet acts like a brake.
• Sensor Blindness: 1 wrap instead of 1.5 allows the thread to slip. The thread is moving, but the wheel isn't, so the machine falsesly reports a "Thread Break."
• Hoop Burn & Fatigue: Sometimes the issue isn't threading—it's the fabric shifting because the hoop isn't holding tight enough, causing needle deflection.

Troubleshooting Smartstitch Threading Problems: Symptom → Likely Cause → Fix

Use this Low-Cost to High-Cost diagnostic table. Always fix the physical path before changing software settings.

A Simple Decision Tree: When to Use Tie-and-Pull vs Full Manual Threading (and When an Upgrade Pays)

Stop guessing. Use this logic flow to make the right decision in seconds.

1. Scenario: Routine Color Change?

• Condition: Machine runs well; just need new color.
• Action: Use Method 1 (Tie & Pull).
• Success Metric: Done in <60 seconds.

2. Scenario: Thread Break / Birdnest?

• Condition: Thread snapped, or you suspect a tangle.
• Action: Use Method 2 (Manual Re-thread).
• Reason: You must verify the entire path physically.

3. Scenario: Production Pain Points?

• Condition: The threading is fine, but you are losing money on slow hooping, sore wrists, or "hoop burn" marks on delicate items.
• Action: Tool Upgrade.
  • Solution A: Switch to Magnetic Embroidery Hoops. They clamp faster, hold tighter without marking, and reduce operator fatigue. Even searches for generic smartstitch embroidery hoops often lead pros to magnetic upgrades for this reason.
  • Solution B (Cap Stability): If hats are shifting, look for a specialized smartstitch hat hoop or a dedicated cap driver system to ensure the bill stays registered.

4. Scenario: Volume Overload?

• Condition: You are spending more time re-threading a single-needle machine than sewing.
• Action: Capacity Upgrade. Move to a dedicated multi-needle system (like SEWTECH platforms) to keep 15 colors ready to fire instantly.

The goal is a "boring" shop floor—where machines run quietly, threading takes seconds, and the drama is left for the design work, not the setup.

FAQ

• Q: How do I do a Smartstitch multi-needle embroidery machine “Tie and Pull” color change without the knot getting stuck at the needle?
  A: Use a small square knot, trim the tails short, and pull slowly—speed is the main reason the knot hangs up.
  • Tie: Cut the old thread near the cone, tie new-to-old with a square (reef) knot, and trim tails to about 3 mm.
  • Pull: Unthread the needle eye first, then pull from the needle area with steady, gentle force (do not yank).
  • Cut & finish: Stop when the knot reaches the needle area, cut the knot off, then thread the last inch through the needle manually.
  • Success check: The resistance feels smooth and consistent (like dental floss), and the knot travels through the path without jumping guides.
  • If it still fails: Switch to full manual re-threading and re-seat the thread in the tension discs and sensor wheel path.
• Q: How do I stop Smartstitch multi-needle embroidery machine false “Thread Break” alarms caused by the thread break sensor wheel?
  A: Re-wrap the sensor wheel to the correct direction and wrap count, then confirm the wheel spins freely when you pull the thread.
  • Wrap: Route the thread on the sensor wheel Right-to-Left with exactly 1.5 rounds.
  • Clean: Remove lint from the sensor wheel area so the wheel can “read” movement.
  • Test: Pull the thread downward gently to confirm the wheel rotates smoothly.
  • Success check: The wheel spins silently with the thread—no squeak, no grind, no slipping.
  • If it still fails: Re-check that the thread clamp post has exactly 2 clockwise wraps and that the thread is not crossed or twisted with a neighboring position.
• Q: How do I fix loopy top stitches on a Smartstitch multi-needle embroidery machine caused by the thread not seating in the tension discs?
  A: “Snap and seat” the thread deep between the tension discs—most loopy tops happen when the thread rides on the disc edges.
  • Route: Pass the thread under the chrome/silver guide plate, then follow the tension knob path.
  • Seat: Pull firmly with two hands (one above, one below) to pop the thread into the discs.
  • Re-check: Keep the thread path isolated (one needle position at a time) to avoid accidental cross-routing.
  • Success check: You feel a distinct “pop”/tight flossing sensation and the thread visually disappears between the plates (not floating).
  • If it still fails: Inspect for thread quality inconsistencies (linty cones) and re-audit the path for missed guides.
• Q: How do I prevent immediate thread breaks on a Smartstitch S1501 after re-threading when the take-up lever is missed?
  A: Re-thread the needle-bar route and confirm the thread passes through the take-up lever eye—missing that point can cause instant breakage at start.
  • Re-route: Follow the eyelets and guides in order, then pass through the take-up lever eye before going to the needle bar guide.
  • Thread: Thread the needle Front-to-Back and place the tail into the small spring clip (retainer) behind the needle bar.
  • Finish: Trim the tail to about 3 cm so the first stitches don’t pull excess thread into the fabric.
  • Success check: The thread tail stays held by the clip and the first stitch does not birdnest.
  • If it still fails: Perform a full “end-of-threading” check—tension discs seated, clamp wraps correct, sensor wheel wrap correct, and wheel spins freely.
• Q: What is the safest way to trim thread near the needle on a Smartstitch multi-needle embroidery machine during threading and color changes?
  A: Treat the needle area as a safety zone—keep fingers out of the needle path and trim with snippers in a controlled way.
  • Use tools: Use sharp curved snippers (not dull scissors) and tweezers for loops at the needle.
  • Position hands: Hold thread tails away from the needle point and avoid reaching into the needle path.
  • Control risk: Do not rely on “paused” as safe—avoid situations where a start button could be bumped.
  • Success check: Thread is trimmed cleanly without fraying, and hands never cross directly in front of the needle point.
  • If it still fails: Stop and reset your working position; re-approach with tweezers rather than fingers near the needle.
• Q: What magnetic field safety rules should operators follow when using magnetic embroidery hoops on Smartstitch or SEWTECH machines?
  A: Keep magnetic hoops away from medical implants and protect fingers—industrial clamping force can pinch severely.
  • Keep distance: Keep magnetic hoops away from pacemakers, insulin pumps, and credit cards.
  • Handle safely: Separate and join hoop parts deliberately; keep fingertips out of the closing zone.
  • Train habits: Store hoops so magnets are not snapping together unexpectedly.
  • Success check: The hoop closes without uncontrolled “snap,” and no fingers are in the clamp line during closure.
  • If it still fails: Switch to slower, two-hand handling and review the shop’s handling routine before resuming production.
• Q: When should Smartstitch multi-needle embroidery machine operators choose technique fixes vs upgrading to magnetic embroidery hoops vs moving to a SEWTECH multi-needle machine?
  A: Diagnose the bottleneck first—use technique for threading issues, magnetic hoops for hooping pain/marks, and a multi-needle platform when capacity is the real limiter.
  • Level 1 (Technique): Use Tie-and-Pull for routine color swaps; use full manual re-thread after thread breaks, birdnests, or missed guides.
  • Level 2 (Tool): Upgrade to magnetic hoops when hooping is slow, causes hoop burn marks, or creates operator fatigue even when threading is correct.
  • Level 3 (Capacity): Move to a dedicated multi-needle system (such as SEWTECH platforms) when a single-needle workflow is spending more time re-threading than sewing.
  • Success check: The “problem” becomes boring—threading takes seconds, hooping is fast and consistent, and stoppages drop noticeably.
  • If it still fails: Track where time is lost (threading vs hooping vs rework) and address the biggest time sink first rather than changing multiple variables at once.
