The “Window Stitch” Trick for an ITH Lip Balm Holder: Clean Front-and-Back Detail on a Brother PR655 (Without Ruining the Pocket)

The terror of the "sealed pocket" is a rite of passage for In-The-Hoop (ITH) enthusiasts. You spend 45 minutes executing a flawless design, only to realize the final satin stitch has sewn your pocket shut, or worse, you have no way to remove the stabilizer trapped inside.

This guide dissects the "Window Stitch" technique—an architectural workaround that solves this specific physics problem. By creating a temporary access hatch in your stabilizer, you can embroider detail behind a pocket without sealing it prematurely.

While this guide focuses on a specific vinyl lip balm holder, the core engineering principle here applies to any ITH project requiring hidden layers or functional openings. We will break this down from a cognitive perspective: understanding the "Why" (physics), the "How" (tactile execution), and the safety protocols to keep your fingers and your machine intact.

The "Window Stitch" Concept: Why It Looks Wrong Before It Goes Right

When you first load this design, you will see a large, aggressive rectangular run stitch that seems to serve no decorative purpose. Your instinct might be to skip it. Do not.

This rectangle is an engineering boundary. It marks the zone where you will perform a "stabilizerectomy"—surgically removing the backing material while the project is still under tension in the hoop.

• The Goal: To create a hole in the stabilizer so you can pull the waste material out through the pocket opening later.
• The Risk: If you cut the vinyl during this step, the project is dead.
• The Reward: A perfectly clean pocket interior with no scratchy stabilizer residue.

If you are currently researching a specific pocket hoop for embroidery machine, understand that this technique allows you to achieve pocket-hoop quality results using standard flat frames, provided you master the layering logic.

Supplies & Pre-Flight Checks: The Difference Between Hobby and Professional

In my 20 years of floor experience, 90% of embroidery failures happen before the "Start" button is even pressed. The success of working with vinyl—a material that does not heal from needle punctures—lies in preparation.

The "Hidden" Consumables List

The video highlights the basics, but here is the "Safety Net" list you should actually have on your table:

1. 75/11 Sharp or Topstitch Needle: Ballpoint needles struggle to pierce vinyl cleanly and can cause drag.
2. Non-Fabric Scissors: You need sharp, curved snips for the stabilizer, but do not use your expensive Ginghers on paper/stabilizer combinations.
3. Lighter (Optional): For singeing polyester thread tails (carefully!).
4. Tearaway Stabilizer: Non-negotiable for this specific technique.

Decision Tree: Choosing Your Stabilizer

Use this logic flow to confirm your materials are correct before proceeding:

• Is the project an ITH Item with a hidden pocket?
  • YES: Use Tearaway. It must fracture easily to be removed from the sealed pocket.
  • NO (Standard Shirt/Towel): Use Cutaway.
• Are you using Vinyl?
  • YES: Use Medium Weight Tearaway (approx 1.8 - 2.0 oz). Avoid thin "tissue" tearaway as it may perforate too early during the satin stitch.

Warning: Physical Safety
Curved embroidery scissors are fantastic for precision, but they are also the fastest way to slice vinyl—or your finger—when you rush corners.
* The Rule: Never cut toward your hand.
* The Practice: Place the hoop on a flat, stable table. Do not try to trim stabilizer while balancing the hoop in the air.

Prep Checklist: The "No-Fail" Protocol

Before you attach the hoop to the machine, physically verify these four points. If you cannot check the box, do not start.

• Stabilizer Type: Confirmed it is TEARAWAY. (Cutaway will ruin the pocket functionality).
• Vinyl Sizing: Pre-cut vinyl pieces are at least 1-inch larger than the design area on all sides to allow for safe taping/clipping.
• Tool Position: Curved scissors and painter’s tape are within arm's reach (you cannot walk away during the critical pause).
• Bobbin Check: You have at least 50% bobbin remaining. Running out of bobbin thread during a vinyl satin stitch creates puncture holes that ruin the material.


Hooping Strategy: Managing Tension Without Distortion

The reference video utilizes durkee ez frames with binder clips. This is a classic "float" technique used in production shops because it is fast and minimizes hoop burn on sensitive materials. However, it introduces a variable that standard magnetic hoops eliminate: human inconsistency.

The Tactile Standard: "Drum Skin" vs. "Warped"

When securing your stabilizer with binder clips, you are the tensioner.

• Too Loose: You will hear a "flagging" sound (a rapid thwack-thwack) as the needle lifts the loose stabilizer. This leads to registration errors where outlines don't line up.
• Too Tight: The stabilizer fibers distort. When you release the clips later, the embroidery will pucker.

The Sweet Spot: Tighten until the stabilizer is smooth and taut. Tap it with your finger—it should sound like a dull drum. If using binder clips, ensure they are not placed where the machine head might travel (a collision here is catastrophic).

The Layering Logic: Why Cutaway is Forbidden

The creator emphasizes that tearaway is required. Let’s explain the physics of why, so you don't feature-creep this project into failure.

In standard garment embroidery, cutaway stabilizer is king because it provides permanent structural support. However, in this ITH architecture, the stabilizer acts as a temporary scaffold. You need the scaffold to hold the vinyl during construction, but you must be able to shatter that scaffold inside a sealed pocket to remove it.

If you use cutaway, you will end up with a pocket fused shut by a fibrous paper that you cannot cut out without destroying the vinyl facing.

Step 1: Pocket Placement & Alignment Anchors

After running the placement stitch (the "map" on your stabilizer), look for the small tick marks.

The Strategy: Place your pocket vinyl so it barely covers those tick marks.

• Too high: You waste material.
• Too low: The tack-down stitch will miss the edge, and the pocket will detach.

Use painter’s tape or embroidery tape to secure the edges. Note: Vinyl has a "memory." If you tape it down wrinkled, it stays wrinkled. Smooth it flat with the palm of your hand before applying tape.

Step 2: The Tack-Down (Safety Zone)

This step secures the pocket and stitches the decorative "mermaid scale" pattern.

Operational Safety: Once you press start, keep your hands clearly away from the stitching field. The tape is doing the holding work now. Listen to the machine. A rhythmic, solid mechanical sound is good. A high-pitched "squeak" as the needle penetrates indicates friction—if you hear this, you may need to lower your speed (SPM) or apply a tiny drop of sewer’s silicone to your needle.

Step 3: Floating the "Under-Hoop" Detail Layer

This is the cognitive hurdle where most novices fail. You must place the teal vinyl piece underneath the hoop, and it must be Right Side UP.

• Visualization: Imagine the hoop is a glass table. You are sticking a decal on the underside of the glass, facing up toward you.
• The Trap: If you place it Right Side Down (facing the floor), your embroidery detail will be stitched onto the fuzzy/cloth backing of the vinyl, and the pretty side will be hidden inside the layers forever.

If you struggle with gravity (the layer falling off), use tape on the corners. If you are using a single-needle machine with a low clearance bed, this is tricky. This is a prime scenario where magnetic embroidery hoops shine—they allow you to clamp layers quickly without wrestling with adhesive tape that might gum up your needles.

Warning: Magnetic Field Safety
magnetic embroidery hoops use powerful neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise skin or blood blisters. Keep fingers clear of the mating surfaces.
* Electronic Safety: Keep these magnets at least 6 inches away from computerized machine screens, pacemakers, and credit cards.

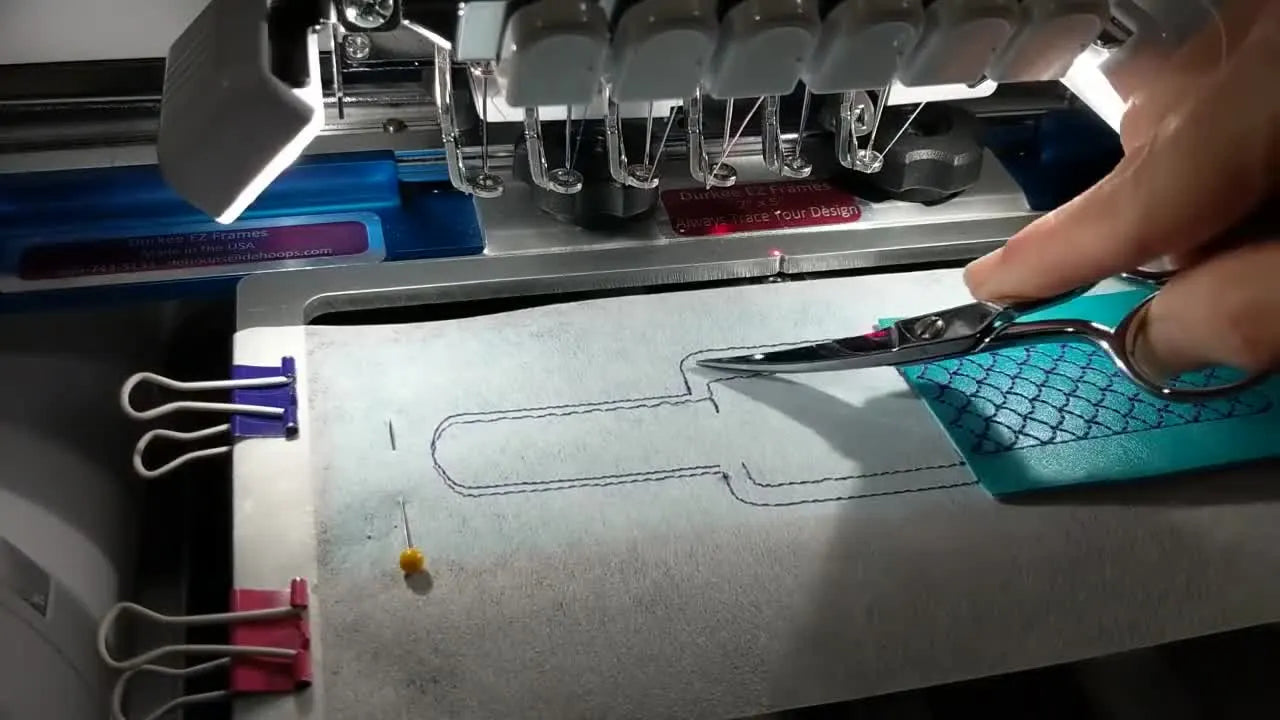

Step 4: The Window Stitch Surgery

The machine will stitch a rectangle. This is your cue.

1. Remove the hoop from the machine arm (Do NOT remove the fabric from the hoop).
2. Flip the hoop over. You will see the rectangle stitched through the stabilizer.
3. The Cut: Using your curved snips, cut the stabilizer inside that rectangle.

The "Good Enough" Standard: You do not need to cut perfectly flush with the stitching. Leaving 1mm to 2mm of paper fuzz is acceptable. The goal is bulk removal, not microscopic precision. If you try to get too close, you risk snipping the vinyl layer you just floated.

Step 5: Final Backing Assembly

Now we build the final sandwich.

• Material: Blackboard fabric (or final backing vinyl).
• Placement: Underneath the hoop.
• Orientation: Right Side DOWN (Pretty side facing the floor).

Cognitive Chunking:

• Previous Step: Detail Layer = Right Side UP.
• This Step: Backing Layer = Right Side DOWN.

Imagine the two "pretty" sides constitute the bread of a sandwich, and the stabilizer is the ham in the middle.

If you are doing production runs of 50+ items, this constant flipping and clipping creates significant wrist fatigue. This is the criteria threshold where a machine embroidery hooping station becomes an investment in your physical health, keeping frames square and stable while you manipulate layers.

Pre-Flight Checklist: The Final Run

Before running the final satin border, verify:

• Under-layer Security: The teal detail vinyl is still taped/secure.
• Window Status: Stabilizer is removed from the window.
• Backing Orientation: Final backing is Right Side DOWN.
• Clearance: Clips/Magnet frame are clear of the needle path for the full border trace.

Step 6: The "Bobbin Pull-Up" (Preventing Bird Nests)

A "bird's nest"—that chaotic tangle of thread on the underside—usually happens on the first few stitches of a satin run because the top thread tail gets sucked down into the bobbin case.

The Fix:

1. Hold the top thread tail with your left hand.
2. Manually turn the handwheel or use your machine's "Needle Up/Down" button to take one single stitch.
3. Pull the top thread gently. You will see a loop of bobbin thread come up through the hole.
4. Pull that bobbin loop out.
5. Hold both tails (top and bobbin) taut while you press the Start button.
6. Release after 5-10 stitches.

This creates a clean, locked anchor with zero nesting.

Step 7: The Finish & cleanup

Once the machine finishes:

1. Unhoop the project.
2. Trim around the perimeter (leave about 1/8" to 1/4" margin from the satin stitch).
3. The Reveal: Reach inside the pocket. You will feel the loose piece of stabilizer that you cut free during the Window Stitch step. Pull it out.

Because you used Tearaway and pre-cut the window, this piece should slide out effortlessly, leaving a clean pocket interior.

Operation Checklist: Quality Control

• Perimeter Cut: Cuts are smooth with no nicks in the satin stitching.
• Pocket Interior: All loose stabilizer is removed.
• Thread Tails: All tails are trimmed; intentional tie-offs remain intact.
• Snap Install: Ready for hardware installation (if applicable).

Single-Needle vs. Multi-Needle: Managing the Constraints

Can you do this on a Brother SE400 or similar single-needle machine? Yes. However, you face a physical constraint: clearance. It is harder to float vinyl under a flatbed machine without it shifting.

• The Single-Needle Workaround: Use aggressive taping or a magnetic hoop for brother specifically designed to slide easily onto flatbed machines. The magnet acts as a clamp, doing the job that gravity helps with on multi-needle machines.

Commercial Scaling: When to Upgrade Your Toolkit

If you are making one of these for a niece, binder clips are fine. But if you land a contract for 100 school spirit holders, you need to analyze your bottlenecks.

The Assessment Matrix:

Troubleshooting Guide: Symptoms & Cures

If things go wrong, use this table to diagnose the root cause immediately without guessing.

Final Thoughts

The "Window Stitch" is more than a step in a PDF instruction manual; it represents a shift from 2D thinking to 3D construction. Once you master the ability to modify your stabilizer mid-stream without unhooping, you open the door to complex ITH zippers, lined bags, and reversible projects.

Practice this on scrap vinyl first. Get the "feel" of that under-hoop float step. Once your hands learn the rhythm, you’ll be turning out professional-grade pocket organizers that look just as good on the inside as they do on the outside.

FAQ

• Q: For an In-The-Hoop vinyl pocket design using a Window Stitch, why must the stabilizer be tearaway instead of cutaway?
  A: Use tearaway because the Window Stitch technique depends on breaking and pulling the stabilizer out of a sealed pocket later; cutaway can trap fibers inside and ruin pocket function.
  • Choose medium-weight tearaway for vinyl and avoid very thin “tissue” tearaway that may perforate too early.
  • Cut the stabilizer window only inside the stitched rectangle while the project stays hooped.
  • Success check: After finishing, the stabilizer piece slides out through the pocket opening with minimal resistance.
  • If it still fails: Confirm the window was actually cut (not just stitched) and that cutaway was not used by mistake.
• Q: When floating stabilizer with binder clips in Durkee EZ Frames, how tight should the stabilizer be to prevent registration issues without causing puckering?
  A: Aim for smooth, taut stabilizer with a “dull drum” feel—tight enough to stop flagging, not so tight that fibers distort.
  • Tap the hooped stabilizer and listen/feel for a dull drum response (not floppy).
  • Reduce looseness if a “thwack-thwack” flagging sound happens during stitching.
  • Keep binder clips out of the machine head travel path to prevent collisions.
  • Success check: Outlines and borders land cleanly on top of prior stitching with no shifting.
  • If it still fails: Re-hoop/re-clip and re-check clip placement and stabilizer smoothness before restarting.
• Q: For an ITH vinyl pocket project, how do you prevent a bird’s nest on the underside at the start of the final satin border using the bobbin pull-up method?
  A: Do a bobbin pull-up and hold both thread tails for the first few stitches to stop the top thread from getting sucked into the bobbin area.
  • Hold the top thread tail, then take one manual stitch (handwheel or needle up/down).
  • Pull up the bobbin loop, then hold both top and bobbin tails taut.
  • Start stitching and release tails only after 5–10 stitches have anchored.
  • Success check: The underside shows a clean start with no tangled thread wad forming.
  • If it still fails: Stop immediately, cut the nest carefully, re-thread, and repeat the bobbin pull-up before restarting.
• Q: During the Window Stitch “stabilizer surgery,” how close should curved embroidery scissors cut to the rectangle stitching to avoid slicing vinyl?
  A: Cut inside the rectangle and leave about 1–2 mm of stabilizer fuzz—don’t chase a perfect flush cut because vinyl damage ends the project.
  • Remove the hoop from the machine without unhooping the project.
  • Flip the hoop over and cut only the stabilizer inside the stitched rectangle.
  • Keep the hoop flat on a table and never cut toward your hand.
  • Success check: The stabilizer window is open, but the vinyl layer remains un-nicked and smooth.
  • If it still fails: Switch to slower, smaller snips and prioritize bulk removal over precision trimming.
• Q: For magnetic embroidery hoops used in ITH vinyl work, what safety rules prevent finger pinches and electronic interference?
  A: Treat magnetic hoops as pinch-hazard tools and keep strong magnets away from sensitive electronics and medical devices.
  • Keep fingers clear of the mating surfaces when the magnets snap together.
  • Store and handle magnets away from computerized machine screens, pacemakers, and credit cards (a safe starting point is at least 6 inches).
  • Clamp layers deliberately—do not “let them jump” together uncontrolled.
  • Success check: The hoop closes without bruised fingers and the machine operates normally with no screen/behavior oddities.
  • If it still fails: Stop using the magnets near the machine electronics and follow the embroidery machine manufacturer’s guidance for magnet proximity.
• Q: On a Brother SE400-style single-needle flatbed machine, how do you keep the “under-hoop” vinyl detail layer from shifting during the floating step?
  A: Use firm corner taping (or a magnetic hoop designed for single-needle clearance) so the vinyl stays right-side up and doesn’t slide while you stitch.
  • Place the under-hoop detail layer right side up (the “decal under glass” visualization).
  • Tape corners securely before stitching so gravity and movement don’t peel the layer away.
  • Slow down if needed when stitching over vinyl to reduce friction and shifting.
  • Success check: The detail embroidery lands on the pretty side of the vinyl and remains correctly positioned after stitching.
  • If it still fails: Recheck orientation (right side up) and increase stabilization/taping before restarting the step.
• Q: For production runs of 50–100 ITH vinyl pocket items, when should you switch from binder clips to magnetic frames or upgrade to a multi-needle embroidery machine?
  A: Upgrade when consistent pain points appear—hoop burn, wrist/hand fatigue, or slow color changes—because those are bottlenecks, not skill issues.
  • Level 1 (technique): Improve taping, tension consistency, and the bobbin pull-up start routine.
  • Level 2 (tooling): Use magnetic frames to reduce hoop burn and reduce repetitive clip/screw strain.
  • Level 3 (capacity): Move to a multi-needle setup when thread-change time dominates production time.
  • Success check: Cycle time per item drops and quality becomes repeatable across batches.
  • If it still fails: Track exactly where minutes are lost (hooping vs. trimming vs. thread changes) and address the biggest bottleneck first.
