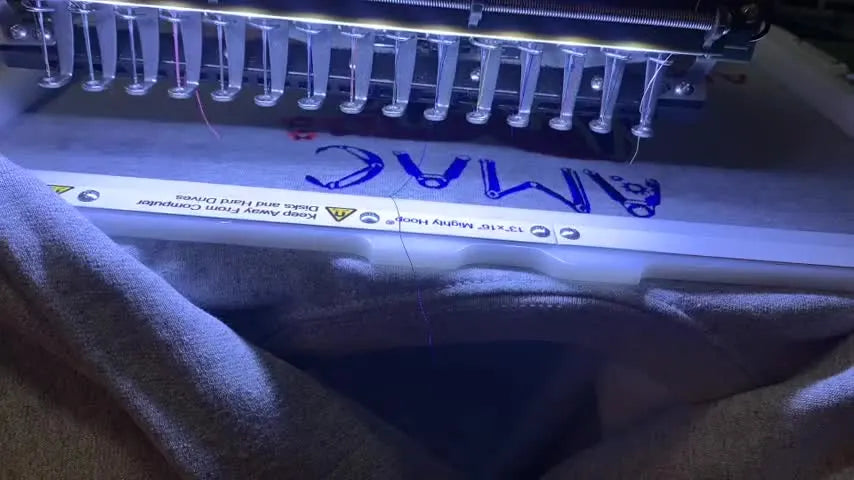

The Upside-Down Hooping Trick on a Ricoma: Clean Sweatshirt Embroidery with a 13x16 Magnetic Hoop (No Hoop Burn, No Hoop Strikes)

Mastering Heavyweight Sweatshirts: The "Inverse Hooping" Protocol for Multi-Needle Success

If you have ever attempted to stitch a dense, large-scale logo onto a heavyweight sweatshirt, you are likely familiar with the two primary antagonists of embroidery: bulk drag (where the garment weight pulls against the pantograph) and hoop burn (the permanent crushing of fleece fibers by traditional plastic frames).

This guide documents a "production-grade" workflow—demonstrated on a Ricoma multi-needle machine using a 13x16 magnetic hoop—that solves both issues. The secret lies in a counter-intuitive technique: hooping and loading the garment upside down. This method leverages gravity to assist your stitching rather than fighting it.

The Physics of Drag: Why Sweatshirts Fail on Multi-Needle Machines

To master embroidery, you must first understand the mechanics at play. A thick sweatshirt is essentially a heavy, elastic blanket. When you force this material into the throat of a machine using standard orientation, several physical forces work against you:

• Friction: The bunched fabric rubs against the machine arm.
• Gravity: The hanging weight pulls the hoop off-center.
• Elasticity: The knit structure wants to distort under needle penetration.

These forces result in registration errors (gaps between outlines and fills) and thread breaks. A magnetic embroidery hoop is often the preferred solution here because it secures the fabric with vertical magnetic force rather than lateral friction, minimizing the "stretch distortion" common with standard continuous hoops.

The "Pre-Flight" Prep: Stabilizer Physics and Safe Desk Setup

Before a single stitch is sewn, success is determined by your preparation. We treat this stage not as "getting ready," but as engineering the foundation.

The Stabilizer Strategy: In the demonstration, the operator selects a lightweight cut-away stabilizer.

• The Logic: Heavy sweatshirts already possess structural density. A heavy stabilizer would make the chest plate feel like cardboard ("bulletproof vest effect"). A lightweight cut-away provides just enough X/Y axis stability to prevent the knit from distorting without adding unnecessary bulk.

The "Bite" Margin: Crucially, the stabilizer is cut slightly larger than the hoop's outer dimension.

• The Physics: Magnets need traction. If your stabilizer ends inside the magnetic ring, the magnet is gripping only slick fabric. By extending the stabilizer past the edge, the top magnet grips [Stabilizer + Fabric + Bottom Ring]. This sandwich creates a non-slip friction lock essential for high-speed stitching.


Warning: Mechanical Pinch Hazards
The pantograph and needle bar force is sufficient to crush bone. Keep fingers, loose hair, hoodie drawstrings, and baggy sleeves well clear of the stitching field. Never reach into the hoop area while the machine is live—one unexpected "jump stitch" movement can result in severe injury.

Prep Checklist: The "Go/No-Go" Criteria

• Stabilizer Sizing: Is the cut-away sheet large enough to be gripped by all four sides of the magnetic ring?
• Obstruction Check: Have you removed or taped down hoodie strings, zippers, or thick kangaroo pocket seams that might slide under the hoop?
• Gravity Planning: Have you identified where the heavy bulk of the hoodie will hang? (It should hang away from the machine throat).
• Hidden Consumable Check: Do you have sharp, curved trimming scissors and a fresh needle (Size 75/11 Ballpoint is the "Sweet Spot" for sweatshirting)?
• Hoop Size Verification: Does the 13x16 field actually fit your garment size? (XS or S hoodies may struggle with a 16-inch wide frame).


The Inverse Hooping Technique: Handling Bulk Without the Battle

The core maneuver here represents a paradigm shift: rotate the garment to accommodate the machine, not the other way around.

The Step-by-Step Protocol:

1. Placement: Lay the bottom magnetic ring inside the sweatshirt.
2. Layering: Slide the cut-away stabilizer strictly between the bottom ring and the inside of the fabric.
3. The Inversion: Position the top magnetic frame so the mounting brackets are facing upside down (towards the neck of the garment, or towards you).
4. The Snap: Allow the top frame to snap onto the bottom ring.
5. The Tactile Check: Tap the hooped fabric area with your fingers.

Sensory Anchor (Sound/Touch): When you tap the hooped fabric, listen for a deep, resonant "thump-thump," similar to a tuned drum.

• Too loose: It sounds flat or flabby. The fabric will pucker.
• Too tight: You cannot depress the fabric at all. You have over-stretched the knit, which will cause the design to shrink when unhooped.


Volume Control: The bulk of the sweatshirt (the hood and shoulders) should be at the "bottom" of your hoop setup, so when loaded into the machine, the bulk hangs off the front table rather than bunching up against the machine body. This is where a magnetic mighty hoop system proves its value—it creates this secure hold without "hoop burn" marks that ruin the surface of delicate fleece.

Loading on the Pantograph: The "Double Click" Security Standard

Loading a heavy garment is a critical failure point. If the hoop is seated at a 1-degree angle, your design will be crooked.

The Loading Procedure:

• Thread the bulk of the sweatshirt under the machine head.
• Slide the hoop brackets into the pantograph slots.
• Sensory Anchor (Sound): You must hear a distinct, sharp metallic CLICK on the left arm range, followed by a second CLICK on the right.


The Physical Verification: After hearing the clicks, grab the hoop frame (not the fabric) and give it a firm wiggle. The machine carriage should move with the hoop. If the hoop wiggles independently of the machine arm, it is not seated.

Setup Checklist: The Physical Safety Loop

• Connection: Confirmed two audible clicks when seating the hoop.
• Clearance: Is the garment bulk hanging freely off the front? Ensure no fabric is bunched behind the needle bar.
• Sleeve discipline: Are both sleeves rolled or tucked away? (Sleeves are notorious for sliding under the needle mid-stitch).
• Needle Clearance: Is the needle path clear of the magnetic edges?
• Thread assignment: Verify color sequence (Video uses 6, 3, 6).


The 180° Cognitive Flip: Matching Software to Reality

Because we hooped the garment upside down to manage bulk, we must tell the machine's "brain" that the world is inverted.

The Parameter Adjustment:

• On the Ricoma interface (or your specific machine panel), locate the Design Orientation/Rotate function.
• Select the Upside Down "F" icon. This rotates the stitch file 180 degrees.

Why this matters: If you skip this step, your logo will be stitched perfectly—but upside down on the wearer's chest. This is the most common error in bulk-management workflows.

Compatibility Check: Operators often search for terms like mighty hoop for ricoma specifically to ensure that the brackets on their magnetic hoops align perfectly with the pantograph arms, ensuring that this "inverted loading" is physically possible without straining the machine.

The Contour Trace: The Last Line of Defense

With a design 15 inches wide inside a 16-inch hoop, you have only 0.5 inches of clearance on either side. A standard "Square Trace" is insufficient here because the corners of the square might hit the hoop even if the design fits.

The Action: Run a Contour Trace (checking the actual perimeter of the embroidery shape).

Visual Anchor: Watch the laser guide or Needle #1. As it travels the perimeter, ensure there is a visual gap—at least 5mm—between the presser foot and the magnetic wall. If the presser foot strikes the magnet, it can shatter the foot or throw the machine out of timing.

Warning: Magnetic Field Safety
Modern magnetic hoops use high-powered Neodymium magnets.
1. Pinch Hazard: Do not place fingers between rings; they slam shut with extreme force.
2. Medical Devices: Keep hoops at least 6 inches away from pacemakers or insulin pumps.
3. Electronics: Do not rest hoops on laptops or near unshielded control panels.

Execution phase: Managing the Long Run

A large back-piece design can take 1.5 to 2 hours. This is not "set and forget."

Speed Recommendations (The Sweet Spot):

• Expert: 900-1000 SPM (Stitches Per Minute).
• Intermediate/Safe: 700-850 SPM.
• Reasoning: On thick fleece, high speeds generate heat and friction. slowing down slightly reduces thread shredding and needle deflation.




Sleeve Management: Before pressing start, physically clip or tuck the sleeves. The vibration of the machine will cause loose sleeves to migrate toward the needle plate.

Operation Checklist: Monitoring the Run

• Run 1 Check: Watch the first 500 stitches. If thread breaks happen here, it’s usually tension or loading.
• Listen: Learn the sound of your machine. A rhythmic "chug-chug" is good. A slapping or grinding sound requires an immediate stop.
• Bobbin Watch: On a 2-hour run, expect to change the bobbin. Do not wait for it to run completely empty if you can avoid it.

The Mid-Run Recovery: Fixing a Run-Out Like a Pro

In the tutorial, the bobbin runs out mid-logo. This is normal. The recovery technique distinguishes a novice from a pro.

The Workflow:

1. Stop: The machine detects the break.
2. Replace: Insert fresh bobbin. Ensure it spins Clockwise (or per your machine spec).
3. Tension Check (Tactile): Pull the bobbin thread through the tension spring. You should feel slight resistance, like pulling floss between teeth.
4. The "Back-Up" Maneuver: Before resuming, reverse the machine 5-10 stitches.

Why Back Up? When a bobbin runs out, the last few stitches on top are essentially loose loops with nothing holding them. By backing up, you stitch over those loose loops, locking them in and preventing a hole in the design.

Factory Finish: The Invisible Inside

Unhooping should be done with care. Use the release tabs on the magnetic hoop to break the seal—do not pry with fingernails.

Trimming Protocol: Flip the sweatshirt inside out. You will see the square of cut-away stabilizer.

• Use Curved Embroidery Scissors.
• Safety Technique: Place your non-dominant hand under the stabilizer and over the sweatshirt fabric. As you cut, the scissors glide against your fingers, protecting the garment from an accidental snip.




The stabilizer may feel stiff initially, but high-quality cut-away softens significantly after the first wash.

Decision Tree: Stabilizer Selection for Heavy Garments

Don't guess. Use this logic flow to determine your consumable stack.

Variable 1: Fabric Stretch

• Is it rigid (Hefty 100% Cotton)? -> Medium Tear-away (if design is open) or Light Cut-away.
• Is it spongy (50/50 Poly-Cotton Blend)? -> Light to Medium Cut-Away (Standard Industry Choice).
• Is it slippery (Performance Hoodie)? -> Heavy Cut-Away + Temporary Adhesive Spray.

Variable 2: Design Density

• Open Text/Outline: -> One layer stabilizer.
• Dense Fill (like the AMAC logo): -> One layer Cut-Away. (Adding too many layers creates a "cardboard" feel).

Structured Troubleshooting Guide

When things go wrong, follow this "Low Cost to High Cost" diagnostic path.

The Efficiency Upgrade Path: When to Buy What

As you move from hobbyist to production, your needs change. recognizing the "pain point" tells you when to invest.

1. Pain Point: Wrist Strain & Hoop Burn If you are struggling to clamp thick Carhartt-style hoodies, or if standard hoops are popping open mid-stitch, this is the trigger to investigate magnetic frames for embroidery machine. They convert a physical struggle into a simple "snap," speeding up production by 30-40%.

2. Pain Point: Crooked Logos & Slow Setup When you start getting orders for 50+ shirts, "eyeballing" placement kills your profit margin. This is when specific terms like how to use magnetic embroidery hoop usually lead users to discover the consistency of a dedicated magnetic hooping station. A station ensures every logo is placed at the exact same vertical measurement without measuring every single shirt.

3. Pain Point: Throughput Bottlenecks If your single-needle machine is running perfectly but you simply cannot finish orders fast enough, or if color changes (like the Navy/Red/Navy sequence in the video) are eating up your day, it is time to look at multi-needle platforms. Moving to a machine like the SEWTECH multi-needle series allows you to preset 12-15 colors and run non-stop, turning "active labor time" into "passive monitoring time."

Similarly, for consistency across specific machine brands, utilizing a ricoma mighty hoop starter kit can standardize your tooling, ensuring that your hoops, stations, and machine arms are a unified, calibrated ecosystem.

Or, if you are looking for a universal solution to improve your setup speed regardless of machine brand, a versatile embroidery hooping station solves the geometry problem of aligning straight logos on round garments.

Final Quality Audit

A professional job isn't finished until the inside looks as good as the outside.

• Trim Check: Is the stabilizer trimmed to within 0.5 inches of the design?
• Thread Check: Are all "jump threads" (connecting lines) sniped flush?
• Texture Check: Does the embroidery flexibility match the garment drape?

By mastering the Upside Down Hooping technique and understanding the physics of your stabilizer, you move from "hoping it works" to "knowing it will work." That is the definition of professional embroidery.

FAQ

• Q: How do I prevent hoop burn on a heavyweight fleece sweatshirt when using a traditional plastic embroidery hoop on a Ricoma multi-needle embroidery machine?
  A: Reduce clamp pressure and change the holding method—hoop burn is common on fleece, and magnetic hoops often prevent it by distributing pressure more evenly.
  • Switch: Use a magnetic hoop for the sweatshirt front to avoid crushing the fleece pile.
  • Control: Avoid over-tight hooping; do not stretch the knit just to “make it flat.”
  • Recover: If marks already exist, steam the ring area lightly (do not press an iron directly onto the pile).
  • Success check: The fleece pile rebounds and the ring line becomes less visible after steaming and resting.
  • If it still fails: Re-evaluate hooping tension using the “drum sound” check and confirm the garment bulk is not dragging against the machine throat.
• Q: How do I know a magnetic embroidery hoop is tightened correctly for a thick sweatshirt before running a large, dense logo on a multi-needle embroidery machine?
  A: Use the “tuned drum” sound and feel test—aim for firm support without over-stretching the knit.
  • Tap: Tap the hooped area with fingertips and listen for a deep, resonant “thump-thump.”
  • Adjust: If it sounds flat/flabby, re-hoop and ensure the magnets are fully seated; if it is rock-hard, reduce stretch by re-hooping more relaxed.
  • Verify: Keep the stabilizer slightly larger than the hoop’s outer edge so the magnet grips stabilizer + fabric + ring.
  • Success check: The fabric springs back when pressed lightly and does not ripple or pucker when moved by hand.
  • If it still fails: Add temporary adhesive spray between fabric and stabilizer to reduce shifting (test first and follow product directions).
• Q: How large should cut-away stabilizer be for a magnetic hoop on a heavyweight hoodie to prevent fabric shifting and registration loss during multi-needle embroidery?
  A: Cut the cut-away stabilizer slightly larger than the hoop’s outer dimension so the magnets can “bite” and lock the sandwich.
  • Cut: Size stabilizer so it extends past all sides of the magnetic ring footprint.
  • Place: Position stabilizer between the bottom ring and the inside of the garment (not floating loose elsewhere).
  • Check: Confirm the magnet is gripping stabilizer + fabric all the way around, not just slick sweatshirt fabric.
  • Success check: The hooped unit resists sliding when you try to shift the fabric by hand.
  • If it still fails: Re-hoop and confirm the stabilizer is not ending inside the magnetic ring perimeter.
• Q: How do I safely load a heavy sweatshirt into the pantograph on a Ricoma multi-needle embroidery machine using a magnetic hoop so the design is not crooked?
  A: Seat the hoop brackets squarely and require the “double click”—a hoop seated at an angle is a common cause of crooked logos.
  • Route: Thread the sweatshirt bulk under the machine head so the heavy hood/shoulders hang off the front table, away from the machine throat.
  • Seat: Slide hoop brackets into the pantograph slots until you hear a sharp metal click on the left, then a second click on the right.
  • Test: Wiggle the hoop frame (not the fabric); the carriage should move with the hoop.
  • Success check: The hoop does not wiggle independently, and the garment bulk hangs freely without bunching behind the needle bar.
  • If it still fails: Unload and re-seat the hoop—do not force stitching when only one side is latched.
• Q: What design rotation setting is required after upside down hooping a sweatshirt on a Ricoma multi-needle embroidery machine to avoid stitching the chest logo upside down?
  A: Rotate the stitch file 180° on the machine interface so the embroidery matches the inverted garment orientation.
  • Find: Open the Design Orientation/Rotate function on the control panel.
  • Select: Choose the upside-down (flip/180°) orientation icon to rotate the design.
  • Confirm: Run a trace after rotation to ensure the design boundary matches the hoop clearance.
  • Success check: The trace path matches the intended top/bottom of the logo relative to the garment neckline.
  • If it still fails: Stop and re-check that the garment was hooped inverted (brackets oriented upside down) before changing rotation again.
• Q: How do I prevent presser foot strikes on a 13x16 magnetic hoop when running a near-max size (15-inch) design on a multi-needle embroidery machine?
  A: Use a contour trace (not only a square trace) and maintain at least about 5 mm clearance from the magnetic wall.
  • Run: Start a contour trace that follows the actual design perimeter.
  • Watch: Observe the laser guide or Needle #1 as it travels the perimeter and check side clearance continuously.
  • Stop: Abort immediately if the presser foot approaches the magnetic edge—do not “try it anyway.”
  • Success check: There is a visible gap around the full perimeter, and the presser foot never approaches the magnet closely during tracing.
  • If it still fails: Reduce design size or move the design position; do not rely on squeezing a max design into minimal clearance.
• Q: What safety precautions are required when using a neodymium magnetic embroidery hoop near a multi-needle embroidery machine pantograph and needle bar?
  A: Treat the hoop as a pinch/crush hazard and keep magnets away from medical devices—this is common shop safety, not “being overly cautious.”
  • Keep clear: Never place fingers between magnetic rings; let the rings snap together from the edges using release tabs to separate.
  • Distance: Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Protect: Keep drawstrings, loose sleeves, and hair away from the needle and pantograph movement path before pressing start.
  • Success check: Hands are never inside the hoop area while the machine is live, and the garment has no loose parts that can migrate under the needle plate.
  • If it still fails: Pause the job, power down if needed, and reset the work area—do not troubleshoot with hands near a moving carriage.
