The Ultimate Guide to DST Files for Embroidery: Creation, Conversion, and Compatibility

1. Introduction to DST Files in Machine Embroidery

DST files are the stitch-by-stitch “language” most commercial embroidery machines understand. Unlike images (JPEG/PNG), DST encodes precise needle movements, jumps, trims, and color-change stops. In this guide, you’ll learn how DST is structured, its technical constraints, and why it remains the industry workhorse. We’ll also walk through image-to-DST conversion, key best practices for stitch quality, compatibility and transfer tips, and the software—free, paid, and online—that can help you create reliable DST designs for production. tajima machines are among the most popular in the industry.

Table of Contents

• 1. Introduction to DST Files in Machine Embroidery
• 2. Understanding DST File Structure and Technical Specifications
• 3. Converting Images to DST Format: Tools and Best Practices
• 4. DST Compatibility Across Machines and Software
• 5. Software Tools for DST Creation and Management
• 6. Optimizing Stitch Quality in DST Files
• 7. Conclusion: Mastering DST for Professional Results
• 8. Frequently Asked Questions (FAQ)

2. Understanding DST File Structure and Technical Specifications

2.1 Binary Architecture and Header/Body Organization

DST (Data Stitch Tajima), developed by Tajima, stores stitch data in a compact binary format that differs fundamentally from image files. Where JPEG/PNG save pixels, DST encodes instructions the machine executes on fabric.

• Header + body: A DST file has a header followed by a stream of stitch commands.
• Header: 512 bytes total, with about 125 bytes used for ASCII metadata (e.g., LA for label/design name, ST for total stitches, CO for number of color-change records, +X/-X/+Y/-Y for design extents). Some machines use these entries to gauge percent complete or hoop fit. DST does not embed thread colors, vectors, or thumbnails.
• Body: A continuous sequence of 3-byte commands encoding X/Y movement and machine controls at the bit level.

• 3-byte command structure: Each command uses bits to represent needle moves (X and Y in signed increments) and control flags. Common control types include:
  • Normal stitch
  • Jump (move without stitching)
  • Color change/stop
  • Sequin mode
  • Trim behavior is conventionally inferred after several consecutive jumps (often 3–5)

• Max stitch/jump length: Sources describe this as 121 units, typically referenced as 12.1 mm.

In short, DST is stitch-only data. It’s compact, machine-friendly, and ideal for efficient processing—without the visual baggage of pixels. You preview a DST with embroidery software, not a typical image viewer.

2.2 Technical Limitations and Industry Applications

• No embedded thread colors: DST marks color-change stops but doesn’t store actual thread values. Operators assign threads at the machine. While DST can accommodate numerous changes, many sources cite up to 256 color changes.
• No vectors or thumbnails: DST focuses on final stitch instructions only.
• Stitch length: Maximum of about 12.1 mm (121 units) per stitch/jump for mechanical reliability.
• 3-byte precision: Movement increments are quantized by the encoding scheme.

Why it dominates commercial embroidery:

• Universal compatibility: Widely supported by Tajima, Brother, Barudan, Janome, and many others, making DST a practical “Esperanto” for production environments.
• Production reliability: The format’s simplicity reduces interpretation errors and supports consistent results across different machines and runs.
• Industry standard workflows: Professional digitizers frequently deliver DST to ensure machine-agnostic stitching with predictable execution.

3. Converting Images to DST Format: Tools and Best Practices

3.1 Step-by-Step Conversion Workflow

1) Prepare the image - Aim for clear edges and simplified colors. Gradients and tiny details rarely translate cleanly to stitches. - Use a high-quality source; compression artifacts in JPEGs can cause messy stitch paths. - Tip on scaling: One tutorial suggests downsizing by about 20% in software; another source notes DST can maintain integrity with resizing up to approximately 30%, depending on design and parameters. For those using Tajima machines, tajima software provides advanced digitizing capabilities. 2) Import and digitize in software - Bring artwork into digitizing software (e.g., Wilcom, Hatch, Embird, Tajima DG/ML, or Ink/Stitch). - Assign stitch types by purpose: - Satin stitches for borders/lettering - Fill stitches for larger areas - Running stitches for outlines/fine details - Set density for fabric: Denser for stable materials; lighter for stretch substrates. Add underlay to stabilize and reduce distortion. - Optimize pathing: Minimize jumps, plan stitch order, and manage travel to reduce trims and thread breaks. 3) Size and hoop planning - Choose a hoop size that fits the design (e.g., 100 × 100 mm/4 × 4). Verify extents and center the design to 0/0 when your software supports it. 4) Preview the stitch sequence - Use the stitch player to confirm order and behavior. For appliqué/patch designs, you’ll typically see placement, tack-down, then satin border steps in the DST preview. 5) Export to DST (and save your working file) - Best practice: Save your editable working file first (e.g., .EMB in Hatch) to preserve properties and colors; then export to DST for the machine. DST won’t retain thread colors—only color-change stops. - If your software provides a dedicated “Output/Export to DST,” use that to ensure proper formatting. 6) Transfer to the machine - Copy the DST to a USB drive, safely eject it (on Windows, use “Safely Remove Hardware”), then load it on the machine. Navigate to the USB menu to select the file. - Remember: The machine will not honor software color edits in a DST file—assign thread colors at the machine based on the color-change stops. 7) Test stitch and refine - Stitch a sample on scrap with appropriate stabilizer (e.g., doubled tear-away for patches was shown in a tutorial). Evaluate coverage, tension, pull/push compensation, and density. Iterate until production-ready. Key quality checks - Stitch density and direction: Balance coverage with fabric stability. - Underlay: Use edge/wave/zig-zag underlays to prevent puckering and improve top stitch quality. - Jump/trim management: Efficient sequencing reduces stray threads and speeds production.

3.2 Online vs. Professional Software Solutions

Professional software (Wilcom, Hatch, Embird, Tajima DG/ML) - Strengths: - Full control over stitch types, densities, underlay, pathing, and sequence. - Sophisticated editing, simulation, and optimization for production. - A typical pro workflow imports the image, vectorizes or traces, assigns stitch objects, fine-tunes parameters, and exports DST after test runs. - Best practice from Hatch guidance: Always save your native working file (.EMB) first (retains colors/properties), verify hoop fit and centering, then export DST for the machine. Free/open and entry-level options (per tutorials) - Ink/Stitch (open-source Inkscape extension): Supports DST export, stitch simulation, lettering tools, tutorials, and a community knowledge base. - Wilcom TrueSizer (free): View, resize, convert, and manage DST and other formats; good for prepping files. - Embrilliance Express (free tier): Lettering with BX fonts; basic adjustments and saving to common machine formats. - My Editor (free): View/edit, stitch player, resizing/rotation with many formats. - Stitch Era Universal (free/paid): Create/edit with basic simulation and multi-format support. - SewArt (trial): Image preprocessing and “auto-sew” for basic conversions. Online conversion services and digitizers - Pros: - Convenience, speed, and accessibility from anywhere. - Some services combine automated steps with expert refinement. - Caveats noted by industry sources: - Automated tools struggle with nuanced decisions (density, stitch direction, underlay, pathing). - Output quality can vary; intricate designs often require human digitizing expertise. - Data privacy matters when uploading proprietary artwork. - A detailed guide from Genius Digitizing outlines the JPEG-to-DST process, highlights common challenges (color mapping, density, scaling, machine/software interpretation differences), and emphasizes test stitch-outs and iterative refinement. Performance and resizing notes - A technical source indicates DST’s binary structure is compact (often smaller than proprietary formats) and can maintain stitch integrity when resized up to approximately 30%—but always validate with a test stitch, since fabric, density, and detail complexity ultimately decide the viable range. Bottom line - For logos, text, and simpler art, free/trial tools and careful settings can work. - For complex or brand-critical work, professional software—or a seasoned digitizing service—delivers better control over stitch quality, efficiency, and machine behavior. Save your editable source first, export DST for the machine, and always test before production.

4. DST Compatibility Across Machines and Software

4.1 Machine Brand Support and File Transfer Methods

DST is the most commonly used stitch file in commercial embroidery, and it’s readable on virtually all major brands—Tajima (native), Brother, Baby Lock, Melco (alongside EXP), Janome (in addition to JEF), and more. Because DST stores stitch-by-stitch moves, jumps, and color-change stops, it reproduces consistently across multi-brand setups. - Brother and Baby Lock wireless workflows - Brother Design Database Transfer supports wireless transfer of .pes, .phc, .phx, .dst, and .pen, and shows thumbnails for many formats (.pes, .phc, .phx, .dst, .pen, .exp, .pcs, .hus, .vip, .shv, .jef, .sew, .csd, .xxx). - Baby Lock Wireless LAN–enabled models (e.g., Altair, Flare, Meridian, Solaris 2, Vesta, Array, Venture) use Design Database Transfer on Windows 8.1/10/11 to send .pes, .phc, .phx, and .dst wirelessly. - Pairing is done inside the desktop application; once paired, you can push designs directly. - Traditional transfer methods (universally applicable) - USB drive: Export the DST, copy it to a USB stick, safely eject, then load it from the machine’s USB menu. A beginner-friendly video tutorial demonstrates downloading, unzipping, copying to USB, safely ejecting on Windows, and selecting designs on the machine. - Direct connection: Some machines support cabled PC-to-machine communication via vendor software. - Memory cards: Certain models accept CF or proprietary cards—follow your machine’s specifications. - Practical recognition/troubleshooting tips - Unzip downloads before transfer; machines can’t read zipped archives. - Export via your software’s dedicated “Export/Save as DST” so the header/body structure is correct (Hatch explicitly recommends saving your editable native file first, then exporting DST). - Check your machine’s supported formats. Many home models prefer PES but still read DST; select the one your brand lists as compatible. - When a file doesn’t show up: confirm the file extension (.dst), re-copy to USB and safely eject, and ensure the design size fits your hoop. Some machines use DST header extents to gauge fit and stitches to display progress. Bottom line: Whether you send designs wirelessly (Brother/Baby Lock) or via USB, DST travels well between brands because it’s stitch-only, machine-ready data.

4.2 Optimizing Garment Embroidery with Modern Hooping Solutions

Garment embroidery lives and dies on stable tension. Stretch knits, heavy sweatshirts, seams, zippers—any uneven surface can introduce puckering, distortion, or hoop burn if the fabric isn’t held evenly throughout the sew-out. That’s where magnetic hoops for tajima embroidery machines have become a go-to for production teams: they help keep fabrics flat with uniform pressure and reduce handling time between jobs. Sewtalent magnetic embroidery hoops are designed for garment hooping (not for caps/hats) and focus on three outcomes that matter for DST stitch-outs: - Even holding, fewer distortions - A magnetic hooping system applies consistent, evenly distributed pressure, helping minimize shifting, warping, and hoop marks. This is especially helpful for satins and long fills that accentuate fabric movement. - Speed and repeatability - Switching from screw-tightened plastic hoops to Sewtalent’s magnetic hooping can cut garment hooping time dramatically—down from about 3 minutes to roughly 30 seconds per garment, saving about 90% of hooping time in repetitive work. - Versatility and fit - With more than 17 hoop sizes (approx. 4 × 4 in to 17 × 16 in) and compatibility across hundreds of commercial/industrial machines (Tajima, Brother, Baby Lock, Ricoma, Barudan, Happy Japan, SWF, ZSK, Melco, Janome, PFAFF, Bernina, Husqvarna Viking, and more using the right bracket), Sewtalent adapts to most garment workflows. Positioning reference lines aid quick alignment, helping keep DST stitch paths on-target. Long-term value also comes from durability. Sewtalent uses high-grade engineering plastics and more/stronger magnets than some alternatives. Internal testing shows a service life 27–40× longer than Mighty Hoop in impact/angle tests, while pricing is positioned to be cost-effective over time. If your DSTs are dialing in but your fabric handling isn’t, upgrading hooping is often the fastest win in production consistency.

5. Software Tools for DST Creation and Management

5.1 Free and Open-Source Options (Ink/Stitch, SewArt)

• Ink/Stitch (open-source, cross-platform via Inkscape)
• Strengths:
  • Works with SVG artwork and offers numerous stitch types, lettering, and tools for stitch path optimization.
  • Provides stitch simulation, tutorials, sample files (appliqué, FSL, fringe), and a comprehensive user manual.
  • Active community support and frequent updates.
• Considerations:
  • Learning curve for vector concepts (paths/nodes).
  • Community resources are robust, but highly complex designs can still require advanced digitizing judgment and iteration.
• SewArt (trial available)
• Strengths:
  • Image preprocessing and “auto-sew” capabilities are handy for basic conversions (e.g., JPEG/PNG to simple stitch objects).
  • A practical step-up for hobbyists who need straightforward image-to-stitch conversion.
• Considerations:
  • Automated tools struggle with nuanced density, underlay, and stitch direction on intricate artwork; expect to refine and test-stitch.

Helpful companions from free/trial ecosystems (from tutorials and guides):

• Wilcom TrueSizer (free): View, resize, convert; accurate representation and basic manipulation before exporting to DST.
• Embrilliance Express (free tier): Lettering with BX fonts; easy text workflows for words and phrases.
• My Editor (free): 3D preview, thread color view, rotate/resize, stitch player for stepping through sew sequences.

Takeaway: For logos, text, and simpler artwork, Ink/Stitch plus TrueSizer/My Editor covers a surprising amount of ground. As complexity rises, plan on more manual control and test stitch-outs.

5.2 Professional Software (Wilcom, Hatch, Embird)

A side-by-side snapshot from referenced sources:

tajima embroidery software is known for its reliability and advanced features.

Best practice across all tiers: Save your editable working file first (e.g., Hatch .EMB), then export DST for the machine. That preserves object properties and colors in your source file while delivering a clean stitch-only DST for production.

6. Optimizing Stitch Quality in DST Files

6.1 Stitch Type Selection and Density Parameters

• Pick the right stitch for the job
• Running stitch: Outlines, detail work, travel, and underlays.
• Satin stitch: Borders, small lettering, and decorative elements with a smooth, shiny finish; avoid overly long satins on stretchy fabrics without proper underlay and compensation.
• Fill (tatami) stitch: Large coverage areas with alternating rows for even texture.

• Density and spacing (fabric-driven)
• Standard fabrics: A referenced range is about 0.4–0.45 stitches per square centimeter, balancing coverage and flexibility.
• Heavy materials (e.g., denim): Sources cite much higher densities (250–300 stitches per square centimeter), but always validate with test stitch-outs to prevent stiffness, thread breaks, or distortion.
• Fill row spacing: A guideline of roughly 3–5 mm, adjusted to fabric weight and the look you want.
• Underlay: Use it as a foundation to stabilize fabric (e.g., edge or zig-zag) before top stitching to curb puckering and improve coverage.

• Compensation and scaling
• Pull compensation: Add width where the thread tends to contract so letters, borders, and tight shapes finish at intended dimensions.
• Resizing: DSTs maintain integrity within roughly ±25% per one source; another cites around 30%. Beyond that, re-digitizing is safer. Regardless, test stitch any significant resize.

• Pathing and trims
• Optimize sequence to reduce jumps and trims. Efficient travel lowers stops, minimizes thread breaks, and cleans up the back of the piece.

Bottom line: Choose stitches with purpose, tune density to the fabric, lean on underlay, and test. DST is faithful to every move—use that fidelity to your advantage.

6.2 Achieving Consistent Results with Proper Tension

For tajima embroidery, maintaining proper tension is critical.

Consistent thread tension and stable fabric handling go hand in hand. Uneven holding can telegraph into your DST results as puckering, skewed outlines, hoop burn, and increased thread breaks—especially on knits and mid-weight garments.

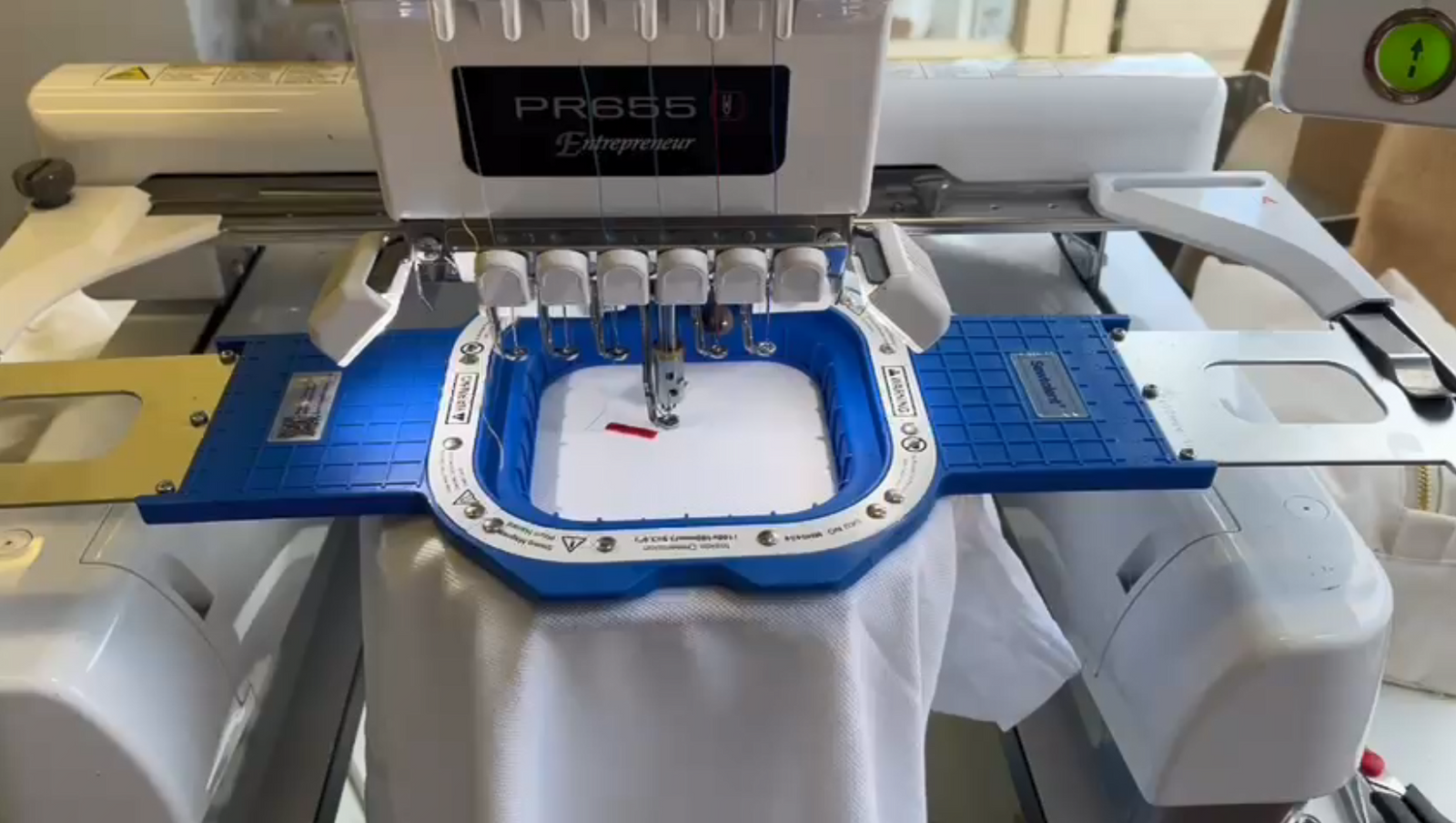

Sewtalent magnetic embroidery hoops help stabilize garment embroidery (not for cap/hat hooping) by delivering:

• Even magnetic holding across the hoop area to reduce distortion during satins and fills, which helps you run balanced upper/bobbin tension.
• Fewer hoop marks: Even pressure distribution reduces hoop burn on sensitive fabrics.
• Faster, repeatable setup: Cutting hooping time from about 3 minutes to ~30 seconds per garment (around 90% saved) encourages more test stitch-outs and quick tweaks, which directly improves quality control in production.

With broad machine compatibility (via the appropriate bracket) and a range of sizes from roughly 4 × 4 in up to 17 × 16 in, Sewtalent makes it easier to pair good digitizing (density, underlay, compensation) with reliable fabric holding. That combination is what keeps stitches smooth, outlines true, and thread breaks to a minimum.

7. Conclusion: Mastering DST for Professional Results

DST is the stitch-by-stitch workhorse for commercial embroidery—compact, predictable, and widely compatible. tajima embroidery machine users rely on DST for consistent results. To get consistent results, digitize with intent: choose the right stitch types, tune density and underlay for your fabric, and plan efficient pathing. Save your editable source file first (e.g., .EMB), then export DST. Transfer correctly (unzip, safe-eject USB or use supported wireless tools), and always test-stitch before production. Tools like Ink/Stitch, Hatch, Embird, TrueSizer, and My Editor make it easier to refine, verify hoop fit, and iterate toward production-ready quality.

8. Frequently Asked Questions (FAQ)

8.1 Q: Why can’t my machine read my DST file?

A: Common causes include: the file is still zipped; the file wasn’t exported via your software’s dedicated “Export/Save as DST”; unsafe USB removal corrupted the copy; the design exceeds your hoop size; or your model prefers another format (many home machines favor PES). Confirm the .dst extension, unzip first, re-copy and safely eject, verify hoop fit, and check your machine’s supported formats.

8.2 Q: How do I fix stitch distortions (puckering, gaps, pull/push)?

A: Adjust density to suit the fabric, add the right underlay, and apply pull compensation so borders and letters finish to size. Optimize pathing to reduce jumps/trims, stabilize properly, and verify top/bobbin tension. Always run a test stitch-out and iterate settings before production.

8.3 Q: What’s the maximum number of colors in DST?

A: DST doesn’t store thread colors—only color-change stops. Many sources cite up to 256 color-change records. Assign actual thread colors at the machine.

8.4 Q: Why do colors look wrong when I open or stitch a DST?

A: DST files don’t embed thread colors. Viewers substitute a palette and machines expect you to assign spools to each color-change stop. Even if you recolor in software, a re-exported DST will still require color assignment at the machine.

8.5 Q: Can I resize a DST design?

A: Modest resizing can work—one source cites roughly ±25%, another around 30%. Beyond that, re-digitizing is safer. Any resize changes stitch outcomes, so test-stitch and adjust density/compensation as needed.

8.6 Q: How do I transfer DST files to the machine correctly?

A: Download and unzip, copy the .dst to a USB drive, safely eject, then load it from your machine’s USB menu. Some brands also support wireless transfer through their software. If a file doesn’t appear, confirm extension, hoop fit, and that you exported correctly from your digitizing software.

8.7 Q: My machine isn’t trimming between objects—what can I do?

A: In DST, trims are often inferred after several consecutive jumps (commonly 3–5). Ensure your digitizer inserted appropriate jumps where a trim is needed; some workflows add small “fake” jumps to trigger the trim. Test-stitch to confirm your machine’s behavior.
