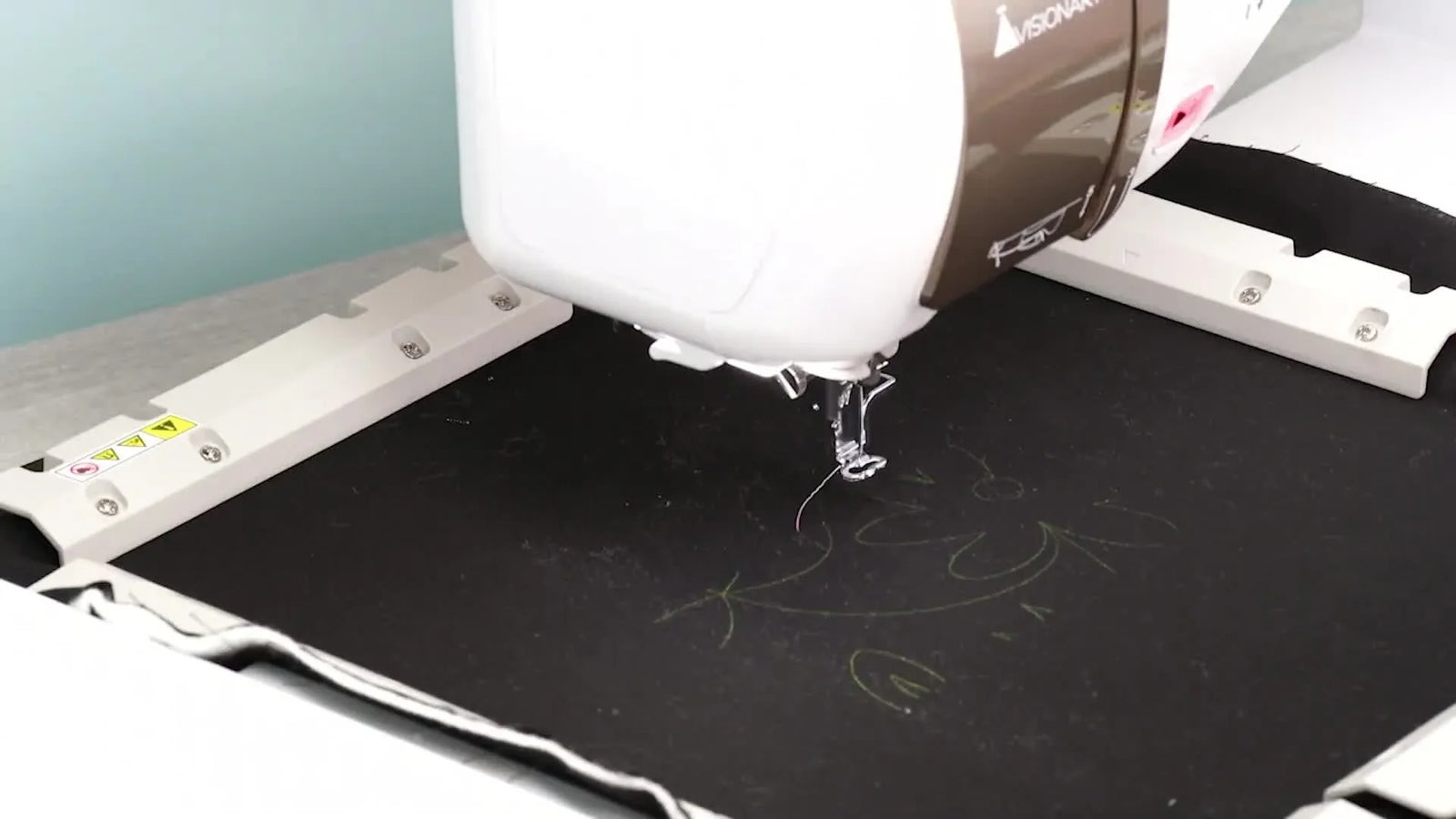

The “Tabletop Long-Arm” Trick: Quilt a Thick Sandwich on a Baby Lock Solaris or Brother Luminaire Without Fighting a Traditional Hoop

If you have ever attempted to force a thick "quilt sandwich" (top fabric + batting + backing) into a standard friction hoop, you know the sound of failure. It’s that terrifying pop followed by the fabric springing loose, or worse, the tell-tale "hoop burn" marks permanently crushed into your delicate cotton.

This guide bridges the gap between frustration and professional results. We are analyzing a proven method (demonstrated by Robbie on a Baby Lock Solaris Vision/Brother Luminaire) to effectively turn your single-needle machine into a tabletop long-arm. The secret isn't just one setting; it is a safety protocol combining physics (magnetic hooping), optics (projector placement), and mechanics (manual thread pull-up).

Follow this guide to eliminate "bird nests," protect your machine, and achieve gallery-quality quilting blocks.

Your Embroidery Machine Isn’t “Wrong” for Quilting—Your Start Sequence Is

When a machine gags on the first stitch or leaves a snarl of thread on the back (a "bird nest"), operators often blame the tension settings. However, in 90% of quilting cases, the machine is mechanically perfect; the user sequence is flawed.

Standard household machines are programmed to start stitching immediately. When you are quilting through multiple layers of batting, that first plunge of the needle pushes the loose bobbin tail into the unknown. If that tail isn't anchored, it gets sucked into the race hook, creating a tangle.

Robbie’s approach borrows from commercial long-arm logic: you must physically control the thread tails. By intentionally leaving a long bobbin tail and bringing it to the surface before the machine runs, you eliminate the loose variables. This isn’t just a trick; it’s mechanical insurance.

Furthermore, thick layers act like a sponge, absorbing foot pressure. If you don't account for this "loft" (thickness), standard hoops will fail.

The Magnetic Hoop Reality Check: Why Traditional Hoops Pop Out on Quilt Sandwiches

Let’s talk physics. A traditional hoop relies on radial friction. You push an inner ring into an outer ring, hoping the friction between them is stronger than the expansive force of the fabric.

When you add batting and backing, you create a "spring." The compressed foam or cotton batting is constantly pushing outward against the plastic rings. Over the course of a 20-minute stitch-out, micro-vibrations cause the fabric to creep, leading to distortion or the dreaded "pop-out."

A magnetic frame operates on vertical clamping force. It does not rely on friction or stretching; it relies on powerful magnets sandwiching the material flat. This is why professionals use them for towels, jackets, and quilts.

When evaluating equipment, searching for general terms like magnetic hoops for embroidery machines is a start, but you must look for high-strength magnet ratings and distributed clamping points. You need a frame that applies equal pressure across the entire 10-inch span, ensuring your quilt block doesn't "hinge" or slip at the corners.

The “Hidden” Prep That Saves Quilts: Bobbin Tail Strategy + Quick Machine Checks

Before you even touch the hoop, you must perform a "Pre-Flight Check." Quilting is unforgiving because unlike a t-shirt, you cannot simply buy another backing if you ruin it.

Bobbin Prep: The "anti-cutter" Rule

Robbie loads the bobbin normally but violates the standard instruction: Do NOT use the built-in cutter.

1. Insert the bobbin.
2. Guide the thread through the tension spring until you feel the "click."
3. Stop there. Do not trim the tail. Leave 4–6 inches of thread trailing inside the bobbin case.

Hidden Consumables Setup

Ensure you have these within arm's reach:

• Needle: Switch to a fresh Quilting 90/14 or Topstitch 90/14. Standard 75/11 needles may deflect on thick seams.
• Curved Embroidery Scissors: For precision trimming close to the surface.
• Lint Brush: Quilting batting generates massive amounts of dust; check your bobbin case now.


Prep Checklist (Do this BEFORE hooping)

• Mode Check: Confirm machine is in Embroidery Mode, not Sewing Mode.
• Needle Status: Install a fresh needle (ensure flat side faces back).
• Bobbin Tail: Bobbin inserted, tension engaged, tail uncut (approx. 5 inches long).
• Throat Plate: Ensure the standard needle plate is installed (not the straight-stitch plate, unless the needle position is center-locked).
• Hoop Choice: Decision made: Magnetic frame for thick batting; Standard hoop only for thin/flat batting.

Warning: Physical Safety
Keep fingers, loose sleeves, and long thread tails at least 4 inches away from the needle bar when testing controls. When a needle strikes a magnetic hoop frame due to misalignment, it can shatter, sending metal shards flying. Always wear glasses when observing closely.

Threading Fast Without Missing the Basics: Auto Needle Threader, Same Old Rules

Robbie uses the automatic needle threader on the Baby Lock, but he respects the path.

Sensory Check: As you guide the upper thread through the numbered path, you aren't just dropping it in cracks.

• Listen: At standard tension discs (usually step 3 or 4), listen for a faint metallic click or snap as the thread seats between the plates.
• Feel: Before threading the eye, gently pull the thread near the spool. It should feel like flossing teeth—firm, consistent resistance. If it pulls freely with zero drag, you have missed the tension discs. Retrace.

Speed Note: For automatic threaders to work reliably, the thread must be taut across the cutter/holder. Slack thread leads to missed hooks.

Hooping a Quilt Sandwich in a 10x10 Magnetic Frame Without Distortion

Robbie utilizes a 10x10 inch magnetic frame SEWTECH style setup. The goal here is stability, not drum-tight tension.

The Technique:

1. Lay the bottom magnetic ring on a flat surface.
2. Place your backing (face down), batting, and quilt top (face up) over the ring. Smooth gently—do not stretch.
3. Place the top magnetic ring directly over the bottom one. Let the magnets snap into place.


The Tactile Test: Robbie shakes the hoop. It holds. For you, run your hand over the surface. It should feel taut like a freshly made bed, not tight like a drum. If you over-stretch a quilt sandwich, the batting compresses, and when you un-hoop later, the fabric will shrink back, puckering your design.

If your workflow involves thick winter quilts, investing in a high-quality magnetic embroidery hoop is the single most effective hardware upgrade to prevent "hoop burn" (the shiny crushed marks traditional hoops leave on velvet or cotton).

Warning: Magnet Hazard
These are industrial-strength neodymium magnets.
* Pinch Hazard: They can snap together with enough force to bruise skin or blood blisters. Handle by the edges.
* Medical Safety: Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Keep away from credit cards and mechanical hard drives.

The “No-Guesswork” Placement Move: Using the Built-In Projector on Baby Lock Solaris / Brother Luminaire

Guessing is expensive. Robbie loads the design and activates the Projector.

The projector beams the actual grid and design onto your fabric texture.

• Visual Check: Does the design edge fall off the fabric block? Is it centered?
• Angle Check: Is your block slightly crooked in the hoop? (Use the machine's rotate function to align the design to the fabric, rather than trying to re-hoop the fabric).


For owners of high-end machines, using specific magnetic hoops for brother luminaire ensures that the heavy frame doesn't interfere with the projector's throw path. Always verify compatibility.

Setup Checklist (Before the First Stitch)

• Design Loaded: File imported and oriented correctly.
• Hoop Recognition: Machine screen displays "Magnetic Frame" or correct size (e.g., 10x10).
• Clearance: Embroidery arm has 12+ inches of clearance behind the machine for movement.
• Placement: Projector or grid confirms design is centered on the actual quilt block.
• Presser Foot Height: Crucial for Quilting. Go to settings and raise the embroidery foot height to 2.5mm - 3.5mm (depending on fluffiness) to prevent dragging.

The Clean-Start Ritual: Needle Down/Up to Pull Bobbin Thread (and Stop Bird Nests)

This is the "Tabletop Long-arm" maneuver. Do not press the green "Go" button yet.

1. Needle Down: Press the "Needle Position" button to lower the needle into the fabric.
2. Needle Up: Press it again to raise the needle.
3. The Pull: Pinch the end of your top thread and gently pull it toward you. You will see a loop of the bobbin thread emerging from the hole.
4. The Sweep: Use your scissors or fingers to swipe that loop completely out so both the top and bottom thread tails are on top of the quilt sandwich.




This creates a mechanical lock. There are no loose tails underneath to form a nest. If you are researching a magnetic frame for embroidery machine, understand that while the frame solves the holding, this technique solves the stitching quality.

Anchor, Trim, Then Let It Run: The Stitching Sequence That Looks Clean on the Back

Robbie holds both thread tails (top and bobbin) with light tension.

1. Anchor: Press "Start." Let the machine take 3-5 stitches.
2. Stop: Press "Stop."
3. Trim: Use your curved embroidery scissors to snip those long tails flush with the fabric surface.
4. Run: Press "Start" again to finish the design.


Speed Management: For quilt sandwiches, do not run at 1050 SPM (Stitches Per Minute). Reduce speed to 600-700 SPM. High speed creates friction heat on the needle, which can melt synthetic batting or break thread. Slow and steady wins the quilt.

Operation Checklist (The Start Sequence)

• Tails Up: Both bobbin and top threads pulled to surface.
• Hands Clear: Hands away from the stitch zone.
• Anchor: Stitch 3-5 stitches, then PAUSE.
• Trim: Cut tails close to the anchor point so they don't get stitched over.
• Speed: Reduced to ~600-700 SPM.
• Go: Resume stitching. Listen for a rhythmic thump-thump (good) vs. a grinding noise (bad needle strike).

Block Quilting vs Edge-to-Edge: Pick the Pattern Type That Matches Your Goal (and Your Patience)

Robbie differentiates between "Block Designs" (Flora and Fauna set) and proper "Edge-to-Edge" (E2E) quilting.

• Block Designs: Center-centric. Great for finishing specific squares. Easier for beginners because placement errors are less obvious.
• Continuous Line (E2E): Requires precise re-hooping alignment.


Decision Tree: Fabric + Loft + Project Goal → Stabilization & Hooping Choice

Use this logic flow to determine your setup.

1. What is the total thickness?

• Thick (Quilt Sandwich / Puffy Vest): MUST use Magnetic Hoop. Standard hoops will pop or burn.
  • Stabilizer: Often none needed (the batting acts as stabilizer), or a layer of floating tear-away under the hoop if dragging occurs.
• Thin (T-shirt / Cotton layer): Standard hoop is acceptable with Soft Fusible Mesh (Cutaway) stabilizer.

2. Are you quilting "in the ditch" or a full motif?

• Full Motif: Use the Projector strictly. Use a Water Soluble Topping if the fabric is velvet or high-pile (prevents stitches sinking).
• Simple Lines: Use grid templates or chalk marking.

3. Is your machine skipping stitches?

• Yes: Check foot height. Raise presser foot to 3.0mm+. Change needle to Topstitch 90/14 (larger eye reduces friction).

Troubleshooting the Three Scariest Moments (and the Fixes That Actually Work)

Note on Equipment: The magnetic embroidery hoops for babylock mentioned often act as the primary preventative measure for "popping" issues listed above.

The Results Check: What “Good” Looks Like Before You Move to the Next Block

Flip the frame over. Ideally, the back should look almost identical to the front, perhaps with the bobbin thread looking slightly thinner.

Quality Criteria:

• No looping: The thread lies flat against the backing.
• No easy-out: The anchor stitches should hold firm if you pick at them.
• Clean surface: No "eyelashing" (top thread pulled to bottom) or "pokies" (batting poking through needle holes—usually means needle is too dull).

The Upgrade Path (Without the Hard Sell): When Tools Actually Pay You Back

When does a hobby become a production line? When the pain of the process exceeds the joy of the result. Here is the professional logic for when to upgrade your toolkit:

Level 1: The Stability Upgrade (Magnetic Hoops)

• Trigger: You are ruining expensive garments with hoop burn, or your wrists hurt from wrestling friction hoops.
• Criteria: If you struggle to hoop anything thicker than a t-shirt.
• Solution: A SEWTECH Magnetic Hoop (compatible with your specific machine model). It converts the physical struggle into a simple "snap," ensuring consistent tension without damaging the fabric fibers.

Level 2: The Workflow Upgrade (Compatibility)

• Trigger: You own multiple machines or specific brands like Baby Lock.
• Criteria: You need accessories that match OEM specs without OEM pricing.
• Solution: Searching specifically for babylock magnetic hoops or a brother 10x10 magnetic hoop ensures you get the correct connector brackets for your embroidery arm. Compatibility is key to safety.

Level 3: The Production Upgrade (Multi-Needle Machines)

• Trigger: You have orders for 20+ quilt blocks or hats, and changing thread colors manually is killing your profit margin.
• Criteria: If your single-needle machine is running more than 4 hours a day.
• Solution: Upgrade to a SEWTECH Multi-Needle Machine. These monsters don't just sew faster; they hold 10-15 colors simultaneously and offer larger, more stable gantries for heavy quilt projects. It shifts you from "operator" to "manager."

By adhering to Robbie’s sequence—Projector Placement + Magnetic Stability + Manual Thread Pull-Up—you remove the guesswork. Embroidery machines are precise instruments; when you feed them precise instructions and use the right tools for the density of the fabric, they will reward you with perfection every time.

FAQ

• Q: How do I stop bird nesting on a Baby Lock Solaris Vision / Brother Luminaire when starting embroidery on a thick quilt sandwich?
  A: Use the manual bobbin-thread pull-up start sequence before pressing Start—this prevents loose tails from getting sucked into the hook.
  • Leave a 4–6 inch bobbin tail and do not use the built-in cutter.
  • Tap Needle Down, then Needle Up, then pull the top thread to bring the bobbin loop to the surface.
  • Sweep both thread tails fully to the top, hold them, stitch 3–5 anchor stitches, stop, then trim and resume.
  • Success check: the back shows no wad of tangled thread and the machine sound stays rhythmic (no grinding/jam).
  • If it still fails: re-thread the upper path and confirm the thread is seated in the tension discs (feel consistent drag, not free-pull).
• Q: Why does a standard friction hoop “pop open” on a quilt sandwich, and what is the safest upgrade for single-needle quilting embroidery?
  A: A quilt sandwich pushes outward like a spring, so friction hoops can creep and release; a magnetic hoop clamps vertically and holds thick layers more reliably.
  • Switch to a magnetic frame for thick batting/backing instead of forcing tighter screw tension.
  • Hoop without stretching: smooth layers flat and let the magnets snap into place.
  • Avoid “drum-tight” tension on quilts; aim for flat stability, not stretching.
  • Success check: the hooped quilt feels “taut like a freshly made bed” and does not shift when lightly shaken.
  • If it still fails: verify the magnetic hoop has even clamping across the full span and the quilt is not hinged/slipping at corners.
• Q: What presser foot height should Baby Lock Solaris Vision / Brother Luminaire users set for embroidery quilting on puffy batting to prevent drag and thread problems?
  A: Raise the embroidery presser foot height to about 2.5–3.5 mm as a safe working range for loft, so the foot does not compress and drag the quilt.
  • Open the machine settings and increase embroidery foot height before the first stitch.
  • Pair the setting with a fresh Quilting 90/14 or Topstitch 90/14 needle for thick layers.
  • Reduce speed to around 600–700 SPM to reduce heat and friction during quilting.
  • Success check: the foot glides without scuffing the surface and stitches form cleanly without shredding/flagging.
  • If it still fails: change to a fresh Topstitch 90/14 and re-check the threading path “click” into the tension discs.
• Q: How do I correctly hoop a quilt sandwich in a 10x10 magnetic embroidery frame without distorting the block?
  A: Sandwich the layers flat (no stretching) and rely on magnetic clamping—not fabric tension—for stability.
  • Place the bottom ring on a flat surface, then layer backing (face down), batting, and top (face up).
  • Smooth gently with hands only; do not pull the fabric grain tight.
  • Align and lower the top ring straight down so magnets clamp evenly.
  • Success check: the surface is flat and stable but not over-tight; after unhooping, the block does not pucker from rebound.
  • If it still fails: re-hoop and focus on removing ripples by smoothing, not stretching; distortion usually comes from over-tensioning the sandwich.
• Q: How do I use the built-in projector on a Baby Lock Solaris Vision / Brother Luminaire to prevent an embroidery quilting design from stitching off-center?
  A: Use the projector/grid to confirm placement after hooping, then rotate the design on-screen instead of re-hooping the quilt block.
  • Load the design and activate the projector to see the real outline on the actual fabric.
  • Check edges and corners to confirm the design stays fully on the block.
  • Use the rotate function to square the design to the fabric if the block is slightly crooked.
  • Success check: the projected design boundary matches the intended block center and stays inside the fabric margins.
  • If it still fails: confirm the machine recognizes the correct hoop size and ensure the embroidery arm has adequate clearance for full travel.
• Q: What are the most important safety steps to prevent a needle strike when using a magnetic hoop on a Baby Lock Solaris Vision / Brother Luminaire?
  A: Treat hoop alignment as a safety step—needle strikes on a magnetic frame can cause breakage and flying fragments.
  • Confirm the machine recognizes the correct hoop/frame size before moving the arm.
  • Keep fingers, sleeves, and long thread tails at least 4 inches away during any test movement.
  • Do a slow, controlled first stitch sequence (needle down/up + pull-up) before running full speed.
  • Success check: the machine runs without grinding noises and the needle clears the frame throughout the design area.
  • If it still fails: stop immediately and re-check hoop seating and placement—do not “power through” a suspected clearance issue.
• Q: What magnet safety rules should users follow when handling industrial-strength magnetic embroidery hoops for quilting?
  A: Handle magnetic hoops by the edges and plan for pinch force—these magnets can snap shut hard enough to injure skin.
  • Keep hands clear of the closing path and separate rings slowly and deliberately.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Store away from credit cards and mechanical hard drives.
  • Success check: no pinched fingertips or uncontrolled “snap” events during hooping/unhooping.
  • If it still fails: pause and change handling technique—using a flat surface and edge-grip reduces sudden closures.
• Q: If a single-needle machine keeps struggling with quilt sandwiches, how should embroiderers choose between technique tweaks, magnetic hoops, and a SEWTECH multi-needle upgrade?
  A: Use a tiered approach: fix the start sequence first, then stabilize with a magnetic hoop, then upgrade machines only when workload demands it.
  • Level 1 (technique): apply bobbin tail + needle down/up pull-up + anchor/trim sequence and slow to ~600–700 SPM.
  • Level 2 (tool): switch to a magnetic hoop when friction hoops pop, slip, or leave hoop burn on cotton/velvet.
  • Level 3 (capacity): consider a multi-needle machine when running a single-needle more than ~4 hours/day or producing 20+ blocks where manual color changes kill efficiency.
  • Success check: consistent clean starts (no nests), stable blocks (no shifting), and predictable stitch quality across multiple runs.
  • If it still fails: reassess the project type (block vs edge-to-edge) and verify setup basics (embroidery mode, fresh needle, correct throat plate, thread seated in tension discs).
