The “Safety Roll” Beanie Workflow: Fast, Repeatable Knit Hat Embroidery with a 5.5" Magnetic Hoop

Mastering knit beanies on an embroidery machine is a rite of passage. It is the moment you graduate from "stitching on stable cotton" to "managing a living, stretching canvas."

If you have ever watched a logo sink into the ribbing of a beanie until it vanishes, or fought with a hoop until the fabric was stretched so tight it looked deformed when released, you are not failing. You are simply encountering the physics of knitwear without the right counter-measures.

Knits behave like fluids under tension—they want to distort. Your job is to make them behave like solids just long enough to get the thread in.

This guide dissects a commercial-grade workflow used by high-volume shops. We are moving beyond "hope and pray" into a repeatable, scientific process using a 3-inch cuff beanie, dense digitalization, and the specific mechanics of magnetic hooping.

The Psychology of the "Knit Panic": Why Beanies Go Wrong

Before we touch the machine, let's reset your expectations. Beanies usually fail for one of three reasons:

1. Drowning: The stitches sink into the piles of the knit because there is no "foundation" (stabilizer/topping) to hold them up.
2. Distortion: The fabric was stretched during hooping. When you un-hoop it, it snaps back, and your perfect circle logo becomes an oval.
3. The "Sandwich": You accidentally sew the front of the hat to the back (the classic rookie mistake).

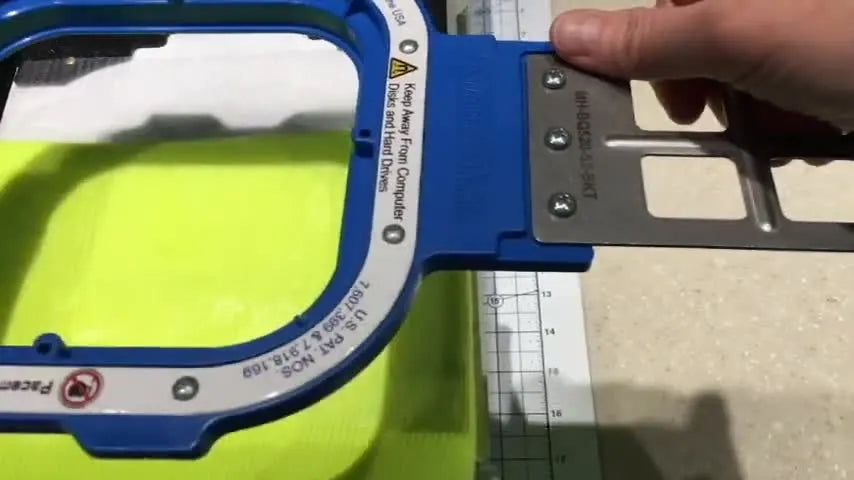

The method below, utilizing a 5.5" magnetic hoop and a HoopMaster fixture, aids in solving all three by mechanically verifying alignment and tension before the needle drops.

The Professional Tool Stack: Physics Over Luck

To replicate commercial results, you need a setup that removes manual variables. Here is the exact loadout, along with why we chose it.

The Hardware

• Multi-Needle or Free-Arm Machine: Essential for tubular items like hats.
• 5.5" Magnetic Hoop: Unlike screw-tightened hoops which drag fabric, a magnetic embroidery hoop clamps straight down. This prevents the "hoop burn" (shiny crushed fabric marks) that ruins acrylic beanies.
• Hooping Fixture (HoopMaster): Holds the bottom ring static so you have two hands free to manipulate the beanie.
• The "Secret Weapon": A custom-cut cardboard shim (explained below).

The Consumables (Hidden Essentials)

• Needles: Crucial Step. Use a 75/11 Ballpoint (BP) or SUK needle. Sharp needles cut knit fibers, leading to holes that appear after the first wash. Ballpoints slide between the loops.
• Stabilizer: RipStitch Tearaway (for dense designs) or Cutaway (for lighter designs).
• Topping: Water-soluble film (Solvy). This acts as a "snowshoe," keeping stitches on top of the knit.
• Marking: Water-soluble pen.

Pro Tip: If you are building a production workflow, the consistency of a hoopmaster hooping station pays for itself by reducing "rejects." If you ruin one beanie in every 20 due to crooked hooping, that cost adds up.

Phase 1: The "Invisible" Prep & The Density Equation

Amateurs hoop immediately. Pros analyze density first.

The presenter in our reference workflow makes a controversial call: using Tearaway stabilizer on a knit. Typically, the "Textbook Rule" is Knits = Cutaway. However, experience nuance dictates otherwise.

The Nuance:

• High Density Design (e.g., a solid 2"x2" shield): The thread itself forms a solid plate that stabilizes the fabric. Tearaway is acceptable here because the thread locks the knit.
• Low Density Design (e.g., open lettering): The knit can stretch between the letters. You must use Cutaway mesh here to provide permanent wearing stability.

The "Cardboard Shim" Hack

This is a zero-cost hack that solves a massive headache. When you place the bottom magnetic ring in the fixture, there is a hollow space in the center. A heavy knit beanie will sag into this hole.

• The Fix: Cut a piece of cardboard to the exact shape of the inner hoop. Place it inside the bottom ring.
• The Result: You create a flush "table." The beanie sits perfectly flat, allowing for precise center marking without parallax error.

Prep Checklist: The "Pre-Flight"

• Needle Check: Are 75/11 Ballpoints installed? Are they straight? (Roll them on a table to check).
• Design Analysis: Is it dense (Tearaway okay) or airy (Cutaway required)?
• Shim: Is the cardboard insert sitting flush in the bottom ring?
• Topping Pre-cut: Do you have a square of water-soluble topping ready?
• Bobbin: Is the bobbin case clean of lint? (Knits generate dust).


Phase 2: The Hooping Sequence (Tactile & Precise)

This methodology uses mechanical stops rather than "eyeballing."

Step 1: Stabilize the Fixture

Place your stabilizer (Tearaway or Cutaway) over the bottom ring/shim assembly. engage the fixture's flaps (or use tape) to hold it drum-tight.

• Tactile Cue: Tap the stabilizer. It should sound like paper, not fabric. If it ripples, re-clamp.


Step 2: The Ruler Stop

Slide the beanie onto the fixture. Instead of guessing where "straight" is, use a ruler pressed against the top bracket of the station.

• Push the beanie cuff up until it touches the ruler evenly across the width.
• Use your water-soluble pen to mark the center, typically 1.5 inches up from the cuff edge (or centered in the cuff fold).
• Why this works: You are using a mechanical straight edge (the ruler) to align a flexible organic material (the knit).




Step 3: The Topper & The "Snap"

This is where magnetic hoops shine.

1. Remove the ruler.
2. Float the water-soluble topper over the marked area.
3. Hold the top magnetic ring by the brackets (keep fingers clear!).
4. Allow the magnet to snap down directly vertical.

Warning: Magnet Pinch Hazard
magnetic embroidery hoop systems use industrial-grade neodymium magnets. They do not forgive. Never place your fingers between the rings. Hold the handling tabs/brackets only. If you have a pacemaker, consult your doctor before using high-strength magnetic hoops.

Step 4: Tension Correction

Once the magnet is engaged, look at the topper. Is it wrinkly?

• The Fix: Gently tug the edges of the topper while it is hooped. The magnetic bond is strong enough to hold the beanie, but allows you to micro-adjust the topper to be glass-smooth.
• Visual Cue: The topper should have no bubbles. Bubbles = loops in your embroidery.






Phase 3: Machine Mounting & The "Safety Roll"

You have hooped it perfectly. Now, don't ruin it by sewing it shut.

The Problem of the Free Arm

Even on a free-arm machine (like a multi-needle), the back of the beanie hangs down. Gravity can swing it back into the needle's path.

The Solution: The Safety Roll

1. Load the hoop onto the machine arm.
2. Take the bulk of the beanie (the crown) that is hanging down.
3. Roll it upward and tuck/fold it over the top rim of the hoop.
4. Visual Check: Look under the hoop. You should see clear air between the needle plate and the bottom of the hoop.




Setup Checklist: Before You Press Start

• Clearance: Look under the arm. Is the "Safety Roll" holding? Is the path 100% clear?
• Topper: Is the water-soluble film tight against the fabric?
• Speed: Set your machine to 600-700 SPM.
  • Expert Note: While machines can go faster, knits effectively "bounce" under the needle. slowing down to 600-700 builds a safety buffer for stitch registration.
• Trace: Run the trace function to ensure the needle won't hit the hoop frame.

Phase 4: Production & Troubleshooting

During the stitch-out, listen to your machine. A rhythmic thump-thump is good. A sharp slap sound usually means the fabric is flagging (lifting up with the needle). If you hear slapping, your hooping is too loose, or you skipped the topper.

Decision Tree: Optimizing Your Knit Workflow

Troubleshooting Table

Phase 5: Professional Finishing

The difference between a "homemade" and "retail" beanie is the cleanup.

1. Topper Removal: Tear tight against the stitches. Use a wet Q-tip or steam iron to dissolve remaining bits. Do not throw the beanie in the wash immediately; dissolve the film first to avoid gumming up the fibers.
2. Backing Removal:
   • Tearaway: Support the stitches with your thumb and tear gently. Do not yank, or you will distort the knit. Tear one layer at a time.
   • Cutaway: Lift the stabilizer and trim with curved scissors. Leave a 1/4 inch margin. Never cut flush to the stitches—if the stabilizer releases, the design collapses.




Operation Checklist: The Final QC

• Visual: Any hoop burn marks? (Steam them out if present).
• Tactile: Is the inside soft? Are there sharp stabilizer edges?
• Structural: Stretch the cuff gently. Does the design move with the fabric (Cutaway) or look rigid (Tearaway)? Both are valid, but must match the design intent.

The Commercial Logic: When to Upgrade?

If you are doing one beanie for a grandchild, a standard home machine and plastic hoop is fine—just be patient.

However, if you are running a business, "fighting the equipment" is a profit killer. Professionals use specific tools to solve specific bottlenecks:

1. The "Hooping Bottleneck": If your wrists hurt or you are getting inconsistent angles, the hoopmaster hooping station removes the human error variable.
2. The "Hoop Burn" Bottleneck: If you are rejecting beanies because of ring marks, SEWTECH Magnetic Hoops are the industry standard solution. They hold thick knits without crushing them.
3. The "Production" Bottleneck: If you find yourself changing threads 12 times for a logo, or removing the hoop to cut jump stitches manually, you have outgrown a single-needle machine. This is the trigger point to investigate SEWTECH Multi-Needle Machines. They allow you to queue colors, auto-trim, and keep the production line moving while you hoop the next beanie.

By respecting the material properties of the knit and using the physics of magnetic hooping, you turn a frustrating project into a profitable, repeatable product.

FAQ

• Q: Which needle should be used on a knit beanie to prevent holes after washing on a multi-needle embroidery machine?
  A: Use a 75/11 Ballpoint (BP) or SUK needle to avoid cutting knit fibers—this is a common fix for wash-after holes.
  • Install: Swap sharp needles for 75/11 BP (or SUK) before hooping.
  • Check: Roll each needle on a flat table to confirm the needle is straight.
  • Clean: Remove lint around the bobbin area because knits shed dust.
  • Success check: The needle penetrates smoothly and the knit shows no “cut” lines or popped loops around stitches.
  • If it still fails: Slow the machine to 600–700 SPM and confirm stabilizer + topper are being used.
• Q: How do I choose Tearaway vs Cutaway stabilizer for embroidering a knit cuff beanie when the design density changes?
  A: Match stabilizer to design density: dense fills can work with Tearaway, but airy text usually needs Cutaway mesh for permanent stability.
  • Evaluate: Treat solid, high-density designs like a “thread plate” (Tearaway can be acceptable).
  • Switch: Use Cutaway mesh for lighter/open lettering where knit can stretch between stitches.
  • Add: Always pair with water-soluble topping to keep stitches sitting on top of the knit.
  • Success check: The design stays readable on the ribbing and does not “sink” into the knit texture.
  • If it still fails: Re-hoop to remove stretch distortion and verify the topper is glass-smooth before stitching.
• Q: How can a 5.5-inch magnetic embroidery hoop prevent hoop burn on acrylic knit beanies compared to a screw-tightened hoop?
  A: Use a magnetic hoop to clamp straight down with even pressure, which often prevents shiny crushed ring marks on acrylic knits.
  • Hoop: Let the magnetic ring snap down vertically instead of dragging fabric sideways.
  • Avoid: Do not over-tension the beanie during hooping; let the hoop hold, not your hands.
  • Adjust: Smooth the topper by gently tugging its edges after hooping to remove bubbles.
  • Success check: After unhooping, there is no shiny ring imprint and the beanie fabric rebounds without distortion.
  • If it still fails: Re-check that the fabric was not stretched during hooping and consider using a hooping station to standardize alignment.
• Q: How do I know the stabilizer is hooped correctly on a HoopMaster-style hooping station before embroidering a knit beanie?
  A: The stabilizer must be “drum-tight” on the fixture before the beanie is clamped, or the knit will shift and distort.
  • Clamp: Engage the fixture flaps (or tape) so the stabilizer is tight and flat.
  • Tap: Use the tactile test—tap the stabilizer; it should sound like paper, not fabric.
  • Insert: Use a cardboard shim inside the bottom ring to prevent the beanie from sagging into the center void.
  • Success check: The stabilizer surface looks flat with no ripples, and the center marking is accurate without the beanie sinking.
  • If it still fails: Re-seat the cardboard shim flush and re-clamp until the ripple disappears.
• Q: How do I avoid sewing the front of a knit beanie to the back on a free-arm multi-needle embroidery machine?
  A: Use the “Safety Roll” every time—roll the crown up and tuck it over the top rim of the hoop so it cannot swing into the stitch path.
  • Mount: Load the hooped beanie onto the machine arm first.
  • Roll: Roll the hanging beanie bulk upward and fold it over the hoop’s top rim.
  • Verify: Look under the hoop and confirm there is clear air between the needle plate area and the beanie back layer.
  • Success check: The underside stays completely clear throughout the trace and first stitches—no fabric enters the needle area.
  • If it still fails: Stop immediately, re-roll tighter, and re-run the trace function before restarting.
• Q: What is the pinch hazard when using a neodymium magnetic embroidery hoop, and how should the hoop be handled safely?
  A: Keep fingers completely out of the ring gap—hold only the handling tabs/brackets and let the hoop snap straight down.
  • Grip: Hold the top ring by the brackets/tabs only.
  • Clear: Never place fingertips between the top and bottom rings when aligning.
  • Plan: Set the fabric and topping in position first, then bring the top ring down vertically.
  • Success check: The hoop closes with a clean snap without any finger contact near the magnet interface.
  • If it still fails: Pause and reposition with both hands on the tabs—do not “walk” the hoop down with fingers near the edge.
• Q: What is a safe embroidery machine speed for stitching a knit beanie to reduce fabric bounce and registration issues?
  A: Set the embroidery machine to 600–700 SPM as a safe operating range for knits to reduce bounce and improve stitch registration.
  • Set: Reduce speed before starting the design, especially on ribbed cuffs.
  • Listen: Monitor for a sharp “slap” sound, which often indicates fabric flagging or loose hooping.
  • Run: Use trace to confirm the needle path clears the hoop frame before stitching.
  • Success check: The machine sounds like a steady rhythmic “thump-thump,” and the fabric does not slap upward with the needle.
  • If it still fails: Re-hoop for firmer hold, confirm topper was used, and switch to Cutaway backing if the knit is shifting.
