The “Pop-Out” Glitter Flake Patch on an SWF Embroidery Machine: Clean Edges Without Scissors (and Without the Usual Headaches)

The "Pop-Out" Patch Method: How to Create Glitter Patches Without Scissors

Glitter patches are the paradox of the embroidery world: they look premium and sell at high margins, yet they often humble even experienced operators. The frustration usually hits at the finish line—you’ve stitched a beautiful batch, but now you face hours of tedious hand-cutting, risking cramps and accidental snips that ruin the border.

But what if the patch could cut itself?

This guide breaks down the professional "Pop-Out" workflow designed for SWF and similar industrial machines. By leveraging a specific dense satin border that perforates Ultra Solvy as it sews, you can create patches that literally snap out of the stabilizer with your fingers. This transforms patch making from a craft project into a scalable production line.

The "Calm-Down" Moment: Why Scissors Are Obsolete Here

If you have ever finished a run of 50 patches and felt dread at the thought of trimming them, you are focusing on the wrong part of the process. The secret isn't in your hand steadiness; it is in the digitizing and material stack.

The core physics of this method are simple:

1. Platform: We hoop Ultra Solvy (a heavy water-soluble film) by itself—no fabric.
2. The Sandwich: Your patch material sits on top, floating.
3. The Mechanism: A specific dense satin border acts as a stamp, perforating the Solvy so cleanly that the patch releases like a coupon.

When dialed in, this method produces a cleaner edge than scissors ever could, with zero "white fuzz" left behind. If you are operating a swf embroidery machine, mastering this technique is the fastest way to upgrade your shop's output quality.

Materials: The "No-Substitutions" List

This workflow relies on a specific chemical and physical reaction between the needle, the thread, and the stabilizer. Substituting materials blindly (e.g., using standard light Solvy) will result in a disastrous birdsnest.

Core Consumables

• Stahls’ Glitter Flake: (The star of the show). It’s durable and dazzling.
• 100% Polyester Fabric (White): Used as the base structure.
• Heat Seal Backing: Essential for stiffness and iron-on capability.
• Ultra Solvy: Critical. This is the heavy-duty, thick water-soluble film. It feels more like heavy vinyl than plastic wrap.
• Spray Tack Adhesive: For temporary positioning.
• Thread: Black (Detail/Text) and White (Border/Structural).

The Hidden Consumables (Don't start without these)

• Fresh Needles: A dull needle won't perforate cleanly; it will drag and tear.
• Precision Tweezers: For positioning small templates.
• Silicon Release Paper: To protect your heat press.

Equipment

• SWF Embroidery Machine (or similar multi-needle commercial machine).
• SWF Clamp Frame: Ideal for holding thick Solvy without "hoop burn."
• Heat Press: Non-negotiable for adhering the backing.


Phase 1: Preparation (Where the War is Won)

The most common mistake beginners make is cutting the templates first, then trying to apply heat seal backing to small floating squares. This leads to shrinkage and mismatched edges.

The "Pro" Sequence:

1. Press First: Apply the heat seal backing to your large sheet of 100% polyester fabric before cutting anything.
   • Why? The heat creates shrinkage. By pressing the whole sheet, you stabilize the fabric dimensions before you cut the shape.
2. Cut Second: Cut your patch templates (e.g., 3.5" x 2") from this pre-stabilized sheet.
   • Result: Every template is identical and will not shrink further under the machine.
3. Sensory Check: The fabric should feel stiff, almost like cardstock. If it’s floppy, the heat seal hasn’t bonded correctly.


Prep Checklist

• Heat seal backing is fused to the main polyester fabric before cutting.
• Glitter Flake templates are cut to exact size (e.g., 3.5" × 2").
• Ultra Solvy is inspected for punctures or dry-rot cracks.
• New needles are installed in the machine (recommended size 75/11 sharp).
• Bobbin tension is verified (should hold the drop weight but slide with a gentle jerk).

Phase 2: Hooping the Ultra Solvy

This method uses a "floating" technique. You do not hoop the glitter; you only hoop the Ultra Solvy.

When using SWF clamp frames, the goal is "Taunt but Relaxed."

• Visual: The Solvy should be flat with no waves.
• Tactile: Tap it. It should sound like a dull thud, not a high-pitched ping. If it's too tight ("drum tight"), the perforation line will tear prematurely during stitching, causing the patch to pop out inside the machine. That is a catastrophic failure.

If you are exploring advanced hooping for embroidery machine techniques, remember that Solvy has no grain—it stretches equally in all directions, so consistent tension on all four sides is vital.

Warning: Mechanical Safety
Keep hands, loose clothing, and scissors well away from the active needle area, especially when using clamp frames. These machines move at 800+ SPM. A satin border sequence is dense and rapid; if a finger slips under the needle bar, it can cause severe injury. Always use the machine's safety barriers if equipped.

Phase 3: Placement & The "Reverse Check"

Spray a light mist of adhesive on the back of your Glitter Flake template. Place it onto the hooped Solvy, using the machine's trace function or a pre-stitched outline to guide you.

The "Trust but Verify" Move: Glitter is reflective and deceptive. You might think it is centered, but parallax error can fool you.

• Action: Flip the hoop over. Look through the semi-transparent Solvy from the back.
• Success Metric: You should see an even margin of Solvy around the glitter template shadow. If it's crooked, fix it now. It is impossible to fix later.


Phase 4: Digitizing Logic (The Secret Sauce)

The difference between a patch that needs cutting and a patch that pops out is Density Management.

In software like Wilcom, you are adjusting the spacing of the satin stitch.

• Standard Satin: ~0.40mm spacing. (Looks good, holds fabric).
• Cutting Satin: ~0.30mm - 0.33mm spacing (or density values around 65-70 in Wilcom points).

The Physics: You want the needle penetrations to be so close that they effectively perforate the Solvy like a postage stamp sheet, but not so close that they shred the thread or break the needle.

• Note: Start conservative. If it doesn't pop out, tighten the density by 5% on the next run. Do not jump straight to maximum density or you will risk birdsnesting.


Phase 5: The Stitching Sequence

Executing the run requires discipline. Do not walk away from the machine.

Step 1: Tack-Down (The Anchor)

Run a running stitch or zigzag to lock the glitter template to the Solvy.

• Sensory Check: Listen for the sound of the needle punching the heat seal. It should be a crisp thwack.
• Visual Check: Ensure corners aren't lifting.


Step 2: Internal Design

Stitch your text or logos (e.g., the black lettering).

• Troubleshooting: If the glitter swallows the thread, you need to increase your underlay or switch to a thicker thread weight (like 40wt or 30wt).


Step 3: The Satin Border (The Cutter)

This is the critical moment. The machine will run a wide, dense satin stitch around the perimeter.

• Visual Anchor: Watch the edge of the satin stitch. You should see a distinct "white line" forming in the Solvy right next to the thread. This is the perforation happening in real-time.
• Audio Check: The machine sound will change to a heavy, continuous hum due to the high density.


Setup Checklist (Before Pressing Start)

• Ultra Solvy is hooped flat (no wrinkles).
• Template is adhered and centered (verified from back).
• Machine speed is lowered (Recommend 600-700 SPM for heavy satin borders).
• Thread path is clear (no tangles).

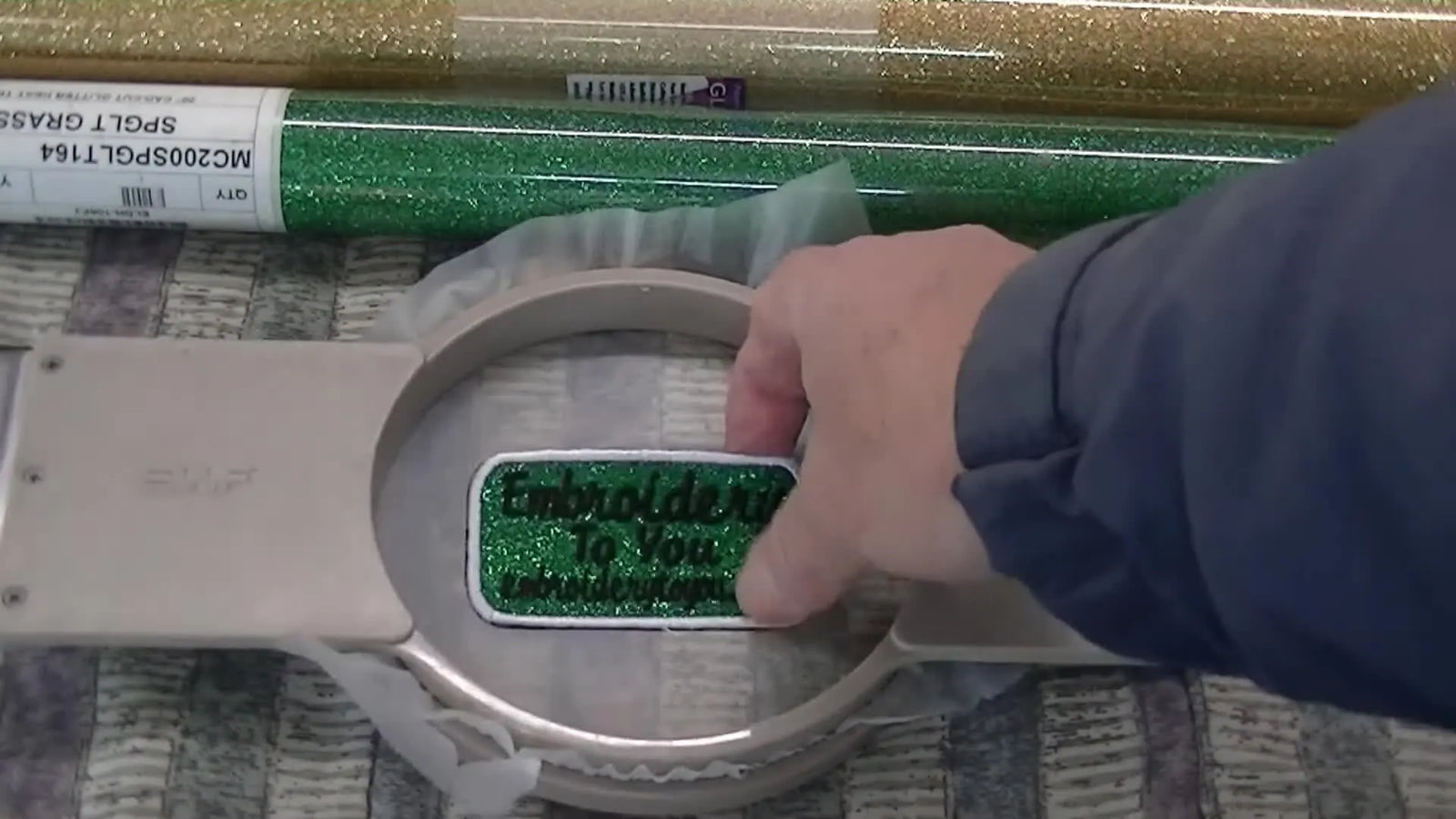

Phase 6: The "Pop-Out" Release

Remove the hoop. Now, the magic trick. Do not yank the patch by the corner. You will warp the satin stitch.

The Correct Motion:

1. Support the Solvy frame with one hand.
2. Press gently on the center of the patch with your thumb.
3. Sensory Check: You should feel a satisfying zip or tear sensation as the perforation gives way. It should feel like separating a perforated notebook page.
4. The patch drops into your hand. The Solvy stays in the frame.






Troubleshooting: When It Doesn't Pop

If you are pressing and the patch refuses to release, stop. Do not force it or use a knife. Diagnose the issue.

Decision Tree: Customizing Your Stack

Use this logic flow to adjust for different patch sizes.

Are you making a patch larger than 4 inches (10cm)?

• YES: The single layer of Ultra Solvy might sag under the weight of the glitter.
  • Action: Use Two Layers of Ultra Solvy.
  • Adjustment: You must increase your border density (make it tighter) because you have to perforate double thickness.
• NO: Single layer Ultra Solvy is sufficient.

The Production Upgrade: Solving the "Wrist Pain" Bottleneck

The method above works perfectly, but if you secure an order for 500 patches, your bottlenecks will shift.

1. Bottleneck: Hand-tightening clamp frames takes time and effort.
2. Bottleneck: "Hoop Burn" or marks on delicate fabrics (if you switch from patches to shirts).
3. Bottleneck: Inconsistent tension causing registration errors.

The Solution Path:

• Level 1 (Skill): Practice your manual hooping consistency.
• Level 2 (Tooling): Switch to magnetic embroidery hoops.
  • Why? Magnetic hoops hold the Ultra Solvy firmly without the need for manual screw tightening. They snap shut, maintaining even pressure instantly. This eliminates the "too tight/too loose" variable.
  • Many professionals use embroidery hoops for swf specifically designed with magnetic closures to speed up reloading time between patches.
• Level 3 (System): Utilize a magnetic hooping station.
  • Why? This ensures your template placement is identical every single time, removing the need for the "reverse check" step once calibrated.

Warning: Magnetic Hazard
magnetic embroidery hoops use industrial-grade neodymium magnets. They are incredibly strong.
* Pinch Hazard: Never place fingers between the top and bottom ring. They will snap shut with bone-breaking force.
* Medical Safety: Keep magnets away from pacemakers and insulin pumps (minimum 6 inches).

Finishing Standards: The "Sellable" Product

A professional patch isn't just one that doesn't fall apart; it's one that looks clean from 6 inches away.

The Final Inspection:

• Front: Satin border is smooth, continuous, and covers all glitter raw edges.
• Back: No birds-nests. Heat seal backing is intact.
• The Edge: Run your finger along the rim. It should feel smooth, not jagged. If it feels scratchy, your Solvy didn't dissolve/tear cleanly—use a wet cloth to smooth it.


Operation Checklist (Production Run)

• First Piece Inspection: Did the first patch pop out cleanly? If not, adjust density now.
• Needle Watch: Change needles every 4-8 hours of continuous satin stitching. Satin dulls needles fast.
• Bobbin Watch: A low bobbin creates loose top stitches. Change early.
• Solvy Prep: Have your next sheet of Solvy pre-cut while the machine is running.
• Hydration: (For you). Focus drops when you are tired.

By mastering the specific combination of Ultra Solvy, Heat Seal Prep, and Density Control, you turn a headache into a profit center. And when your volume grows, upgrading to magnetic frames ensures your body doesn't wear out before your machine does.

FAQ

• Q: Why does an SWF multi-needle embroidery machine tear Ultra Solvy during the satin border, causing a glitter patch to pop out inside the machine?
  A: The most common cause is a “drum-tight” Ultra Solvy hooping tension or an overly dense satin border, so reduce stress before running production.
  • Loosen the Ultra Solvy tension slightly so it is flat but not “ping” tight.
  • Reduce satin border density by 5%–10% instead of making big jumps.
  • Slow machine speed for the dense border run (a common safe range is 600–700 SPM as a starting point).
  • Success check: The hooped Solvy taps with a dull “thud,” and the patch stays stable through the border without releasing early.
  • If it still fails: Replace with a fresh needle and re-check that the Solvy sheet is not cracked, punctured, or dry-rotted.
• Q: Why does an SWF embroidery machine glitter patch not “pop out” from Ultra Solvy and still require scissors after stitching?
  A: The satin border is not perforating the Ultra Solvy enough, so increase border density gradually and confirm the needle is sharp.
  • Tighten satin spacing toward the “cutting satin” range (commonly ~0.30–0.33 mm spacing) and test again.
  • Install a new sharp needle because a dull needle drags instead of punching clean perforations.
  • Avoid forcing the release; press from the center rather than yanking a corner.
  • Success check: Pressing the patch center produces a clean “zip/tear” feel like separating a perforated notebook page.
  • If it still fails: Verify the Ultra Solvy is the heavy “Ultra” type (not lighter film), and re-run one test piece before a full batch.
• Q: How should Ultra Solvy be hooped in an SWF clamp frame for the pop-out glitter patch method without causing hoop burn or premature tearing?
  A: Hoop Ultra Solvy “taut but relaxed” to keep it flat without overstressing the perforation line.
  • Clamp only the Ultra Solvy (do not hoop the glitter material in this method).
  • Adjust tension until there are no waves, but avoid “drum tight” tension.
  • Keep tension even on all sides so the Solvy does not skew during stitching.
  • Success check: Solvy looks smooth with no ripples, and tapping it sounds like a dull thud (not a high-pitched ping).
  • If it still fails: Lower stitch speed for the satin border and re-check clamp pressure consistency.
• Q: What is the correct order for heat seal backing, polyester base, and glitter material when making pop-out glitter patches on an SWF commercial embroidery machine?
  A: Fuse heat seal backing to the full polyester sheet first, then cut templates, then float the glitter on hooped Ultra Solvy.
  • Press heat seal backing onto the large polyester sheet before cutting any patch rectangles.
  • Cut identical templates only after pressing to prevent shrinkage mismatch.
  • Lightly tack the glitter template onto hooped Ultra Solvy with spray adhesive (float method).
  • Success check: The pressed polyester feels stiff like cardstock, and templates stay consistent size under stitching.
  • If it still fails: Re-press the backing (bond may be incomplete) and confirm the adhesive is a light mist, not a soak.
• Q: How can an SWF embroidery operator verify glitter patch placement accuracy on Ultra Solvy before stitching the satin border?
  A: Do the “reverse check” by flipping the hooped Ultra Solvy to confirm even margins before committing to stitching.
  • Use trace or an outline stitch to place the glitter template on the front.
  • Flip the hoop over and inspect through the semi-transparent Solvy from the back.
  • Reposition until the Solvy margin around the glitter shadow looks even on all sides.
  • Success check: The template looks centered from the back view with consistent border allowance, not skewed by glare.
  • If it still fails: Reduce spray tack amount and re-seat the template so it can slide without wrinkling the Solvy.
• Q: What needle and bobbin checks should be done on an SWF multi-needle embroidery machine before running dense satin borders for pop-out glitter patches?
  A: Start with a fresh sharp needle and confirm bobbin tension behavior before the first test patch to prevent poor perforation and nesting.
  • Install new needles (the guide recommends 75/11 sharp as a starting point).
  • Verify bobbin tension: it should hold the drop weight but slide with a gentle jerk.
  • Monitor needle wear frequently because long satin runs dull needles quickly (often every 4–8 hours of continuous satin work).
  • Success check: Satin border runs with a steady heavy “hum,” and stitches look tight without loops or shredding.
  • If it still fails: Slow the machine for the border run and consider a needle that reduces heating/friction (follow the machine manual).
• Q: What safety precautions should be followed when running dense satin borders on an SWF commercial embroidery machine using clamp frames?
  A: Keep hands and tools completely away from the needle area during stitching because dense satin borders run fast and can cause severe injury.
  • Remove scissors from the active area and never reach under the needle bar while running.
  • Secure loose clothing and keep fingers away from clamp frame movement paths.
  • Stay at the machine during the border sequence; do not walk away.
  • Success check: Operator hands remain outside the stitch field for the full run, and the machine can complete the border without interruption.
  • If it still fails: Stop the machine first, then clear thread or reposition material only after motion fully stops.
• Q: When should an SWF embroidery shop upgrade from manual clamp-frame hooping to magnetic embroidery hoops for pop-out glitter patch production efficiency?
  A: Upgrade when manual tightening, inconsistent tension, or operator wrist fatigue becomes the bottleneck, not just when stitch quality is acceptable.
  • Level 1 (Skill): Practice consistent “taut but relaxed” hooping and run first-piece inspections every batch.
  • Level 2 (Tool): Switch to magnetic embroidery hoops to reduce reload time and remove the “too tight/too loose” variable.
  • Level 3 (System): Add a hooping station if repeat placement and throughput are still limiting after magnetic hoops.
  • Success check: Reload time drops and border perforation becomes more consistent across a full run without early pop-outs or non-releasing edges.
  • If it still fails: Re-check placement verification steps and satin density settings before assuming the issue is purely tooling.
