The Patch Hooping “Sandwich” That Stops Shifting: Water-Soluble + Cutaway + Cotton on a Single-Needle Machine

If you’ve ever watched a patch stitch-out go sideways in the first 60 seconds—fabric creeping, edges rippling, or the whole stack shifting—you already know the truth: patches don’t fail because the design is “hard.” They fail because the foundation isn’t locked down.

Machine embroidery is a game of physics. You are punching thousands of holes into fabric that wants to move. This post rebuilds a clean, repeatable patch setup from the video: a hooped base of doubled water-soluble woven stabilizer, then a “floating” stack (cutaway + two cotton layers) that gets tacked down with your machine’s basting box before the real embroidery begins.

I’ll keep the steps faithful to the video, but I will add the shop-floor sensory details—the sounds, the tension checks, and the safety margins—that prevent wasted 90-minute runs.

Your Patch Stack Is Sliding? Good—That Means You Caught It Before a 90-Minute Stitch-Out Dies

The video’s machine screen shows an estimated 91 minutes and 57,364 stitches for a patch-sized design. That’s not the time to “hope it holds.” The whole method here is built around one idea: secure the base in the hoop, then mechanically tack every floating layer before stitch #1 of the design.

If you are researching hooping for embroidery machine projects involving loose layers, understand that the basting/tack-down step isn’t optional—it’s your insurance policy against the fabric "push and pull" effect.

The “Hidden” Prep That Makes This Sandwich Work

The video uses four layers total. Success lies in the exact combination of materials:

1. Water-soluble woven stabilizer (The Foundation): Doubled and hooped.
2. Cutaway stabilizer (The Support): Cut slightly smaller than the hoop, floated.
3. Lightweight woven cotton x2 (The Body): Floated on top.

Before you touch the hoop, do the prep that experienced patch makers do automatically to avoid frustration later.

Prep Checklist (The "Mise en place"):

• Material Check: Confirm you have water-soluble woven stabilizer. Sensory Check: It should look like fabric mesh, not clear plastic wrap (film). Plastic film perforates too easily for dense patches.
• The "Well" Cut: Cut your cutaway stabilizer so it fits inside the hoop's inner ring. If it rides up the sides of the hoop, it creates air gaps.
• Hoop Hygiene: Run your finger around the inner ring of your hoop. Feel for nicks, lint, or old spray adhesive. A dirty hoop creates "false tension" where the fabric slips once the machine starts vibrating.
• Needle Choice: For woven cotton patches, ensure a fresh 75/11 Sharp or Universal needle is installed. A dull needle will push the fabric layers apart rather than piercing them.

A comment like “Awesome!” is nice, but the real win is when your next run is boring—in the best way.

The Drum-Tight Base: Hooping Doubled Water-Soluble Woven Stabilizer without Bubbles

In the video, the creator doubles the water-soluble woven stabilizer, hoops it, then notices a common issue: the top layer bubbles near the edges even when the bottom layer looks fine.

The Fix (Tactile Approach):

1. Fold the water-soluble woven stabilizer so you have a double layer.
2. Hoop it in the 200×200 mm hoop.
3. The "Bias Tug": After the hoop is locked, verify tension. If the top layer ripples, gently tug the edges outward from the center.

She notes you’re “not supposed” to tug after hooping (which is true for stretchy garments), but for a stabilizer-only base, it is often necessary to seat the layers.

Success Metric (Sensory Anchor): Tap the hooped stabilizer with your fingernail. It should sound tight, like a drum skin. If it sounds thuddy or loose, re-hoop. Loose stabilizer equals distorted patch borders.

Warning: Keep fingers clear of the needle area and never reach under the presser foot while the machine is running—basting stitches start fast, and a needle strike is a real injury risk.

The Flat-Laying Cutaway Trick: Cutting Stabilizer to the Hoop’s Inner Window

Next, she adds cutaway stabilizer—but she does not hoop it. By cutting it to fit the inner dimensions of the hoop, she creates a flat platform.

Why this matters: If your cutaway is too big and curls up the walls of the hoop, the embroidery foot will hit those curled edges, causing the hoop to jump or the layer to shift.

Do it like this:

1. Use the hoop’s inner opening as your template.
2. Cut the cutaway so it sits comfortably inside the "well" of the hoop.
3. Lay it flat on top of the hooped water-soluble layer.


The Two-Layer Cotton Patch Core: Adding Body

The last layers she adds are two layers of plain lightweight woven cotton, placed on top of the cutaway.

Expert Note on Physics: Cotton adds "body" so the patch isn't floppy. However, multiple layers of woven fabric can be slippery against each other. If you are using a floating embroidery hoop technique (where the garment/fabric sits on top rather than being clamped), you rely entirely on friction until the basting stitch locks it down.

Success Metric: The stack should sit dead-center. Visually confirm you have at least 1 inch of margin between the edge of your fabric stack and the edge of the design area.

The Calm, Repeatable Machine Setup: 400 SPM and the SQ20b Hoop

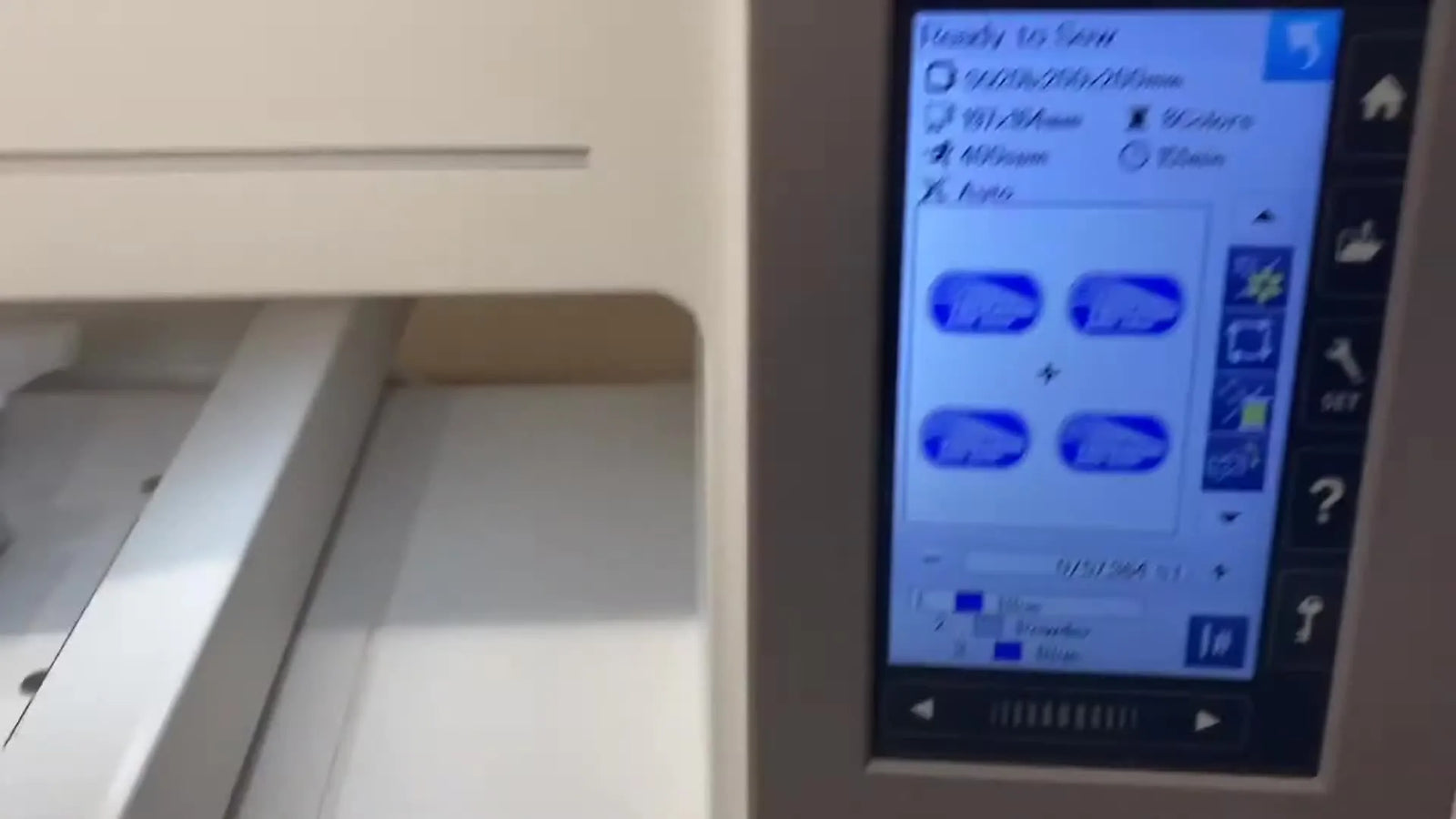

On the machine screen in the video, the visible settings are pivotal:

• Hoop size: 200×200 mm (SQ20b)
• Speed: 400 spm (Stitches Per Minute)
• Design size: 197×164 mm
• Stitch count: 57,364 stitches

Speed Strategy (The "Sweet Spot"): The video shows 400 SPM. For beginners or dense patches, this is a safe, "low-drama" speed to prevent thread breaks.

• Beginner/Safe Zone: 400–600 SPM.
• Pro Zone: 700–800 SPM (Only if your stabilization is perfect).

Setup Checklist (The "Pre-Flight"):

• Hoop Sync: Confirm the machine screen matches the actual hoop attached (200x200).
• Clearance: Check that the fabric stack isn't blocking the embroidery arm movement.
• Bobbin: Do you have a full bobbin? 57k stitches will eat roughly 1.5 to 2 standard bobbins. Check now.

Repeatability is key. If you are setting up a small shop, you might eventually look for a hooping station for machine embroidery to standardize this placement, but for now, careful manual alignment works.

Loading the Hoop: Don't Let the Stack Drift

In the video, she clips the hoop into the machine one-handed. This is a high-risk moment. Because the cotton and cutaway are just "sitting" there, a sudden jerk can slide the bottom cutaway layer out of position.

Tip: Carry the hoop flat like a pizza box.

If you find yourself constantly struggling to clip the hoop in without disturbing the fabric, this is a clear sign to look at upgrades like magnetic embroidery hoops. Magnetic hoops allow you to clamp all these layers tightly rather than floating them, which eliminates the "drift" risk entirely and secures thick sandwiches that standard plastic hoops can't grip.

The Make-or-Break Move: The Perimeter Basting Box

She navigates to the machine’s edit screen and adds a basting/tack-down stitch (a perimeter box) around the design.

This is not optional. Without hooping the fabric, this rectangle of stitching is the only thing holding your patch together.

Execution:

1. Select the "Basting" or "Trace" function with stitches on your machine.
2. Watch the first corner.
3. As the frame moves, keep hands at a safe distance but ready to smooth the fabric.


Hand-Guiding During Basting: The "Smoothing" Technique

During the basting pass, she keeps the fabric “taut” but explicitly says she doesn’t pull hard.

Sensory Guide (How it should feel): Imagine you are smoothing a wrinkles out of a bedsheet. You are applying downward pressure to keep it flat, not outward tension to stretch it.

• Too Loose: The foot pushes a "wave" of fabric in front of it (Puckering).
• Too Tight: You stretch the cotton. When you let go, it snaps back, and your patch distorts.

If you are running production, using a magnetic hooping station can help align likely-to-shift items before they ever reach the machine, reducing the need for this manual intervention.

The "Locked Stack" Moment: Inspection

After the basting rectangle finishes, she says: "Now all layers are tacked together."

Stop and Look (The Quality Gate): Before you press "Start" on that 90-minute design, inspect the basting box.

1. Squareness: Are the corners 90 degrees? If they are rounded or skewed, the fabric shifted.
2. Flatness: Is there a bubble inside the box? If yes, rip it out. A bubble now will be a crease later.
3. Capture: Did the stitch catch all 4 layers (Water-soluble + Cutaway + Cotton + Cotton) on all sides?

Troubleshooting: Why Patches Fail & How to Fix It

Even with this method, things can go wrong. Here is a diagnostic table for the most common failures using this floating method.

The Upgrade Path: When to Move Beyond Manual Basting

This "floating + basting" method is excellent for one-offs or testing. However, if you are moving into production—making 50 patches for a client—manual basting becomes a bottleneck.

Here is the professional upgrade path:

1. Level 1: Stability Upgrade (Magnetic Hoops)
   If you struggle with thick layers popping out of plastic hoops, or if "hoop burn" is ruining your fabric, magnetic hoops for embroidery machines are the industry standard solution. They snap onto thick layers instantly and hold the sandwich tighter than manual floating, often eliminating the need for the basting step entirely.
2. Level 2: Consistency Upgrade (Hooping Stations)
   If you are getting crooked patches, a hoop master embroidery hooping station style device (or compatible Sewtech station) ensures every patch is loaded at the exact same angle, every time.
3. Level 3: Productivity Upgrade (Multi-Needle Machines)
   If you are tired of changing threads 12 times for one patch, moving to a commercial multi-needle machine (like Sewtech models) automates the color changes and offers a free-arm design that makes hooping small items significantly easier.

Warning: Magnetic frames contain powerful magnets. Keep them away from pacemakers, credit cards, and hard drives. Watch your fingers—the "snap" is instantaneous and strong.

Final Note: Embrace the Process

The beauty of the video’s approach is its repeatability. By building a "floor" with the hooped stabilizer and then locking the "house" (the patch) onto it with basting, you remove the variables that cause failure.

Take a breath, check your tension, listen for that drum-tight sound, and let the machine do the work.

FAQ

• Q: How do I hoop doubled water-soluble woven stabilizer in a 200×200 mm (SQ20b) hoop without edge bubbles for patch embroidery?
  A: Hoop the doubled water-soluble woven stabilizer first, then “seat” the top layer with gentle outward tugs until the surface is uniformly tight.
  • Fold to a true double layer and hoop only the stabilizer (no fabric yet).
  • Tug the stabilizer lightly outward from the center after the hoop is locked if ripples appear near the edges.
  • Re-hoop if the surface won’t tighten evenly (don’t fight a bad hooping).
  • Success check: Tap the hooped stabilizer with a fingernail—the sound should be drum-tight, not thuddy.
  • If it still fails: Confirm the stabilizer is woven water-soluble (mesh-like), not water-soluble film, which can perforate and lose grip on dense stitching.
• Q: How do I cut and place cutaway stabilizer so the floating patch stack stays flat inside a 200×200 mm embroidery hoop?
  A: Cut the cutaway stabilizer to the hoop’s inner “window” so it sits flat inside the hoop well and cannot curl up the sides.
  • Use the hoop’s inner opening as a template and cut the cutaway slightly smaller than the inner ring.
  • Lay the cutaway flat on top of the hooped water-soluble woven stabilizer (do not hoop the cutaway).
  • Smooth the cutaway before adding cotton layers so there are no raised edges for the foot to catch.
  • Success check: Run a fingertip around the inside edge—no cutaway should be climbing the hoop wall.
  • If it still fails: Re-cut the cutaway smaller; curled edges can cause foot strikes and layer drift.
• Q: What is the fastest way to prevent a floating stack (cutaway + two cotton layers) from sliding when loading a patch hoop into an embroidery machine?
  A: Treat hoop loading as a “high-risk moment” and keep the hoop level so the floated layers cannot drift before the basting box locks them.
  • Carry the hooped assembly flat (like a pizza box) from the table to the machine.
  • Clip the hoop in smoothly—avoid any sudden tilt or jerk that can shift the cutaway underneath.
  • Center the stack and keep a safe margin around the design area before you move the hoop.
  • Success check: After clipping in, the stack is still centered and the edges look unmoved relative to the hoop window.
  • If it still fails: Lightly tack floating layers together with a temporary adhesive spray before basting, or upgrade to a magnetic embroidery hoop to clamp the full sandwich instead of floating.
• Q: How do I use a perimeter basting box to lock a floating patch stack before a 57,364-stitch (about 92-minute) embroidery run?
  A: Stitch a basting/tack-down rectangle first and do a full inspection gate before starting the main design.
  • Select the machine’s basting/trace-with-stitches function and run the perimeter box around the design area.
  • Watch the first corner and be ready to smooth the fabric without pulling hard.
  • Stop immediately after basting and inspect squareness, flatness, and full layer capture on all sides.
  • Success check: The basting box corners look square, the area inside is flat (no bubble), and all four layers are caught.
  • If it still fails: Rip out the basting and redo it—starting the 90-minute design with a bubble or skew guarantees distortion later.
• Q: How should I hand-smooth fabric during basting so a floating cotton patch does not pucker or distort?
  A: Apply gentle downward smoothing (not outward stretching) so the presser foot doesn’t push a fabric “wave” or get rebound distortion.
  • Press and smooth like flattening a bedsheet—keep the stack flat under the foot path.
  • Avoid pulling the cotton tight; stretching now can snap back later and warp the patch.
  • If you see a wave forming ahead of the foot, pause and re-smooth rather than increasing tension.
  • Success check: The basting line forms without ripples and the fabric stays flat inside the rectangle.
  • If it still fails: Re-check the hooped stabilizer tension (drum-tight) and consider lightly tacking the floating layers together before basting.
• Q: What should I do when floating patch layers shift during basting or right after hoop loading (before the main design starts)?
  A: Stop immediately and reset—continuing will waste the entire run because the foundation is already misaligned.
  • Remove the hoop and restack the layers squarely (cutaway flat inside the hoop well, cotton centered).
  • Lightly use temporary adhesive spray between floating layers to prevent drift before basting.
  • Re-run the basting box and re-inspect corners and flatness before starting the design.
  • Success check: The second basting box sits square with no skew and all layers are captured consistently.
  • If it still fails: Reduce handling during loading and consider magnetic hoops to eliminate floating drift.
• Q: What needle and speed settings are a safe starting point for dense patch embroidery using a 200×200 mm hoop at around 57,364 stitches?
  A: Start conservative—use a fresh 75/11 Sharp or Universal needle and run around 400 SPM to reduce breaks while you validate stabilization.
  • Install a new 75/11 Sharp or Universal needle before the run (dull needles can push layers apart).
  • Set speed to 400–600 SPM as a safe zone; only increase if results are stable and clean.
  • Check bobbin capacity before starting because a high-stitch patch can consume roughly 1.5–2 bobbins.
  • Success check: The machine runs without frequent thread breaks and the patch border stays true without shifting.
  • If it still fails: Slow back down to 400 SPM and re-check hoop tension and basting capture before changing other variables.
• Q: What safety rules should I follow when running a basting box and dense patch embroidery on a multi-needle embroidery machine?
  A: Keep hands clear of the needle area at all times and never reach under the presser foot while the machine is moving—basting starts fast.
  • Keep fingers away from the needle path while smoothing; use light, flat-handed guidance at a safe distance.
  • Stop the machine before adjusting fabric position or inspecting under the foot.
  • Stay alert during the first corners of basting when fabric is most likely to snag or curl.
  • Success check: Fabric is guided without any near-miss contact with the needle/presser foot area.
  • If it still fails: Pause more often—manual control and safety beat saving a few seconds on a 90-minute run.
