The Overlay Trick That Makes a Magnetic Hoop Work with Baby Lock Altair & Meridian IQ Positioning (Without Losing Your Mind)

Master Guide to In-the-Hoop Quilting: Solving the "Drifting Center" & The 9.5x14 Magnetic Hack

Quilting in the hoop (ITH) promises precision, but the reality for many beginners is a cycle of Fear, Uncertainty, and shifting fabric. You align your quilt sandwich perfectly, but the moment you tighten that standard hoop screw, the bottom layer drags, the batting bunches, and your perfect center drifts 3mm to the left.

If you are working with high-end machines like the Baby Lock Altair, Meridian, Solaris, or Destiny, this drift isn't just annoying—it breaks the logic of the IQ Positioning App.

This guide acts as your "flight manual." We will rebuild the workflow from the video, adding sensory safety checks, empirical parameter ranges, and industrial-grade logic to ensure your first stitch lands exactly where you planned it. We will compare the standard hoop mechanics against the modern magnetic workflow, giving you the data to decide when to upgrade your tooling.

Magnetic Hoop vs. Standard 9.5x14 Hoop: The Physics of “Drift”

The video begins with the standard Baby Lock 9.5" x 14" hoop (identifiable by the black registration marks). While capable, this hoop relies on friction and lateral distortion—you must push an inner ring into an outer ring to create tension. This action naturally drags thick quilt sandwiches out of alignment.

The Magnetic Shift: A magnetic hoop relies on vertical clamping force. There is no "pushing" involved. The fabric sits flat, and the magnet snaps down vertically. This eliminates 90% of the "hoop drift" phenomenon.

The Decision Matrix: When to Switch?

• Stick with the Standard Hoop If: You are doing single-layer cotton embroidery, or your budget is strictly $0. It requires higher skill to master the "3-Turn" tension (explained below).
• Upgrade to a Magnetic Hoop If: You are quilting thick sandwiches (Fabric + Batting + Backing), you suffer from hand/wrist fatigue (arthritis is a common enemy of hoop screws), or you are encountering "hoop burn" (shininess caused by friction) on delicate velvets or dark cottons.

When sourcing baby lock magnetic embroidery hoops, the first rule of compatibility is physical clearance: the hoop must fit the embroidery arm's attachment width exactly.

Phase 1: The “Hidden” Prep (Stabilizing the Sandwich)

Before the hoop touches the table, you must stabilize the "sandwich." The presenter uses Wonder Pins, but let’s look at the physics of why this matters.

A quilt sandwich is a "live" object—the layers want to slide against each other. If they slide inside the hoop, you get pleats.

The Center-First & Flattening Protocol

1. Tactile Flattening: Place your sandwich on a hard, flat surface. Run your hands from the center outward to push out air pockets. The batting should feel relaxed, not stretched.
2. Strategic Pinning: Place pins (or use a temporary spray adhesive like Odif 505 for extra security) away from your initial stitch path.
3. The "Sweet Spot" Speed Setting: For ITH quilting on a single-needle machine, do not run at max speed (1050 SPM). The needle flexion can cause deflection on thick batting.
   • Recommended Safe Range: 600 – 800 SPM.
   • Sensory Check: Listen to the machine. A rhythmic, soft "thrum" is good. A loud, sharp "thack-thack" means you are sewing too fast for the sandwich density.

Hidden Consumables Checklist:

• Curved Safety Pins / Wonder Pins: Or temporary spray adhesive (Level 1 stability).
• Topstitch Needle (Size 90/14): The larger eye protects thread from friction against batting (prevents shredding).
• Water Soluble Pen: For marking the physical center visual aid.

PREP CHECKLIST: The "Zero-Drift" Confirmation

• Sandwich Integrity: Layers are basted; holding the sandwich vertically doesn't cause the backing to sag.
• Center Identification: You have physically marked or identified the "Center-First" motif.
• Surface Check: Your worktable is cleared of friction hazards (scissors, stray thread) that could snag the fabric during hooping.
• Needle Freshness: A fresh needle is installed (dull needles push fabric down, causing flagging).

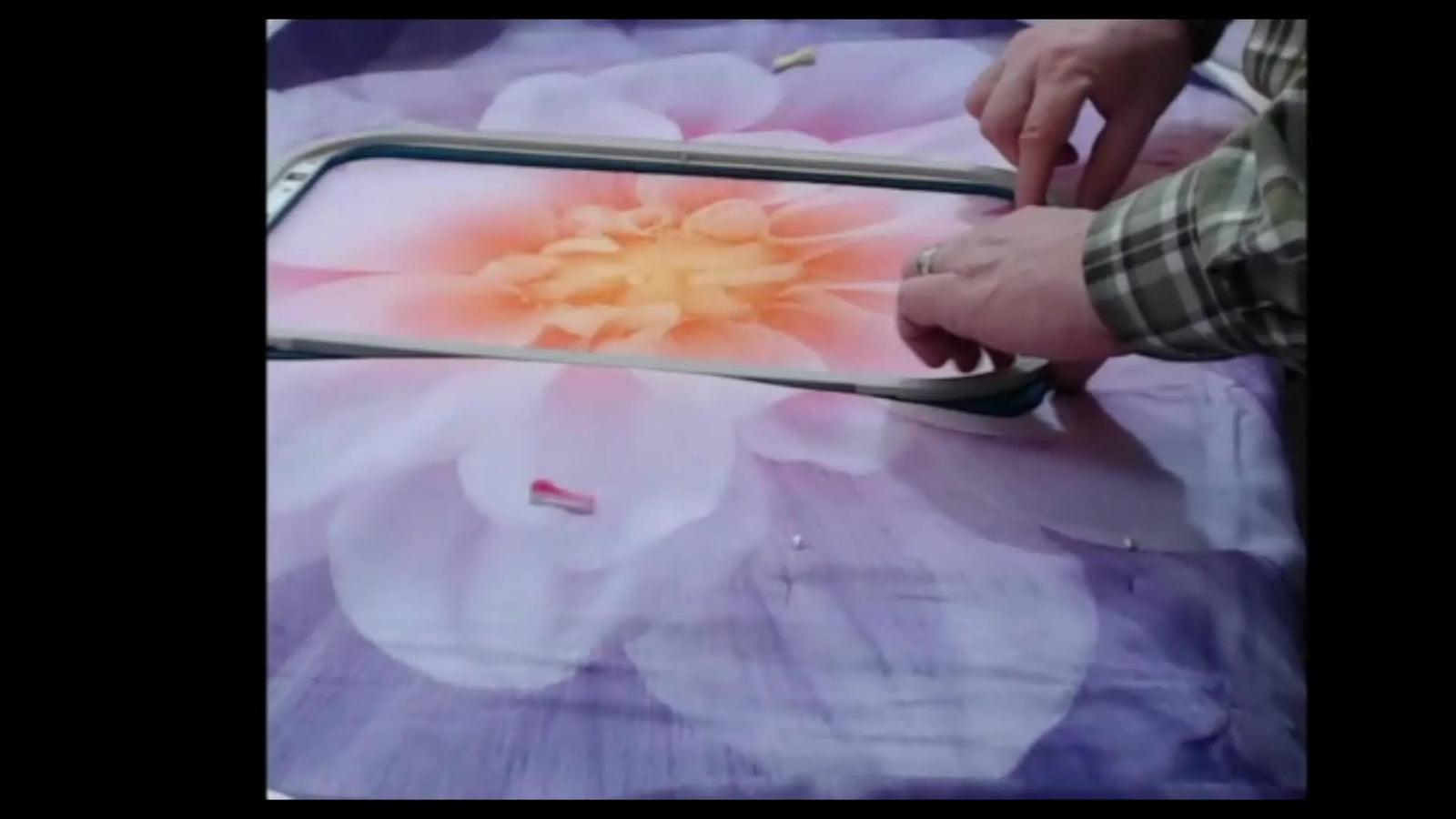

Phase 2: Standard Hooping Technique (The "Two-Finger" Caliper)

If you are using the standard hoop, your eyes will deceive you regarding centering. The presenter uses a tactile hack that is more reliable than eyesight.

The Two-Finger Test:

1. Place the outer hoop (bottom) first.
2. Lay the quilt sandwich over it.
3. The Action: Run your index and middle fingers along the inside vertical walls of the hoop, under the fabric.
4. The Sensory Proof: You should feel an equal amount of "margin" on the left and right sides. If your fingers hit the wall instantly on the left but have space on the right, you are off-center.

This works because your proprioception (sense of body position) is often more accurate than visually judging a rectangle from a seated angle.

Phase 3: Risk Management (Pin Removal)

The presenter removes the center pins after rough positioning but before clamping.

Warning: Mechanical Hazard
NEVER leave hard pins inside the stitch zone. If a machine needle strikes a steel pin at 800 stitches per minute, the needle can shatter. Shards may fly toward your eyes, or worse, the impact can throw off the timing of your hook assembly, requiring a $200+ repair. Always Audit Your Stitch Path.

Phase 4: The "3-Turn" Tension Rule (Standard Hoop Physics)

Standard hoops fail when users over-tighten or under-tighten the screw. The presenter demonstrates a precise protocol using the outcome-based "Multi-Tool."

The Sequence:

1. Loosen: Open the screw just enough to accept the inner ring.
2. Set: Press the inner ring down.
3. Finger Tighten: Turn the screw until it touches the frame.
4. The Torque Rule: Use the multi-tool to turn the screw exactly three full rotations.

Why 3 Turns?

• Less than 3: The fabric will "trampoline" (bounce) during stitching, causing skipped stitches.
• More than 3: You risk stripping the screw or "popping" the inner ring out of the groove due to excessive pressure.
• Tactile Check: The fabric should feel taut like a starched bedsheet, not a drum. If it rings like a drum, you may have stretched the bias, which leads to puckering later.


Phase 5: The Magnetic Upgrade (Vertical Clamping)

This is where the workflow shifts from "struggle" to "production." The presenter moves to the 9.5" x 14" Magnetic Hoop.

The Process:

1. Base frame down.
2. Sandwich on top.
3. The Snap: Lower the top magnetic frame.
4. Sensory Check (The "Click"): You will hear a solid snap. Run your fingers along the perimeter. The top frame must sit flush against the bottom metal. If it rocks or wobbles, it is not seated, and the magnet is not engaged safely.

Warning: Magnetic Force Safety
Magnetic hoops use industrial-grade magnets.
1. Pinch Hazard: Keep fingers away from the contact zone when snapping the frame. The force can pinch skin severely.
2. Medical Devices: Keep these hoops at least 6 inches away from pacemakers or insulin pumps.

The Bubble Removal Technique

If you see a bubble, DO NOT un-hoop.

• Action: Firmly hold the magnetic frame down with your non-dominant hand.
• Correction: With your dominant hand, gently tug the exposed fabric edge away from the center.
• The Feel: You are looking for "flatness," not "tightness." Magnetic hoops hold the fabric neutral. This is why professionals prefer magnetic embroidery hoops for quilting—they eliminate the distortion caused by the "tug of war" in standard hoops.


Phase 6: The "Overlay Hack" (Bridging Analog & Digital)

This step is the "Secret Sauce" for Baby Lock owners.

• The Problem: The IQ Positioning App needs to "see" the black registration marks to understand where the hoop is. Magnetic hoops don't have these marks.
• The Solution:
  1. Hoop your fabric in the Magnetic Hoop.
  2. Take the Inner Ring of your Standard Hoop.
  3. Lay the Standard Ring loosely on top of the Magnetic Hoop.
  4. Align the inner corners visually.

By doing this, you provide the camera with the "data anchor" it needs (the marks) while keeping the fabric physically secured by the superior magnetic system. This hybrid approach allows access to advanced features like IQ Designer without sacrificing the ease of magnetic hooping.

Phase 7: The IQ Positioning Scan (Optics & Physics)

The video demonstrates using a smartphone to capture the hoop image.

The "Parallax" Error: If you tilt your phone, the app cannot rectify the image, and your design will be skewed.

• Technique: Brace your elbows against your ribs or the table edge to create a tripod effect.
• Visual Check: Look at the screen grid. The hoop edges should run parallel to the phone screen edges.

Troubleshooting Connectivity: If the "Send to Machine" fails (as seen in the video), it is rarely a software bug—it is usually Wi-Fi signal strength.

• Immediate Fix: Step physically closer to the machine. The sheer metal mass of an embroidery machine can block weak Wi-Fi signals.

SETUP CHECKLIST: Pre-Flight Verification

• Overlay Placement: Standard ring marks are clearly visible on top of the magnetic setup.
• lighting: The room is lit evenly; no harsh shadows casting across the registration marks (shadows confuse the camera).
• Phone Angle: Phone held strictly parallel to the floor/hoop.
• Connection: You are within 5 feet of the machine for data transfer.


Phase 8: The Handoff (Remove the Crutch)

Once the image is sent to the machine/IQ Designer:

• Action: REMOVE the standard inner ring.
• Why: If you forget this and hit "Start," the needle bar will crash into the loose plastic ring.
• Status: You are now ready to stitch on the magnetic hoop, guiding it via the digital map you just created.


Phase 9: Large Hoops & Clearance Physics (Solaris/Destiny)

The presenter switches to the massive 10.5" x 16" Magnetic Hoop.

The "Cantilever" Effect: Large hoops are heavy. When the embroidery arm moves to the far left or right, the weight of a giant magnetic hoop + quilt can cause the hoop to droop slightly.

• The Risk: The hoop's friction tape or felt backing might rub against the machine bed or arm.
• The Fix: Ensure your sewing table supports the weight of the quilt outside the hoop. "Quilt drag" is the #1 silent killer of embroidery motor accuracy.
• Observation: Listen for "scuffing" sounds. If the hoop rubs, check if you are using a reputable third-party hoop designed with proper clearance for baby lock magnetic hoop sizes. Cheap knock-offs often miss these tolerance specs by 2-3mm, causing collision.


Phase 10: The Stabilizer Decision Tree (The Foundation)

Hooping holds the fabric, but stabilizer holds the stitches. For ITH quilting, you must balance stiffness with softness.

Stabilizer Decision Tree:

1. Is your batting dense and stable (e.g., Warm & Natural)?
   • YES: You might float the sandwich (no extra stabilizer) if the design is low density (<15,000 stitches).
   • NO: Proceed to Step 2.
2. Is the fabric stretchy (Jersey/Knit) or Slippery (Satin)?
   • YES: Use Fusible No-Show Mesh (Polymesh). It adds structure without bulk.
   • NO (Standard Cotton): Use a Tearaway stabilizer to keep the crisp shape, then remove it to keep the quilt soft.
3. Are you stitching a dense "block" design?
   • YES: You need a magnetic embroidery hoop combined with Cutaway stabilizer. Dense stitches pull fabric inward; friction hoops often fail to hold against this "pull compensation," whereas magnets (plus sticky stabilizer) hold firm.


Phase 11: Troubleshooting Guide (Symptom -> Cure)

Don't guess. Use this diagnostic table to solve issues in the correct order (Physical -> Process -> Digital).

Phase 12: Scaling Up – The Commercial Reality

For the hobbyist, the "Overlay Hack" is a fun trick. But if you are producing 50 quilt blocks for a commission, or running a small embroidery business, "tricks" become "bottlenecks."

The Fatigue Factor: Twisting a hoop screw 3 times per hoop, 50 times a day, leads to Repetitive Strain Injury (RSI). This is where magnetic frames for embroidery machine transition from a "luxury" to "Personal Protective Equipment" for your wrists.

The Speed Limit: A single-needle machine (Altair/Solaris) is a marvel, but it requires substantial setup time per thread change.

• The Scenario: You have 50 shirts to logo, or a King size quilt with 60 blocks.
• The Bottleneck: Re-hooping and re-threading on a single needle takes 60% of your time.
• The Solution Path:
  1. Level 1 (Tooling): Magnetic Hoops. They reduce hooping time from 3 minutes to 30 seconds.
  2. Level 2 (Machinery): Multi-Needle Machines (like SEWTECH models). These machines allow you to queue 10+ colors and hoop the next garment while the machine stitches the current one, effectively doubling your profit per hour.

When you find yourself spending more time hooping than stitching, it is time to look at dime magnetic hoop for babylock alternatives or specialized high-production frames that keep your machine running.

OPERATION CHECKLIST: Final Pre-Start Audit

• Safety: Standard inner ring REMOVED from the magnetic stack.
• Clearance: Hoop moves freely; no fabric dragging on the floor (use clips/table extension).
• Position: Design is centered relative to the magnetic frame boundaries.
• Consumables: Bobbin is full (don't run out mid-block!).


Final Note on Hoop Compatibility

Whether you own a Solaris (large format) or Meridian (mid format), the rule remains: Physics wins.

If you are searching for magnetic hoops for babylock embroidery machines, do not assume "one size fits all."

• Altair/Meridian: 9.5" x 14" is the native sweet spot.
• Solaris/Destiny: 10.5" x 16" is the powerhouse.

Always verify that the hoop's connector allows the machine arm to travel its full X/Y axis without hitting the throat. A small investment in the correct SEWTECH or OEM hoop protects your multi-thousand-dollar machine from collision damage.

FAQ

• Q: Why does a Baby Lock Altair/Meridian/Solaris/Destiny 9.5" x 14" standard hoop shift the quilt sandwich center by 2–3 mm during in-the-hoop quilting?
  A: This is common—standard hoops create drift because pushing the inner ring into the outer ring drags thick layers sideways.
  • Place the outer hoop first, then lay the quilt sandwich on top before inserting the inner ring.
  • Use the “Two-Finger Test” by sliding two fingers under the fabric along the inside hoop walls to feel equal left/right margins.
  • Tighten using the “3-Turn” rule (finger-tight to contact, then exactly three full tool turns).
  • Success check: the center mark stays aligned after tightening, and the fabric feels taut like a starched bedsheet (not a drum).
  • If it still fails: switch to a magnetic hoop workflow that clamps vertically to reduce drift.
• Q: What is the correct stitch speed (SPM) range for Baby Lock Altair/Meridian/Solaris/Destiny in-the-hoop quilting on thick batting to reduce needle deflection and shifting?
  A: A safe working range is usually 600–800 SPM instead of max speed when stitching a thick quilt sandwich.
  • Set machine speed to 600–800 SPM before the first stitch on batting-heavy blocks.
  • Listen and slow down if the machine sound becomes loud and sharp (“thack-thack”) on penetration.
  • Pair the speed reduction with a fresh needle and stable basting/pinning before hooping.
  • Success check: the machine runs with a rhythmic, softer “thrum,” and stitches land where planned without fabric creep.
  • If it still fails: re-check hooping tension and confirm the quilt is supported on the table to prevent drag.
• Q: How do I confirm a quilt sandwich is pre-stabilized correctly before hooping for Baby Lock ITH quilting to prevent pleats and “bubbles”?
  A: Pre-stabilize the sandwich before hooping so the layers cannot slide inside the frame.
  • Flatten from the center outward on a hard table to remove air pockets without stretching batting.
  • Baste with Wonder Pins/curved safety pins, or use temporary spray adhesive (keep it away from the first stitch path).
  • Mark the physical center with a water-soluble pen so alignment is not guesswork.
  • Success check: holding the sandwich vertically does not make the backing sag or shift relative to the top.
  • If it still fails: reduce handling during hooping and consider magnetic hooping to avoid lateral drag.
• Q: What is the safe pin-removal rule for Baby Lock in-the-hoop quilting so the embroidery needle never strikes a pin at 600–800 SPM?
  A: Never allow hard pins to remain in the stitch zone—remove center pins after rough positioning but before clamping and stitching.
  • Audit the entire stitch path visually and by touch before pressing Start.
  • Remove any pin that could be reached by the needle during the first placement stitches.
  • Re-secure outside the stitch field if extra control is needed.
  • Success check: the planned stitch area is completely pin-free, and nothing metallic is within needle travel.
  • If it still fails: stop immediately if a pin is suspected—do not “test stitch”; re-hoop and re-audit.
• Q: How do I use a Baby Lock 9.5" x 14" magnetic hoop with the IQ Positioning App if the magnetic hoop has no black registration marks?
  A: Use the “overlay hack”: hoop in the magnetic hoop, then loosely lay the standard hoop inner ring on top so the app can see the registration marks.
  • Hoop the quilt sandwich in the magnetic hoop first (vertical snap clamp).
  • Place the standard hoop inner ring loosely on top and align the corners visually for the scan.
  • Scan with the phone held parallel to the hoop to avoid parallax distortion.
  • Success check: the app image shows straight, parallel hoop edges and clearly visible registration marks.
  • If it still fails: improve lighting (avoid shadows) and hold the phone steadier (brace elbows) before rescanning.
• Q: What should I do if “Send to Machine” fails when using the Baby Lock IQ Positioning App during the magnetic hoop overlay setup?
  A: Most “Send to Machine” failures are Wi-Fi signal strength issues—move the phone closer to the machine.
  • Stand within about 5 feet of the embroidery machine during transfer.
  • Retry the send after repositioning, because the machine’s metal body can block weaker signals.
  • Keep the phone parallel during scanning so you are not troubleshooting two issues at once.
  • Success check: the design transfers and appears on the machine/IQ Designer exactly as mapped.
  • If it still fails: treat it as a connectivity problem first (distance/interference), not a design or hooping problem.
• Q: What are the two most important safety rules when using a magnetic embroidery hoop for Baby Lock ITH quilting (pinch hazard and medical devices)?
  A: Magnetic hoops are strong—keep fingers out of the snap zone and keep the hoop at least 6 inches away from pacemakers or insulin pumps.
  • Lower the top magnetic frame with controlled hands and do not let it “slam” onto the base.
  • Keep fingertips away from the contact edge to prevent severe pinching.
  • Store and handle the hoop away from sensitive medical devices as stated above.
  • Success check: the frame seats flush all around with a solid “click” and no rocking or wobble.
  • If it still fails: remove and reseat the top frame—do not stitch if the frame is not fully engaged.
• Q: When should a Baby Lock Altair/Meridian/Solaris/Destiny owner move from standard hoops to magnetic hoops, and when does it make sense to upgrade production capacity to a SEWTECH multi-needle embroidery machine?
  A: Upgrade in layers: first optimize technique, then move to magnetic hoops for repeatability, and only then consider a multi-needle machine when hooping/rethreading becomes the main bottleneck.
  • Level 1 (Technique): apply center-first flattening, correct pin removal, the standard-hoop Two-Finger Test, and the 3-turn screw rule.
  • Level 2 (Tooling): choose magnetic hoops when quilting thick sandwiches, when hoop burn appears on delicate/dark fabrics, or when hoop screws cause hand/wrist fatigue.
  • Level 3 (Capacity): consider a SEWTECH multi-needle machine when setup time (re-hooping + thread changes) dominates the workday on repeated jobs (many blocks or many garments).
  • Success check: hooping becomes consistent (no drift/hoop burn), and stitching time becomes the majority of the workflow again.
  • If it still fails: check hoop clearance/table support for large hoops (avoid rubbing and quilt drag) before assuming the machine is the problem.
