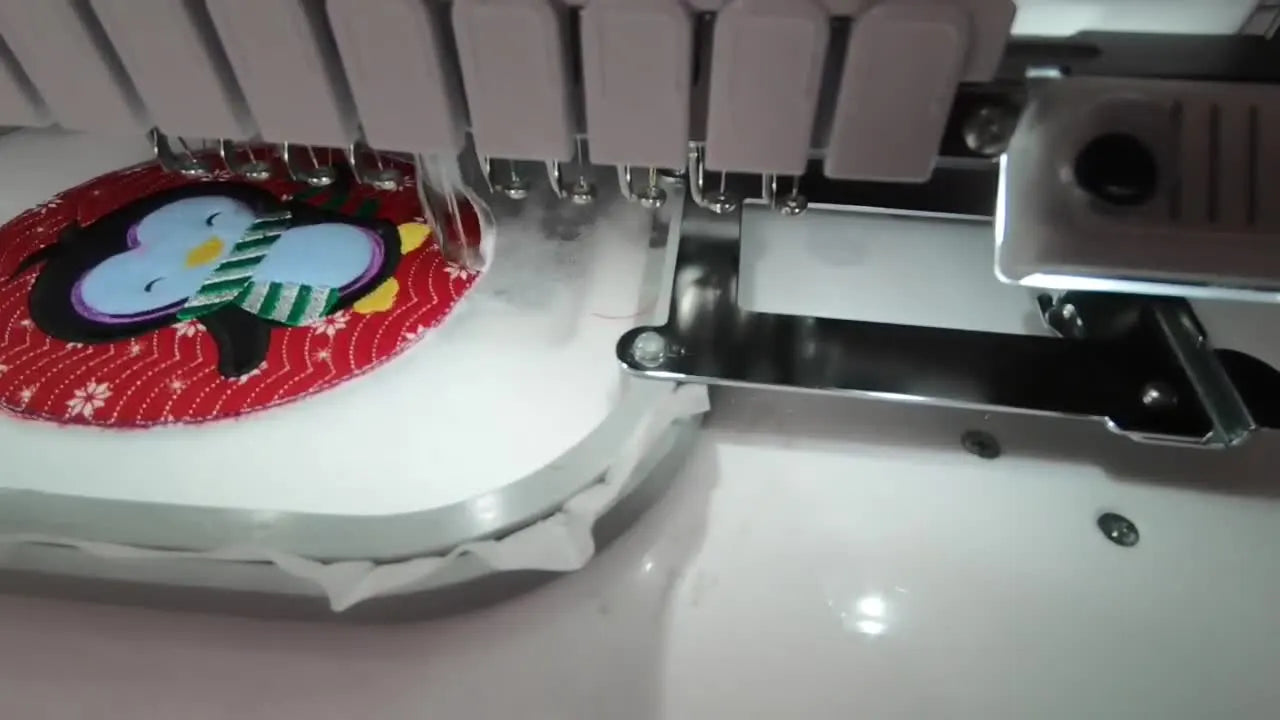

The No-Stress ITH Penguin Mug Rug: Clean Appliqué, Flat Quilting, and a Backing That Actually Looks Good

Master Class: The ITH Penguin Mug Rug – A Crash Course in Layer Management

You are not alone if your first In-the-Hoop (ITH) project makes your stomach flip a little. The concept defies traditional sewing logic: multiple layers, trimming while the object is trapped under a needle, and that nerve-wracking moment where you must float backing fabric blindly underneath the hoop.

Take a breath. Machine embroidery is an experience-based science, and this penguin mug rug is the perfect laboratory. The digitizer has done the structural engineering; your job is simply to be the site manager. Your primary tasks are managing material thickness, ensuring stability, and executing precision trimming.

This guide breaks down the "Sue's Penguin Mug Rug" video into a professional standard operating procedure (SOP), adding the critical safety margins and sensory checks that usually take years to learn.

The "It’s All In the Hoop" Promise: Enhancing Structural Integrity

This project finishes completely within the hoop frame. The front fabric, batting, and backing are captured by a final high-density satin border, then topped with a decorative lace edge.

For a beginner, ITH is the best teacher of Hoop Physics 101. It teaches you that machine embroidery isn't just about surface decoration—it's about constructing a stable object using thread as your fasteners. If you master the layering here, you can tackle complex bags and plush toys next.

Supplies for the OML ITH Penguin Mug Rug (5x7 Hoop) — The Professional "Mise en Place"

The difference between a fun afternoon and a frustrated one is preparation. Gather everything before you power on. We are adding a few "Hidden Consumables" to Sue’s list that pros always use for safety.

Visual Inventory:

• Hoop: 5x7 inch (130mm x 180mm). The demo utilizes a generic hoop, but a magnetic embroidery hoop is often preferred for ITH to handle the thickness of batting without distortion.
• Stabilizer: Fibrous Water Soluble (Vilene style). Expert Note: Do not use the thin plastic "topping" film. The high stitch count of the satin border will perforate film and the project may fall out. Use the mesh/fibrous type that feels like fabric.
• Batting: Low-loft cotton/poly blend (e.g., Warm & Natural).
• Fabrics:
  • Bright Background: Cotton (red snowflake).
  • Body: Heavy woven fabric (like denim or duck cloth)—this masks dark thread underneath.
  • Tummy: Felt (very forgiving for trimming).
  • Backing: Felt or matching cotton.
• Tools: Duckbill scissors (non-negotiable for appliqué).

Hidden Consumables (The "Pro" Additions):

• Painters Tape or Medical Tape: Essential for securing the backing fabric to the underside of the hoop.
• New Needle: Size 75/11 or 90/14 Sharp. (Universal needles can struggle to penetrate batting + denim + felt layers cleanly).
• Spray Adhesive (Optional): Helps tack down batting without adding bulk.


Prep Checklist (Pre-Flight Safety Check)

• File Verification: Ensure you loaded the 5x7 file. (A 4x4 file will center oddly; an 8x12 file won't knick).
• Oversized Cutting: Cut batting and backing fabrics 1 inch larger than the design perimeter on all sides. Hand-holding a fabric edge near a moving needle because you cut it too short is a safety violation.
• Bobbin Audit: Check your bobbin supply. You need at least 50% capacity. Running out of bobbin thread during the final satin border is a repair nightmare.
• Hoop Medicine: Clean the inner ring of your hoop. Lint buildup reduces grip.
• Scissor Safety: If using a magnetic frame, keep your duckbill scissors away from the magnets to avoid sudden snapping motions.

Warning: Duckbill Scissor Safety. The "duckbill" blade protects the fabric, but the tip is still sharp. When trimming, always keep the scissor blades parallel to the hoop floor. Never angle the tips down, or you will slice your expensive stabilizer, causing the design to warp instantly.

The Foundation: Hooping Water Soluble Stabilizer

Sue hoops the water-soluble stabilizer (WSS) directly. This acts as the "foundation" for the entire house you are building.

The Sensory Check: When hooping fibrous WSS, tighten until it is taut but not distorted. Tap it with your finger.

• Correct Sound: A dull, muted thud (like tapping a sofa cushion).
• Incorrect: A high-pitched "ping" (too tight—it will shrink later) or a floppy ripple (too loose—outlines won't align).

If you struggle with "hoop burn" (white marks on dark fabric) or hand strain from tightening screws, terms like magnetic embroidery hoop are your gateways to understanding efficient production. These tools use magnetic force to clamp rather than friction to squeeze, which is safer for delicate stabilizers.

Setup Checklist (Machine Ready)

• Needle Check: Ensure the needle is fully inserted and the screw is tight.
• Thread Path: Floss the thread through the tension discs. You should feel a slight resistance, like pulling a hair ribbon.
• Clearance: Check that the machine arm can move freely without hitting your mug of coffee or the wall.

Placement Line: The Blueprint

Video Step: Run Step 1 directly on the stabilizer.

This single running stitch is your map. It tells you exactly where your materials must go. Do not guess. If your fabric doesn't cover this line by at least 1/2 inch, you will fail later.

Batting + Background: Managing Volume

Video Step: Place batting over the outline, then smooth the red background fabric over the batting.

The Physics of "floating": You are placing thick material on top of the stabilizer.

• Expert Technique: Do not pull the fabric taut. Batting is spongy. If you pull the top fabric tight, it compresses the batting. When you release it later, the batting expands, and your fabric puckers.
• Action: Gently "pet" the fabric flat from the center outward. Use a small piece of painter's tape on the corners—far away from the needle path—to keep it from shifting as the frame moves.

Using a magnetic hoop can also simplify this floating process, as the flat clamping mechanism provides fewer obstructions than the high walls of traditional inner hoops.

Double Tack-Down + Echo Quilting: Locking the Sandwich

Video Step: The background is stitched down (tacked) and then quilted.

Audio Cue for Tension: Listen to your machine.

• A rhythmic hum-hum-hum is good.
• A sharp thud-thud-thud means different layers are resisting penetration.
• Fix: If you hear thudding, slow your speed down. If your machine runs at 800 stitches per minute (SPM), drop to 600 SPM. This reduces needle deflection.

The "Tearing" Issue: If your stabilizer starts ripping along the needle penetrations during this quilting phase, your WSS is too thin or your hoop tension was too loose. Pause immediately. You may need to slide a second sheet of WSS underneath the hoop (floating it) to reinforce the area.

Appliqué Layering: The Heavy Black Fabric

Video Step: Place the black fabric, run the tack-down stitch.

Material Science: Sue uses a heavy, denim-like material.

• Why this works: Heavy fabrics are stable. They don't stretch on the bias.
• Why it's hard: They add bulk.
• The Fix: Ensure your presser foot height is set correctly. If your machine has a "Fabric Thickness" setting, toggle it to "Heavy" or manually raise the foot height by 1-2mm to prevent the foot from dragging the fabric.

Precision Trimming: The Duckbill Technique

Video Step: Trim the black fabric close to the stitch line.

The 2mm Rule: You want to trim close, but not too close. Aim to leave exactly 2mm (about 1/16th inch) of fabric outside the stitch line.

• Too Close: The satin stitch has nothing to grab and will fall off the raw edge.
• Too Far: The satin stitch won't cover the raw edge, and you see "whiskers" poking out.

Lift the excess fabric upward with your non-dominant hand to create tension, then glide the duckbill scissors flat against the stabilizer. It should feel like cutting wrapping paper—smooth and crisp.

Tummy Appliqué: The Forgiveness of Felt

Video Step: Place and stitch the pale blue felt.

Felt is a novice's best friend. It has no grain line, doesn't fray, and compresses easily under stitching. This builds confidence before you tackle the harder satin stitching.

Detail Stitching: Trusting the Chaos

Video Step: Eyes, scarf stripes, and cover stitches.

Psychological Safety: Mid-stitch, embroidery often looks messy. Jump stitches cross over eyes; satin columns look too narrow. Trust the digitizer. Do not stop the machine to trim jump stitches unless the foot is getting caught. Trimming too early often leads to unraveling lock stitches. Wait until the color block is finished.

Note on Colors: Sue accidentally used purple for the face. Happy accidents make unique art. If you thread the wrong color, own it. It’s a "custom design choice" now.

The Critical Backing Step: The "Blind" Placement

Video Step: Remove hoop. Place backing fabric face down on the underside of the hoop.

This is the high-risk maneuver. You are working blind.

The "Tape & Verify" Method:

1. Remove the hoop from the machine (keep the project IN the hoop).
2. Flip the hoop over.
3. Place your backing fabric (Face RIGHT side/Pretty side against the stabilizer).
4. Tape all four corners securely to the plastic frame of the hoop. Tape is cheap; ruined projects are expensive.
5. Flip the hoop back over. Run your hand under it to ensure the backing is taught and hasn't sagged.

Many professionals search for how to use magnetic embroidery hoop specifically for this step, because magnetic systems often allow you to snap backing materials into place with less risk of shifting compared to traditional screw hoops.

Warning: Magnet Safety & Pinch Hazards. If using high-strength magnetic hoops, keep fingers entirely clear of the snapping zone. The force can be significant. Additionally, keep these magnets away from pacemakers and magnetic storage media.

Final Satin Border + Lace Edge: The Structural Seal

Video Step: The machine stitches a heavy satin border to seal the sandwich, followed by the lace edge.

The Danger Zone (Hoop Physics): This border adds thousands of stitches in a small area. This generates heat and friction.

1. Change Bobbin Color: Now is the time to switch your bobbin thread to match your top thread if you want the back of the rug to look professional.
2. Speed Limit: Reduce speed to 500-600 SPM. High speed here causes thread breaks and needle deflection (breaking needles).
3. Monitor Tension: If you see loops on top, your top tension is too loose. If you see white bobbin thread on top (pokies), your top tension is too tight.

Operation Checklist (The Final Inspection)

• Tape Check: Are the tape ends under the hoop clear of the needle path?
• Backing Check: Did the backing flip over when you slid the hoop onto the machine arm? (Peek under and check).
• Sound Check: Listen for the "clicking" of a dull needle. If it sounds crunchy, pause and change the needle before the final border.

Decision Tree: Stabilizer & Material Logic for ITH

Use this logic flow to avoid ruining your next project.

1) Is the project "Free Standing" (Lace/Patches) or "In-the-Hoop" (Coasters/Mug Rugs)?

• Free Standing → Must use Heavy Duty Water Soluble (Fibrous).
• In-the-Hoop (Fabric covered) → Can use Tear-away, but WSS gives cleaner edges.

2) Are you using stretchy fabric (Knits/T-shirt material)?

• Yes → You MUST FLOAT a layer of Cut-away stabilizer or fusible woven interfacing on the back of the knit fabric before appliqué.
• No (Wovens/Felt) → Standard setup applies.

3) Is the final border very dense?

• Yes → Slow machine speed by 30%. Use a fresh needle.
• No → Standard speed is fine.

Troubleshooting: Structured Diagnostics

Don't guess. Follow this Low-Cost to High-Cost checking order.

The Commercial Upgrade Path: When to Stop "Making Do"

If you successfully made one mug rug, you might want to make ten for a craft fair. This is where the hobbyist workflow breaks down. The pain points—slow hooping, sore wrists, and constant thread changes—are signs you are outgrowing your current toolset.

Phase 1: Ergonomic Optimization If you find yourself dreading the "hooping" step due to wrist pain or difficulty getting thick layers to close, consider transitioning to magnetic embroidery hoops for brother (or your specific machine brand). The "snap" closure eliminates the need to unscrew and forcefully tighten outer rings, saving significant time between runs.

Phase 2: Workflow Scaling If you are using a single-needle machine (like a Brother Luminaire or Stellaire) and the frequent color changes are killing your efficiency, you are hitting the "Single Needle Limit."

• The Problem: You spend more time threading than stitching.
• The Solution: Production-focused machines. Value-oriented options like SEWTECH multi-needle machines or established workhorses like brother multi needle embroidery machines allow you to set up all 6-10 colors at once. This lets you press "Start" and walk away to prep the next hoop.

Phase 3: Large Format For those with advanced machines like the Luminaire, utilizing a brother luminaire magnetic hoop maximizes the massive embroidery field without the risk of fabric slippage that occurs with giant traditional hoops.

Final Reality Check: Defining Success

A perfect first attempt is a myth. A successful first attempt is one where:

1. The machine didn't jam.
2. The backing fabric covers the target area.
3. The satin border didn't fall off the edge.

If you have slight whiskers or a bit of uneven tension, that is acceptable data for your next run. Machine embroidery is an iterative process. Learn the physics of the layers, respect the safety margins, and the art will follow. Now, go press start.

FAQ

• Q: How do I choose the correct water-soluble stabilizer for the ITH Penguin Mug Rug in a 5x7 (130mm x 180mm) hoop?
  A: Use a fibrous/mesh water-soluble stabilizer (Vilene-style), not thin plastic film, to prevent perforation and drop-out during dense borders.
  • Choose fibrous WSS that feels like fabric; avoid “topping” film for this project.
  • Hoop the WSS taut but not distorted; tighten gradually.
  • Add a second floated sheet of WSS underneath if tearing starts during quilting or the border.
  • Success check: Tap test sounds like a dull, muted thud (not a high “ping” and not floppy ripples).
  • If it still fails… Switch to a heavier fibrous WSS and reduce speed for the final satin border.
• Q: How tight should water-soluble stabilizer be hooped for an ITH project to avoid misalignment and puckering?
  A: Hoop water-soluble stabilizer taut with no ripples, but stop before it is overstretched.
  • Tighten until the surface is flat; do not crank until it “pings.”
  • Re-check hoop grip by lightly rubbing the surface; it should not shift.
  • Clean lint from the inner hoop ring before hooping to improve grip.
  • Success check: The stabilizer stays flat when the hoop moves, and placement lines stitch without drifting.
  • If it still fails… Consider a magnetic-style clamping frame to reduce distortion and improve consistent holding on delicate stabilizers.
• Q: How do I stop thread nesting (bird’s nest) on the underside at the start of an ITH Penguin Mug Rug stitch-out?
  A: Rethread the upper thread with the presser foot UP so the thread seats into the tension discs.
  • Raise the presser foot fully, then completely rethread the top path.
  • Pull the thread through the tension area and feel slight, consistent resistance.
  • Restart on a test corner if possible before committing to the dense sections.
  • Success check: The first running stitch forms cleanly without a wad of loops under the hoop.
  • If it still fails… Inspect for missed guides and confirm the machine is not stitching with the thread outside the tension discs.
• Q: Why is bobbin thread showing on top during the final satin border on an ITH mug rug, and what is the quickest fix?
  A: Reduce top tension slightly and confirm the bobbin is seated correctly in the tension spring.
  • Re-seat the bobbin and “floss” the bobbin case area to clear lint.
  • Lower top tension by a small step (a safe starting point is 0.5–1.0) and test a few stitches.
  • Slow down to 500–600 SPM for the dense satin border to reduce deflection-related tension swings.
  • Success check: Satin border looks solid on top with minimal “pokies” of bobbin thread.
  • If it still fails… Change to a fresh needle and re-check threading through every guide.
• Q: What is the safest way to trim appliqué fabric for the ITH Penguin Mug Rug without cutting the stabilizer?
  A: Use duckbill scissors flat to the hoop and leave about 2mm (1/16") outside the stitch line.
  • Lift the excess fabric up with the non-dominant hand to create tension.
  • Glide duckbill scissors parallel to the hoop floor; never angle the tips downward.
  • Trim in small sections to maintain control around curves.
  • Success check: The next satin/cover stitch fully covers the edge with no cut-through holes or loose raw fabric.
  • If it still fails… Slow down and replace dull scissors; rushed trimming is the most common cause of stabilizer slices.
• Q: How do I place backing fabric on the underside of the hoop for an ITH mug rug without shifting (the “blind” placement step)?
  A: Tape all four corners of the backing fabric to the hoop frame while the project stays in the hoop, then verify tension by touch before stitching.
  • Remove the hoop from the machine with the project still hooped.
  • Flip the hoop; place backing fabric face down (pretty side against the stabilizer).
  • Tape all four corners securely to the hoop frame, keeping tape clear of the needle path.
  • Success check: Run a hand underneath—backing feels taut and does not sag or bubble.
  • If it still fails… Use larger backing (at least 1" bigger than the design perimeter) and re-tape; short cuts force unsafe hand-holding.
• Q: What needle, speed, and safety checks reduce thread breaks and needle breaks on thick ITH layers (batting + denim/felt) during the satin border?
  A: Install a new 75/11 or 90/14 sharp needle and slow to 500–600 SPM for the final satin border to reduce heat, friction, and deflection.
  • Change to a fresh sharp needle before dense border stitching.
  • Reduce machine speed (a safe target here is 500–600 SPM) and listen for “crunchy/clicking” sounds.
  • Keep hands away from the needle zone and never hold short fabric edges near the moving needle—cut pieces at least 1" oversized.
  • Success check: The machine sound stays smooth (no heavy thudding), and the border stitches without repeated breaks.
  • If it still fails… Check presser-foot clearance for heavy layers and slow further before attempting tension changes.
• Q: When should a single-needle ITH workflow upgrade from technique fixes to magnetic frames or a multi-needle embroidery machine?
  A: Upgrade when hooping thick layers causes repeated shifting/wrist strain, or when constant color changes become the main time sink rather than stitching.
  • Level 1 (Technique): Tape backing securely, avoid stretching fabric over batting, slow to 500–600 SPM on dense borders, and use a fresh needle.
  • Level 2 (Tool): Move to a magnetic-style hoop/frame to reduce hoop burn, hand strain, and fabric shift on bulky ITH stacks.
  • Level 3 (Capacity): Move to a multi-needle machine when rethreading time dominates and you need consistent batch output.
  • Success check: One full mug rug completes with no jams, backing fully covers, and the satin border stays on the edge.
  • If it still fails… Track which step repeatedly fails (hooping, backing placement, or dense border) and upgrade only the bottleneck first.
