The ITH Zipper Pouch That Won’t Trap Your Zipper Pull: A Janome Continental M17 Pencil Case You Can Finish Cleanly Every Time

If you have ever excitedly pulled an In-The-Hoop (ITH) zipper pouch out of the machine, trimmed the threads, and then realized with a sinking heart that the zipper is sealed shut behind a wall of stitching, you are not alone. It is a rite of passage.

This Week 4 project—matching the notebook cover sew-along—is an intelligent piece of engineering. However, ITH projects are a unique beast. They reward careful placement, clean hooping mechanics, and specific "old hand" habits that prevent slippery vinyl and shifting folds from ruining the piece at the very last minute.

This master class walkthrough follows Alicia Welcher’s process on the Janome Continental M17 with an 11-inch square hoop. But beyond the steps, I am going to overlay the production-grade guardrails I teach in professional workshops: how to physically manage tape in the needle path, how to arrest fabric shift before it happens, and how to select consumables that don't fight you.

Don’t Panic—ITH Zippers Feel Fussy Until You Learn the Two “No-Regret” Checkpoints (Janome Continental M17 + 11-inch Square Hoop)

In-The-Hoop zipper projects can trigger anxiety because they require a suspension of disbelief. You are stacking materials blindly on top of stabilizer, trusting digital placement lines you cannot pin in the traditional sense. The fear of the unknown is real here.

However, the good news is that this design provides visual confirmation at every stage. The grid lines, the placement boxes, and the perimeter stitching act as your GPS. To navigate this safely, you only need to commit to two "No-Regret" checkpoints. These are your safety stops:

1. The Tape Trajectory Check: Tape must stay outside the next stitch path. If you cannot confidently predict within 5mm where the needle will travel, pause. Look at the placement box you just stitched. If your tape is inside that line, move it.
2. The "Point of No Return" Check: The zipper must be unzipped (opened) before the final enclosure stitching. If you miss this moment, you will create a beautifully stitched, hermetically sealed pouch that cannot be turned right side out.

A Note on Speed: If you are running this on a high-speed janome embroidery machine or any commercial prosumer model, resist the urge to run at 1000 spm (stitches per minute).

• The Sweet Spot: For ITH projects involving vinyl and layers, dial your speed down to 600-700 SPM.
• The "Why": Vinyl generates friction and heat; slower speeds prevent the needle from heating up and melting the synthetic material, and it gives you reaction time if a fold starts to flip.


The “Hidden” Prep That Makes This Pouch Behave: Fibrous Water-Soluble Stabilizer, Zipper Choice, and Clean Cutting Tools

Alicia starts with fibrous water-soluble stabilizer hooped tight and stitches Color 1 directly onto it. This is not just a preference; it is structural engineering.

Material Science: Why Fibrous Water-Soluble?

Beginners often confuse "water-soluble film" (the flimsy plastic wrap looking stuff) with fibrous water-soluble stabilizer (which looks and feels like fabric).

• The Physics: You are building a bag on top of this layer. Film allows too much stretch and distortion. Fibrous stabilizer creates a rigid "foundation" that mimics fabric, keeping your square pouch actually square, but washes away completely so you don't have stiff tear-away paper trapped in your seams forever.

The "Hidden" Consumables

Beyond the standard list, you need three things pros always have on hand:

1. Fresh Rotary Blade: Cutting vinyl requires a razor edge. A dull blade forces you to press harder, which creates drag and slips—dangerous for your fingers and the project.
2. Low-Tack Tape: Not Scotch tape. You need tape that peels off without leaving gummy residue that gums up your needle eye.
3. Fabric Glue Stick: Spray adhesive is messy for this; a precision glue stick is better for tacking down small fold corners.

Warning: Mechanical Safety
Rotary cutters and embroidery needles are a dangerous combination for rushed hands.
* Protocol: Never trim fabric while the hoop is attached to the machine. You risk torqueing the carriage (damaging the machine) and slicing your hand if the machine accidentally engages. Always remove the hoop to a flat cutting mat for trimming.

Prep Checklist (Do this before you power up)

• Stabilizer: Verify you have fibrous water-soluble stabilizer (not film, not tear-away).
• Zipper geometry: Select a standard nylon coil zipper (size #3 or #4) that is at least 12 inches long. Avoid chunky molded plastic teeth or heavy metal zippers—they break needles.
• Hooping Mechanics: Tighten the hoop screw until finger-tight, then use a screwdriver for one final half-turn. The stabilizer should sound like a drum when tapped (a dull thud-thud, not a flabby ripple).
• Blade Check: Change your rotary blade. If it skipped threads on your last project, trash it.
• Embellishment Decision: If you plan to add a name or logo to the back, load that file now. It must happen before the final assembly step.


Stitch the Grid First, Then Let the Placement Lines Do the Thinking (Color 1 Grid on Water-Soluble Stabilizer)

Alicia hoops the stabilizer and stitches Color 1. This is the most boring but critical step. It creates the "blueprint" directly on your foundation.

Visual Confirmation: Look for clear, unbroken lines forming a large rectangle (the pouch body) and internal lines (the window and zipper box).

Cognitive Shift: If you are coming from garment sewing, this feels "backwards" because you are not hooping the fabric. Structure your mind to understand that in ITH, the stabilizer is the canvas; the fabric is just the paint. If the canvas (stabilizer) is loose, the painting will be distorted.

Nail the Zipper Placement Without Sewing Through Tape (Glue + Whimsy Tape Outside the Box)

This is the failure point for 40% of first-time attempts. Alicia applies a small amount of glue to the back of the zipper tape, then places it right side up inside the stitched box.

The Rules of Engagement

1. The "Parking Zone": The zipper pull (the metal/plastic slider) must be parked completely outside the stitched box at the top.
2. The "End Zone": The metal bottom stop must be outside the box at the bottom.
3. Center Mass: The zipper teeth must run dead center down the placement box.

The Problem with Hoop Burn and Vinyl

Alicia uses tape here. However, this is where many users struggle. To keep the zipper flat on a bouncy stabilizer requires pressure. If you are using a standard hoop, you face a dilemma: hoop tight enough to hold, and you might leave "hoop rings" on delicate vinyl or velvet later.

This is where terms like magnetic embroidery hoop enter the conversation for production sewists. A magnetic system clamps flat rather than forcing materials into a ring, allowing you to float these layers without distortion and giving you more hand clearance to tape things down without fighting the inner ring's walls.

Practical Tip: If using standard hoops, place your tape perpendicular to the zipper, far outside the stitch zone. Use the smallest piece of tape necessary.

Build the Vinyl Window Stack: Center Vinyl, Then Butt Folded Fabric Exactly to the Placement Lines

Now we build the window.

1. Vinyl Placement: center the clear vinyl over the large window box. Tape the outer edges only.
2. Fabric Abutment:
   • Take your pre-folded fabric strips.
   • Place the fold exactly against the stitched placement line.
   • Tactile Check: Run your fingernail along the fold. It should "catch" slightly on the thread line. That is how you know it is tight enough.
   • The raw edges should face outward; the smooth fold faces the center (the vinyl).

Why Precision Matters: If you gap this by even 2mm, your final satin stitch or top-stitch will miss the fabric and land on the vinyl, creating a perforation line that will tear later. Butt it tight.

The Clean Top-Stitch Look Comes From One Habit: Control the Fold Before the Needle Gets There (Double Top Stitch)

Alicia runs the double top-stitch to secure the fabric to the vinyl. The machine does the work, but you are the supervisor.

The "Petting" Technique

As the machine accelerates, the vibration can cause the fabric fold to bounce up. If the presser foot hits a bouncing fold, it will shove the fabric backward, creating a bird's nest or a crooked seam.

The Fix: Use a stylus, a chopstick, or your finger (safely away from the needle!) to lightly "pet" the fabric flat as it approaches the foot. You aren't pulling; you are just calming the material.

Pro Tip: Listen to your machine. A rhythmic thump-thump-thump is good. A harsh clack-clack usually means the foot is hitting the height differential between the vinyl and the folded fabric too hard. If you hear this, lower your speed to 400 SPM immediately.

Setup Checklist (Right before the window top-stitch)

• Tape Hygiene: Verify tape is only on the outer perimeter, miles away from the center window stitching.
• Butt Check: Folded fabric edges are pressing firmly against the placement line.
• Safe Zone: Your hands have a designated resting spot clear of the needle bar movement.
• Zipper Clearance: Verify the zipper pull is still taped down outside the work area.

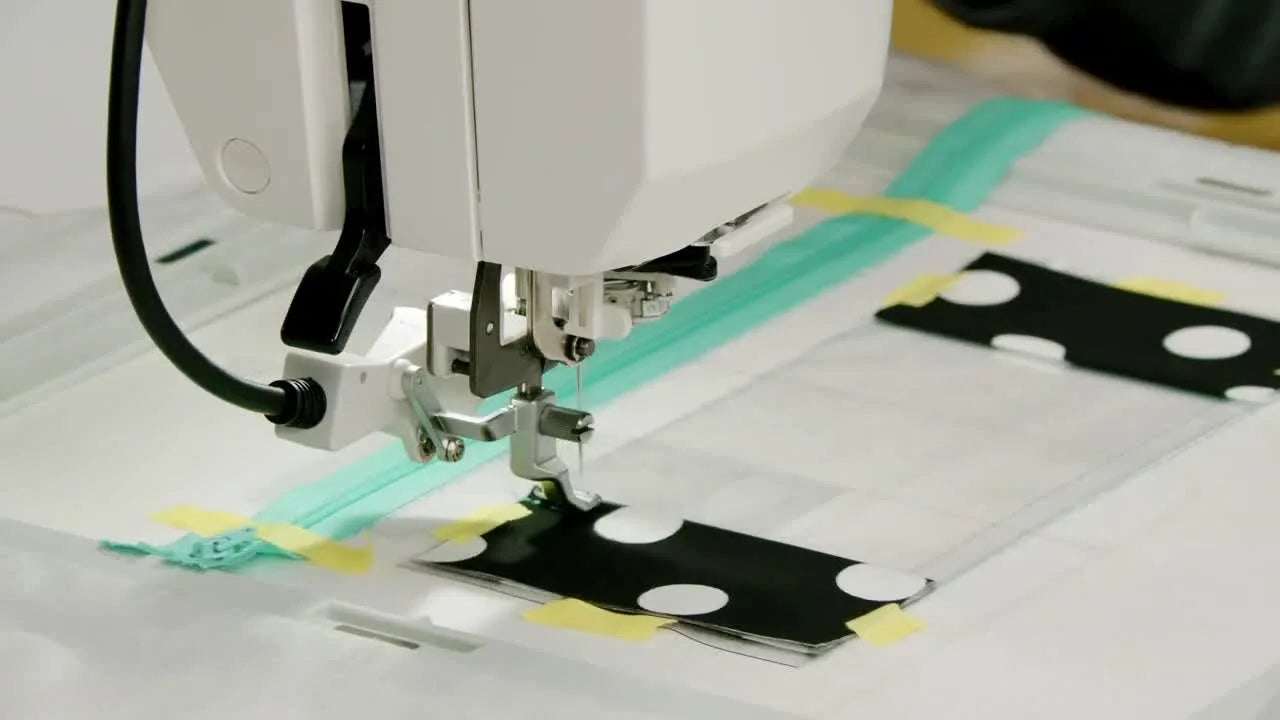

Add the Long Strips at the Zipper Like a Pro: Raw Edge to Zipper Tape, Then Finger-Press Away From the Coils

Next, Alicia places the long fabric strips along the zipper.

• Alignment: Raw edge of fabric aligns with the raw edge of the zipper tape.
• Stitch: The machine tacks it down.
• The Flip: You must fold the fabric back to reveal the right side.

The Finger Press: Do not take this to an iron. Vinyl melts. Instead, use a seam roller or the back of your fingernail to crease the fabric sharply away from the zipper coils. If this fold is "puffy," it will get caught in the zipper later. Press it until it lays flat and submissive.

The One Move You Must Not Forget: Open the Zipper Before the Perimeter Stitch Seals the Pouch

STOP.

Before you layer the backing on, you must unzip the zipper. Alicia pauses, removes the tape crossing the zipper track, and slides the pull to the center—roughly into the middle of the window area.

Warning: Project Failure Point
If you leave the zipper closed (pull at the top edge) and run the next step, the machine will stitch a box around the perimeter. You will seal the zipper pull outside the usable bag area. Result: You will have to cut the bag open with scissors to salvage the zipper.
Action: Put a sticky note on your machine screen right now: "OPEN ZIPPER."

Add Lining and Backing Without Guesswork: Right Sides Together, Fully Cover the Rectangle

We are now creating the "sandwich."

1. Backing: Place backing fabric FACE DOWN over the project. (Right side of backing touches right side of pouch front).
2. Lining: Place lining fabric FACE DOWN directly on top of the backing (optional, depending on if you want a separate lining, but usually treated as one unit here).

Critical Coverage Check: Look at the corners. The fabric must extend at least 1/2 inch past the placement lines on all four sides. Fabric shrinks slightly as it gets stitched; give yourself a margin of error.

Let the Machine Lock It In: Perimeter Box Stitching, Then Zigzag Reinforcement

The machine will now sew a heavy double-run or triple-run stitch around the perimeter, followed by a zigzag.

The Physics of Thickness: You are now sewing through: Stabilizer + Vinyl + Zipper Tape + Folded Fabric + Backing Fabric. This is thick.

• Listen: If the machine sounds like it is struggling (groaning motor), increase your foot height setting slightly (if your machine allows) or slow down.
• Watch: Keep an eagle eye on the fabric edges. The foot pressure can push the top fabric layer (the backing) like a bulldozer, creating ripples. "Pet" the fabric to keep it smooth.




Trim Like You Mean It: Cut Close to the Zigzag Without Nicking It, Then Soak Out the Stabilizer

Remove the hoop. Take it to your cutting mat.

The Precision Trim: Use your ruler. You want to cut about 1/8th inch (3mm) away from the zigzag stitch.

• Too close: You sever the threads and the bag falls apart.
• Too far: You have bulky seams that look lumpy when turned.

The Soak: Submerge the pouch in warm water.

• Tactile Cue: The pouch will feel slimy at first—that is the dissolved stabilizer gel. Keep rinsing until the fabric feels "squeaky" clean, like wet cotton, not like gel.
• Drying: Stuff the pouch with a small dry towel to shape it while it dries. This prevents the vinyl from drying with hard creases.


Troubleshooting the “Presser Foot Flipped My Fold” Moment (and Other ITH Saves)

Even with pro tools, things happen. Here is how to diagnose and fix the most common ITH errors.

Symptom → Cause → Fix

A Simple Stabilizer Decision Tree for ITH Bags (So You Don’t Waste a Hoop)

Stop guessing which stabilizer to use. Follow this logic path:

1. Is the project a "Finished Edge" Bag (Turned inside out)?
   • YES: Use Fibrous Water-Soluble. Why: It washes away completely, leaving soft seams.
   • NO (Raw Edge / Vinyl Decal): Use Cut-Away. Why: It provides permanent support.
2. Are you stitching heavy density satin stitches on vinyl?
   • YES: Use Fibrous Water-Soluble or a specialized Performance Cut-Away. Tear-away will punch out and the vinyl will perforate.
3. Are you mass producing?
   • YES: Consider commercial rolls of stabilizer and magnetic frames to speed up the hooping process.

The Upgrade Path That Actually Saves Time: Hooping Speed, Repeatability, and Scaling Beyond One Pouch

Once you successfully make one pouch, the addiction sets in. You will want to make ten. This is where hobbyist tools often hit a wall called "Production Fatigue."

The Bottleneck: The Hooping Station If you find yourself dreading the hooping process—loosening screws, fighting the inner ring, trying to keep vinyl taut without stretching it—it is time to look at your infrastructure.

• A hooping station for machine embroidery allows you to use gravity and jigs to align pieces perfectly every time, reducing the "did I hoop that straight?" anxiety.

The Solution: Magnetic Tech The industry secret for ITH bags is the use of magnetic embroidery hoops.

• Why essential for ITH: When you are floating multiple weird layers (zippers, vinyl, fabric), a traditional friction hoop tries to distort them as you shove the inner ring in. A magnetic hoop simply snaps down from the top.
• The Gain: Zero distortion, zero "hoop burn" on the vinyl, and significantly faster cycle times.

For home users looking to bridge the gap to professional results, moving to SEWTECH-compatible magnetic frames can be a transformative upgrade. It turns the most frustrating part of the job (hooping) into the easiest.

Warning: Magnet Safety
Professional magnetic hoops use strong Neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise fingers. Handle with respect.
* Medical Devices: Keep them away from pacemakers and insulin pumps.
* Electronics: Do not rest your phone or credit cards directly on the magnets.

If you are running legacy gear, such as the janome mc400e hoops, always verify that your machine has the clearance for magnetic frames. Investing in the right tools is what separates the "frustrated hobbyist" from the "confident maker."

Operation Checklist (The last 60 seconds before you hit the final perimeter stitch)

• Zipper Status: The zipper is UNZIPPED (halfway open).
• Tape Removal: All tape crossing the zipper teeth or perimeter line has been removed.
• Coverage: The lining/backing fabric fully covers the design area (check all 4 corners).
• Clearance: Nothing is bunching under the hoop (check the back of the machine arm).
• Final Watch: Watch the first 20 stitches of the perimeter run like a hawk to ensure the foot doesn't curl the backing fabric edge up.

If you want the pouch to look "store-bought," the secret is not the thread brand—it is the discipline of placement, the control of folds, and the courage to trim closely. Master these, and your Week 4 pencil case will be the envy of the class.

FAQ

• Q: How do I prevent a Janome Continental M17 In-The-Hoop zipper pouch from stitching the zipper closed during the final perimeter run?
  A: Open the zipper to the middle before the backing/lining step, because the next perimeter stitch will “seal” the pouch.
  • Stop after the zipper area is secured and before layering the backing/lining.
  • Remove any tape crossing the zipper track, then slide the zipper pull to the center (around the window area).
  • Re-check zipper pull position one more time right before pressing Start on the final perimeter stitch.
  • Success check: The zipper slider is clearly inside the pouch area (not parked at the top edge) before the perimeter box begins.
  • If it still fails: Unpick only the perimeter section trapping the slider and re-sew after repositioning the zipper pull.
• Q: How do I keep embroidery tape from getting sewn over when placing a zipper in a Janome Continental M17 ITH zipper pouch design?
  A: Keep tape completely outside the next stitch path; if tape is inside the placement box line, move it before stitching.
  • Pause after stitching a placement box and visually trace where the next seam will run.
  • Place the smallest amount of low-tack tape perpendicular to the zipper, far outside the stitched box, and avoid crossing the zipper teeth.
  • Use a fabric glue stick to do most of the holding, then use tape only as a light “helper.”
  • Success check: No tape edges appear inside any stitched placement rectangle that the needle will sew next.
  • If it still fails: Clean adhesive off the needle with alcohol and replace the needle before continuing the next dense step.
• Q: What stabilizer should be used for an In-The-Hoop zipper pouch on a Janome Continental M17: fibrous water-soluble stabilizer or water-soluble film?
  A: Use fibrous water-soluble stabilizer hooped tight; water-soluble film is too stretchy for building a pouch structure.
  • Verify the stabilizer looks/feels fabric-like (fibrous), not thin plastic wrap (film).
  • Hoop the fibrous water-soluble stabilizer tight so it behaves like a rigid foundation.
  • Avoid switching to tear-away for this “turned” bag style because the stabilizer needs to wash out of seams cleanly.
  • Success check: Hooped stabilizer sounds like a drum when tapped—dull thud-thud, not a loose ripple.
  • If it still fails: Re-hoop tighter and restart from the grid step; a loose foundation will keep distorting placement lines.
• Q: What is the correct hooping tightness standard for a Janome Continental M17 11-inch square hoop when stitching an ITH zipper pouch grid on water-soluble stabilizer?
  A: Hoop until the stabilizer is drum-tight, then secure the hoop screw finger-tight plus a final half-turn with a screwdriver.
  • Tighten the hoop screw finger-tight first to avoid over-torquing.
  • Add one controlled half-turn with a screwdriver for a firm, repeatable clamp.
  • Tap-test the hooped stabilizer before stitching Color 1 grid.
  • Success check: The stabilizer surface stays flat with no “wave” when you drag a fingertip across it, and the tap sounds firm.
  • If it still fails: Re-hoop and reduce stitch speed during layered steps so vibration doesn’t amplify minor slack.
• Q: What embroidery speed should be used on a Janome Continental M17 for ITH zipper pouches with vinyl layers to avoid heat, shifting folds, and presser-foot clacking?
  A: Run 600–700 SPM as the safe working range for vinyl/layered ITH, and drop to 400 SPM immediately if the presser foot starts clacking.
  • Dial the machine down before starting the vinyl-and-fold top-stitch steps.
  • Listen during stitching; reduce speed the moment the sound turns harsh or the fold starts to bounce.
  • “Pet” the fold flat with a stylus/chopstick (hands clear of the needle path) as it approaches the presser foot.
  • Success check: The machine sound stays rhythmic (steady thump-thump) and the fold remains flat as it feeds under the foot.
  • If it still fails: Stop, tack the fold down with a glue stick, and restart after confirming the fold is butted to the placement line.
• Q: How do I fix an ITH zipper pouch problem where the presser foot flips the folded fabric strip during the window double top-stitch?
  A: Stop immediately, unpick about 5 stitches, glue-tack the fold down, then restart while controlling the fold as it approaches the foot.
  • Stop the machine as soon as the fold flips to prevent locking the error in.
  • Unpick back roughly 5 stitches to a stable point, then apply a fabric glue stick to hold the fold flat.
  • Resume stitching while lightly “petting” the fold flat with a stylus (do not pull the fabric).
  • Success check: The stitch line runs evenly on the folded fabric edge without drifting onto the vinyl.
  • If it still fails: Slow down further and re-check that the folded edge is butted tightly to the stitched placement line before restarting.
• Q: What safety rule prevents injury and machine damage when trimming an ITH zipper pouch on a Janome Continental M17 with rotary cutters and an attached hoop?
  A: Never trim fabric with the hoop attached to the machine; remove the hoop and cut on a flat mat to avoid hand injury and carriage torque damage.
  • Remove the hoop from the machine before using scissors or a rotary cutter.
  • Cut on a stable cutting mat with a ruler for control, especially near zigzag/perimeter seams.
  • Keep hands clear of any situation where the machine could accidentally engage while cutting.
  • Success check: All trimming is done with the hoop fully off the machine and the project flat on the mat, with controlled blade movement.
  • If it still fails: Pause the workflow, power down the machine, and reset a safer trimming routine before continuing.
• Q: What is the safest way to handle strong magnetic embroidery hoops for ITH zipper pouch production to avoid pinched fingers, medical device risk, and electronics damage?
  A: Treat magnetic embroidery hoops as pinch-hazard tools and keep them away from medical devices and sensitive electronics.
  • Place the hoop down first, then lower the magnetic top carefully—do not let it snap from a distance.
  • Keep fingers out of the closing path and separate magnets slowly when removing.
  • Keep magnets away from pacemakers/insulin pumps and avoid placing phones or credit cards on the magnets.
  • Success check: The magnetic frame closes under controlled hand pressure without sudden snapping, and fingers never enter the magnet “bite zone.”
  • If it still fails: Switch to slower, two-hand placement and store the magnets separated when not in use to reduce accidental snaps.
