The ITH Zipper Bag That Actually Works: A 5x7 Hoop Method (and the One Step That Ruins It If You Skip)

The ITH Zipper Bag Encyclopedia: A Zero-Friction Guide to Your First “In-The-Hoop” Project

If you’ve ever watched an in-the-hoop (ITH) zipper bag stitch-out and thought, “That looks easy… until it isn’t,” you’re not alone. The friction point for most beginners isn't the machine's capability—it's the cognitive load of managing layers, zippers, and sticky tape simultaneously.

The good news: this project really is beginner-friendly—as long as you respect the order of operations. Think of this not as "art," but as a precise engineering sequence.

This tutorial rebuilds the video into a clean, repeatable workflow for a fully lined ITH zipper bag made in a 5x7 hoop. As your Chief Education Officer, I’m adding the “old-hand” sensory checks and safety protocols that prevent the classic disasters: a bag that won’t open, a needle that hits a pin, or layers that creep just enough to make the zipper look crooked.

Don’t Panic—An ITH Zipper Bag in a 5x7 Hoop Is Mostly About Sequence, Not Skill

This project is built around control points (color stops). These stops act like traffic lights: they tell you when to place fabric, when to trim, and when to start the next seam. If you follow the sequence, the machine does the heavy lifting.

A lot of first-timers worry they need special embroidery thread or fancy settings. In this specific project, the host uses plain 50 wt cotton or polyester thread because it’s fundamentally a “sewing-in-the-hoop” build, not a decorative fill-heavy embroidery design.

Cognitive Anchor: Stop thinking about "embroidery tension" for a moment. This is construction stitching. You want a durable seam, not a glossy satin finish.

One more reassurance: the video uses a Brother/Baby Lock style interface and a 5x7 hoop, but the logic is universal—placement line, secure the zipper, add layers, then close the perimeter.

The “Hidden” Prep That Makes the Stitch-Out Calm: Fabric Sandwiches, Zipper Choice, and Stabilizer

Before you even power on the machine, prep is where you win (or quietly lose). Most frustration comes from frantically searching for scissors while the machine beeps at you. We are going to stage this like a surgical tray.

What the video preps (exact sizes)

You’ll cut and stage these pieces in a dedicated "ready zone":

• Hoop: 5x7 hoop hooped with medium-weight tear-away stabilizer.
• Back panel “quilt sandwich”: Fabric + Batting, 7 x 8 inches.
• Bottom front panel: Fabric 10 x 8 inches, folded to 5 x 8, with batting 5 x 8 inside. Press this fold sharply.
• Top front panel: Fabric 4 x 8 inches, folded to 2 x 8, with batting 2 x 8 inside.
• Zipper: Nylon coil zipper, at least 10–12 inches (longer is safer for beginners).
• Strap: Ribbon or fabric tube, about 10 inches.

Hidden Consumables Checklist: You won't see these in the pattern file, but you need them:

• Medical Tape or Painters Tape: Must be low residue.
• Appliqué Scissors: For trimming close to stitches.
• Lighter: To singe the raw edges of your ribbon strap (prevent fraying).
• Temporary Spray Adhesive (Optional): Highly recommended for keeping batting adhered to fabric.


Why the zipper must be nylon coil (and why “metal is a no”)

The design stitches perpendicular across the zipper teeth to finish the bag. A nylon coil zipper (typically #3 or #5 size) allows the needle to deflect slightly and penetrate between the coils. Metal teeth are rigid and unforgiving.

Warning: Never stitch across metal zipper teeth in an ITH zipper bag. A broken needle striking metal at 800 SPM can become a dangerous projectile, and the impact can knock your machine’s hook timing out of alignment, requiring a service technician.

The stabilizer reality check

The host uses tear-away stabilizer hooped by itself first, then floats/tapes layers on top. That works because the project is mostly perimeter seams and tack-down lines.

Sensory Check: When you hoop your stabilizer, tap it with your finger. It should sound like a tight drum skin (thump-thump). If it sounds loose or papery, re-hoop. Loose stabilizer leads to "puckering lines" near the zipper.

From experience: if your fabric is very soft, loosely woven, or you tend to tug while taping, you may see distortion. Generally, the more you “manhandle” the hoop during taping, the more stabilizer strength matters—so keep your handling gentle and your tape deliberate.

Prep Checklist (do this before you stitch)

• Confirm you have a nylon coil zipper (no metal teeth)
• Pre-press the folded front pieces so the fold is crisp and consistent—steam is your friend here.
• Stage painters tape, pins, scissors/serger, and a point turner.
• Hoop tear-away stabilizer smoothly (drum-tight check passed).
• Load the design file and confirm it’s the correct hoop size (5x7).
• Speed Check: Lower your machine speed to 600 SPM or lower. High speed causes vibrations that can shift your taped-down zippers.


Hooping Tear-Away Stabilizer + The First Placement Stitch: Your “Map,” Not Just a Line

The first color stop stitches directly onto the hooped tear-away stabilizer to show exactly where the zipper will sit. Do not skip or rush this.

Two veteran tips here:

1. Treat that placement stitch like a blueprint—if the zipper isn’t centered on it, everything downstream looks “off.”
2. The host notes rotating the design so the zipper is on the right-hand side. Do that now, before you stitch anything else.

If you’re working with a Brother-style 5x7 setup, this is the moment where a lot of people realize their hoop orientation is flipped. If you’re using a standard brother 5x7 hoop, double-check the on-screen preview matches the physical hoop orientation before the needle drops. A mismatch here usually results in a needle hitting the plastic frame.

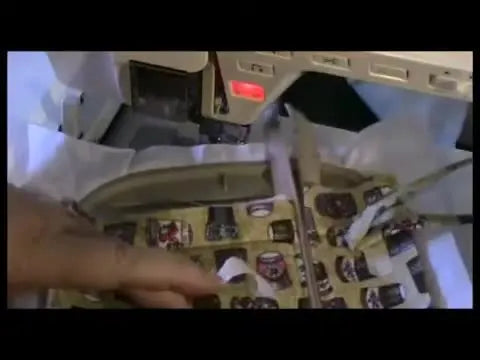

Tape the Nylon Coil Zipper Like You Mean It: Centered, Flat, and Pull Kept Far Away

After the placement stitch, align the zipper tape right in the center of the stitched guidelines. The host uses generous painters tape to hold it flat.

The Physics of "Zipper Creep": Embroidery feet bounce up and down rapidly. This vibration tends to push the zipper teeth away from the needle.

• The Fix: Tape both the top and bottom edges of the zipper tape securely to the stabilizer.
• Tactile Check: Run your finger down the zipper tape. It should feel completely flat against the stabilizer with no "air bubbling" underneath.

Key details from the video:

• Zipper pull should be facing you/top, but kept way outside the design area during tack-down.
• Tape can be stitched over; you can peel it away later.

Why tape works here (the physics in plain English): the machine is about to stitch parallel lines down the zipper tape. If the zipper tape has even a slight wave, the presser foot can “walk” it into a curve. Flat tape pressure reduces that creep.

The Front Panels Are Just Appliqué Logic: Folded Edges Against the Zipper Teeth

Once the zipper is tacked down, you’ll build the front in two pieces. This is essentially "raw edge appliqué" but with folded fabric for a clean finish.

Bottom front panel placement (folded 5x8)

• Place the folded edge right up against the bottom of the zipper teeth. Do not cover the teeth! Leave about 1mm of zipper tape visible if you want a cleaner operation, or butt it right against the teeth for a hidden look.
• It should cover the previous stitching.
• Tape the corners securely.

The machine then runs a top stitch line to secure the fabric to the zipper tape.

Top front panel placement (folded 2x8)

• Place the folded edge right up against the top of the zipper teeth.
• Tape thoroughly.
• Stitch the top piece down.


Pro tip from the comment section (made practical): People love this pattern because it feels simpler than many ITH bags. That simplicity comes from using folded edges instead of raw-edge finishing on the zipper channel—so take your time pressing those folds. A sloppy fold is the fastest way to make a “simple” design look homemade.

Strap Placement Marker: The Tiny Stitch That Saves You From a Crooked Loop

Next, the machine stitches a small positioning marker for the strap.

The host’s method:

• Fold ribbon/strap in half to form a loop.
• Place raw edges at the marker position, about 1/4 inch inward (on the seam allowance).
• Tape the loop body toward the center of the bag so it won’t get caught in the final seam.


This is one of those steps where beginners accidentally create a permanent problem: if the loop twists or drifts into the seam path to the right, you stitch it down wrong and you won’t like the finished look.

Safety Check: Ensure the hard tape or metal parts of a D-ring (if you are using one) are completely clear of the needle path.

The “Unzip to the Middle” Rule: The One Step That Makes or Breaks the Entire Bag

Before you add the back panel, you must move the zipper pull to the center of the bag.

Not “a little.” Not “I’ll do it later.” To the middle.

The video is blunt for a reason: if you forget this step, the machine will stitch the bag completely shut in the next step. You will have a lovely bag that requires scissors to open, ruining the project.

This is also where a lot of makers start thinking about workflow upgrades. If you’re doing multiple bags, repeatedly taping, un-taping, and re-taping the zipper areas can become the slowest part of the job. In production settings, sticking layers together takes time and leaves residue. Many professionals switch to magnetic embroidery hoops for these flat projects because you can clamp the stabilizer and fabric layers instantly without fighting sticky tape residue, significantly speeding up the "unzip and re-cover" process.

Back Panel Placement + Pin Safety: Keep Pins Outside the Hoop Frame, Period

Now place the backing fabric “sandwich” (7x8) face down over the entire top of the hoop. This ensures the "pretty" side of the back fabric faces the "pretty" side of the front fabric (Right Sides Together).

The host pins the corners, but with a strict rule: pins must be completely outside the embroidery area/hoop frame.

Warning: Never place pins inside the embroidery field. If the needle hits a pin, it can break the needle, damage the bobbin case, and turn a fun project into a $150 technician visit. Use tape inside the field, pins only on the extreme outer perimeter.

Setup Checklist (right before the final seam)

• CRITICAL: Zipper is opened to the middle.
• Strap loop body is taped inward, away from seam lines.
• Back panel is face down (Right Sides Together) and fully covering the project.
• Pins (if used) are strictly outside the hoop frame area.
• Bobbin check: Do you have enough bobbin thread to finish the perimeter? (Look for at least 25% remaining).
• Nothing bulky is trapped under the hoop edge that could tilt the hoop.

Final Perimeter Stitch + Unhoop: What “Normal” Looks Like at the End

The last color stop stitches the perimeter seam that forms the bag. Listen to your machine here—it’s going through multiple layers of fabric, batting, and zipper tape. It should sound like a solid thud-thud. If it sounds high-pitched, slow down.

Expected outcome when you unhoop:

• A clean rectangle perimeter seam.
• Zipper channel centered.
• Strap caught neatly in the seam allowance.
• Tear-away stabilizer still attached around the outside.

Then:

• Remove pins immediately (before you forget).
• Tear away stabilizer (the host reminds you to tear toward the stitches to avoid pulling the threads loose).
• Trim edges.


The host finishes edges with a serger, but also mentions alternatives like trimming and zigzagging or using pinking shears. Pinking shears are excellent here—they reduce bulk and prevent fraying without needing a second machine.

Turning, Cornering, and the “No Sharp Tools” Rule: Professional Finish Without Holes

Open the zipper (it should already be open to the middle!), then turn the bag right side out through the zipper opening.

To square corners, the host uses a point turner (or a bamboo skewer).

This is where patience pays off. Push corners out gradually; do not stab.

The video’s warning is worth repeating: don’t use scissors, a knife, or a seam ripper to poke corners—you can punch right through the fabric.

Quick Troubleshooting: Symptoms → Causes → Fixes (Before You Waste Another Stitch-Out)

Decision Tree: Choosing Stabilizer + Backing Strategy for an ITH Zipper Bag (So It Doesn’t Pucker)

Use this quick decision tree to choice a sane setup based on what you’re stitching.

1. Is your fabric stable quilting cotton with batting inside (like the video)?
   • Yes: Hoop tear-away stabilizer, float/tape layers as shown.
   • No: Go to #2.
2. Is your fabric thin, stretchy, or prone to distortion (e.g., Knit or Denim)?
   • Yes: Do not float. Hoop a Cut-Away stabilizer first. Use a light spray adhesive to secure the fabric to the stabilizer. The "floating" method relies on fabric stability; stiff fabrics work best.
   • No: Go to #3.
3. Are you making many bags and want consistent alignment without constant re-taping?
   • Yes: Consider a clamping workflow. For specific setups, a magnetic hoop for brother or magnetic hoops for babylock allows you to hold thick quilt sandwiches firmly without the "hoop burn" (white rings) that traditional plastic hoops leave on thick layers.
   • No: Tape-and-float is perfectly fine for occasional hobby projects.

Warning: Magnetic frames contain powerful neodymium magnets. Keep them away from pacemakers/implanted medical devices. Keep fingers clear of the clamping zone to avoid pinching. Store magnets away from phones, computerized machine screens, and credit cards.

Comment-Driven Pro Tips: File Formats, Hoop Size Limits, and What to Do If You Don’t Have USB

A few recurring questions show up in the comments, and they’re worth addressing in a practical way.

“Can I use a PES file on a Pfaff?”

In the comments, the creator notes Pfaff commonly uses PCS/VP3, and suggests converting PES to the needed format using software (or asking for help converting). In general, file compatibility depends on your exact model and what formats it reads—check your machine manual or dealer.

“My machine only has a 4x4 hoop—can I size this down?”

A commenter with a Brother SE-400 asked this, and the creator replied that because the project includes a zipper construction, it doesn’t lend itself well to simply resizing smaller. That’s a real-world limitation: zipper geometry and seam allowances don’t always scale cleanly.

If you’re working with a brother 4x4 hoop, the safest path is to use a design drafted specifically for 4x4 rather than forcing a 5x7 design to shrink. Shrinking usually crushes the zipper allowance, making the bag unusable.

“I don’t have a USB port—how do I load designs?”

In the replies, the creator mentions older machines may use card ports and that card writer boxes exist. Generally, your options depend on your machine generation—dealer support is often the fastest way to avoid buying the wrong adapter.

The Upgrade Path (Without the Hard Sell): When Tools Actually Pay You Back

If you make one bag for fun, tape is fine. If you make ten, you start noticing your wrists hurt and your time disappearing.

Here’s the practical way I evaluate upgrades:

1. Scenario Trigger: You are doing repeated ITH builds (like holiday gifts or Etsy inventory). You notice you are spending 5 minutes taping for every 2 minutes of stitching.
2. Judgment Standard: If alignment issues (crooked zippers) or "hoop burn" marks on the fabric are causing you to throw away materials, your tool is the bottleneck, not your skill.
3. Options:
   • Level 1 (Consumables): Switch from cheap masking tape to quality Painters tape and temporary spray adhesive.
   • Level 2 (Hooping Tool): For faster, repeatable clamping on layered projects, magnetic embroidery hoops can reduce taping time by 50% and eliminate hoop burn entirely.
   • Level 3 (Scaling Up): If you are hitting production scale (50+ items), a structured system using hooping stations ensures that every single zipper bag is aligned purely mechanically, removing human error and fatigue from the equation.

The point isn’t to buy gadgets. The point is to remove the step that keeps causing mistakes: inconsistent holding pressure and repeated, tired handling.

Operation Checklist (the “don’t-make-me-cry” final pass)

• Placement: Initial placement stitch is clean and centered on hooped tear-away stabilizer.
• Zipper Security: Zipper is centered directly on the placement lines and taped flat (no bubbling).
• Safety Clearance: Zipper pull is kept OUT of the stitch field during tack-down steps.
• Edges: Bottom and top folded panels are aligned tight to the zipper teeth and taped securely.
• Strap: Loop is placed on the marker stitch and the loop body is taped inward.
• Critical Unzip: Zipper is opened to the middle before the back panel goes on.
• Final Assembly: Back panel is face down (Right Sides Together).
• Pin Safety: Pins (if used) are strictly outside the hoop frame area.
• Finish: Stabilizer is torn away toward stitches; edges are trimmed; corners are pushed out gently.

FAQ

• Q: What hidden consumables are required to stitch an in-the-hoop (ITH) zipper bag in a 5x7 embroidery hoop?
  A: Prepare low-residue tape, trimming tools, and (optionally) temporary spray adhesive before starting to avoid mid-stitch scrambling.
  • Gather: painters/medical tape, appliqué scissors, point turner, and a lighter for sealing ribbon strap ends.
  • Stage: pins for outer perimeter only, plus a bobbin with enough thread for the final seam.
  • Add (optional): temporary spray adhesive to keep batting bonded to fabric during handling.
  • Success check: everything is within arm’s reach before the first placement stitch begins and the machine never pauses because a tool is missing.
• Q: How tight should tear-away stabilizer be when hooping for an ITH zipper bag in a 5x7 hoop to prevent puckering near the zipper?
  A: Hoop the tear-away stabilizer drum-tight, because loose stabilizer commonly creates puckering lines around the zipper area.
  • Tap-test: tap the hooped stabilizer with a finger.
  • Re-hoop: if it sounds loose or “papery,” re-hoop until it sounds like a tight drum skin.
  • Handle gently: keep pulling/tugging to a minimum while taping layers to avoid distorting the hooped stabilizer.
  • Success check: the stabilizer gives a firm “thump-thump” sound and stays flat without ripples.
• Q: Why must an ITH zipper bag design use a nylon coil zipper instead of a metal-tooth zipper when stitching across the zipper teeth?
  A: Use a nylon coil zipper only, because stitching across metal teeth can break needles and potentially knock machine timing out of alignment.
  • Choose: a nylon coil zipper (often #3 or #5) that the needle can pass between more safely.
  • Avoid: any metal-tooth zipper or metal teeth in the stitch path.
  • Slow down: run the project at 600 SPM or lower to reduce vibration and impact risk.
  • Success check: the needle crosses the zipper area without a “crunch” sound and the zipper tape remains intact.
• Q: How do you stop an ITH zipper from creeping or stitching crooked when taping a nylon coil zipper onto hooped tear-away stabilizer?
  A: Tape the zipper aggressively and keep it perfectly flat, because presser-foot vibration can “walk” the zipper into a curve.
  • Center: align the zipper tape directly on the placement-stitch guidelines before tack-down.
  • Secure: tape both top and bottom edges of the zipper tape so the zipper cannot wave or lift.
  • Clear: keep the zipper pull well outside the stitch field during tack-down steps.
  • Success check: running a finger along the taped zipper feels completely flat with no air bubbles or raised spots.
  • If it still fails: stop the machine as soon as the foot starts pushing the zipper off-line, re-tape tighter, and restart.
• Q: What is the “unzip to the middle” rule in an ITH zipper bag, and what happens if the zipper pull is left at the edge during the final seam?
  A: Move the zipper pull to the center before placing the back panel, or the next perimeter seam can stitch the bag completely shut.
  • Pause: immediately before adding the back panel, physically slide the zipper pull to the middle.
  • Confirm: the zipper opening is usable for turning the bag right-side out after stitching.
  • Proceed: only then place the back panel face down (Right Sides Together) for the final seam.
  • Success check: after unhooping, the bag turns right-side out through the zipper opening without cutting stitches.
  • If it still fails: carefully seam-rip the closed section, move the zipper, and re-stitch (this is difficult, so prevention is best).
• Q: How can pins be used safely for an ITH zipper bag back panel without risking a needle strike inside the embroidery field?
  A: Keep pins completely outside the hoop frame/embroidery area, and use tape inside the stitch field instead.
  • Pin only: the extreme outer perimeter corners where the needle will never travel.
  • Tape inside: use painters/medical tape to hold layers in any area that could be stitched.
  • Double-check: rotate the hoop by hand (or visually trace the seam path) before starting the final perimeter seam.
  • Success check: the final seam stitches with no sudden “crunch,” and no pin is anywhere near the needle path.
• Q: When does upgrading from tape-and-float to magnetic embroidery hoops make sense for repeated ITH zipper bag production?
  A: Upgrade to magnetic embroidery hoops when repeated taping becomes the bottleneck or causes alignment waste, because clamping can speed setup and reduce handling marks.
  • Level 1 (technique): switch to quality painters tape and use temporary spray adhesive to reduce shifting.
  • Level 2 (tool): use a magnetic hoop to clamp layered quilt sandwiches faster and more consistently than repeated taping.
  • Level 3 (capacity): if making high volumes, consider a production workflow with hooping stations to remove fatigue-related alignment errors.
  • Success check: zipper alignment becomes repeatable and setup time drops noticeably compared with constant re-taping.
  • If it still fails: revisit the stabilizer choice and handling—excess tugging during setup can still distort results even with stronger holding methods.
• Q: What safety precautions are required when using magnetic embroidery hoops with powerful neodymium magnets for ITH projects?
  A: Treat magnetic hoops as strong industrial magnets: keep them away from medical implants and avoid finger pinch points during clamping.
  • Keep away: pacemakers/implanted medical devices must not be exposed to the magnets.
  • Clamp carefully: keep fingers clear of the closing zone to prevent pinching.
  • Store safely: keep magnets away from phones, computerized machine screens, and credit cards.
  • Success check: the hoop closes without finger contact in the clamp zone, and the work area stays free of magnet-sensitive items.
