The “Ground Zero” Tension Reset on a Ricoma Multi-Needle: Set Bobbin Tension with a Towa Gauge, Then Lock In the 1/3 Rule

It feels like a rite of passage: one day your embroidery machine is singing, and the next, it’s creating "bird nests" of thread under the throat plate. You panic. You start turning knobs. Suddenly, you’re lost in a wilderness of bad tension, and your production stops.

Take a deep breath. Tension is not a personality test; it is simple physics. It is the balance of tug-of-war between the top thread and the bobbin thread.

Your goal isn't to guess. Your goal is to establish a mechanical baseline—a "Ground Zero"—so that when things go wrong, you know exactly how to reset.

This guide rebuilds the workflow for multi-needle machines (specifically referencing Ricoma architecture, but applicable to most commercial heads like Tajima or SWF). We will move from mechanical resets to upgrading your physical workflow with tools like magnetic embroidery hoops to eliminate variables.

The "Ground Zero" Philosophy: Why Baselines Beat Guesswork

If your machine was stitching perfectly yesterday and is failing today, the problem is rarely the knobs themselves—it’s usually lint, a bent needle, or a bad thread path. However, once you have turned the knobs in frustration, you must reset them to a known neutral point before you can diagnose anything.

The logic is simple: Make every needle identical mechanically. Only then can you identify the outlier.

Expert Insight: Tension is dynamic. It changes as your machine warms up, as lint builds up, and as cones of thread wear down. A baseline gives you a safe harbor to return to.

Step 1: The Flush-Screw Reset (Mechanical Zero)

This is the fastest way to reset your upper tension assembly without tools.

Action Plan

1. Locate the Main Tension Knobs: These are the large knobs on the front of the head (not the small pretensioners on top).
2. Tighten to Stop: Turn the knob clockwise (righty-tighty) until it stops completely. Do not over-torque it.
3. Loosen to Flush: Turn the knob counter-clockwise until the face of the plastic knob is perfectly level with the metal screw in the center.
4. Sensory Check (Tactile): Run your thumb across the knob. It should feel smooth and continuous, like a flat table surface. If the screw pokes out, it’s too tight. If the screw is divoted, it’s too loose.


If Your Machine Looks Different

Owners of machines like the ricoma em 1010 embroidery machine or other compact commercials might find their knobs have covers or different geometries.

• The Principle: You are looking for the manufacturer's "standard" position. If "flush" isn't applicable, consult your manual for the standard number of turns from tight.
• Safety Rule: Never force a knob past its natural resistance.

Warning: Physical Safety
Keep long hair, jewelry, and loose sleeves tied back. Never reach into the needle bar area while the machine is powered on. A 1,000 SPM needle puncture is a serious medical emergency.

Pre-Flight Prep Checklist

• Machine status: STOPPED and Emergency Stop engaged.
• Thread path: Inspect for loops or snags on the thread tree.
• Thread weight: Ensure you are testing with standard 40wt thread (unless recalibrating for 60wt).
• Hidden Consumable: Have a sheet of thick cardstock (business card) ready.

Step 2: Cleaning the Bobbin Case (The Hidden Variable)

Before you touch a screwdriver, you must clean the bobbin spring. A single speck of lint under the tension spring will force the leaf open, creating zero tension. You will tighten the screw to compensate, the lint will fall out, and suddenly your tension will be massive.

The Fix:

1. Remove the bobbin case.
2. Take a corner of your cardstock.
3. Slide it under the metal leaf spring on the side of the bobbin case.
4. Move it back and forth to floss out lint or wax buildup.

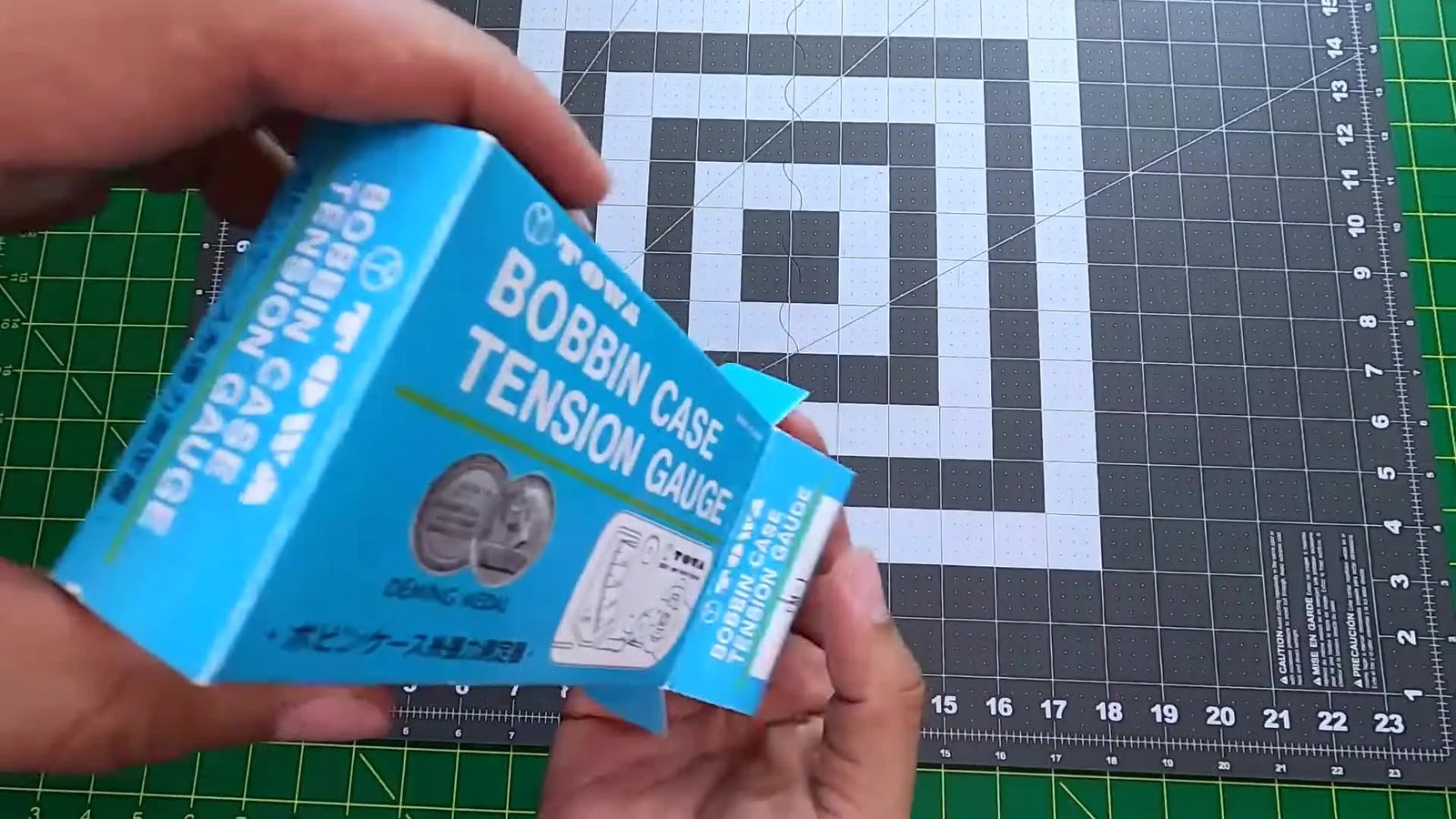

Step 3: The Towa Gauge Ritual

To get consistent results, you need data. The "Drop Test" (holding the bobbin thread and seeing if the case drops slightly) is okay forgrandma's sewing machine, but for commercial production, we use a Towa Gauge.

Loading the Gauge

1. Insert: Place the bobbin case into the Towa gauge.
2. Listen: You must hear a distinct "Click". If it doesn't click, it’s not seated, and your reading will be false.
3. Route: Thread the material through the pulleys exactly as shown in the diagram on the gauge.
4. Verify Direction: When you pull the thread, the bobbin inside the case should simulate unwinding clockwise.


The Pull Technique (Sensory Anchor)

Pulling thread through a gauge requires a specific feel.

• Don't: Yank it like you're starting a lawnmower.
• Don't: Pull so slowly it stutters.
• Do: Pull steadily and smoothly, at a speed similar to pulling dental floss from a container. Watch the needle on the gauge stabilize.

Step 4: Setting the Bobbin Values

We use different tension ranges for different substrates because hats naturally flag (bounce) more than flat garments.

The Target Numbers (GF - Gram-Force)

• Category A: Flats (Polos, Towels, Hoodies, Patches)
  • Target: 150 – 175 gf
• Category B: Hats / 3D Puff
  • Target: 225 – 250 gf


Adjusting the Screw

There are two screws on the bobbin case.

• The Anchor Screw: Small, usually Phillips head. DO NOT TOUCH.
• The Adjustment Screw: Larger, usually flat head. This is your target.
• Action: Turn in tiny increments—think "5 minutes on a clock face."
  • Counter-Clockwise = Loosen (Lower Number)
  • Clockwise = Tighten (Higher Number)


Step 5: Hooping for the Test (Controlling the Environment)

You can have perfect tension settings, but if your fabric is loose in the hoop, you will get puckering and false tension readings.

To run a scientific test, we must remove "Operator Error" from the hooping process.

The Problem with Standard Hoops

Traditional screw-tighten hoops rely on your wrist strength. If you tighten it differently on Monday than you do on Friday, your results change. Furthermore, "hoop burn" (the ring mark left on fabric) often ruins delicate garments.

The Solution: Tool Upgrading

For this test—and for consistent production—we recommend using a Magnetic Hoop.

• Why: It applies consistent vertical pressure automatically. There is no screw to under-tighten.
• The Setup:
  1. Stabilizer: Use 3 layers of Cutaway. We use 3 layers to make the test fabric rigid, ensuring we are reading thread tension, not fabric distortion.
  2. Fabric: Standard broadcloth or tough black cotton.
  3. Hooping: Place the bottom ring -> Stabilizer -> Fabric -> Top Ring.
  4. Snap.


[FIG-10] [FIG-11]

Warning: Magnetic Hazard
Commercial magnetic embroidery hoops like the Mighty Hoop or SEWTECH frames use industrial Neodymium magnets. They snap shut with extreme force.
* Do not place fingers between the rings.
* Do not use if you have a pacemaker.
* Keep away from credit cards and phone screens.

Strategic Pivot: If you find yourself constantly fighting hoop burns or re-hooping because the fabric slipped, this is the trigger point to upgrade. Many professionals search for how to use magnetic embroidery hoop specifically to solve the issue of fabric shifting during these critical tests.

Step 6: The "I-Test" (The H-Test)

Now that the machine is zeroed, the bobbin is calibrated, and the fabric is rigidly hooped, we stitch.

The Pattern

Use the classic "I" / "H" test pattern built into most machines. It consists of satin columns stitched in the direction of the warp and weft.

speed Settings (The Beginner Sweet Spot)

Run this test at 600 - 700 SPM (Stitches Per Minute).

• Too Slow (400 SPM): Does not generate enough friction to mimic real production.
• Too Fast (1000 SPM): Introduces needle deflection variables.
• 700 SPM: The industry standard for reliable testing.

[FIG-12] [FIG-13]

Step 7: The 1/3 Rule (Reading the Data)

Do not judge the stitch by the top. Flip the hoop over and look at the back (the bobbin side).

The Golden Ratio

Look at the satin column on the back. You want to see:

• 1/3 Top Color on the left.
• 1/3 White Bobbin in the center.
• 1/3 Top Color on the right.


Diagnosing the 1/3 Rule

Note on Thread Weights: If you run 60wt (thin) thread on one needle and 40wt (standard) on others, the 60wt may appear "tighter" (more white showing). You may need to loosen the top tension specifically for that needle.

Decision Tree: Choosing Your Setup

Before you begin any project, follow this logic path to prevent wasted garments.

START: What is the Project?

• Path A: Flats (Polos, Bags, Towels)
  • Bobbin: Set to 150-175 gf.
  • Hoop: Standard or magnetic embroidery frame.
  • Stabilizer: Cutaway (Mesh or Heavy depending on stitch count).
• Path B: Hats (Structured or Unstructured)
  • Bobbin: Set to 225-250 gf.
  • Hoop: Cap Driver.
  • Stabilizer: Tearaway.
• Path C: 3D Puff
  • Bobbin: Set to 225-250 gf (tighter bobbin cuts the foam better).
  • Speed: Reduce to 500-600 SPM.

Troubleshooting: The Panic Button Guide

If the I-Test fails, do not start twisting knobs randomly. Follow this "Low Cost to High Cost" logic.

1. The "Bird Nest" (Big tangle under the throat plate)

• Likely Cause: Top thread not in the take-up lever OR bobbin case not clicked in.
• Check: Rethread the entire upper path. Ensure the bobbin case "Clicked" when inserted.

2. Thread Breaks / Frays

• Likely Cause: Old needle, burred needle, or thread dried out.
• Check: Run your fingernail down the needle tip. If it catches, replace the needle. Replace the thread cone if it's brittle.

3. Loopies on Top of the Design

• Likely Cause: Top tension extremely loose or bobbin extremely tight.
• Check: Did the thread jump out of the tension disks? Floss it back in.

Upgrade Path explained

You can produce great embroidery with standard hoops and basic tension. However, as you scale, time becomes your most expensive resource.

• Level 1 (Technique): Use the "Flush Reset" and cardstock cleaning method. Cost: $0.
• Level 2 (Analysis): Buy a Towa Gauge. It stops the guessing game. Cost: Low.
• Level 3 (Efficiency): Switch to hooping for embroidery machine systems that use magnets, like the 5.5 mighty hoop or SEWTECH equivalents. This solves the "fabric slip" variable that mimics bad tension. Commercial setups like a mighty hoop for ricoma or ricoma mt-1501 embroidery machine rely on this stability for speed.

Final Operation Checklist

Print this out and tape it to your machine stand.

• Bobbin Case: Cleaned and set (160gf Flats / 240gf Hats).
• Top Tension: Reset to flush, then adjusted via I-Test.
• Hooping: Fabric is taut like a drum skin (using Magnetic hoop preferred).
• Speed: Machine set to 700 SPM for testing.
• Audit: Back of the test stitch shows the "1/3 Golden Ratio."

You are no longer guessing. You are engineering quality. Happy stitching.

FAQ

• Q: How do I reset the main upper tension knob on a Ricoma-style multi-needle embroidery machine to a mechanical “Ground Zero” after turning knobs randomly?
  A: Use the flush-screw reset so every needle starts from the same neutral point.
  • Stop the machine and engage Emergency Stop before touching the head.
  • Turn the main front tension knob clockwise until it stops (do not over-torque).
  • Turn the knob counter-clockwise until the plastic knob face is perfectly level (flush) with the center metal screw.
  • Success check: Run a thumb across the knob—it should feel like one flat surface with no screw sticking out or “divot.”
  • If it still fails: Clean the bobbin case spring and re-check the full upper thread path before adjusting anything else.
• Q: How do I clean a commercial embroidery machine bobbin case tension spring to stop sudden “no tension” or inconsistent tension readings?
  A: Floss under the bobbin leaf spring with thick cardstock before touching the bobbin screw.
  • Remove the bobbin case from the machine.
  • Slide a corner of thick cardstock (like a business card) under the metal leaf spring.
  • Move the cardstock back and forth to pull out lint or wax buildup.
  • Success check: After cleaning, the tension feels consistent instead of “free-spooling” or changing randomly between tests.
  • If it still fails: Seat the bobbin case again and confirm it clicks in place; then measure with a Towa gauge.
• Q: How do I load a bobbin case into a Towa gauge correctly so the tension number is not false on a commercial embroidery machine?
  A: Seat the bobbin case until it clicks and route the thread exactly as the gauge diagram shows.
  • Insert the bobbin case into the gauge and listen for a distinct “Click.”
  • Route the thread through the pulleys exactly per the gauge diagram.
  • Verify direction: when pulling thread, the bobbin should simulate unwinding clockwise.
  • Success check: Pull smoothly and watch the needle stabilize (not jumping from yanking or stuttering from pulling too slowly).
  • If it still fails: Remove and re-seat the bobbin case until the click is unmistakable; re-route the thread again.
• Q: What Towa gauge bobbin tension values should be used for flats versus hats/3D puff on a commercial multi-needle embroidery machine?
  A: Use 150–175 gf for flats and 225–250 gf for hats or 3D puff as the target ranges.
  • Set Category A (polos, towels, hoodies, patches) bobbin tension to 150–175 gf.
  • Set Category B (hats / 3D puff) bobbin tension to 225–250 gf.
  • Adjust only the larger adjustment screw in tiny moves (“5 minutes on a clock face”); do not touch the small anchor screw.
  • Success check: The gauge reading repeats consistently when pulled smoothly several times in a row.
  • If it still fails: Clean under the bobbin spring again and confirm the bobbin case is properly seated before changing numbers further.
• Q: How do I read the commercial embroidery machine I-test (H-test) using the 1/3 rule to decide whether the top tension is too tight or too loose?
  A: Flip the hoop and tune for 1/3 top thread color, 1/3 white bobbin, 1/3 top thread color on the backside of the satin column.
  • Stitch the built-in I/H test at 600–700 SPM for a reliable baseline.
  • Inspect the backside: thin/no white line means top tension is too loose (tighten 1–2 turns); wide white line means top tension is too tight (loosen 1–2 turns).
  • Treat “wandering” white as contamination or snag—clean the thread path and check needles for burrs.
  • Success check: The satin column backside shows a stable, centered white line with equal top color on both sides.
  • If it still fails: Re-check bobbin tension with the Towa gauge and confirm the upper thread is correctly seated in the tension disks and take-up lever.
• Q: What causes a “bird nest” of thread under the throat plate on a commercial embroidery machine, and what is the fastest safe fix?
  A: Re-thread the upper path and confirm the bobbin case is fully clicked in—those are the most common causes.
  • Stop the machine immediately and do not keep running stitches into the jam.
  • Re-thread the entire upper thread path, specifically ensuring the top thread is in the take-up lever.
  • Remove and reinsert the bobbin case until it clicks into place.
  • Success check: The next test stitches form cleanly without a growing thread tangle under the needle plate.
  • If it still fails: Reset upper tension to the flush baseline and run the I-test again at 600–700 SPM.
• Q: What safety rules should be followed when using industrial magnetic embroidery hoops on commercial embroidery machines?
  A: Treat magnetic hoops like a pinch hazard and a medical/electronics hazard—keep fingers clear and avoid use with pacemakers.
  • Keep fingers completely out of the gap when the top ring is near the bottom ring; magnets can snap shut with extreme force.
  • Do not use magnetic hoops if the operator has a pacemaker.
  • Keep magnetic hoops away from credit cards and phone screens.
  • Success check: The hoop closes without finger contact and the fabric remains held firmly without re-hooping due to slipping.
  • If it still fails: Switch to a controlled test setup (rigid stabilizer stack and proper hooping technique) to rule out fabric movement mimicking tension issues.
• Q: When repeated puckering, hoop burn, or fabric shifting makes embroidery tension testing unreliable, what is the best upgrade path for commercial embroidery production?
  A: Follow a low-cost to high-impact ladder: technique reset first, then measurement tools, then hooping consistency upgrades.
  • Level 1 (Technique): Reset top tension to flush and clean the bobbin spring with cardstock (cost $0).
  • Level 2 (Measurement): Use a Towa gauge to set bobbin tension by numbers instead of guessing (low cost).
  • Level 3 (Workflow): Use magnetic hooping systems to reduce fabric slip and inconsistent hoop pressure that can look like “bad tension.”
  • Success check: The same test (I/H) produces repeatable 1/3-rule results across days and operators without constant re-hooping.
  • If it still fails: Reduce variables further by running the test at 600–700 SPM with rigid hooping (stabilizer stack) and inspect needles/thread path for burrs, lint, or snags.
