Mastering Appliqué Layers: The "Clockwise Rule" & Flawless Stitch-Outs

Appliqué is supposed to feel satisfying—the rhythmic thump-thump of the placement line, the smooth glide of fabric being laid down, and that final, clean satin border sealing everything in. Ideally, it’s digital quilting.

But the moment your software software "flips" the logic—putting your tack-down stitch outside your placement line—it stops being fun and starts feeling expensive. You waste fabric, you break needles hitting the hoop, and you lose trust in your tools.

In this master class, we are recreating a clean, two-part merged appliqué using Design Doodler. The project is a Thanksgiving drumstick, but the engineering principles apply to any layered commercial design—logos, school patches, or mascots. We will cover the specific vector logic that prevents "inside-out" designs and the physical tools that make production runs viable.

The Calm-Down Check: Why "Reversed Lines" Happen

If you’ve ever watched a stitch-out and thought, "Wait… why is the tack-down stitching into empty space?", you are not alone. This is a vector geometry issue, not a personal failure.

In Design Doodler (and many vector-based digitizing apps), the reversal is not random. It is caused by one controllable variable: Drawing Direction on an Open Shape.

Here is the rule we will prove in this tutorial:

• Clockwise Drawing: Tells the software the "outside" is truly the outside.
• Auto Close OFF: Allows you to create Underlap (open-ended) shapes that tuck neatly under other layers.

Mastering this allows you to graduate from simple "sticker" designs to professional, multi-layered compositions.

Phase 1: The "Hidden" Prep (Do This Before Touching the Stylus)

Embroidery is 80% preparation and 20% execution. Before drawing, we must synchronize the software workspace with physical reality.

The 5x7 Hoop Protocol

In the video, the first move is critical risk control:

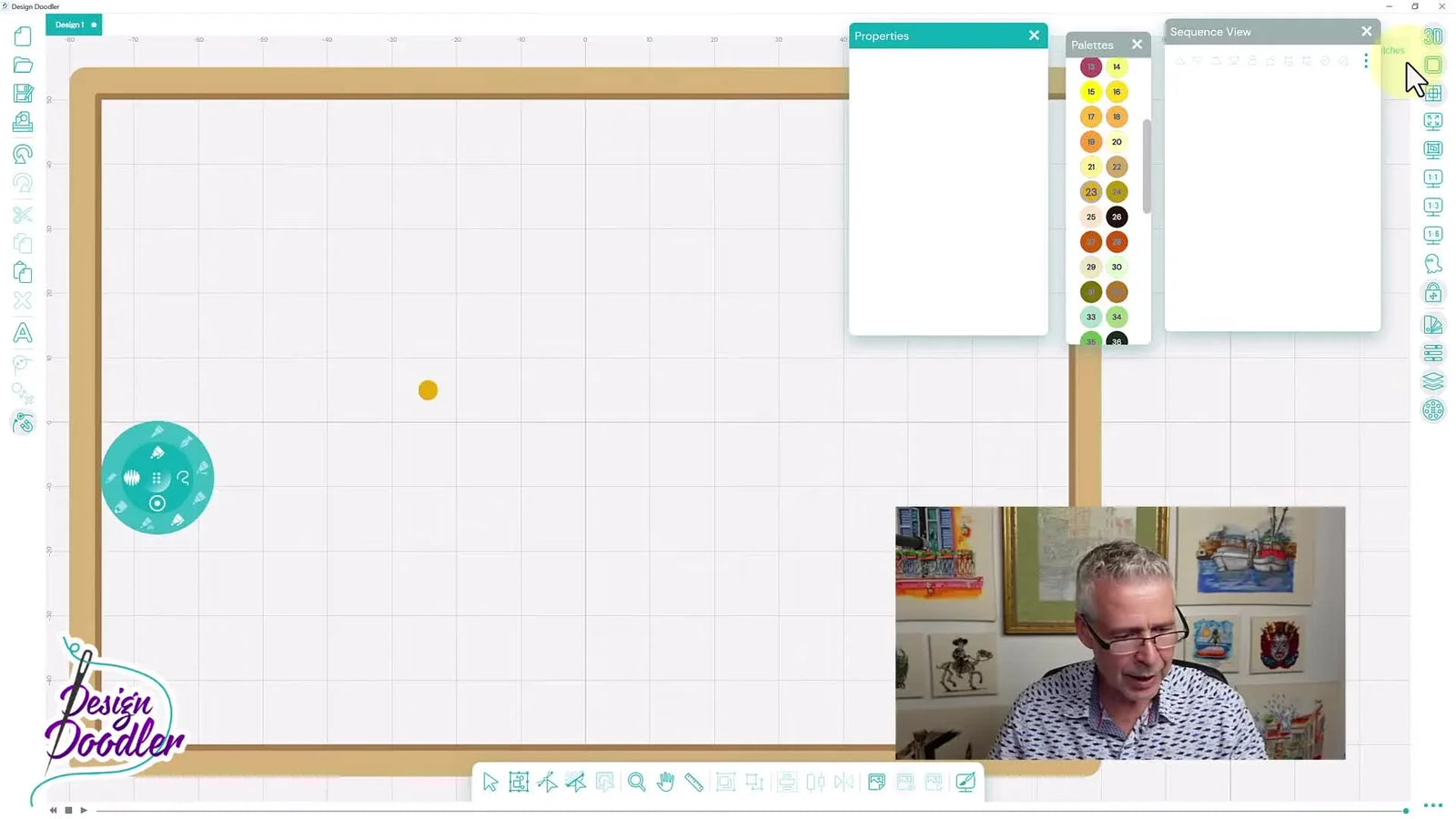

1. Tap the Hoop icon.
2. Select the 5x7 preset (or your actual machine hoop size).
3. Lock the boundary.

Why this matters: If you digitize in an infinite workspace, you lose scale. By locking the hoop visual, you ensure your placement lines land where fabric actually exists. A placement line that runs into the hoop frame guarantees a needle break.

Tools & Materials Setup

• Software View: Turn 3D view ON (usually makes the stitches look gray/textured). This allows you to visually audit the density.
• Stabilizer: For appliqué, stability is everything. If your stabilizer shifts, your satin border will miss the fabric edge.
• Hooping Strategy: Appliqué requires stopping the machine and handling the hoop multiple times.
  • The Friction Point: Traditional screw-hoops can lose tension if you push on the fabric too hard during placement.
  • The Pro Solution: This is why many production shops switch to a magnetic hooping station. The magnetic force holds the stabilizer perfectly flat without the "burn" marks caused by friction rings, and re-hooping takes seconds rather than minutes.


Pre-Digitizing Checklist

• Hoop Boundary: Selected and visible (e.g., 5x7).
• Visual Mode: 3D View ON to see stitch texture.
• Sequence View: Open sidebar to verify layer order.
• Fabric Test: Scraps available for test-trimming (check fraying).


Phase 2: Dialing in the Appliqué Brush

Next, open the brush widget and select the Appliqué stitch type. Do not use a generic satin stitch; use the dedicated Appliqué tool.

The Golden Parameter: 3mm Width

• Setting: Width 3.0mm | Density: Standard
• Mode: Freehand

Why 3mm? This is the "Beginner Sweet Spot."

• < 2.5mm: Too narrow. If your hand-trimming with scissors isn't surgically precise, raw fabric edges will poke through (whiskering).
• > 4.0mm: Too heavy. It looks clunky and can cause "bulletproof" stiffness in the patch.
• 3.0mm: The perfect balance. It covers minor trimming errors while keeping the design flexible.


Phase 3: The Geometry of Underlaps vs. Overlaps

To make a drumstick looking like one cohesive object rather than two separate stickers, we need to manipulate how the shapes close.

Open Settings (three dots, bottom-right) and find Auto Close Shape.

• Auto Close ON: Perfect for the top layer (the "meat"). It seals the shape entirely.
• Auto Close OFF: Perfect for the bottom layer (the "bone"). It leaves one end open so it can slide under the top layer without creating a bulky double-satin ridge.


The Core Technique: The Clockwise Rule

This is the most important technical takeaway of this tutorial.

When Auto Close Shape is OFF (creating an open line), you must draw in a CLOCKWISE direction (12 $\rightarrow$ 3 $\rightarrow$ 6 $\rightarrow$ 9).

• Metric of Success:
  • Placement Line: Generates on the outer perimeter.
  • Tack-Down: Generates slightly inset (inside).
• The Failure State (Counter-Clockwise):
  • The software calculates the vector normal in reverse.
  • Result: The layout line is inside, and the tack-down is outside. Your fabric won't cover the tack-down stitches.

Sensory Check: As you draw, watch the grey stitch preview. The wider satin column should appear to grow inward from your stylus path, not outward.

Warning: Physical Safety
Appliqué work involves using sharp curved scissors very close to the needle bar. Always keep your fingers clear of the presser foot path. Never attempt to trim "on the fly" while the machine is moving. A moment of distraction can result in a sewn finger.

Phase 4: Digitizing the Layers

Step A: The Bone (Underlap)

1. State: Auto Close Shape OFF.
2. Color: Light/Cream.
3. Action: Draw the bone shape starting from the top, moving clockwise, and leaving the bottom connector open.

Expert Insight: Why create an open shape? If we closed the bone, we would have a satin border running right through where the meat connects. By leaving it open, the "meat" layer will cover the raw edge, creating a seamless illustration.

Step B: The Meat (Overlap)

1. State: Auto Close Shape ON.
2. Color: Brown/Cooked.
3. Action: Draw the bulbous meat shape. Ensure the vector line overlaps the open ends of the bone by at least 3-4mm.

This overlap is the "margin of safety." If your fabric shifts slightly during the stitch-out, this overlap ensures no gap appears between the bone and meat.

Phase 5: Refining Nodes (The Difference Between Good and Great)

Vectors are mathematical, but embroidery is organic. A sharp vector point often translates to a harsh, sparse stitch.

• Action: Select the object and tap Edit Nodes.
• Sensory Check: Look for "kinks" or tight turns. If a curve looks slightly wobbly on the iPad screen, it will look significantly worse in thread because tension pulls distortion into the fabric.
• The Fix: Pull the Bezier handles to smooth out the curves. Delete unnecessary nodes. Fewer nodes usually equal smoother satin stitches.


Phase 6: Verify Before You Sew (The Simulation)

Never send a file to the machine without a virtual test drive.

Use Slow Redraw combined with Sequence View. You are looking for:

1. Logical Order: Placement $\rightarrow$ Tack-down $\rightarrow$ Finish.
2. Layer Order: Does the bone stitch completely before the meat starts?
3. Connection: Does the meat layer physically cover the bone's open gap?


Decision Tree: Stabilizer & Fabric Pairing

Appliqué puts stress on fabric because the satin borders have high stitch density. Use this decision tree to prevent puckering.

Q1: Is the base fabric stretchy (T-shirt, Hoodie, Knit)?

• YES: Use Fusible Mesh or Cutaway Stabilizer.
  • Why: The fabric's stretch must be permanently neutralized, or the appliqué will distort after the first wash.
• NO (Denim, Canvas, Twill):
  • Go to Q2.

Q2: Is the design high-density or large (>5 inches)?

• YES: Use Cutaway. Even stable fabrics can shrink under heavy satin stitching.
• NO: Tearaway is acceptable, usually with temporary spray adhesive.

Phase 7: The Production Stitch-Out

Now we move to the machine. This is where theory meets physics.

Step 1: Hooping

Ensuring the fabric is drum-tight is non-negotiable.

• Target Feel: Tap the hooped stabilizer. It should sound like a tight drum skin, not a thud.
• Tool Tip: If you struggle with hoop burn (those shiny rings left on dark fabric) or wrist pain from tightening screws, consider upgrading. A magnetic embroidery hoop allows you to slide stabilizers in and out instantly, maintaining consistent tension without the physical struggle. This is vital for appliqué, where you might be hooping 50 shirts in a row.


Step 2: The Stitch Cycle

1. Bone Placement: Machine runs a single running stitch.
2. Stop & Place: Lay your cream fabric over the line. Tip: Use a dash of temporary spray adhesive (like ODIF 505) on the back of the appliqué fabric to prevent it from rippling.
3. Bone Tack-down: Machine stitches a double-run or zigzag to hold the fabric.
4. Trim: Remove the hoop (or slide out the magnetic frame) and trim precisely to the tack-down line. Do not cut the stitches.
5. Bone Satin: Machine finishes the border.
6. Repeat for "Meat" layer.

Because we designed the overlap correctly, the brown fabric will stitch over the raw edge of the bone, hiding the open seam perfectly.

Warning: Magnetic Field Safety
If you choose to use magnetic hoops, be aware they use powerful Neodymium magnets. Pinch Hazard: Do not let the top and bottom frames snap together without fabric in between. Medical Device: Keep magnets at least 6 inches away from pacemakers.

Troubleshooting Logic: When Lines Go Rogue

If your machine stitches the tack-down line outside of the placement line, don't panic. Follow this diagnostic path.

The Production Mindset: Scaling Up

If you are doing this for a single Thanksgiving bib, the standard tools are fine. But if this tutorial helps you launch a product line, you will hit new bottlenecks.

• Bottleneck: Hooping Time.
  • Solution: magnetic hoops for embroidery. They reduce hooping time by ~40% and eliminate "hoop burn" rejects.
• Bottleneck: Thread Changes.
  • Solution: Standard single-needle machines require you to swap threads for the placement, tack-down, and satin steps. A multi-needle machine (like the SEWTECH series) allows you to program colors once and let the machine run the entire appliqué sequence automatically.
• Bottleneck: Consistency.
  • Solution: Standardize your consumables. Find a "Needle/Thread/Stabilizer" recipe that works and stick to it.


Final Post-Op Checklist

• Coverage: Does the satin border fully cover the trimmed fabric edge? (No "whiskers").
• Join: Is the transition between bone and meat seamless?
• Flatness: Is the base fabric pucker-free? (If not, switch to Cutaway next time).
• Cleanup: Were all jump stitches trimmed?

By following the Clockwise Rule and understanding the physics of layering, you turn a frustrating glitch into a repeatable, sellable skill.

FAQ

• Q: In Design Doodler appliqué digitizing, why does the tack-down stitch line run outside the placement line on an open shape?
  A: Redraw the open appliqué shape in a clockwise direction with Auto Close Shape OFF; counter-clockwise drawing commonly flips inside/outside logic.
  • Delete the problem object (do not try to “force” the lines back).
  • Turn Auto Close Shape OFF and redraw the open shape clockwise (12 → 3 → 6 → 9).
  • Watch the stitch preview while drawing to confirm the satin column grows inward from the stylus path, not outward.
  • Success check: the placement line sits on the outer perimeter and the tack-down appears slightly inset (inside).
  • If it still fails: re-check that the shape is truly open (Auto Close OFF) and not accidentally closed by a final node connection.
• Q: In Design Doodler appliqué settings, what satin width prevents raw fabric edges (“whiskers”) without making the patch too stiff?
  A: Use a 3.0 mm appliqué width as a safe beginner starting point for clean coverage without a heavy, bulletproof border.
  • Set appliqué Width = 3.0 mm and keep density at Standard.
  • Avoid going below 2.5 mm if hand-trimming is not extremely precise.
  • Avoid going above 4.0 mm if the border starts to look clunky or feels overly stiff.
  • Success check: after trimming and stitching, the satin border fully covers the fabric edge with no fibers peeking out.
  • If it still fails: increase width to 3.5 mm or leave a small trimming allowance instead of cutting flush to the tack-down.
• Q: In multi-layer appliqué digitizing in Design Doodler, how should Auto Close Shape be set to create an underlap (open-ended) layer that tucks under another layer?
  A: Set the bottom layer to Auto Close Shape OFF (open end) and the top layer to Auto Close Shape ON (fully sealed) so the top layer covers the join.
  • Turn Auto Close Shape OFF for the underlap layer (example: the “bone”) so one end stays open.
  • Turn Auto Close Shape ON for the overlap layer (example: the “meat”) to fully seal the top shape.
  • Overlap the top layer over the open ends by 3–4 mm to create a margin of safety.
  • Success check: the top layer stitches over the open gap and the join looks like one cohesive object, not two stickers.
  • If it still fails: move nodes on the top layer to increase overlap and re-run a slow simulation to confirm coverage.
• Q: When hooping for appliqué stitch-outs, what is the correct “drum-tight” tension test to prevent shifting and puckering during stops and trims?
  A: Hoop until the stabilizer/fabric feels drum-tight, because appliqué requires repeated stops and handling that can loosen weak hooping.
  • Tap the hooped stabilizer/fabric and compare the sound/feel to a tight drum skin (not a dull thud).
  • Handle the hoop gently during fabric placement so tension does not creep loose.
  • Keep stabilizer flat and stable so the satin border lands exactly on the trimmed edge.
  • Success check: placement and satin lines stay aligned after multiple stop-and-trim cycles, with no visible drifting.
  • If it still fails: switch stabilizer type (cutaway/fusible mesh for stretch) and consider a magnetic hoop to maintain consistent tension with less distortion.
• Q: For appliqué on T-shirts, hoodies, and other knit fabrics, which stabilizer choice prevents distortion after washing?
  A: Use fusible mesh or cutaway stabilizer on stretchy knit garments to permanently neutralize stretch under dense satin borders.
  • Identify fabric type: if the base fabric is stretchy (knit), choose Fusible Mesh or Cutaway.
  • Stabilize before stitching so the fabric cannot rebound and warp the appliqué after laundering.
  • For non-stretch wovens, choose stabilizer by design density/size rather than stretch.
  • Success check: after stitching, the appliqué lies flat and the garment area does not ripple or wave when relaxed.
  • If it still fails: move to a more supportive cutaway and reduce handling stress during stops (avoid pulling the fabric while trimming).
• Q: During appliqué stitch-outs, how can temporary spray adhesive be used to stop appliqué fabric from rippling between placement and tack-down stitches?
  A: Apply a light dash of temporary spray adhesive to the back of the appliqué fabric before placement to keep it from shifting or rippling.
  • Spray lightly on the back of the appliqué fabric (not heavily saturating).
  • Place fabric smoothly over the placement line before the tack-down runs.
  • Trim only after tack-down, and do not cut into the stitches.
  • Success check: the fabric stays flat with no puckers or bubbles as the tack-down stitches form.
  • If it still fails: re-check hoop tightness and slow down handling—appliqué failures often come from movement during the stop.
• Q: What safety rule prevents finger injuries when trimming appliqué fabric near the needle bar and presser foot area?
  A: Stop the machine completely and keep fingers clear of the presser foot path—never trim while the machine is moving.
  • Pause the stitch cycle and confirm the needle is fully stopped before bringing scissors near the hoop.
  • Remove the hoop (or slide the frame out if using a magnetic system) before close trimming.
  • Use sharp curved scissors carefully and cut only fabric, not the tack-down stitches.
  • Success check: trimming is clean and controlled, with hands never positioned under the needle/presser foot path.
  • If it still fails: change the workflow—trim only with the hoop fully removed from the machine to eliminate accidental motion hazards.
• Q: What is the safest handling rule for magnetic embroidery hoops to avoid pinch hazards and pacemaker risk during appliqué production?
  A: Treat magnetic hoops as high-force tools: prevent the frames from snapping together and keep magnets at least 6 inches from pacemakers.
  • Separate and join the frames slowly; do not let top and bottom frames snap together without fabric in between.
  • Keep hands out of the closing path to avoid pinch injuries.
  • Store and use magnets away from sensitive medical devices (follow the 6-inch separation rule stated).
  • Success check: frames close in a controlled way with no sudden snapping, and no pinched fabric edges or fingers.
  • If it still fails: switch to a slower, two-hand closing method and stage fabric first so the magnets never “free-slam” together.
