The Clean Knockout Monogram in DIME Cut ’N Stitch: Stop Fighting Weird Gaps, Wrong Sizes, and Messy Cut Lines

If you have ever watched a “knockout monogram” demo and thought, “That looks easy… until my cutter changes the size, my letters get jagged, or the overlap looks messy,” you are not alone.

This project is the perfect example of a task that is simple in clicks but fussy in results. You are bridging two different worlds: embroidery thinking (stitches, underlay, pull compensation) and cutter thinking (vectors, offsets, mirroring, and scale).

As a Chief Embroidery Education Officer with two decades of floor experience, I see this friction point constantly. Beginners often blame the software, but the issue is usually the "handshake" between the design file and the physical machine.

Below is the exact workflow shown in the video—reconstructed with the "safety buffers" and production standards I insist on in a professional studio. We will ensure your SVGs cut cleanly, your weeding is effortless, and your finished mixed-media piece looks intentional, not improvised.

Don’t Panic: A Knockout Monogram Is Just Two Text Objects and One Smart Offset

Let’s strip away the confusion. A knockout monogram is technically just three elements:

1. A background initial (big block letter).
2. A foreground name (script).
3. A controlled “gap” (Offset) where they overlap so the base material shows through.

In DIME Cut ’N Stitch, that gap is created with the Knockout tool.

What makes people nervous is not the design—it’s the translation to reality:

• “Why did my cutter software import it at a weird size?”
• “Why do I have random little fragments—confetti—after using the knockout tool?”
• “Why does the HTV cut backwards on the final product?”

We will handle all of that, step by step.

The “Hidden” Prep Before You Click Anything in DIME Cut ’N Stitch Software

The video jumps right into designing. In a real shop, a 60-second "Mise-en-place" (prep) prevents 30 minutes of rework.

If you don't define your physical constraints first, you are designing in a vacuum.

Prep checklist (do this once per project)

• Unit Check: Confirm you are working in Inches. Design software often defaults to Metric, while US-based blank suppliers use Inches. Mismatched units cause scaling errors later.
• Substrate Audit: Are you pressing onto a flat t-shirt or a bulky zipper pouch? If it's a pre-made zipper pouch, measure the actual flat area available between the seams.
• Tool Check: Ensure you have heat tape (to hold vinyl in place before pressing) and a sharp weeding tool.
• Font Strategy: Pick a chunky serif for the initial (creates a solid stage) and a script that isn’t hairline-thin. Thin scripts tear during weeding.
• Hooping Plan: If you plan to embroider after pressing vinyl, how will you hold the bulk? A standard hoop can cause "hoop burn" (permanent ring marks) on delicate vinyl or velvet items. Stabilizing tricky items like zipper pouches is often where users fail. Using a magnetic embroidery hoop allows you to hold bulky items firmly without crushing the fibers or the zipper teeth.

Build the Background Initial in Cut ’N Stitch (Georgia Font, Forced to 3" x 4")

In the video, Reena creates the base letter first. We need a solid anchor for the design.

1. Select the Tool: Click the Text tool (the big red “T” on the left toolbar).
2. Place the Text: Click anywhere in the design workspace.
3. Input Letter: Highlight the default word “text” in the properties box and type your capital letter (e.g., L).
4. Select Font: Choose a TrueType font from the dropdown. The example uses Georgia because it has strong serifs (feet) that look classic.
5. Open Transform: Click the Transform icon (ruler symbol).
6. Set Dimensions:
   • Width: 3.00 inches
   • Height: 4.00 inches
7. Uncheck “Maintain Aspect Ratio”: This is critical. You must uncheck this before applying.
8. Apply: Click Apply.

The Expert "Why": Why uncheck "Maintain Aspect Ratio"? If you leave it checked, the software will scaling the width proportionally to the height. You might get a letter that is 4.00" tall but only 2.6" wide. For a knockout design, we want a standardized rectangular footprint so the monogram looks substantial. Breaking the aspect ratio forces the letter to fill the stage.

Warning: Cutter Safety. When test-cutting on your vinyl cutter later, keep fingers clear of the carriage housing and blades. Never attempt to "feed" the mat by pushing it with your hands while the machine is cutting—this is the #1 cause of pinch injuries and misaligned cuts.

The Center-Origin Habit: One Right-Click That Saves You From Crooked Layouts

In professional digitizing and vector design, "Center is God." If you manually drag items to look centered, they will be visually off by a few millimeters.

1. Locate Ruler: Go to the top ruler bar (the numbers across the top).
2. Action: Right-click on the ruler.
3. Select: Choose Center Origin.

Sensory Check: You should see the letter snap immediately to the exact center crosshair (0,0) of the workspace.

Why this helps: When you export to cutter software (like Silhouette Studio or Cricut Design Space), files centered at the origin tend to import more predictably. It removes the guesswork of "is this aligned?"

Add the Script Name Overlay (Carolina Script at 4.25" x 2.25")

Now we add the foreground. This needs to be wider than the background letter to create the "overflow" aesthetic.

1. Text Tool: Click the Text tool again.
2. Place: Click in the design space.
3. Input Name: Replace “text” with the name (e.g., Laura).
4. Font: Choose Carolina Script (or any thick, connected script).
5. Transform: Click Transform and set hard dimensions:
   • Width: 4.25 inches (Wider than the 3" initial)
   • Height: 2.25 inches
6. Apply: Click Apply.
7. Color Coding: Change the name color (e.g., to Pink) so you can visually distinguish layers.
8. Center: Right-click the top ruler again → Center Origin.

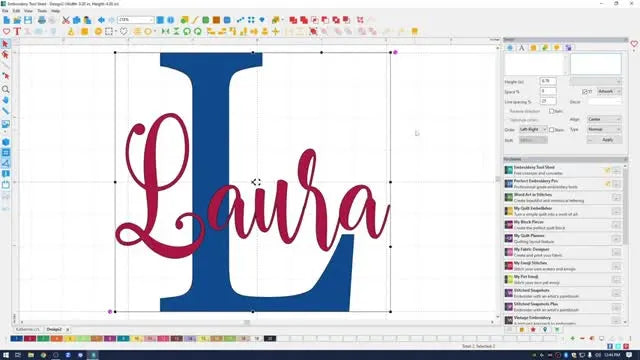

Visual Check: The script name should sit centered over the block initial. The left and right tails of the script should extend past the edges of the big letter.

Pro Tip: Look closely at the "connections" between the script letters. If they look razor-thin on screen, they will be frustration points when weeding vinyl. You may need to add a small outline (0.01") or choose a bolder font.

The “Copy First” Trick: Preview the Final Look Without Losing Your Cut Pieces

This is a safety step often skipped by amateurs. The software operation "Knockout" is destructive—meaning it physically removes the overlapping parts of the background letter.

If you knockout now, you lose the original Name object.

• Action: Click the script name (Laura) to select it.
• Command: Press Ctrl+C (Copy).

Why this matters: The tutorial exports the initial and the name as separate SVGs. By copying the name to your clipboard, you can perform the knockout, delete the name to export the background, and then Paste the name back to see the final layout or export the second file. It keeps your workflow non-destructive.

The Knockout Tool in DIME Cut ’N Stitch: Use 0.08 Offset for a Clean Gap

This is the moment of truth. The "Offset" determines the width of the empty space between the two vinyl layers.

1. Select All: Select both objects (draw a box around them or Ctrl+A).
2. Tool: Click the Knockout icon (usually looks like shapes overlapping).
3. Input Value: In the Offset window, enter 0.08.
4. Execute: Click OK.


Visual Check: You should instantly see a white "halo" or gap cut out of the background letter where the script sits.

Why 0.08 inches?

• < 0.05": Too tight. The vinyl layers might accidentally touch if you are 1mm off during pressing.
• > 0.12": Too wide. The design starts to look disconnected, like two separate stickers rather than a cohesive monogram.
• 0.08": The beginner's "Sweet Spot." It provides enough margin for error during pressing while maintaining visual cohesion.

If you are working on standardized products like team gear, using a templated approach (same font, same offset) is key. For difficult-to-hoop items, utilizing a dime snap hoop or similar jig ensures that your physical placement matches your digital design precision.

Clean Up the “Little Blue Slivers”: Delete Knockout Artifacts Before Export

After the knockout calculation, you will see tiny, isolated specks of the background letter left behind inside the script loops.

1. Inspect: Zoom in (200%+) on the loops of the script (like inside the 'l', 'a', or 'e').
2. Select: Click on the tiny isolated fragments of the background color.
3. Action: Press Delete.


The Production Reality: These are called "artifacts." If you leave them:

• Your cutter creates microscopic cuts that chew up the vinyl.
• You waste time trying to weed a dot fitting the size of a grain of sand.
• They often peel off in the wash anyway.

Rule: If it is smaller than a pencil tip, delete it. Your customer will never notice, but your sanity will remain intact.

Export the Background Initial as an SVG (Cutter Icon → Save)

We export the layers individually to cut them from different vinyl colors.

1. Select: Click the modified background initial (the knocked-out L).
2. Tool: Click the Cutter icon (looks like a saw blade or blade holder).
3. Settings: Verify device settings (Generic Cutter is usually fine).
4. Format: Choose SVG as the file type.
5. Save: Name it clearly (e.g., Job123_Initial_Background.svg).


Hidden Value: The software automatically generates a PDF preview alongside the SVG. Open this PDF! Visual Check: Does the PDF proportions look like a 3x4 rectangle? If the PDF looks squashed, your SVG will likely import squashed. Use this as your "Sanity Check" before opening your cutter software.

The Elephant in the Room: "My Design Changed Size on Import!"

This is the most common comment on these tutorials. "I exported 3x4, but Cricut says it's 2.5x3.1!"

Likely Cause: SVG DPI Conflict. Some software assumes 72 DPI, others 96 DPI. The Fix:

1. Import the SVG into your cutter software.
2. Immediately look at the width/height dimension box.
3. If it does not say 3.00 wide, Type 3.00 into the width box (ensure aspect ratio is locked here).
4. Trust your numbers, not the auto-import.

Export the Script Name as a Separate SVG (Delete the Initial, Then Save Again)

Now we need the name file.

1. Paste: If the name disappeared during knockout, press Ctrl+V to paste the copy we made earlier.
2. Isolate: Delete the background "L" so only the name remains on screen.
3. Tool: Click the Cutter icon.
4. Save: Save as SVG (e.g., Job123_Name_Foreground.svg).

Option: In Cut 'N Stitch, you can actually select the specific brands of cutter (Brother ScanNCut, Silhouette, etc.). However, using the generic SVG format is the most "future-proof" method if you switch machine brands later.

For mixed media projects where precision is paramount, such as placing vinyl inside an embroidered border, using a stable holding system like a dime hoop helps align the physical reality with these digital files.

The Mirror Trap: HTV Must Be Mirrored (Before or After Export)

Heat Transfer Vinyl (HTV) is cut from the back (adhesive) side. Therefore, the design must be reversed.

Your Protocol: Choose ONE place to mirror and never deviate.

• Option A: Mirror in Cut 'N Stitch before export. (Risk: You forget which file is mirrored).
• Option B (Recommended): Export "Right Reading" (normal) and always mirror in the cutter software.

Why Option B? Most modern cutters (Cricut/Brother) will prompt you: "Are you using Iron-On? Don't forget to mirror!" It is a built-in safety net. Rely on it.

Setup That Actually Works on Real Items (Pouches, Bags, and the Hooping Reality)

The video shows the design applied to zippered pouches. This changes the game. A zippered pouch is not flat; it has seams, zipper teeth, and lining bulk.

The Horror Story: You press the vinyl perfectly. Then, you decide to embroider a cute border around it. You try to jam the pouch into a standard plastic hoop. The inner ring pops out. You tighten the screw. You force it. The hoop leaves a crushed "shiny ring" (hoop burn) on your faux leather pouch that never goes away.

The Solution: This is the specific scenario where upgrading your tooling pays off. If you do production runs of bags or pouches, a hooping station ensures the design is straight every time. More importantly, using a Sewtech or DIME-style magnetic hoop allows you to "sandwich" the bulky seams without force. The magnets hold strong, but they don't crush the material fibers like a friction ring does.

Warning: Magnetic Field Safety. Magnetic hoops use industrial-strength magnets (Neodymium).
* Pinch Hazard: Keep fingers away from the clamping zone; they can snap together with enough force to bruise or break skin.
* Medical Safety: Keep magnets at least 6 inches away from pacemakers and insulin pumps.

Setup checklist (before you cut or press)

• Mirror Check: Is the design reversed on your cut screen?
• Test Cut: Cut a small triangle in the corner of your vinyl. Tactile Check: Weed it. If you have to fight the vinyl to separate it, increase blade pressure. If it cuts through the clear carrier sheet, decrease pressure.
• Pre-Press: Pre-press your fabric item for 5 seconds to remove moisture (steam is the enemy of vinyl adhesion).
• Alignment: Fold the pouch in half to crease the center line. Match this to the center of your vinyl transfer sheet.

The “Why” Behind 0.08 Offset: Readability, Weeding, and the Finished Look

Reena mentions she "usually picks 0.08". In embroidery and design, we call this the "Rule of Breathing Room."

• Legibility: The gap ensures the brain reads the Name separately from the Initial.
• Tolerance: When pressing layer 2 (the name), you are doing it by hand. If the gap is too small (e.g., 0.02), and your hand shakes by 1mm, you will overlap the vinyls. Since HTV acts like glue, layering "smooth on glitter" or "glitter on glitter" can cause peeling. The 0.08 gap ensures the vinyls adhere to the fabric, not each other.

Quick Variation: Rotate the Name 90° for a Modern Vertical Layout

The video concludes with a variation: Rotating the name “Katherine” 90 degrees along the leg of the initial.

Lesson: Once you master the Text -> Resize -> Copy -> Knockout -> Export workflow, you can generate 50 distinct designs in an hour.

If building a catalog, keep the fonts consistent but vary:

1. Orientation: Horizontal vs. Vertical.
2. Texture: Glitter initial vs. Flock name.
3. Scale: Oversized initial vs. contained initial.

Troubleshooting the Problems People Actually Hit

Decision Tree: Fabric/Blank + Finish Goal → Stabilizer and Hooping Choice

If you are combining this vinyl technique with embroidery strokes (mixed media), use this logic flow:

Start: What is your base material?

1. Stable, Flat Cotton (Tote Bag, Quilt Square)
   • Stabilizer: Tearaway is usually sufficient.
   • Hoop: Standard hoop works fine. Tighten until "drum tight."
2. Stretchy Knit (T-Shirt, Jersey)
   • Stabilizer: Must use Cutaway. (Tearaway will result in gap alignment issues).
   • Hoop: Do not stretch the fabric. Use a magnetic hoop or "float" method to prevent distortion.
3. Bulky Item (Zipper Pouch, Carhartt Jacket)
   • Stabilizer: Sticky stabilizer or Cutaway.
   • Hoop: This is the danger zone for standard hoops.
   • Choice: If you struggle to close the hoop, Stop. You risk breaking the hoop clips. This is the criteria for upgrading to Magnetic Hoops. They snap over seams and zippers effortlessly.

The Upgrade Path: When Tools Actually Pay for Themselves

If you are making one pouch for a hobby, the manual methods work fine.

However, if you are looking to scale—making 20 team pouches or selling on Etsy—time is your currency. The friction points in this tutorial (hooping bulk, weeding failures, size anxiety) are what kill profit margins.

Your Efficiency Roadmap:

1. Level 1 (Consumables): Buy better weeding tools and proper heat tape.
2. Level 2 (Hooping): If you fight with bulky items, a Sewtech or DIME Magnetic Hoop solves the "hoop burn" and "broken zipper" problem instantly.
3. Level 3 (Capacity): When you are tired of stopping to change thread colors on mixed-media designs, looking at SEWTECH multi-needle embroidery machines moves you from "Crafter" to "Producer."

Operation checklist (Final checks before you Cut)

• Dimensions: Initial is 3.00" x 4.00". Name is 4.25" x 2.25".
• Gap: Knockout offset is set to 0.08".
• Hygiene: All "confetti" artifacts deleted.
• Files: Separate SVG for Initial; Separate SVG for Name.
• Mirror: Mirroring plan is confirmed (do it in the cutter software).
• Test: Thinnest stroke of the script has been test-cut.

Follow the video’s clicks, but verify with these steps. That is how you get the professional finish.

FAQ

• Q: How do I prevent DIME Cut ’N Stitch SVG export from importing at the wrong size in Cricut Design Space or Silhouette Studio?
  A: This is commonly a DPI/unit mismatch—export normally, then force the correct dimensions on import.
  • Confirm Cut ’N Stitch is set to Inches before designing.
  • Import the SVG into the cutter software and immediately read the width/height box.
  • Type the known target size (example from this workflow: set the initial to 3.00" wide and lock aspect ratio in the cutter app).
  • Success check: The on-screen size matches the intended inch dimensions before any cutting starts.
  • If it still fails: Open the auto-generated PDF preview from export—if the PDF looks squashed, fix sizing in Cut ’N Stitch before re-exporting.
• Q: How do I remove “confetti” micro-cuts after using the DIME Cut ’N Stitch Knockout tool on a script name?
  A: Zoom in and delete knockout artifacts before exporting, or the cutter will create tiny nuisance cuts.
  • Zoom to 200%+ and inspect inside script loops (like “a/e/l” areas).
  • Click isolated tiny fragments of the background color and press Delete.
  • Repeat around all inner curves where the script overlaps the initial.
  • Success check: No isolated specks remain that are smaller than a pencil tip, and the knockout gap looks clean.
  • If it still fails: Re-run the knockout, then do a second cleanup pass before saving the SVG.
• Q: What Knockout Offset value should I use in DIME Cut ’N Stitch for a clean monogram gap that weeds easily?
  A: Use 0.08" as a safe starting point for a clean, forgiving gap in this knockout monogram style.
  • Select both text objects and run Knockout with Offset = 0.08.
  • Avoid going too tight (< 0.05") or too wide (> 0.12") for this look.
  • Test the result visually before export—look for a consistent “halo” gap.
  • Success check: The gap is clearly visible and continuous, without the layers visually touching.
  • If it still fails: Re-check that both objects were selected during knockout and confirm the script font is not hairline-thin.
• Q: How do I stop Heat Transfer Vinyl (HTV) from cutting backwards when exporting SVG from DIME Cut ’N Stitch?
  A: Mirror the HTV design exactly once—most users get the best consistency by mirroring inside the cutter software, not in Cut ’N Stitch.
  • Export SVGs “right reading” (normal orientation) from Cut ’N Stitch.
  • In Cricut/Brother/Silhouette cutter software, enable Mirror for Iron-On/HTV before cutting.
  • Keep one fixed habit: always mirror in the same place every project.
  • Success check: The cut preview shows reversed text before cutting, and the pressed result reads correctly.
  • If it still fails: Do a small test cut with a recognizable letter and confirm which side of the HTV is being cut.
• Q: What prep checklist prevents weeding failure and alignment issues when making a DIME Cut ’N Stitch knockout monogram (HTV + embroidery workflow)?
  A: Do a 60-second prep: units, substrate area, tools, and font choice prevent most redo work.
  • Confirm the design units are Inches and measure the real usable flat area (especially on zipper pouches between seams).
  • Choose a chunky serif initial and a script that is not razor-thin (thin scripts often tear during weeding).
  • Keep heat tape and a sharp weeding tool ready before cutting.
  • Success check: The thinnest script strokes weed cleanly without stretching or tearing.
  • If it still fails: Switch to a bolder script or add a very small outline (stroke) as a thickening strategy, then re-test cut.
• Q: How do I avoid hoop burn and hooping damage when embroidering bulky zipper pouches after pressing vinyl?
  A: If a standard hoop requires force or leaves shiny ring marks, stop and switch to a lower-crush holding method—this is very common on bulky goods.
  • Do not “muscle” a pouch into a rigid hoop; seams and zipper teeth create pressure points.
  • Use a magnetic hoop approach for bulky items when standard hooping becomes a struggle (a common upgrade point).
  • Add a placement system (like a hooping station) if repeated runs keep drifting off-center.
  • Success check: The pouch is held firmly without crushed fibers, shiny rings, or the inner ring popping out.
  • If it still fails: Change stabilizer approach (sticky or cutaway are common choices for bulky items) and reassess hooping method before running another stitch-out.
• Q: What safety rules should I follow when test-cutting HTV on a vinyl cutter and when handling magnetic embroidery hoops?
  A: Treat both as pinch hazards—keep hands clear during cutting and keep fingers out of magnetic clamp zones.
  • Keep fingers away from the cutter carriage/blade area; never push/feed the mat by hand while cutting.
  • When using magnetic hoops, keep fingers away from the closing zone because magnets can snap together suddenly.
  • Keep strong magnets at least 6 inches away from pacemakers and insulin pumps.
  • Success check: No hand contact occurs near moving cutter parts, and magnetic hoop placement is controlled without sudden snaps.
  • If it still fails: Pause the job, power down the cutter before touching the mat path, and handle magnetic hoop segments one at a time with a deliberate grip.
