The Clean-Back Quilt Block Trick on a Janome Horizon: Split-Hooping Initials, Then Floating the Backing for a Feathered Heart

The "Invisible Back" Protocol: A Master Class in Split-Hooping for Quilt Blocks

If you have ever poured hours into embroidering a sentimental initial onto a quilt block, only to flip it over and recoil at the sight of a "messy back"—knots, travel lines, and stabilizer residue—you represent the majority of home embroiderers.

In the world of quilting, the back of the block is structural, but it is also aesthetic. When making memory quilts, a messy back screams "amateur repair job," whereas a clean back sings "heirloom quality."

The solution is not better trimming skills; it is better engineering. By adopting the Split-Hooping Strategy (specifically using a method compatible with standard frames like the Janome SQ14), we can manipulate the physics of the quilt sandwich to bury those ugly knots inside the block itself.

This guide moves beyond simple tutorials. We will break down the sensory cues, the physics of fabric distortion, and the specific equipment upgrades that transform a frustrating struggle into a repeatable production workflow.

The "Sandwich Theory": Why Your Blocks Look Messy (And How Physics Fixes It)

To understand the cure, we must diagnose the disease. In standard machine embroidery, the needle penetrates all layers simultaneously. This means the bobbin thread, tie-offs, and jump stitches are permanently exposed on the reverse side.

The Split-Hooping Method changes the timeline of assembly. Instead of hooping everything at once, we treat the quilt block like a construction site with two distinct phases:

1. Phase 1 (The Foundation): We hoop only the Top Fabric + Wadding (Batting). The embroidery initials are stitched here. The back will look messy, but it doesn't matter yet.
2. Phase 2 (The Encapsulation): We "float" the Backing Fabric underneath the hoop after the initials are done.
3. Phase 3 (The Structural Bond): We stitch a decorative border through all three layers. This effectively "quilts" the sandwich and traps the messy initial stitching inside, never to be seen again.

If you are accustomed to traditional hooping for embroidery machine workflows where every layer is locked in from the start, this feels counter-intuitive. However, for quilters, this is the industry standard for achieving a "clean finish" without manual hand-sewing.

The Setup: Hidden Consumables and Equipment Checks

Before we touch the fabric, we must calibrate our environment. Managing a thick quilt sandwich (Top + Batting + Backing) requires different settings than stitching on a flat t-shirt.

1. The Needle and Thread Economy

• Needle Choice: Abandon the standard Universal needle. For batting, use a size 90/14 Quilting Needle or Topstitch Needle. The tapered point penetrates the fluffy batting without pushing it down into the bobbin case, and the larger eye reduces thread friction.
• Thread Weight: Standard 40wt rayon or polyester is ideal.
• Adhesion: Keep a can of temporary spray adhesive (like 505) or embroidery tape nearby. Pins are traditional, but spray offers uniform stabilization without the risk of a needle strike.

2. The Hoop Dynamics (The Friction Point)

Sharyn, the originator of this specific workflow, uses a standard 14 cm plastic hoop (SQ14). Her technique involves loosening the screw significantly to accommodate the batting.

Here is the "Experience-Level" reality check: Plastic hoops rely on friction and an interference fit. When you force thick batting into them, two things happen:

1. Hoop Burn: The intense pressure crushes the batting fibers permanently, leaving a visible ring.
2. Hand Fatigue: Tightening that screw against the resistance of a quilt sandwich creates massive strain on your wrists.

For hobbyists doing one block a week, this is manageable. However, if you are doing production runs, this friction fitting is a bottleneck. This is often the specific trigger point where professionals switch to a hooping station to leverage mechanical advantage, ensuring the inner ring seats flatly without warping the fabric bias.

3. Machine Hygiene

Crucial Note: Batting sheds. Unlike woven cotton, batting is composed of loose fibers. As the needle travels up and down, it acts like a microscopic saw, dropping lint into your hook race.

• The Sound Check: Listen to your machine. A crisp "click-clack" is healthy. A muffled "thump-thump" suggests lint buildup under the throat plate.

Prep Checklist: The "Go/No-Go" Pre-Flight

• Consumables: Top fabric, Batting (Wadding), Backing fabric (cut 2 inches larger than the hoop on all sides), 90/14 Needle installed.
• Hardware: Hoop screw loosened to roughly double the width of your fabric sandwich.
• Hygiene: Bobbin case cleared of lint from the previous project.
• Safety: Scissors and pins placed in magnetic dishes, not loose on the table.


Phase 1: The "Split-Hoop" Maneuver (Wadding + Top Only)

This step establishes your foundation. We are not hooping the backing fabric yet.

The Procedure:

1. Loosen the hoop screw broadly.
2. Place the Outer Ring on a flat, stable surface.
3. Lay the Wadding down, followed by the Top Fabric. Smooth them out from the center.
4. Press the Inner Ring into place.

The Sensory Calibration (Tactile Check): Do not over-tighten. This is a common rookie mistake.

• The Feeling: The fabric should not comfortably be drum-tight like a woven shirt. It should be "sponge-firm." You want it flat, but if you tighten it until the batting is compressed into a pancake, you will cause puckering when it is unhooped and the batting expands back to its natural loft.
• The Screw: Tighten only until you feel moderate resistance. Use your fingers, not a screwdriver tool, to avoid cracking the plastic frame.

The Commercial Upgrade Path: If you find yourself constantly readjusting because the fabric slips, or if you are producing a 20-block quilt and your hands are cramping, this is the defining moment to consider a magnetic embroidery hoop.

• Why? Unlike screw-based hoops that "crush" fabric into a groove, magnetic hoops use flat force clamping. They hold thick quilt sandwiches securely without hoop burn and snap on instantly, saving roughly 30-60 seconds per hoop and saving your wrists from repetitive strain injury.

Warning: Physical Safety
Ensure your workspace is clear. When compressing thick fabrics, fingers often slip. Keep your hands on the frame of the hoop, never underneath where the inner ring might pinch you against the table.

Phase 2: On-Screen Geometries (Janome Specifics)

Sharyn uses a Janome Horizon Memory Craft, utilizing on-board software. Whether you use Janome, Brother, or a commercial multi-needle machine, the logic of "True Center" remains constant.

1. Select Font: Script fonts are forgiving for quilts as they blend with organic textures.
2. Input Text: Enter initials (e.g., "S" and "B").
3. Size Calibration: Sharyn selects Medium (approx. 2cm / 0.8 inch).
   • Expert Note: For batting, stay above 15mm height. Tiny letters get swallowed by the loft of the wadding.
4. Placement: Use the machine's "Center" function. Do not eyeball this. The loop logic relies on concentric alignment.

For those researching a janome embroidery machine specifically for this feature, look for models with "On-Screen Editing" and "Drag and Drop" capabilities, which allow you to overlay the heart border directly over the initials without needing a PC.

Phase 3: The "Skeleton Stitch" (Initials Only)

Press start. The machine will stitch the monogram through the Top Fabric + Wadding.

The Observation Deck:

• Watch the first 100 stitches.
• Tension Check: Look at the top of the letter. If you see bobbin thread (white dots) on top, your top tension is too tight or your bobbin is too loose. On quilt sandwiches, slightly lower top tension (e.g., from 4.0 to 3.4) often helps the thread lay flatter on the puffy surface.

The Ugly Reality: When this finishes, the front will look perfect. The back will look like a mess of tie-offs and bobbin thread. This is intentional. Do not trim these close yet; the knots provide security.

Phase 4: The Flip and Float (The Critical Manoeuvre)

STOP. Do not remove the fabric from the hoop. This is where 90% of beginners fail. If you pop the hoop now, you lose your centering.

The Protocol:

1. Remove the hoop from the machine arm.
2. Flip the hoop over so the messy bobbin side is facing up.
3. Take your Backing Fabric and lay it Right Side Up (facing you) over the back of the hoop. It should cover the entire embroidery area.
4. Secure the Perimeter:
   • Option A (Pins): Pin through the Backing, Wadding, and Top Fabric. Crucial: Place pins at the extreme outer edge of the hoop, parallel to the frame.
   • Option B (Tape/Spray): A light mist of 505 spray on the wrong side of the backing fabric provides a wrinkle-free hold without the risk of needle strikes.

The Concept: This technique is a variation of the floating embroidery hoop method. By floating the backing, we ensure it sits flat and is not distorted by the hoop rings, which is essential for a square block.

Warning: Magnetic Safety
If you have upgraded to powerful magnetic hoops for this heavy-duty work, recognize that they snap together with up to 10 lbs of force.
* Pinch Hazard: Keep fingers clear of the mating surfaces.
* Medical Devices: Maintain a 6-inch safe distance between high-power magnets and pacemakers or insulin pumps.

Phase 5: The "Entrapment Stitch" (The Border)

Reattach the hoop to the machine. Ensure the backing fabric underneath is smooth and has not folded over on itself under the throat plate.

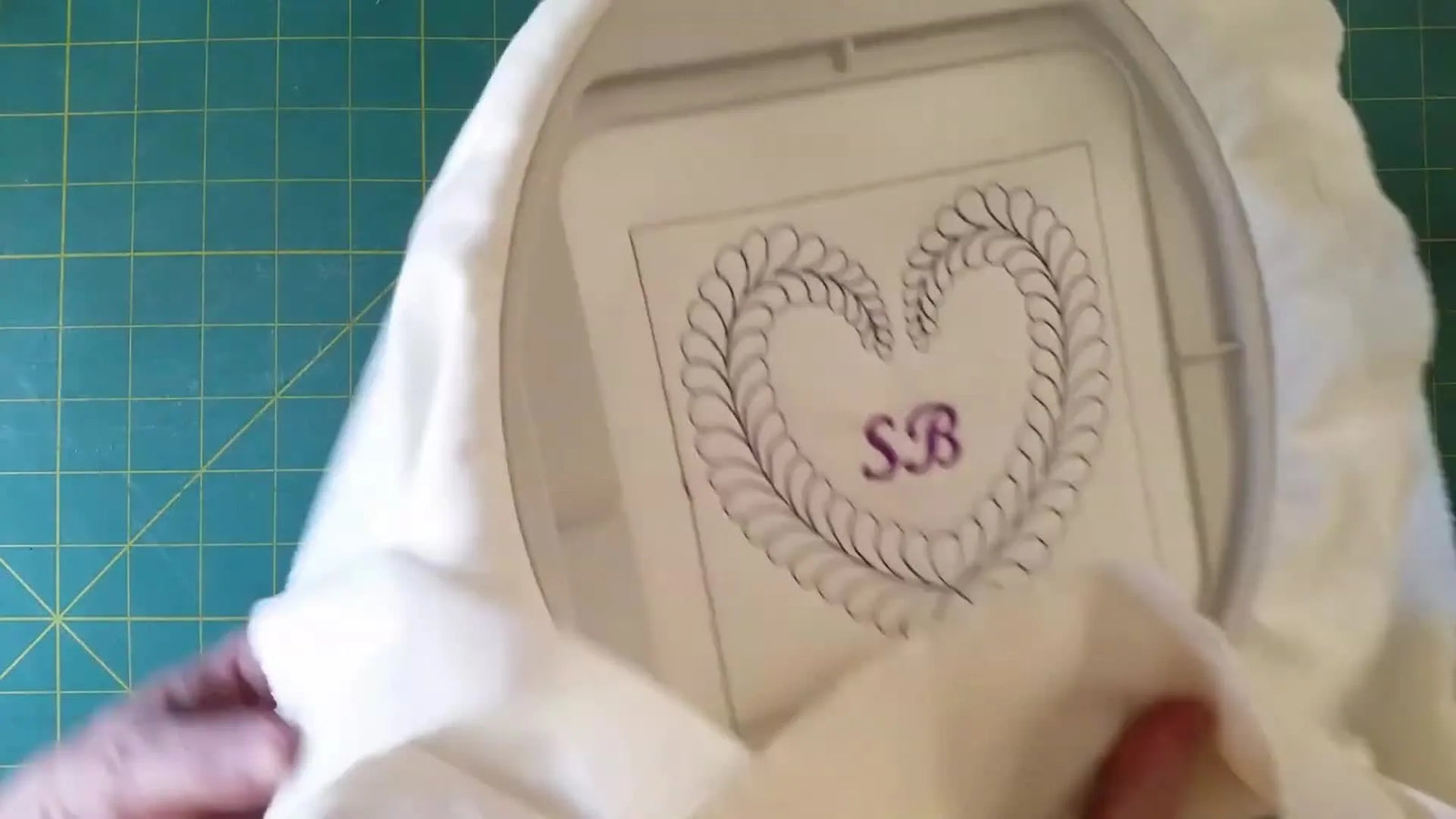

The Final Run: Load the "Feathered Heart" (or your chosen frame design). This design must be larger than the initials.

• The machine stitches through Top + Wadding + Backing.
• This stitch line structurally bonds the three layers.
• Because the backing was applied over the back of the initials, the monogram's messy underside is now sealed inside the sandwich.

Commercial Viability Note: If you are doing this for a living—perhaps monogramming 50 quilting squares for a guild—the downtime of changing threads for the initials and then the border kills your profit margin. This is the volume threshold where moving to a SEWTECH multi-needle embroidery machine becomes logical. You can program the colors (Monogram Color + Border Color) and let the machine run effortlessly, while you prep the next hoop on your embroidery hooping station.

The Reveal and Un-Hooping

Flip the block over. Success Metric: You should see the outline of the heart (the quilting stitch), but the back of the "SB" initials should be completely invisible. The fabric should be smooth, devoid of puckers.

Removal Technique:

1. Place the hoop entirely on a table.
2. Loosen the screw.
3. Lift the Inner Ring straight up.
   • Avoid pulling the fabric. Pulling bias-cut quilt blocks distorts the shape only moments before you need to square them up.

Tools like the hoop master system are designed precisely to prevent this distortion during the hooping process, but careful handling during un-hooping is purely manual skill.

Troubleshooting & Maintenance

The viewer question regarding feed dogs is valid: "Will the wadding get caught?"

• The Physics: On an embroidery machine, the feed dogs are dropped (disengaged). The fabric is moved by the pantograph (the X-Y arm). Therefore, the wadding simply glides over the plate.
• The Risk: Lint.

Maintenance Routine for Batting Users

• Frequency: Every 3-5 blocks.
• Action: Remove the bobbin case. Use a small brush (not canned air, which blows lint deeper) to sweep the race.
• Symptom: If you see "eyelashing" (top thread visible on bottom) halfway through a project, check for a lint clump preventing the bobbin tension spring from closing.

Decision Tree: The Quilt Sandwich Logic

Use this logic flow to determine your method for every block.

• Priority 1: Is the back visible (e.g., blanket, unlined tote)?
  • YES: Use Split-Hooping. (Hoop Top+Wadding -> Stitch -> Float Backing).
  • NO: Hoop all three layers at once for speed (Standard Method).
• Priority 2: Fabric Thickness vs. Hoop Capability
  • Standard Cotton: Standard plastic hoop is sufficient.
  • Heavy Canvas / Thick Batting: Plastic hoops will struggle to close. Solution: Adhesive Stabilizer (Sticky Back) OR Magnetic Hoop upgrade.
• Priority 3: Stability Requirement
  • Stretchy Knits (T-Shirt Quilts): Requires Cutaway Stabilizer fused to the back of the knit before it touches the batting.
  • Woven Cottons: Batting alone is usually sufficient stability for low-density designs.

The Upgrade Path: Moving From Hobby to Production

You can achieve perfectly acceptable results with a standard machine and hoop, as Sharyn demonstrates. However, professional consistency usually requires addressing the physical limitations of standard tools.

• The Pain Point: "My wrists hurt from tightening screws," or "I can't get the hoop to close on this thick wool batting."
• The Tool: Magnetic Hoops. They remove the variable of "screw tightness" and replace it with constant magnetic force.
• The Pain Point: "I spend more time changing thread colors than stitching."
• The Tool: Multi-Needle Machines. If you are creating quilt kits for sale, the ability to queue colors and stitch at 1000 SPM (stitches per minute) safely is the difference between profit and loss.

Setup Checklist (The "Do Not Miss" List)

• Needle: 90/14 Quilting or Topstitch installed?
• Bobbin: Full wind? (Running out mid-border is a disaster on a sandwich).
• Hoop: Screw loosened properly?
• Machine: Feed dogs dropped (if mechanical setting required)?
• Design: Initials centered? Border loaded?

Operation Checklist (During Stitching)

• Phase 1: Watch for batting flagging (bouncing) -> Slow down speed to 500 SPM if seen.
• Phase 2 (Flip): Ensure pins are outside the strike zone. Spin the handwheel manually for one rotation to check clearance if unsure.
• Phase 3: Listen for the "thump" of lint buildup. Clean immediately if pitch changes.


By respecting the materials—understanding that batting compresses and lint travels—you move from "hoping it works" to "knowing it will work." This split-hooping technique is the gateway to professional-grade quilting in the hoop.

FAQ

• Q: For the Split-Hooping method on a Janome SQ14 (14 cm) plastic hoop, what needle, thread, and adhesive supplies should be prepared before stitching quilt blocks?
  A: Use a 90/14 Quilting or Topstitch needle with standard 40wt thread, and keep temporary spray adhesive (like 505) or embroidery tape ready.
  • Install: Put in a fresh 90/14 Quilting/Topstitch needle before hooping thick batting.
  • Prepare: Use 40wt rayon or polyester thread and cut backing fabric at least 2 inches larger than the hoop on all sides.
  • Stabilize: Choose 505 spray, embroidery tape, or pins (spray/tape reduces needle-strike risk compared with pins).
  • Success check: The block layers stay flat during stitching without shifting, and the needle penetrates cleanly without excessive dragging.
  • If it still fails… Re-check hoop tightness (too tight crushes batting), and slow the machine if the batting starts bouncing.
• Q: What is the correct “tightness” standard for hooping Top Fabric + Batting in a Janome SQ14 plastic hoop to avoid hoop burn and puckering after un-hooping?
  A: Tighten the SQ14 hoop to “sponge-firm,” not drum-tight, so the batting is held flat without being crushed.
  • Loosen: Open the screw wide enough to accept the quilt sandwich without forcing the inner ring.
  • Press: Seat the inner ring evenly while the outer ring rests on a stable flat surface.
  • Tighten: Turn the screw only to moderate resistance using fingers (not a tool) to avoid over-compression and hoop damage.
  • Success check: The surface feels flat but still springy, and there is no heavy ring imprint (hoop burn) on the batting.
  • If it still fails… If the sandwich keeps slipping or closing the hoop hurts hands/wrists, a magnetic hoop often reduces pressure marks and improves holding power.
• Q: During Phase 3 initials on a quilt sandwich, what does bobbin thread showing as white dots on top mean, and what is a safe starting adjustment?
  A: Bobbin thread showing on top usually means top tension is too tight or bobbin tension is too loose; a common adjustment is slightly lowering the top tension (for example, from 4.0 to 3.4).
  • Observe: Watch the first ~100 stitches of the monogram and inspect the top surface of the letters.
  • Adjust: Reduce top tension a small step and test again (settings vary by machine; follow the machine manual).
  • Continue: Keep the tie-offs untrimmed at this stage because they help secure the stitching before the backing is added.
  • Success check: Lettering looks filled with top thread on the front, with no bobbin “dots” popping to the surface.
  • If it still fails… Clean lint from the bobbin area (batting sheds) and re-test; lint can also affect tension consistency.
• Q: In the Split-Hooping “Flip and Float” step, how do you add backing fabric without losing centering on a Janome embroidery machine hoop?
  A: Do not unhoop after the initials—remove the hoop from the machine, flip it over, and float the backing fabric onto the back side while the project stays locked in the hoop.
  • Stop: Keep the top fabric + batting clamped in the hoop after initials finish.
  • Flip: Turn the hoop so the bobbin-side stitching faces up, then lay backing fabric right-side up over the entire area.
  • Secure: Pin only at the extreme outer edge of the hoop (parallel to the frame) or use light 505 spray/tape to avoid needle strikes.
  • Success check: The backing is smooth with no wrinkles, and the design remains perfectly centered when the hoop is reattached.
  • If it still fails… If the backing shifts during the border, secure the perimeter more evenly (spray/tape often helps) and confirm nothing is folded under the throat plate.
• Q: What needle/pinch safety steps should be followed when pinning backing fabric around an embroidery hoop during the border stitch on quilt blocks?
  A: Keep all pins outside the needle strike zone and verify clearance before stitching to prevent needle strikes and sudden fabric snags.
  • Place: Pin at the extreme outer edge of the hoop only, aligned parallel to the hoop frame.
  • Verify: Hand-turn the handwheel for one full rotation (if unsure) to confirm the needle path clears pins and bulk.
  • Clear: Keep the workspace uncluttered and keep fingers on the hoop frame—not underneath—when compressing thick layers.
  • Success check: The machine runs the first stitches of the border without hitting a pin or dragging the backing.
  • If it still fails… Switch from pins to 505 spray or embroidery tape for a flatter hold with less strike risk.
• Q: What magnetic safety precautions are required when using high-power magnetic embroidery hoops for thick quilt sandwiches?
  A: Treat magnetic hoops as a pinch hazard and keep them away from medical devices; the frames can snap together with high force.
  • Keep clear: Hold magnets by the frame edges and keep fingers away from mating surfaces during closing.
  • Control: Lower the magnetic ring slowly and deliberately instead of letting it “slam” shut.
  • Separate: Maintain a safe distance (about 6 inches) from pacemakers or insulin pumps.
  • Success check: The magnetic hoop closes without pinching fingers, and the quilt sandwich is clamped evenly without shifting.
  • If it still fails… If the hoop feels hard to control, reposition on a flat table and close in stages to prevent sudden snapping.
• Q: When thick batting causes wrist pain, hoop burn, or frequent slipping in a Janome SQ14 plastic hoop, when should the workflow move from technique tweaks to magnetic hoops or a SEWTECH multi-needle embroidery machine?
  A: Start by optimizing hooping and cleanliness, then move to magnetic hoops for consistent clamping, and consider a multi-needle machine when thread-change downtime becomes the main bottleneck.
  • Level 1 (Technique): Loosen the screw more, hoop “sponge-firm,” slow down if batting bounces, and clean lint from the bobbin area every 3–5 blocks.
  • Level 2 (Tool): Use a magnetic hoop when thick batting won’t close easily, hoop burn appears, or hands/wrists fatigue from repeated screw tightening.
  • Level 3 (Capacity): Use a SEWTECH multi-needle machine when frequent color changes (initials + border) consume more time than stitching, especially in batch production.
  • Success check: Hooping becomes repeatable (no slipping), backs stay clean after the border, and cycle time per block drops without added rework.
  • If it still fails… If tension issues or lint-related symptoms keep returning mid-run, increase cleaning frequency and confirm needle choice before scaling up production.
