The Calm, Clean Valiant: Oil the Baby Lock Valiant Rotary Hook, Needle Bars, and Swap 10 Needles Without Skipped Stitches

If your multi-needle suddenly sounds “different,” starts acting fussy with thread breaks, or you’re staring at the hook area thinking, I’m going to break something expensive, take a breath. Routine oiling and needle changes on a Baby Lock Valiant (or its Brother Entourage equivalents) are not complicated—but they are precision work. Precision is the only thing that distinguishes a 10-needle workhorse from a 100-pound paperweight.

This walkthrough mirrors a real, bench-level maintenance session on the Baby Lock Valiant 10-needle. It goes beyond the manual to teach you the feel of the machine: what to press, where that single drop actually goes, what “fully seated” sounds like, and the small habits that prevent the expensive mistakes.

Daily Start-Up on the Baby Lock Valiant Rotary Hook: Use the On-Screen “Oiling” Button Without Scaring Yourself

On the Valiant, the safest way to oil the hook isn't to guess where the access point is—it's to let the machine’s computer put the hook in the correct position for you. This ensures the rotary hook timing is respected and your hands stay safe.

1. Power on the machine. Wait for the initialization dance to finish.
2. On the screen, navigate to the maintenance/settings pages and tap the “Oiling” button.
3. The screen will display a prompt warning that the handwheel (and hook) will rotate automatically.
4. Clear the deck: Ensure no fabric, thread tails, or tools are near the needle plate.
5. Tap OK and keep your hands visibly away while the servomotor rotates the hook into the precise oiling angle.


Checkpoint (Visual Verification): Look into the hook area. The hook should have rotated to match the diagram on the LCD screen, exposing the inner race (the gap between the stationary and rotating metal parts).

Warning: Mechanical Hazard. When the machine says the handwheel will rotate automatically, believe it. These motors have high torque. Keep fingers, magnetic tools, sleeves, and loose jewelry strictly away from the hook/handwheel area before you press OK.

Oil the hook race with one controlled drop (not a “good luck puddle”)

The video demonstrates using a Zoom Spout oiler. This is non-negotiable for multi-needle maintenance. The standard little bottles included with machines often lead to over-oiling because you can’t reach deep enough.

1. Remove the bobbin case so you have a clear line of sight to the hook basket.
2. Take the flexible wand of your Zoom Spout and bend it explicitly with your finger to create a shepherd’s hook curve. This allows you to reach around the mechanism rather than forcing it alone.
3. Insert the wand tip into the hook assembly, aiming for the race (the track where the hook spins).
4. Gently squeeze until you see one single drop travel down the clear tube. Stop squeezing before it falls—gravity will do the rest.
5. Let that single drop land on the race.


Expected Outcome: You see a glistening film on the race, but no pools of oil at the bottom of the machine.

The "Why" Behind the Physics: Rotary hooks spin at 1,000 RPM. If you put three drops instead of one, centrifugal force will spray that oil outward onto your customer’s white polo shirt during the first stitch-out. If you accidentally apply too much, use a lint-free tissue/swab to wick away the excess immediately.

Pro Tip: Store the Zoom Spout with the red cap on and upright. If you don’t, temperature changes can cause it to "burp" oil into your drawer, ruining your manuals and spare parts.

The Post-it Note Trick for Bobbin Case Tension: Clear Lint Under the Tension Arm Before You Touch Any Screws

When bobbin tension suddenly seems to vanish (i.e., you see white bobbin thread showing on top of your design), 90% of users grab a screwdriver to tighten the tension screw. Stop. Do not touch that screw yet.

The most common culprit isn't a loose screw; it's a piece of lint or a wax buildup wedged under the tension spring (the metal leaf on the side of the bobbin case), holding it open like a doorstop.

1. Fold a Post-it note (sticky side in) or use a piece of thin, crisp cardstock.
2. Slide the corner under the tension arm (the leaf spring) on the bobbin case.
3. Sweep it forward toward the thread exit point to dislodge debris.


Checkpoint (Sensory Check): You should feel the card slide between the metal flap and the case with slight resistance. When you pull it out, look for gray fuzz or a tiny hardened piece of thread fluff. Once cleared, pull your thread again—you should feel that familiar "drag" (like flossing teeth) return.

Refining Your Instincts: If your machine has been sitting for a long time—even with a low stitch count—old oil can turn into a varnish-like glue, or dust can settle. Always start with Cleaning + Oiling before you assume a mechanical part is broken or needs adjustment.

Stop Guessing: Check Baby Lock Valiant Total Machine Hours and Log Your Needle-Bar Oiling

The presenter doesn’t rely on memory—she checks the machine’s internal odometer. Multi-needle machines have distinct maintenance intervals based on running hours, not calendar days.

1. Navigate through the settings menu to the Machine Information page (usually an "i" icon or page icon).
2. Read the current usage hours. (In the video, the machine is at 285 hours).
3. Compare that number to your last maintenance sticky note.


The manual for the Valiant generally recommends oiling the needle bars every 40–50 hours of operation. The presenter uses 45 hours as her rigid trigger point.

A maintenance habit that saves real money

Write the current Hours and Date on a sticky note (or a logbook) and stick it to the side of the machine head. It’s not glamorous, but it prevents the two most common shop disasters:

1. The "Dry Run": Running dry metal on dry metal, which wears out the needle bars (an expensive repair).
2. The "Over-Oil": Oiling every day out of anxiety, leading to oil stains on garments.

If you are running a business, this log is your insurance policy. If you have employees, it’s your accountability tracker.

Oil All 10 Needle Bars on the Baby Lock Valiant: Find the Felt Pad Junction and Place One Drop Exactly There

Needle bar oiling is where most beginners get it wrong. They spray oil on the bar itself. Wrong. You need to oil the point of friction where the bar slides through the bushing/felt.

The video displays the correct method: You must electronically lower each needle bar to access the specific felt pad.

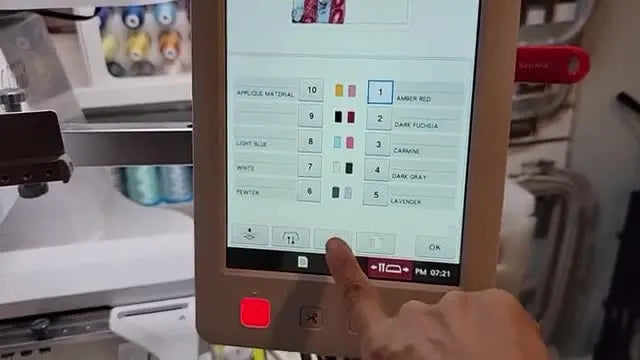

1. On the touchscreen, select Needle 1. The machine will mechanically move the head and drop Needle Bar 1 into the active position.


2. Look closely at the exposed mechanism. Locate the white/grey felt pad wrapping around the bar. This felt acts as a reservoir.


3. Apply one drop of oil exactly where the metal needle bar meets the felt pad. You want the felt to wick the oil.


4. Repeat this process for all 10 needles (Select Needle 2, wait for drop; Select Needle 3, wait for drop...).

Checkpoint (Sensory Verification):

• Visual: You see the drop absorb into the felt or sit at the ring junction.
• Tactile: You are not dripping oil onto the needle plate.

Why some needle bars don’t “come down” automatically

The presenter highlights a nuance: simply scrolling through the numbers on the screen might not physically lower the bar depending on your specific software version or setting. You must verify the bar has physically descended. If it hasn't, tap the needle selection icon again to engage it.

Expert Insight: If you’re maintaining a baby lock 10 needle embroidery machine, treat oil like seasoning in a fine dish: precise, consistent, and never dumped. The goal is a thin film of lubrication.

Change 10 Needles Fast (and Safely): Two Turns, Catch the Needle, and Don’t Let It Fall Into the Machine

The video’s needle removal technique is efficient and designed to reduce the "heart attack moment" of dropping a needle into the bobbin area.

1. Use the white-handled Allen wrench tool (or a high-quality 2mm hex driver).
2. Insert it into the needle set screw.
3. Turn the screw exactly two full rotations to the left (counter-clockwise). No more.
4. Simultaneously, cup your left hand underneath the needle point to catch it when gravity takes over.


Expected Outcome: After about two turns, the needle should slide out freely without the screw falling out. If the screw falls out, you have a 10-minute search on your hands. Two turns is the sweet spot.

Warning: Needles are sharp, brittle, and love to bounce into the worst possible crevices (like the rotary hook timing belt area). Never tackle this without your hand underneath. Never leave loose, used needles on the machine bed "for a second." They will vibrate into the machine.

Safe Disposal Strategy

A viewer tip endorsed in the workflow: Use an empty prescription pill bottle with a child-proof cap to collect used needles immediately. This protects you, your trash bag, and anyone handling your garbage from punctures.

Seat New HAx130EBBR 75/11 Needles Correctly: Flat Side Back, Push Straight Up to the Stop, Then Tighten

Skipped stitches, thread shredding, and broken needles are rarely the machine's fault—they are usually a "seating problem."

The video recommends HAx130EBBR needles, specifically chrome-plated ones (like Organ). Size 75/11 is the universal "sweet spot" for 90% of standard embroidery work.

Use a needle exchange tool if your hands need help

The presenter demonstrates a plunger-style needle exchange tool. If you have carpal tunnel, arthritis, or just shaky hands, this $5 tool is essential. It holds the needle for you.

The insertion method that prevents production failures

1. Orientation: Hold the needle with the flat side facing the BACK of the machine. (This is critical—if it's rotated, the hook cannot catch the thread loop).
2. Insertion: Push the needle straight up into the needle bar channel.
3. The "Click" Check: Push until it hits the physical metal stop. You should firmly feel it bottom out.
4. Secure: While maintaining upward pressure with your finger or tool, tighten the screw firmly with your right hand.


Checkpoint (The "Thumbnail Test"): Before you move to the next needle, look closely. Is the needle truly up? Is the flat side perfectly back?

If you are running brother multi needle embroidery machines, the needle system is identical. The "Flat Back, All the Way Up" mantra applies perfectly.

Re-thread Like a Production Tech: Keep Hands Close, Confirm the Thread Guide, and Treat “Won’t Thread” as a Seating Alarm

After changing needles, the presenter re-threads each station. This isn't just about putting thread in a hole; it's a diagnostic step.

1. Pull the thread down from the tension assembly.
2. The "Pop": ensure the thread snaps behind the small wire thread guide above the needle.
3. Thread the Eye: Pass the thread front-to-back.


Diagnostics: What if it won't thread?

In the video, the presenter encounters a moment where the automatic threader or hand threading feels "off."

• The symptom: The thread keeps missing the eye or the auto-threader jams.
• The diagnosis: The needle is likely not inserted all the way up.
• The fix: Loosen the screw, push the needle up harder, and retighten.


Key Interaction: If you are maintaining babylock embroidery machines, listen to them. If threading is difficult, it is a mechanical warning sign that your geometry is off. Stop and fix the needle height.

The “Hidden” Prep That Makes This Routine Smooth: Tools, Lighting, and a No-Panic Work Surface

Professional maintenance requires professional preparation. You cannot perform precision work in clutter.

Hidden Consumables & Tools Checklist

Before you press any button, ensure you have:

• Zoom Spout Oiler (cap on, tip bent).
• Lint-free issue/paper towel (for wiping the hook area).
• Post-it Note or business card (for the tension sweep).
• The Correct Allen Wrench (white handle usually).
• New Needle Pack (HAx130EBBR 75/11).
• Sharps Container (old medicine bottle).
• Magnifying Glass / Readers (if your eyesight needs a boost).

Pro Tip: In the video, the presenter removes the bulky table attachment to get closer to the bobbin area. Don't fight the furniture. Create physical space so you aren't leaning awkwardly—awkward angles lead to dropped screws.

Decision Tree: Fabric + Stabilizer Choices That Keep Your Fresh Needles From “Fighting” the Job

You’ve tuned the machine. Now, don’t ruin the result with the wrong ingredients. While maintenance ensures the machine can stitch, the stabilizer ensures it stitches well.

Here is a simplified logic tree based on commercial best practices:

Decision Tree (Quick Reference):

• Scenario A: High-Stretch Knits (T-shirts, Performance Wear)
  • Choice: Cutaway Stabilizer (Mesh or Medium Weight).
  • Why: Tearaway will disintegrate efficiently, but then the shirt will stretch and distort the design. Cutaway provides permanent support.
  • Needle: 75/11 Ballpoint (optional, but 75/11 Sharp usually works if stable).
• Scenario B: Stable Woven (Canvas Totes, Denim, Caps)
  • Choice: Tearaway Stabilizer.
  • Why: The fabric supports itself; the stabilizer is just for the hoop tension.
• Scenario C: High-Pile (Towels, Fleece, Velvet)
  • Choice: Tearaway (Back) + Water Soluble Topper (Front).
  • Why: The topper prevents the stitches from sinking into the loops and disappearing.
• Scenario D: Delicate/Sheer
  • Choice: No-Show Mesh (Polymesh).
  • Why: It’s invisible through the light fabric but strong enough to hold stitches.

Setup Checklist: The Exact Screen-and-Tool Sequence That Prevents Mistakes

Use this pre-flight sequence to guarantee safety and success.

Setup Checklist (Execute immediately before maintenance)

1. [ ] Work Surface: Clear of debris? Table attachment removed if needed?
2. [ ] Machine State: Turned ON.
3. [ ] Navigate: Go to Maintenance Screen -> Select "Oiling".
4. [ ] Clearance Check: Look at the hook/needle area. Are fingers/tools clear?
5. [ ] Engage: Press OK to rotate the hook.
6. [ ] Staging: Place oiler, waste bin, and tools on your dominant hand side.

If you are using a brother 10 needle embroidery machine, the icons may look slightly different, but the physics and the checklist remain identical.

Troubleshooting the Three “Scary” Symptoms: What They Mean and What to Do Next

When the machine acts up, don't panic. Use this symptom-based diagnostic.

The Upgrade Path When You’re Ready to Work Faster: Reduce Handling Time, Reduce Rework, Protect Your Body

Maintenance keeps the machine healthy, but workflow upgrades keep you healthy and profitable.

If you notice that your machine runs perfectly but you are spending 5 minutes struggling to hoop a thick Carhartt jacket, or if your wrists ache after a day of framing polo shirts, looking into magnetic embroidery hoops isn't just about buying a gadget—it's about removing the bottleneck.

Mechanical hoops rely on friction and brute force, which causes "hoop burn" (permanent rings on fabric). Magnetic systems use vertical force.

• The Trigger: Are you rejecting garments because of hoop marks? Are you refusing thick items because you can't frame them?
• The Solution Level 1: Better stabilizer and loosening your outer ring screw.
• The Solution Level 2: Magnetic Hoops. These allow you to float material without forcing it into a ring, reducing hand strain significantly.
• Compatibility: For this specific machine, search for babylock valiant hoops or equivalent Sewtech magnetic frames compatible with the Brother/Baby Lock 10-needle mounting arm (Arm A or Arm B).

Warning: Magnetic Force Hazard. Commercial magnetic hoops utilize neodymium magnets. They snap together with crushing force.
* Pinch Hazard: Keep fingers clear of the mating surfaces.
* Medical Safety: Keep away from pacemakers (maintain 6-12 inch distance).
* Electronics: Keep away from credit cards and machine LCD screens.

Commercial Reality Check

If you are considering magnetic hoops for babylock embroidery machines, do the math on re-hooping time. Saving 45 seconds per shirt on a 100-shirt order saves you over an hour of labor. That pays for the hoop in two jobs.

Operation Checklist: The Final 60 Seconds Before You Stitch Again

You’ve oiled, changed needles, and cleaned. Don’t ruin it by rushing.

Post-Maintenance "Go/No-Go" Checklist

1. [ ] Bobbin: Re-inserted correctly? Thread caught in the tension spring?
2. [ ] Oil Check: Wiped the hook race area with a tissue? No drips?
3. [ ] Needles: All 10 screws tight? All needles orientated back?
4. [ ] Thread Path: All threads in the wire guides? No tangles at the cones?
5. [ ] Test Design: Load a simple "H" or block test.
6. [ ] Listen: Start the machine. Listen for a smooth, rhythmic hum.

A quiet machine is a happy machine. By following this protocol, you aren't just "fixing" your Valiant; you are calibrating it for professional performance.

FAQ

• Q: How do I oil the Baby Lock Valiant rotary hook safely using the on-screen “Oiling” button?
  A: Use the touchscreen “Oiling” function to auto-position the hook, then place one controlled drop on the hook race—do not guess the position.
  • Power ON the Baby Lock Valiant and wait for initialization to finish.
  • Tap Maintenance/Settings → “Oiling,” clear fabric/thread/tools away from the needle plate, then press OK and keep hands away while the handwheel rotates automatically.
  • Remove the bobbin case and place one single drop on the hook race (inner track) using a precision oiler.
  • Success check: The hook race shows a thin glistening film with no oil puddles in the hook area.
  • If it still fails… Wipe excess oil immediately with lint-free tissue and re-check that the hook is at the correct on-screen oiling position before restarting.
• Q: How do I stop Baby Lock Valiant oil stains after oiling the rotary hook race?
  A: Use exactly one drop on the hook race and wipe any excess before stitching—over-oiling is the usual cause.
  • Apply one drop only, then pause and inspect the hook area before reinstalling the bobbin case.
  • Wick away any visible pooling with a lint-free tissue/swab right away.
  • Run a simple test stitch-out on scrap before customer garments.
  • Success check: No oil droplets appear around the hook area and the first test-out shows no oil marks.
  • If it still fails… Reduce oil amount further and confirm the drop is landing on the race (not dripping to the bottom of the machine).
• Q: How do I fix Baby Lock Valiant bobbin tension “disappearing overnight” with bobbin thread showing on top?
  A: Do not touch the bobbin tension screw first—clear lint/wax under the bobbin case tension spring using a Post-it note/card sweep.
  • Remove the bobbin case and fold a Post-it note (sticky side in) or use thin cardstock.
  • Slide the corner under the tension arm (leaf spring) and sweep forward toward the thread exit.
  • Re-thread the bobbin through the tension spring path and test the drag by hand.
  • Success check: The thread feels like “flossing teeth” again—smooth drag returns and top thread covers the bobbin on a quick test.
  • If it still fails… Clean + oil the machine first if it has been sitting, then re-test before making any screw adjustments.
• Q: How do I oil all 10 needle bars on a Baby Lock Valiant without over-oiling the needle plate?
  A: Lower each needle bar electronically and place one drop exactly at the felt pad junction where the needle bar meets the felt—do not oil the bar randomly.
  • Select Needle 1 on the Baby Lock Valiant touchscreen and verify the needle bar physically drops into position.
  • Locate the white/grey felt pad around the bar and place one drop at the metal-to-felt contact point.
  • Repeat needle-by-needle (Needle 2 → Needle 10), confirming each bar actually lowers before oiling.
  • Success check: Oil absorbs into the felt or sits at the felt ring junction, and nothing drips onto the needle plate.
  • If it still fails… Tap the needle selection again to force the bar to drop (some versions may not drop just by scrolling), then re-check before applying oil.
• Q: How do I remove needles on a Baby Lock Valiant 10-needle machine without dropping a needle into the hook area?
  A: Loosen the needle set screw exactly two full turns and catch the needle with your other hand as it drops—this prevents “needle lost in the machine” incidents.
  • Insert the correct Allen wrench/hex driver and turn the set screw two rotations counter-clockwise (no more).
  • Cup a hand under the needle point to catch the needle as it releases.
  • Immediately place used needles into a closed sharps container (example: an empty prescription bottle).
  • Success check: The needle slides out freely after about two turns and the set screw stays in place.
  • If it still fails… Stop and reposition your catching hand; do not continue loosening until the screw falls out.
• Q: How do I seat HAx130EBBR 75/11 needles correctly on a Baby Lock Valiant to prevent skipped stitches and shredding?
  A: Install the needle flat side to the back and push the needle straight up to the hard stop before tightening—most issues come from needles seated too low or rotated.
  • Orient the needle with the flat side facing the BACK of the Baby Lock Valiant.
  • Push the needle straight up until it bottoms out on the metal stop, then keep upward pressure while tightening the screw.
  • Re-check each needle before moving to the next station.
  • Success check: The needle looks fully “up” and correctly aligned (flat side perfectly back) and the machine threads smoothly.
  • If it still fails… Loosen and re-seat the needle again; difficult threading is a strong sign the needle is not fully seated.
• Q: What safety steps should I follow when using magnetic embroidery hoops to reduce hoop burn on a Baby Lock Valiant or Brother 10-needle style mounting arm?
  A: Treat magnetic hoops as a pinch/crush hazard and keep magnets away from pacemakers and sensitive items—magnetic force can snap together unexpectedly.
  • Keep fingers fully clear of the mating surfaces before bringing magnets together.
  • Maintain distance from pacemakers (a safe rule is 6–12 inches) and keep magnets away from credit cards and the machine’s LCD area.
  • Start with Level 1: adjust stabilizer choice and loosen outer ring screw first; move to Level 2: magnetic hoops when hoop marks/hand strain remain a bottleneck.
  • Success check: Fabric is held securely with reduced hoop marks and framing feels controlled (no forced stretching or bruising).
  • If it still fails… Re-evaluate stabilizer and handling method first; if workload volume makes re-hooping the main time sink, consider a workflow/production upgrade path next.
