The “Bling Effect” Without Rhinestones: Glitter HTV Rip-Away Appliqué on a Sweatshirt (Magnetic Hoop Method)

If you’ve ever wanted that rhinestone-style sparkle on a sweatshirt—but you don’t want to mess with stones, hotfix tools, or a heat press workflow—this “embroidery bling effect” is one of the cleanest tricks in the book. It bridges the gap between digital print and traditional thread work, creating a mixed-media look that commands a higher retail price.

The magic is simple: you treat glitter HTV (Heat Transfer Vinyl) like an appliqué fabric, but you remove the carrier sheet before you stitch. That one decision changes everything about how the vinyl behaves under the needle and how easily it tears away afterward.

However, mixing sticky vinyl with high-speed needles can be intimidating. Will it gum up the needle? Will the sweatshirt stretch? Below is the full, industry-calibrated workflow—from hooping to the final "rip"—optimized for safety and quality.

Gather the Exact Supplies for Glitter HTV Rip-Away Appliqué (and avoid the mid-stitch panic)

Success in embroidery is 80% preparation. Here is the verified supply list used in the project, plus the "Hidden Consumables" that professionals keep on hand to prevent failure.

Core Supplies shown in the demo:

• Glitter HTV: Look for "sandy" texture glitter vinyl (ensure it is NOT "printable" vinyl).
• Garment: Navy cotton/poly blend sweatshirt (heavyweight, 9oz+ recommended for best stability).
• Stabilizer: Cutaway stabilizer (2.5oz to 3.0oz). Do not use tearaway on sweatshirts; it will result in gap-toothed outlines.
• Machine: Multi-needle embroidery machine (BAI used in demo).
• Hooping System: Magnetic hoop (Mighty Hoop 11x13) + Station (HoopMaster).
• Tools: Measuring tape, Triangle tailor’s chalk, Scissors, Tweezers, Lint roller.

Hidden Consumables (The "Pro" Safety Net):

• 75/11 Sharp Needles: While ballpoints are standard for knits, a Sharp point perforates vinyl cleaner for the rip-away process.
• Temporary Spray Adhesive (e.g., KK100 or 505): To bond the stabilizer to the garment if there is any slippage.
• Painter's Tape / Embroidery Tape: Essential for holding the vinyl piece flat if your hoop moves fast before the tack-down.

A quick note on expectations: this method is not heat-pressing HTV onto the garment first. The vinyl is held down strictly by embroidery stitches (tack-down and satin columns), and the excess is torn away manually.

The “hidden” prep that makes sweatshirts behave

Sweatshirts are thick, lofty (spongy), and stretchy. This combination is a nightmare for standard friction hoops. If you rush hooping, you’ll see:

• Flagging: The fabric bounces up and down with the needle, causing bird-nesting.
• Distortion: Wavy satin edges or oval-shaped circles.
• Puckering: Fabric bunching around the outline after you un-hoop.

In production, these issues usually come from poor hoop tension and inadequate stabilization—not from the vinyl itself. If you’re building this into a repeatable workflow, treat the hooping step like a controlled clamp: you want the sweatshirt held firmly like a drum skin, without over-stretching the knit fibers.

Prep Checklist (Pre-Flight Safety Check):

• Needle Inspection: Run your fingertip over the needle point. If you feel a burr, change it immediately. Vinyl will shred if the needle isn't pristine.
• Stabilizer Match: Confirm you have cutaway stabilizer extending at least 1 inch past the hoop edge on all sides.
• Bobbin Check: Ensure you have a full bobbin (white 60wt or 90wt). Running out of bobbin thread mid-tack-down on vinyl is a headache to fix.
• Vinyl Sizing: Pre-cut a vinyl piece that covers the entire placement outline with a 0.5-inch margin of error on all sides.
• Environment: If using a magnetic hoop, clear your table of scissors, phones, and watches.

Hoop a Thick Sweatshirt on a HoopMaster + Mighty Hoop (without hoop burn or distortion)

The demo uses a hooping station and a magnetic hoop, which is the "Gold Standard" for bulky garments. Force-fitting a thick sweatshirt into a standard plastic friction hoop often requires excessive screw tightening, which leads to "hoop burn" (permanent shiny rings on the fabric) or wrist strain for the operator.

The instructor’s hooping flow:

1. Station Setup: Place the cutaway stabilizer on the bottom ring and secure it in the hooping station fixtures.
2. Alignment: Fold the sweatshirt in half vertically to find the center crease line. Align this crease with the station's center markings.
3. Loading: Slide the sweatshirt over the station, smoothing it down gently. Do not pull!
4. The Clamp: Snap the top magnetic ring down onto the bottom ring. You should hear a sharp, solid CLICK.




Why she hoops the sweatshirt “upside down”

In the video, she hoops the sweatshirt so the collar/neck opening faces the operator and loads it onto the machine arm “backwards” (bottom hem first into the machine). This is a practical loading choice: it puts the bulk of the heavy fabric towards the machine body rather than hanging off the front, reducing drag weight on the pantograph (the moving arm).

This is a critical ergonomic detail. If the heavy hood or body of the sweatshirt drags off the front of the machine, it can physically pull the design out of registration.

If you are doing this often, a magnetic hooping setup is the single biggest fatigue reducer in a shop. It eliminates the "screw-tightening" battle. If you’re currently fighting clamp hoops and getting rejected garments due to hoop marks, this is the moment to consider a tool upgrade path like a magnetic embroidery hoop for garments.

Warning: Magnetic Safety
Magnetic hoops are incredibly powerful. Never place your fingers between the rings. They snap together with enough force to pinch skin severely. Keep these hoops away from pacemakers and sensitive electronics.

Mark the 3-inch Placement Line on the Sweatshirt (so your logo doesn’t “float”)

The standard industry placement for a left-chest logo on an adult L/XL sweatshirt is roughly 7-9 inches down from the shoulder seam and centered on the left panel, or distinctively measured from the center.

The instructor measures 3 inches down from the collar (crew neck) to mark the top of the design. This creates a high, modern placement that doesn't sag into the armpit area.

A practical tip from the field: Chalk is forgiving, but thick sweatshirt fleece can "eat" the mark. Make your line bold. Ensure the line is strictly horizontal.

Set Up the BAI Touchscreen: Hoop Selection, 180° Rotation, and Manual “F” Stops

This is where the software logic meets physical reality. Most "Appliqué" embroidery files contain stop codes, but machine formats (like DST) often strip these out, turning them into simple color changes. You must ensure the machine physically pauses.

In the demo on the BAI machine:

• Hoop: She selects the preset for the 11x13 hoop to ensure the design stays within safety limits (preventing a frame hit).
• Rotation: She rotates the design 180 degrees. Vital: Since she hooped upside down, the file must be upside down. Double-check this visually on the screen.
• Manual Stops: She inserts “F” (Force) stop commands (or "Hand" icon on some screens):
  1. After Color 1 (Placement Line).
  2. After Color 2 (Tack-down / optional pause).




The stop logic (what you should see happen)

• Stop 1 (Placement): The machine stitches an outline, then stops and moves the frame out toward you. This is your cue to place the vinyl.
• Stop 2 (Tack-down): The machine stitches a zigzag or running stitch to hold the vinyl. It stops again so you can inspect. Expert Note: Inspect for bubbles or lifting edges here before the final heavy stitching begins.

If you’re running a bai embroidery machine and you handle garment batches, mastering these manual stop insertions allows you to use generic DST files as appliqué files without going back to digitizing software.

Stitch the Placement Outline First (this is your “vinyl map”)

The machine stitches a single-run outline of the letters directly onto the sweatshirt. In the demo, it outlines “JSU.”

This outline is not decorative—it is purely functional.

Sensory Check:

• Visual: Is the thread sinking too deep into the fleece? If you can barely see it, your foot height might be too low, or the fleece is too fluffy. Use a water-soluble topping if the fleece is swallowing the thread, though usually, the vinyl will cover it.
• Sound: Listen for the machine. It should be a rhythmic hum. A loud "thump-thump" indicates the needle is struggling to penetrate the hoop tension.

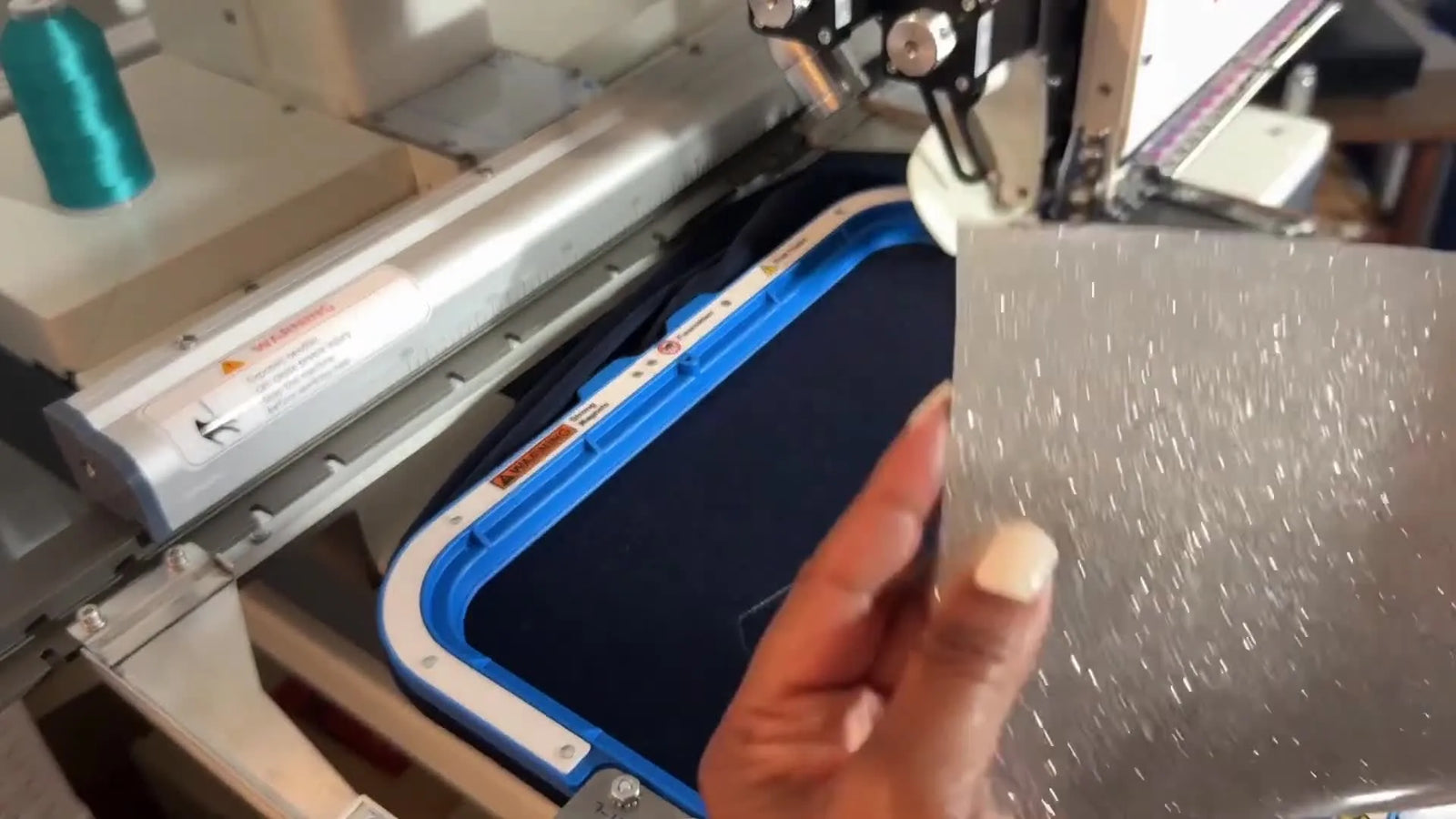

The Make-or-Break Move: Peel the Glitter HTV Carrier Sheet *Before* You Stitch

A commenter asked, “Can you peel the vinyl last?” The expert answer is a definitive NO.

The Process:

1. Cut the glitter HTV piece.
2. Peel off the clear plastic carrier sheet. (This is the hard plastic layer usually used for heat pressing).
3. Discard the carrier sheet.
4. Lay the raw, soft glitter vinyl texture-side up over the placement outline.




Why peeling first matters (The Physics)

When you heat press, the carrier sheet protects the vinyl. But in embroidery, we need the needle to act as a perforator. Use a standard embroidery needle (Sharp point is best). When it stitches the satin border, it punches thousands of tiny holes along the edge of the vinyl.

• Carrier Sheet OFF: The vinyl is soft. The needle cuts it like butter. The excess tears away easily along the perforation line.
• Carrier Sheet ON: The plastic is tough and self-healing. The needle punctures it but doesn't "cut" a clean line. When you try to tear it later, you will pull threads, distort the satin stitch, and leave jagged plastic shards.

Physics Note: Standard HTV adheres via heat. Here, it adheres via clamp force (the stitches). Since we aren't heating it yet, the vinyl is vulnerable to shifting.

If you’re doing this on thick garments repeatedly, a hoopmaster hooping station ensures that the base fabric doesn't shift underneath the vinyl, keeping your registration perfect.

Warning: Mechanical Safety
When placing the vinyl, keep hands clear. Do not try to adjust the vinyl while the machine is moving to the next start point. A 1000 SPM needle moves faster than your reflex.

Run the Tack-Down and Finish Stitching (what stitch is it, really?)

After placing the vinyl, press Start. The machine runs the tack-down (securing the vinyl) followed immediately by the satin or fill finish.

Speed Recommendation:

• Standard Running Speed: 800-1000 SPM.
• Vinyl Appliqué Speed: Slow down to 600-700 SPM. Vinyl adds friction. Running slower reduces heat buildup on the needle (which can melt the adhesive) and significantly reduces the risk of thread shredding.

A viewer asked what type of stitch is used. The video shows a dense satin column (or a steil stitch) closing the edges. The density is critical. Too loose, and it won't perforate the vinyl for tearing. Too tight, and it will cut the sweatshirt fabric.

• Target Density: 0.40mm - 0.45mm spacing is the sweet spot for clean perforation without fabric damage.


Setup Checklist (The "Point of No Return"):

• Coverage: Does the vinyl cover the outline with room to spare?
• Flatness: Is the vinyl bubbling? (Tip: Use a small piece of painter's tape on the corners—far away from the needle path—to hold it flat).
• Clearance: Ensure the sweatshirt sleeves aren't bunched up under the hoop arms.

Rip Away the Excess Glitter Vinyl (and keep the inside corners crisp)

Once stitching is complete, remove the hoop from the machine. Now comes the satisfaction.

Gently pull the excess vinyl away from the design. Because the carrier sheet was removed and the needle perforated the edge, the vinyl should separate with a sound like tearing heavy construction paper.

When the vinyl won’t come out of small areas

The video highlights a common annoyance: "Islands" inside letters like "A", "O", or small serifs.

The Fix:

• Do not use your fingers; you'll stretch the stitches.
• Use fine-point locking tweezers. Grab the vinyl corner at the stitch line and pull sharply but specifically.


Finish like a pro: lint roller is not optional here

The tearing process releases a cloud of micro-glitter and vinyl dust. If you press this without cleaning, you might accidentally fuse stray glitter flakes to the shirt permanently (if you decide to heat press for extra flatness later).

Operation Checklist (Post-Production):

• Tear Direction: Pull vinyl away from the stitches at a low angle, not straight up.
• Cleanup: Lint roll the entire front.
• Backing: Trim the cutaway stabilizer on the back. Leave about 1/4 inch to 1/2 inch of stabilizer around the design. Couture Tip: Do not cut circles; cut a rounded square or follow the general shape to avoid sharp stabilizer corners irritating the skin.

A Stabilizer Decision Tree for Sweatshirts + Vinyl Appliqué (so you don’t guess)

Wrong stabilizer = Warped designs. Use this logic tree to choose correctly every time.

If you’re scaling production, consistency is key. A magnetic hooping station ensures that every layer of stabilizer and fabric is aligned with identical tension, reducing the variable of human error.

Troubleshooting the “Bling Effect” (symptom → cause → fix)

Single-needle machine: can I still do this?

Yes. The physics are identical. The only difference is workflow efficiency. You will need to manually trim jump threads more often on a single needle to prevent the vinyl from getting trapped under a travel stitch.

If you’re currently doing garments on a single needle and generating orders, the "Bling Effect" is high-margin but time-consuming. This is where you calculate ROI: Multi-needle machines (like the SEWTECH-recommended lines) allow you to preset colors and focus on hooping the next shirt while the current one stitches.

The Upgrade Path That Actually Makes Sense (when you’re ready to go faster)

If you loved the result but found the process stressful on your wrists or nerves, here is the professional upgrade ladder:

1. The "Safety & Speed" Upgrade:
   • Trigger: You are struggling to hoop thick hoodies, or seeing "hoop burn" marks.
   • Solution: magnetic embroidery hoop.
   • Why: It snaps on thick fabric instantly without adjustment screws. It is the single best investment for sweatwear embroidery.
2. The "Consistency" Upgrade:
   • Trigger: Your logos are crooked, or placement varies from shirt to shirt.
   • Solution: hooping station for machine embroidery.
   • Why: It turns "guessing" into "loading." Essential for batches of 10+.
3. The "Volume" Upgrade:
   • Trigger: You are turning down orders because you can't stitch fast enough.
   • Solution: Multi-Needle Machine.
   • Why: Handles color changes automatically and provides a free-arm structure perfect for sliding bulky sweatshirts on and off without drag (as seen with the mighty hoop 11x13 demo).

One last sanity check before you call it “sellable”

This technique looks flashy, but the quality standard must be maintained. A sellable product has:

• Crisp, clean vinyl edges (no plastic tags).
• Fully encased edges (no fabric showing between vinyl and satin).
• Zero glitter debris on the garment.

If you nail the carrier-sheet peel and maintain stable hoop tension, the "Bling Effect" becomes a highly repeatable, high-profit addition to your embroidery portfolio.

FAQ

• Q: Why must glitter HTV carrier sheet removal happen before stitching a rip-away appliqué on a multi-needle embroidery machine?
  A: Remove the clear carrier sheet before stitching, or the needle will not perforate cleanly and the vinyl will tear jagged and pull stitches.
  • Peel: Strip off and discard the clear plastic carrier, then place the raw glitter vinyl texture-side up over the placement outline.
  • Stabilize: Keep the sweatshirt firmly hooped with cutaway stabilizer so the base fabric does not shift under the vinyl.
  • Inspect: Pause after tack-down to check for bubbles or lifted edges before the dense border starts.
  • Success check: Excess vinyl tears away like heavy paper right along the stitch line with minimal thread distortion.
  • If it still fails: Reduce stitching speed (vinyl adds friction) and confirm the border density is not too loose to create a perforation line.
• Q: What stabilizer should be used for a heavy sweatshirt with glitter HTV rip-away appliqué to prevent registration loss and puckering?
  A: Use 2.5–3.0 oz cutaway stabilizer for heavy sweatshirts; tearaway on sweatshirts commonly causes weak, gap-toothed outlines.
  • Cut: Hoop cutaway that extends at least 1 inch past the hoop edge on all sides.
  • Bond: Add temporary spray adhesive if any layer is slipping (stabilizer-to-garment contact matters on bulky knits).
  • Control: Avoid over-stretching the sweatshirt while hooping; clamp firmly without pulling knit fibers.
  • Success check: Satin edges stitch smooth (not wavy), and the fabric does not bounce/flag during stitching.
  • If it still fails: Add friction support (often a hooping method issue) and re-check hoop tension and garment drag during machine running.
• Q: How can a 75/11 Sharp embroidery needle reduce thread shredding and tearing problems when stitching glitter HTV rip-away appliqué?
  A: A 75/11 Sharp needle often perforates vinyl cleaner for rip-away appliqué; a burred or wrong-point needle can shred vinyl and thread.
  • Feel: Run a fingertip lightly over the needle point; change the needle immediately if any burr is felt.
  • Slow: Reduce speed for vinyl appliqué (a safe target is 600–700 SPM) to lower needle heat and friction.
  • Clean: Wipe the needle if adhesive buildup is suspected (adhesive + speed often leads to shredding).
  • Success check: Thread runs smoothly with a steady machine hum, and the vinyl edge tears away cleanly after stitching.
  • If it still fails: Switch to a Titanium or Non-Stick coated needle and confirm the vinyl is “sandy texture” glitter HTV (not printable vinyl).
• Q: What are the success criteria for hooping a thick sweatshirt with a magnetic embroidery hoop to avoid hoop burn, flagging, and distortion?
  A: Hoop the sweatshirt like a controlled clamp—firm and drum-tight without stretching—because most sweatshirt problems come from hoop tension and stabilization, not the vinyl.
  • Align: Center the garment using a fold crease and station markings; smooth it down gently and do not pull.
  • Clamp: Close the magnetic rings in one decisive snap so tension is even across the hoop.
  • Support: Keep bulky fabric mass from dragging off the front of the machine to prevent pull-out and misregistration.
  • Success check: Fabric stays stable (minimal bounce/flagging) and satin borders do not turn wavy or oval.
  • If it still fails: Add temporary spray adhesive to reduce slippage and verify stabilizer coverage and hoop size selection before stitching.
• Q: What magnetic embroidery hoop safety rules should be followed when hooping sweatshirts for glitter HTV appliqué?
  A: Treat magnetic hoops as pinch hazards—keep fingers clear during closure and keep magnets away from pacemakers and sensitive electronics.
  • Clear: Remove scissors, phones, watches, and loose metal items from the hooping area before snapping the rings together.
  • Place: Set fabric and stabilizer flat first, then lower the top ring straight down—never “slide” fingers between rings.
  • Warn: Keep magnetic hoops away from anyone with a pacemaker and away from electronics that can be affected.
  • Success check: Rings close with a sharp, solid click and no trapped fabric folds or pinched fingers.
  • If it still fails: Stop and re-hoop—forcing alignment after closure risks injury and inconsistent tension.
• Q: What needle and hand safety steps prevent injuries when placing glitter HTV on a high-speed multi-needle embroidery machine during appliqué stops?
  A: Keep hands completely clear anytime the machine is moving; only place or adjust vinyl when the frame is stopped and moved out to you.
  • Pause: Use the programmed/manual stop after the placement outline to place vinyl, then let the tack-down run and stop again for inspection.
  • Tape: Use painter’s/embroidery tape on vinyl corners (well away from the needle path) if the hoop accelerates fast and lifts the vinyl edge.
  • Wait: Do not chase the start point—never adjust vinyl while the head is traveling or stitching.
  • Success check: Vinyl stays flat through tack-down with no bubbles, and hands never enter the moving field.
  • If it still fails: Reposition the vinyl with more margin (about 0.5 inch extra around the outline) and confirm the machine truly pauses where intended.
• Q: If glitter HTV appliqué on sweatshirts keeps losing registration or causing hoop burn, when should an embroidery shop upgrade technique vs upgrade to magnetic hoops vs upgrade to a multi-needle machine?
  A: Start with technique and stabilization, upgrade to magnetic hooping when clamping causes marks or slippage, and consider a multi-needle machine when throughput and color-change time become the bottleneck.
  • Level 1 (Technique): Re-check cutaway stabilizer choice, hoop tension (firm without stretching), and slow vinyl runs (commonly 600–700 SPM).
  • Level 2 (Tool): Move to a magnetic hoop setup when friction hoops require over-tightening (hoop burn) or when thick garments slip under load.
  • Level 3 (Capacity): Choose a multi-needle workflow when frequent trims/color changes on single-needle work make orders slow and stressful.
  • Success check: Placement stays consistent across multiple sweatshirts, edges stay crisp, and rejects from hoop marks or misregistration drop noticeably.
  • If it still fails: Add a hooping station for repeatable alignment and verify garment bulk is not dragging and pulling the frame during stitching.
