The 6.9" × 13.88" “Half-Hoop” Hack: Split Jumbo Hoop Designs in Perfect Embroidery Pro Without Misalignment

If you’ve ever loaded a “Jumbo Hoop” design, hit Split, and immediately felt your stomach drop because the preview looks like a shattered puzzle—take a breath. You are not doing anything “dumb.” You are encountering a friction point where software logic clashes with physical reality. The built-in split behavior in Perfect Embroidery Pro is notoriously finicky for the Brother and Baby Lock multi-needle Jumbo Hoop workflow, and the fastest path to clean results is a disciplined, controlled workaround.

This post rebuilds Ashley Jones’ exact process into a production-ready standard operating procedure (SOP). We will bypass the software's "auto" guessing game. Instead, you will create a custom half-size hoop profile, resize the design to a safe "sweet spot," force a 2-part split with a calculated overlap, and surgically clean the exported files.

The goal? A split design that stitches out so cleanly, you’ll forget it was ever two parts.

Why the Brother/Baby Lock 360mm Jumbo Hoop “Only Stitches Half” (and Why Your Split Preview Looks Scary)

To master this, you must first understand the mechanics of the machine you are standing in front of. The 360mm × 360mm (approx. 14" × 14") Jumbo Hoop on Brother and Baby Lock 10-needle platforms is not a continuous field. The machine physically cannot reach all 14 inches in one pass.

The Physics of the Split:

1. Side A: The machine stitches the first half (approx. 7" × 14").
2. The Human Element: You unlatch the hoop from the machine arm, rotate the hoop 180 degrees, and re-attach it. You do not unhoop the fabric.
3. Side B: The machine stitches the second half.

The software problem arises when Perfect Embroidery Pro tries to guess how much "safety margin" you need. If the split is calculated for the wrong hoop geometry, or if the overlap is too generous, the software panics and dices the design into three or four sections instead of two. It creates alignment marks that look like "junk stitches" in your final embroidery.

If you’re running a brother 10 needle embroidery machine, this is a critical realization: The machine is fine. The hoop is fine. The file prep is the only variable that decides whether that center seam disappears into the texture or screams "I was patched together."

The “Hidden Prep” Before You Touch Split Design in Perfect Embroidery Pro (Save Yourself an Hour)

Novices rush to click "Split." Experts stop and check their inventory. Before you even open the software tool, set yourself up like a commercial shop that has to deliver a flawless product on a deadline.

What you’re trying to prevent

• The "Third Wheel" Segment: A split that turns into 3 parts because the design is 1mm too wide.
• The "No-Nudge" Nightmare: A design technically split, but physically practically impossible to align because you left zero margin for error.
• The "Phantom Tick": Alignment marks that stitch permanently into your fabric where they shouldn't.

Hidden Consumables Check

Before you start, ensure you have these physical tools handy. Software can't fix bad physics:

• Temporary Adhesive Spray (e.g., KK100 or 505): Essential for keeping the stabilizer from shifting during that 180-degree rotation.
• Water-Soluble Pen: For marking your physical center on the fabric just in case.
• Fresh Needles: Split designs punish dull needles; a slight drag can ruin alignment.

Prep Checklist (Do this once per project)

• Workflow Confirmation: Verify you are using the specific Jumbo Hoop 360mm "Stitch-Rotate-Stitch" workflow.
• Design Audition: Pick a design that tolerates a center "join."
  • Green Light: Quilting lines, floral vines, organic scatter patterns.
  • Red Light: Large satin stitch lettering or dense faces right in the center.
• Seam Placement: Plan for the seam to land in the center (this is easiest for rotation alignment).
• The "Basting Guard": Plan to keep one long basting line as your alignment reference after export.
• File Hygiene: Create a dedicated folder named [Project_Name]_SPLIT so you don't overwrite your original master file.


Build the Custom “Half Jumbo Hoop” Profile: 6.9" × 13.88" in Perfect Embroidery Pro

Ashley’s workaround relies on telling the software the absolute truth about the machine's limits. Since the Jumbo Hoop stitches half at a time, we will create a virtual hoop that represents exactly one-half of the stitch field.

Why these numbers? You might think half of 14" is 7". However, we use 6.9" to create a safety buffer. That 0.1" difference is your "anti-panic" margin, ensuring the presser foot doesn't slam into the frame.

1. Open the Hoop Manager: In the Hoop selection area, click New (or the '...' button) to create a custom hoop.
2. Naming Convention: Name it something obvious, like Jumbo_HALF_Workaround.
3. Dimensions:
   • Width: Enter 6.9 inches (Do not round up to 7).
   • Height: Enter 13.88 inches.
4. Lock It In: Click OK, then ensure you click Apply so the hoop outline appears on your workspace.

Sensory Check: You should see a tall, narrow rectangular hoop outline on your screen. If it looks square, you didn't apply the new profile.

Resize the Design to 12.00" Square (This Margin Is What Saves Your Alignment Later)

Load your design (Ashley demonstrates with a quilting block). Now, we must resize it. You might be tempted to go to 13" or 13.5", but that is a rookie trap.

1. Select the entire design (Ctrl + A).
2. In the top-right properties area (or Transform pane), choose Transform.
3. The Magic Number: Set the design width and height to 12.00 inches.

The "Margin of Safety" Principle

Ashley’s caution here is derived from hard-won experience. Why 12 inches when the hoop is 14? Because when you physically rotate that hoop, fabric will shift slightly. Maybe 1mm, maybe 2mm. By sizing to 12", you leave yourself an inch of empty space on all sides. This allows you to digitally "nudge" the design on the machine screen to match your fabric placement without hitting the red "Out of Hoop" error limit.

Pro Tip: "Extra room" isn’t wasted space—it’s your insurance policy. In high-volume production, the jobs that fail are rarely the ones that were too small; they’re the ones that were sized right to the jagged edge with no forgiveness.

If you’re deciding on a babylock multi needle embroidery machine workflow, the same logic applies: The rotation workflow is only as clean as the margin you leave yourself.

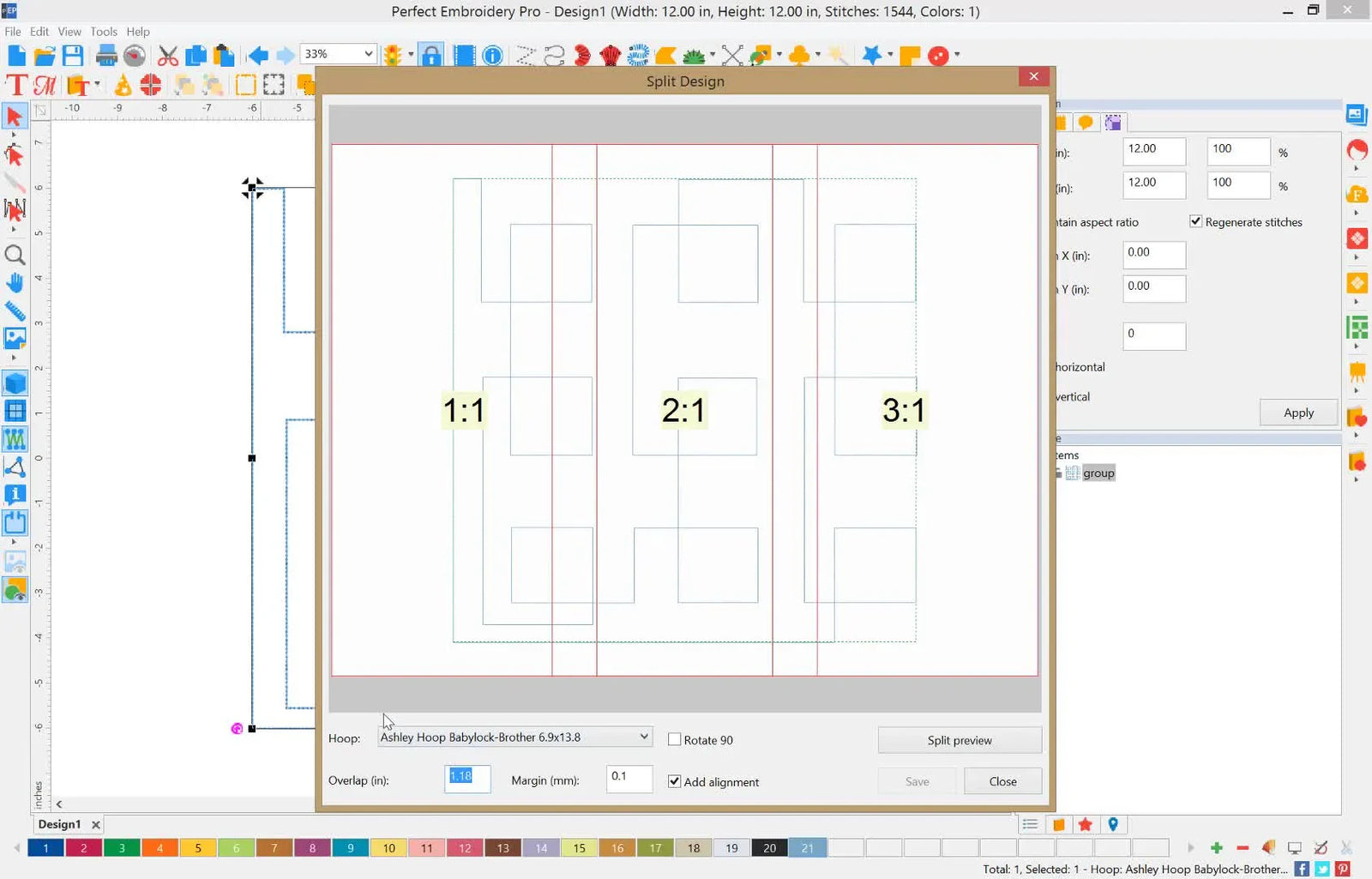

Force a Clean 2-Part Split: Set Overlap to 0.5" and Keep “Add Alignment” Checked

This is the "Crossing the Rubicon" moment. Most users get stuck here because the default Split Design window often initially displays three parts, which creates immediate confusion.

1. Open the Split Design tool.
2. Ignore the Preview (Initially): If it shows 3 sections, don't panic.
3. Set Overlap: Change the Overlap value to 0.5 inches (12.7mm).
   • Why? Overlap is the "shared zone" that helps hide the join. Imagine it like a seam allowance in sewing. A 0.5" overlap blends the seam, but it's small enough that it won't force the software to create a third "bridge" section.
4. Alignment Settings: Ensure Add alignment is checked. You need these lines for the rotation step.
5. The Refresh: Click Split Preview to force the software to recalculate.

Expected sensory outcome: You should see the preview snap from three boxes to two balanced sections side-by-side. If it still shows three, check that your design size is truly 12.00" or smaller.

Setup Checklist (Before you click Save)

• Hoop Check: Active hoop is 6.9" × 13.88".
• Size Check: Design is 12.00" square (or smaller).
• Visual Check: Split preview shows exactly 2 parts.
• Settings Check: Overlap is 0.5"; "Add Alignment" is ON.

Warning: Mechanical Safety.
Keep fingers clear of needles and moving parts when you later test-stitch these files. Multi-needle heads can move abruptly to the start position after a trim. A quick "just checking the fabric" moment is how experienced operators get needle punctures.

Save the Split Outputs (and Know What Files You’re Supposed to See)

When you hit Save, the software is going to dump a small batch of files. Don't let this clutter confuse you.

1. Click Save.
2. Navigate to your _SPLIT folder.
3. Name the file (e.g., QuiltBlock_Split).
4. Format: Choose .PES (for Brother/Baby Lock) or .DST (industrial standard).

What you will get:

• File A: The first half of the design.
• File B: The second half of the design.
• Worksheet (PDF): A printable template. Do not ignore this. Printing this template at 100% scale is helpful for physical placement on your garment.


Clean the Split Files: Delete the Tiny Alignment Ticks, Keep the Long Basting Line

This is the "Quality Control" step that separates a clean professional seam from a project that looks amateurish. The software automatically inserts alignment marks: a long vertical basting line (Good) and small horizontal "ticks" (Bad).

Ashley removes the ticks because they are unnecessary "noise." They create extra tie-ins and tie-offs (knots) that can poke through the fabric or create small bird nests on the back.

Part 1 Cleanup

1. Open File A (the first split file).
2. Zoom In: Look at the top and bottom of the long vertical line.
3. Identify: You will see small perpendicular marks (like a capital 'I').
4. Select & Destroy: Click firmly on the small tick mark and press Delete.
5. Save: Save the file, overwriting the previous version.

Sensory Check: You should see only the long vertical line running down the edge of your design.

Part 2 Cleanup

1. Open File B (the second split file).
2. Repeat: Find the small ticks at the ends of the alignment line.
3. Delete: Remove them.
4. Save: Overwrite File B.

Why keeping the Long Line matters: This line is your "North Star." When you rotate the hoop later, you will use your machine's needle to trace this line. If the needle follows the line perfectly, your rotation is perfect.

Reality Check: Many embroiderers understand a process instantly once they see it. If you’re a visual learner, open both File A and File B and place them side-by-side on your computer screen. You will see how the two long lines would overlay each other perfectly. That is your goal at the machine.

The Rotation Alignment Trick: Use the Long Center Line as Your “No-Guesswork” Registration

Here is the choreography for the physical machine operation:

1. Load File A. Stitch it out. It will stitch the design and that long vertical basting line.
2. The Flip: Remove the hoop (do not unhoop fabric). Rotate it 180 degrees. Re-attach it.
3. Load File B.
4. The Test: Before you stitch, use your machine's "Trace" or "Needle drop" function. Move the needle to the top of the basting line you just stitched. Then move it to the bottom.
5. The Adjustment: If the needle doesn't track perfectly along that line, use the machine's rotate/move arrows to adjust File B until it does.

Expert Insight (The Physics of Hooping): Rotation alignment only stays perfect if the fabric doesn’t "creep." Fabric creep usually comes from uneven hoop tension (loose on one side, tight on the other) or a design that pulls hard in one direction. Even though this tutorial is software-first, your physical setup decides whether the seam stays invisible.

This is where hardware makes a difference. If you are using magnetic embroidery hoops, you gain a significant advantage in this specific workflow. The consistent clamping pressure around the entire perimeter reduces fabric distortion during the first half of the stitching, so when you rotate for the second half, the fabric hasn't warped.

Troubleshooting the Two Most Common Jumbo Hoop Split Failures

If things go wrong, use this diagnostic table to stop guessing and start fixing.

A Stabilizer Decision Tree for Split Jumbo Hoop Jobs

The video doesn’t specify fabric, but in real shops, split designs expose stabilization weaknesses instantly. If your stabilizer is too weak, the fabric creates a "wave" during the rotation, and alignment becomes impossible.

Follow this logic flow:

1. Is the fabric stretchy (T-shirts, Performance Knits)?
   • Action: MUST use Fusible No-Show Mesh (Poly-mesh) or Cut-Away. Do NOT use Tear-Away.
   • Add-on: Use temporary spray adhesive to bond the fabric to the stabilizer.
2. Is the fabric stable but thin (Quilting Cotton)?
   • Action: Firm Tear-Away or Cut-Away.
   • Check: If the stitch count is high (>15,000 stitches per half), use two layers.
3. Is the fabric textured/fluffy (Towels, Fleece)?
   • Action: Water Soluble Topper is mandatory to keep stitches from sinking.
   • Hooping: Avoid crushing the pile. This is a prime candidate for Magnetic Hoops.

Sensory Test: After hooping, gently run your finger across the fabric. It should feel like a drum skin—taut but not stretched. If you can push the fabric and see it ripple, re-hoop.

The Upgrade Path That Actually Makes Sense: Speed, Safety, and Profit

Once you master the software split, the bottleneck shifts. It stops being about "how do I split this?" and starts being about "how do I do 50 of these without my hands hurting?"

Here is the commercial reality of embroidery production: Time is money, and mistakes cost double.

Scenario-Triggered Upgrades

• The "Hoop Burn" Struggle: If you are fighting with traditional screw-tightened hoops that leave permanent shining rings on delicate fabrics, the industry standard solution is an upgrade to magnetic frames. Terms like magnetic embroidery hoops for brother appear frequently in professional forums because these frames float on top of the fabric rather than grinding into it.
• The "Repeatability" Crisis: If you are doing a run of 20 split-design quilt blocks, manual hooping is slow and prone to error. A hooping station for embroidery standardizes placement, ensuring every block is hooped in the exact same spot, drastically reducing the time you spend re-aligning at the machine.
• The "Heavy Duty" Need: For those running the 10-needle beast, many shops look for robust aftermarket frames. You will often see comparisons of mighty hoops for brother 10 needle systems versus other magnetic options. The criteria here is simple: pure holding power. Secure holding means less shifting during that critical 180-degree rotation.
• The "Volume" Wall: If you are spending more time changing threads on a single-needle machine than actually stitching, or if splitting designs is becoming a production bottleneck, it may be time to look at scaling hard hardware. A multi-needle platform (like the SEWTECH series or similar high-capacity machines) allows you to queue colors and run larger fields without as much manual intervention.

Warning: Magnet Safety.
Magnetic frames use industrial-grade magnets (Neodymium).
1. Pacemakers: Keep these frames at least 6-12 inches away from anyone with a pacemaker or ICD.
2. Pinch Hazard: When the top ring snaps onto the bottom ring, it happens instantly. Do not hold the frame by the edges where your finger could be trapped. Hold the handles or the outer perimeter.

Operation Checklist: Run the Two Files Like a Production Job

Treat this stitch-out like a controlled two-stage mission. Do not "wing it."

The "Go/No-Go" Sequence

• Part A Stitch: Run File 1. Watch the machine trace the long basting line.
• The "Hands-Off" Rule: Do NOT unhoop the fabric.
• The Rotation: Unlatch the frame. Rotate 180°. Re-latch. Listen for the "Click."
• Part B Load: Load File 2 on screen.
• Verification: Use the machine's needle-drop key to walk the needle down the basting line stitched in Part A.
• Nudge: Use screen arrows to align perfectly.
• Part B Stitch: Run File 2.
• Cleanup: Remove hoop. Snip the basting stitches before removing any topper/stabilizer.

If you are using brother pr1055x hoops or similar jumbo-capable setups, the discipline is identical.

What “Success” Looks Like

• The center join is invisible to the naked eye from 2 feet away.
• No random tick marks are stitched in the middle of your design.
• You did not have to unhoop to fix the placement.

The Takeaway: Clean Splits Are 20% Software and 80% Repeatable Habits

Ashley’s method works because it removes uncertainty. By using a custom 6.9" half-hoop, you tell the software exactly how the physical machine behaves. By sizing to 12", you give yourself permission to be imperfect. By setting a 0.5" overlap, you force clean math.

Once you can do this routinely, you unlock the ability to take on "jumbo" jobs—jacket backs, large quilt blocks, and continuous runners. That is the moment where smart tooling—better stabilization, magnetic frames for consistency, and a reliable workstation—starts paying you back in time saved and frustration avoided.

Stop fearing the split. Control it.

FAQ

• Q: Why does Perfect Embroidery Pro split a Brother/Baby Lock 360mm Jumbo Hoop design into 3–4 parts instead of 2 parts?
  A: This is common—Perfect Embroidery Pro usually “panics” when hoop geometry, design size, or overlap math leaves no safe margin, so it creates extra segments.
  • Create and select a custom hoop profile set to 6.9" × 13.88" (half-field workaround).
  • Resize the full design to 12.00" × 12.00" (or smaller) before using Split Design.
  • Set Overlap to exactly 0.5" and keep “Add alignment” turned ON, then click Split Preview to recalculate.
  • Success check: Split Preview shows exactly 2 balanced sections side-by-side (not 3 boxes).
  • If it still fails: Reconfirm the design is truly 12.00" square or smaller and the active hoop is the 6.9" × 13.88" profile (not the full 360mm hoop).
• Q: What “hidden prep” supplies should be ready before splitting a Brother/Baby Lock Jumbo Hoop design in Perfect Embroidery Pro?
  A: Prepare the physical consumables first—software cannot prevent shifting or poor alignment if the fabric setup is unstable.
  • Use temporary adhesive spray (e.g., KK100 or 505) to help prevent stabilizer slip during the 180° rotation step.
  • Keep a water-soluble pen ready to mark the fabric center if placement needs a physical reference.
  • Install fresh needles because split jobs are less forgiving and dull needles can worsen alignment and stitch quality.
  • Success check: After stitching Part A, the fabric and stabilizer still feel locked together with no “creep” when the hoop is handled for rotation.
  • If it still fails: Strengthen stabilization (often adding adhesive or a stronger stabilizer choice) before re-running the split files.
• Q: How can Brother/Baby Lock Jumbo Hoop rotation alignment be checked on the machine before stitching the second split file?
  A: Use the long vertical basting line as a no-guesswork registration target before running Part B.
  • Stitch File A first so the long vertical basting line is sewn.
  • Remove the hoop from the machine arm, rotate the hoop 180°, and re-attach without unhooping the fabric.
  • Load File B and use Trace/Needle-drop to walk the needle from the top to the bottom of the stitched basting line, then nudge with the machine arrows until it tracks the line.
  • Success check: The needle follows the existing basting line perfectly from top to bottom with no visible drift.
  • If it still fails: Suspect fabric shift in the hoop (often stabilization/clamping-related) and re-hoop with better holding methods before stitching Part B.
• Q: Should the small alignment “tick marks” added by Perfect Embroidery Pro Split Design be deleted in Brother/Baby Lock Jumbo Hoop split files?
  A: Yes—delete the tiny perpendicular tick marks, but keep the long vertical basting line for alignment.
  • Open File A, zoom in at the top and bottom of the long line, select the small ticks (the “I” shape ends), and press Delete.
  • Save (overwrite) File A, then repeat the same tick deletion and save on File B.
  • Keep only the long vertical line because it is the alignment reference for the 180° rotation.
  • Success check: Each split file shows only one long vertical basting line with no small cross ticks at the ends.
  • If it still fails: If a center “knot” or extra tie-offs appear after stitching, re-open both files and confirm every small tick element was removed.
• Q: Why is Brother/Baby Lock Jumbo Hoop split alignment perfect at the top but off at the bottom after rotating 180 degrees?
  A: This usually indicates fabric shifted/slipped in the hoop during Part A, so the bottom end no longer matches after rotation.
  • Improve stabilization first (a sticky stabilizer or stronger hold is often necessary for rotation workflows).
  • Use temporary spray adhesive to reduce stabilizer movement when rotating and re-latching the hoop.
  • Re-run the needle-drop check along the long basting line before stitching Part B and nudge only after the hoop is firmly reattached.
  • Success check: After re-hooping and restitching, the seam stays consistent from top to bottom and the needle tracks the full basting line cleanly.
  • If it still fails: Move to a more consistent clamping method (magnetic-style holding is often more repeatable than traditional screw tension for this specific rotation workflow).
• Q: What stabilizer choices work best for Brother/Baby Lock Jumbo Hoop split designs on stretchy knits, quilting cotton, and towels/fleece?
  A: Match stabilizer strength to fabric behavior—split jobs expose weak stabilization immediately.
  • For stretchy fabric (T-shirts/performance knits): Use fusible no-show mesh (poly-mesh) or cut-away; avoid tear-away, and add temporary spray adhesive.
  • For stable but thin fabric (quilting cotton): Use firm tear-away or cut-away; if stitch count is high (over 15,000 stitches per half), use two layers.
  • For textured/fluffy fabric (towels/fleece): Add water-soluble topper and avoid crushing the pile during hooping.
  • Success check: After hooping, fabric feels like a drum skin—taut but not stretched; pressing lightly does not create ripples.
  • If it still fails: Re-hoop and upgrade stabilization strength before changing split settings (misalignment is often physical, not software).
• Q: What safety rules should be followed when test-stitching split files on a Brother/Baby Lock multi-needle machine and when using magnetic embroidery frames?
  A: Treat split testing like production—keep hands clear of needle areas, and handle strong magnets as pinch and medical-device hazards.
  • Keep fingers away from needles and moving parts because multi-needle heads can move abruptly after trims or when returning to start.
  • If using magnetic frames, keep them 6–12 inches away from anyone with a pacemaker or ICD.
  • Avoid pinch points: hold magnetic frames by handles or the outer perimeter, not where the top ring can snap onto the bottom ring.
  • Success check: The hoop/frame is attached with a secure “click,” hands remain clear during motion, and no repositioning requires reaching under the needle area.
  • If it still fails: Stop the machine and re-plan the handling sequence—do not “quick check” near the needle path while the machine is active.
• Q: If Brother/Baby Lock Jumbo Hoop split jobs keep failing or taking too long, what is the practical upgrade path from technique to tooling to capacity?
  A: Use a staged approach: fix the process first, then upgrade holding repeatability, then consider higher-capacity equipment if volume demands it.
  • Level 1 (technique): Standardize the settings—6.9" × 13.88" half-hoop profile, 12.00" design size, 0.5" overlap, and long-line alignment verification.
  • Level 2 (tooling): Move to more consistent clamping (magnetic-style holding) when fabric creep or hoop burn becomes a recurring trigger.
  • Level 3 (capacity): When production volume makes thread changes and manual handling the bottleneck, consider a multi-needle workflow to reduce downtime and rework.
  • Success check: The center join becomes visually invisible from about 2 feet away, and repeat runs require fewer re-hoops and fewer on-screen nudges.
  • If it still fails: Track which failure repeats most (3-part splits vs. bottom drift vs. seam knots) and address that specific variable before investing further.
