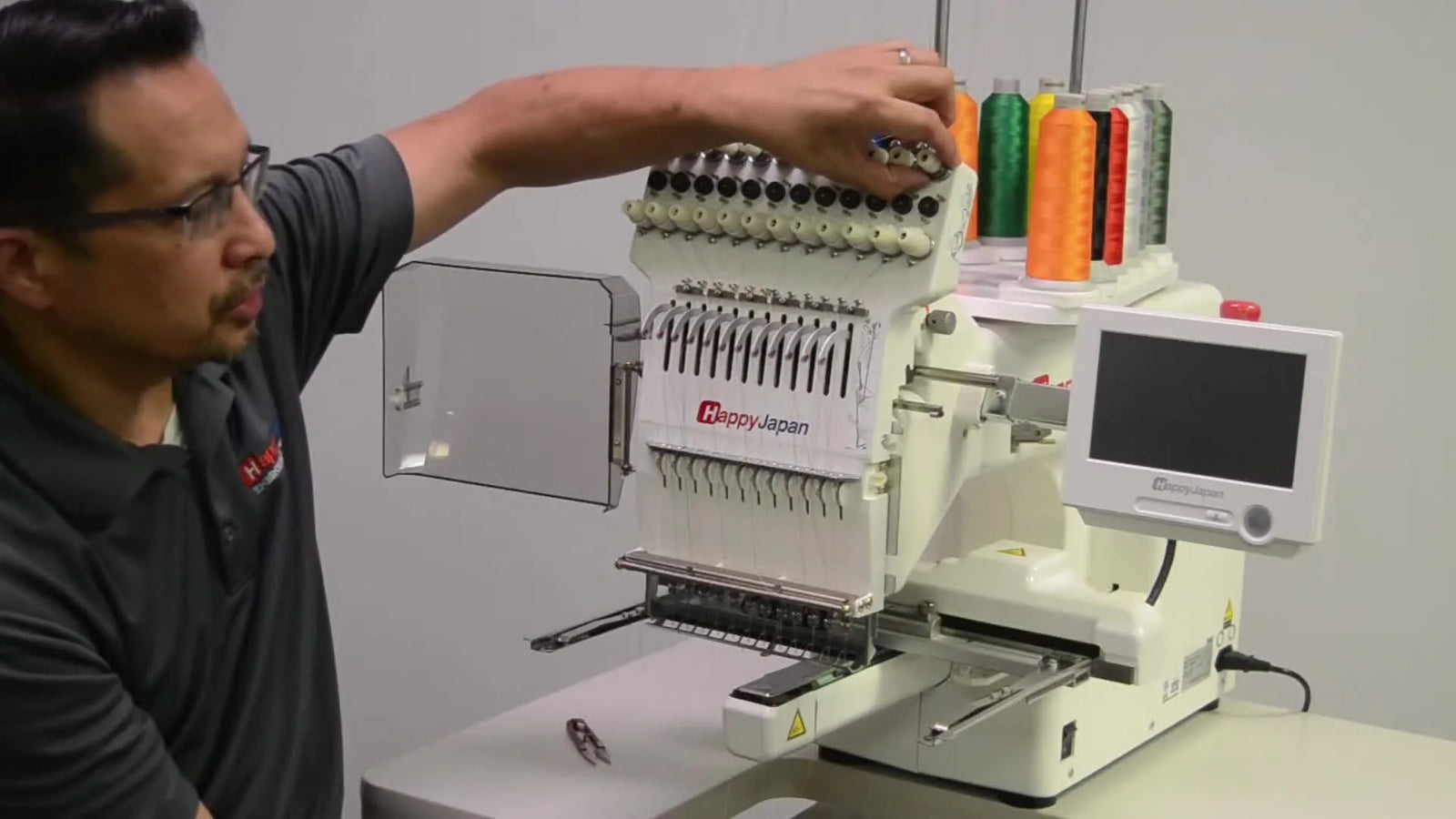

The 5-Minute “Ready Condition” Routine for a 12-Needle HappyJapan Embroidery Machine (and Why It Prevents 80% of Bad Starts)

Here is the comprehensive, experienced-based guide designed to transform a beginner's anxiety into professional confidence, adhering strictly to your formatting and keyword constraints.

When a multi-needle head starts a job badly, it rarely “fixes itself” mid-run. Most of the time, the machine was simply not in a ready condition: a bobbin case not fully locked, a thread path that’s catching, a sensor wheel that isn’t turning, or thread tails left to wander into the wrong place.

This routine is exactly what I’d teach a new operator on day one—because it’s fast, repeatable, and it prevents the kind of downtime that kills production flow on a commercial floor. If you run a high-performance 12 needle happy embroidery machine, this is the five-minute investment that protects the next five hours of profit.

Calm the Panic First: What “Ready Condition” Means on a HappyJapan Head

If you’ve ever loaded a design, hit start, and immediately got ugly stitches or a thread break, you know the feeling: the "embroidery anxiety" spikes, and you assume something is broken deep inside the machine. In reality, 90% of bad starts come from "Operator Error" in the physical setup phase:

1. Mechanical Seating: A part isn't clicked in (usually the bobbin).
2. Thread Physics: The path offers too much resistance (snagging) or too little control (tails flying loose).

The goal of this routine is to confirm the machine is predictable before you commit expensive garments, backing, and time. We aren't just "checking"; we are auditing the machine's state.

A quick note on scope: While some technicians perform a "drop test" (holding the bobbin thread and shaking it to see if the case drops), we will focus on the setup verification that ensures the machine is safe to run.

The “Click or It Didn’t Happen” Bobbin Case Check on a HappyJapan Rotary Hook

The rotary hook is the heartbeat of your machine. It spins at high speeds (often 850–1000 RPM) and requires precision. Open the bobbin case door, remove the bobbin case, and perform this ritual before every single job.

1) Confirm the bobbin is actually in the case

It sounds obvious, but "empty shell" errors happen constantly in busy shops. Never assume the previous operator—or even your past self—left it loaded.

2) Thread the bobbin case correctly: pigtail at 12 o’clock

When holding the case, the thread must pass through the tension spring and exit through the "pigtail" (the curled wire guide). Position this pigtail at 12 o’clock straight up.

Checkpoint (Visual & Tactile):

• Look: Is the thread exiting cleanly from the curl of the pigtail?
• Feel: Pull the thread gently. It should feel smooth, with a slight, consistent drag—similar to pulling a new piece of dental floss. If it jerks, re-thread it.

3) Reinsert the bobbin case and lock it fully

Push the bobbin case onto the rotary hook post. Do not stop when you feel resistance. Push that last 1/8th of an inch.

Expected Outcome: You must hear and feel a sharp, distinct “CLICK.”

If you don’t get the click, treat it as failed. A bobbin case that’s “almost seated” creates a gap. This gap causes:

• Birdnesting (massive thread clumps under the plate).
• Needle breaks (the needle strikes the case).
• The case flying out mid-stitch.

Warning: Keep fingers and tools clear of the hook/needle area. Never reach into the rotary hook zone while the machine is running, and don’t “test” seating by jogging the machine with the door open. A needle strike here can cause serious injury.

Why this matters (The Veteran Explanation): The tolerance between your needle and the hook point is roughly the thickness of a business card (0.1mm - 0.3mm). If the case isn't locked, that tolerance vanishes, and you will break parts.

The Smooth-Pull Test: Verifying the Upper Thread Path, Tension Wheel, and Thread Break Sensor Wheel

Now move to the upper thread system. We need to verify that the "nervous system" of the machine is communicating. We do this by feel and sight.

Start from Needle 1 and work across. Pull the thread downward from the needle area (before threading the eye) and pay attention to two feedbacks:

1. Feel (Tactile): It should pull smoothly. No snapping, no gritty feeling, no hard stops.
2. Motion (Visual): The wheels on the tension base must rotate as the thread feeds.


What must rotate (non-negotiable)

• The Lower Tensioner Wheel: This silver wheel controls the feed into the needle. It must spin.
• The Thread Break Sensor: This is the black rubber wheel (usually the upper one). It tells the machine "I have thread."


Rule of Thumb: For every inch of thread you pull, those wheels should turn.

Expected Outcome: You pull thread → Both wheels visibly rotate → The machine counts the movement.

If you are running a happy japan embroidery machine in a production environment, this is the most critical check. If the black sensor wheel doesn't turn, the machine thinks the thread is broken. It will stop and beep constantly (false thread breaks), ruining your production rhythm.

Expert Insight (Machine Health by Sensory Feedback):

• If the pull is jerky: You likely have a "cross-wound" cone, or the thread has jumped out of a guide eyelet at the very top of the thread tree.
• If the wheel slides instead of spinning: The thread isn't seated deep enough in the wheel's groove, or there is lint buildup preventing rotation.


The Lift-and-Snap Tension Test: Proving the Tension Disks Actually Release (and Re-Engage)

This is the procedure that separates amateurs from pros. Beginners turn knobs blindly. Pros check if the mechanical bits are working first.

A) Test the upper tensioner release

1. Pull the thread gently to feel the current resistance (tension).
2. Lift the upper tension disk (often a knob or a small post).
3. Feel: The thread should immediately go slack/loose.
4. Release: Let the disk snap back down.
5. Feel: More resistance should return immediately.


Expected Outcome: Tight → Lift (Loose) → Release (Tight).

B) Test the lower tensioner release (plastic collar)

Continue pulling. Now, locate the plastic collar at the base of the main tension spring/knob. Lift it up.

You are verifying the same behavior: The disks must open, releasing the thread, and slam shut when you let go.

Why this works (and why it prevents repeat problems): Commercial machines use solenoids to "jump" these disks open when they trim the thread. If lint is stuck between the disks, they won't close fully, and you will get "looping" on top of your stitching.

• If it stays tight when you lift: The thread isn't in the disks.
• If it stays loose when you release: The spring is broken or lint is jamming it open.

If you’re maintaining a happy embroidery machine for consistent output, this lift-and-snap check is your fastest proof that the tension stack is mechanically alive before you touch a single dial.

Thread Tail Discipline: The 1/4–1/2 Inch Rule That Prevents Tangled Starts

Once the path is verified, you must manage the "tail." A long tail is a trap.

1. Secure: Tuck the thread tail into the front holding spring (keeper spring) or the dedicated back holder.
2. Trim: Use sharp snips to cut it down to 1/4 to 1/2 inch (6mm - 12mm).


Expected Outcome: The tail is held firmly by the spring, not dangling near the presser foot.

Why this is non-negotiable: If you leave 3 inches of thread hanging, the very first stitch cycle will whip that extra thread underneath the throat plate. It creates a "birdnest" immediately, or the wiper pulls it out and stitches over it, leaving an ugly glob of thread on your finished logo.

Pro Tip (Production Habit): Do this left-to-right on all needles. It builds muscle memory. If you find yourself needing to lick the thread or struggle to cut it, your snips are dull—replace them.

The Tubular Arm Thumb Screw Check: “A Little Past Finger Tight” Beats Vibration Every Time

The final check ensures the "skeleton" of the machine is rigid. The tubular arm (the part the hoop slides onto) is removable, which means it can loosen.

Check the two thumb screws underneath. They need to be tight—“a little bit past finger tight.”

Warning: Don’t move the tubular arm manually while the machine is powered on. If you need to reposition or handle the arm, power down first to avoid fighting the stepper motors, which can damage the electronics.

Why this matters: At 1,000 stitches per minute, vibration is constant. If these screws loosen, the arm wiggles microscopically. This causes registration errors (where the outline doesn't line up with the fill) or needle breaks because the hoop is vibrating under the needle.

The “Hidden” Prep Pros Do Before They Touch Start (Consumables + Workflow)

The video covers the hardware, but as an educator, I must remind you: a perfectly prepped machine cannot fix bad ingredients. In the "Experience Era" of embroidery, your consumables are your first line of defense.

Here is what experienced shops quiet standardize:

Consumables Sanity Check

• Thread Condition: Is the thread old/brittle? Are you using high-speed polyester designed for commercial machines? (We recommend testing SEWTECH or similar high-tensile threads if you break constantly).
• Needle Hygiene: When was the last time you changed needles?
  • Standard: Change every 2 million stitches or every 8-10 active hours of sewing on tough fabrics.
  • Check: Run your fingernail down the tip. If it catches, it has a burr. Throw it away.
• Stability: If the fabric moves, the design fails. No exceptions.

If you’re running jobs daily on commercial embroidery machines, minimizing variables is key. Keep your needle size consistent (75/11 is the universal starter) and your stabilizer combinations standard.

A Practical Decision Tree: Fabric Behavior → Stabilizer Choice (So the Machine Prep Actually Pays Off)

Users often blame the machine tension when the actual culprit is the stabilizer. Use this decision logic to pair with your machine prep:

1. Is the fabric stretchy (T-shirts, Polos, Knits)?
   • Risk: The fabric will deform under the stitches.
   • Solution: Cutaway Stabilizer. No arguments. You need the permanent structure.
   • Hooping: Don't stretch the fabric; lay it neutral.
2. Is the fabric stable/woven (Dress shirts, Denim, Canvas)?
   • Risk: Pucker or needle holes.
   • Solution: Tearaway Stabilizer. Two layers of medium weight usually beat one heavy layer.
3. Is the fabric "High Pile" (Towels, Fleece, Velvet)?
   • Risk: Stitches sink and disappear.
   • Solution: Use a Water Soluble Topping (Solvy) on top, and Tearaway/Cutaway on the bottom.
4. Is hooping the bottleneck?
   • If you can prep the machine in 2 minutes but it takes you 10 minutes to hoop a shirt straight, you have a workflow problem.
   • Upgrade 1: A dedicated embroidery hooping station ensures the design is straight every time.
   • Upgrade 2: Upgrading to magnetic hoops drastically reduces wrist strain and "hoop burn" (the shiny ring left on fabric).

This is where an upgrade path becomes obvious: if hooping is your bottleneck, a dedicated hooping station for machine embroidery can standardize placement and reduce operator fatigue.

Setup Checklist (End of Setup): What “Ready” Looks Like Before You Load a Job

• Safety: Hands clear of the needle zone.
• Bobbin: Case removed, verified, pigtail at 12 o'clock.
• Sound Check: Bobbin case reinserted with a definitive CLICK.
• Path: Upper thread pulled smooth (no jerks).
• Sensors: Lower silver wheel AND upper black sensor wheel rotate when pulling thread.
• Mechanics: Lift-and-Snap test passed on both tension points.
• Hygiene: Thread tails trimmed to < 1/2 inch and tucked in springs.
• Skeleton: Tubular arm screws tight.

Troubleshooting the Same-Day Headaches: Symptom → Likely Cause → Fix

Symptom: Bobbin case feels loose or falls out

• Likely cause: Not inserted fully.
• Fix: Push harder. The spring requires firm pressure.

Symptom: Poor stitch quality or thread breaks right away

• Likely cause: Thread path snagging.
• Fix: Check that the thread hasn't looped around the thread tree antenna or caught on a rough spool cap.

Symptom: Tubular arm feels unstable or shifts over time

• Likely cause: Vibration.
• Fix: Check screws weekly.

Symptom: One needle position “feels different” than the others when you pull thread

• Likely cause: Lint buildup or wax in the tension disk.
• Fix: "Floss" the disk with a piece of thread soaked in rubbing alcohol (machine off) to clean it out.

Operation Checklist (End of Operation): The Habit That Makes Tomorrow’s Shift Love You

The video calls this out as a courtesy, but in business, it is about Turnaround Time.

• Clear the Path: All tails trimmed and secured in springs.
• Park the Machine: Return needle to Position 1 (or your standard start point).
• Cover It: Dust is the enemy of sensors. Cover the head.

The Upgrade Path When Prep Isn’t the Problem—Hooping Speed and Consistency Are

Once your machine is consistently “ready,” you will find that the machine is waiting on you. The bottleneck shifts to hooping: slow loading, inconsistent tension in the hoop, hoop burn, and operator wrist fatigue.

If you are fighting clamping pressure or marking shirts, consider this practical progression:

1. Level 1: Stability (The Foundation)
   • Use correct stabilizers (Cutaway for knits!).
   • Use a hooping station for machine embroidery to guarantee placement.
2. Level 2: Speed & Safety (The Tool Upgrade)
   • Traditional hoops require hand strength and can crush delicate fabrics.
   • Solution: magnetic hoops for happy embroidery machine. These use powerful magnets to hold fabric without forcing it into a ring. They are faster, leave no marks, and handle thick jackets easily.
3. Level 3: Scale (The Production Upgrade)
   • If you own one single-head machine and you are turning away orders, you have a capacity problem.
   • Solution: Moving to dedicated multi-head equipment or adding cost-effective workhorses like SEWTECH multi-needle machines allows you to run production while you prep the next run. This is how a hobby becomes a factory.

Warning: Magnetic Safety. Magnetic hoops use industrial-strength magnets. They can pinch fingers severely. Keep them away from pacemakers and surgically implanted devices. Never let two magnets snap together without a separator.

Prep Checklist (End of Prep): The 60-Second Reset Before You Even Open the Bobbin Door

• Power: Machine is ON, but drive is disengaged.
• Tools: Snips, nippers, and fresh needles are within arm's reach.
• Consumables: Bobbin is roughly 80% full (don't start a big jacket back piece on a nearly empty bobbin).
• Mindset: You aren't guessing. You are verifying.

If you build this routine into your day, you’ll notice something quickly: the fear disappears. You stop “tuning” the machine mid-job, because you start jobs with the machine already behaving like a machine—predictable, repeatable, and profitable.

FAQ

• Q: How do I stop a HappyJapan rotary hook from birdnesting at the start because the bobbin case is not fully locked in?
  A: Reseat the bobbin case until a sharp, unmistakable “CLICK” is felt and heard—anything less is a failed seat.
  • Remove the bobbin case and confirm the bobbin is actually inside the case.
  • Thread the bobbin case correctly and orient the pigtail at 12 o’clock before reinserting.
  • Push the bobbin case in firmly past the initial resistance (do not stop early).
  • Success check: A distinct “CLICK” plus the case feels solid, not loose or wobbly.
  • If it still fails: Stop and clean the hook area, then reseat again—do not run the machine with a “half-seated” case.
• Q: Why does a HappyJapan embroidery machine beep with false thread breaks even when the upper thread is not broken at the needle?
  A: Make the upper thread positively drive the thread-break sensor wheel—the black wheel must rotate when thread is pulled.
  • Pull thread downward from the needle area (before threading the needle eye) and watch the tension-base wheels.
  • Floss the thread firmly into the groove so the black rubber sensor wheel turns (not just slides).
  • Check the lower silver tensioner wheel also rotates as thread feeds.
  • Success check: For every inch of thread pulled, both wheels visibly rotate.
  • If it still fails: Recheck for snagging at the thread tree/top guides and remove lint buildup that can prevent wheel rotation.
• Q: How do I verify a HappyJapan upper tension assembly is actually opening and closing instead of turning tension knobs blindly?
  A: Use the Lift-and-Snap test—tension must go tight → loose → tight immediately when the disks are lifted and released.
  • Pull the thread gently to feel current resistance (baseline “tight” feel).
  • Lift the upper tension disk/knob mechanism and confirm the thread goes slack.
  • Release and let it snap back down, then confirm resistance returns right away.
  • Success check: The change is immediate and obvious by feel (tight → loose → tight).
  • If it still fails: Assume thread is not seated in the disks or lint is jamming the disks open; clean/floss the disks (machine off) before adjusting settings.
• Q: What thread tail length should be left on a HappyJapan multi-needle head to prevent tangled starts and early birdnesting?
  A: Trim and secure every needle’s thread tail to 1/4–1/2 inch (6–12 mm) and tuck it into the holding spring.
  • Tuck the tail into the front holding/keeper spring (or the dedicated holder) before starting.
  • Trim with sharp snips—long tails whip under the plate on the first stitches.
  • Repeat left-to-right across needles to build a consistent habit.
  • Success check: No tail is dangling near the presser foot; tails are held firmly by the spring.
  • If it still fails: Re-check bobbin case seating (listen for the “CLICK”) and confirm the thread path pulls smoothly with no jerks.
• Q: What should I check on a HappyJapan tubular arm if outlines do not line up with fills (registration loss) during high-speed embroidery?
  A: Tighten the tubular arm thumb screws “a little past finger tight” to prevent vibration-driven shifting.
  • Power down before handling/repositioning the tubular arm to avoid fighting stepper motors.
  • Locate and tighten the two thumb screws underneath the tubular arm.
  • Re-run a small test area after tightening before committing a full garment.
  • Success check: The tubular arm feels rigid with no micro-wiggle when touched, and registration improves on the next run.
  • If it still fails: Check hoop tightness and fabric stabilization choice, because fabric movement can mimic machine registration problems.
• Q: What is the safest way to avoid needle strikes and injury when checking a HappyJapan bobbin case in the rotary hook area?
  A: Treat the rotary hook zone as a no-hands area during motion—never reach in or “test” seating by jogging with the door open.
  • Keep fingers and tools clear of the hook/needle area at all times during operation.
  • Do bobbin case seating checks with the machine stopped, then close up before running.
  • Confirm the bobbin case is fully locked before stitching to avoid the case flying out or a needle hitting the case.
  • Success check: The bobbin case is locked with a distinct “CLICK” before any stitching begins.
  • If it still fails: Stop immediately at the first abnormal noise/impact and reseat—do not “run through it.”
• Q: When hooping becomes slow or causes hoop burn on garments, what is a practical upgrade path from technique changes to magnetic hoops to higher-capacity machines?
  A: Diagnose the bottleneck first, then upgrade in levels: technique/stabilizer → hooping station or magnetic hoops → additional production capacity if orders exceed one head.
  • Level 1 (Technique): Standardize stabilizer by fabric behavior (knits: cutaway; wovens: tearaway; high pile: topping + bottom stabilizer).
  • Level 2 (Tool): Add a hooping station for consistent placement, or switch to magnetic hoops to reduce hoop burn, clamping struggle, and wrist strain.
  • Level 3 (Capacity): If the machine is ready fast but waits on order volume, add multi-needle production capacity (for example, adding another machine/head).
  • Success check: The machine spends more time stitching and less time waiting on hooping or rework.
  • If it still fails: Track where minutes are lost (thread breaks vs hooping vs re-hooping) and fix the biggest time sink first.
