The 5-Minute Bernina 830 Hook-Area Clean That Saves Your Appliqué (and Your Sanity)

When your appliqué edges start looking fuzzy, your satin stitches get jumpy, or your machine suddenly sounds “different” (a distinctive, rhythmic clicking or grinding), it’s easy to blame the design file or the thread tension.

Most of the time—especially when working with thick "quilt sandwiches"—it’s lint.

Sarah Vedeler’s tutorial (using a Bernina 830) nails a truth every technician and production shop learns the hard way: the fastest way to improve stitch quality is to start with a surgically clean hook area. The trick isn’t just cleaning—it’s cleaning in a way that doesn’t push debris deeper into places you can’t reach.

Your Bernina 830 Isn’t “Acting Up”—It’s Choking on Quilt-Sandwich Lint

Quilting in-the-hoop stacks fabric + stabilizer + batting + thread into a literal lint factory. Sarah calls it “goop and gunk.” If you have ever lifted the stitch plate and found a gray felt blanket under there, you know exactly what she means.

Here’s what’s happening in plain shop language:

• Batting: Sheds micro-fibers that act like Velcro.
• Stabilizer: Adds dust and, if using spray, an adhesive gum.
• Thread: Adds fuzz that binds it all together.
• The Result: This mixture packs into the hook driver race, altering the timing gap by fractions of a millimeter.

That buildup doesn’t just look gross—it physically creates drag on the bobbin case. If you’re running a precision instrument like a bernina embroidery machine, keeping this area clear is one of the highest-impact habits you can build. It costs two minutes and prevents hours of troubleshooting.

The “Hidden Prep” Pros Do First: Tools, Lighting, and a Dry-Air Reality Check

You cannot clean what you cannot see. Sarah uses three specific tools to tackle this:

1. A soft paintbrush: (Cheap is fine, but long bristles help reach crevices).
2. Precision Tweezers: (Bernina standard or similar with a good grip).
3. Compressed Air: Crucially, a can that is almost empty.

Hidden Consumable Tip: Keep a "Micro-Vacuum Attachment" kit (fits standard vacuums) or clear pipe cleaners on hand. These are safer alternatives if you are nervous about using air.

Before you open anything, set yourself up so you don’t rush. Rushing is how stitch plates get scratched and screws get lost in the carpet.

Prep Checklist (do this **before** you remove the stitch plate)

• Power Down: Turn the machine off completely. This de-energizes the motors and prevents accidental needle movement.
• Clear the Deck: Remove the hoop and module so you have a “clean zone” for the stitch plate.
• Amplify Light: Aim a desk lamp directly into the bobbin area. You need to see the texture of the metal versus the gray fuzz.
• Tool Check: Have your brush and tweezers within arm's reach.
• Air Check (Critical): If using canned air, test spray away from the machine on your hand. It should feel like a dry breeze, not a cold/wet spray.

Warning: Needles, automatic cutters, and sharp metal edges live in this area. Keep fingers clear of the cutter path. Do not scrape metal tools against the hook system—one microscopic burr can cause chronic thread breaks that ruin every project.

The comment-section reality check: “Don’t use canned air.”

Several viewers shared that Bernina technicians told them not to use canned air. This is a valid concern based on two risks:

1. Moisture: Liquid propellant can freeze sensors or cause rust.
2. Impaction: High pressure can blast lint behind the main board or sensors where you can't reach it.

Sarah’s counterpoint is directional control: she aims the nozzle from the back toward the front opening so debris exits the machine.

My Expert Verdict: Canned air works if you use Sarah's "Back-to-Front" vector and an almost-empty can. However, if you are a beginner or risk-averse, a mini-vacuum is the 100% safe alternative. If your dealer has a strict policy, follow it to protect your warranty.

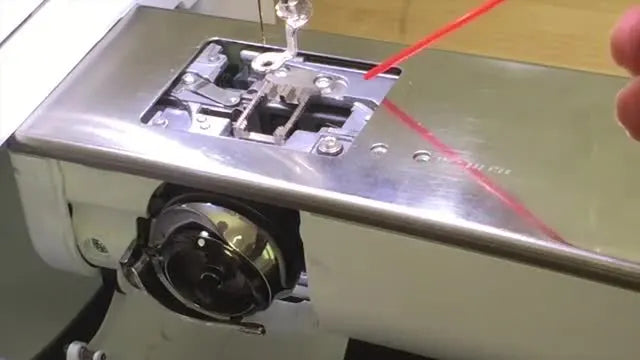

Open the Bernina 830 Bobbin Area Without Guesswork: Bobbin Case + Stitch Plate Removal

Sarah’s sequence prevents damage. Do not force anything; parts should click or slide out smoothly.

1. Open the bobbin door.
2. Remove the bobbin case (listen for the click).
3. Remove the metal stitch plate.




This is the moment most people skip—and it’s why lint keeps coming back. Cleaning only what you can see from the front opening is like sweeping your porch while the living room is on fire.

Sensory Check: Once the stitch plate is off, look at the feed dogs. You will likely see "felted" lint packed between the metal teeth.

The Brush-First Rule: Pull Lint Out Before You Blow Anything Around

Never start with air. Air moves things around; brushes loosen things up. Sarah uses a paintbrush to sweep around the hook driver and feed dogs, deliberately pushing the brush up into the back crevices to dislodge compacted lint.

This “brush-first” step matters because it turns packed, sticky lint into loose dust bunnies—so whatever method you use next (air or vacuum) can actually remove it.

Checkpoint: Your brush should start picking up visible fuzz immediately. If nothing is coming out but you know you’ve been quilting in-the-hoop, you are likely not reaching the deep rear corner behind the hook driver.

Setup Checklist (right before you use air or vacuum)

• Exit Path Clear: Confirm the stitch plate is OFF.
• Lint Loosened: Verify you have brushed the back crevices (don’t just dust the surface).
• Debris Grabbed: Use tweezers to pull out any large clumps or snipped thread tails visible to the eye.
• Method Choice: Commit to your removal tool (Controlled Air or Vacuum).

The Back-to-Front Air-Blast Technique on the Stitch Plate Area (and Why Direction Is Everything)

Sarah’s key technique is not “blast air everywhere.” It is surgical. She uses short, half-second bursts with the nozzle positioned at the back of the throat area, pointing toward the operator.

She even shows a big piece of lint popping off a small rocking mechanism when the air hits it. If that piece had stayed, it could have caused a jam.

Then she gives the bobbin housing a directed blast. Note that on the '830', the angles are tight, so precision matters.

Expected outcome: You should visually see lint fly out of the front opening onto your table. If you don't see it leave, it might still be inside.

Warning: If using canned air, NEVER hold the can sideways or upside down. This releases liquid propellant immediately. Keep the can perfectly upright.

My “safer than sorry” refinement (based on shop experience)

• Short Bursts Only: Think "Puff, Puff," not "Whoooooosh."
• Keep Moving: Don't drill one spot.
• The "Vanish" Test: If you see lint disappear deeper into the machine instead of exiting, STOP immediately and switch to a vacuum or tweezers.

How Often to Clean the Hook System: The “Every Bobbin Change” Habit That Prevents Ugly Appliqué

Sarah’s rule is aggressive but correct for quilting: Clean every single time you change the bobbin.

Is this overkill? No. Quilt sandwiches generate lint 5x faster than standard cotton shirts. The hook area is a high-precision zone with tolerances tighter than a human hair. A two-minute clean is cheaper than:

• Re-stitching a ruined quilt block.
• Chasing phantom tension issues.
• Paying $150+ for a service because lint migrated into the gears.

The Pro Rhythm: Finish bobbin -> Remove case/plate -> Brush/Air -> Replace -> Restart. Factory operators do this because it guarantees uptime.

The “Why” Behind Better Stitches: Lint Changes Friction, Thread Path, and Consistency

The video focuses on "how," but here is the "why."

Lint buildup acts like a brake pad.

1. Friction: It increases drag on the thread as it circles the bobbin case.
2. Timing: It can prevent the hook from grabbing the thread loop at the perfect millisecond.
3. Result: This manifests as skipped stitches, looping on the back, or thread shredding.

That’s why operators often search for guides on how to Remove lint from embroidery machine the moment they see messy outlines—because the symptom is visual, but the cause is mechanical obstruction.

Also, be aware of your materials. "High-loft" batting and "tear-away" stabilizers are the worst offenders. The more fibrous the material, the more frequently you must clean.

“Canned Air vs Mini-Vacuum” — A Decision Tree You Can Actually Use

The comments are split because risk tolerance varies. Use this logic flow to decide what is safe for your specific situation.

Decision Tree: Choose your cleaning method

1. Did your dealer/technician explicitly ban canned air?
   • Yes: Stop. Use Brush + Tweezers + Mini-Vacuum tools only.
   • No / Unsure: Go to Step 2.
2. Is the Stitch Plate removed and the front exit path clear?
   • No: Do not use air yet. Brush first and open the machine.
   • Yes: Go to Step 3.
3. Is your air can nearly empty (Dry Air) and can you aim Back-to-Front?
   • No (Full can / wet spray): Use suction tools.
   • Yes: Short, controlled bursts are generally acceptable.
4. Do you see lint flying OUT toward you?
   • Yes: Continue briefly, then stop.
   • No (Lint vanishes): STOP. Switch to suction tools.

Troubleshooting: Symptom → Likely Cause → Fix

If cleaning didn't solve it, use this table to diagnose the next step.

The Upgrade Path: Clean Machines Stitch Better—But Efficient Hooping Keeps Them That Way

Cleaning fixes the machine's ability to stitch. But if you are doing significant volume with quilt sandwiches, your next bottleneck is likely hooping.

Quilt sandwiches are thick, spongy, and hard to clamp. If you are wrestling with screws and feeling wrist pain, your current machine embroidery hoops might be the limiting factor. In professional studios, swapping to magnetic embroidery hoops is standard practice for quilting.

Why Upgrade? It is not about "new toys"—it is about physics.

• Scene Trigger: You are hooping thick layers (Batting + Fabric + Stabilizer) and the inner ring keeps popping out, or you get "hoop burn" (shiny marks) on the fabric.
• Judgment Standard: If hooping takes longer than 60 seconds per block, you are losing production time.
• The Solution: A magnetic frame clamps instantly without forcing an inner ring inside an outer ring. This eliminates hoop burn and wrist strain.

If you own a Bernina, look specifically for bernina magnetic hoops that fit your attachment arm. Just visually confirm the hoop size (e.g., 5x7 or 8x8) matches your quilt block size.

Warning: Magnet Safety
Magnetic frames use industrial-strength magnets (Neodymium).
* Pinch Hazard: They snap shut with force; keep fingers clear.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place directly on top of laptops or screens.

Operation Checklist (The repeatable routine)

Print this out and keep it near your machine:

• Interval: Clean at every bobbin change when ITH quilting.
• Access: Remove bobbin case AND stitch plate.
• Loosen: Brush first, reaching into the deep back crevices.
• Extract: Use tweezers for stray thread tails.
• Remove: Vacuum or use controlled, dry air (Back-to-Front).
• Inspect: Shine a light to confirm the feed dogs are clear of felted lint.
• Reassemble: Snap plate and case back in; listen for the click.

A clean hook area won’t magically fix a bad design file—but it removes the #1 mechanical variable. Do this consistently, and your machine will reward you with satin stitches that lay flat and run smooth.

FAQ

• Q: How do I safely clean lint from the Bernina 830 hook area when quilting thick “quilt sandwiches”?
  A: Power off, remove the stitch plate, brush first, then remove loosened lint with controlled dry air (back-to-front) or a mini-vacuum—do not start with air.
  • Power down the Bernina 830 completely and remove the hoop/module to create a clear work zone.
  • Remove the bobbin case and metal stitch plate, then use a soft paintbrush to reach the deep back crevices and loosen felted lint.
  • Pull out thread tails or clumps with precision tweezers before using any air or vacuum.
  • Use short, half-second air bursts from the back toward the front opening (or use a mini-vacuum if unsure).
  • Success check: lint visibly exits the front opening and the feed dogs look clear (no gray “felt blanket” packed between teeth).
  • If it still fails… stop and re-check for compacted lint behind the hook driver area that the brush did not reach.
• Q: Why do Bernina 830 stitches get messy or appliqué edges look fuzzy after a few quilt blocks, even when thread tension seems fine?
  A: On Bernina 830 quilting setups, lint buildup in the hook system is a top cause—clean the bobbin area at the next bobbin change instead of chasing tension first.
  • Stop after the current block and open the bobbin area (bobbin case + stitch plate off).
  • Brush the hook driver area and feed dogs to break up packed lint before removing debris.
  • Remove debris using vacuum or controlled dry air aimed back-to-front so lint exits the front opening.
  • Success check: satin stitches lay flatter and outlines stop looking “jumpy” after cleaning.
  • If it still fails… re-thread the upper thread path carefully and then re-check the hook area for missed “felted” lint.
• Q: Should Bernina 830 owners use canned compressed air in the bobbin area, and what is the safest way to do it?
  A: Canned air can be acceptable on a Bernina 830 only when it is dry, controlled, and aimed back-to-front with the stitch plate removed; otherwise use a mini-vacuum.
  • Follow dealer/technician guidance first if canned air is discouraged for warranty or policy reasons.
  • Test spray away from the machine—air should feel dry, not cold/wet; use a can that is nearly empty to reduce wet propellant risk.
  • Keep the can perfectly upright and use short bursts only; never spray sideways or upside down.
  • Aim from the back toward the front opening so debris exits the machine (not deeper inside).
  • Success check: lint flies out onto the table in front of the machine instead of vanishing inward.
  • If it still fails… stop immediately and switch to suction tools (mini-vacuum) or tweezers.
• Q: What is the correct Bernina 830 bobbin case and stitch plate removal sequence to avoid damage during cleaning?
  A: Use the Bernina 830 sequence—open the bobbin door, remove the bobbin case, then remove the metal stitch plate; never force parts that should click or slide smoothly.
  • Turn off the machine first to prevent accidental needle movement.
  • Open the bobbin door and remove the bobbin case (listen/feel for the release “click”).
  • Remove the metal stitch plate carefully and set it aside where screws/parts cannot get lost.
  • Shine a desk lamp directly into the area so lint texture is easy to see before brushing.
  • Success check: parts re-seat cleanly and the bobbin case/plate “click” back into position without resistance.
  • If it still fails… do not pry; stop and verify the stitch plate is fully released and no thread tail is snagged under the plate.
• Q: What does a rhythmic clicking or grinding sound near the Bernina 830 bobbin area usually mean, and what should Bernina 830 users do first?
  A: A new clicking/grinding sound near the Bernina 830 bobbin area often means debris (hard lint or a needle fragment) is stuck—stop immediately and inspect under strong light.
  • Stop stitching right away and power off the machine.
  • Remove the bobbin case and stitch plate to expose the feed dogs and hook area.
  • Use lighting plus tweezers to locate and remove any visible fragment or packed clump.
  • Brush to loosen compacted lint before attempting any air/vac removal.
  • Success check: the sound is gone after reassembly and the hook area turns smoothly without drag.
  • If it still fails… do not continue running; persistent noise suggests something is still lodged and needs careful removal before sewing resumes.
• Q: How do I stop Bernina 830 thread bunching (“birdnesting”) under the stitch plate during quilting, and when should cleaning be part of the fix?
  A: Re-thread the upper thread path first, then clean the Bernina 830 bobbin race if birdnesting persists—lint can prevent smooth bobbin case action and trigger bunching.
  • Re-thread the top thread completely (a missed guide can mimic tension failure).
  • If bunching continues, open the bobbin area (case + stitch plate off) and brush out felted lint around feed dogs and the hook driver.
  • Remove loosened lint with vacuum or controlled back-to-front air so debris exits the front opening.
  • Success check: the underside returns to consistent stitch formation instead of forming a wad under the plate.
  • If it still fails… pause quilting and inspect for stray cutter tails or thread ends migrated deep in the area, then pull them out with tweezers.
• Q: What safety precautions should Bernina 830 users follow when cleaning around the stitch plate, feed dogs, and cutter area?
  A: Treat the Bernina 830 hook area like a sharp, high-precision zone—power off, keep fingers out of the cutter path, and never scrape metal tools on the hook system.
  • Power down fully before opening the bobbin area to prevent accidental needle motion.
  • Keep fingers clear of the automatic cutter path and sharp edges while brushing and using tweezers.
  • Use a soft brush for metal surfaces; avoid scraping with hard tools that can create tiny burrs.
  • Work slowly with strong lighting so you do not rush, scratch the stitch plate, or drop parts.
  • Success check: no new scratches, no bent parts, and the machine runs smoothly without new thread breaks after reassembly.
  • If it still fails… stop and switch to gentler tools (brush/tweezers/mini-vac) rather than forcing debris out.
