The 3-Click Curve Trick in Hatch Embroidery Software: Stop Jagged Lines, Make Designs You Can Actually Edit

If you’ve ever digitized a curve in Hatch, hit Enter, and thought, “Looks good”… only to zoom in and feel your stomach drop, this post is for you.

I’ve spent two decades in the embroidery trenches, and I’ve watched countless beginners (and plenty of experienced stitchers) fall into the same trap: trying to “force” a curve by peppering it with mouse clicks. It feels precise in the moment—like you are manually steering the needle—but it creates a design that is visually jagged on screen and physically problematic on the machine.

Sue from OML Embroidery demonstrates a simple, foundational fix inside Hatch Embroidery Software: a clean, repeatable Left Click → Right Click → Left Click sequence using Digitize Open Shape. The result is a smooth curve with minimal nodes—easy to reshape, easy to keep consistent, and far more professional.

But there is more to this than just aesthetics. A "clean curve" on screen translates to a machine that runs quieter, smoother, and with fewer thread breaks. Let's break this down.

First, Breathe: Jagged Curves in Hatch Embroidery Software Are Usually a “Too Many Nodes” Problem

When curves look slightly “off,” or when your machine sounds like it’s stuttering through a simple line, most people assume they need more control points. In reality, the most common cause is the opposite: too many nodes created by repeated right-clicks in tiny increments.

Sue shows how a manually clicked “circle-ish” line can look acceptable at normal zoom (100%), but once you zoom in to 600% or 800%, you can clearly see the line is not truly smooth. The vector line is jagged, meaning the needle penetration points are erratic.

The Physical Consequence: In the physical world, every node is a potential instruction for the machine to change direction or calculate a needle drop. If you have 50 nodes in a 1-inch curve, your machine is frantically accelerating and decelerating. This micro-stuttering often leads to:

• Poor registration: The outline misses the fill.
• Thread shredding: The needle heats up from friction.
• Fabric perforation: You risk cutting the fabric fibers rather than stitching between them.

That’s why this issue feels so sneaky: it hides until you zoom, reshape, or—worst of all—until you hear that dreaded "thump-thump" sound of a machine struggling.

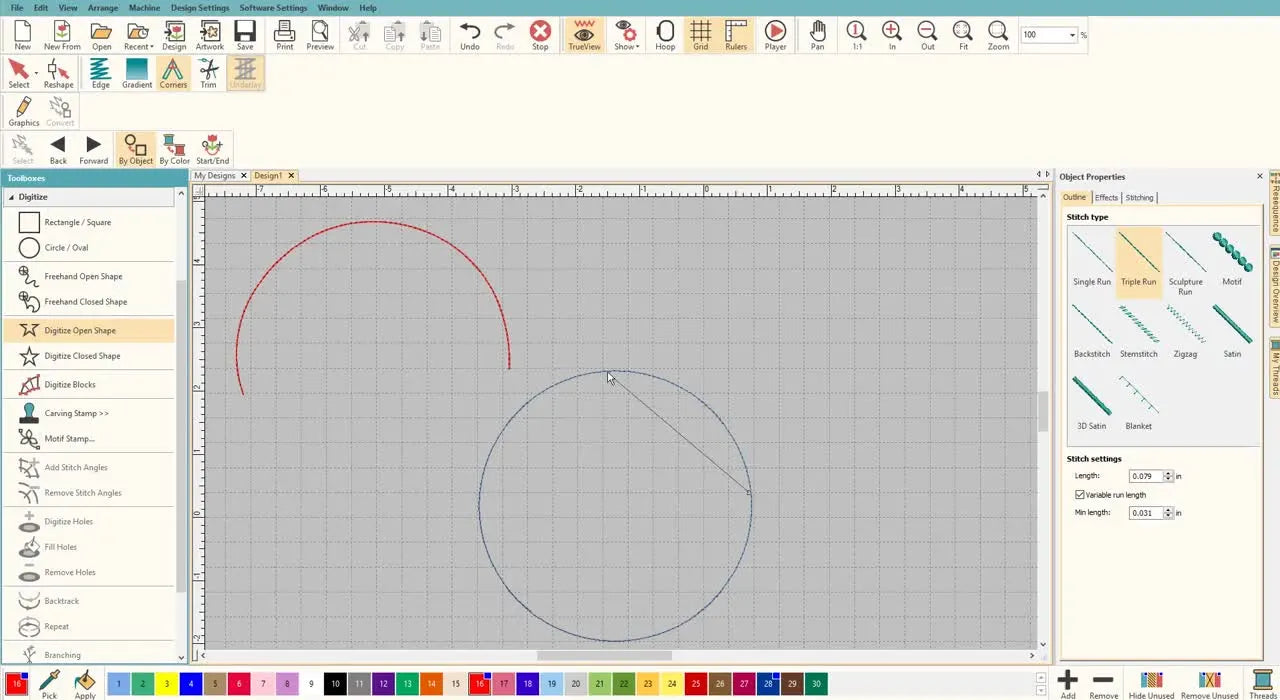

The “Hidden” Prep in Hatch Digitizing: Set Digitize Open Shape + Triple Run So You Can See Mistakes Early

Before you draw anything, you must calibrate your digital workspace. You need mistakes to scream at you, not whisper.

Sue’s on-screen setup is simple and effective for diagnostics:

1. Select Digitize Open Shape from the Digitize toolbar.
2. Set the stitch type to Triple Run (Object Properties > Outline > Triple Run).
3. Choose a bright red (or high contrast) color.

Why Triple Run? A standard Run stitch might hide a wobble because the thread is thin. A Triple Run (bean stitch) is thicker and unforgiving. If your curve has a kink, the Triple Run will amplify it visually. If you can make a Triple Run look smooth, a Satin stitch or standard Run will look flawless.

Prep Checklist (Pre-Flight Protocol):

• Tool Verification: Confirm you are in Digitize > Digitize Open Shape.
• High-Visibility Mode: Set stitch type to Triple Run and color to High Contrast Red.
• Grid Check: Turn on your background grid (usually Shift + G) to give your eye a geometric reference.
• Zoom Calibration: Zoom in to at least 400%. If you can’t see the individual stitch penetration points clearly, you aren't ready to judge the curve.

The Common Mistake: “Right Click, Right Click, Right Click” Creates a Curve That Fights You Later

Here’s the pattern Sue demonstrates that causes the trouble, and it is a hard habit to break.

You try to create a curve (or a full circle) by instinctively tracing the shape and repeatedly right-clicking in small steps along the arc. You hit Enter, and at first glance, it seems okay.

But physically, you have created a "connect-the-dots" polygon, not a curve. Every one of those clicks becomes a yellow square node (in Reshape mode) that you must manage.

Sensory Anchor: When stitching this type of file, listen to your machine. Instead of a smooth, rhythmic hummmm, you might hear a cha-cha-cha sound as the pantograph makes micro-adjustments for every tiny straight line segment.

Warning: Mechanical Safety Risk. "Machine-gun clicking" creates nodes that are often too close together (under 1mm). When the machine tries to place stitches this close at high speeds (800+ SPM), needle deflection occurs. This can cause the needle to hit the needle plate, resulting in a snapped needle or a burred hook. Always aim for stitch lengths between 2mm and 4mm for running stitches.

The 3-Click Rule in Hatch Digitize Open Shape: Left–Right–Left for a Smooth Curve (No Extra Clicks)

Sue’s correct method is refreshingly strict and follows the logic of vector geometry:

1. Left Click to start (creates a square Anchor Point).
2. Right Click once at the peak or apex of the arc to define the curve (creates a round Curve Point).
3. Left Click to end the segment (creates a square Anchor Point).

And that’s it—no extra clicks in between.

Sue emphasizes the principle: “Less is more.”

This is the moment where most people overcomplicate things. They feel like they should add more points to “help” the curve shape itself. But software algorithms are designed to calculate the mathematically perfect arc between two anchors and one curve point. Trust the math.

Setup Checklist (The Execution):

• Hand Position: Rest your hand comfortably; tension in your wrist leads to accidental clicks.
• The Sequence: Chant it if you have to: "Anchor (Left) -> Curve (Right) -> Anchor (Left)."
• Visual Check: Did a yellow square appear? That’s a straight point. Did a blue circle appear? That’s a curve point.
• Recovery: If your placement is slightly off, do not click again. Finish the shape, then use Reshape.

The Proof Test: Compare the Jagged Curve vs the Smooth Curve Side-by-Side (Zoom In, Don’t Guess)

Sue places the “bad” curve and the “good” curve next to each other. At normal zoom, both can look passable. But the difference becomes obvious when you inspect closely.

• The Multi-Click Curve: Looks like a saw blade or a coastline—fraught with tiny flat segments and erratic angles.
• The 3-Click Curve: Reads as a consistent, fluid hydraulic arc.

The "Floss Test" for Tension: While this is a digital test, think of the physical equivalent. If you run your fingernail along a satin stitch generated from the "bad" curve, it will feel rough. The "good" curve will produce a satin stitch that feels smooth, like glass.

The Real Payoff: Reshape Tool Editing Is Either Painful (Many Nodes) or Effortless (Three Nodes)

This is where Sue’s lesson transitions from a drawing tip to a production survival skill.

She switches to the Reshape tool (Standard shortcut H) and demonstrates the editing difference:

• On the “Bad” Curve: You are faced with a swarm of dozens of small yellow square nodes. Moving one node creates a kink. Smoothing the line requires deleting 20 nodes individually or fighting with handles that overlap. It is tedious and frustrating.
• On the “Good” Curve: You have three clear nodes. You grab the single center curve node (blue circle) and drag it. The entire arc deepens or flattens instantly while remaining perfectly symmetrical.

In commercial digitizing, time is inventory. If editing a logo takes 15 minutes because of bad node management, you are losing money. Low-node digitizing makes revisions instantaneous.

Warning: Avoid "Node Clustering" on tight curves. If you reshape a curve and notice nodes stacking on top of each other, the machine will likely hammer that spot, causing a "bird's nest" or thread jam. Always keep a buffer of space between your reshape nodes.

Why “Less Nodes” Usually Stitches Cleaner: Digitizing Logic That Saves You From Thread Breaks and Wobbly Outlines

Sue focuses on the on-screen result, but here’s the practical embroidery physics behind why this matters once the file hits your machine.

Efficient embroidery machines (like the SEWTECH multi-needle series) thrive on momentum. They want to run at a consistent rhythm.

• Excessive Nodes = Friction. They force the pantograph to make micro-stops. This vibration shakes the hoop.
• Minimal Nodes = Flow. The machine can glide through the arc, maintaining speed (e.g., keeping a steady 800 SPM).

Hidden Consumable Check: Even with a perfect curve, a Triple Run puts stress on fabric. Ensure you are using a Ballpoint Needle (75/11) for knits to slide between fibers, and back it with a solid Cutaway Stabilizer (2.5oz or 3.0oz). No amount of digitizing can fix a Triple Run on a t-shirt if you are only using Tearaway stabilizer.

A Practical Decision Tree: When to Rebuild the Curve vs When to Reshape It

You open an old design or a purchased file, and the curves look wrong. Do you fix it or trash it? Use this logic flow.

Decision Tree (Hatch Curve Quality):

1. Select the object and press 'H' (Reshape).
2. What do you see?
   • A "swarm of bees" (yellow squares everywhere)? → STOP. Do not try to move them. Delete the object or re-trace it using the Left-Right-Left method. Re-tracing takes 30 seconds; fixing 50 nodes takes 10 minutes.
   • A few nodes, but positioned wrong? → Proceed. Drag the curve points to adjust the arc.
   • Does the curve look okay at 100% zoom but jagged at 400%? → Rebuild. That jaggedness represents physical needle drops that will look chaotic on smooth fabrics like satin or twill.

The Fastest Way to Practice: Draw Two Curves on Purpose—One “Bad,” One “Good”—Then Reshape Both

If you want this to stick in your muscle memory, you must feel the frustration of the wrong way to appreciate the ease of the right way.

1. Draw a curve using repeated right-clicks. Make it messy.
2. Draw the same curve using Left–Right–Left. Make it clean.
3. Switch to Reshape and try to change the arc height of both.

You’ll feel the difference immediately. The “bad” curve will fight you, requiring multiple drag-and-drop actions. The “good” curve will behave like a rubber band—stretching smoothly exactly where you want it. This drill is essential training for any new staff member in a shop.

Where This Fits in a Real Embroidery Workflow: Clean Digitizing + Stable Hooping = Fewer Surprises

Digitizing is only half the battle. A smooth curve on screen still needs stable fabric in the hoop to stitch as a smooth curve on the garment.

In production, errors compound. A slightly jagged digital file + a slightly loose hooping job = a disastrously wavy outline.

If you are mastering your digitizing (using the 3-click rule) but still seeing distortion, "gapping," or wobbly lines on the final product, the bottleneck is likely physical. This is where the "Software-Hardware Loop" comes into play. You cannot digitize your way out of bad hooping.

If you are fighting fabric slippage or finding that traditional clamp hoops leave "hoop burn" (white rings) on delicate fabrics, this is a trigger point to consider tool upgrades. Many specialized shops move toward magnetic embroidery hoops when they want to eliminate the variable of "cranking the screw too tight."

The Upgrade Path (Without the Hype): When Better Hooping Tools Actually Pay for Themselves

Understanding when to upgrade requires a clear look at your pain points. Here is a diagnostic approach:

• Trigger (The Pain): You are stitching a perfectly digitized curve, but the fabric ripples inside the hoop, or you are getting "hoop burn" on dark polyesters.
• Criteria (The Judgment): Are you spending more than 2 minutes hooping a single garment? Are you rejecting garments due to hoop marks?
• The Solutions:
  • Level 1 (Consumables): Use Temporary Spray Adhesive (like 505) and better stabilizer to secure the fabric to the backing.
  • Level 2 (Tool Upgrade): For home or single-needle users, a magnetic embroidery hoop allows you to float the material. The magnets hold the fabric firmly without the friction-burn of an inner ring.
  • Level 3 (Process Upgrade): If you are running 50+ left-chest logos, consistent placement is key. Researching a hooping station for machine embroidery can help standardize exactly where those curves land on every shirt.

And if you’re scaling beyond the hobby pace, pairing consistent placement tools with a production-focused machine (like a SEWTECH multi-needle setup) is often the moment shops stop losing time to constant thread changes and rework.

Warning: Magnet Safety. Magnetic frames are incredibly powerful to ensure grip (often 10kg+ force). Keep fingers clear of the snapping zone. Crucially, keep them away from pacemakers, implanted medical devices, and mechanical watches.

Comment-Driven Pro Tips: The Two Habits That Make This “Obvious” Trick Work Every Time

Sue’s audience reactions highlight a critical truth: "It looks so obvious once pointed out." That is the hallmark of a fundamental technique.

Pro Tip: Treat “Less is more” as a rule, not a suggestion. If you catch yourself adding “just one more click” to fix a shape, you are usually digging a deeper hole. Undo the last click and stretch the curve with the Reshape tool instead.

Watch Out: Don’t judge curve quality closer than your final output. If you are stitching a large jacket back, zoom out to check the flow. If you are stitching small lettering (under 5mm), zoom in tight. Context matters.

If You Want Cleaner Curves on Fabric, Not Just on Screen: Match Your Digitizing to Your Hooping Reality

A final practical note from the shop floor: Run-stitch outlines (like Sue’s Triple Run example) are the most honest stitches in embroidery. They lie. They show everything—good digitizing and bad hooping.

Generally, if you’re stitching outlines on knits, performance wear, or anything that wants to shift, you need a "sandwich" approach:

1. Software: Clean nodes (3-click rule).
2. Stabilizer: Mesh or Cutaway (never tearaway alone).
3. Hooping: Even tension.

This is where a magnetic embroidery frame can be a useful tool option for difficult fabrics (like velvet or corduroy) where you cannot press a traditional hoop ring down without crushing the pile. If the fabric is crushed, it moves, and your perfect curve becomes an oval.

Quick Recap: The Hatch Curve Habit That Saves You Hours of Editing

Sue’s lesson boils down to one repeatable habit that you should apply to every design from today forward:

1. Stop building curves with multiple right-clicks.
2. Use Digitize Open Shape and the Left–Right–Left sequence.
3. Keep nodes minimal so Reshape logic works for you, not against you.

When you digitize this way, you don’t just get smoother curves—you get designs that stitch faster, break fewer threads, and allow you to revise files instantly when a customer changes their mind.

Operation Checklist (Final Quality Control):

• Node Count Audit: Select the curve in Reshape mode. Are there 3-5 nodes? (Pass). Are there 20? (Fail - Rebuild).
• Zoom Inspection: Zoom to 600%. Are the lines fluid or jagged?
• Simulator Check: Run the Stitch Player. Does the playback look smooth, or does it jitter?
• File Save: Save this low-node version as your .EMB master file before you export to machine format (.DST or .PES). Once you convert to machine format, you lose the ability to easily reshape those curves.






FAQ

• Q: In Hatch Embroidery Software, why do curves digitized with Digitize Open Shape look smooth at 100% zoom but jagged at 600–800% zoom?
  A: This is usually caused by too many nodes from repeated right-clicks, which turns a curve into tiny straight segments.
  • Zoom in to 400–800% before judging the curve.
  • Switch to Reshape (H) and look for “node clutter” (many yellow square nodes).
  • Rebuild the curve using the Left Click → Right Click → Left Click method instead of adding more points.
  • Success check: At high zoom, the line looks fluid (not like a saw blade/coastline), and Reshape shows only a few nodes.
  • If it still fails: Set the outline to Triple Run in Object Properties to make wobbles easier to see, then redraw.
• Q: In Hatch Embroidery Software Digitize Open Shape, what is the exact Left–Right–Left click sequence for a smooth curve with minimal nodes?
  A: Use Left Click (anchor) → Right Click once (curve point at the apex) → Left Click (anchor)—no extra clicks between.
  • Left-click to place the starting anchor point (square node).
  • Right-click once at the peak of the arc to create the curve point (round node).
  • Left-click to place the ending anchor point, then finish the segment/shape.
  • Success check: In Reshape, the curve is controlled by a small number of clear nodes, and dragging the center curve node changes the arc smoothly.
  • If it still fails: Do not add clicks; finish the shape and correct placement using Reshape (H).
• Q: In Hatch Embroidery Software, why should Triple Run be used when testing curves created with Digitize Open Shape?
  A: Triple Run makes curve errors obvious early because it is thicker and less forgiving than a standard Run stitch.
  • Set stitch type to Triple Run (Object Properties > Outline > Triple Run).
  • Pick a high-contrast color (bright red is a common choice) so kinks stand out.
  • Zoom to at least 400% while inspecting the path.
  • Success check: If the Triple Run preview looks smooth, a standard Run or Satin will usually look even cleaner.
  • If it still fails: Rebuild the curve with fewer nodes (Left–Right–Left) instead of trying to “massage” a heavily clicked line.
• Q: In Hatch Embroidery Software, when should a curve be rebuilt instead of trying to fix it with Reshape (H)?
  A: Rebuild the curve when Reshape shows a “swarm of bees” (many yellow square nodes) or the curve is jagged at 400%+ zoom.
  • Select the object and press H (Reshape).
  • Stop editing if you see dozens of nodes; delete and retrace using Left–Right–Left.
  • Rebuild if it looks okay at 100% but turns jagged at 400% or higher.
  • Success check: The rebuilt curve edits like a rubber band—one curve node changes the whole arc cleanly.
  • If it still fails: Turn on the grid (often Shift + G) and redraw using fewer, better-placed points.
• Q: When stitching a running outline from a Hatch design, what machine symptoms can “too many nodes” cause, and what stitch-length safety guideline should be followed?
  A: Excess nodes can cause micro-stuttering, poor registration, shredding, and perforation; a safer target is 2–4 mm stitch length for running stitches, and avoid nodes closer than under 1 mm at high speed.
  • Listen for a choppy “cha-cha-cha” sound instead of a smooth rhythm—this often signals excessive direction changes.
  • Audit the curve in Reshape (H) and reduce node count by rebuilding the path.
  • Avoid “node clustering” on tight curves so the machine does not hammer one spot.
  • Success check: The machine runs smoother and quieter through the curve, and the outline lands consistently relative to the fill.
  • If it still fails: Slow the machine and re-check the digitized path; if needle deflection risk is present, stop and correct the file before running at 800+ SPM.
• Q: For Hatch Triple Run outlines on knit garments, what needle and stabilizer combination is a safer starting point to reduce distortion and thread issues?
  A: A safer starting point is a 75/11 ballpoint needle on knits plus a solid 2.5 oz or 3.0 oz cutaway stabilizer (tearaway alone is commonly not enough).
  • Install a 75/11 ballpoint needle for knits to help the needle slide between fibers.
  • Use cutaway stabilizer (2.5 oz or 3.0 oz) to support Triple Run stress.
  • Re-test the outline after stabilizing before changing the digitizing.
  • Success check: The outline stays smooth without waviness, and the stitches do not feel rough or unstable along the curve.
  • If it still fails: Re-check hooping tension and fabric slippage—clean digitizing cannot overcome unstable hooping.
• Q: If a Hatch curve stitches clean in the simulator but the real garment outline is wavy or shows hoop burn, what is the practical upgrade path from consumables to tools like magnetic embroidery hoops?
  A: Treat this as a “software-hardware loop” issue: first stabilize and secure, then consider magnetic hoops if hooping is slow or causes marks, and only then consider production upgrades for volume.
  • Level 1 (Technique/Consumables): Add temporary spray adhesive (like 505) and improve stabilizer to reduce fabric shift.
  • Level 2 (Tool upgrade): Use magnetic embroidery hoops/frames to hold fabric firmly with less inner-ring friction that can cause hoop burn.
  • Level 3 (Process upgrade): If doing repeated placements (e.g., many left-chest logos), add a hooping station to standardize placement.
  • Success check: Hooping time drops, fabric does not creep, and outlines remain smooth without visible ring marks on sensitive fabrics.
  • If it still fails: Re-audit the digitized node count and test at higher zoom; wavy lines often come from combined small file issues + small hooping slip.
• Q: What magnet safety rule should be followed when using magnetic embroidery hoops/frames to prevent injury and device damage?
  A: Magnetic embroidery hoops can snap with very high force, so keep fingers out of the closing zone and keep magnets away from pacemakers, implanted medical devices, and mechanical watches.
  • Position fabric and stabilizer first, then lower the magnetic ring carefully—do not “drop” it.
  • Keep fingertips clear where the magnets meet (pinch zone).
  • Store magnetic frames away from sensitive devices and keep them controlled on the workbench.
  • Success check: The frame closes without finger contact or sudden snapping, and handling feels controlled and repeatable.
  • If it still fails: Stop and change handling method (two-hand placement, slower alignment); do not force magnets that are misaligned.
