Stop the Shredding: How to Fix "Unstitchable" Thin Fonts in Embird (And Why Your Hoop Matters)

There is no sound more heartbreaking to an embroiderer than the rhythmic thump-thump-crunch of a machine eating a garment.

You are not imagining it: a cute TrueType font can look crisp and perfect in outline view on your computer screen, only to turn into a bird nest, a thread break, or a shredded hole in the fabric once you press "Start."

As someone who has spent two decades on the production floor, I can tell you that physics does not care about your aesthetics. When you ask a machine to place a 40-weight thread (which has physical thickness) into a satin column narrower than the needle itself, you are inviting failure.

In this deep dive, grounded in the workflow from OML Embroidery and backed by production-floor science, we will fix this. We aren’t just going to "slow the machine down"—we are going to surgically alter the DNA of the design using Embird, and then ensure your physical setup (hoops and stabilizers) can handle the precision.

The "Red Sea" of Density: Interpreting Embird’s Warning Signals

When you toggle your view to Embird’s Density Map and the screen lights up red, do not panic. This is not a software error. It is a physical stress map.

Think of the red zones as "Traffic Jams." The software is calculating where the needle penetrations are dangerously close together.

The 3-View Diagnostic Sweep

Sue from OML Embroidery demonstrates a "Three-View Sweep" that creates a complete mental model of the failure points. Do not skip this.

1. Normal View: This tells you what the design should look like.
2. 3D View: This helps you visualize texture. Sensory Check: Does a letter look like a solid brick? If it looks "chunky" on screen, it will be bulletproof stiff on fabric.
3. Density Map/X-Ray: The truth-teller. Heavy red clusters on swashes, curls, and serifs are your "DO NOT STITCH" warnings.




Expert Translation of "Red Zones":

• The Problem: The machine is being asked to plunge the needle into the exact same coordinate multiple times, or into a space smaller than the thread itself.
• The Result: Friction heat builds up. The thread shreds. The bobbin thread cannot clear the hook. Snap.
• The Constraint: If you are working with a restricted area, such as a brother 4x4 embroidery hoop, you cannot simply "make it bigger" to solve the density issue. You must edit the geometry.

The 1.0 mm Safety Floor: Physics vs. Design

Sue uses the Measure Tool to verify what the Density Map suggests. Her rule—and it is an industry-standard "Safety Floor"—is simplistic but vital: Satin stitches under 1.0 mm are high-risk.

Why 1.0 mm? The Math of the Needle

A standard #75/11 embroidery needle is approximately 0.75mm to 0.8mm thick. A standard 40wt thread is roughly 0.4mm wide.

• If your column is 0.48mm (as found in the video example), you are asking a 0.8mm needle to perform a zigzag inside a space smaller than itself.
• The Result: The needle deflects. It hits the throat plate. Or, it simply punches a hole because there is no fabric left to hold the thread.






Decision Phase: Scale or Surgery?

Before you edit nodes, check your constraints.

• Scenario A: Can you scale the design up by 10-15%? If yes, do this first. It expands the columns naturally.
• Scenario B: Are you maxed out on your hoop size? If you need to fit a specific logo area, scaling isn't an option. You must perform "Node Surgery."

Warning: Eye Protection Required. When forcing a machine to stitch over-dense areas or ultra-thin columns, needle breakage is common. A needle fragment can fly at speeds over 100 mph. Never watch your stitch-out with your face close to the needle bar without safety glasses.

The Fix: Surgical Node Editing in Embird

This is where the magic happens. We aren’t changing the style of the font; we are optimizing its structure for the needle.

Phase 1: The "R" Repair (Widening the Lane)

The goal is to widen the "lane" of the satin stitch so the needle has room to work.

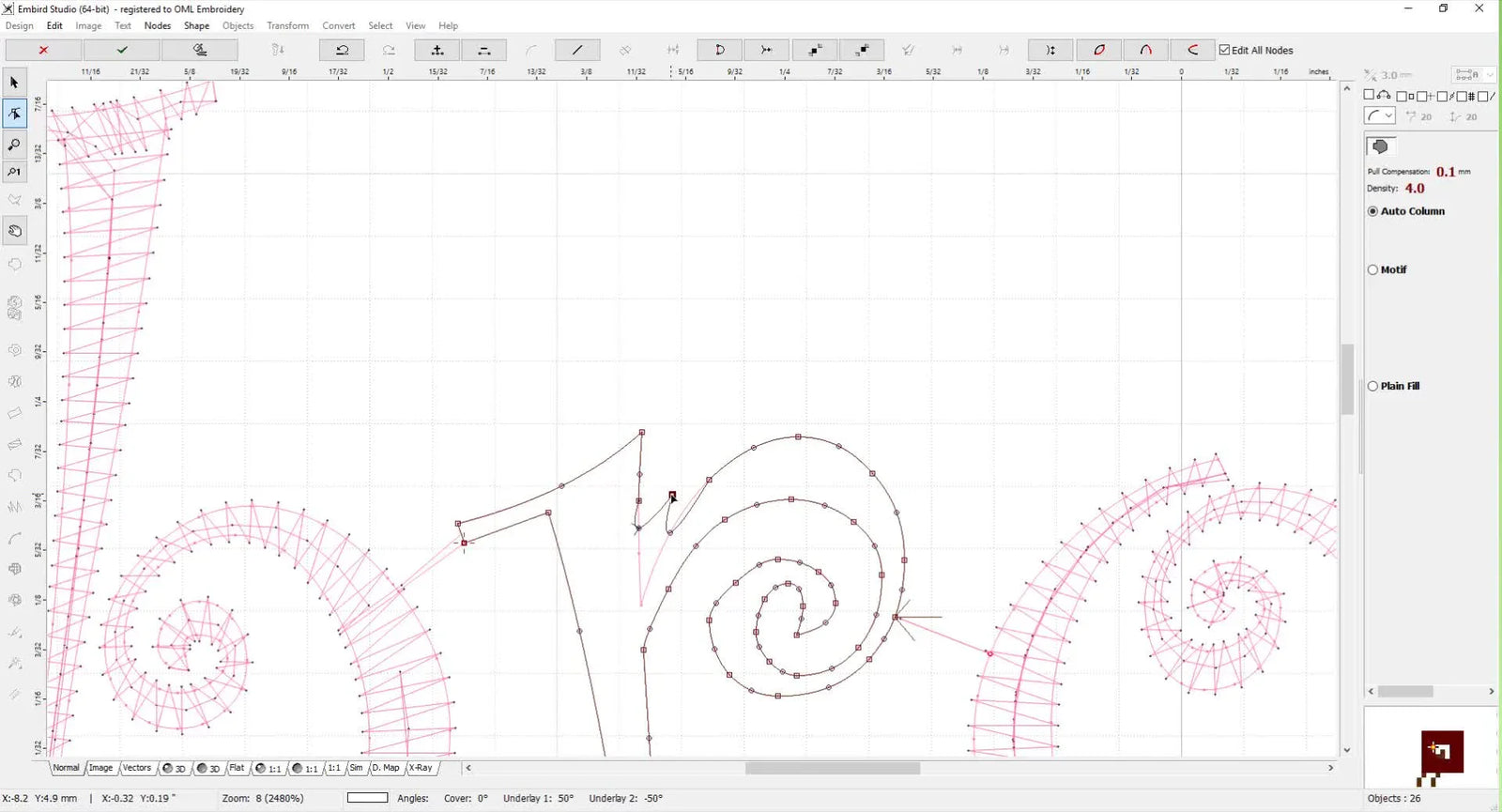

1. Select the Letter: Font Engine objects are separate. Click the specific letter (e.g., "R").
2. Zoom In: Get close enough that individual nodes (the small squares) are distinct.
3. The "Nudge": Click and drag the nodes on the inner curve inward, and the outer curve outward.
4. Sensory Check: You aren't trying to make a fat letter. You are trying to create just enough breathing room. Imagine widening a doorway just enough to squeeze a sofa through.




Pro Tip: Do not "add" nodes to fix a jagged line. Delete them. Amateur digitizers add nodes to fix shapes. Pros delete nodes. The fewer nodes you have, the smoother the mathematical curve, and the glossier the satin stitch will reflect light.

Phase 2: The "b" Loop (Opening Negative Space)

Tight spirals, like the loop in a lowercase "b" or "e," are notorious for closing up. The thread "blooms" when stitched, filling the negative space you saw on screen.

• The Fix: Aggressively open the white space inside the loop.
• The Logic: If the gap looks "too big" on screen (perhaps 1.5mm), it will stitch out looking perfect (closest to 0.8mm) because the thread expands.
• Simplification: If a spiral wraps around three times but creates a knot, delete the inner tail. Detail that destroys the garment is not detail; it is a defect.




The "Silent Killer" of Small Fonts: Hooping & Stabilization

You can have the perfect file, edited to 1.2mm width, and it can still fail. Why? Hoop Movement.

When stitching small, precise lettering, the fabric must be as taut as a drum skin. If the fabric shifts even 0.5mm (a tiny amount), your border will miss, or your letters will distort.

The Stabilization Hierarchy

The "Hidden" Consumables List

Beginners often focus on the machine and thread. Pros focus on the "sticky" stuff.

• Temporary Spray Adhesive (e.g., 505): Essential for keeping the fabric/stabilizer bond tight.
• New Needles (75/11 Ballpoint for knits): A dull needle pushes fabric rather than piercing it, distorting small letters.
• Water Soluble Pen: For marking center points without permanent damage.

The Case for Magnetic Hoops

If you struggle with "hoop burn" (the shiny ring left by traditional hoops) or keeping fabric straight, this is the moment to upgrade your hardware.

Traditional hoops rely on friction and muscle power. Often, to get the fabric tight enough, you over-stretch it. When you un-hoop, the fabric shrinks back, and your letters pucker.

Professionals often utilize a magnetic embroidery hoop. These use powerful attraction to clamp fabric without forcing it into a grooved ring. This eliminates hoop burn and makes hooping thick garments (like hoodies) effortless.

• Level 1 User: Struggles with plastic hoops, constant re-hooping to get it straight.
• Level 2 User: Uses magnetic frames to gain speed and reduce strain on the wrists.
• Level 3 Producer: Integrates a hoopmaster hooping station with magnetic fixtures for 100% consistent placement across 50 shirts.

Warning: Magnetic Pinch Hazard. High-quality magnetic hoops use industrial-grade magnets. They can snap together with crushing force. Keep fingers clear of the mating surfaces. Pacemaker Safety: Keep these hoops at least 6 inches away from implanted heart devices.

If you are running a business, time is money. Upgrading from a single-needle machine to a multi-needle (like the robust options from SEWTECH) changes the game not just for color changes, but for stability. Multi-needle machines use a different hopping foot mechanism that often handles small text better than domestic presser feet.

Comprehensive Prep Checklist: "Run This Before You Stitch"

Do not skip these steps. This is your flight check.

1. The Digital Prep

• View Sweep: Check Normal, 3D, and Density Map.
• Measurement: Verify all satin columns are >1.0mm.
• Simplification: Have you deleted unnecessary nodes to smooth curves?
• Regeneration: Hit Ctrl+G (or Generate) to ensure the stitches match your new shapes.

2. The Physical Prep

• Needle Check: Is the needle fresh? (Replace every 8 hours of stitching).
• Bobbin: Do you have enough bobbin thread for the whole run? (Running out mid-letter is a disaster).
• Hoop Tension: Sensory Check: Tap the fabric. It should sound like a drum—thrummm, not thud.
• Clearance: Ensure the hoop arms won't hit the wall or objects on your table.

3. The Test Sewing

• The Scrap Test: Always stitch the customized font on a scrap of similar fabric first.
• Watch the First Layer: Use your eyes (safety glass on!) and ears. A rhythmic sound is good. A clunking sound requires an immediate stop.

Troubleshooting: The "Symptom → Cure" Matrix

Final Decision Tree: When to Edit vs. When to Quit

Use this logic flow when you find a beautiful (but difficult) TrueType font.

1. Can you scale it up?
   • Yes -> Scale up 20%. Check Density. If Green, Stitch.
   • No -> Proceed to Step 2.
2. Is the column width >1.0mm?
   • Yes -> Stitch a test.
   • No -> Perform Node Editing. Widen columns, delete knots.
3. After editing, does it look like the letter anymore?
   • Yes -> Stitch a test.
   • No (It looks distorted) -> Abandon Font.
   • Expert Note: Not every font is meant to be stitched. Knowing when to switch to a pre-digitized embroidery font is a mark of a professional.

By combining the software precision of Embird with the physical stability of quality stabilizers and machine embroidery hoops, you stop hoping for good results and start manufacturing them. Stitch with confidence.
