The 10-Minute “I-Test” That Fixes Brother Embroidery Tension (Without Guessing or Wasting Shirts)

Mastering Brother Embroidery Tension: The "H-Test" Guide for Perfect Stitches

When your embroidery looks perfect on the front… and the back is a tangled crime scene, it’s easy to think your machine is "broken." It usually isn’t. After 20 years in commercial embroidery shops, I can tell you that 90% of the time, your Brother machine is simply telling you: the mechanical tug-of-war is unbalanced.

This guide refines the method demonstrated in the source video—the satin-column stitch test—and upgrades it with professional safety protocols and sensory checks. My goal is simple: stop guessing, stop sacrificing expensive garments, and give you a repeatable, data-driven process.

The Physics of Tension: Why it Feels "Random" (But Isn't)

Embroidery tension feels "mysterious" because the front creates a false sense of security. In the video, the host proves this utilizing a Brother machine:

• At Tension 3.0 (Balanced): The front looks clean, and the back shows the correct locking pattern.
• At Tension 1.4 (Too Loose): The front still looks okay to the naked eye—but the back reveals the top thread is dominating, meaning the stitch is structurally weak and will likely snag or unravel in the wash.

The Pro's Rule: Never judge tension by the pretty picture on top. We judge it by the "engineering" on the bottom.

Many beginners enter the field thinking, "I was told never to touch the tension dial." Here is the calm truth: Your machine has that dial because physics changes. Different thread weights (e.g., 40wt rayon vs. metallic), design densities, and fabric thicknesses require adjustment.

The Golden Ratio: The "1/3 Solitaire" Rule

The video introduces a rule of thumb that is the industry standard for satin stitches. We call it the 1/3 Rule:

• The Goal: On the back of a satin column, you want to see 1/3 white bobbin thread right in the center, flanked by 1/3 top color on the left and 1/3 top color on the right.
• The Sensory Check: Run your fingernail over the back. It should feel smooth, not lumpy.

This ratio proves the top thread is being pulled down just enough to loop around the bobbin thread, but not so tight that it strangles the fabric.

Clarifying Common Confusion:

1. "If I increase top tension number (e.g., 3.0 to 4.0), what happens?"
   You are tightening the top clamp. This pulls more bobbin thread upward. On the back, you will see less top color and more white bobbin thread.
2. "I heard it should be mostly top thread on the bottom."
   That is for Tatami (fill) stitches. For Satin stitches (borders, text), the 1/3 rule is the absolute law.


Phase 1: Preparation & Hidden Consumables

Before running a test, you must eliminate variables. If you test with a dull needle or lint-clogged raceway, you are chasing ghosts.

Required "Hidden" Consumables:

• Fresh Needle: Size 75/11 is your standard. If the needle has hit the plate even once, trash it.
• Canned Air (Moisture-Free): For clearing the bobbin area.
• Contrast Thread: Black bobbin + Neon top thread (essential for visibility during testing).

Pre-Flight Checklist (Do Not Skip):

• Bobbin Orientation: Ensure the bobbin unspools counter-clockwise (often looks like the letter "P").
• Presser Foot Check: CRITICAL. Thread the machine with the presser foot UP. If it is down, the tension discs are closed, and the thread won't seat.
• The "Floss" Test: Pull the top thread near the needle. You should feel smooth, light resistance—like pulling dental floss. If it jerks, re-thread.
• Hoop Tension: Hoop a scrap of calico or felt. Drums it with your finger. It should sound like a dull drum (thump-thump), not loose fabric.


Warning: Mechanical Hazard. Keep fingers, tweezers, and scissors away from the needle path while the machine is live. If you need to clear a jam, stop the machine completely. A needle moving at 600 SPM (Stitches Per Minute) can pierce bone before you can react.

Phase 2: The "I" Test Setup

We use the letter "I" (or lowercase "l") because it is a pure satin column. It removes the complexity of curves or angles.

1. Select Font: Go to the Brother built-in font menu. Choose a block style (sans serif).
2. Select Character: Choose "I" or "l".
3. Size: Set to Medium (M). Small letters have different physics; M is the standard test size.
4. Layout: Duplicate the letter 3-4 times on the screen so you can test multiple settings without re-hooping.

This approach simplifies the troubleshooting process for anyone using a brother embroidery machine for beginners, turning a complex panic into a structured science experiment.

Phase 3: The Baseline Run (Tension 3.0 - 4.0)

Brother machines usually have a "sweet spot" between 3.0 and 4.0. The video demonstrates 3.0 as the baseline for that specific unit.

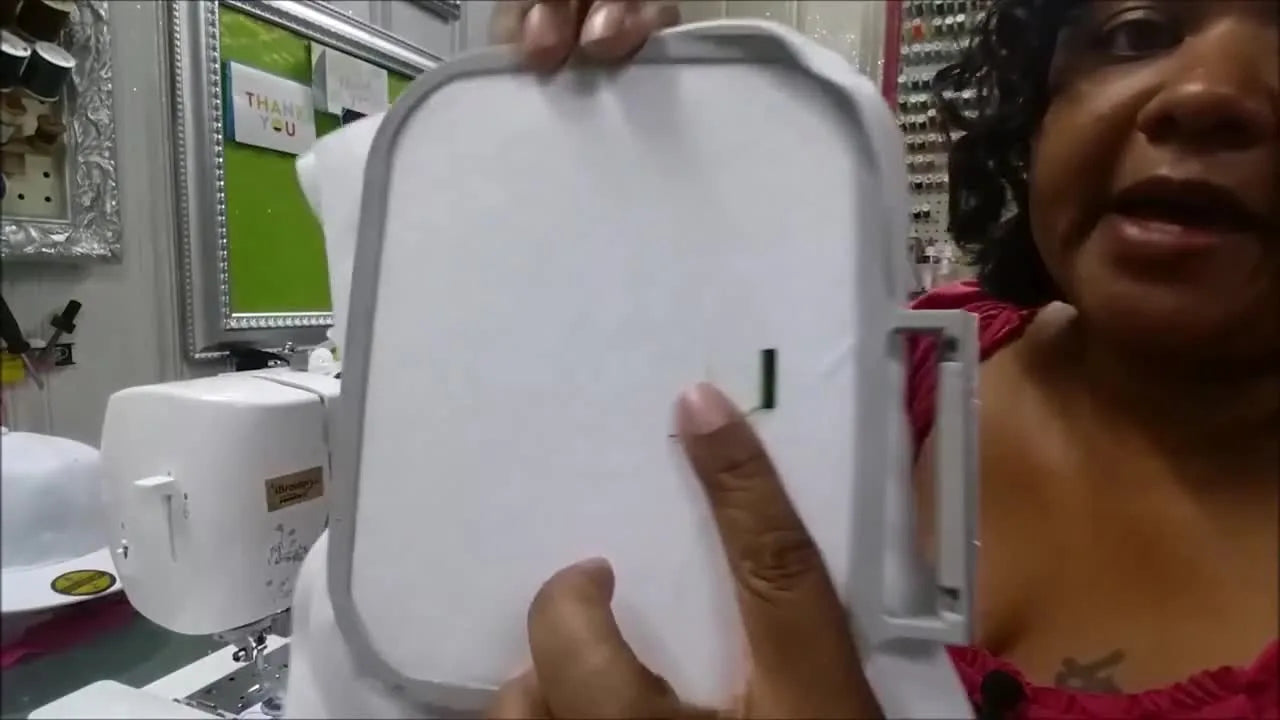

• Action: Stitch the first "I" column.
• Observe: Flip the hoop. Do you see the white bobbin strip centered?
• Success Metric: Top thread visible on edges (1/3), bobbin thread in center (1/3), smooth feel.




Phase 4: The Stress Test (Too Tight)

The host increases tension to 5.0 to demonstrate failure.

Sensory Feedback - What "Too Tight" Feels Like:

• Auditory: The machine may lose its rhythmic "hum" and start making a sharper "slapping" sound or a strained grinding noise.
• Visual (Front): The fabric around the letter may look puckered or wrinkled (tunneling).
• Visual (Back): The white bobbin thread expands. It might look like 80% white, 20% color. Or, the bobbin thread might get pulled all the way to the top of the fabric.








The "Birdnest" Protocol: Safe Recovery

In the video, extreme tension causes a "birdnest"—a ball of thread jamming the bobbin case. This terrifies beginners, but it's routine for pros.

The Surgical Removal Steps:

1. Stop Immediately. Do not force the hoop off.
2. Cut underneath: Slide scissors under the hoop to cut the thread mess connected to the garment.
3. Remove Hoop.
4. Extract: Remove the bobbin case. Use fine-point tweezers to pull thread fragments.
5. Blast: Use canned air to blow lint out of the cutter area.

Warning: Never use your mouth to blow into the bobbin area. Your breath contains moisture, which causes lint to clump like cement over time. Always use canned electronics duster held upright.

Phase 5: The Loose Test (Tension ~1.4)

Lowering tension to 1.4 simulates a lack of control.

Sensory Feedback:

• Visual (Back): The "Caterpillar Effect." The top thread loops loosely on the back. The white bobbin thread is a tiny sliver or invisible.
• The Risk: These stitches are loose. If you wash this garment, the thread will snag and the design will disintegrate.




Beyond the Dial: Fabric, Hooping, and "The Drift"

A common frustration: "I fixed my tension, but my outline is still off!"

20 years of experience dictates this truth: Tension cannot fix poor stabilization. If your fabric is moving, your stitches will land in the wrong place, no matter your dial setting. This is why hooping for embroidery machine mastery is actually more critical than tension dials.

The Problem: Hoop Burn & Shift

The standard plastic hoops included with machines rely on friction and muscle power.

• Pain Point: Tightening the screw strains the wrist.
• Fabric Damage: This often leaves "hoop burn" (shiny crushed rings) on velvet or dark cotton.
• Shift: Slippery performance wear often slides during the stitch, causing outlines to miss the fill.

The Professional Solution: Tool Elevation

If you are moving from "hobby" to "production" (e.g., 50 shirts for a local team), standard hoops become a bottleneck.

When to Upgrade:

• Criteria A: You struggle to hoop thick items (towels, hoodies) without popping the inner ring.
• Criteria B: You need to hoop faster to make a profit.
• Criteria C: You need to eliminate hoop burn on delicate items.

The Upgrade Path: Many pros switch to Magnetic Hoops. They use powerful magnets to clamp fabric instantly without "crushing" the fibers.

• Searching for a brother pe800 magnetic hoop or the larger brother pe900 magnetic hoop is the logical step for users tired of the "hoop struggle."
• For bulk orders, pairing this with a hooping station for embroidery ensures the logo lands in the exact same spot on every shirt, reducing rejection rates.

Warning: Magnetic Hazard. Magnetic hoops contain industrial-strength neodymium magnets. They can pinch fingers severely. Keep them at least 12 inches away from pacemakers, credit cards, and mechanical hard drives.

Decision Tree: Stabilizer & Tension Logic

Use this flow before touching your tension dial.

Step 1: Identify Fabric

• Is it Stretchy (T-Shirt/Polo)? -> MUST use Cutaway stabilizer. Tearaway will fail and cause gaps.
• Is it Fluffy (Towel/Fleece)? -> Use Water Soluble Topper (Solvy) + Tearaway backing.

Step 2: Check Hooping

• Is it "Drum Tight"? -> If no, re-hoop. Do not adjust tension yet.

Step 3: Run the "I" Test

• Check Back. -> Adjust tension dial up (tighten) or down (loosen) by 0.5 increments.

Troubleshooting Logic: The hierarchy of Repair

Don't guess. Follow the "Cheapest Fix First" logic.

1. Symptom: Outline Misalignment (Gaps)
   • Cause: Fabric shifting in hoop.
   • Fix: Use adhesive spray (temporary bond), switch to Cutaway stabilizer, or upgrade to a magnetic embroidery hoop for better grip.
2. Symptom: White thread on Top
   • Cause: Bobbin tension too loose OR Top tension too tight.
   • Fix: Check bobbin path (is it in the tension spring?). Lower Top tension by 1.0.
3. Symptom: Looping on Back / Birdnest
   • Cause: Top thread completely totally lost tension.
   • Fix: Raise Presser Foot. Re-thread entirely. Ensure thread is seated deep in the tension disks.
4. Symptom: Thread Shredding/Breaking
   • Cause: Burred needle or old thread.
   • Fix: Change needle (Cost: $0.50) before calling a technician (Cost: $100+).

The Operator's Rhythm

Consistency is the hallmark of a professional. Finish your session with this routine designed to protect your machine.

Operation Checklist (Shut Down Protocol):

• Remove Tension: Unthread the machine. Leaving thread under tension for days can weaken the tension springs.
• Cover Up: Dust is the enemy of sensors. Always cover the machine.
• Label The Win: Once you find the perfect tension number for "Pique Polo Shirts" (e.g., 3.4), write it down or tape a sample to your wall.

The takeaway isn't that you need to be a mechanic. It's that you need a baseline. By using the simple "I" satin column test, you stop relying on luck and start relying on data. And when your tools (like standard hoops) become the limiting factor, knowing terms like magnetic embroidery hoops for brother gives you the vocabulary to solve the problem permanently.

FAQ

• Q: On a Brother embroidery machine, what bobbin-thread pattern on the back confirms balanced satin-stitch tension during the “I” test?
  A: Use the satin-column “1/3 rule” on the back: 1/3 white bobbin thread centered, with 1/3 top thread color on each side.
  • Stitch a medium-size capital “I” (satin column) on scrap fabric first.
  • Flip the hoop and inspect only the back before changing any settings.
  • Success check: The back shows a centered white strip and feels smooth (not lumpy) when a fingernail runs across it.
  • If it still fails: Re-thread with the presser foot up and confirm the bobbin is correctly seated in its tension spring.
• Q: On a Brother embroidery machine, why does changing the top tension number (for example 3.0 to 4.0) change what shows on the back of a satin column?
  A: Increasing the Brother top tension number tightens the top thread clamp and pulls more white bobbin thread upward, so the back shows more white and less top color.
  • Increase or decrease top tension in small steps (the guide uses 0.5 increments) while repeating the same “I” column.
  • Compare each column by flipping the hoop after every run.
  • Success check: The “I” column returns to the 1/3 bobbin center strip rather than turning mostly white (too tight) or mostly top thread loops (too loose).
  • If it still fails: Stop adjusting the dial and eliminate variables first (fresh needle, clean bobbin area, correct threading path).
• Q: On a Brother embroidery machine, what pre-flight checks prevent false tension problems before running the satin-column “I” test?
  A: Remove variables first—most “tension problems” are actually needle, lint, bobbin orientation, or incorrect threading with the presser foot down.
  • Replace the needle (the guide’s standard is 75/11) and discard any needle that hit the plate even once.
  • Thread the machine with the presser foot UP so the thread seats into the tension discs.
  • Confirm bobbin orientation so it unwinds counter-clockwise (often resembles the letter “P”).
  • Success check: The “floss test” feels like smooth, light resistance (not jerky) when pulling the top thread near the needle.
  • If it still fails: Clean the bobbin area and raceway and retest using high-contrast threads (dark bobbin + bright top).
• Q: On a Brother embroidery machine, how should a “too tight” top tension setting look and sound during the satin-column “I” test?
  A: “Too tight” tension often causes puckering/tunneling on the front and an expanded white bobbin area on the back (sometimes bobbin thread can even pull to the top), and the machine may sound strained.
  • Set a test column and observe fabric distortion around the satin “I.”
  • Flip the hoop and check whether the back becomes mostly white bobbin thread (for example, heavily dominated by white).
  • Success check: Returning tension toward the baseline range (the guide uses 3.0–4.0 as a common sweet spot) restores a smooth back with the centered 1/3 bobbin strip.
  • If it still fails: Verify stabilization and hooping first, because tension cannot compensate for fabric shifting.
• Q: On a Brother embroidery machine, what is the safest way to recover from a birdnest jam in the bobbin case area?
  A: Stop immediately and remove the thread mass methodically—birdnesting is common, but forcing the hoop or ripping thread can damage parts.
  • Stop the machine completely before hands go near the needle path.
  • Cut the thread underneath the hoop first, then remove the hoop without yanking.
  • Remove the bobbin case and extract thread fragments with fine-point tweezers.
  • Success check: The machine turns freely again and the bobbin area is clear of thread bits and lint.
  • If it still fails: Re-thread with the presser foot up and confirm the top thread is seated deep in the tension discs before restarting.
• Q: On a Brother embroidery machine, why does the outline still misalign even after the “I” test tension looks correct, and what is the next fix?
  A: Outline gaps usually indicate fabric shifting in the hoop, not a tension problem—stabilize and improve grip before chasing the dial.
  • Re-hoop the fabric “drum tight” and test again on scrap.
  • Add stabilization appropriate to the fabric (the guide notes cutaway is required for stretchy shirts; towels often need water-soluble topper plus backing).
  • Consider temporary adhesive spray to reduce drift when hooping slippery fabric.
  • Success check: The outline lands consistently relative to the fill across repeated runs without shifting.
  • If it still fails: Upgrade the clamping method (many users move to magnetic embroidery hoops when standard plastic hoops slip or cause hoop burn).
• Q: What mechanical safety rule should beginners follow when troubleshooting a Brother embroidery machine near the needle area during tension tests?
  A: Keep fingers, tweezers, and scissors out of the needle path while the machine is live, and fully stop the machine before clearing any jam.
  • Stop the machine immediately when thread jams, birdnesting, or unusual sounds occur.
  • Cut and remove thread only after motion has stopped completely.
  • Success check: Hands never enter the needle area until the machine is fully stopped and the hoop is stable.
  • If it still fails: Treat repeated jams as a setup issue (threading with presser foot up, needle condition, bobbin seating) and restart the checklist from preparation.
• Q: What magnetic-hoop safety rule should be followed when using magnetic embroidery hoops to reduce hoop burn and fabric shifting?
  A: Treat magnetic hoops as industrial pinch hazards and keep them away from pacemakers and magnet-sensitive items.
  • Keep fingers clear when the magnets clamp down to avoid severe pinches.
  • Store and handle magnets away from pacemakers, credit cards, and mechanical hard drives (the guide specifies at least 12 inches).
  • Success check: The fabric is clamped quickly without over-crushing fibers, and hooping is repeatable without the screw-tightening struggle.
  • If it still fails: Step back to hooping fundamentals (stabilizer choice and drum-tight hooping) before adjusting tension again.
