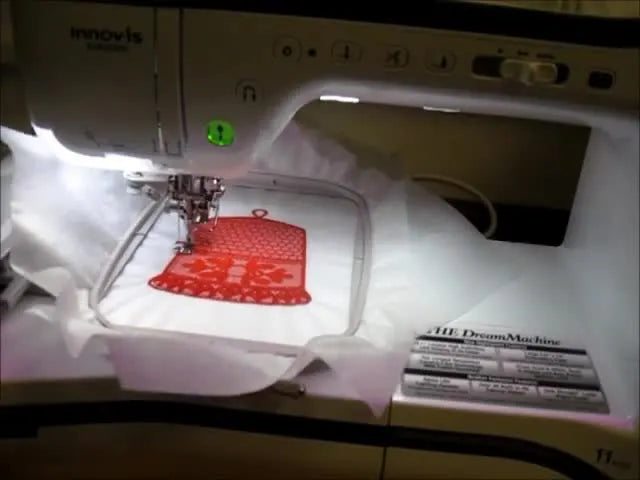

The 0.04" Save: Fixing a Free-Standing Lace Thimble on the Brother Dream Machine Without Unhooping

The Architecture of Lace: A Master Class in Recovering Dense FSL Designs

Dense free-standing lace (FSL) can feel like a “no mistakes allowed” project—because once the stitch count climbs past 15,000, the design starts pulling on itself with tremendous physical force. Every tiny shift becomes a visible scar. The good news? This thimble tutorial proves you can recover from a scary registration gap without ripping anything out or unhooping, as long as you stay calm, understand the physics of your stabilizer, and use the machine’s tools correctly.

Below is the full, industry-standard workflow for the Free-Standing Lace (FSL) thimble stitched in a 5x7 hoop on the Brother THE Dream Machine (Innov-is XV8500D). We will cover the stabilizer math, the cross-grain cutting trick, the matching bobbin habit that makes the back look professional, and the exact on-screen correction that saved the project.

Don’t Panic When FSL Shifts: What 19,702 Stitches Really Means for Water-Soluble Stabilizer

The design in the video is 5.61" x 4.34" and totals 19,702 stitches—and that number is the first “quality checkpoint” you should respect before you even touch the hoop.

The instructor uses a simple rule of thumb: one stabilizer layer maxes out around 10,000 stitches, so a 19,702-stitch FSL design needs two layers. That’s not superstition—it’s physics.

Why FSL Fails: When you stitch FSL, you’re not anchoring thread into a stable fabric weave. You’re building a heavy thread structure on top of a temporary scaffold (water-soluble stabilizer). As the needle penetrates the same area repeatedly (sometimes 5-6 times in a single millimeter), the stabilizer gets perforated and weakened. Meanwhile, satin stitches and dense fills create "pull"—they physically contract the material. If the scaffold can’t resist that pull, the whole lace “walks,” and you get gaps where the outline misses the base mesh.

Expert Reality Check & Safety Margin: Even with two layers, a dense lace design can still pull if the stabilizer is stiff or hooped with uneven tension.

• The Fix: Use a high-quality Fibrous Water Soluble Stabilizer (WSS), often called "Vilene" or "Badgemaster" type (looks like fabric, not plastic wrap).
• Hidden Consumable: Always have a fresh 75/11 Sharp Needle (not Ballpoint) installed. A dull needle will "punch" the stabilizer rather than pierce it, destroying your scaffold faster.


The Bobbin Color Rule for Free-Standing Lace: Make the Backside as Pretty as the Front

In normal embroidery, you’d typically run a lighter bobbin thread (usually white 60wt or 90wt) to keep the design soft. But FSL is different: the back is not hidden. The back is the product.

So the instructor winds a bobbin using the same orange thread as the top thread—because any contrast bobbin, even a pin-prick of white, will show through the lattice structure and ruin the illusion.

Bobbins: The "Rule of Three" She recommends winding three bobbins for this single project. Dense lace eats thread at an alarming rate. Stopping mid-run to wind a bobbin is the #1 cause of "user-induced shifts"—you inevitably bump the hoop or tug the fabric while re-threading.

Pro Tip (Production Mindset): Before you press start, check your tension.

• Sensory Check (The "Spiderweb" Test): Pull a few inches of thread from your bobbin case. It should flow smoothly with slight resistance, like pulling a spiderweb, but not snap back. If you use the same weight thread in top and bottom, you might need to slightly loosen your top tension or tighten your bobbin tension to ensure the knot forms perfectly in the center (or slightly to the side, buried in the lace).


Lock In the 5x7 Hoop Choice on the Brother Dream Machine Before You Cut Anything

The video confirms the best hoop for this design is 5x7. That sounds obvious, but here’s the trap I see constantly in professional studios: "Hoop Drift." People cut stabilizer for the hoop they think they’re using, only to realize the design orientation requires a larger frame.

The Pre-Cut Protocol:

1. Digital Check: Confirm the design falls within the safe sewing area on-screen (remember, the actual sewable area is smaller than the physical hoop).
2. Physical Check: Locate your 5x7 inner and outer frame. Check the screw mechanism—is it stripped? Is there built-up adhesive on the inner ring?
3. Margin Check: Cut your stabilizer at least 1.5 inches larger than the hoop on all sides. You need this "handle" to pull wrinkles out.

The Limits of Standard Hoops: If you are doing a lot of hooping every day, the standard "screw and push" hoops can fatigue your wrists and, more importantly, provide inconsistent tension. One side might be drum-tight while the corner is loose. This inconsistency is the enemy of FSL.

If you’ve been searching for a faster, more repeatable way to hoop—especially when your hands get tired—this is where professionals look at a hooping station for embroidery. The real benefit isn’t speed alone; it’s repeatable tension and vertical placement, ensuring your stabilizer grid is perfectly square every time.

The Cross-Grain Stabilizer Trick: Cut Mesh Water-Soluble Stabilizer in Two Directions to Fight Pull

This is one of those veteran moves that separates the hobbyist from the master. It relies on the material properties of non-woven fabrics.

The instructor cuts two sheets of mesh-like (fibrous) water-soluble stabilizer:

• Layer 1: Cut “straight” (up/down).
• Layer 2: Cut diagonally (on the bias).

Then she stacks them so the grain directions cross each other (like an 'X').

Why it works: Even "non-woven" fibrous stabilizers have a subtle “give” direction. If both layers align, they will stretch together when the 19,000 stitches start pulling. By crossing the grain, you create a "plywood effect," where the strength of one layer cancels out the weakness of the other. This significantly reduces the chance of the dreaded "hourglass" distortion.

Warning: Do not substitute the clear, plastic-like water-soluble film (topping) for this base. The video specifically calls for mesh/fibrous stabilizer. Plastic film will perforate, stretch, and eventually slice apart under dense satin stitches, causing your project to explode inside the machine.

Hooping Mesh Water-Soluble Stabilizer: Tight, Smooth, and Even (Not “Drum Until Distorted”)

Once the two layers are cut, hoop them in the 5x7 hoop.

Sensory Check: The "Tambourine" Tap

• Tactile: The stabilizer should feel tight, flat, and offer no resistance when you run your hand over it.
• Auditory: Tap the stabilizer with your fingernail. It should make a dull, drum-like sound (thump-thump). If it sounds flabby or loose, the lace will shift.
• Visual: Look at the grid lines on the stabilizer (if present). They should be perfectly straight, not bowed.

The Tension Dilemma & The Magnetic Solution: Hooping two layers of slippery stabilizer in a standard hoop is frustrating. You tighten the screw, you push the inner ring, and the bottom layer slips. You try again. This friction often leads to "Hoop Burn" or uneven tension bubbles.

If you’re doing this often and want to eliminate the struggle of "chasing the stabilizer," magnetic hooping is a legitimate engineering upgrade. For Brother users, a magnetic hoop for brother dream machine clamps the stabilizer layers flat instantly. The magnets apply even vertical pressure around the entire perimeter, preventing the "slip-and-drag" that happens when you tighten a standard hoop screw. This consistency is critical for high-stitch-count FSL.

Warning (Magnetic Safety): Magnetic hoops are powerful industrial tools. Keep magnets away from pacemakers/implanted medical devices. Keep fingers clear when the magnetic ring snaps into place to avoid severe pinching injuries (blood blisters are common for careless users).

The “Background Mesh” Stitch-Out: How to Tell If Your Design Is Truly Free-Standing Lace

In the video, the machine first stitches a foundation grid/mesh directly onto the stabilizer. This is the hallmark of true FSL: it builds its own fabric (a thread scaffold) before adding decoration.

The instructor notes an important fallback: if your lace design doesn’t stitch that background mesh first, it is likely a "Lace Look" design meant for fabric. In that case, you must hoop organza or tulle (color-matched) with the design to act as the permanent support.

Operation: The "Sweet Spot" Speed Dense lace puts high load on your machine.

• Action: Reduce your machine speed. If your machine can do 1000 stitches per minute (SPM), slow it down to 600-700 SPM.
• Why: Slower speeds reduce the vibration and the "whip" of the thread, leading to more precise placement and less heat buildup in the needle (which can melt the stabilizer).
• Sensory Check: Listen to the machine. A rhythmic, smooth hum is good. A harsh, banging sound indicates the needle is struggling to penetrate the dense layers—change the needle immediately.


Let the Brother Dream Machine Build the Dense Lace Body—But Watch the Left Edge Like a Hawk

As the machine stitches the dense red pattern, your job is active monitoring. Do not walk away to make coffee.

What to Watch For:

• Outline Drift: Is the satin border sitting centered on the net mesh?
• The "Shadow" Gap: A sliver of space appearing between the fill and the outline.
• Puckering: Is the stabilizer pulling away from the hoop edges?

In the video, the issue becomes visible as a gap on the left side, where the satin outline misses the background mesh. This is due to Pull Compensation failure—the stitches pulled the stabilizer inward, and the machine (blindly following coordinates) placed the next stitches where the stabilizer used to be.

Spotting a Registration Gap in FSL: The One Thing You Must Not Do (Unhoop)

The instructor points directly to the gap and gives the most important instruction in the entire rescue:

Don’t take it out of the hoop yet.

That’s not drama—that’s strategy. The moment you unhoop, you lose the Global Zero point (the X/Y axis reference). You will never be able to re-hoop it exactly the same way to finish the repair.

Why the Gap Happened: The video attributes it to high stitch density pulling the stabilizer to the left. Expert Insight: This is almost inevitable with designs over 15k stitches. The thread tension accumulates. If your stabilizer hooping wasn't "drum tight" (or if you didn't use the cross-grain trick), the physics of the thread wins, and the material moves.

The Built-In Camera Rescue on Brother THE Dream Machine: Scan the Hoop and Re-Register Mid-Project

This is where the Brother Dream Machine’s camera feature earns its price tag. It transforms a "ruined" project into a "saved" one.

The Rescue Workflow:

1. Stop Immediately: As soon as you see the gap, stop the machine.
2. Scan: Use the built-in camera scanning feature. The machine will take a high-res photo of the actual fabric inside the hoop.
3. Overlay: The screen will display the digital design overlaid on the photo of the real stitches.
4. Diagnose: You will visually see that the red digital line (where the needle wants to go) does not align with the red thread (where the needle has been).


The 0.04" Nudge: Correcting Pull Compensation by Moving the Design on the Y-Axis

The video shows the instructor moving the design by 0.04 inches (approx 1mm).

The Logic: You are not moving the design to make it look better on screen; you are moving the coordinates to match the physical reality of the shifted stabilizer.

• Action: Enter Edit mode. Use the arrow keys to nudge the design until the digital outline sits perfectly on top of the stitched mesh in the photo.
• Precision: 0.04" sounds tiny, but in lace, a 1mm gap means the structure falls apart.

Prevention Strategy: If you find yourself constantly nudging designs, your hooping technique is the root cause. If the stabilizer stack is slipping under the ring, no amount of camera magic will save you perfectly every time. Many commercial shops move to embroidery hoops magnetic specifically to remove this variable. The magnetic clamping force is uniform around the entire perimeter, unlike screw-tightened hoops which have "loose spots" furthest from the screw.

Stitch Timeline Navigation: Back Up, Then Restart at 16,120 Stitches to Close the Gap Cleanly

After realigning, you cannot just press "Start." If you do, the machine might stitch over areas already done. You need to perform Stitch Surgery.

The Timeline Protocol:

1. Estimate: Look at the screen. The instructor estimates the shift began around stitch 16,000.
2. Navigate: Use the +/- stitch keys (or the timeline slider) to move the needle position back in time.
3. Verify: The instructor chooses to restart at 16,120 stitches. This overlaps the previous stitching slightly (locking the thread) and ensures the new, corrected path begins exactly where the gap started.

Expected Outcome: The outline now stitches 0.04" over, closing the gap and locking onto the base mesh.

Verify the Repair Before You Touch Scissors: What a Successful FSL Fix Looks Like

Once the machine finishes the section, pause and inspect. DO NOT pop the hoop yet.

The Final QA Check:

• Structural Integrity: Poke the gap area gently. Is it connected?
• New Offsets: Did the nudge cause a misalignment on the other side of the design? (Usually, localized nudges are fine, but check anyway).
• Bobbin Show-Through: Check the back. Is it solid color?

Only when you are satisfied should you remove the hoop.

Finishing Free-Standing Lace: Trim Close, Then Rinse for Stiffness (or Wash for Softness)

The finishing sequence in the video is straightforward, but the "Chemistry of Stiffness" is often misunderstood.

1. Rough Trim: Remove the project from the hoop.
2. Fine Trim: Use curved embroidery scissors or double-curved snips to trim the stabilizer to within 1/8" of the stitching.

Warning: Scissors are the enemy of lace. One slip cuts a structural thread, unraveling the whole thimble. Trim away from the lace edge, not toward it.

1. The Water Bath: Run under warm tap water.

The Stiffness Spectrum:

• For Structural Items (Like this Thimble): Rinse just until the slimy feel disappears, then stop. Leave some dissolved stabilizer in the fibers. Shape it (put it on your finger or a dowel) and let it dry. It will dry hard as plastic.
• For Wearable Lace (Collars/Cuffs): Soak in a bowl of warm water for 15 minutes, change the water, and soak again. Or, run through a laundry cycle (in a garment bag). This removes all stabilizer, leaving the lace soft and drapey.


3 Critical Checklists for Success

1. Prep Checklist (The "Invisible" Work)

• Design Specs: Confirm stitch count (19,702) vs. Stabilizer Layers (Needs 2).
• Material: Verify stabilizer is Mesh/Fibrous WSS (Not film/topping).
• Needle: Install a Fresh 75/11 Sharp or 75/11 Embroidery needle.
• Bobbin: Wind 3 bobbins with the same color & weight as the top thread.
• Cut: Cut 2 sheets of WSS (one Straight grain, one Bias/Diagonal).

2. Setup Checklist (The "Engineering" Work)

• Hooping: Hoop both layers tight ("Drum Skin" feel). No wrinkles, no bowing.
• Clearance: Ensure the hoop arm has free movement (no walls/cables blocking).
• Speed: reduce machine speed to 600-700 SPM.
• Alignment: Double-check hoop is clicked/locked in securely.

3. Operation Checklist (The "Pilot" Work)

• Mesh Check: Watch the first 1,000 stitches. Is the grid square?
• Drift Monitor: Watch the outline registration, especially on the left side.
• Emergency Stop: If a gap appears, STOP. Do not unhoop.
• Cam Rescue: Use camera scan → Zoom → Nudge (0.04") → Restart at specific stitch (e.g., 16,120).
• Final QA: Verify gap closure before removing from hoop.

Decision Tree: Stabilizer & Fabric Strategy

Use this logical flow to avoid the most common "why did my lace fall apart" errors:

Q1: Does the design stitch a standalone grid/mesh first?

• YES: It is True FSL.
  • Action: Use 2 layers of Mesh WSS (Cross-grain). No fabric.
• NO: It is a "Lace Look" motif.
  • Action: Hoop Organza or Tulle + 1 layer of WSS. The fabric provides the structure.

Q2: Is the stitch count over 15,000?

• YES: High probability of pull/distortion.
  • Action: Use Magnetic Hoop (if avail) or double-check tightness. Slow machine to 600 SPM.
• NO: Standard risk.
  • Action: Normal speed (700-800 SPM) is acceptable.

The Upgrade Path: When to Justify New Tools

If you only make one lace thimble a year, the standard hooping method shown is perfectly workable. But if you are doing production runs or your hands ache from tightening screws, consider these specific upgrades:

1. Problem: "My wrists hurt" or "The stabilizer keeps slipping when I tighten the screw."
   • Solution: A brother 5x7 magnetic hoop eliminates the twisting motion and applies clamping pressure vertically. This saves your hands and ensures the stabilizer layers don't shift during the hooping process.
2. Problem: "I can never get the stabilizer straight/square."
   • Solution: A hoop master embroidery hooping station allows you to use a jig to hold the hoop while you place the stabilizer. While an investment, it guarantees that "Layer 1" and "Layer 2" act as a single, unified drum skin every time.
3. Problem: "I see hoop burn (ring marks) on my darker items."
   • Solution: While less relevant for FSL (which has no fabric), for your other projects, a brother magnetic embroidery frame is the industry standard for preventing crush marks on velvet, corduroy, or performance wear.

By respecting the physics of the thread, prepping your stabilizer like an engineer, and using your machine's camera as a safety net, you can turn a potential disaster into a flawless piece of lace.

FAQ

• Q: On Brother THE Dream Machine (Innov-is XV8500D), how many layers of mesh/fibrous water-soluble stabilizer are needed for a 19,702-stitch free-standing lace (FSL) design?
  A: Use 2 layers of mesh/fibrous WSS for a 19,702-stitch FSL design as a safe starting point.
  • Confirm: Read the stitch count in the design info before hooping anything.
  • Stack: Hoop two WSS sheets together (do not substitute plastic film/topping as the base).
  • Slow down: Run dense lace at about 600–700 SPM to reduce pull and vibration.
  • Success check: The first background mesh stitches stay square with no drifting outlines.
  • If it still fails: Re-check hoop tension for uneven tight/loose spots and switch to a fresh 75/11 Sharp needle.
• Q: On Brother THE Dream Machine (Innov-is XV8500D), why should the bobbin thread match the top thread color for free-standing lace (FSL)?
  A: Match bobbin color to top thread because the backside of FSL is visible and contrast thread will show through the lace.
  • Wind: Prepare about three matching bobbins before starting so you do not stop mid-run.
  • Check: Pull bobbin thread to feel smooth, slight resistance (not jerky, not snapping back).
  • Adjust: If using same thread top and bobbin, tension may need small tweaks—use the machine manual as the reference.
  • Success check: The back of the lace looks solid in the same color with no obvious bobbin “specks.”
  • If it still fails: Stop and correct tension before continuing; frequent stops to re-wind bobbins often lead to accidental hoop bumps and shifts.
• Q: How do you cut and stack mesh/fibrous water-soluble stabilizer cross-grain (bias + straight) to reduce pull on dense FSL designs?
  A: Cut one WSS sheet straight and one on the bias, then stack them crossed to resist stitch pull.
  • Cut: Make Layer 1 straight (up/down) and Layer 2 diagonally (on the bias).
  • Stack: Align the two layers so the “grain” directions cross like an X.
  • Hoop: Hoop both layers together smoothly and evenly (no wrinkles or bubbles).
  • Success check: The hooped stabilizer grid lines (if present) look straight, not bowed, and the mesh does not hourglass as stitching builds.
  • If it still fails: Verify the stabilizer is fibrous/mesh type (not clear film) and re-hoop for more even tension.
• Q: What are the correct hooping tension checks for two layers of mesh water-soluble stabilizer in a 5x7 hoop for Brother THE Dream Machine (Innov-is XV8500D) FSL?
  A: Hoop the stabilizer tight, smooth, and even—firm like a drum skin but not distorted.
  • Smooth: Run a hand over the surface to confirm no ripples and no “grabby” spots.
  • Tap: Use the “tambourine” test—tap with a fingernail for a dull, drum-like thump (not floppy).
  • Inspect: Look for straight grid lines and even tension all the way around the hoop.
  • Success check: The stabilizer stays flat while stitching the foundation mesh, with no puckering toward the hoop edges.
  • If it still fails: Re-hoop and consider a magnetic hoop approach for more repeatable, even clamping if frequent slipping happens during screw-tightening.
• Q: On Brother THE Dream Machine (Innov-is XV8500D), what should you do when a registration gap appears in dense free-standing lace (FSL), and why must the project stay hooped?
  A: Stop immediately and keep the project in the hoop—unhooping loses the alignment reference needed for an accurate repair.
  • Stop: Pause the machine the moment a “shadow gap” appears between outline and mesh.
  • Do not unhoop: Keep the hoop locked to preserve the original X/Y reference.
  • Prepare: Use the machine’s on-screen tools to re-register before stitching further.
  • Success check: After correction, the satin outline stitches centered on the mesh with no visible gap.
  • If it still fails: Re-scan and re-check that the design overlay matches the actual stitches before restarting.
• Q: How do you use the built-in camera on Brother THE Dream Machine (Innov-is XV8500D) to re-register a shifted FSL design and correct with a 0.04-inch (about 1 mm) nudge?
  A: Scan the hoop, overlay the design, then nudge the design coordinates until the on-screen outline matches the real stitches (the example correction shown is 0.04").
  • Scan: Use the built-in camera to capture the stitched area in the hoop.
  • Overlay: Compare the digital outline to the actual stitched mesh on-screen.
  • Nudge: Enter Edit and move using arrow keys until the overlay sits directly on the stitched foundation.
  • Success check: The digital outline and the real stitched mesh visually align with no offset on the problem edge.
  • If it still fails: Do not guess—scan again and adjust in smaller steps; repeated nudging usually points back to hooping tension or stabilizer slip.
• Q: On Brother THE Dream Machine (Innov-is XV8500D), how do you back up the stitch timeline and restart around 16,120 stitches to close an FSL gap without restitching the whole design?
  A: After re-aligning, move the stitch position backward to overlap slightly, then restart from a point near where the shift began (the example restart point shown is 16,120 stitches).
  • Estimate: Identify roughly where the misregistration started (often visible as the first edge that drifts).
  • Navigate: Use the +/- stitch keys or timeline slider to back up to a safe overlap point.
  • Restart: Stitch forward after alignment so the corrected path locks into previously stitched areas.
  • Success check: The repaired section closes the gap and feels structurally connected when gently pressed before unhooping.
  • If it still fails: Stop again and re-check overlay alignment; if the stabilizer is still moving in the hoop, re-hoop before continuing.
• Q: What are the safety rules for using magnetic embroidery hoops for dense stabilizer hooping (pinch hazards and medical device risks)?
  A: Treat magnetic hoops as powerful tools—keep fingers clear during clamping and keep magnets away from pacemakers/implanted medical devices.
  • Keep clear: Place the magnetic ring carefully and avoid letting it snap onto fingers.
  • Control: Lower the magnetic top frame down evenly rather than dropping it.
  • Separate: Store magnets away from sensitive medical devices and follow the product safety guidance.
  • Success check: The hoop closes without finger contact, and the stabilizer is clamped evenly with no slip.
  • If it still fails: If clamping feels uneven or unsafe, switch back to a standard hoop method and focus on even tension and secure locking before stitching.
