That “Applique” Shield on Baby Lock Destiny & Brother Dream Machines Isn’t Appliqué—It’s a Fast Badge/ Patch Trick (Done Right)

If you’ve ever tapped that little shield icon on a Baby Lock Destiny or a Brother Dream Machine and thought, “Great—this will turn my design into appliqué,” you’re not alone.

Here’s the calm truth: on these machines, the Applique button (shield icon) is being used as a badge/patch background generator—a quick way to build a framed “island” behind your design so you can stitch it on a separate fabric piece and finish it like a patch.

And if you’re new, I hear the frustration from the comments: when the camera doesn’t stay on the screen, it’s easy to miss the exact taps and the order. So below, I’m going to lay it out like I would for a new staff member in a production room—clear checkpoints, expected outcomes, and the “why” that prevents wasted stabilizer and ugly puckers.

The Misunderstood Applique Shield Icon on Baby Lock Destiny & Brother Dream Machines—Why It Makes a Badge, Not True Appliqué

Judy’s key point is the one that saves you hours: the shield icon creates a badge/frame around your design; it does not magically convert the internal parts of your owl (or logo) into classic appliqué shapes.

That matters because the workflow is drastically different. In a professional setting, we distinguish them like this:

• Traditional Appliqué: Stitch placement → Lay fabric → Stitch tack-down → Remove hoop & Trim → Satin finish.
• The Badge Generator (This Method): Stitch placement on stabilizer → Float fabric → Stitch tack-down → Stitch the entire original design on top → Trim and finish later.

If you are trying to make patches efficiently without learning complex digitizing software yet, this is a powerful, underused feature. It allows you to use scraps that are too small to hoop, saving you money on fabric yardage.

One more thing: if you’re building a patch line for teams, clubs, or small-batch orders, this technique pairs naturally with floating embroidery hoop methods because you’re intentionally stitching fabric that is not captured by the hoop's inner ring. Floating is the secret to avoiding "hoop burn" (those crushed rings on velvet or performance wear), and understanding this badge function is your first step toward mastering it.

Pick the Design in the Baby Lock Destiny “Kids Corner” (or Any Built-In Design) Without Guessing Hoop Size

In the video, Judy goes to Kids Corner and selects the owl design (No. 003), then presses Set to enter the edit screen.

On-screen, the machine shows data that serves as your "pre-flight" instrument panel:

• Design size: 1.97" x 1.69" (approx. 50mm x 42mm)
• Stitch count: 5,346 stitches
• Estimated time: 8 minutes

Master Class Insight: Decoding Density Those numbers aren’t just trivia—they’re your first “sanity check” for patch-making. A design with 5,000+ stitches packed into a tiny 2-inch square is dense.

• The Risk: High density creates high "pull compensation" forces. The thread will try to shrink the fabric, causing the patch to curl like a potato chip (cupping).
• The Solution: Do not rely on tear-away stabilizer alone for dense patches. You need structural integrity.

Checkpoint (what you should see): The owl appears on the main editing canvas. Visually confirm there is ample empty space around the design for the badge border we are about to create.

Tap the Baby Lock/Brother “Applique” Shield Button in the Edit Menu—Watch the Badge Outline Appear Instantly

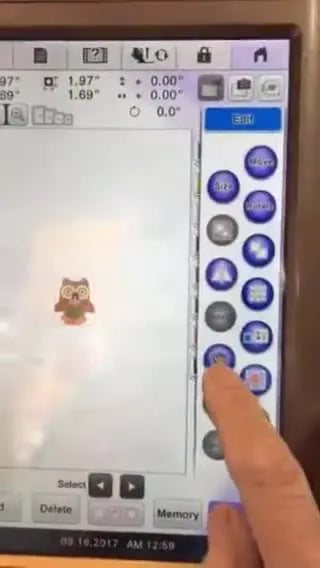

Now the magic moment: in the Edit sidebar, Judy taps the shield-shaped Applique icon.

Expected outcome: A pink outline/frame appears around the owl.

This is the badge background being generated. It automatically calculates a "safe zone" distance from your design. Judy explicitly warns that it’s a badge function, not a “turn my owl into appliqué” function.

Commercial Reality Check: Volume vs. Tooling If you are doing this once for a grandchild's backpack, the standard tools are fine. However, if you are scaling this into repeatable patch orders (e.g., 50 patches for a local scout troop), the "stabilizer-only hooping + floating fabric" method is efficient, but standard plastic hoops can be a pain point. Tightening that screw 50 times a day leads to wrist strain.

This is where professionals often compare a hooping station for embroidery setup versus magnetic frames. A station ensures placement accuracy, but magnetic frames solve the speed issue. If you find yourself dreading the re-hooping process, that is your trigger to investigate magnetic options.

Change the Badge Border Thread Color (Sky Blue 64) Without Accidentally Editing the Wrong Layer

Judy opens the color choices and scrolls until she reaches the applique-related steps. She points out there are three applique-related items generated by the machine:

1. Applique Position: The placement line (usually stitches first).
2. Applique Material: The tack-down line (stitches second to hold fabric).
3. Applique: The final satin or decorative finish (stitches last).

She selects the last one and changes it to Sky Blue (64).

Checkpoint: The outline on the screen changes from pink to blue.

Why this fails for beginners: The machine interface groups these tightly. If you accidentally change the color of the first step (Position), you won't see a visible change on the finished product, but your machine might stop for a color change you didn't expect. Always verify you have selected the final satin stitch layer (usually the thickest line representation on screen) before hitting "Color Change."

The “Hidden” Prep Before You Stitch: Stabilizer, Scrap Fabric, and a Clean Needle Area (So the Patch Doesn’t Ripple)

Before you stitch anything, set yourself up like a pro. The video shows white stabilizer hooped and a white scrap fabric ready to float.

The "Invisible" Consumables List Beginners often miss the tools that aren't on the machine. You should have:

• 75/11 Embroidery Needles: A Sharp point (if using woven cotton) or Ballpoint (if using jersey/knit).
• Temporary Spray Adhesive (e.g., 505 or quilt spray): or embroidery tape. You need something to stop the floating fabric from sliding.
• Curved Snips: For trimming threads close to the surface without gouging the fabric.

Prep Checklist (Complete this before touching “Embroider”):

1. Hoop Check: Tap the stabilizer in the hoop. It should sound like a tight drum skin ("thump-thump"). If it sounds loose or papery, re-hoop. Loose stabilizer guarantees a distorted patch.
2. Fabric Check: Ensure your scrap fabric is at least 1 inch larger than the design on all sides.
3. Thread Path: Clear any "bird's nests" or lint from the bobbin case.
4. Hands/Safety: Ensure scissors are not resting on the machine bed where the hoop arm travels.

Warning (Physical Safety): This workflow involves putting your hands near the needle to place floating fabric. ALWAYS wait for the green "Start/Stop" light to turn red (or keep your foot off the pedal) when placing fabric. Keep fingers, snips, and loose sleeves away from the needle area when lowering the presser foot.

Skip Forward to the “Applique Position” Placement Line Using Needle +/-—So You Know Exactly Where the Patch Fabric Goes

In the embroidery screen, Judy uses the needle position / + / – navigation to skip through until she reaches the applique position step (one of the final steps added by the badge function).

She does this for a very practical reason: she wants the machine to stitch the outline onto the stabilizer first so she can place the fabric accurately.

Checkpoint: The screen highlights the placement line step and shows just the outline.

Mental Model: Think of this as drawing a "parking spot" for your fabric. You aren't sewing the patch yet; you are sewing the map. If you skip this, you are guessing where the fabric goes, and you will likely stitch off the edge of your scrap.

Stitch the Placement Line Directly on the Stabilizer—Your Patch “Map” Before Fabric Touches the Hoop

Judy starts the machine and stitches the outline onto the bare stabilizer.

Expected outcome: A single running-stitch outline of the badge shape appears on the stabilizer.

Speed Tip: For this step, speed doesn't matter much. But if you hear the machine thumping loudly, your hoop might be bouncing.

Commercial Context: The Efficiency Bottleneck If you are doing one patch, standard hoops are fine. If you are doing 50, you are currently realizing that 60% of your time is spent wrestling with the hoop screw and smoothing stabilizer. This is where the fatigue sets in. Many operators who do frequent “stabilizer-only hooping” eventually look at a magnetic embroidery hoop option. Why? Because you can clamp the stabilizer in 2 seconds flat, and the magnet holds it evenly without the "tug-and-screw" struggle. It's not just a luxury; for bulk work, it's an RSI (Repetitive Strain Injury) preventative.

Float the Scrap Fabric Over the Placement Stitch—Smooth It, Don’t Stretch It

Judy takes a scrap piece of fabric and lays it directly on top of the hoop, covering the placement stitches completely. She smooths it gently by hand.

This is the floating technique in its simplest form.

Sensory Guide: How to Smooth Fabric

• Visual: The fabric must cover the stitched line by at least 1/2 inch on all sides.
• Tactile: When smoothing, use the flat of your palm.
• The Trap: Do NOT pull the fabric taut. If you stretch the fabric while taping it down, it will snap back (relax) after you take it out of the hoop, creating permanent wrinkles around the owl. It should lay flat and relaxed, like a bedsheet before you tuck the corners.

If you struggle with "Hoop Burn" (permanent rings on delicate fabrics), floating is the answer. However, keeping floating fabric secure can be tricky on screw hoops. magnetic hoops for babylock embroidery machines effectively solve this by allowing you to clamp the fabric and stabilizer together easily if you choose, or providing a completely flat surface that makes floating larger items (like towels) significantly easier without inner-ring friction.

Stitch the Tack-Down Line (“Applique Material”) to Lock the Fabric—And Why Judy Doesn’t Trim Yet for a Badge

Judy lowers the presser foot and stitches the “applique material” step, which tacks the fabric down.

Expected outcome: The machine sews the outline again, securing the fabric to the stabilizer.

Now the key nuance from the video:

• Standard Method: Usually, you remove the hoop and cut close to the stitches now.
• Judy's Badge Method: She leaves the excess fabric in place.

Why? Physics. We are about to dump 5,000 stitches into the center of this patch. That creates a lot of pull. By leaving the excess fabric (the "margin") attached, the fabric maintains its structural tension across the whole hoop area. If you trim it now, the center might warp or "cup" as the owl is stitched. Trim later, after the heavy lifting is done.

The “0-Stitch Reset” on Baby Lock Destiny/Brother Dream—The Move That Prevents Misaligned Overlays

After the tack-down, Judy uses the navigation tool to go back to 0 stitch (the beginning).

Checkpoint: The progress bar resets to the start.

Crucial Logic: You have just essentially "hijacked" the machine's order to build a foundation. Now, you must tell the machine, "Okay, the foundation is ready, go back to the start and stitch the actual design."

Troubleshooting: If you forget this step, the machine will continue to the next color after the tack down, which might be the satin border (or nothing). You will end up with a blank patch or a border with no owl. Always verify the stitch count is back to "1" or "0".

Stitch the Original Design on Top of the Tacked Fabric—Ignore the Color Prompts If You’re Demonstrating (Like Judy Did)

Judy starts embroidering the owl design on top of the patch fabric. The machine begins filling the purple body.

She mentions she tried to convert it to a one-color design for the demo, but the interface wouldn’t let her do it from that screen mode, so she abandoned the attempt and continued.

Lesson: In production, do not fight the machine mid-stitch. If the colors are wrong but the thread is right, just keep hitting "Start."

Comment-driven pro tip: If you are using a single-needle machine, this is the slow part—changing threads 5-6 times for one owl. If you find yourself staring at the machine waiting to change threads, frustrated by the downtime, this is the primary indicator you are outgrowing your equipment. Multi-needle machines (which hold 10-15 colors at once) aren't just faster; they liberate you to walk away and do other tasks while the owl finishes completely.

The “Why” Behind This Badge Workflow: Hooping Physics, Stabilizer Choices, and How to Keep the Patch Flat

Let’s talk about the physics. A patch is a battle between thread tension (pulling in) and stabilizer strength (pushing back).

Stabilizer Decision Tree: The "Recipe" for Success

Do not guess. Use this logic to minimize failures.

• Question 1: Will the patch be washed often?
  • Yes (Uniforms): Use Cut-Away (2.5oz or mesh). Tear-away eventually disintegrates in the wash, leaving the patch floppy and wrinkled.
  • No (Decorative/Bag): Tear-away might suffice, but Cut-Away is always safer.
• Question 2: Is the design dense (like the Owl)?
  • Yes: Must use Cut-Away. Density eats tear-away stabilizer, perforating it until the patch falls out of the hoop mid-stitch.
  • No (Redwork/Line Art): Tear-away is fine.
• Question 3: What is the patch fabric?
  • Stable (Twill/Denim): Standard stabilizer.
  • Unstable (T-shirt scrap/Felt): Use Fusible (Iron-on) Stabilizer on the back of the scrap before floating it. This turns stretchy fabric into stable fabric.


Troubleshooting the Scary Moments: Color Prompts, Monochrome Confusion, and “Why Didn’t My Border Change?”

Here is a structured guide to the panic moments that might occur.

The Upgrade Path for Faster, Cleaner Patch Runs: When Magnetic Hoops Beat Screw Hoops (and When They Don’t)

If you make a patch once a month, keep using what you have. But if you are doing badges for teams or finding customers, your "time cost" is the enemy.

The Diagnostic:

• The Pain: Fingers hurt from tightening screws? Hoop burn ruining velvet patches? Spending more time hooping than stitching?
• The Cure: Magnetic Hooping Systems.

Options for your growth phase:

1. Level 1 (Home/Hobby): babylock magnetic embroidery hoops allow you to snap the stabilizer in place instantly. They are gentler on fabric and faster for floating techniques.
2. Level 2 (Semi-Pro): magnetic embroidery hoops for brother (compatible versions) offer the same speed advantages.
3. Level 3 (Scaling Up): If you are running orders of 50+ items, you need to look at SEWTECH multi-needle machines. They use commercial-grade magnetic frames that hold garments tighter than any home hoop can, and the machine doesn't stop for thread changes.

Warning (Magnetic Safety): These are not fridge magnets. Industrial-strength magnetic hoops can pinch fingers severely. Keep them away from pacemakers, insulin pumps, and magnetic storage media (credit cards, hard drives). Always slide the magnets apart; never pry them potentially snapping them back together.

Setup Checklist (Right Before You Press Start): The 30-Second Routine That Prevents 80% of Patch Failures

• Design: Correct badge outline is generated and visible.
• Sequence: Machine is set to the correct step (Placement Line).
• Harding: Stabilizer is hooped "drum-tight."
• Materials: Scrap fabric is cut to size (Design + 1 inch margin).
• Adhesion: Spray or tape is ready to secure floating fabric.
• Clearance: Nothing is blocking the embroidery arm movement.


Operation Checklist (While It’s Stitching): What to Watch and When to Intervene

• The Tack-Down: Watch the first 10 stitches closely. If the fabric bubbles, stop immediately and smooth it.
• The Reset: Did you remember to navigate back to Stitch 0 after the tack-down? Verify the machine is starting the Owl, not the next border step.
• Resilience: If a thread breaks, back up 10 stitches before restarting to avoid a gap.
• Patience: Do not trim the fabric yet! Wait until the design is 100% complete and you have removed the hoop from the machine.


The Result You’re Really After: A Stable Badge Foundation You Can Trim and Finish Cleanly

Judy’s workflow is designed to give you a stable stitched badge background so the main design (the owl in the demo) stitches cleanly on top.

The Finishing Workflow:

1. Remove hoop from machine (do not un-hoop material yet!).
2. Use Appliqué Scissors (duckbill scissors) to trim the excess fabric close to the tack-down line—but be careful not to cut the stabilizer!
3. (Optional) If you want a freestanding patch, stitch the final satin border on a water-soluble stabilizer. If you want a patch sewn onto a shirt, you generally wouldn't use this exact method (you'd stitch directly on the shirt).

By mastering this "Badge Button," you unlock a massive library of patch possibilities without needing expensive software. And remember, if the tools start fighting you—if the hoops slip or the needles break—it's usually not you; it's a signal that your skills have outgrown your current setup. Listen to that signal.

FAQ

• Q: Why does the Baby Lock Destiny Applique shield icon create a badge frame instead of converting a built-in design into true appliqué shapes?
  A: This is normal—the Baby Lock Destiny Applique shield icon generates a patch/badge background outline around the entire design, not classic appliqué pieces inside the design.
  • Use the feature for patch-making: stitch the placement line on stabilizer, float fabric, stitch tack-down, then stitch the full original design on top.
  • Avoid expecting “placement–trim–satin” on internal shapes unless the design was digitized for traditional appliqué.
  • Success check: a single outline/frame appears around the design immediately after tapping the shield icon.
  • If it still fails: delete the generated frame and recreate it after finalizing design size and position.
• Q: How can a Brother Dream Machine user change the badge border color without accidentally recoloring the wrong “Applique Position” layer?
  A: Recolor only the last applique-related object (the final satin/finish), not the placement or tack-down steps.
  • Open the color/step list and locate the three applique-related items (Position, Material, Applique/finish).
  • Select the last applique item (usually shown as the thickest line) and apply the new color.
  • Success check: the border/outline on-screen visibly changes color (for example, pink to blue).
  • If it still fails: scroll again and confirm the selected item is the final satin/finish step, not the Position step that may not look different in the result.
• Q: What is the correct Baby Lock Destiny workflow to stitch the badge placement line first and “skip forward” using Needle +/- so floating fabric lands exactly inside the outline?
  A: Navigate to the “Applique Position” placement step first, stitch that outline on bare stabilizer, then place (float) the fabric using the stitched line as your map.
  • Tap Needle +/– (or step navigation) until the applique placement/position outline is highlighted.
  • Stitch the placement outline directly onto hooped stabilizer before adding fabric.
  • Success check: you see a single running-stitch outline on the stabilizer with no fabric attached yet.
  • If it still fails: re-hoop stabilizer drum-tight and restitch the placement line; a loose hoop can distort the outline and ruin alignment.
• Q: Why does a Baby Lock Destiny or Brother Dream Machine patch ripple or wrinkle when floating scrap fabric, and how can the floating embroidery technique be stabilized?
  A: Fabric shifting is common—secure the floated scrap so it cannot slide or bubble during the tack-down stitch, and smooth without stretching.
  • Apply temporary spray adhesive or embroidery tape to prevent the scrap from moving before the tack-down step.
  • Lay the scrap fabric over the placement stitches and smooth with your palm; do not pull the fabric taut.
  • Success check: during the first 10 tack-down stitches, the fabric stays flat with no bubbling or creeping.
  • If it still fails: stop immediately, smooth again, and re-secure corners; if the presser foot is pushing the fabric, add more adhesion before restarting.
• Q: What does the “0-stitch reset” mean on a Baby Lock Destiny or Brother Dream Machine after the tack-down line, and what happens if the reset is skipped?
  A: After the tack-down, you must navigate back to stitch 0 so the machine starts the original design from the beginning on top of the tacked fabric.
  • Finish the tack-down (“applique material”) step, then use navigation to return to 0 stitch/start.
  • Verify the progress bar resets before pressing Start so the owl/design stitches next.
  • Success check: the stitch counter/progress indicates the design is restarting at the beginning (often showing 0 or 1 at the start).
  • If it still fails: if the machine continues to a border step or stops with “nothing stitched,” reset again to 0 and confirm you are not beginning at a later color block.
• Q: What “hidden prep” items should be ready before stitching a badge patch on a Baby Lock Destiny or Brother Dream Machine so the patch does not distort or bird-nest?
  A: Prepare the consumables and do a quick clean check before pressing Embroider—most patch failures start with needle, adhesion, or lint issues.
  • Install a fresh embroidery needle (choose sharp for woven cotton; ballpoint for knit/jersey).
  • Clear lint and any thread tangles (“bird’s nests”) from the bobbin area and confirm the thread path is clean.
  • Keep temporary spray adhesive or tape and curved snips ready before starting.
  • Success check: hooped stabilizer sounds “drum-tight” when tapped and the needle area is free of loose thread/lint.
  • If it still fails: re-hoop stabilizer tighter and recheck the bobbin case area for hidden tangles before restarting.
• Q: What safety steps prevent finger injuries when placing floating fabric near the needle on a Baby Lock Destiny or Brother Dream Machine during badge patch making?
  A: Treat fabric placement like a live needle zone—stop the machine completely and keep hands/tools clear before lowering the presser foot.
  • Wait for the machine to be fully stopped (Start/Stop inactive) before placing or smoothing floating fabric.
  • Keep fingers, curved snips, and loose sleeves away from the needle path and hoop travel area.
  • Remove scissors from the machine bed so the embroidery arm cannot collide with them.
  • Success check: the presser foot is down only after hands are fully away, and nothing is sitting where the hoop arm moves.
  • If it still fails: pause immediately anytime fabric bubbles or shifts—do not “reach in” while the needle is moving; stop first, then adjust.
