Take Back Control in Embroidery Studio: Manual Stitch Angles, Clean Entry/Exit Points, and Smarter Auto-Trims That Actually Run on a Machine

If you have been digitizing long enough, you have felt that specific sinking feeling: the design looks pristine on your computer screen—clean lines, perfect fills—but the actual machine run is full of tiny, irritating failures. You hear the machine slowing down for awkward travel stitches, the sharp th-th-chunk of unnecessary trims, or you watch in horror as a fill angle fights the grain of your jersey knit, puckering the fabric instantly.

The machine isn't broken. The machine is just following instructions.

The good news is that Wilcom Embroidery Studio gives you the levers to fix 90% of these production headaches—but only if you know where the “hidden” switches live. In this workflow guide, we are going to strip away the confusion and enable manual control for stitch inclination (fill direction) and entry/exit points. Then, we will set a rational auto-trim rule in Connection Policy so your files run cleaner, faster, and with fewer thread breaks.

The Calm-Down Moment: Why Embroidery Studio “Auto” Isn’t Wrong—It’s Just Not Your Shop Floor

Embroidery Studio is powerful, but it is blind. It can automatically place start/end points and determine stitch direction as you create blocks to speed up your workflow. However, the software does not know you are stitching on a stretchy performance polo, or that your operator is tired and hooping slightly off-center.

Here is what experienced digitizers learn the hard way: Auto-decisions are made in a vacuum. The software assumes a perfect, stable universe. Reality, however, involves gravity, fabric stretch, and human error.

When you take manual control, you aren't “fighting the software”—you are aligning the file with physical reality. You are acting as the bridge between the digital vectors and the physical needle. This is particularly crucial if you are running batch jobs. In high-volume environments, tools like professional hooping stations quietly become part of the quality equation. Consistent garment placement allows your carefully chosen entry/exit points to land exactly where you planned them, rather than drifting into visible areas due to sloppy loading.

The “Hidden” Prep in System Parameters: Set Yourself Up Before You Touch a Single Node

Before we draw a single shape, we need to adjust the specialized controls found inside System Parameters. Think of this as checking your mirrors before driving.

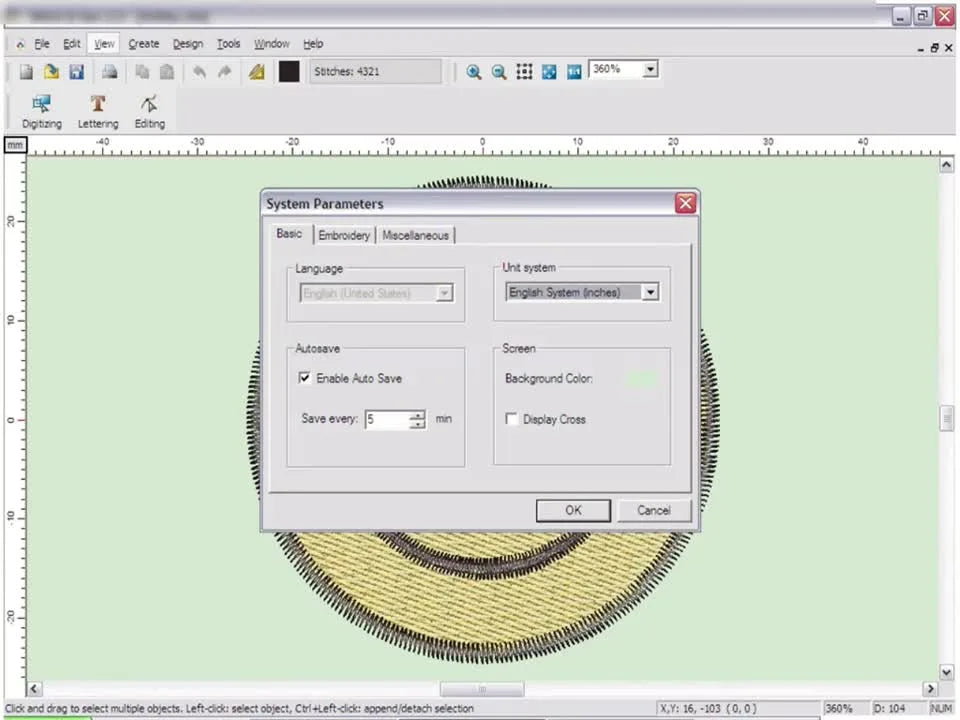

Open System Parameters (Tools → System Parameters)

1. Navigate to the top menu bar.
2. Click Tools.
3. Select System Parameters (or press the shortcut F2).

You will see three tabs: Basic, Embroidery, and Miscellaneous.

A quick note on the Basic tab (small setting, big comfort)

In the Basic tab, Embroidery Studio allows you to switch your cursor effectively. If you struggle to see exactly where you are clicking, enable the crosshair cursor. This replaces the standard pointer with a large crosshair. While this doesn't change stitch quality, it provides a massive visual aid for precision clicking when setting entry/exit points on small, detailed shapes.

Prep Checklist (The "clean slate" routine):

• Verify Access: Confirm Key F2 opens System Parameters immediately.
• Visual Check: Decide if the crosshair cursor improves your clicking accuracy (highly recommended for beginners).
• System Health: Close heavy background apps (Chrome tabs, video players). Manual digitizing requires instant rendering; system lag makes the mouse feel "sticky" and frustrating.
• Safety Save: Save your current design file before changing global settings.
• Consumables Check: Ensure you have your physical tools ready—visual markers (like water-soluble pens) and temporary adhesive spray are often needed when planning complex paths on the actual garment.

Flip the Pro Switch: Enabling Manual Stitch Angle + Entry/Exit Points in Embroidery Studio

This is the critical step. By default, the software creates the object, creates the stitches, and moves on. We are going to interrupt that process to demand control.

Enable manual input control (System Parameters → Embroidery tab)

1. In the System Parameters window, click the Embroidery tab.
2. Locate and check the box labeled:
   • Input “Stitch Angle” and “Entry/Exit Points” manually during creation
3. Click OK.

Once enabled, the software's behavior changes. Now, every lime you create a shape, Embroidery Studio will pause and prompt you to dictate:

• Stitch inclination angle: The direction the thread lays across a fill block.
• Entry point: The exact coordinate where the needle penetrates to start the block.
• Exit point: The exact coordinate where the needle finishes to leave the block.

That “where it begins and finishes” control is not cosmetic—it is your primary defense against ugly tie-ins on the front of the garment, awkward travel lines that shadow through white fabric, and trims landing in high-visibility areas.

The Stitch-Angle Move That Makes Fills Look Expensive: Manual Inclination Control During “Stitch It”

After you draw your shape's outline, Embroidery Studio will now ask for direction before generating stitches. This is your chance to manage the physics of the fabric.

Manually define stitch angle (right-click → Stitch It)

1. Right-click your object (or finish drawing it) and choose Stitch It (or press Enter/Space depending on your input method).
2. Look for the Prompt: Watch the bottom-left status bar for the text “Input the direction”.
3. Draw the Vector: Click and drag a line across the shape to define the angle.

You will see a line appear across the shape indicating the chosen fill angle.

Expert Insight: The Physics of Pull Compensation

• The Golden Rule: Stitches pull the fabric perpendicular to the stitch direction.
• Sensory Check: If you stitch a square with the lines running horizontal (left-to-right), the square will shrink continuously from top-to-bottom. It will look like a rectangle when finished.
• Decision: You must choose an angle that cooperates with the fabric grain. If you are digitizing for unstable garments (hoodies, pique polos, performance knits), your angle choice prevents the "waffle effect" distortion.
• The Floating Variable: In production environments, techniques involving a floating embroidery hoop setup are common for difficult items. while floating can minimize hoop burn, it relies heavily on your stitch angle being correct because the fabric is less constrained than in a traditional hoop. If your angle fights the fabric here, you will see distortion.

Clean Starts, Clean Finishes: Setting Entry and Exit Points Without Creating Travel Nightmares

Once the angle is set, the software immediately prompts for the Entry/Exit. This is where you play "Connect the Dots" to ensure efficiency.

Set entry and exit points (follow the prompts)

1. Prompt: “Input the entry point”.
   • Action: Click exactly where you want the needle to start (e.g., closest to the previous object's end point).
2. Prompt: “Input the exit point”.
   • Action: Click where you want the block to finish (e.g., closest to the next object you plan to digitize).
3. Generation: After the second click, the stitches generate.






Setup Checklist (The "Pathing" Strategy):

• Hide the Knot: Choose an entry point that will be covered by a later element (like a border or a second layer of thread).
• Avoid the Corners: Try not to place entry/exit points on sharp corners (less than 90 degrees). The tension here generates "birdnesting" build-up that makes corners look bulky.
• Think Ahead: Ask yourself, "Where does the needle need to be for the next object?" Placing an exit point on the right side when the next letter is on the left forces a long travel stitch (and likely an unwanted trim).
• Safety Buffer: If the design runs on multiple sizes (S to 3XL), pick points that remain safe even if the operator frames the shirt slightly crooked.

Warning: Physical Safety First
When testing your design file at the machine, keep your hands clear of the needle area and the moving frame/pantograph. Beginners often try to manually trim jump stitches while the machine is running to "save time." Do not do this. A sudden frame movement can drive a scissor tip into the needle path, shattering the needle into flying metal shrapnel or puncturing your finger.

The Trim Settings That Save Real Minutes: Connection Policy in Embroidery Studio (Design → Connection Policy)

Embroidery Studio controls the machine's automatic cutters. If you have ever watched a machine stop, make a clunk-thump sound, trim the thread, move 2mm, and start again—you know the pain of "over-trimming." It wastes massive amounts of time.

Access Connection Policy

1. Click Design in the top menu bar.
2. Select Connection Policy (or memorize the shortcut Ctrl+H).




Configure the auto-trim threshold (The "Sweet Spot")

Inside the Global Connection Policy dialog:

1. Find the “In case of jump” section.
2. Select Trim if the stitch is longer than this limit.
3. The Magic Number: Verify or adjust the value to 200.
   • Note: The unit is usually 1/10 mm. So, 200 = 20 mm (2 cm).
4. Click OK.


What you just did (The "Shop Floor" Translation): You told the software: "If the jump to the next object is less than 20mm (about the width of a thumb), just leave a loose thread—don't cut."

Why 2 cm? Because cutting takes about 6–10 seconds of machine cycle time (slow down, cut, tie-in, speed up). If you have 50 small letters, avoiding trims between them can save 5 minutes per run. This is essential wilcom embroidery studio auto trim settings discipline; you are digitizing for throughput, not just aesthetics.

The “Why” Behind These Two Settings: How Manual Control Prevents Puckering, Thread Breaks, and Ugly Tie-Ins

These two workflows—manual entry/exit and trim policy—are a yin-and-yang system.

1. Entry/Exit Points are your Travel Map: Good points reduce the distance the needle has to travel.
2. Trim Policy is your Traffic Cop: It decides if that travel allowed to happen without a stop.

• If your Exit point on Object A is right next to the Entry point of Object B, the distance is 0mm.
• Because 0mm is less than your 20mm (200) limit, the machine will not trim. It will flow instantly from A to B.
• Result: A smooth, quiet run with no tie-off "knots" visible on the surface.

If you digitize blindly (Auto), the software might put the exit 30mm away. The machine sees 30mm > 20mm, forces a trim, and leaves a visible tie-off knot on your nice clean fabric.

Quick Decision Tree: When to Trim vs When to Travel (and When to Redesign)

Use this logic flow when deciding between a trim (clean but slow) and a jump (fast but risky).

• Pro Tip: If you are digitizing for apparel where consistent placement is the main struggle, using a hooping station for machine embroidery can be the difference between a "perfect file" and "predictable production."

Troubleshooting: What to Do When the Result Still Looks Wrong

Even with manual controls, things go wrong. Here is how to diagnose issues based on what you see and hear.

Symptom: Fill angle looks right, but the fabric is "waffling" or puckering

• Likely Cause: The stitch angle is running parallel to the fabric's stretch, or your stabilizer is too weak for the density.
• The Fix (Software): Change the angle to 45 degrees relative to the weave.
• The Fix (Physical): Upgrade to a Cutaway stabilizer. For production runs, many professionals are switching to magnetic embroidery hoops. These hold the fabric firmly without the "burn" or stretching caused by forcing inner and outer rings together, reducing the variable of hoop tension.

Symptom: Machine sounds "choppy" and takes forever

• Likely Cause: Trim threshold is too low (e.g., 2mm), causing the machine to cut between every single letter.
• The Fix: Go back to Connection Policy and raise the limit to 200 (20mm).
• The Check: Verify your Entry/Exit points aren't logically miles apart.

Symptom: Long "floats" (loose threads) that snag on buttons/zippers

• Likely Cause: Trim threshold is too high, or you forgot to confirm a manual trim.
• The Fix: Lower the threshold carefully, or manually insert a "Trim" command (usually in the Machine menu) between those specific objects.

Symptom: Visible "knots" or white bobbin thread on top at start points

• Likely Cause: Entry point is in a high-visibility center spot; tie-in stitches are aggressive.
• The Fix: Move the Entry point to the edge of the object, or under an overlapping segment.

The Upgrade Path (When You’re Ready): Turning Better Digitizing Into Faster Production

Once your digitizing is clean, you will notice that the software is no longer your bottleneck. The bottleneck becomes physical handling.

Scenario A: You dread the "Hooping" process

If you spend more time wrestling garments into hoops than actually sewing, or if you are ruining shirts with "hoop burn" (shiny marks from friction):

• The Trigger: Wrist fatigue or rejected garments due to markings.
• The Solution: Consider a repositionable magnetic hoop.
• Why? Unlike traditional screw-tightened hoops, magnetic frames snap together instantly. They automatically adjust to fabric thickness—from thin silk to thick Carhartt jackets—without leaving crush marks.
• Note: Terms like magnetic embroidery hoop are often searched by professionals looking to speed up reloading times between runs.

Warning: Magnetic Field Safety
Industrial-strength magnetic hoops are incredibly powerful. Keep them away from pacemakers, insulin pumps, and other implanted medical devices. Also, watch your fingers—the "snap" when they close can cause severe pinch injuries if you aren't paying attention.

Scenario B: Trims and Color Changes are eating your profit

If your design is optimized perfectly, but you are still waiting 45 seconds for your single-needle machine to switch threads:

• The Trigger: You are turning down orders because you can't produce them fast enough.
• The Solution: It is time to look at multi-needle machines (like the SEWTECH line).
• Why? A multi-needle machine holds 10-15 colors ready to go. It doesn't stop to ask you to change thread. Combined with a dedicated embroidery sleeve hoop for hard-to-reach areas, you transform from a "hobbyist" into a "manufacturer."

Operation Checklist: A Fast “Before You Export” Routine That Prevents Most Shop-Floor Surprises

• Logic Check: Is System Parameters → Embroidery tab checkbox ON?
• Visual Pathing: Generate the stitches and hit Shift+R (Slow Redraw). Watch the needle path. Does it jump wildly? Does it enter smoothly?
• Trims: Verify Design → Connection Policy is set to 20mm (200 units).
• Consumables: Check your bobbin. (Sensory check: Is the bobbin thread visible as a thin white strip on the back, covering 1/3 of the width?).
• Test Sew: Always run a test on similar fabric. A file that runs on denim might destroy a t-shirt.

When you combination manual stitch control with sensible trim rules, you stop reacting to what the software decided—and start building files that run like you meant them to.

FAQ

• Q: How do I enable manual Stitch Angle and manual Entry/Exit Points in Wilcom Embroidery Studio so the software stops auto-placing start and end points?
  A: Turn on the manual input checkbox in System Parameters so Wilcom prompts for direction and Entry/Exit during object creation.
  • Open Tools → System Parameters (or press F2), then click the Embroidery tab.
  • Check Input “Stitch Angle” and “Entry/Exit Points” manually during creation, then click OK.
  • Recreate or “Stitch It” a test object and follow the prompts for direction, Entry point, and Exit point.
  • Success check: After finishing a shape, Wilcom displays prompts like “Input the direction”, then “Input the entry point” and “Input the exit point” before stitches generate.
  • If it still fails: Confirm you saved and reopened the design after changing global settings, and verify F2 reliably opens System Parameters.
• Q: How do I manually set fill direction (stitch inclination angle) in Wilcom Embroidery Studio during “Stitch It” to reduce puckering on stretchy performance polos?
  A: Manually draw the stitch-angle vector when Wilcom shows “Input the direction” so the fill works with fabric grain instead of fighting it.
  • Right-click the object and choose Stitch It (or finish drawing the object).
  • Watch the bottom-left status bar for “Input the direction”, then click-and-drag a line across the object to set the angle.
  • Test a second angle (often changing away from the fabric’s main stretch direction helps) before committing the whole design.
  • Success check: The fill looks flatter and the fabric stops “waffling” or drawing in immediately during the run.
  • If it still fails: Keep the angle change, but switch to a stronger stabilizer (the blog recommends upgrading to cutaway for unstable garments).
• Q: How do I set clean Entry and Exit Points in Wilcom Embroidery Studio to avoid visible tie-ins, long travel stitches, and bulky corners?
  A: Place Entry/Exit close to the previous/next objects and hide starts under future stitches instead of landing in open, high-visibility areas.
  • Click the Entry point near where the prior object ends, ideally where later stitching will cover it.
  • Click the Exit point toward the next object to reduce travel distance and unnecessary trims.
  • Avoid placing Entry/Exit on sharp corners (under 90°) to reduce “birdnesting” buildup and corner bulk.
  • Success check: The needle path redraw runs smoothly with fewer obvious jumps, and tie-in “knots” are not visible on the garment face.
  • If it still fails: Re-sequence objects or move points again so travel lines are hidden under later fills or borders.
• Q: What are the best Wilcom Embroidery Studio Connection Policy auto trim settings to stop over-trimming between small letters (Design → Connection Policy)?
  A: Set the global jump-trim limit to 200 so Wilcom only trims when the jump is longer than about 20 mm.
  • Open Design → Connection Policy (shortcut Ctrl+H).
  • In Global Connection Policy, find “In case of jump” and choose Trim if the stitch is longer than this limit.
  • Set the value to 200 and click OK.
  • Success check: The machine stops making constant “clunk-thump” trims between nearby elements and the run time noticeably drops.
  • If it still fails: Check whether Entry/Exit points are far apart (forcing long jumps) and reposition them so objects connect more logically.
• Q: Why does Wilcom Embroidery Studio produce long loose jump stitches (“floats”) that snag on buttons or zippers, and how do I fix it without ruining production speed?
  A: Reduce or selectively trim the specific long jumps—floats usually mean the trim threshold is too high or a manual trim was missed.
  • Identify where the float crosses open fabric or high-snag areas (plackets, zippers, button zones).
  • Lower the trim threshold carefully in Design → Connection Policy if too many long jumps are being allowed.
  • Insert a manual Trim command between those specific objects when only certain jumps are the problem.
  • Success check: No long loose threads are left spanning open areas where fingers, buttons, or hardware can catch.
  • If it still fails: Redesign the sequencing so the travel is covered by later stitches instead of crossing open fabric.
• Q: What should I do if Wilcom Embroidery Studio entry points create visible knots or white bobbin thread on top at the start of a fill?
  A: Move the Entry point away from the center and hide it under overlap so tie-ins don’t land in a high-visibility area.
  • Reassign the Entry point to an edge or a section that will be covered by another element (border, second layer, overlapping segment).
  • Keep starts away from the most visible “open” center zones on light fabrics.
  • Re-run Slow Redraw to confirm the start point lands where coverage will happen.
  • Success check: The start/tie-in is no longer obvious on the front, and the “knot” look is minimized.
  • If it still fails: Reduce the number of trims by improving object-to-object pathing so the machine restarts less often.
• Q: What machine-embroidery safety rule should I follow when test sewing Wilcom Embroidery Studio files to avoid needle and scissor injuries?
  A: Never try to hand-trim jump stitches while the embroidery machine is running—stop the machine first and keep hands away from the moving frame/needle zone.
  • Keep fingers outside the needle and frame travel area during stitching and redraw tests.
  • Pause/stop before touching thread tails or trimming anything near the needle path.
  • Treat sudden frame movements as normal behavior, not a warning you can “beat” by working faster.
  • Success check: No near-misses—hands never enter the frame sweep, and trimming only happens when motion is stopped.
  • If it still fails: Slow down the test process and plan trims in the file (or adjust Connection Policy) so there is less temptation to “chase” threads mid-run.
• Q: If Wilcom Embroidery Studio files are clean but production is still slow due to hooping time, hoop burn, and handling fatigue, what is the step-by-step upgrade path?
  A: Use a layered approach: optimize digitizing first, then reduce hooping variables with magnetic hoops, then consider a multi-needle machine if color-change downtime is the bottleneck.
  • Level 1 (Technique): Improve manual Stitch Angle + Entry/Exit so travel is short and trims are rational (use the 200 / 20 mm trim rule).
  • Level 2 (Tool): Switch from screw hoops to repositionable magnetic hoops if hooping causes hoop burn, stretching, or wrist fatigue.
  • Level 3 (Capacity): Move from single-needle workflow to a multi-needle platform (such as SEWTECH multi-needle machines) if trims and color changes still dominate cycle time.
  • Success check: Reloads feel faster and more consistent, with fewer rejected garments from marking/stretch and less time lost to stops.
  • If it still fails: Re-check whether the true bottleneck is hooping consistency (a hooping station may help) versus machine stops (trim policy and pathing).
