Tajima TMEZ-SC Review in the Real World: Auto Tension, DCP Presser Foot, and the Maintenance Habits That Keep a 15-Needle Shop Profitable

If you have ever watched a review for a "dream machine" like the Tajima TMEZ-SC and felt a mix of excitement and nausea about the price tag, you are not alone. This machine is marketed as the world's first AI-powered embroidery solution, promising to fix tension issues automatically. But as a shop owner or serious prosumer, your anxiety asks different questions:

• Will this stop me from ruining expensive garments?
• Can I trust a new employee to run it without a nervous breakdown?
• Is the "AI" a gimmick, or does it actually print money?

Let’s strip away the marketing gloss. I’m going to walk you through this machine not as a salesperson, but as a production manager who has seen every way a machine can fail. We will rebuild the insights from the video into a white-paper level guide, covering the exact maintenance, the sensory cues of a perfect bobbin drop, and the "tool upgrades" that actually matter when you start scaling up.

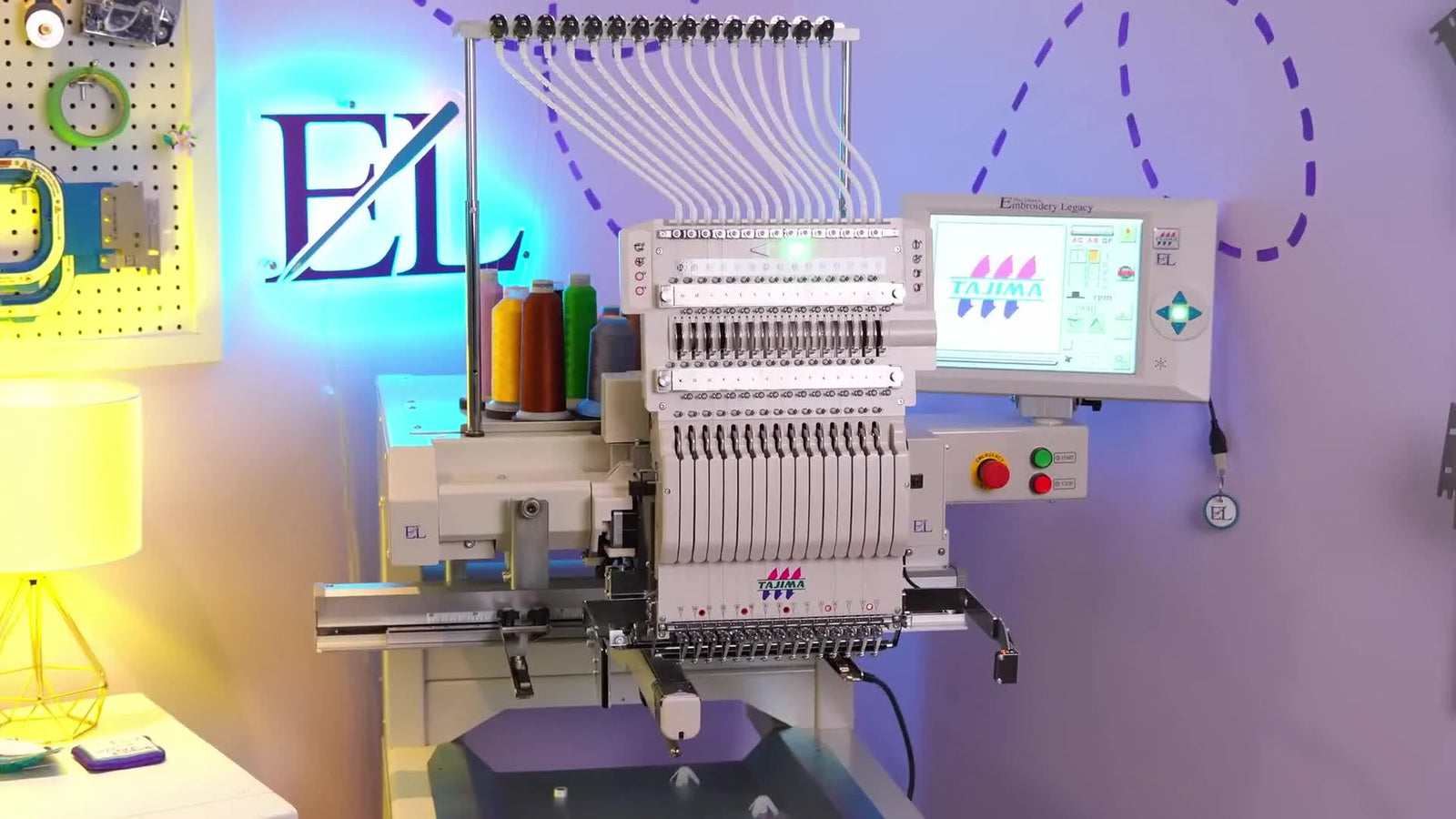

The Tajima TMEZ-SC (15-Needle Single Head) in Plain Shop Language—What You’re Really Buying

The unit in focus is a commercial workhorse: a 15-needle single-head machine with a slim cylinder arm. This arm is crucial—it allows you to penetrate deep into pockets, bags, and finished caps without the garment bunching up.

Key specs from the floor:

• Interface: 12.1" Touchscreen (Your command center).
• Speed: Rated for 1200 Stitches Per Minute (SPM). Note: Just because it goes 1200 doesn't mean you should drive it at 1200. We’ll discuss the "Sweet Spot" later.
• Accessories: Tubular hoops (green) and a cap driver system.


In the comments, pricing is estimated between $28k–$32k. This makes your stomach turn, right? But here is the Veteran Perspective: You are not buying a sewing machine; you are buying Consistency Insurance.

If a machine allows a junior operator to produce the same quality as a master (thanks to auto-tension), the machine pays for itself in labor savings. However, the machine is only half the equation.

The Hidden Bottleneck: Hooping

The video shows standard tubular hoops. These are fine for hobbyists. But in a production environment, traditional hoops are slow. You have to unscrew, push, pull, and pray you don't get "hoop burn" (permanent ring marks) on delicate fabrics.

If you are doing efficient garment runs, standard hoops will hurt your wrists and slow your output. This is where upgrading to magnetic hoops for tajima embroidery machines becomes a strategic business move. Magnetic frames snap on instantly, hold thick jackets without forcing screws, and eliminate hoop burn. Trigger point: If you are spending more than 45 seconds hooping a shirt, your tool is the problem, not your hands.

The Touchscreen Workflow on the Tajima TMEZ-SC: Where Speed and Mistakes Both Happen

The 12.1-inch screen controls the i-TM (Intelligent Thread Management) and speed. It looks like an iPad, but treat it like a cockpit.

The Cognitive Trap: Touchscreens make it too easy to tweak settings. An operator can accidentally change a global tension setting with two taps.

The Fix: Establish a "Pilot and Co-Pilot" rule. Only the lead operator changes the Stitch Quality Settings. Everyone else just hits "Load" and "Start." This simple protocol saves hours of "Who changed the settings?" arguments.

i-TM Intelligent Thread Management: The End of Tension Knob Babysitting (If You Respect the Basics)

Traditional machines rely on mechanical tension knobs (springs and discs). You have to feel the thread tension—it should pull with the resistance of using dental floss. The i-TM system replaces this with a computer that calculates exactly how much thread to feed for every stitch based on the digitizing data.

The Reality Check: "Don't Touch Tension?"

The video claims this ends tension adjustments. Yes, but with a major caveat.

i-TM handles the Top Thread. It cannot fix:

1. A dirty thread path: Lint is the enemy of consistency.
2. A bad needle: A burred needle shreds thread regardless of tension settings.
3. Poor Digitizing: If the density is bulletproof, the machine will struggle.
4. Bad Hooping: If the fabric drum isn't tight, the best tension system in the world can't save you.

The Takeaway: i-TM is a consistency amplifier, not a magic wand. You must still master the art of hooping for embroidery machine setups. If your fabric is loose, the software calculation fails. A tight, drum-like hoop is the prerequisite for AI success.

DCP Digitally Controlled Presser Foot: The Anti-Flagging Advantage for Caps, Foam, and Leather

This is the feature that should actually excite you. The DCP (Digitally Controlled Presser Foot) is not a spring; it is motor-driven. It can be programmed to hover exactly where needed, or press down firmly to stop "Flagging."

What is Flagging? Imagine stitching a structured cap. The cap front is stiff; the needle plate is far below. When the needle pulls up, the cap wants to lift with it (bounce). This bouncing creates "birdnesting" and misaligned outlines.

The Business Case for DCP

Caps are high-margin items ($25+ per unit). Ruining a cap costs you the blank + the time + the profit. By physically preventing the cap from bouncing, DCP reduces the reject rate on difficult items like Richardson 112s or leather patches.

However, realize that a tajima cap frame is just the hardware that holds the hat. The DCP is the system that stabilizes the stitch. They work together. If your cap driver is loose, DCP can't fix it. Check your driver cables annually for tension.

The Richardson 112 Cap Test: What the Video Shows (and What You Should Copy)

The host stitches a design on a Richardson 112—the industry standard "tough" hat due to its center seam and stiff buckram.

The Safety Zone: Design Constraints

A viewer asked about size limits. The channel correctly notes: 2.5 inches tall by 4.5 inches wide is the safe zone for low-profile caps.

Why? The closer you stitch to the bill or the sweatband, the more the cap curves away from the needle plate. This distorts the design.

• Safe: 2.25" height.
• Risky: 2.50" height.
• Danger: 2.75" height (Expect needle breaks and distortion).

Decision Tree: Choosing the Right Stabilizer (Backing)

Don't guess. Use this logic flow to stop cap puckering.

Start Here: What is the Cap Type?

1. Structured Mesh/Trucker (e.g., Richardson 112)
   • Challenge: The buckram is hard; the mesh is flimsy.
   • Solution: 2.5oz - 3.0oz Tearaway Backing.
   • Why: The cap already has structure. You just need a friction barrier.
2. Unstructured Dad Hat (Soft Cotton)
   • Challenge: No support; fabric shifts easily.
   • Solution: 3.0oz Cutaway Backing (MUST USE CUTAWAY).
   • Why: Tearaway will disintegrate under high stitch counts, leaving the hat unsupported. Cutaway locks the fibers in place.
3. Performance/Wicking Fabric
   • Challenge: Slippery and stretchy.
   • Solution: Fusible Cutaway or Sticky Backing.
   • Why: You need to adhere the backing to the cap to prevent sliding.

The “Hidden” Prep Before You Hit Start: What Experienced Operators Check (So You Don’t Waste a Cap)

Amateurs push "Start." Professionals perform a "Pre-Flight Check."

🟢 Pre-Flight Checklist (Do this every morning)

• Hook Area Check: Remove the needle plate. Is there a "birdnest" of thread hiding in the knife area? Blow it out.
• Needle Integrity: Run your fingernail down the needle tip. If you feel a "catch" (burr), change the needle immediately.
• Bobbin Status: Is the bobbin nearly empty? Don't risk it on a complex design. Swap it.
• Thread Path: Ensure the thread hasn't jumped out of the take-up lever (the metal arm that goes up and down).
• Oiling: Has it been 4-8 hours of run time? If yes, oil the hook.

The Speed Control Moment: Why the Video’s 900 RPM Example Matters More Than the Max Spec

The machine can do 1200 SPM. But the video shows it running at 900 SPM.

The Physics of Speed: At 1200 SPM, friction heats the needle. Hot needles melt polyester thread. Hot needles also melt the adhesive in stabilizers, gumming up the eye.

Recommended "Sweet Spot" Speeds:

• Standard Flats: 950 - 1000 SPM.
• Detail/Small Text (under 5mm): 750 - 800 SPM.
• Caps (Structured): 700 - 850 SPM.
• Caps (Unstructured): 600 - 700 SPM.
• Metallic Thread: 500 - 600 SPM (Slower prevents shedding).

Sensory Check: Listen to the machine. A rhythmic, humming "thump-thump" is good. A harsh, metallic clatter means you are running too fast for the stabilizer/hoop combo.

Oiling the Tajima TMEZ-SC: The Exact Schedule Shown (and the Two Places People Overdo It)

You cannot negotiate with friction. The maintenance schedule is mandatory.

The Protocol

1. Needle Bars: One drop on each bar Weekly. Tip: Do this on Friday so excess oil drips onto a paper towel over the weekend, not your first shirt on Monday.
2. Rotary Hook: One small drop on the "Race" (the metal track where the basket sits) every 4 to 8 running hours.
   • Visual Anchor: Look for the RED dot or the small oil port.

Warning: Mechanical Safety
Never oil the machine while it is running. Keep long hair, jewelry, and loose sleeves tied back. If a needle breaks, finding all the shards is mandatory—a piece of metal left in the hook mechanism can destroy a $500 part in broad daylight.

Consumable Alert: Keep White Lithium Grease on hand for the cam areas (usually an annual maintenance), but do NOT use standard oil there.

The Manual Bobbin Drop Test: Your Fastest Reality Check When Stitch Quality Goes Sideways

When the machine acts up, 90% of users blame the top tension. 90% of the time, it is the bobbin.

The video demonstrates the "Drop Test" (or Yo-Yo Test). This is a sensory skill you must master.

How to Perform the Perfect Drop Test:

1. Remove the bobbin case. Clean out lint from under the tension spring using a business card corner.
2. Insert the bobbin (ensure it spins Clockwise).
3. Hold the thread tail and let the case hang.
   • Result A: It falls to the floor. Too Loose. Tighten screw (Righty-Tighty).
   • Result B: It hangs and doesn't move, even if you shake it. Too Tight. Loosen screw (Lefty-Loosey).
   • Result C (The Goal): It hangs still, but when you give a sharp "jerk" downward (like a Yo-Yo), it drops 1 to 2 inches and stops. Perfect.

The Micro-Adjustment Rule: Only turn the screw a "clock hour" at a time (e.g., from 12 o'clock to 1 o'clock). It is incredibly sensitive.

Troubleshooting the Three Problems the Video Calls Out (Symptom → Cause → Fix)

Don't guess. Follow this diagnostic path to save money and sanity.

1. Fabric Flagging (Bouncing)

• Symptom: Outlines don't line up effectively; audio sounds like "slapping."
• Likely Cause: Presser foot is too high; hooping is loose; cap driver is loose.
• Quick Fix: Engage DCP (Low setting) to physically clamp the fabric. Check your backing density.

2. Thread Breaks / Birdnesting

• Symptom: Machine stops; huge clump of thread under the needle plate.
• Likely Cause: Upper thread slipped out of tension discs; Burred needle; Bobbin caught.
• Quick Fix:
  1. Re-thread the entire path (don't just tie it on).
  2. Check the needle orientation (Scarf must face back).
  3. Check the "Drop Test" on your bobbin.

3. Bobbin Tension Incorrect

• Symptom: White bobbin thread showing on top (I-stitching); or Top thread showing underneath loops.
• Likely Cause: Lint under the bobbin spring.
• Quick Fix: Clean the spring with a thin card. Perform Drop Test.

The Hooping Bottleneck Nobody Talks About: When a Standard Tajima Hoop Is “Fine” and When It’s Costing You Orders

The video shows standard green hoops. They work, but they use thumbscrews.

The Production Reality: Tightening a thumbscrew 100 times a day leads to Carpal Tunnel. Furthermore, standard hoops create "hoop burn"—a crushed ring of fabric fibers that ironing often cannot remove.

The Upgrade Path:

1. Hobbyist: Stick with standard hoops. Use "Magic Sizing" spray to remove hoop burn.
2. Prosumer: Upgrade to Magnetic Hoops (Mighty Hoops / SewTech).
   • Benefit: They self-adjust to fabric thickness (thick hoodies vs. thin tees).
   • Speed: Hooping takes 5 seconds, not 30.
   • Quality: Zero hoop burn.

Terms like tajima hoop often refer to the generic green hoops, but checking compatibility for magnetic upgrades is where smart shops invest their profit.

Warning: Magnetic Hazard
Commercial magnetic hoops are incredibly strong. They can pinch fingers severely (blood blister territory). Keep them away from pacemakers, credit cards, and hard drives. Never leave two magnets near each other where they can snap together unexpectedly.

Setup Checklist (the “don’t make me re-run this job” list)

Before you press the green button, execute this mental script:

• Design Orientation: Is the design right-side up? (Especially for caps).
• Trace Check: Run the "Trace" function. Does the presser foot hit the hoop plastic? If yes, resize or re-hoop.
• Backing: Do you have enough stabilizer? (Thick items need less, thin items need more).
• Bobbin: Do you have enough thread to finish the run?
• Clearance: Are sleeves/straps cleared away from the moving arm?

“Is AI Going to Kill Embroidery?”—The Comment Thread Got One Thing Exactly Right

There is a fear in the comments: Does this machine replace the skilled operator?

My Answer: No. It replaces the frustrated operator. Embroidery is 50% Science (Tension, Physics) and 50% Art (Digitizing, Placement). The TMEZ-SC handles the science, so you can focus on the art. It allows you to hire a less experienced operator to run production without them constantly battling tension knobs.

Operation Checklist (what to watch during the first 60 seconds of stitching)

The first minute reveals everything. Do not walk away.

• Listen: Is the sound rhythmic and smooth?
• Watch the Tail: Did the thread trimmer hold the tail, or did it pull out?
• Check Registration: Are the outlines lining up with the fill?
• Fabric Wave: Is the fabric pushing in front of the foot? (If so, stop and use spray adhesive or better hooping).

The Upgrade Conversation: When a 15-Needle Single Head Is the Right Move—and When You Should Think Bigger

The video discusses financing this $30k beast. For a home business, it is a massive leap.

The Growth Ladder:

1. Level 1 (Single Needle Home Machine): Learning the basics. Frustrating for multicolor designs.
2. Level 2 (Multi-Needle Prosumer - e.g., SEWTECH/Brother): 10-15 needles. Great for small orders.
3. Level 3 (Commercial Workhorse - Tajima TMEZ): Heavy duty, AI tension. Built for 24/7 running.

If you are struggling with single-needle limitations (changing thread manually), consider moving to a multi-needle platform. SEWTECH offers high-value entry points into multi-needle production that deliver commercial efficiency without the massive TMEZ price tag.

But if you own a tajima embroidery machine, maximize it. Don’t run it with cheap thread or sloppy hooping. Feed it quality data, maintain it religiously, and it will build your business.

Final Tip: When looking for a tajima embroidery machine hoop, remember that the hoop is your canvas stretcher. If the canvas is loose, the painting will be ugly. Invest in your holding tools (magnetic frames) before you blame the machine.

Quick FAQ Pulled from the Comments (De-Identified, Straight Answers)

Q: "What is the max hat size?" A: Stick to 2.5" tall x 5" wide. Pushing larger risks needle breaks and distortion.

Q: "Do I grease it too?" A: Yes, but rarely. Grease is for the gears (Cams) usually once a year. Oil is for the hook (Daily) and bars (Weekly). Check your manual.

Q: "Is it really 'AI'?" A: It is algorithmic automation. It uses data to make decisions. It’s smart, but it doesn't "think." It calculates.

Q: "Is the price worth it?" A: If you are losing $500 a week in ruined garments and wasted labor hours troubleshooting tension? Yes. If you are a hobbyist stitching one towel a week? No.

Final Take: The Tajima TMEZ-SC Is Less About “AI” and More About Repeatable Output

The machine is impressive. But remember this: A bad digitizer on a $30,000 machine will produce bad embroidery. A master digitizer on a $5,000 machine can produce art.

Use the AI to handle the tension variables, use the DCP to handle the physics of fabric bounce, and use your brain to handle the hooping and maintenance. That is the recipe for a profitable shop.

FAQ

• Q: How do I perform the Tajima TMEZ-SC bobbin case drop test to fix sudden stitch quality problems?
  A: Set Tajima TMEZ-SC bobbin tension so the bobbin case drops 1–2 inches only when you give a sharp downward “yo-yo” jerk.
  • Remove the bobbin case and clean lint from under the tension spring using a thin card corner.
  • Insert the bobbin so it spins clockwise, then hold the thread tail and let the case hang.
  • Turn the tension screw only one “clock hour” at a time (micro-adjustments are extremely sensitive).
  • Success check: The case hangs still, then drops 1–2 inches on a sharp jerk and stops.
  • If it still fails: Re-clean the spring area and confirm the machine is not being blamed for an upper-thread rethreading mistake.
• Q: What daily pre-flight checks prevent Tajima TMEZ-SC birdnesting under the needle plate during cap or flat runs?
  A: Do a short Tajima TMEZ-SC pre-flight inspection before pressing Start to prevent thread nests and wasted blanks.
  • Remove the needle plate and clear any hidden thread clumps in the hook/knife area.
  • Inspect the needle tip for a burr (replace immediately if it “catches” a fingernail).
  • Verify the upper thread is correctly seated and has not jumped out of the take-up lever.
  • Success check: The first 60 seconds sound smooth and rhythmic, with no clumping under the plate.
  • If it still fails: Re-thread the entire upper path (do not tie-on) and then perform the bobbin drop test.
• Q: What is the recommended Tajima TMEZ-SC speed “sweet spot” to reduce thread breaks on caps, small text, and metallic thread?
  A: Use slower, task-matched Tajima TMEZ-SC speeds because max speed increases heat and friction that drive breaks.
  • Run standard flats around 950–1000 SPM; run small text (under 5 mm) around 750–800 SPM.
  • Run structured caps around 700–850 SPM; run unstructured caps around 600–700 SPM.
  • Run metallic thread around 500–600 SPM to reduce shedding and heat-related failure.
  • Success check: The machine sounds like a steady “humming thump-thump,” not a harsh metallic clatter.
  • If it still fails: Re-check hooping tightness and stabilizer choice before touching tension settings.
• Q: How do I stop Tajima TMEZ-SC fabric flagging (bouncing) on caps, foam, or leather using the DCP digitally controlled presser foot?
  A: Reduce Tajima TMEZ-SC flagging by lowering and using the DCP presser foot to physically control bounce.
  • Engage DCP on a low setting to clamp the material instead of letting it lift with the needle.
  • Re-check hooping so the material is drum-tight and not shifting in the frame.
  • Verify the cap driver system is not loose (hardware looseness defeats stabilization).
  • Success check: Outlines register cleanly and the “slapping” sound of bounce is reduced.
  • If it still fails: Review stabilizer density/choice for the cap style and re-run a trace check for clearance.
• Q: What stabilizer backing should be used for Richardson 112 structured trucker caps on a Tajima TMEZ-SC to reduce puckering?
  A: For Richardson 112 structured mesh/trucker caps on a Tajima TMEZ-SC, start with 2.5 oz–3.0 oz tearaway backing as a friction barrier.
  • Identify the cap type first (structured trucker vs unstructured vs performance fabric) before choosing backing.
  • Use 2.5 oz–3.0 oz tearaway for structured trucker caps because the cap already provides structure.
  • Avoid guessing—match backing to the cap’s stiffness and how much support the fabric lacks.
  • Success check: The design lays flat without edge ripples, and registration stays consistent across the seam area.
  • If it still fails: Re-check design size/placement limits and confirm the cap is hooped and driven firmly.
• Q: What is the safe embroidery design size limit for low-profile caps on a Tajima TMEZ-SC to avoid distortion and needle breaks?
  A: Keep Tajima TMEZ-SC low-profile cap designs in the safer zone around 2.5 inches tall by 4.5 inches wide to reduce distortion risk.
  • Stay conservative as height approaches the bill/sweatband where curvature increases distortion.
  • Treat ~2.25" height as safer, ~2.50" as risky, and ~2.75" as high risk for breaks and distortion.
  • Trace the design path before stitching to confirm clearance and placement.
  • Success check: The design maintains shape without pulling or leaning as it approaches curved cap zones.
  • If it still fails: Reduce height/width and slow the cap speed range before changing tension settings.
• Q: What is the correct Tajima TMEZ-SC oiling schedule for the rotary hook and needle bars, and where do operators overdo it?
  A: Oil the Tajima TMEZ-SC rotary hook every 4–8 running hours and oil the needle bars weekly, using only small controlled drops.
  • Add one small drop to the rotary hook race (use the visual reference such as the red dot/oil port).
  • Add one drop on each needle bar weekly (a safe habit is doing it on Friday to avoid staining Monday garments).
  • Never oil while the machine is running; control loose sleeves, hair, and jewelry around moving parts.
  • Success check: Stitching runs smoothly without squeaks, and there is no fresh oil transfer onto the garment.
  • If it still fails: Verify the correct lubricant is being used in the correct location and follow the machine manual for cam/grease intervals.
• Q: When do magnetic embroidery hoops become a better choice than standard Tajima tubular hoops for production, and what magnetic safety rules matter?
  A: Upgrade from standard Tajima tubular hoops to magnetic hoops when hooping time and hoop burn become the bottleneck, but handle magnets like pinch hazards.
  • Time the hooping process; if hooping a shirt regularly takes more than ~45 seconds, the tool is likely limiting output.
  • Use magnetic hoops to reduce hoop burn on delicate fabrics and to speed up loading (snap-on handling).
  • Keep magnetic hoops away from pacemakers, credit cards, and hard drives, and never let magnets snap together uncontrolled.
  • Success check: Hooping is faster with fewer ring marks, and the fabric holds evenly without screw overtightening.
  • If it still fails: Re-check fabric tension (“drum tight”) and stabilizer choice before blaming the machine or the design.
