Tajima TMEX-C1501 Take-Up Lever Adjustment: The 100° Check That Saves You From Costly Aluminum Breakage

When a Tajima take-up lever drifts out of alignment, it doesn’t just look “a little off”—it destabilizes your entire production line. You might hear a rhythmic clicking sound during color changes, notice reliable needles suddenly shredding top thread, or face the dreaded 211 or 382 error codes.

I’ve watched seasoned shop owners lose half a day changing needles and checking rotary hook timing, only to realize the culprit was a simple mechanical drift caused by a hoop strike.

This guide upgrades a standard repair video into a shop-floor standard operating procedure (SOP). We will walk through the field procedure to realign a Tajima TMEX-C1501 take-up lever. We will use the 100° Red Zone method—the fastest, most accurate way to diagnose and fix this issue without calling a technician.

The 100° “Red Zone” Reality Check (The 10-Second Diagnosis)

Before you unscrew anything, you need to confirm the diagnosis visually.

1. Locate the Degree Wheel: Find the main shaft degree wheel on the side of the machine.
2. Rotate to Red: Manually rotate the shaft until it sits exactly at the 100-degree mark (the red zone).
3. The "Horizon" Check: Stand directly in front of the machine head. Look across the row of take-up levers.


At 100°, the levers should form a perfect, straight horizontal line. If one lever is sitting higher or lower than its neighbors (breaking the horizon), that lever has slipped its timing. Frequent causes include a hard hoop strike or a "birdnest" jam that forced the mechanism out of place.

Pro Tip: Do not "eyeball" the degree wheel from an angle. If you are standing 2 feet to the left, parallax error will make 95° look like 100°. Get your eyes square to the indicator. Precision here saves hours of chasing ghost problems on your tajima embroidery machine.

The “Calm Before the Fix”: Prep & Safety

This adjustment is mechanically simple but physically unforgiving. The internal clamp you will adjust is made of cast aluminum. It is strong but brittle—if you overtighten it, it will crack, turning a free 15-minute adjustment into a $300 parts replacement.

Required Tools

• Phillips Screwdriver (Magnetic tip recommended to catch falling screws).
• T-Handle Hex Wrench (Allen Key) – Size depends on your specific model year, usually 2.5mm or 3mm.
• Flashlight (Phone lights are okay, but a penlight is better for the deep casting holes).
• Magnetic Parts Tray (Essential hidden consumable—don't put screws in your pocket).

Warning: Mechanical Safety Danger. Before removing the rear tension cover, Power Down the machine and unplug it from the wall. You will be working near exposed circuit boards and sharp internal castings. A slipped tool inside a live machine can short out the mainboard instantly.

Prep Checklist (Do not skip)

• Machine is powered OFF and unplugged.
• Main shaft is set exactly to the 100° (Red Zone) mark.
• You can visually identify the misaligned lever from the front.
• A clean space on the thread tree is cleared to rest the tension assembly.
• You have mentally committed to the "Snug + Half Turn" tightening rule (explained below).

Step 1: Remove the Middle Thread Guide Cover

We need to expose the mechanism. Start with the white plastic cover located just above the needle bar area.

• Locate: Find the two recessed holes on the front of the cover.
• Loosen: Use your Phillips screwdriver to loosen the two screws. You likely do not need to remove them fully from the plastic; just unscrew until they release the thread.
• Action: Pull the cover straight off towards you.


Sensory Check: If the cover feels stuck, do not pry it. It should slide off with zero resistance. If it fights you, the screws are not fully disengaged.

Step 2: Disconnect the Brain (Tension Assembly Cover)

Move to the upper tension assembly box (the unit with all the tension knobs).

• Release: Reach behind the assembly. Feel for the plastic locking tabs at the corners.
• Action: Push down/in on the tabs to release the catch and pop the rear cover off. Set it aside.


Now, handle the electronics:

• Identify: Look for the multi-colored ribbon cable labeled CN2 plugged into the circuit board.
• Disconnect: Grip the white plastic connector (not the wires). Pull it straight out.


Note: On some older C1501 models, this plug enters from the bottom. If you can't reach it yet, proceed to unscrew the faceplate carefully, then unplug it as you gently pull the unit away.

Step 3: The "Threaded Flip" (Pro Technique)

Most novices fully unthread the machine here. Don't do that. It wastes 20 minutes and introduces tension variables. Use the "Threaded Flip."

1. Unscrew: Remove the four screws securing the tension base faceplate (one in each corner). Place them in your magnetic tray.


2. The Flip: Gently lift the entire tension assembly off the head.
3. Park It: Flip it upside down and rest it securely on top of the thread tree or the machine head casting.
4. Verification: Ensure the thread tubes are not kinked or crushed.


By keeping the tubes and thread paths intact, you start stitching immediately after the repair without re-threading 15 needles.

Setup Checklist (Ready to Adjust)

• CN2 ribbon cable is unplugged and hanging free (no strain).
• Tension base assembly is resting securely on the thread tree.
• You have a clear line of sight to the side of the metal head casting.
• Flashlight is ready.

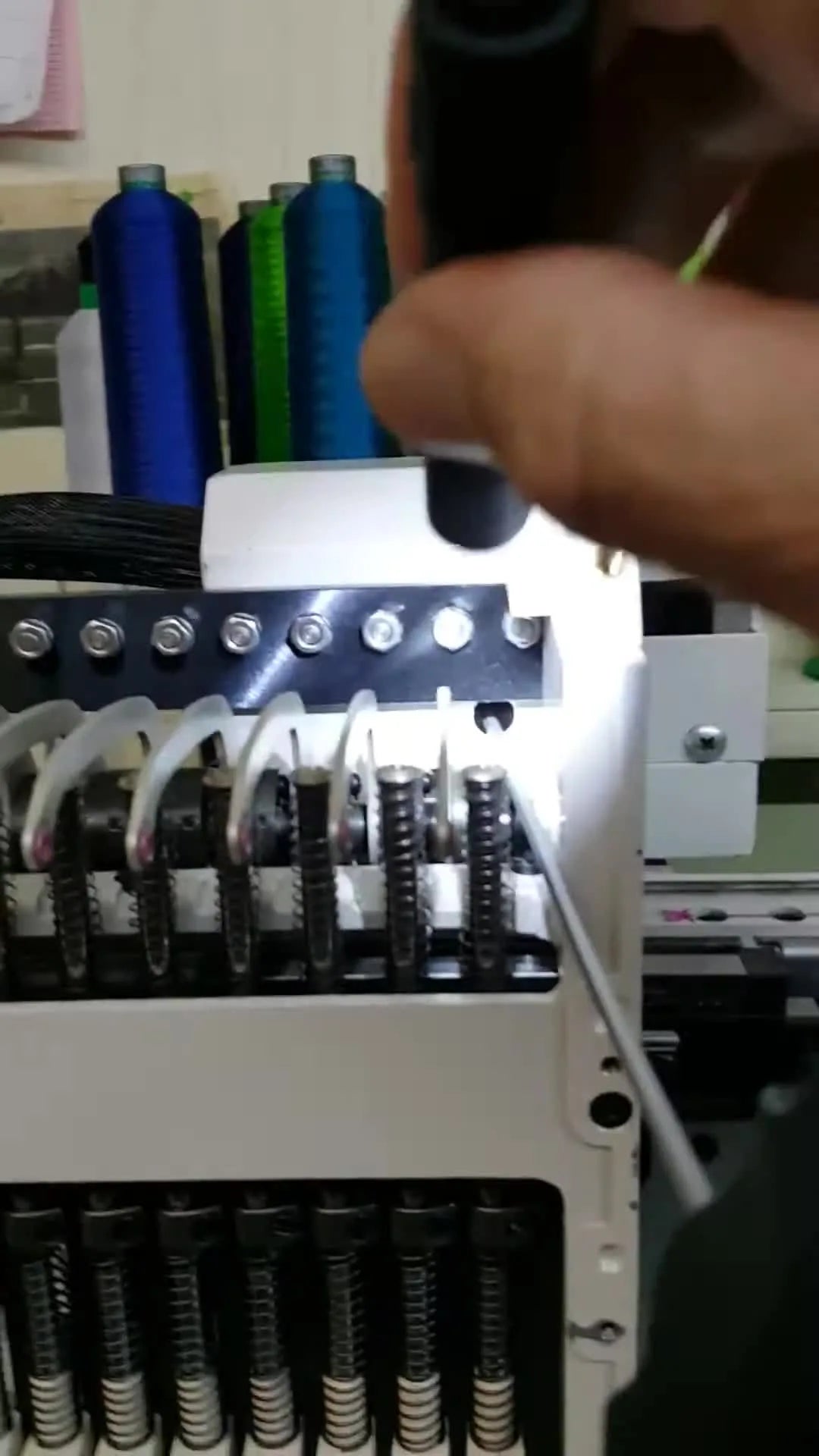

Step 4: The Surgical Strike (Locating the Screw)

This is the critical moment. You are looking for the clamp that connects the take-up lever to the main drive shaft.

1. Locate Access: Look for a small access hole on the side of the metal casting, aligned with the lever mechanism.


2. Illuminate: Shine your light inside. You are looking for a Socket Cap Screw (Allen head).


Common Confusion: "Are there screws for each needle?"

• Answer: No. There is one main clamp screw accessible here that allows you to adjust the specific lever that is currently engaged. Since the machine is at 100°, the mechanism is in position for adjustment.

Step 5: The "Barely Loosen" Rule (Critical Safety)

This is where 90% of beginners make a mistake.

• Action: Insert your T-handle hex wrench into the access hole. Feel it seat firmly into the screw head.
• The Turn: Loosen the screw very gently.
• Stop Point: Stop the moment you feel the tension release—usually less than one full turn.


Why? If you loosen it too much, the internal aluminum fork will detach from its track and slide sideways. This introduces "Play" or "Wobble" in the drive.

Tactile Check: The screw should be loose enough that you can move the lever with your hand, but tight enough that the lever doesn't flop around on its own. It should feel "gummy," not "floppy."

Step 6: Alignment and The "Technician's Tighten"

1. Align: With your hand, manually push the misaligned take-up lever up or down until it forms that perfect "Straight Horizon" with its neighbors.


2. Verify: Glance at the degree wheel one last time. Is it still dead-on 100°?


3. Tighten: Re-insert the T-handle. Tighten the screw until you feel it hit the "snug" point (where it stops turning easily).
4. The Final Torque: Give it about half a turn more. Do not crank it with all your strength.


The Aluminum Rule: The internal casting is aluminum. If you over-torque it, it snaps. Snug + Half Turn is your safety zone.

Operation Checklist (The Final QC)

• Degree wheel is at 100°.
• The lever row is visually flat (no outliers).
• The adjusted lever feels solid when touched (no vertical slip).
• There is no lateral (side-to-side) wobble indicating a loose fork.
• No extra parts are left in the magnetic tray.

Root Cause Analysis: Why Did This Happen?

Levers don't just drift on their own. In 90% of cases, this repair is the result of a Hard Hoop Strike.

A hoop strike occurs when the needle bar or presser foot crashes into the plastic rim of the hoop. The kinetic energy has to go somewhere—usually, it forces the take-up lever cam to slip on the shaft. This saves the motor, but ruins your timing.

The Three Enemies of Clearance:

1. Bulky Seams: Hitting the thick seam of a Carhartt jacket or bag.
2. "Mushrooming": Fabric that isn't hooped tight enough, causing it to bounce up and hit the foot.
3. Hoop Burn/Slip: Traditional hoops failing to grip slippery performance wear, causing the design (and hoop) to shift during high-speed runs.

Prevention Strategy: The Upgrade Path

If you find yourself doing this repair monthly, you don't have a "machine problem"—you have a "workflow problem." Constant hoop strikes are a sign that your current hooping method is struggling with the garments you are producing.

Use this decision tree to determine if you need to upgrade your tools:

Stabilization & Hooping Decision Tree

The Commercial Solution

Professional shops reduce strikes by switching to magnetic framing systems for difficult items.

• Reduced Obstruction: Magnetic frames often have lower profiles than bulky plastic screw-clamps.
• Zero Drift: The fabric is held by magnetic force, reducing the "bouncing" that leads to needle deflection and rim hits.
• Speed: Terms like fast frames for tajima refer to systems designed to eliminate the "unscrew-hoop-rescrew" friction, but magnetic hoops take this a step further by self-aligning.

Warning: Magnet Safety. Magnetic hoops use industrial-grade neodymium magnets. They can pinch fingers severely. Never place them near cardiac pacemakers. Keep them away from the machine's floppy disk drive or screen if you have an older model.

If you are fighting "hoop burn" (the ring mark left on fabric) or struggling to hoop thick items, searching for hooping for embroidery machine solutions will lead you to magnetic options. They are the standard for preventing the very hoop strikes that caused the damage you just repaired.

Quick Troubleshooting Guide

Conclusion

Realigning a Tajima take-up lever is a rite of passage for machine owners. By respecting the 100° Red Zone, using the "Threaded Flip" to save time, and adhering to the "Snug + Half Turn" rule, you turn a terrifying breakdown into a routine 15-minute maintenance task.

However, the best repair is the one you never have to make. Audit your hooping process. If you are struggling with thick garments or slipping fabric, upgrading to SEWTECH magnetic hoops or better stabilization methods is cheaper than replacing a cracked control cam.

FAQ

• Q: How can a Tajima TMEX-C1501 operator confirm a take-up lever timing drift in 10 seconds using the 100° red zone?
  A: Set the main shaft degree wheel to exactly 100° and confirm the take-up levers form one straight horizontal line from the front.
  • Rotate: Manually turn the main shaft until the indicator is exactly on the 100-degree mark.
  • Stand: Position eyes squarely in front of the head to avoid parallax error.
  • Compare: Look across the lever row and identify the single lever breaking the “horizon.”
  • Success check: At 100°, all levers visually line up into a flat, straight line with no outlier.
  • If it still fails: Re-check that the degree wheel is truly at 100° (not 95°/105° from an angled view), then repeat the horizon check.
• Q: What power-down steps are required before removing the rear tension cover on a Tajima TMEX-C1501 tension assembly?
  A: Power OFF and unplug the Tajima TMEX-C1501 before opening the rear tension cover because tools can short exposed electronics.
  • Switch off: Turn the machine power to OFF.
  • Unplug: Remove the power plug from the wall outlet (do not rely on the switch alone).
  • Set position: Confirm the main shaft is already parked at 100° before disassembly work continues.
  • Success check: The machine has no power, and the work area near the circuit board is safe from accidental shorts.
  • If it still fails: Stop and do not open covers until the machine is fully de-energized (check the plug and outlet).
• Q: How do Tajima TMEX-C1501 owners unplug the CN2 ribbon cable without damaging the tension assembly wiring?
  A: Unplug the CN2 ribbon cable by pulling the white plastic connector straight out—never pull on the wires.
  • Open: Pop off the rear tension assembly cover by releasing the plastic locking tabs.
  • Identify: Locate the multi-colored ribbon cable labeled CN2 on the circuit board.
  • Pull: Grip the connector body and pull straight out with steady pressure.
  • Success check: CN2 is fully disconnected and hanging free with no strain on the cable.
  • If it still fails: If CN2 is not reachable on some older C1501 builds, carefully loosen the faceplate first, then unplug CN2 as the unit is gently pulled away.
• Q: How does the “Threaded Flip” method on a Tajima TMEX-C1501 save time during take-up lever alignment?
  A: Remove the four tension faceplate screws and flip the entire tension assembly onto the thread tree without unthreading to avoid rethreading and tension variables.
  • Remove: Take out the four screws (one at each corner) securing the tension base faceplate.
  • Lift: Gently lift the complete tension assembly off the head as one unit.
  • Park: Flip it upside down and rest it securely on the thread tree or head casting.
  • Success check: The assembly sits stable, and the thread tubes are not kinked or crushed.
  • If it still fails: Reposition the assembly until it rests without wobbling or pinching any tubes before proceeding.
• Q: How far should the Tajima TMEX-C1501 take-up lever clamp screw be loosened to avoid fork play or wobble?
  A: Loosen the clamp screw only until tension just releases—usually less than one full turn—so the lever feels “gummy,” not “floppy.”
  • Seat: Insert the T-handle hex wrench fully into the socket cap screw through the access hole.
  • Loosen: Turn gently and stop as soon as the clamp releases enough to move the lever by hand.
  • Control: Avoid backing the screw out so far that the internal aluminum fork detaches and slides sideways.
  • Success check: The lever can be nudged for alignment but does not flop freely, and there is no side-to-side wobble.
  • If it still fails: If wobble or grating appears, slightly loosen again, push the internal fork back into alignment, then re-tighten using the correct feel.
• Q: What is the correct tightening method for a Tajima TMEX-C1501 take-up lever clamp screw to prevent cracking the aluminum casting?
  A: Tighten to “snug,” then add about a half turn—do not over-torque because the internal clamp is cast aluminum and can crack.
  • Align: At 100°, push the misaligned take-up lever until it matches the straight horizon of neighboring levers.
  • Confirm: Re-check the degree wheel is still exactly at 100° before final torque.
  • Tighten: Turn to the snug point, then add roughly half a turn more.
  • Success check: The lever row is flat at 100°, and the adjusted lever feels solid with no vertical slip when touched.
  • If it still fails: If the lever still moves, loosen, wiggle to seat the cam, then re-tighten using the same snug-plus-half-turn rule.
• Q: What should a Tajima TMEX-C1501 operator do if the machine still shows error codes 211 or 382 after take-up lever alignment?
  A: Re-run the full 100° red-zone alignment check because error codes 211/382 commonly appear when the lever is still far enough off to block color change.
  • Park: Set the main shaft degree wheel to exactly 100° again.
  • Inspect: Confirm the take-up lever row is truly horizontal with no outliers.
  • Re-seat: If needed, loosen minimally, re-align the lever, and tighten using snug + half turn.
  • Success check: The machine completes the color change motion without the rhythmic clicking and without returning 211/382.
  • If it still fails: Use the symptom guide logic—if the lever is stiff/grating, the fork may have slid; if the lever still moves, the screw may not be seated on the cam.
• Q: How can a Tajima TMEX-C1501 shop reduce repeat take-up lever drift caused by hard hoop strikes on thick seams or slippery performance wear?
  A: Treat repeat drift as a workflow clearance and hooping control issue: optimize hooping/stabilization first, then consider magnetic frames to reduce strikes.
  • Diagnose: Link the timing slip to a hard hoop strike, bulky seams, fabric “mushrooming,” or hoop slip during high-speed runs.
  • Optimize (Level 1): Improve hooped tightness and stabilization choices for the fabric so the material does not bounce or shift into the foot/needle area.
  • Upgrade tools (Level 2): Use magnetic framing for thick or slippery items to improve grip and reduce obstruction that leads to rim hits.
  • Success check: Hoop strikes stop recurring and the take-up lever timing remains stable week-to-week under the same production mix.
  • If it still fails: Review design centering and effective sewing area usage to increase clearance, then reassess whether the current production mix calls for a higher-capacity equipment setup.
