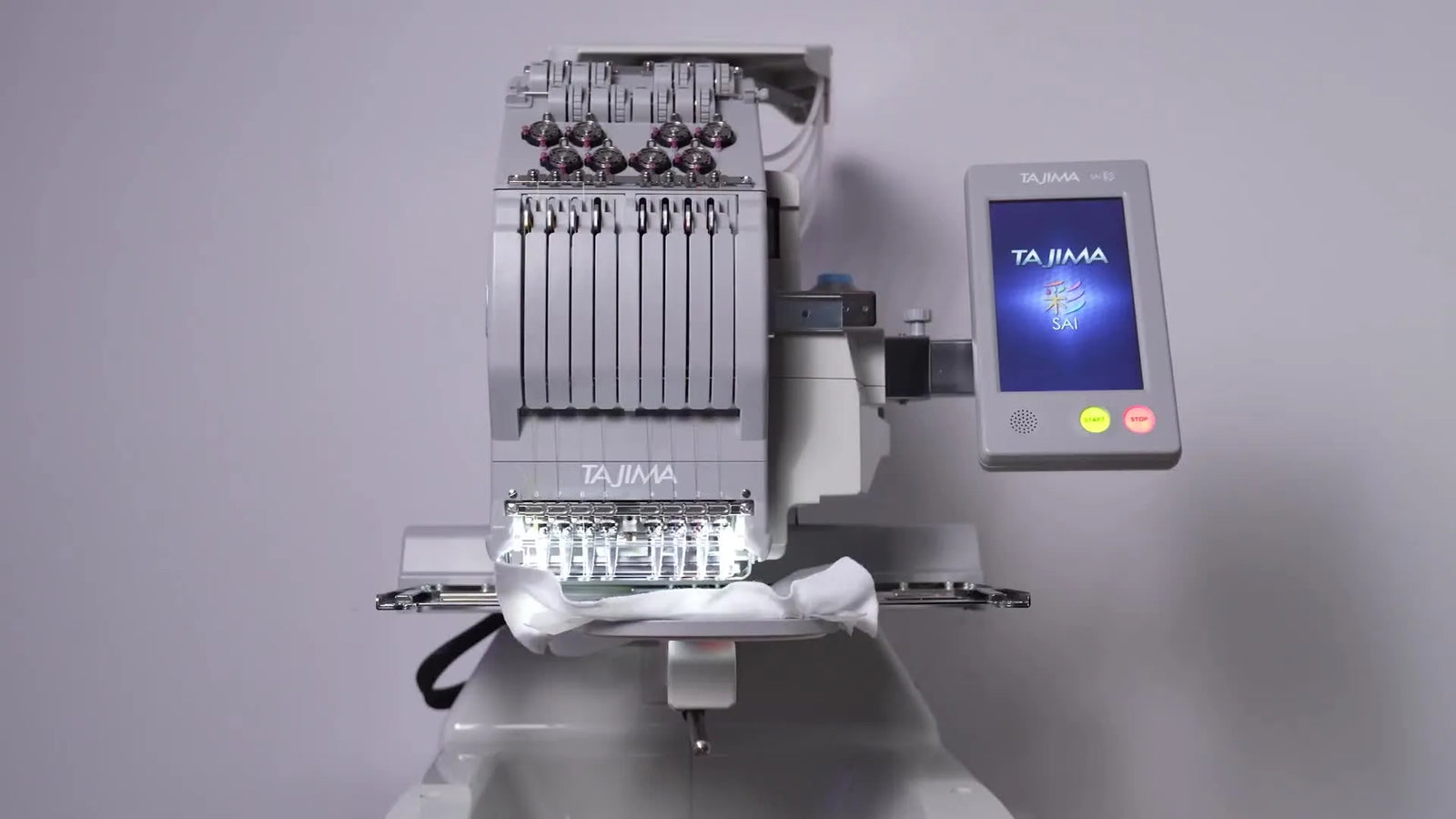

Tajima Sai Review (MDP-S0801C): The Compact 8-Needle Workhorse That Actually Makes Small-Business Embroidery Easier

If you’re eyeing the Tajima Sai because you want “commercial results” without turning your studio into a noisy factory floor, you’re not alone. I’ve watched hundreds of hobbyists and first-time shop owners stand on this exact precipice. The emotion isn't just excitement—it's a specific cocktail of fear and desire. Will I waste thousands of dollars? Will I ruin a client's expensive jacket? Will this machine sit in the corner because I'm too scared to turn it on?

Embroidery is a game of confidence, and confidence comes from competence. This post rebuilds the original video review into a "Master Class" operational guide. We are moving beyond specs and into the sensory details—the sounds, feels, and "sweet spot" settings—that keep you from learning the hard way.

The Tajima Sai (MDP-S0801C) Panic-Reducer: What This 8-Needle Machine Is Really Built For

The video frames the Tajima Sai as a compact, mobile-friendly commercial machine. That is marketing speak. Here is the educator's translation: This machine is an "entry-level industrial" bridge. It allows you to graduate from the flatbed limitations of a single-needle home machine to the tubular freedom of a professional setup, without needing an air compressor or three-phase power.

Here are the hard specs from the video, calibrated with my "Real-World Sweet Spots" for beginners:

• Max Speed: 800 stitches per minute (spm).
  • Expert Calibration: Just because it can go 800 doesn't mean you should on day one. For your first month, or when handling metallic threads, cap the speed at 600 spm. Speed amplifies vibration and tension errors. Master the quality first; speed is a luxury for the experienced.
• Needles: 8.
  • Workflow Note: You don't need to fill all 8 immediately. Set up your primary 4 colors (Black, White, Red, Blue) and leave the others empty or rigged with specialty threads like gold/silver.
• Sewing Field: 11.8" x 7.8" (300mm x 198mm).
• Weight: 82 lbs.
  • Safety Note: This is "portable" compared to a 400lb industrial head, but it is dead weight. Lift with a partner.

If you’re researching a tajima embroidery machine, realize that the "best" machine isn't the one with the highest needle count—it's the one that minimizes your "time-to-stitch." If you spend 20 minutes fighting settings for a 5-minute run, you aren't profitable.

The “Hidden” Prep Before You Power Up: Table Physics, Oil Kits, and the 60-Second Reality Check

The video shows unboxing and emphasizes portability. However, vibration is the enemy of precision. If your table wobbles, your text will look jagged.

The Master’s Pre-Flight Protocol (Do this before plugging in):

1. The "Water Glass" Test: Place a glass of water on your table. Shake the table with your hip. If the water ripples violently or the table legs lift, do not put the machine there. You need a rock-solid surface to absorb the kinetic energy of the pantograph moving.
2. Locate the "Hidden" Consumables:
   • The Oil/Maintenance Kit: (Included).
   • Soluble Pen/Chalk: (Usually missing, buy separately for marking centers).
   • Precision Tweezers: (For threading needles).
   • Fresh Needles: (Size 75/11 is standard, but have 65/9 for detailed text).
3. Trace the Thread Path: Visually follow the thread from the cone to the needle eye. Look for "pig-tails" or twists where the thread might have looped around a guide during shipping.

Warning: Mechanical Safety
Multi-needle machines are industrial robots. They do not stop if your finger is in the way.
* The Kill Zone: Never put your hands near the needle bars or the moving pantograph arm while the machine is running.
* Long Hair/Jewelry: Tie back hair and remove dangling bracelets. The take-up levers move rapidly and can snag loose items instantly.

Prep Checklist (Do not skip)

• Table Stability: Table does not rock or flex under pressure.
• Needle Clearance: Needle area is clear of tools, scissors, and thread scraps.
• Consumables: Oil kit, tweezers, and snips are within arm's reach.
• Hoop Readiness: You have at least one stable hoop option (standard tubular or cap frame) ready.
• First Test: You are starting with a simple block letter or shape, not a complex 50,000-stitch jacket back.


Touchscreen Design Loading: Rotation logic and the "Crash Prevention" Protocol

The video demonstrates loading a design via the LCD touchscreen. It looks easy—select USB, pick file, stitch. But this is where 80% of garment-ruining mistakes happen.

1. Select USB Icon: Load the file.
2. Orientation/Rotation: This is critical. A commercial machine loads designs "upright." But you might hoop a shirt upside down (common for loading pockets).
   • Visual Check: Look at the screen. Does the top of the design match the neck of the shirt?
3. Start/Stop Position:
   • Standard: Center start.
   • Cap/Pocket: Bottom-center start.

Practical Interpretation: If you start a design on a finished cap at the "Center," the machine might travel to the center first. If the bill of the cap hits the needle bar during this travel moves, you break the machine. Always trace.

Setup Checklist (Before you press Start)

• File Integrity: Design loads correctly from USB.
• Orientation Rule: The design orientation on screen matches the physical item in the hoop.
• Path Clearance: Start/stop position is set correctly (e.g., Center for flats, Bottom Center for caps).
• hoop Lock: The hoop is clicked in firmly. Tug it gently—it should feel integrated with the machine arm.
• Needle Drop Verification: You have performed a trace (see Laser section below).


LAN + Tajima Writer Plus: When to Ditch the USB Stick

The video explains two data paths:

1. USB Port: Simple, mobile, universal.
2. LAN Connection: Using Tajima Writer Plus (Windows).


The Workflow Decision:

• Hobbyist/One-off: Stick to USB. It forces you to stand at the machine and double-check files.
• Production/Business: Set up the LAN. Networking eliminates the "Sneaker Net" (walking back and forth). It also ensures you are pulling the latest version of a file from a central folder, preventing the "Oops, I stitched version 1.0 instead of final 2.0" disaster.

Note: Auto-digitizing features in the software are mentioned. Expert opinion: Use auto-digitizing for rough concepts roughly never for paid client work. Learn to edit nodes or hire a digitizer.

The Crosshair Laser: Your "Visual Truth" Against Crooked Logos

The presenter demonstrates the red crosshair laser. To a beginner, it looks cool. To a professional, it is a risk mitigation tool.

How to Use the Laser Like a Pro: Don't just look at the center. Use the laser to trace the boundaries.

1. Project the Box: Hit the "Trace" button.
2. Watch the Red Dot: Watch the laser outline the square on your garment.
3. The "Placket Gap": For left-chest logos, ensure the vertical laser line runs parallel to the shirt placket (buttons). If the laser line and the buttons converge, your logo is crooked.
4. The Seam Jump: Watch if the laser crosses a thick seam or pocket edge. If it does, move the design or re-hoop.

The "Needle Drop Truth": The laser shows you exactly where needle #1 will penetrate. Trust the light, not your guess.

Thread Tension: The "Dental Floss" Test and Sensory Tuning

The video shows the upper tension knobs. The presenter turns them to feel resistance. This is vague for a beginner. Let's make it concrete. Tension is not a setting; it is a feeling.

The Sensory Anchor: When you pull the thread through the needle eye (presser foot down), it should not pull freely, nor should it bend the needle.

• Too Loose: Feels like pulling a loose hair. Result: Birdnesting (loops) on the back.
• Too Tight: Feels like a guitar string snapping. Result: Thread breaks and puckering.
• Just Right: It should feel like pulling waxed dental floss through your teeth. A smooth, consistent resistance. A "firm drag."

The "I-Test" (Visual Calibration): After a test stitch, look at the back of the fabric (bobbin side).

• You should see 1/3 top thread (color), 1/3 bobbin thread (white), 1/3 top thread (color). Using high-quality thread is essential here; cheap thread varies in thickness and makes tension impossible to stabilize.

Slim Cylinder Arm: Solving the "Pocket Nightmare"

The video highlights the slim cylinder arm. This feature separates this machine from flatbed hybrids.

The "Why" Matters: On a flatbed machine, embroidering a finished sleeve or a sock is nearly impossible because you have to unpick the seam to lay it flat. The Sai's slim arm creates "negative space" under the hoop.

• Application: You can slide a tote bag handle, a trouser leg, or a tiny onesie over the arm without the back fabric getting sewn to the front. This is a massive workflow enabler for high-margin items.


Hoop Choices: Start Small to Win Big

The included hoop set typically features:

• Two 300 x 200 mm hoops (Jacket backs).
• Two 100 x 100 mm hoops (Left chest/Pocket).


The Physics of Hooping: Novices always use the biggest hoop because it looks easiest. Stop.

• Rule of Thumb: Use the smallest hoop that fits your design + 1 inch margin.
• Reason: Fabric inside a large hoop acts like a trampoline. The center is bouncy. Bouncy fabric causes registration errors (outlines not matching fills). A small hoop keeps the "drum skin" tension tighter.

If you are researching tajima hoop sizes, focus on the 100x100mm. That is your money-maker for corporate logos.

The Cap Jig: The Secret Weapon for Curved Success

Caps are the #1 reason people upgrade to machines like the Sai, and the #1 reason people quit in frustration. The video shows the Cap Jig—a cylindrical station you snap the frame onto.

The Workflow that Saves Sanity:

1. The Jig is Mandatory: Never try to hoop a cap "in the air." You need the jig to mimic the curve of the head.
2. Smoothing: Sweatbands must be flipped out or taped back.
3. The "Thump" Sound: When you clip the cap frame onto the driver, listen for a solid mechanical click or thump. If it slides in silently, it might not be locked. A loose cap frame equals a shattered needle plate.

If you are shopping for a tajima cap frame, ensure the listing includes the gauge (the jig). Without it, the frame is useless.

Troubleshooting: What to Do When the Thread Breaks

A viewer asked: "What happens when you run out of thread?" The machine pauses automatically thanks to thread break sensors.

The "Low-Cost to High-Cost" Troubleshooting Logic: When the machine beeps and stops, don't panic. Follow this order:

1. Check the Path (Low Cost): Is the thread snagged on the cone? Did it slip out of the tension disc? Re-thread.
2. Check the Needle (Medium Cost): Is the needle bent? Is the eye clogged with melted backing? Change the needle.
3. Check the Design (High Cost): Is the digitizing too dense (bulletproof)?
4. Restart: Back up the machine 5-10 stitches using the control panel so you don't leave a gap, then resume.


Magnetic Hoops: The Professional's Upgrade (and Why You Need Them)

The video shows generic magnetic frames and specifically Mighty Hoops. This is the "Productivity Unlock."

The Pain Point: Standard hoops require you to physically force a top ring over a bottom ring.

1. Wrist Strain: Doing this 50 times a day leads to Carpal Tunnel.
2. Hoop Burn: The friction leaves a permanent shiny ring on delicate fabrics (velvet, performance polos).

The Solution:

• For Home Users (Single Needle): You need magnetic hoops/frames designed for flatbeds. They hold fabric without "crushing" the fibers.
• For Pro Users (Tajima/Multi-needle): You need industrial-compatible magnetic hoops (like Mighty Hoops). They snap together instantly.

When to Buy magnetic hoops for tajima: Do not buy them on day one. Learn on standard hoops. Once you start getting orders for 20+ shirts, buy a 5.5" magnetic hoop. It cuts hooping time by 50% and eliminates hoop burn. Seeing pros use standard hoops is rare for a reason; terms like mighty hoops for tajima are practically synonymous with "high-volume embroidery."

Warning: Magnetic Field Safety
Commercial magnetic hoops use Neodymium magnets suitable for industrial holding.
* Pinch Hazard: They snap together with extreme force. Keep fingers clear.
* Medical Devices: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place them on laptops or credit cards.

Stabilizer Strategy: The Hidden Foundation

The video glosses over backing, but this is where you will fail or succeed. Use this decision tree.

Decision Tree: Fabric → Stabilizer Choice

1. Is the fabric stretchy? (T-shirts, Polos, Hoodies, Knits)
   • YES: Use Cutaway Stabilizer. Physics: Knits stretch; stitches do not. If you use tearaway, the backing disintegrates, the shirt stretches, and the design distorts. Cutaway locks the fibers in place forever.
   • NO: Go to step 2.
2. Is the fabric stable? (Woven shirts, Denim, Canvas, Twill caps)
   • YES: Use Tearaway Stabilizer. It provides temporary support and removes cleanly.
3. Is the surface fuzzy/textured? (Towels, Fleece, Pique Polos)
   • YES: Add a layer of Water Soluble Topping (Solvy) on top. This prevents the stitches from sinking into the pile.

Commercial Insight: Don't blame the machine for gaps in your letters if you used Tearaway on a Dri-Fit shirt. That is a physics error, not a machine error.

The "Training Wheels" Protocol for the First Week

A commenter asks: "Is this good for someone with zero knowledge?" Yes, BUT. The machine is friendly (touchscreen, sensors), but it won't teach you the art.

My Recommended Week 1 Plan:

1. The "One Design" Rule: Pick one simple logo. Stitch it 20 times on scrap denim using standard backing.
2. Change One Variable: Once perfect, switch to a T-shirt (change stabilizer to cutaway). Observe the difference.
3. Muscle Memory: Practice hooping until the fabric is "drum tight" without distorting the grain.
4. Ignore Speed: Keep the machine at 600 spm.

The "Lexus vs. Toyota" Pricing Reality

Comments debate the price. The Tajima Sai is the "Lexus" of compact machines—engineered for precision, quiet operation, and longevity.

The ROI Calculation:

• If you embroider 1 item a week, the cost is hard to justify.
• If you embroider 50 items a week, the reliability pays for itself. A cheap machine that breaks a needle every 10 minutes costs you more in labor than the difference in sticker price.

However, there is a middle ground. If you require production scaling but aren't ready for Tajima pricing, brands like SEWTECH offer multi-needle solutions that balance industrial capacity with a more accessible entry point.

The Upgrade Path: From Nervous Owner to Production Powerhouse

The video effectively showcases the Sai’s versatility. But how do you grow from here?

Expert Recommended Upgrade Ladder:

1. Phase 1: Consumables: Stock specific needles (Ballpoint for knits, Sharp for caps) and high-quality thread.
2. Phase 2: Efficiency: If you find yourself dreading the "hooping" stage, upgrade to magnetic embroidery hoops. This is the highest ROI accessory you can buy to save your wrists and time.
3. Phase 3: Scale: If your volume exceeds the Sai’s capacity, look for high-value multi-needle platforms like SEWTECH multi-needle machines to build a fleet. Running two affordable machines is often smarter than running one expensive one—if one goes down, your business doesn't stop.


Operation Checklist (The Final 30 Seconds)

• Hoop Check: Fabric is taut (drum skin feel), no wrinkles underneath.
• Placement: Laser crosshair verified against physical marking.
• Clearance: No sleeves/straps trapped under the hoop.
• Speed: Set to safe zone (600 spm for start).
• Active Watch: You are ready to watch the first layer of stitching (the underlay) to confirm adhesion before walking away.

Final Verdict: Is it "Ultimate"?

The Tajima Sai is a manufacturing marvel shrunk down to table size. It offers the "Big Three" of commercial benefits: Tubular arm (pockets), Cap Driver (hats), and Reliability.

If you follow the Setup Checklists and respect the Stabilizer Decision Tree, this machine can build a business. However, remember that the machine is only the engine. You are the driver. Equip yourself with the right tools—magnetic frames for embroidery machine to solve hooping pain, and the right stabilizers—to ensure that engine actually gets you to the finish line.

FAQ

• Q: What “hidden” consumables should be checked before powering on a Tajima Sai MDP-S0801C to prevent first-run thread issues?
  A: Gather the oil/maintenance kit, a marking pen/chalk, precision tweezers, and fresh needles, then visually confirm the full thread path before the first stitch.
  • Do: Perform the “water glass” table test and only set the Tajima Sai MDP-S0801C on a rock-solid surface.
  • Do: Locate the oil/maintenance kit and keep tweezers/snips within reach before threading.
  • Do: Trace the thread path cone-to-needle and remove any twists or loops around guides from shipping.
  • Success check: Thread feeds smoothly with no snag points when you gently pull it through the path.
  • If it still fails… Re-thread completely and replace the needle before changing any tension settings.
• Q: How can a beginner set a safe starting speed on a Tajima Sai MDP-S0801C to reduce vibration and tension mistakes?
  A: Set the Tajima Sai MDP-S0801C to 600 stitches per minute as a safe starting point, especially for the first month or when using metallic thread.
  • Do: Cap speed at 600 spm while learning threading, hooping, and tension “feel.”
  • Do: Treat higher speed as a reward after consistent test results, not a default setting.
  • Success check: The machine runs with steadier stitching and fewer sudden thread breaks or looping compared with higher speeds.
  • If it still fails… Stop and correct hoop stability and thread path first, because speed amplifies those errors.
• Q: How do I prevent crooked left-chest logo placement on a Tajima Sai MDP-S0801C using the crosshair laser and Trace function?
  A: Use the Tajima Sai MDP-S0801C laser to trace the design boundary and compare the vertical laser line to the shirt placket/buttons before stitching.
  • Do: Press Trace and watch the laser outline the full box, not just the center point.
  • Do: Align the vertical laser line parallel to the placket; re-hoop or reposition if the lines converge.
  • Do: Check for seam/pocket crossings during the trace and move the design to avoid thick edges.
  • Success check: The traced box sits square to the garment reference (placket/buttons), and the laser path clears seams and hardware.
  • If it still fails… Re-check design orientation/rotation on the screen before running the job.
• Q: How do I set Tajima Sai MDP-S0801C upper thread tension using the “dental floss” feel and the 1/3–1/3–1/3 bobbin-side test?
  A: Adjust Tajima Sai MDP-S0801C upper tension until the pull feels like waxed dental floss and the stitch balance shows roughly 1/3 top thread, 1/3 bobbin, 1/3 top thread on the back.
  • Do: Pull thread through the needle eye (presser foot down) and aim for smooth, firm drag—not free-flowing and not needle-bending tight.
  • Do: Run a small test stitch and inspect the back for the 1/3–1/3–1/3 balance.
  • Success check: No birdnesting loops on the back and no frequent top thread breaks or puckering on the front.
  • If it still fails… Re-thread the entire path and replace the needle before making bigger tension changes, because mis-threading mimics “bad tension.”
• Q: What is the best hoop size strategy on a Tajima Sai MDP-S0801C to reduce registration errors on logos and small text?
  A: Use the smallest Tajima Sai MDP-S0801C hoop that fits the design plus about a 1-inch margin to keep fabric tighter and reduce “trampoline” bounce.
  • Do: Choose a smaller hoop for left-chest and pocket work instead of defaulting to the largest hoop.
  • Do: Hoop so the fabric is taut like a drum skin without distorting the grain.
  • Success check: Outlines and fills line up cleanly with fewer gaps and less shifting during the run.
  • If it still fails… Re-evaluate stabilizer choice, because unstable fabric/backing can mimic poor hooping.
• Q: What should I do on a Tajima Sai MDP-S0801C when the machine stops and beeps due to a thread break sensor?
  A: Follow a low-cost-to-high-cost order: check thread path, then needle condition, then design density, and restart by backing up 5–10 stitches before resuming.
  • Do: Inspect the thread path for snagging or the thread slipping out of tension discs; re-thread if unsure.
  • Do: Replace the needle if bent or contaminated (for example, backing residue in the eye).
  • Do: Consider whether the design is too dense (“bulletproof”) if breaks repeat in the same area.
  • Success check: The restart overlaps cleanly with no visible gap after backing up 5–10 stitches.
  • If it still fails… Reduce speed to the 600 spm safe zone and test again on scrap before risking a client garment.
• Q: What mechanical safety rules should be followed around the needle bars and pantograph on a Tajima Sai MDP-S0801C during operation?
  A: Keep hands, hair, and jewelry out of the Tajima Sai MDP-S0801C needle-bar and pantograph movement zones at all times because the machine will not stop for fingers.
  • Do: Keep hands away from needle bars and the moving pantograph arm while the machine is running.
  • Do: Tie back long hair and remove dangling jewelry before starting a run.
  • Do: Clear tools and scissors from the needle area before pressing Start.
  • Success check: Nothing can be pulled into moving parts, and the run starts with a clear, unobstructed stitch area.
  • If it still fails… Hit stop immediately and reset the workspace—most “close calls” are caused by clutter near the needle area.
• Q: What magnetic hoop safety precautions apply when using industrial magnetic embroidery hoops on a Tajima multi-needle machine?
  A: Treat industrial magnetic embroidery hoops as pinch-hazard tools and keep them away from medical devices and sensitive electronics.
  • Do: Keep fingers clear when the rings snap together because the magnet force is strong.
  • Do: Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Do: Do not place magnetic hoops on laptops, credit cards, or similar electronics/media.
  • Success check: Hoops close cleanly without finger pinches, and the work area stays clear of at-risk devices.
  • If it still fails… Slow down the hooping motion and separate/re-seat the rings deliberately instead of forcing alignment.
