Getting Started with Hat Embroidery on Tajima Sai
A finished hat is not a flat T-shirt—it’s a curved, structured surface, and that changes everything. In this video, the project uses a six-panel hat with laminated buckram inside, a cap jig and cap frame, stabilizer, and the Tajima Sai multi-needle machine. The goal: a crisp, centered stitch-out on the front two panels of the hat.
If your hat features laminated buckram, you may not always need stabilizer, but the presenter recommends using a piece for good measure. The stabilizer goes behind the embroidery area—covering the entire front of those two panels—so the stitches have balanced support during the sew-out.
Pro tip: If you embroider hats regularly, consider standardizing your cap hardware and placement workflow so your alignment (and results) are repeatable from job to job. That way, the crown-to-peak join is always your consistent reference. tajima hoops
Preparing your cap to flex with the frame also helps. In production, they’d keep a hand steamer at the machine and set the hat on the steamer’s head for a moment to soften the laminated buckram. This makes the front more pliable and produces tighter, more even hooping on the curved surface.
Quick check
- Stabilizer cut large enough to cover the entire front embroidery area
- Hat fastener undone so the cap can be tensioned smoothly
- Sweatband folded away from the stitch field
Essential Tools and Materials
- Six-panel finished hat with laminated buckram
- Tear-away stabilizer (recommended even if buckram is laminated)
- Cap jig and cap frame
- Clamps for the cap frame
- Tajima Sai machine and your design file on USB
Preparing Your Hat for Optimal Results
Softening the buckram with steam is optional but valuable when you need that extra bit of compliance for the hooping process. Take just enough time for the buckram to relax; you’re not trying to soak the cap, only make it pliable.
Watch out: Laminated buckram varies. If your hat is especially firm, hooping tension will matter even more. Keep everything aligned with the center seam and avoid trapping the sweatband in the stitch field.
Mastering the Hooping Process
Hooping a curved surface is all about reference points, consistent tension, and positive locking. The cap frame used here includes helpful alignment features to place the crown precisely where it meets the peak.
Understanding the Cap Frame and Jig
On the cap frame, look for the perforated ridge that runs across the front. That ridge is your guide—align it with the exact crown-to-peak junction. After the cap is seated and tensioned, a latch locks the frame closed, and spring clamps on both sides of the back hold the cap taut across the front.
Attach the cap frame to the jig until it clicks into place. The red centerline on the jig makes it easy to line up a six-panel hat’s center seam so your design lands dead center.
From the comments: For embroidering on the side of a baseball cap, the process starts the same. Hoop the cap as usual, then shift the design position on the Tajima Sai so the needle aligns with the side panel you want to stitch. This lets you keep the same stable hooping while targeting a different area.
Step-by-Step Hooping with Stabilizer
1) Loosen and lower the jig’s arm to make room. Fold the sweatband over so it won’t be captured by the stitches.
2) Feed the cap into the frame’s notch and place stabilizer so it fully covers the front two panels. Align the hat’s center seam to the jig’s red line. Pull the cap smooth and taut, then swing the arm back over.
3) Engage the latch across the front so the cap’s leading edge is evenly seated along the frame’s ridges from one side to the other.
4) Add the side clamps to hold the back edges and keep tension even across the crown.
Quick check
- The sweatband is folded clear of the stitch area
- The red centerline aligns perfectly to the hat’s center seam
- Latch and clamps engaged; cap surface is uniformly taut
If you regularly switch between different headwear, it’s fine to standardize on the same cap attachment and alignment approach. For reference-only exploration, some embroiderers also look at accessory options like tajima cap frame as part of their toolkit.
Design Loading and Machine Setup
With the hat hooped, move to the Tajima Sai touchscreen. First, confirm you’ve selected the correct hoop type—cap. Then load the design from USB so the file appears on screen. If the machine prompts to delete fine stitches, make the choice based on your digitizing quality; in the video, the design is well-digitized, so the answer is no.
Choose your thread colors in the color sequence. The Tajima Sai supports up to eight colors and can be programmed to stop for thread swaps if you need more. Once colors are set, orient your design specifically for a finished hat: rotate it 180 degrees so it sews out upright when the cap is worn. This is a must—finished hats are hooped upside down on the frame.
Pro tip: If you’re building a cap workflow from scratch, make “rotate 180° for caps” a checklist line item for every job. tajima embroidery machine hoops
Navigating the Tajima Sai Touchscreen
- Select hoop type: Cap
- Load design: USB > select file > set
- Stitch filter prompt: Only remove fine stitches if your digitizing requires it
- Color selection: Up to eight needles, plus optional programmed stops for manual swaps
- Orientation: Rotate 180° for finished hats
Crucial Design Orientations and Settings
For most garments you might start center-center, but on hats the presenter prefers starting at the lowest point—right where the crown meets the peak. That makes it simple to set the machine at a meaningful origin and then trace the boundary of the design relative to the bill.
Watch out: If you don’t rotate the design, it will embroider upside down on the cap when it’s worn. That mistake wastes time, thread, and a good hat. If ever in doubt, verify rotation before you mount the cap to the machine. tajima hoop sizes
Achieving Flawless Embroidery
Curved surfaces, structured crowns, and hard bills introduce unique constraints—and the Tajima Sai’s positioning tools help you work within them.
Strategic Design Positioning and Sizing
For structured caps, gently bend the bill downward and forward. This creates clearance so the bill doesn’t contact the back of the machine during loading or stitching. You want your design as low as is visually pleasing, but not so low that the machine detects resistance at the base.
Design height matters. The Tajima Sai can embroider up to about 2.9 inches high on caps. In the video, the design is 2.6 inches tall—well within the capability, though highly structured tops can still distort stitching near the very top because of curvature. When in doubt, evaluate how the crown shape interacts with your design height. Moving slightly higher can reduce distortion while still looking balanced.
From the comments: A viewer reported repeated “322” Y-axis errors on hats. The creator explained this happens to protect caps when your trace detects the design is too close to the bill. The immediate fix is to bend the bill more and nudge the design higher until the error disappears.
Pro tip: Trace before you press start. The crosshair laser on the Tajima Sai accurately references the drop-down needle, letting you confirm true center against the seam and verify that your design perimeter clears the machine. magnetic hoops for tajima embroidery machines
Executing the Trace and Start Sequence
Mount the hooped cap on the machine by turning it slightly sideways to set it on the driver, then push until it clicks. Confirm all clamps are truly seated—two at the sides and one at the bottom—so the cap is firmly fixed.
Use trace to preview the design boundary. Watch the crosshair laser as you trace: it should split the center seam and never conflict with the machine as it approaches the bill. If trace shows resistance or misalignment, adjust position on the touchscreen, then trace again. When all looks clear and centered, press start.
Quick check
- All clamps engaged and latched
- Trace runs clean with no resistance
- Crosshair laser aligned with the hat’s center seam
If you’re exploring additional cap attachments in your shop (reference only), some embroiderers also consider tajima hat hoop for specific workflows.
Finishing Touches and Best Practices
When the sew-out is done, move the head forward, unlatch the cap frame, and slide it free. Remove the side clamps, unlatch the front frame, and take the hat out. Tear away any remaining stabilizer inside and inspect registration, density, and placement. In the video’s final result, the design is clean and well positioned.
From the comments
- Needle sizes: One community member shared that 75/11 is a common starting point for hats; thicker materials may benefit from 80/12, while finer detail might use 70/10. The video does not specify a needle size.
- Design categories: The creator notes that if a design runs well on a cap, it typically runs fine on flats too, so there isn’t a separate “cap-only” category.
- Side embroidery: Hoop normally, then reposition the design to the side on the machine to align the needle with the target panel.
- Pricing info: For machine pricing, the creator directed viewers to their website. The video itself does not disclose pricing.
- Snapbacks: A viewer asked whether specific branded snapbacks are supported. The video doesn’t specify particular models or brands.
Tips for different hat styles (Structured vs. Unstructured)
- Structured, laminated buckram caps: Consider pre-steaming to soften the front. Expect more sensitivity at taller design heights due to curvature. Slightly bending the bill forward is often necessary for clearance.
- Single-panel foam-front hats: These are described as easier at taller heights, with less curvature at the top. The machine’s 2.9-inch cap height capability is generally attainable on this style.
Watch out: If your peak is extremely stiff and you try to stitch too low, the machine may flag an error during trace or loading. That’s a safety net—adjust the design up and try again.
For reference-only accessory planning, some shops also evaluate compatible options like mighty hoops for tajima to streamline frequent cap jobs, especially when switching between multiple styles. Always verify fit and clearances on your specific setup.
Unlock Your Embroidery Potential with Tajima Sai
The Tajima Sai’s cap workflow becomes intuitive once you internalize the sequence: soften and secure the cap, align to that red centerline, load and rotate your design, set the lowest starting point, bend for clearance, trace with the crosshair laser, and start. The result is a tight, clean stitch-out on a challenging curved surface—repeatable once your process is dialed in.
If you’re building SOPs for your team, capture a simple preflight checklist covering hoop type selection, 180° rotation for finished hats, centerline alignment, and trace verification before pressing start.
From the comments: Some viewers asked about digitizing services and brand partnerships. The creator shared they focus on stock designs and not custom digitizing, and noted their partnership news. For pricing and machine details, the video directs you to their website.
As you standardize your cap process, you may also research (for reference only) broader accessory ecosystems like tajima embroidery machine hoops and related alignment tools to support consistent, scalable production. And if you often run different cap types, keep a sizing guide and job notes so you can quickly adjust design height and placement without trial and error. tajima embroidery machine hoops
Finally, if your shop mixes brands and you’re documenting cap workflows across stations, you might include a neutral “attachments inventory” page in your SOP binder—many teams list their cap frames, drivers, and alignment references. For exploration beyond your main setup, some embroiderers also reference tajima hoops ecosystems. Keep such notes strictly as internal references and always test on your machine before committing to a production run. tajima hoops
Wrap-up

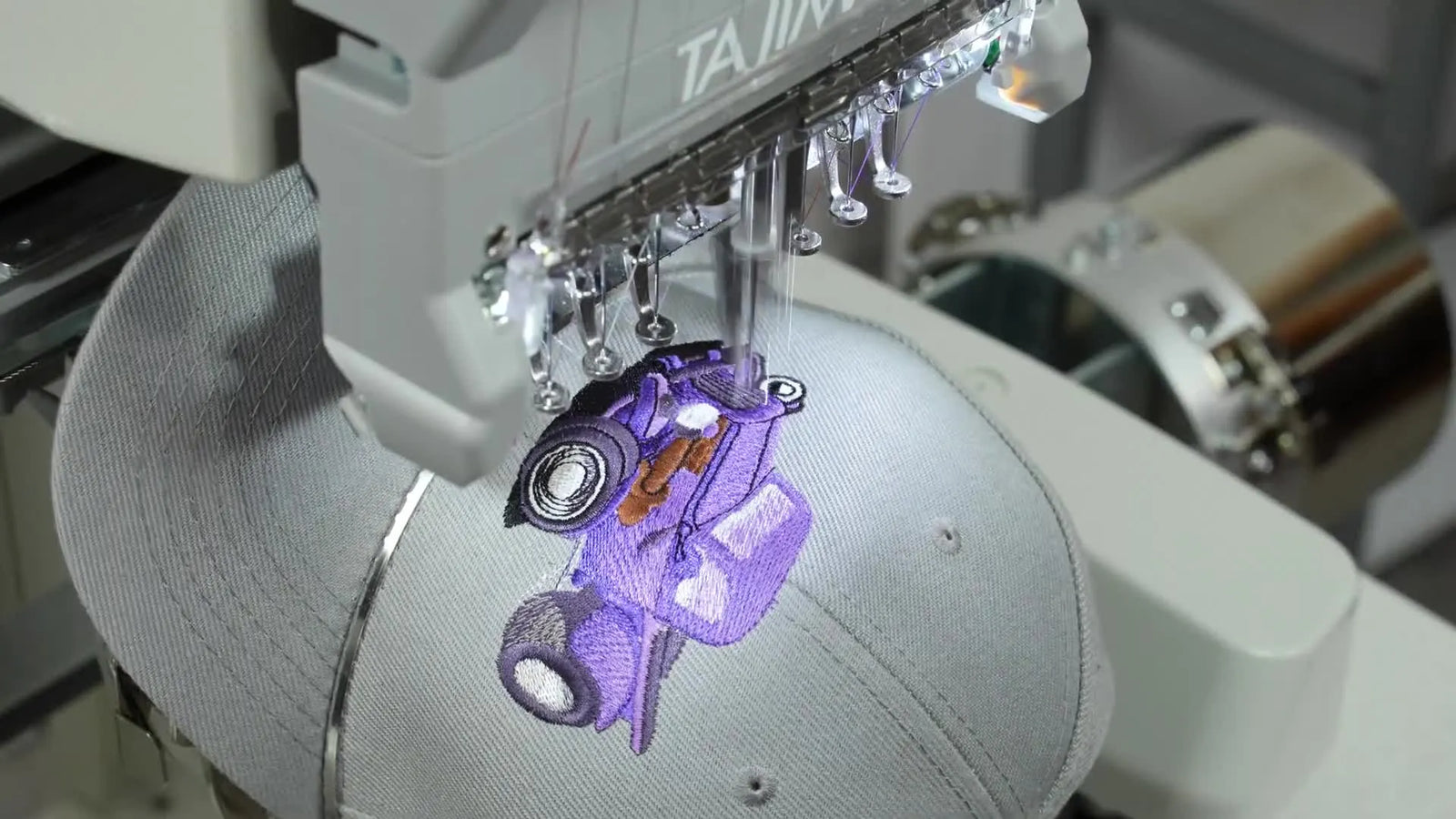

- The video demonstrates a full, successful cap embroidery on a finished, six-panel hat using the Tajima Sai.
- Key steps: pre-steam for pliability, precise hooping with latch and clamps, correct cap hoop type, rotate 180°, set lowest start point, bend bill, trace with laser, then sew.
- Outcome: a clean, centered result with stabilizer neatly removed.
If you’re documenting knowledge for your team, capture a one-page cap embroidery checklist with photos of your cap jig alignment, frame latch points, and the on-screen rotation setting. As your library grows, you’ll spend less time troubleshooting and more time running great hats. tajima hoop sizes
