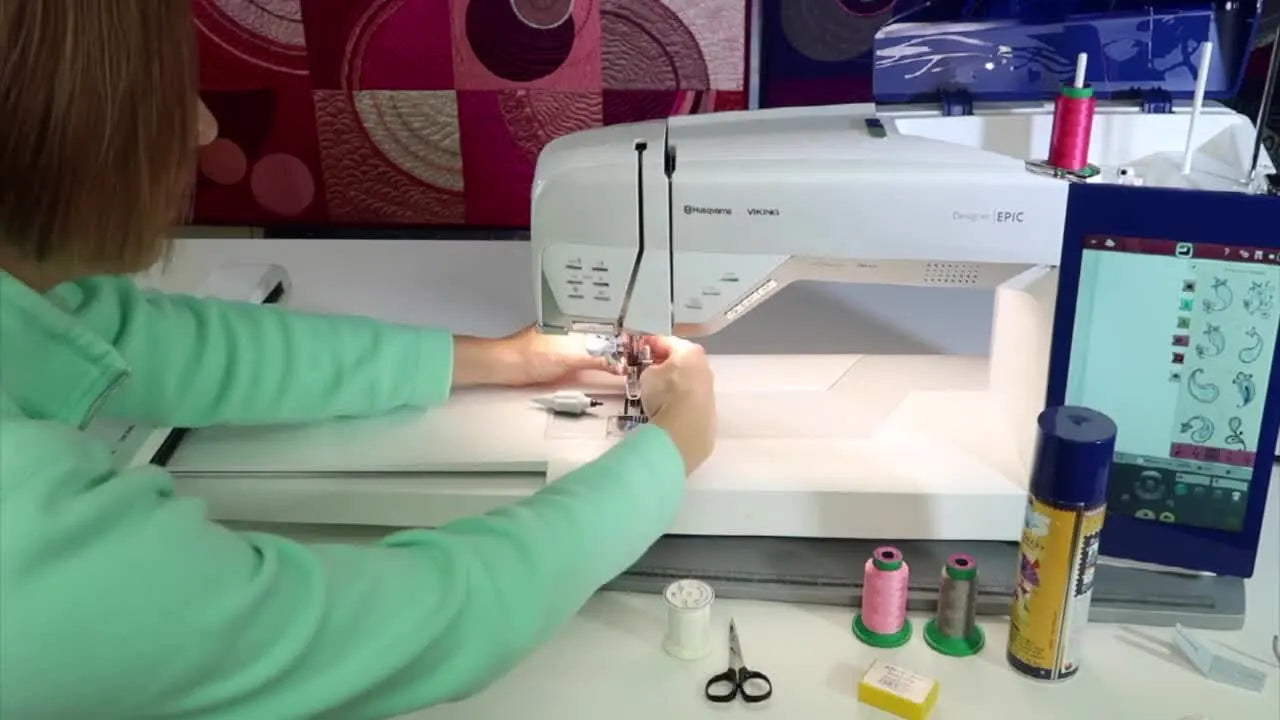

Switching the Husqvarna Viking Designer EPIC to Embroidery Mode (Without Breaking Needles or Smacking the Wall)

If your Husqvarna Viking Designer EPIC is sitting there in sewing mode and you’re staring at the embroidery unit like it’s a spaceship part—good. That little moment of hesitation is what saves needles, saves hoops, and saves your machine from the kind of “first-day collision” that makes people swear off embroidery.

Machine embroidery is an empirical science. It relies on physics, tension, and precise mechanical alignment. When you rush the setup, you introduce variables that lead to thread shredding and bird nesting.

This guide converts the visual workflow of the Designer EPIC into a structured, "white paper" style standard operating procedure. We will cover the conversion workflow: accessory box removal, straight stitch throat plate installation, embroidery unit attachment, and the critical Sensor Q foot hack. More importantly, we will add the sensory checks—what you should hear, feel, and see—that separate a professional setup from a frustrating one.

Calm the Panic: What the Husqvarna Viking Designer EPIC Is Doing When You Switch to Embroidery Mode

The Designer EPIC is not being dramatic when it asks to calibrate—it is performing a mechanical self-diagnostic. When you attach the embroidery unit and toggle the machine to embroidery mode, the internal stepper motors need to find their "zero point" (home position) on the X and Y axes.

The machine prompts you to remove the hoop and clear the embroidery area. In plain terms: the arm is about to do a full-range “dance” to find its physical limits.

The Physics of Calibration: If a hoop is attached, or if a coffee mug is sitting to the left of the machine, the carriage will strike it with significant torque. This can strip the internal belt gears or knock the embroidery arm out of alignment permanently.

• Visual Check: Ensure a 2-foot clearance radius to the left and rear of the machine.
• Auditory Check: Listen for a smooth, low-humming motor sound. A grinding noise indicates an obstruction.

One practical note: You can explore on-screen designs without the arm attached, but the machine’s brain will not unlock the "Stitch" function until it verifies the embroidery module is connected and calibrated.

The “Hidden” Prep Pros Do First: Thread, Needles, Scissors, Stabilizers, and Power Protection

Amateurs start by turning screws. Professionals start by gathering consumables. Before you convert the machine, establish a "Mise-en-place" (everything in its place) to avoid stopping mid-setup.

The core kit for the Designer EPIC includes:

1. Sensor Q Embroidery Foot: This is non-negotiable for correct fabric feeding.
2. Straight Stitch Throat Plate: Critical for preventing fabric flagging (bouncing).
3. Bobbin Thread: Specifically 60wt or 90wt white bobbin thread.
4. Curved Embroidery Scissors: To trim jump threads flush without snipping the fabric.
5. Quality Top Thread: (e.g., Isacord, Madeira) 40wt Polyester is the industry standard.
6. Needles: Size 75/11 Embroidery or Topstitch needles.
7. Stabilizers: A mix of Cutaway (for knits) and Tearaway (for wovens).
8. 505 Temporary Adhesive Spray: For floating fabric.
9. Battery Backup / UPS: Essential for computerized machines.

The "Why" Behind the Kit:

• Bobbin Thread: It is thinner than top thread. This ensures the knot forms on the bottom of the fabric, keeping the top design crisp.
• Curved Scissors: The curve allows the blade to sit parallel to the fabric surface. Straight scissors force you to angle the blade, risking a hole in your garment.
• Thread Quality: Cheap thread has uneven thickness. At 800+ stitches per minute (SPM), thick spots get stuck in the needle eye, causing shredding.
• Power Protection: An embroidery machine is a computer with servos. A brownout during a stitch-out can corrupt the motherboard. A UPS is cheaper than a motherboard repair.

Workflow Optimization: If you are setting up a small studio, physical fatigue will be your first bottleneck. Repetitive strain from tightening hoop screws is a real issue. This is where tools like a hooping station for machine embroidery become vital. They stabilize the outer hoop, allowing you to use your body weight rather than wrist strength to secure the fabric.

Prep Checklist (Do this BEFORE touching the machine)

• Power Safety: Machine is plugged into a UPS/Surge Protector.
• Tool Retrieval: Sensor Q foot and Straight Stitch Plate are on the table.
• Bobbin Prep: Wind 3-4 bobbins with 60wt white bobbin thread (do not run out mid-design).
• Needle Inspection: Install a fresh 75/11 Embroidery needle. Feel the tip—if it catches on your fingernail, it is dull. Discard it.
• Stabilizer Selection: Fabric and stabilizer are matched (see Decision Tree below).
• Adhesive: 505 spray can is shaken and ready (use away from the machine).
• Hooping Area: Clear a flat surface or set up your hooping station.

Warning: Keep fingers clear of the needle area when turning the handwheel manually. Never reach under the needle while the machine is calibrating. The carriage moves faster than your reflexes.

Accessory Box Removal on the Designer EPIC: The 2-Second Move That Unlocks Everything

To physically attach the embroidery unit, you must expose the connection port on the free arm.

The Action: Slide the plastic accessory tray (the storage box) to the left. The Sensory Check: It should slide smoothly with minimal resistance. Do not pry it upwards. The tabs are plastic; prying will snap them. Once removed, you will see the multi-pin connector on the right side of the free arm base.

Straight Stitch Throat Plate Swap: Avoid the “One Wrong Stitch = Broken Needle” Moment

This is the single most important safety step for needle longevity. You must swap the standard Zig-Zag plate for the Straight Stitch Throat Plate.

The Physics of Deflection: The standard plate has a wide oval opening to allow the needle to move left and right. In embroidery, the needle moves vertically at high speed. If the needle hits a dense knot or a thick seam, it can flex. With a wide opening, a flexed needle drives down, hits the bobbin case, and shatters. The Straight Stitch Plate has a tiny single hole. It supports the fabric right up to the needle entry point, preventing the fabric from being pushed down (flagging) and preventing the needle from flexing.

The Sensor: The Designer EPIC has a sensor that detects this plate. It should automatically lock out zig-zag stitches. However, always verify this on the screen.

Attaching the Embroidery Unit (Module): Slide Left-to-Right, Listen for the Click, Then Give It Space

With the port exposed, you are ready to dock the embroidery module.

The Action:

1. Place the embroidery unit on the table to the left of the machine.
2. Slide it forcefully but smoothly from left to right toward the column of the machine.
3. Ensure the connector pins align (do not force it if it feels jammed).

The Sensory Anchor: You must hear and feel a solid, mechanical CLICK. If it feels "mushy" or hasn't clicked, the electrical connection is loose. This will cause the machine to lose registration mid-design (the "offset ghost" effect).

Space Management: The arm travels significantly further back than you expect.

• Trigger: You hear a loud bang during calibration.
• Cause: The arm hit the wall behind the table.
• Solution: Pull the desk 12 inches away from the wall.

For frequent embroiderers, the physical space required for hooping is also a consideration. Using a specialized embroidery hooping station not only saves wrists but ensures you have a dedicated "clean zone" for aligning garments, keeping your machine table uncluttered for the arm's movement.

Calibration on Startup: Let the Embroidery Arm “Dance” Without Hitting Coffee, Cats, or Walls

Once attached, power on the machine. Select "Embroidery." The machine will immediate request calibration.

The Protocol:

1. Acknowledge: Press "OK" on the screen.
2. Clear: Ensure NO hoop is attached.
3. Watch: The arm will move to the far left, far right, and center.

Checkpoint: Before pressing "OK," look at the "elbow" of the embroidery arm. Is there a pair of scissors sitting behind it? Move them. The torque of the stepper motors is sufficient to punch a pair of scissors through a drywall partition (or at least knock them onto the floor).

Stabilizer & Hooping Strategy: The Foundation of Quality

Stabilizer is not an option; it is the foundation. The fabric is merely the paint; the stabilizer is the canvas.

The Stabilizer Decision Tree

Use this logic flow to determine your setup:

1. Is the fabric STRETCHY (T-shirt, Polo, Knit)?
   • Decision: You MUST use Cutaway Stabilizer.
   • Why: Knits stretch. If you use tearaway, the stitches will break the stabilizer, and the fabric will distort, ruining the design after the first wash.
2. Is the fabric STABLE (Denim, Canvas, Woven Cotton)?
   • Decision: You can use Tearaway Stabilizer.
   • Why: The fabric can support its own structure; the stabilizer is just for temporary rigidity.
3. Is the fabric FLUFFY (Towel, Fleece, Velvet)?
   • Decision: Use Cutaway on the bottom + Water Soluble Topper (Solvy) on top.
   • Why: The topper prevents the stitches from sinking into the pile.

The Hoop Burn Problem: Standard hoops rely on friction. To hold fabric tight, you must tighten the screw significantly. This crushes the fibers, leaving "hoop burn" (a shiny ring).

• Solution: This is why professionals often switch to magnetic frames. If you search for hooping for embroidery machine techniques, you will find that magnetic systems hold fabric using vertical force rather than friction, eliminating hoop burn and reducing wrist strain.


Thread and Needle Choices That Prevent “Mystery Problems”

The video highlights a crucial truth: Machines are picky eaters.

Thread: If your thread breaks every 2 minutes, look at the spool. Is it old? Is it a "bargain bin" 50-pack?

• Rule: Use 40wt Polyester Embroidery Thread (Isacord, Glide, Robo-thread).
• The Test: Pull a length of thread off the spool. It should not curl tightly back on itself (sign of age/tension stress). It should be smooth, not fuzzy.

Needles: Needles are consumables, not permanent fixtures.

• Change Frequency: Change your needle every 8 hours of stitching time or every new major project.
• Type: Use "E" (Embroidery) or "H-E" needles. They have a larger eye to protect the thread from friction and a scarf designed to form a loop for the hook.


The Sensor Q Foot Installation Trick: Lower the Needle Slightly

Installing the Sensor Q foot is the most frustrating step for beginners because the foot is spring-loaded and fights the needle clamp screw.

The Master's Technique:

1. Loosen: Use the screwdriver to remove the current ankle. Keep the screw in the ankle!
2. Position: Hold the Sensor Q foot. Note the white plastic arm on the right.
3. The Secret: Turn the handwheel toward you to lower the needle bar about 1/2 inch.
   • Why? This changes the angle of approach.
4. Attach: Slide the foot onto the bar. The clear plastic arm MUST go ABOVE the needle clamp screw.
5. Tactile Check: It should seat firmly. Tighten the screw.
6. Reset: Turn the handwheel to bring the needle back to the highest position.

If that arm is below the needle screw, the foot will not lift, and the machine will error out or jam.

Warning: Magnetic Hoop Safety
If you decide to upgrade to magnetic hoops, be aware of their extreme force. Keep magnets away from pacemakers, ICDs, and other implanted medical devices. Always slide magnets apart; do not try to pull them apart. Fingers can be severely pinched between the magnets if they snap together.

Setup Checkpoints on the Designer EPIC: The "Pre-Flight" Inspection

You are ready to load the design. Stop. Do a final visual sweep.

The "Green Light" Conditions:

1. Plate: Straight Stitch Plate installed.
2. Tech: Embroidery Unit docked and clicked.
3. Foot: Sensor Q foot arm is riding on the needle clamp screw.
4. Clearance: 12 inches of space behind the machine.
5. Screen: Machine has successfully calibrated.

If you find yourself dreading the hooping process during this phase, it is time to evaluate your tools. Many users eventually look for embroidery hoops for husqvarna viking that feature magnetic attachment points. These allow you to float the stabilizer and simply "snap" the garment in place, reducing the setup time from 5 minutes to 30 seconds per item.

Setup Checklist (Right BEFORE you attach the loaded hoop)

• Accessory Box: Removed and stored.
• Module Connection: Pushed in firmly; "Click" confirmed.
• Calibration: Performed without the hoop attached.
• Throat Plate: Straight Stitch plate confirmed active.
• Needle: New 75/11 needle centered.
• Bobbin: Area cleaned of dust; bobbin full.
• Design: Loaded on screen; correct hoop size selected in software.


Troubleshooting the Scary Stuff: Structured Diagnosis

When things go wrong, do not panic. Follow this hierarchical diagnosis path (Least Invasive to Most Expensive).

The Upgrade Path: From Hobbyist to Production

Once you master the basic setup of the Designer EPIC, the machine is rarely the limitation—workflow is. The bottleneck moves to how fast you can hoop, how often you change threads, and how consistent your results are.

Level 1: Tool Upgrades (The Quick Wins)

If "Hoop Burn" or difficult clamping is ruining your enjoyment or your garments, consider upgrading to Magnetic Hoops.

• Criteria: If you struggle to hoop thick towels or delicate silks without leaving marks.
• Solution: A compatible magnetic hoop for husqvarna viking uses magnetic force to clamp, not friction. This holds thick items securely without forcing the rings together, and holds delicate items without crushing the fibers.
• Safety: Always buy hoops rated specifically for the EPIC to ensure the arm attachment fits the recognition sensor.

Level 2: Efficiency Upgrades (The Hooping Station)

• Criteria: If your wrists hurt or your logos are crooked.
• Solution: An Embroidery Hooping Station. This acts as a "third hand," holding the hoop standard while you align the shirt. It ensures that the logo on Shirt #1 is in the exact same spot as Shirt #50. Use search terms like magnetic embroidery hoops combined with station setups to find ergonomic solutions.

Level 3: Capacity Upgrades (Scaling Up)

• Criteria: You have orders for 50 polo shirts.
• The Reality: The Designer EPIC is a single-needle machine. You have to change the thread manually for every color. For a 5-color logo on 50 shirts, that is 250 manual thread changes.
• Solution: This is when you look at SEWTECH Multi-Needle Machines. A multi-needle machine holds 10-15 colors at once. You press "Start," and it finishes the logo automatically. It is built for speed, continuous running, and profit margin.

Operation Checklist (The First Stitch-Out)

• Clearance: Confirm hoop path is clear (no mugs!).
• Trace: Run the "Trace" function (Outline) to ensure the needle won't hit the hoop frame.
• Speed: Reduce speed to 600 SPM for the first layer (underlay).
• Sound: Listen for a rhythmic "thump-thump." A loud "clack" implies a dull needle.
• Observation: Watch the first 100 stitches. If the bobbin thread pulls to the top, stop and rethread.
• Finish: Use curved scissors to trim jump threads as you go (if auto-trim is off).

By following this empirical, sensory-based approach, you move from "hoping it works" to "knowing it will work." The Designer EPIC is a powerhouse, but it requires a disciplined pilot. Setup correctly, clear your space, and let the physics of the machine do the work.

FAQ

• Q: What should be prepared before converting a Husqvarna Viking Designer EPIC from sewing mode to embroidery mode?
  A: Prepare the consumables and safety items first to avoid mid-setup stops that cause thread nests and broken needles.
  • Gather: Sensor Q foot, Straight Stitch Throat Plate, 60wt/90wt bobbin thread, 40wt polyester top thread, curved embroidery scissors, 75/11 embroidery needle, cutaway/tearaway stabilizers, 505 spray, and a UPS/surge protector.
  • Wind: 3–4 bobbins so the Husqvarna Viking Designer EPIC does not run out mid-design.
  • Install: A fresh 75/11 needle before any calibration or stitch-out.
  • Success check: Everything is on the table and the machine is plugged into a UPS before any parts get swapped.
  • If it still fails: If setup keeps getting interrupted, simplify the workflow by setting up a dedicated hooping area or station so nothing gets misplaced.
• Q: How do I remove the accessory box on a Husqvarna Viking Designer EPIC to attach the embroidery unit correctly?
  A: Slide the Husqvarna Viking Designer EPIC accessory tray to the left—do not pry upward.
  • Slide: Push the plastic accessory box straight to the left to expose the connection port on the free arm.
  • Avoid: Do not lift or pry; the plastic tabs can snap.
  • Confirm: Look for the multi-pin connector on the right side of the free arm base.
  • Success check: The tray comes off smoothly with minimal resistance and the connector is fully visible.
  • If it still fails: If it feels stuck, stop and re-check the direction—forcing upward is what breaks tabs.
• Q: Why must a Husqvarna Viking Designer EPIC use the Straight Stitch Throat Plate for embroidery, and how do I confirm it is correct?
  A: Use the Straight Stitch Throat Plate to prevent fabric flagging and needle deflection that can cause broken needles.
  • Swap: Replace the zig-zag plate with the Straight Stitch Throat Plate before embroidery.
  • Verify: Check the screen behavior—zig-zag stitches should be locked out when the Designer EPIC detects the straight stitch plate.
  • Avoid: Do not start embroidery if the wrong plate is installed.
  • Success check: The plate is installed and the machine recognizes it by restricting incompatible stitches.
  • If it still fails: If needle breakage continues, stop and re-check that the plate is truly the straight stitch plate and that fabric is not being pulled during stitching.
• Q: How do I attach and calibrate the Husqvarna Viking Designer EPIC embroidery unit without collisions?
  A: Dock the embroidery unit left-to-right until it clicks, then calibrate with the hoop removed and clear space around the arm.
  • Slide: Place the module to the left and push it smoothly from left to right until it seats.
  • Listen/feel: Confirm a solid mechanical “CLICK” so the electrical connection is not loose.
  • Clear: Remove any hoop and give at least 12 inches behind the machine plus clear space to the left/rear before pressing “OK” to calibrate.
  • Success check: Calibration runs with a smooth low hum (not grinding) and the arm does not bang into a wall or objects.
  • If it still fails: Power off, remove obstructions (including behind the arm “elbow”), then power on and calibrate again.
• Q: What is the correct way to install the Husqvarna Viking Sensor Q embroidery foot on a Designer EPIC if the foot fights the screw?
  A: Lower the needle bar slightly before mounting the Sensor Q foot so the spring-loaded foot seats correctly.
  • Loosen: Remove the current ankle while keeping the screw with the ankle.
  • Turn: Rotate the handwheel toward you to lower the needle bar about 1/2 inch.
  • Position: Place the Sensor Q foot so the clear/white plastic arm goes ABOVE the needle clamp screw, then tighten.
  • Success check: The foot seats firmly and the plastic arm rides on the needle clamp screw (not below it).
  • If it still fails: If the machine jams or errors, stop and re-install—an arm below the screw commonly prevents proper lifting.
• Q: How do I stop bird nesting (thread tangling underneath) on a Husqvarna Viking Designer EPIC during embroidery?
  A: Rethread the TOP thread with the presser foot UP so the thread enters the tension discs correctly.
  • Raise: Lift the presser foot before threading to open the tension discs.
  • Rethread: Completely rethread the top path and ensure the thread is seated properly.
  • Restart: Stitch again and watch the first stitches closely.
  • Success check: The underside shows clean bobbin thread with no large loops piling up.
  • If it still fails: Stop and re-check top threading again first; if the bobbin thread starts pulling to the top, rethread before continuing.
• Q: What are the safety rules for using magnetic embroidery hoops, especially for beginners upgrading from standard hoops?
  A: Magnetic hoops are powerful—use controlled handling to prevent finger pinches and keep them away from implanted medical devices.
  • Keep away: Do not use magnetic hoops near pacemakers, ICDs, or other implanted medical devices.
  • Slide apart: Separate magnets by sliding—do not pull them straight apart.
  • Control: Keep fingers out of the closing path so magnets cannot snap together on skin.
  • Success check: Magnets come together slowly under control without a sudden snap or pinch.
  • If it still fails: If handling feels unsafe or unstable, pause the upgrade and return to standard hooping while improving stabilizer choice and floating technique first.
