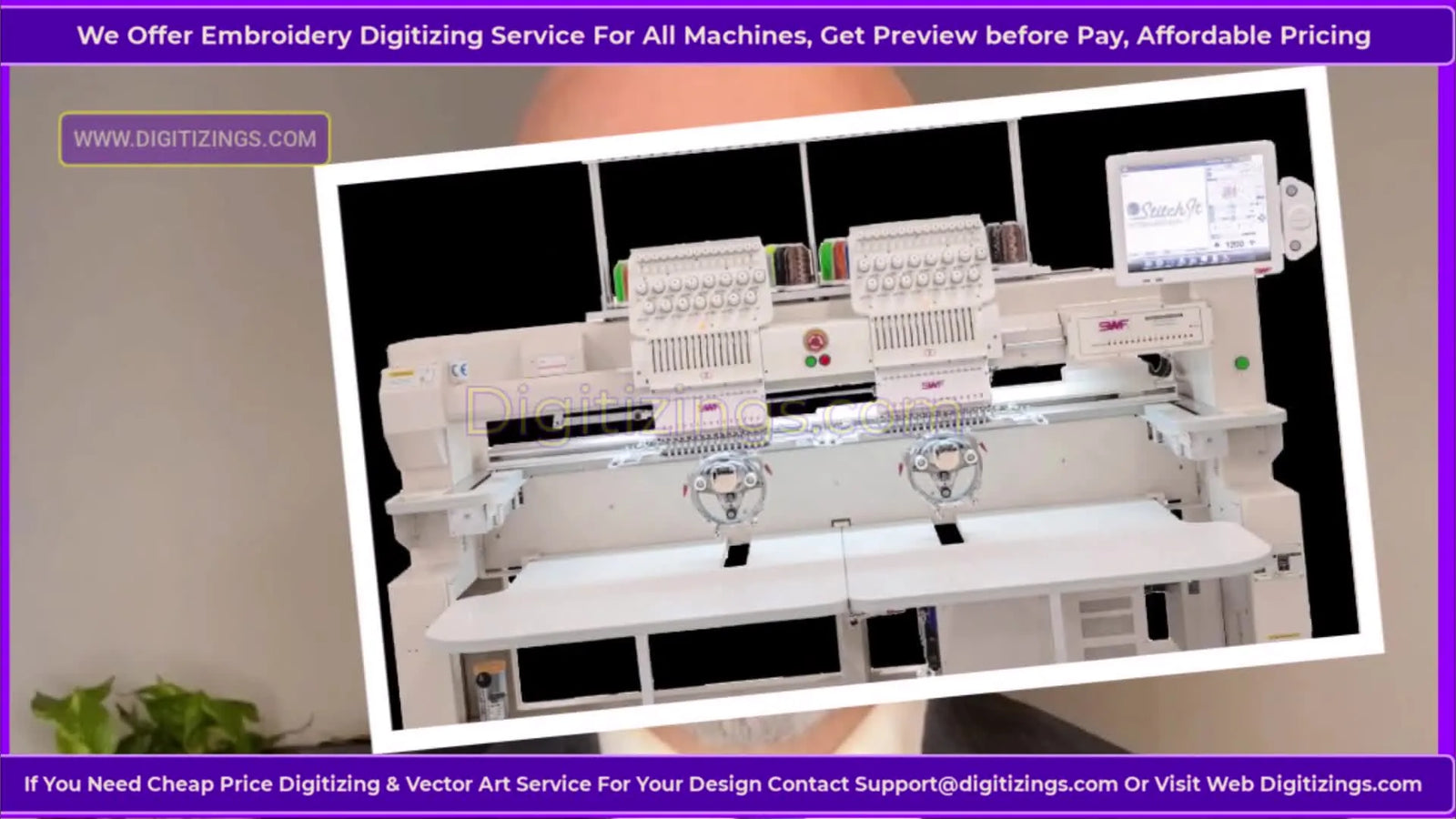

SWF KX-UK1502-45 Dual-Head Reality Check: The Features That Actually Speed Up Production (and the Ones That Don’t)

Here is the calibrated, expert-level guide optimized for production efficiency and operator safety.

When you’re shopping for a commercial machine, the spec sheet is the easy part. The hard part is knowing which features actually move the needle in a real shop—when you’re juggling hooping, thread changes, cap runs, and customer deadlines.

The information you have likely seen gives a fast, feature-focused overview of the SWF KX-UK1502-45: a dual-head commercial embroidery machine built for speed, repeatability, and high-volume work. As someone who has spent two decades on the shop floor, I’m going to translate that overview into a practical “what this means on the floor” playbook—so you can avoid the classic traps that eat time and create rejects.

Don’t Panic—A Dual-Head SWF KX-UK1502-45 Is Built for Long Days (If You Treat It Like a Production Tool)

A lot of owners feel a physical knot of anxiety the first time they stand in front of a dual-head machine. That’s normal. Two heads, 15 needles per head, and a massive sewing field can feel like “twice the ways to mess up.”

Here’s the calming truth: the SWF KX-UK1502-45 is a high-performance dual-head machine designed for precision, speed, and versatility. The machine’s value isn’t just that it stitches fast; it’s that it’s designed to stitch consistently for long runs when your workflow is disciplined.

If you’re comparing brands, keep your mindset simple: a swf embroidery machine is only as profitable as your hooping speed, your thread-path consistency, and your ability to repeat a setup without “reinventing the wheel” every order.

The “Hidden” Prep Before You Run the SWF KX-UK1502-45: What Experienced Shops Check First

Production success starts before you ever hit the green button. These are the sensory checks that prevent the most expensive kind of problem: a run that looks fine for 2 minutes and then shifts, puckers, or breaks a needle.

1. Stage Your Consumables (The "Mise en Place")

Don't stop a run to hunt for tools. Have these ready:

• Thread cones: Seated firmly. Check that the thread isn't caught under the cone base.
• Bobbin cases: Clean out the lint. Sensory Check: Blow into the hook assembly before inserting.
• Hidden Consumables: Keep spray adhesive, a fresh pack of organ needles, and precision snips within arm's reach.

2. The Physics of Hooping: "Drum Tight" is a Myth

In commercial embroidery, beginners often over-tighten, creating a "drum" effect. This stretches the fabric fibers. When you un-hoop, the fabric relaxes, and your perfect circle becomes an oval.

• The Tactic: Aim for neutral tension. The fabric should be flat and smooth, but not stretched.
• The Tactile Test: Run your fingers over the hooped fabric. It should feel like a freshly starched shirt—firm, but yielding slightly if you press down.
• The Pain Point: Traditional plastic hoops often leave "hoop burn" (white rings) on dark poly-performance shirts. If you are fighting this daily, this is usually where a shop upgrades to magnetic framing systems (discussed below).

Prep Checklist (Do not skip)

• Hoop Check: Are you using tubular hoops for flats or the cap driver for hats?
• Bobbin Tension: Pull the bobbin thread. It should feel like pulling a spiderweb—smooth resistance, but not tight. (Drop Test: Hold the thread; the bobbin case should not drop unless you wiggle your hand).
• Stabilizer Match: Consult the Decision Tree below.
• Path Clearance: Ensure the pantograph (the moving arm) has 100% clearance from walls or tables.
• Visual Scan: Look for "pig tails" (twisted thread) at the top of the thread tree.


Dual Heads on the SWF KX-UK1502-45: The Moment You Start Thinking in “Pairs”

The video demonstrates both heads stitching simultaneously on flat garments, showing synchronized X-Y pantograph movement. That’s the real promise of a dual-head: you stop thinking “one garment at a time” and start thinking “two at a time.”

But here’s the veteran perspective: dual heads don't automatically double profit. They only double output if your hooping speed keeps up.

The "Downtime Trap"

If it takes you 4 minutes to hoop two shirts, and the machine stitches them in 3 minutes, your machine is sitting idle more than it is running.

• The Fix: You need a "Hooping Station" workflow. While the machine runs, you should be hooping the next two garments.
• The Tool Upgrade: If you’re running a 15 needle embroidery machine for production, swapping to Magnetic Hoops can cut your hooping time by 30-40%. They snap shut automatically, reducing the wrist strain and adjustment time required by screw-tightened hoops. Always verify frame compatibility with your specific SWF arm width.


The 15-Needle System: Why It’s More Than Just “More Colors”

In real production, 15 needles per head isn’t just for stitching rainbows. It is your efficiency buffer.

Practical Implementation

• The Standard Load: Keep needles 1-7 loaded with your "House Colors" (Black, White, Red, Royal, Navy, Gold, Grey). Never change these unless necessary.
• The "Floater" Needles: Use needles 12-15 for specialty jobs (neons, metallics).
• Tactile Threading: When threading the needle eye, floss the thread back and forth. You should feel it "seat" in the groove down the front of the needle. no groove = backwards needle = thread breaks.


The 450mm x 400mm Area: Use the Big Field Without Big Problems

The SWF offers a massive 450mm x 400mm field. However, physics dictate that the larger the area, the more "push and pull" distortion you will battle.

Decision Tree: Fabric → Stabilizer Strategy

Stop guessing. Use this logic flow to determine your setup.

START HERE:

1. Is the fabric stretchy (Polo, T-shirt, Hoodie)?

• YES: CUTAWAY Stabilizer. No exceptions.
  • Heavy stitch count (>10k stitches)? Use 2 layers of medium (2.5oz) Cutaway.
  • Textured surface (Pique)? Add water-soluble Solvy topping to keep stitches sitting high.
• NO: Go to step 2.

2. Is the fabric stable (Denim, Twill, Canvas)?

• YES: TEARAWAY Stabilizer. Two layers of medium weight usually suffice.
• NO: Go to step 3.

3. Is it a Cap?

• YES: CAP BACKING. This is a specialized, stiff tearaway. Never use standard backing for caps; it’s too soft.

Pro Tip: Keep a "Recipe Book" near the machine. Write down what worked: "Gildan Hoodie = 2 layers Cutaway + 75/11 Ballpoint Needle."

Touchscreen Navigation: Make Color Sequence Changes Without Guesswork

The touchscreen is your command center. In a dual-head scenario, a mistake here ruins two garments instantly.

The "Double-Tap" Rule

Before pressing start on the SWF panel:

1. Check the Sequence: Does Color 1 on the screen match Needle 1 on the machine?
2. Check the Heading: Is the design right-side up? (Especially crucial for caps, which run upside down relative to flats).

Setup Checklist (Pre-Flight)

• Design Orientation: Rotating 180° is common for caps. Verify visual icon on screen.
• Speed Limit: Set speed to a "safe zone" (see below).
• Trace Function: ALWAYS run a trace. Watch the needle #1 position. Does it hit the plastic hoop? Listen for the click of the pantograph limits.
• Presser Feet: Ensure they are not catching on the hoop adjustment screw.


1,200 SPM on Caps? The Reality of Speed vs. Quality

The spec sheet says up to 1,200 stitches per minute. Marketing loves this number. Experienced operators treat it with caution.

The "Sweet Spot" Strategy

Speed kills quality if the foundation is weak. Vibration is the enemy.

• Beginner Sweet Spot (Flats): 750 - 850 SPM.
• Beginner Sweet Spot (Caps): 600 - 700 SPM.

Start slow. If the machine sounds rhythmic and smooth ("thump-thump-thump"), bump the speed up 50 SPM. If it sounds harsh or metallic ("clack-clack"), slow down. Your ears are your best diagnostic tool.

Warning: Keep Hands Clear! The cap driver moves rapidly and with significant torque. Never reach into the sewing field to grab a loose thread while the machine is running. A 15-needle head does not stop instantly.

If you are consistently struggling to hoop caps tight enough, you are likely fighting the limitations of your framing system. Many shops wasting time here search for a specifically designed cap hoop for embroidery machine or specialized clamping station to secure structured hats without the thumb-wrestling match.

Automatic Trimmers and Maintenance: Where "Convenience" Needs Discipline

The video highlights the automatic trimmer. When it works, it's magic. When it fails, you get "birdnests" (wads of thread under the plate).

The Ritual

1. The Sound: A clean trim sounds like a sharp snip-click. A dull or misaligned trimmer sounds like a crunch.
2. The Maintenance: Every morning, apply one drop of sewing machine oil to the rotary hook raceway. Just one drop.
3. The lint: Remove the throat plate once a week. Packed lint prevents the knives from engaging.


Barcode Scanning + Memory: Scaling Your Output

This feature is about reducing human error.

• Naming Convention: Save files as ClientName_JobType_Hoop (e.g., PizzaPlace_Polo_LeftChest).
• Batching: Do all your navy shirts, then all your white shirts. Why? Because you save time by not changing bobbin thread instructions or top thread visibility requirements.


Vector Art vs. Output: It’s Usually the File, Not the Machine

If your machine is running well on one design but shredding thread on another, the problem is likely Digitizing.

• Density: If stitches are piled on top of each other, the needle has nowhere to go.
• Pull Comp: Circles need to be digitized as ovals to sew out as circles.
• The Diagnostic: If the machine sounds like it is hammering hard in one specific spot, check the design file for excessive density.


The Finished Polo Standard: The "Sellable" Check

Before you bag it, apply the "Arm's Length Rule." Hold the shirt out.

1. Readability: Can you read text clearly?
2. Puckering: Is the fabric rippled around the logo? (Sign of poor stabilization).
3. Registration: Is the outline actually on the design, or shifted?
4. Bobbins: Turn it inside out. You should see a white column down the center of each satin stitch, taking up about 1/3 of the width. This proves your tension is balanced.


Common Time-Wasters & Diagnostics (Structured Fixes)

Use this table when things go wrong. Start with the "Low Cost" fix first.

The Upgrade Path: Solving Hardware Bottlenecks

As your volume grows, your bottlenecks shift from "learning" to "efficiency."

Trigger 1: The "Hooping Bottleneck"

If your machine is stopped waiting for you to frame the next shirt, you are losing money.

• Solution: Magnetic Hoops. By using powerful magnets to clamp fabric, you eliminate the need to adjust screws for different fabric thicknesses.
• Relevance: Many professionals search for swf magnetic hoops specifically to fit the wider arms of these commercial machines. Ensure you check your arm spacing (e.g., 360mm vs 500mm spacing) before buying.

Warning: Magnetic Safety. These are industrial magnets, not fridge magnets. They can pinch fingers severely and must be kept away from pacemakers.

Trigger 2: Scaling Capacity

If you are running shifts and still missing deadlines, it’s time to look at adding heads.

• Context: Owners often research swf embroidery machines for their modularity—allowing you to add capacity without changing your entire operating system.

Trigger 3: Framing Fatigue

Wrist strain is real. If you are doing 50+ items a day, screw-tightening is a health hazard.

• Solution: A proper Hooping Station combined with magnetic frames.
• Search Intent: Operators often look for embroidery hoops for swf that offer ergonomic relief. Or, investing in a dedicated hooping station for machine embroidery ensures every placement is identical, reducing the mental load of measuring every chest logo.


Operation Checklist: The "Walk-Away" Standard

You can only walk away from the machine if you have verified these five points:

• 1. Hoops Secured: Verify both left and right hoops are clicked into the pantograph arms. Pull on them gently to check.
• 2. Colour Map: Visually verify Needle 1 has the Thread Color required for Step 1.
• 3. Clearance: Ensure no spare backing or scissors are sitting on the table where the hoop will travel.
• 4. First 100 Stitches: WATCH the first 100 stitches. If it is going to birdnest, it will likely happen now.
• 5. Sound Check: Close your eyes for 5 seconds. Does it sound rhythmic?


Final Take: Your Workflow Is the Real “Feature”

The SWF KX-UK1502-45 is a powerhouse: dual heads, 15 needles, 450x400mm field, and 1,200 SPM potential. But the machine is just a tool.

What separates profitable shops from frustrated ones is the system around the machine:

1. Standardized thread loading.
2. Disciplined use of stabilizers (Cutaway for knits!).
3. Efficient hooping tools (Magnetic hoops).

If you are running an swf machine in a real business, treat every minute of handling time as a cost. Master the prep, respect the safety limits, and upgrade your tools when they—not the machine—become the limit to your growth.

FAQ

• Q: What consumables should be staged before starting a production run on the SWF KX-UK1502-45 dual-head embroidery machine?
  A: Stage thread cones, clean bobbin cases, fresh needles, snips, and any spray adhesive before pressing start to avoid mid-run stops.
  • Place: Seat each thread cone firmly and confirm thread is not trapped under the cone base.
  • Clean: Remove lint from bobbin case/hook area before inserting the bobbin case.
  • Prepare: Keep a fresh pack of needles (including organ needles), snips, and spray adhesive within arm’s reach.
  • Success check: The machine area stays “hands-free” during the run—no pausing to hunt tools, and the hook area looks lint-free.
  • If it still fails: If thread breaks or trims get messy, move to trimmer/hook cleaning and morning oil routine checks.
• Q: How do operators set correct hooping tension on the SWF KX-UK1502-45 to prevent fabric distortion and hoop burn?
  A: Use neutral hooping tension—flat and smooth without stretching—because “drum tight” hooping often causes distortion after unhooping and can worsen hoop burn.
  • Hoop: Tighten only until the fabric is smooth and stable, not stretched.
  • Feel: Run fingers across the hooped area; aim for “firm but slightly yielding” when pressed.
  • Reduce marks: If hoop burn shows as white rings on dark performance fabrics, loosen clamping pressure and consider a framing system change.
  • Success check: After unhooping, circles and text remain true (no ovaling), and the fabric surface shows minimal ring marks.
  • If it still fails: If hoop burn remains a daily issue, upgrading to magnetic framing systems is often the next step.
• Q: How can operators verify bobbin tension on the SWF KX-UK1502-45 using the bobbin case drop test?
  A: Use the drop test as a quick baseline: the bobbin case should not drop when held by the thread unless the hand is wiggled.
  • Pull: Draw bobbin thread and feel for smooth resistance—like pulling a spiderweb, not tight.
  • Test: Hold the bobbin case by the thread; confirm it stays up unless you gently wiggle your hand.
  • Recheck: If stitch balance looks off, repeat the test after cleaning lint from the bobbin area.
  • Success check: Bobbin pull feels smooth (not jerky), and the drop test behaves consistently run to run.
  • If it still fails: If the underside stitch balance is poor, shift to a full top/bobbin tension balance check using a sew-out sample.
• Q: What is the “sellable” tension check for SWF KX-UK1502-45 embroidery on polos when inspecting the finished garment?
  A: Turn the garment inside out and look for a white bobbin “column” centered in satin stitches, taking about one-third of the satin width.
  • Inspect: Apply the arm’s-length readability check for text and edges.
  • Check: Look for puckering/ripples around the logo as a stabilization warning sign.
  • Verify: Flip inside out and confirm the bobbin column is centered and consistent through satin stitches.
  • Success check: The design reads cleanly at arm’s length, sits flat (minimal rippling), and shows a consistent bobbin column on the reverse.
  • If it still fails: If puckering persists, revisit the stabilizer choice (cutaway for knits) and hooping tension before changing machine settings.
• Q: How do operators fix shredded thread breaks on the SWF KX-UK1502-45 (shredding instead of a clean cut)?
  A: Treat shredded breaks as friction first—change the needle and confirm the thread path is clean and untangled before assuming timing issues.
  • Replace: Install a fresh needle and rethread carefully through the entire thread path.
  • Check: Look for tangles, “pig tails,” or snag points at the thread tree and guides.
  • Observe: Run again at a conservative speed to see if shredding stops.
  • Success check: Thread break frequency drops immediately and the stitch sound becomes smooth instead of “harsh/metallic.”
  • If it still fails: Escalate to deeper checks like timing or rotary hook point condition (often technician-level work).
• Q: How do operators respond to birdnesting after an automatic trim on the SWF KX-UK1502-45?
  A: Stop and clean—birdnests after trimming are commonly linked to lint buildup and trimmer/hook maintenance, not the design.
  • Listen: Compare trim sound—clean trims sound like a sharp “snip-click”; a dull/misaligned trim can sound like a “crunch.”
  • Clean: Remove lint from the hook/throat plate area on a routine schedule; packed lint can prevent knives from engaging.
  • Oil: Apply one drop of sewing machine oil to the rotary hook raceway each morning (no more than one drop).
  • Success check: Trims return to a crisp “snip-click,” and the underside stays clean without thread wads under the plate.
  • If it still fails: If birdnesting repeats across multiple designs, pause production and inspect trimmer condition and cleanliness more thoroughly.
• Q: What are the key safety rules for running caps on the SWF KX-UK1502-45 at production speeds?
  A: Keep hands completely out of the sewing field while the cap driver is moving—cap runs involve rapid motion and high torque, and the head does not stop instantly.
  • Set: Use a conservative cap speed range as a safe starting point (600–700 SPM for beginners).
  • Watch: Monitor the first 100 stitches and do not reach in to grab loose thread while running.
  • Verify: Run a trace and confirm clearance so the needle path cannot strike the hoop/driver.
  • Success check: The machine runs with a rhythmic, smooth sound and no near-contact events around the cap driver/field.
  • If it still fails: If safe hooping and cap framing remain a struggle, move to a dedicated cap framing/hooping solution rather than pushing speed.
