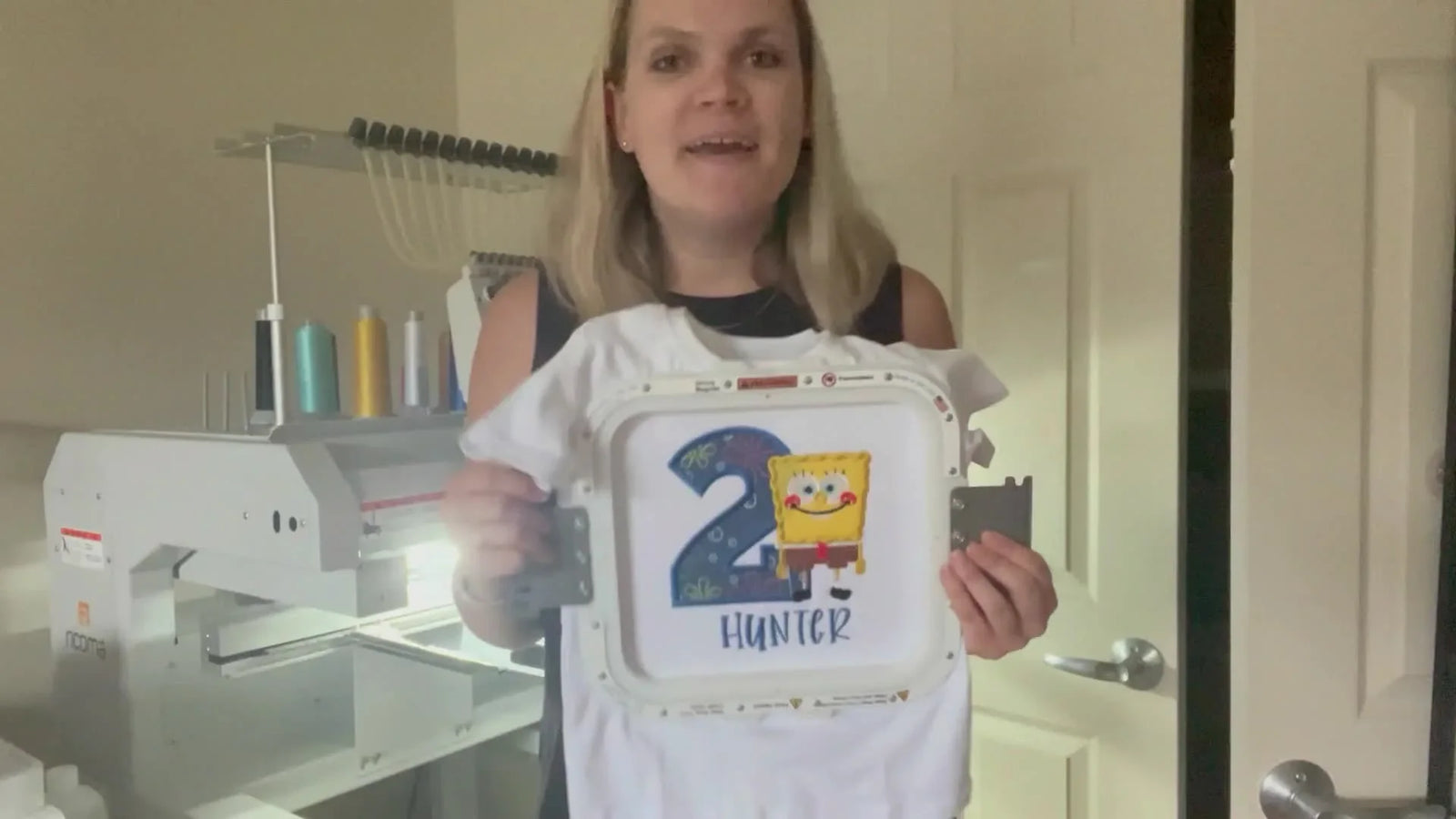

Sublimation Appliqué on a Ricoma MT-1501: Crisp Prints, Clean Tack-Down, and Zero Hoop Burn with an 8x9 Magnetic Hoop

Sublimation Appliqué Unlocked: A Commercial Guide to Mixing Ink and Thread

If you have ever looked at a bright, custom-printed appliqué and thought, “That’s the look I want—but I don’t want the headaches,” you are in the right place. Combining sublimation with machine embroidery creates a high-value product that customers love: the durability of thread with the photo-realism of ink. However, it can be incredibly profitable or incredibly frustrating. The difference usually comes down to three variables: paper marks (impression lines), ghosting (blurry images), and sloppy appliqué edges.

In this workflow, you will create your own custom-printed appliqué fabric using individual sheets and a sublimation printer, then stitch it onto a t-shirt using a commercial-grade machine (like the Ricoma MT-1501) equipped with an 8x9 magnetic hoop. The result is a SpongeBob birthday design with a clean royal-blue satin border—exactly the kind of vibrant, high-margin finish that separates professional shops from hobbyists.

This guide is not just a tutorial; it is a standardization protocol. We will break down the physics of the process using sensory checks—what you should feel, hear, and see—to ensure your first attempt is sellable.

The Calm-Down Moment: Sublimation Appliqué Is Predictable (If You Control Shift, Pressure, and Hooping)

When people say sublimation + embroidery is “hit or miss,” what they usually mean is that the process is unforgiving of movement and inconsistent pressure. Sublimation is a chemical phase change: solid ink turns into gas at 400°F and bonds with polyester fibers. If the paper shifts by even a millimeter during that gas phase, you get "ghosting."

The good news is that once you lock down your paper, protect your heat press, and stabilize your garment correctly, the results become mathematically repeatable.

A quick reality check before we start: sublimation is chemically impossible on 100% cotton fibers without specialized coatings. It is most vibrant on 100% polyester fabric. Furthermore, your appliqué quality is determined by two mechanical factors:

1. Flatness: How stable and taut the fabric is held during stitching.
2. Edge Management: How cleanly you trim the appliqué before the final satin border covers the raw edge.

If you are already using ricoma embroidery machines or similar commercial multi-needle equipment, you are in a great spot. Commercial machines thrive on consistent setups, and this project rewards strict adherence to protocol.

The “Hidden” Prep Pros Never Skip: Fabric Choice, Paper Side, and a Press-Safe Work Surface

Preparation is where 90% of failures occur. In a professional environment, we don't just "gather supplies"; we certify our inputs.

Choose the appliqué fabric (and why it matters)

The video demonstrates using 100% polyester fabric. While it may look cream-colored or off-white, the fiber content is the critical variable. That is the correct call for vibrant sublimation.

From an operator’s perspective, here is the principle: Sublimation dye molecules are designed to bond with polymers.

• 100% Polyester: High vibrancy, permanent bond, zero wash-out.
• 50/50 Blends: You will achieve a "vintage" or faded look because only 50% of the fibers (the poly ones) will hold the ink.
• Cotton: The ink will wash out immediately unless a polymer coating spray is used (which adds a rough hand-feel).

The Professional Choice: For appliqué, always use 100% polyester twill or poplin. It provides a stable base for the stitches and the best canvas for the ink.

Confirm the sublimation paper printing side

Sublimation paper is not standard copy paper. It has a specific coating that holds the ink. The paper shown has branding on the back (Hiipoo logo) and a blank, slightly tacky front. The host emphasizes printing on the blank/white side.

Sensory Check: If your paper doesn't have logos on the back, wet your thumb and forefinger and pinch a corner. The side that sticks to your finger is the coated side—that is the side you print on.

Set up a press-safe “sandwich zone”

You will be pressing at 400°F (approx. 204°C) for 45 seconds with firm pressure. That is enough heat to turn the dye into gas, which can permeate perfectly good fabrics and permanently stain your heat press platen. The solution is the "Blowout Sandwich":

1. Bottom Layer: Parchment paper (protects the bottom rubber mat).
2. Middle Layer: Your project.
3. Top Layer: Parchment paper (protects the heating element).

Warning: Burn Hazard. Heat presses operate at temperatures that cook meat instantly. Freshly pressed fabric holds heat longer than you expect. Keep hands clear when closing the press using the handle. When opening, do so deliberately and allow the "steam moment"—the visible release of hot vapor—to dissipate for 3-5 seconds before reaching in to peel the paper.

Prep Checklist (end of Prep)

• Fabric: 100% polyester fabric swatch cut to size (approx 8" x 8" for this project).
• Print Surface: Sublimation paper orientation confirmed (printing on the coated/white side).
• Adhesive: Heat transfer tape (thermal tape) is ready. Do not use standard scotch tape; it will melt and ruin the fabric.
• Protection: Two sheets of clean parchment paper or Teflon sheets.
• Consumables: Sharp appliqué scissors (duckbill preferred) and HeatnBond Lite.
• Equipment: Heat press warmed to 400°F (check manufacturer specs for your specific paper).


Canva + SVG Setup That Won’t Betray You: 8.5x11 Canvas, Mirror the Art, Export PNG

The design workflow begins digitally. The video utilizes an SVG purchased from Etsy, manipulated in Canva. This is a common workflow for shops that don't have dedicated vector software like Illustrator or CorelDraw.

What the video does in Canva

1. Canvas Creation: Create a document sized 8.5" x 11" (standard US Letter). This ensures your print scale matches your physical paper.
2. Import & Size: Import the design. Ensure it fits within your intended hoop area (e.g., if using an 8x9 hoop, keep the design within 7x8 to be safe).
3. The "Fatal" Step: Use Flip Horizontal to mirror the design.
4. Export: Download as a PNG with Transparent Background enabled.

Why Mirror? Unlike heat transfer vinyl (HTV) which is sometimes cut right-reading, sublimation is always printed in reverse because the paper is flipped face-down onto the fabric. If you skip this, your text will be backwards.

If you are building a repeatable workflow for sublimation on embroidery, save a master Canva template named "Sublimation_Master_8.5x11" so every future design starts with the correct dimensions.

Epson ET-2760 Printing: Load the Paper Correctly and Use “Fill Entire Paper”

The output device in this workflow is an Epson ET-2760 EcoTank converted for sublimation. This is a standard entry-level setup for embroidery shops adding sublimation services.

Paper loading (rear tray)

The host loads the sublimation paper into the rear feed. Mechanical Check: Ensure the paper guides are adjusted to touch the edges of the paper without bending it.

• Loose guides: Cause the paper to twist, leading to a crooked print.
• Tight guides: Cause the paper to buckle, leading to head strikes (ink smears).
• Sensory Anchor: The paper should slide in with slight friction but sit flat ("snug as a bug").

Print settings shown

• Select Printer: Verify you are sending to the sublimated-converted printer, not your office document printer.
• Scale: Choose Fill Entire Paper or ensure Scale is set to 100%.
• Double-Sided: Ensure this is OFF.

This is where many “mystery” print issues originate: a setting that scales the image down by 3%, causing the embroidery placement line to not match the printed image later.

The Paper-Edge Trick That Saves Your Finish: Tear the Borders to Avoid Press Lines

One of the most immediate indicators of "amateur" sublimation work is a faint, sharp rectangular indentation surrounding the image. This is called a "press line," caused by the hard edge of the paper digging into the soft polyester fabric under high pressure.

The video’s fix is a deceptively simple industry secret: tear off the straight white borders of the sublimation paper to create a softer, fibrous, ragged edge.

The Physics: A straight cut creates a cliff-edge of pressure. A torn edge creates a feathered gradient of pressure, blending the paper transition into the fabric so the eye cannot see the line.

Action:

1. Place one hand firmly on the printed area (to protect it).
2. With the other hand, tear the white margin away, leaving about 0.5" of white space around the ink.
3. Do not tear into the ink pattern itself.

If you have ever wondered why your print looks great but the fabric has a faint "box" around it, this hard edge is the culprit.

“Tape the Crap Out of It”: Lock the Paper Down to Prevent Ghosting

Ghosting occurs when the paper lifts slightly while the ink is gaseous. It creates a double-exposure effect that ruins the piece. The host’s approach is blunt and chemically correct: tape heavily.

What the video does

• Place the sublimation paper face down onto the polyester fabric.
• Apply Heat Transfer Tape on all corners and along the midway points of the sides.

This is a physics problem, not a luck problem. When the heat press closes, a gust of air is displaced. When it opens, a vacuum effect occurs. Both forces try to lift your paper. Tape acts as the anchor.

If you are trying to build a reliable workflow for how to sublimate applique fabric, treat taping as a critical engineering step. A 5-cent piece of tape saves a $20 garment.

Heat Press Settings That Actually Work: 300°F Pre-Press, Then 400°F for 45 Seconds with Parchment

The video utilizes a two-stage heating process. This is crucial because we are treating the fabric twice: once to prep it, and once to dye it.

Stage 1: The Prep Press

• Temp: 300°F for 15 seconds.
• Purpose: To pre-shrink the polyester fabric and remove moisture.
• Why: Polyester shrinks when heated. If you don't shrink it before you embroider, it will shrink during the final fuse, causing puckering around your stitches.

Stage 2: The Sublimation Press

• Temp: 400°F for 45 seconds.
• Pressure: Firm / Heavy.
• The Sandwich:
  1. Bottom Parchment.
  2. Fabric + Taped Paper.
  3. Top Parchment.

This sandwich protects your expensive equipment from "dye migration" (gaseous ink escaping).

Warning: Equipment Safety. Sublimation ink will transfer to your heat press platen if you skip the parchment/Teflon barrier. Once dye contaminates a platen, it acts like a stamp, ghosting ink onto every future white t-shirt you press—sometimes for weeks. Always use a blowout sheet.

Note: The host mentions fanning the area during pressing because it sets off smoke alarms. This is a real-world reminder: Sublimation produces non-toxic but visible vapor. Ensure your workspace is ventilated.

The Reveal (and the Honest Quality Check): Peel, Inspect, Then Prep It as Real Appliqué Fabric

After pressing, peel back the paper immediately (hot peel). The host notes the result "could have been a bit more vibrant," but is acceptable. This is the correct production mindset: Don't chase perfection by changing five variables at once. Note the result, and if needed, increase pressure or time by 5 seconds on the next run.

The Secret Ingredient: HeatnBond Lite

Next, she performs a critical stabilization step:

1. Roughly cut around the sublimated area.
2. Apply HeatnBond Lite to the back of the printed fabric (iron it on according to package instructions—usually medium heat, no steam).
3. Peel the paper backing off the HeatnBond Lite.

Why Use HeatnBond Lite? It turns your fabric into a sticker. When you iron the final appliqué onto the shirt inside the hoop, it fuses the fabric to the garment. This prevents the fabric from bubbling up in the middle or shifting while the machine creates the satin border. It is the difference between a "puffy" amateur patch and a flat, professional badge.

Hooping a T-Shirt on a Mighty Hoop 8x9: Fast, Flat, and (When Done Right) No Hoop Burn

The embroidery portion is executed on a Ricoma MT-1501 using a Mighty Hoop 8x9 magnetic hoop.

This step addresses the most common pain point in garment embroidery: Hoop Burn. Traditional plastic hoops require you to shove an inner ring into an outer ring, creating friction that crushes the fibers of delicate performance wear or heavy cotton. This often leaves a permanent ring mark.

The Magnetic Solution: A magnetic hoop clamps the fabric from the top and bottom with vertical force, rather than horizontal friction.

• Benefit 1: Eliminates hoop burn on 95% of fabrics.
• Benefit 2: Reduces wrist strain (no tightening screws).
• Benefit 3: Allows for faster re-hooping in production runs.

If you are currently learning hooping for embroidery machine operations on slippery t-shirts, remember this rule: You are aiming for "taut but neutral."

• Sensory Check: Tap the fabric. It should sound like a dull thud, not a high-pitched ping. If it's too tight ("drum-skin"), the knit fabric is stretched and will pucker when removed.

For home users struggling with hoop marks, generic magnetic frames are available. For commercial shops, magnetic embroidery hoops like the one shown (or SEWTECH equivalents) are the gold standard for efficiency. They turn hooping from a bottleneck into a 10-second task.

If you’re specifically running a mighty hoop or similar magnetic workflow, consistency is key: use the same fixture and the same placement marks every time.

Setup Checklist (end of Setup)

• Hooping: Shirt is hooped smoothly (neutral tension) in the magnetic hoop.
• Stabilizer: Cutaway stabilizer acts as the foundation (see Decision Tree below).
• Design: File loaded into the machine; orientation checks out (top is top).
• Appliqué: Printed fabric is backed with HeatnBond Lite and trimmed near the edge.
• Thread: Royal blue thread threaded on the needle assigned to the satin border.
• Clearance: Verify the hoop arms will not hit the machine chassis.

The Stitch-Out Flow on a Ricoma MT-1501: Placement Line → Lay Fabric → Tack-Down → Satin Border

The video demonstrates the classic appliqué sequence. Understanding this sequence is vital because you must interact with the machine between steps.

1. Placement Line (Running Stitch): The machine stitches an outline on the t-shirt to show you where the fabric goes.
2. STOP: The machine stops. You spray adhesive or use the HeatnBond backing to stick your printed fabric over the outline.
3. Tack-Down (Zig-Zag or Running): The machine stitches the fabric down.
   • Action: Remove hoop (optional/machine dependent) and trim excess fabric close to the stitches using appliqué scissors.
4. Satin Border (Column Stitch): The machine finishes the edge with a wide, dense satin stitch in Royal Blue.




Checkpoints and expected outcomes

• After Placement: Is the outline centered?
• After Laying Fabric: Did you cover the entire outline? (Look at the corners).
• After Tack-Down: Is the fabric flat? If there is a bubble, stop and iron it down before the satin stitch.
• During Satin: Is the blue thread covering the raw edge of the fabric completely?

Warning: Mechanical Hazard. Keep fingers well away from the needle bar when placing appliqué fabric. Never reach into the sewing field while the machine is running. Use the "Define Hoop" or "Trace" function to ensure your magnetic hoop won't slam into the presser foot arms.

Operation Checklist (end of Operation)

• Placement line stitched clearly.
• Appliqué fabric positioned to cover all stitch lines by at least 2mm.
• Tack-down stitch completed without fabric shifting.
• Excess fabric trimmed close to the tack-down line (within 1-2mm) without cutting the stabilizer or shirt.
• Satin border completes with no bobbin thread showing on top.
• Final inspection: No white fabric edges peeking out from under the blue border.

A Stabilizer Decision Tree for Appliqué on T-Shirts (So the Satin Border Stays Smooth)

The video mentions the need for stabilizer but doesn't specify. Choosing the wrong backing is the #1 cause of puckering in appliqué. Use this decision tree to select the right SEWTECH or generic stabilizer.

Decision Tree (Garment → Backing Choice):

1. Is the shirt a stretchy knit (T-shirt, Polo, Performance wear)?
   • YES: You MUST use Cutaway stabilizer (2.5oz or 3.0oz).
   • NO: (Denim, Canvas) You may use Tear-away.
   • Why: Knits stretch. Tear-away dissolves/tears, leaving the heavy satin stitches unsupported, causing the shirt to warp over time. Cutaway is permanent infrastructure.
2. Is the satin border wide/dense or the design large?
   • YES: Use a No-Show Mesh (PolyMesh) layered with a medium Cutaway.
   • NO: A single layer of 2.5oz Cutaway is sufficient.
3. Is the fabric texture deep (Pique Polo/Fleece)?
   • YES: Add a water-soluble Topping (Solvy) firmly on top. This prevents the satin stitches from sinking into the fabric pile.
4. Are you producing in volume?
   • YES: Pre-cut your stabilizer sheets to fit your magnetic hoop perfectly to save time.

This is where your consumables strategy matters: A generic magnetic hoop + consistent Cutaway stabilizer = repeatable results.

Troubleshooting the Three Classic Failures: Press Lines, Ghosting, and Ink on Your Press

If you encounter issues, look here first. We follow a "Low Cost to High Cost" diagnosis path.

Symptom 1: Hard, square lines on the fabric

• Likely Cause: You cut the sublimation paper with scissors (straight edge) and pressed too hard.
• Quick Fix: Use the "Tear Trick" (see section above).
• Prevention: Reduce press pressure slightly if tearing doesn't fully solve it.

Symptom 2: Ghosting (Blurry, double-vision print)

• Likely Cause: Paper shifted when the heat press opened.
• Quick Fix: Use more heat tape.
• Prevention: Open the heat press slowly. Use a "tacky" sublimation paper that adheres slightly to the fabric.

Symptom 3: Ink bleeding onto the heat press rubber/metal

• Likely Cause: You skipped the parchment paper "sandwich."
• Quick Fix: You cannot easily fix the press (it requires specialized cleaning or platen replacement).
• Prevention: Always, always use a blowout sheet (parchment or Teflon) above and below every project.

Two Comment-Driven Reality Checks: Why People Love This Combo (and Where They Get Stuck)

A common reaction to this workflow is: "This looks like a patch, but feels softer." That is the victory. People love sublimation appliqué because it feels "next level"—it allows for gradients and photos that thread alone cannot achieve.

Pro Tip: If you are making items for customers, keep a "Test Strip" of the same polyester fabric near your press. Before doing the real shirt, press a 1-inch square of your design onto the strip. It costs pennies and saves you from ruining a $10 shirt if your printer nozzle is clogged.

Watch Out: The most common beginner digital mistake isn’t the embroidery—it is skipping the Mirror step in Canva. If you print text and it looks readable on the paper, you have failed. It must look backwards on paper to look correct on the shirt.

The Upgrade Path: From "Crafting" to "Production"

Once you can produce one great shirt, the business question is: Can you produce 50 without fatigue?

Here is the honest scaling math:

• If hooping takes 3 minutes of struggle per shirt, you lose 2.5 hours of profit on a 50-shirt order.
• If you constantly fight loose hoops or hoop burn, your reject rate climbs.

This is why magnetic embroidery hoops are the first tool upgrade we recommend. They are not just for Ricoma users; SEWTECH manufactures magnetic hoops compatible with almost all commercial and home machines (Brother, Babylock, Tajima, etc.). They solve the "holding" problem instantly.

Magnetic Hoop Safety

Warning: Magnetic Field Hazard. Industrial magnetic hoops contain Neodymium magnets with crushing force.
1. Pinch Hazard: Keep fingers clear of the mating surfaces. They snap together instantly.
2. Medical: Keep away from pacemakers and ICDs (maintain 6-12 inches distance).
3. Tech: Keep away from credit cards and mechanical hard drives.

The Final Evolution: If you are currently on a single-needle machine and find yourself dreading the "Thread Change" beep, or if you are turning down orders because you can't stitch fast enough, that is the trigger for a machine upgrade.

• Level 1: Better tools (Magnetic Hoops, better thread).
• Level 2: Commercial Capacity. Moving to a multi-needle machine (like the Ricoma shown or high-value alternatives like SEWTECH/Happy/Tajma styles) allows you to set up 15 colors at once and walk away while the machine works.

Sublimation appliqué is not "craft luck." It is controlled chemistry (the press), controlled geometry (the file), and controlled tension (the hoop). Master these, and you master the market.

FAQ

• Q: Why does sublimation paper leave hard rectangular press lines on 100% polyester appliqué fabric at 400°F with firm pressure?
  A: Tear off the straight paper borders before pressing so the edge transitions are feathered instead of sharp.
  • Tear: Hold the printed area down and tear away the white margins, leaving about 0.5" of white space around the ink.
  • Press: Use parchment (or Teflon) above and below the project to keep pressure consistent and protect the platen.
  • Adjust: If lines remain, reduce press pressure slightly (change one variable at a time).
  • Success check: No faint “box” indentation is visible around the image when viewed at an angle under light.
  • If it still fails… Verify the paper was not scissor-cut after tearing and confirm the press is not over-compressing the fabric.
• Q: How do I stop sublimation ghosting (blurry double-image) when sublimating appliqué fabric at 400°F for 45 seconds with a heat press?
  A: Prevent any paper lift by taping the sublimation paper face-down heavily with heat transfer tape before pressing and by opening the press slowly.
  • Tape: Secure all four corners plus midpoints on the sides with heat transfer (thermal) tape.
  • Open: Lift the heat press deliberately to avoid the “vacuum pop” that can tug paper during the gas phase.
  • Protect: Keep the parchment “blowout sandwich” in place so nothing shifts when closing/opening.
  • Success check: Fine details have a single crisp edge (no shadow outline) when inspected close-up.
  • If it still fails… Add more tape coverage and re-check that the paper is fully flat before closing the press.
• Q: Which side of sublimation paper should be printed on to avoid dull or incorrect transfers when using an Epson ET-2760 converted for sublimation?
  A: Print on the coated side (often the blank/white side), not the branded back.
  • Identify: If one side has logos/branding, print on the blank side.
  • Test: If unbranded, pinch a corner with slightly damp fingers; the side that feels tackier/sticks is typically the coated side.
  • Confirm: Load the paper so the printer prints onto the coated side based on your tray path.
  • Success check: The transfer releases cleanly and the image looks evenly saturated after pressing (not patchy or washed out).
  • If it still fails… Re-check printer selection and scaling so the correct device and settings are actually being used.
• Q: What Epson ET-2760 print settings prevent mismatched placement between the printed PNG and the embroidery placement line for sublimation appliqué?
  A: Keep the print at true size by using “Fill Entire Paper” (or ensuring 100% scale) and turning double-sided OFF.
  • Select: Confirm the job is sent to the converted sublimation Epson ET-2760 (not an office printer).
  • Set: Choose “Fill Entire Paper” or verify scale is 100% so the design does not shrink a few percent.
  • Disable: Ensure double-sided printing is OFF.
  • Success check: The printed artwork aligns with the embroidery placement outline without drifting at corners or edges.
  • If it still fails… Re-check the Canva canvas size (8.5" x 11") and confirm the artwork was not resized during export.
• Q: How tight should a T-shirt be hooped in an 8x9 magnetic embroidery hoop to avoid puckering and hoop burn during appliqué satin borders?
  A: Hoop the shirt “taut but neutral” so the knit is held flat without being stretched like a drum.
  • Smooth: Lay the shirt and stabilizer flat, removing ripples before closing the magnetic frame.
  • Feel: Avoid over-tension; magnetic hoops clamp vertically, so do not force extra stretch into the knit.
  • Test: Tap the hooped area to judge tension before stitching.
  • Success check: The fabric tap sounds like a dull thud (not a high-pitched ping), and the shirt relaxes without puckers after unhooping.
  • If it still fails… Switch to appropriate cutaway backing for knits and re-hoop with less stretch.
• Q: Which stabilizer prevents puckering on stretchy knit T-shirts during dense satin appliqué borders on a commercial multi-needle embroidery machine?
  A: Use cutaway stabilizer for knit shirts, and add no-show mesh or topping only when the design density or fabric texture demands it.
  • Choose: For T-shirts/performance knits, use cutaway (2.5 oz or 3.0 oz) as the base.
  • Layer: If the satin border is wide/dense or the design is large, layer no-show mesh (PolyMesh) with a medium cutaway.
  • Top: If embroidering on piqué polos or fleece, add water-soluble topping to prevent stitch sink.
  • Success check: The satin border stays smooth and the garment does not ripple or distort after stitching and handling.
  • If it still fails… Re-check hooping tension (neutral, not stretched) and confirm the appliqué fabric is fully fused/secured before the satin step.
• Q: What safety rules prevent finger injuries when doing appliqué stops on a Ricoma MT-1501 (placement line → lay fabric → tack-down → satin border) with a magnetic hoop?
  A: Treat every stop as a “hands-clear” event and never reach into the sewing field while the machine is running.
  • Stop: Wait for a full stop before placing appliqué fabric; keep fingers away from the needle bar area at all times.
  • Trace: Use the machine’s trace/define-hoop function to confirm the magnetic hoop will not strike presser foot arms or machine parts.
  • Place: Position fabric using the printed placement line as the boundary, then secure before restarting.
  • Success check: The hoop clears the machine during trace and the operator’s hands never cross into the needle path during motion.
  • If it still fails… Slow down the routine and standardize a repeatable “stop → hands off → place → hands away → restart” sequence.
• Q: What magnetic hoop safety precautions prevent pinch injuries and device interference when using industrial neodymium magnetic embroidery hoops in production?
  A: Keep fingers and sensitive devices away from the mating surfaces because magnetic hoops can snap together with crushing force.
  • Handle: Keep fingertips off the clamp edges; lower the top frame carefully and deliberately.
  • Distance: Keep magnetic hoops away from pacemakers/ICDs (maintain 6–12 inches distance).
  • Protect: Keep away from credit cards and mechanical hard drives.
  • Success check: The hoop closes without finger contact in the pinch zone and the operator can repeat the motion safely under time pressure.
  • If it still fails… Switch to a slower two-hand handling method and train a consistent grip position before scaling production.
