Striped Apron, Straight Stitching: A Ricoma + 5.5" Magnetic Hoop Workflow That Won’t Betray You Mid-Order

The Ultimate Guide to Perfect Placement on Striped Aprons: A Commercial Workflow

Holiday orders have a way of turning “a simple name on an apron” into a maximum-stress event. When the fabric is striped, the stakes double. One millimeter of tilt looks like a mile of mistake, and accurate placement has to look intentional, not just “close enough.”

The good news: The workflow Brittany demonstrates on her Ricoma machine is solid, repeatable, and business-friendly—once you understand the physics of why each step matters.

This guide rebuilds her process into a "Shop Standard" operating procedure. We will cover: precision sizing, chemical stabilization (using 505 spray), floating techniques, and—crucially—how to solve the alignment headache using magnetic hoops.

1. The Stripe Mindset: Visual Alignment vs. Mathematical Center

Striped garments trigger a specific panic in new embroiderers. You naturally want to stretch the fabric tight to force the lines to be perfectly straight in the hoop.

Stop. This is the first mistake.

Brittany’s approach reveals the veteran rule: Your goal is not to stretch the stripes straight; your goal is to keep the fabric relaxed.

If you pull an apron taut to "fix" a crooked stripe, you are temporarily warping the weave. Once the embroidery stabilizes that warp with thousands of stitches, and you pop it out of the hoop, the fabric relaxes back to its natural state, and your text will ripple or tilt.

The Strategy: Use the stripes as a grid, but respect the fabric’s drape. You need a holding method that secures the fabric without distorting it (we will discuss "floating" and magnetic hoops in Section 7).

2. The "Under 4.5 Inch" Rule: Safety Margins for the 5.5" Hoop

Brittany measures the apron chest and makes a critical decision: she chooses a design width of 4.25" for her 5.5" hoop.

Why waste over an inch of usable space? Because in the world of commercial embroidery, allowance is your insurance policy.

A 5.5" hoop does not actually give you 5.5 inches of safe stitching area. The presser foot needs clearance, and the hoop attachment arms need room to maneuver. Pushing a design to 4.8" or 5.0" in this hoop size invites disaster—needle strikes against the plastic frame or distorted edges where the tension is uneven.

The Pro Standard:

• Hoop Size: 5.5" (Round or Square)
• Max Design Width: 4.25" to 4.5"
• File Format: DST (Industry standard for Ricoma and most commercial machines).
• Font: "Boho" (chosen for legibility).

Staying under 4.5" guarantees that even if your hooping is 2mm off-center, you won't hit the frame.

3. Thread Selection: The "Classy Neutral" Palette

Brittany selects Candle Thread USA color 8301 (Sand Dune). This is a deliberate aesthetic choice for business.

Mid-tone neutrals (bronzes, pewters, taupes) photograph exceptionally well on social media. They provide contrast against the gray stripes without looking like a "sticker."

Sensory Check - Thread Tension: When you load this thread, pull it through the needle. You should feel a consistent, smooth resistance—similar to pulling dental floss through a tight gap. If it pulls freely with no drag, your tension is too loose (expect loops). If it snaps or feels like you are dragging a heavy weight, it’s too tight (expect breaks).

4. The "Knot & Pull" Method: Rapid Thread Changes

Time is money. Instead of re-threading the entire path manually, Brittany uses the "Tie and Pull" method.

1. Cut the old thread at the spool (top).
2. Tie the new spool’s thread to the old thread end using a tight square knot.
3. Crucial Step: Pull the thread from the needle end until the knot passes through the tension discs and thread guides.

The Micro-Detail: The knot must be tight and small. As you pull, listen for the tiny click or pop as the knot passes through the eye of the take-up lever.

Warning: safety First! Keep your fingers clear of the needle bar and moving shafts while pulling thread. Ensure the machine is in "Stop" mode. A stray finger on the "Start" button during threading can result in a needle puncture injury.

5. Data Hygiene: USB to Machine Memory

Brittany demonstrates a specific workflow on the Ricoma panel: Transfer from USB to Internal Memory.

Never stitch directly from the USB stick if you can avoid it. A loose connection caused by machine vibration can corrupt data mid-stitch, causing the machine to freeze or offset the design.

The Workflow:

1. Insert USB.
2. Select File (SHELL~1.DST).
3. Copy to Memory.
4. Select Hoop on Screen (C Hoop / 5.5").
5. Assign Needle (Brittany uses Needle 7).


6. The "Hidden" Foundation: Stabilization Physics

This is where beginners fail and pros succeed. Aprons often feel thick, so people assume they don't need much stabilizer. Wrong.

Brittany uses Cutaway Stabilizer sprayed lightly with Odif 505 Temporary Adhesive.

The Principles:

• Why Cutaway? Even on cotton aprons, stripes can distort. Cutaway stabilizer provides a permanent "foundation" that holds the stitches in place for the life of the garment. Tearaway would eventually dissolve or shred, causing the text to distort after washing.
• Why 505 Spray? It acts as a "third hand." It prevents the fabric from sliding across the stabilizer during the rapid movement of the embroidery arm.

Hidden Consumable Alert: You need 505 Spray (or a generic embroidery spray adhesive) and sharp appliqué scissors for trimming later.

Prep Checklist (Complete before touching the hoop):

• Design Sizing: Is the width 4.25" or less?
• File Logic: Is it loaded into Machine Memory (not just USB)?
• Needle Assignment: Is the color assigned to the correct needle (e.g., Needle 7)?
• Stabilizer Prep: Did you spray the cutaway lightly? (It should feel tacky, not wet).
• Physical Check: Is the bobbin largely full? (Check for the white thread visible in the window).

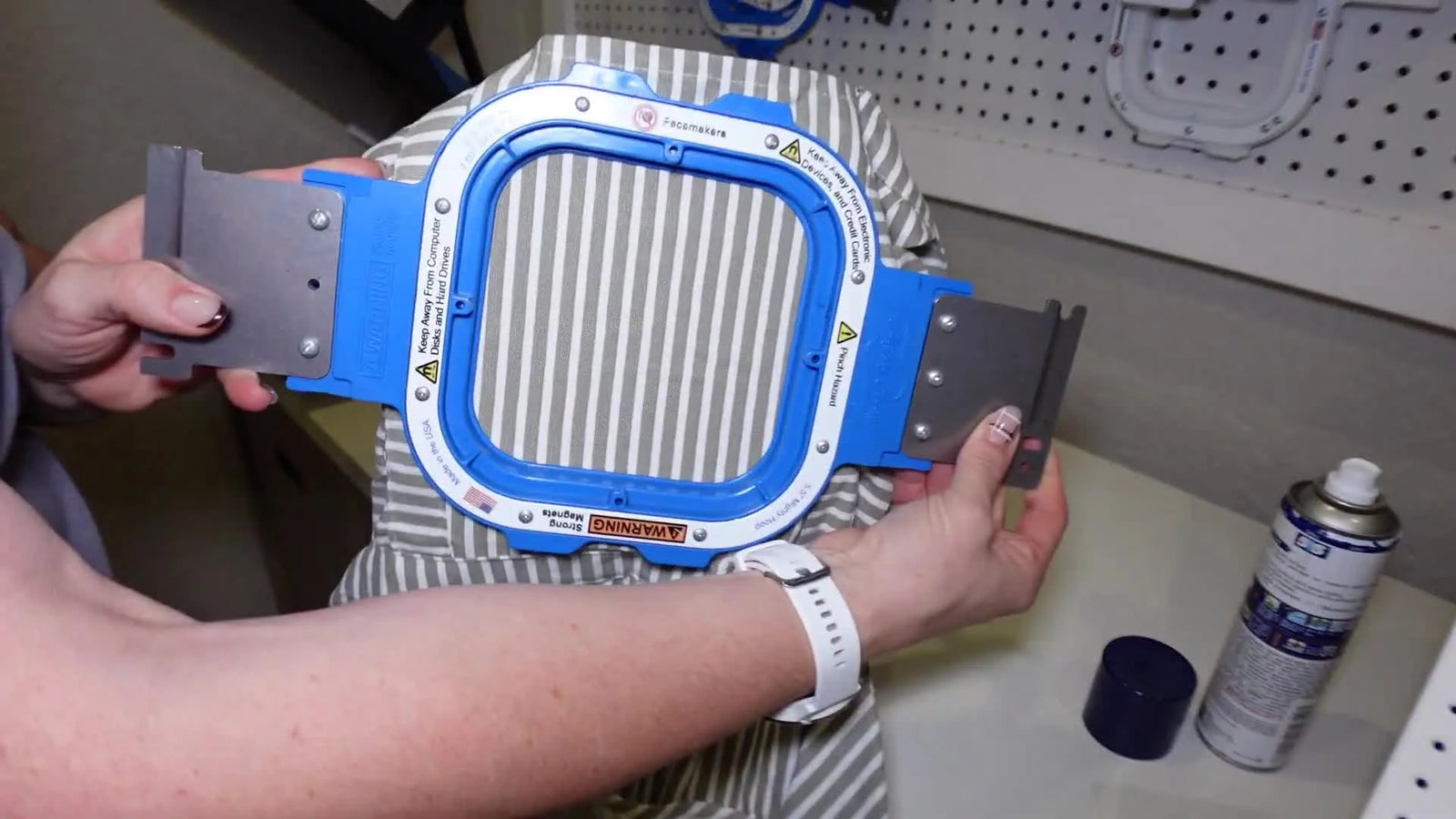

7. Floating & Hooping: The Magnetic Solution

Brittany uses a "Floating" technique combined with a magnetic hoop. She sticks the stabilizer to the back of the apron, then clamps it.

The Pain of Traditional Hooping

Standard screw-tight hoops are notorious for "Hoop Burn"—crushed fabric fibers that leave a permanent ring. On striped aprons, tightening the screw often torques the fabric, making lines crooked.

The Solution: Magnetic Hoops

This is where magnetic hoop embroidery changes the game. Magnetic hoops (like the Mighty Hoop 5.5" shown) use strong magnets to clamp the fabric instantly without "twisting" it.

Why Upgrading Matters: If you look for terms like floating embroidery hoop, you’ll often find that the most successful results come from pairing the floating technique with magnetic frames. They allow you to make micro-adjustments to align the stripes parallel to the frame edge without un-screwing and re-screwing a plastic ring.

Alignment Tip: Visual "Straight" is better than Math "Straight." Ensure the hoop edges are parallel to the apron stripes. If the apron seam is slightly crooked, align to the stripes, as that is what the eye sees.

Warning: High-Force Magnet Hazard. Commercial magnetic hoops (like Mighty Hoops) snap together with immense force.
* Pinch Hazard: Keep fingertips away from the rim. Hold the hoop by the handle tabs.
* Safety: Keep magnets away from pacemakers, insulin pumps, and credit cards.

8. The Trace: Your Last Line of Defense

Brittany performs a visual Trace (using the Heart Icon on Ricoma). This moves the hoop around the design boundaries without stitching.

What to watch for:

1. Clearance: Does the presser foot come dangerously close to the blue magnetic frame?
2. Centering: Does the laser light/needle position look visually centered between the neck straps?
3. Collisions: Listen. If the hoop hits the back of the machine arm, you need to re-hoop.

If you are using ricoma embroidery machines or similar commercial equipment, this step is mandatory. It is the only way to prevent a metal-on-plastic collision that can knock your machine out of timing.

9. Stitching: The Debate on Speed (SPM)

Brittany sets her speed to 700 SPM (Stitches Per Minute).

The "Sweet Spot" Data:

• Commercial Max: 1000-1200 SPM (Good for caps or fill stitches on sturdy canvas).
• Detail Safe Zone: 600-750 SPM.

For delicate lettering on an apron, 700 SPM is ideal. Running at 1000 SPM increases vibration, which can cause the small satin columns of text to lose registration (edges look fuzzy). Slower speeds result in crisper text.

Setup Checklist (Right before pressing Start):

• Hoop Selection: Screen matches physical hoop size (C / 5.5").
• Trace: Completed deeply? (Did you watch the entire perimeter?)
• Fabric Management: Are the apron strings tucked away? (Loose strings can get sewn into the design).
• Speed: Set to 600-700 SPM.


10. Finishing & Quality Control

Once the machine stops, remove the hoop.

1. Tearaway vs Cutaway: Since we used Cutaway, use small, sharp scissors to trim the excess stabilizer on the back. Leave about 1 cm of stabilizer around the text. Do not cut the fabric.
2. The "Look": The back should look relatively clean. A "birds nest" of thread on the back indicates a tension issue.


Stabilizer Decision Tree: Stop Guessing

Not sure if you need one layer or two? Use this logic path for aprons:

1. Fabric Weight Test:

• Heavy Canvas (Stiff): Use 1 Layer Medium Cutaway.
• Cotton Blend (Soft/Pliable): Use 2 Layers Medium Cutaway OR 1 Layer Heavy Cutaway.

2. Design Density Test:

• Thin, sketchy lines: 1 Layer is sufficient.
• Dense Satin Text (Like "Boho" font): Add a second layer (floating underneath) if you see any puckering during the first few stitches.

3. "The Black Stabilizer" Issue: Brittany noted her black stabilizer was thin. Expert Rule: If you can easily see your hand through the stabilizer, treat it as "Light." Always double up "Light" stabilizer for dense commercial lettering.

The Tool Upgrade Path: From Struggle to Scale

If you are doing one apron for a friend, a standard plastic hoop is fine. Bur if you are fulfilling 50 orders for a local cafe, you will hit physical barriers.

1. The "Wrist Pain" Bottleneck: If standard hooping hurts your wrists or takes 3+ minutes per item, this is where hooping for embroidery machine efficiency matters. Upgrading to a magnetic hoop system cuts hooping time to 30 seconds and eliminates the physical strain.

2. The Compatibility Check: When upgrading, specificity is key. A mighty hoop for ricoma is bracketed differently than one for a Brother or Tajima. Ensure you buy the correct brackets.

3. The Production Bottleneck: If you find yourself spending more time changing thread colors than stitching, or if you need to run large batches, this is the trigger point to consider upgrading from a single-needle home machine to a multi-needle system like the SEWTECH line. Multi-needle machines allow you to pre-set 12-15 colors, eliminating the "stop-and-swap" fatigue demonstrated here.

The "Run It Like a Shop" Documentation

To make this profitable, don't reinvent the wheel next time. Save a "Recipe Card" for this job:

Operation Checklist (Post-Job):

• Record Settings: (Speed: 700 / Stabilizer: 1 Layer Cutaway / Tension: 3.5).
• Inspect Quality: Are the letters crisp? (If fuzzy, lower speed or add stabilizer next time).
• Consumer Note: Did you explain the font style? (Brittany notes the "e" has a closed counter—warn the customer about "distressed" fonts so they don't think it's a mistake).






By following this disciplined workflow—measuring comfortably, stabilizing heavily, aligning visually with magnetic tools, and stitching at a controlled speed—you turn a scary striped apron project into a routine, profitable staple of your embroidery business.

FAQ

• Q: How do Ricoma commercial embroidery machines avoid hoop strikes when stitching a 4.25" name design in a 5.5" hoop on striped aprons?
  A: Keep the design width under 4.5" (4.25" is a safe target) and run a full Trace before stitching.
  • Size the DST design to 4.25"–4.5" max for a 5.5" hoop to preserve presser-foot and hoop-arm clearance.
  • Select the correct hoop on the Ricoma screen (C / 5.5") to match the physical hoop.
  • Run the Trace (heart icon) and watch the entire perimeter, not just the first corner.
  • Success check: The presser foot clears the frame during Trace and there is no contact sound or hesitation.
  • If it still fails: Re-hoop with more margin (smaller design) and re-check that the file was copied to machine memory (not stitched from USB).
• Q: What supplies are required for Ricoma striped apron lettering when using cutaway stabilizer and Odif 505 temporary adhesive spray?
  A: Use cutaway stabilizer plus a light 505 spray as the foundation, and plan for trimming tools after stitching.
  • Spray the cutaway lightly so it feels tacky (not wet) before positioning the apron.
  • Keep sharp appliqué scissors ready to trim cutaway after embroidery (leave about 1 cm around the text).
  • Check the bobbin is largely full before starting to avoid mid-design stoppages.
  • Success check: The fabric does not slide on the stabilizer during stitching, and the back trims cleanly without cutting the garment.
  • If it still fails: Add another layer of cutaway (especially if the stabilizer is visibly thin) and reduce speed within the detail-safe range.
• Q: How can Mighty Hoop magnetic hoops prevent hoop burn and stripe twisting compared with screw-tight hoops on striped aprons?
  A: Use a magnetic hoop to clamp without torquing the fabric, and align to the stripes instead of forcing “perfect” tension.
  • Float the apron onto the sprayed cutaway, then clamp with the magnetic frame to avoid screw-induced twisting.
  • Micro-adjust the apron so the hoop edges run parallel to the stripes (visual straight beats mathematical center on stripes).
  • Avoid stretching the apron tight to “fix” stripe angle; keep the fabric relaxed to prevent post-hoop ripple/tilt.
  • Success check: The stripes remain straight relative to the hoop edge before stitching, and the finished name does not wave after unhooping.
  • If it still fails: Re-hoop and realign to the stripes (not the seam), and consider increasing stabilization if any puckering appears early.
• Q: What safety steps prevent finger injuries during the “Tie and Pull” thread-change method on Ricoma multi-needle embroidery machines?
  A: Stop the machine completely and pull from the needle end carefully so hands stay clear of moving parts.
  • Set the machine to Stop mode before touching thread paths.
  • Tie a tight, small square knot between old and new thread, then pull from the needle end until the knot passes guides and tension discs.
  • Keep fingers away from the needle bar and moving shafts while pulling and routing thread.
  • Success check: The knot passes with a small “click/pop” through the take-up lever area and the thread feeds smoothly afterward.
  • If it still fails: Re-tie a smaller knot and repeat; a bulky knot can hang in guides and cause immediate breaks.
• Q: What safety precautions are required for high-force commercial magnetic embroidery hoops like Mighty Hoop on multi-needle machines?
  A: Treat the magnets like a pinch tool—hold by tabs and keep magnets away from medical devices and magnetic strips.
  • Hold the magnetic hoop by the handle tabs and keep fingertips away from the rim when closing.
  • Close the hoop in a controlled way to prevent a sudden snap.
  • Keep magnetic hoops away from pacemakers, insulin pumps, and credit cards.
  • Success check: The hoop closes without pinching, and the fabric is clamped evenly with no sudden hand recoil.
  • If it still fails: Slow down the closing motion and reposition hands to the tabs before attempting again.
• Q: How can Ricoma users prevent design freezes or offsets by transferring DST files from USB to internal machine memory?
  A: Copy the DST from USB to internal memory and stitch from memory to avoid vibration-related USB interruptions.
  • Insert the USB, select the DST file, and use the panel option to copy it into machine memory.
  • Select the design from internal memory (not the USB list) before stitching.
  • Confirm hoop selection (C / 5.5") and assign the intended needle (example shown: Needle 7).
  • Success check: The design runs without mid-stitch pauses/freezes and the needle path stays registered.
  • If it still fails: Re-copy the file to memory and avoid touching the USB during operation; a loose connection can still interrupt data.
• Q: When striped apron lettering keeps tilting or puckering, when should embroiderers switch from technique fixes to magnetic hoops or a SEWTECH multi-needle embroidery machine?
  A: Start with sizing/stabilization/speed fixes, move to magnetic hoops if hooping is the bottleneck, and consider a multi-needle machine when color changes become the bottleneck.
  • Level 1 (Technique): Keep width at 4.25"–4.5" max in a 5.5" hoop, use cutaway + light 505 spray, and stitch at 600–750 SPM (700 SPM shown).
  • Level 2 (Tool): Upgrade to a magnetic hoop when screw hoops cause hoop burn, stripe twisting, wrist pain, or hooping takes 3+ minutes per item.
  • Level 3 (Capacity): Upgrade to a SEWTECH multi-needle machine when production is limited by frequent stop-and-swap thread changes rather than stitch time.
  • Success check: Hooping time drops, alignment becomes repeatable, and lettering stays crisp without ripple after unhooping.
  • If it still fails: Re-check Trace clearance and hoop selection on-screen, then add stabilization if any puckering appears in the first stitches.
