Straight Rows on a Giant Quilt: The Tape-and-Basting Registration Line + Embrilliance Reverse Point Order That Actually Works

The "Anti-Drift" Manifesto: Mastering E2E Quilting on a Domestic Machine

When you decide to quilt a lap quilt, throw, or even a queen-size top on a domestic single-needle machine, the first emotion is usually excitement. The second is often panic—specifically, the moment your "perfectly straight" rows start to drift south, turning your geometric masterpiece into a warped parallelogram.

I have spent two decades watching this specific heartbreak happen. The first few repeats look gallery-ready. Then, gravity takes over. The quilt gets heavier, the hooping gets rougher, and suddenly the pattern starts to "droop" across the row.

The good news? The fix is not mystical—it is mechanical. You are fighting physics (friction and gravity), so you need a registration system that creates a "false horizon" you can trust. This guide is your white paper for conquering the "Drift," designed to take you from fear to factory-level precision.

The Physics of Failure: Why Rows Drift When Seam Lines Disappear

If you are quilting with edge-to-edge (E2E) designs, your pieced seam lines are the easiest "free ruler" you will ever get. When the bottom of one design lands on a seam line, you can place the next template so it lands on the next seam line. Visual discipline is maintained.

But the moment you are between seams—meaning the previous row ends in the "ocean" of open fabric—your placement reference becomes thin air. This is where alignment begins to slant.

Two forces are working against you:

1. Hooping Friction (The "Shift"): Every time you wrestle a thick quilt sandwich (Top + Batting + Backing) into a traditional screw hoop, the top fabric micro-shifts. Multiplied by 10 hoopings, you are now an inch off.
2. Optical Illusions: Your eye is excellent at judging straight lines over 10 feet, but terrible at judging alignment over the 5 inches inside a hoop.

This guide teaches the Tape-and-Baste Method. It creates a physical rail system that solves both problems.

Phase 1: The "Hidden Prep" (Do Not Skip)

Before you mark a single line, we must calibrate your tools. In my experience, 80% of failures happen before the machine is even turned on.

1. Calibrate Your "Sweet Spot" Speed

Domestic machines struggle with the weight of a heavy quilt.

• The Error: Running at 800+ SPM (Stitches Per Minute). This causes the needle to deflect (bend) as the heavy quilt drags, ruining your alignment.
• The Fix: Cap your speed at 500–600 SPM.
• Sensory Check: Listen to the machine. At max speed, it sounds like a frantic buzz. You want a rhythmic "thump-thump-thump" sound—like a steady heartbeat. That is the sound of torque overcoming drag.

2. The Needle & Thread Equation

• Needle: Switch to a Topstitch 90/14 or Quilting 90/14. The larger eye protects the thread from shredding against the batting, and the reinforced shaft prevents deflection.
• Thread: Use a high-quality 40wt polyester.
• Tension Test: Do not guess. Setup a scrap sandwich (fabric/batting/fabric). Stitch a test "H" shape.
  • Visual Check: Look at the back. You should see about 1/3 top thread (white bobbin thread in the center). If you feel a "pop" or see loops on top, tighten your top tension.

3. Establish Your "Truth" Number

In the demo, spacing is established by measuring the design height and using 7.5 inches as the repeat distance.

• Action: Measure your design height in your software. Subtract 0.25 inches for a safety gap (unless designs are meant to interlock). This number is your "Truth." Write it on a sticky note and put it on your machine screen.

Prep Checklist

• Needle: Fresh Topstitch 90/14 installed?
• Speed: Dialed down to 600 SPM max?
• Bobbin: Wound 3-4 bobbins using the same thread weight? (Running out mid-row is a nightmare).
• Supplies: Clear acrylic ruler, heat-erasable pen (Frixion), Blue painter's tape, Bright embroidery floss + hand needle.


Phase 2: Building the "False Horizon" (The Registration System)

This is the core technique. We are going to build a physical line that survives the violence of re-hooping.

Step 1: Establish Tick Marks

Measure down from your previous stitched row using your "Truth" number (e.g., 7.5 inches). Make small vertical tick marks every 12 inches across the width of the quilt using your erasable pen.

• Why: You are not "eyeballing." You are plotting coordinates.


Step 2: The Blue Tape Straightedge

Run a long strip of blue painter's tape across the quilt, aligning the top edge of the tape exactly with your tick marks. Smooth it down firmly.

• Visual Check: Look down the line. It should look like a laser beam cutting across your quilt.

Step 3: The "Floss Basting" (Crucial Step)

Thread a hand needle with bright, contrasting embroidery floss (e.g., neon orange on a blue quilt). Sew a running stitch along the edge of the tape.

• Technique: Make stitches long (~1 inch). You are not sewing for strength; you are sewing for visibility.
• Sensory Anchor: You should feel the needle drag slightly through the batting.


Why floss and not just a pen line?

• Visibility: Floss sits on top of the texture. Pen lines disappear into the weave.
• Permanence: Pen lines can fade under the heat of your hand or the machine light. Floss stays until you cut it.
• Tactile Feedback: When you hoop, you can literally feel the floss ridge under your fingers to ensure the fabric isn't twisted.

Warning: Needle Safety. Hand needles lost in a quilt sandwich find their way into fingers or machine gears. Keep your hand needle parked in a pincushion (never the quilt) when not in use.

Step 4: Hooping without Tears

Remove the blue tape. You now have a bright floss line.

• Action: Place your printed paper template (Target Paper) into the hoop area.
• Alignment: Align the horizontal crosshair of your template perfectly with your floss basting line.
• The "Squish" Factor: If using a standard screw hoop, loosen it enough that you don't have to force it. Forcing the inner ring distorts the fabric.


Setup Checklist

• Tick Marks: Measured from the same reference point on the previous row?
• Tape Edge: Aligned flat without ripples?
• Basting: Bright floss stitched with 1-inch strides directly against the tape?
• Tape Removal: Tape removed before stitching? (Never stitch through tape; the adhesive gums up needles).
• Hooping: Crosshair aligned to floss line ±1mm accuracy?

Phase 3: The "Throat Space" Crisis & The 180° Rotate

You are halfway through. You roll the quilt to get to the next row. Suddenly, the roll is too big to fit under the arm of your machine. This is "Throat Wall." The only solution is to rotate the entire quilt 180 degrees and attack from the other side.

The Directional Dilemma

If your design is a simple circle, rotating the quilt is fine. If your design is directional (e.g., Dinosaurs walking Left-to-Right, or text), rotating the quilt 180° means your dinosaurs will now be walking upside down on the bottom half of the quilt.

You cannot just "Flip" the design.

• If you Flip (Mirror Image), the dinosaur walks the right way, but the start and end points are mirrored. The machine will try to jump to the wrong side of the hoop to start, creating a giant diagonal jump stitch or a gap.

You must change the Stitch Order.

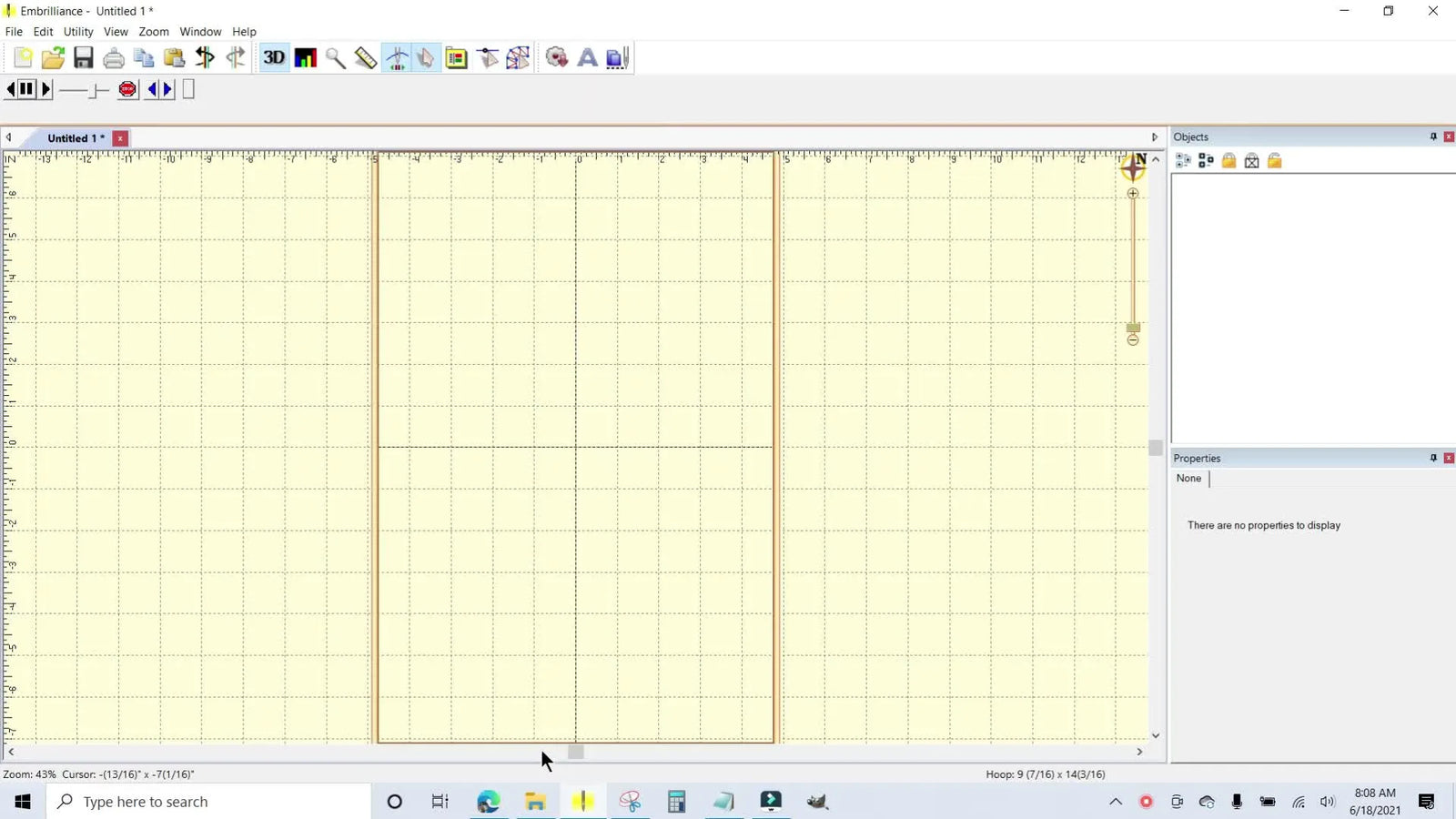

The Software Fix: Embrilliance "Reverse Point Order"

This specific sequence rearranges the internal logic of the file so it stitches "backward" relative to the design, which creates "forward" motion on a rotated quilt.

The Exact Sequence (Click-by-Click):

1. Open Design: Verify start/end points using Stitch Simulator.
2. Select Object: Highlight the design in the Objects panel.
3. Stitch Edit Mode: Click the button with the arrow and blue dots (Note: Requires Enthusiast level, Level 1 lacks this).


4. Reverse: Right-click the stitches -> Select "Reverse".


5. Verify: Run Simulator. It should now stitch Right-to-Left.
6. Flip Vertical: Apply Flip Vertical.


7. Flip Horizontal: Apply Flip Horizontal.


8. Final Verify: Run Simulator. It should stitch Left-to-Right (correct orientation), but the entry/exit points are swapped to match your rotated quilt setup.


Professional Decision Tree: Method Selection

Stop guessing. precise workflow protects your sanity.

Q1: Does the quilt have clear seam lines (sashing/blocks) where rows meet?

• YES: Use the seam line as your visual guide. No basting needed.
• NO: Goto Q2.

Q2: Is the quilt thicker than a standard cotton batting (e.g., puff, wool, double-batting)?

• YES: Danger Zone. Standard hoops will "pop" or cause "hoop burn."
  • Upgrade Path: Consider magnetic embroidery hoops. The vertical clamping force secures thick layers without the friction-drag of screw hoops.
  • Workaround: Use floating technique (hoop stabilizer only, pin quilt on top) + Basting method.
• NO: Use the Tape-and-Baste method described above.

Q3: Are you doing this for fun (1 quilt/year) or profit (10 quilts/month)?

• FUN: Stick to the Tape method. It costs time but saves money.
• PROFIT: Time is currency.
  • Bottle Neck: Re-hooping takes 3-5 minutes per block.
  • Solution: Invest in magnetic hooping station workflows. This allows you to hoop in 30 seconds with perfect repeatability.
  • Scale: If you consistently struggle with throat space, look at SEWTECH multi-needle machines which offer open-arm architecture, eliminating the "rolled quilt" drag entirely.

Operation Checkpoints: The "Pilot's Scan"

While the machine is running, do not walk away.

Checkpoint A: The "Drag" Sound

• Symptom: Machine pitch deepens or sounds strained.
• Cause: The quilt weight is hanging off the table, pulling the hoop backward.
• Fix: "Fluff" the quilt. Puddle the excess fabric on the table around the machine so there is zero tension on the hoop.

Checkpoint B: The First 30 Stitches

• Watch the start. If the fabric "waves" in front of the foot, your hooping is too loose. Stop immediately.

Checkpoint C: The Join

• If your pattern lines up on the Left side but is 1/4" lower on the Right side, your quilt is pivoting. check that your quilt weight is supported evenly.

Operation Checklist

• Quilt Weight: Supported on table (not hanging off edge)?
• Crosshair: Verified specifically against the floss line?
• Direction: If rotated, did you load the "Reversed" file?
• Sound: Rhythmic thumping, no straining buzz?

Troubleshooting Matrix

The "Tool Upgrade" Logic: When to Stop Struggling

If you are a hobbyist doing a baby quilt once a year, the Tape-and-Baste method is your best friend. It is cheap, effective, and requires no new gear.

However, if you are reading this with sore wrists from fighting hoop screws, or if you threw away a project because of "Hoop Burn" (those shiny crushed rings that won't iron out), your struggle is no longer about skill—it is about tooling.

Why Professionals Switch:

1. Hoop Burn: Traditional hoops rely on friction (rubbing) to hold fabric. This crushes velvet, corduroy, and quilt batting. magnetic embroidery hoop systems rely on vertical magnetic force. Zero friction = Zero burn.
2. Hooping Speed: Wrestling a screw hoop takes grip strength and time. Magnetic frames snap on in seconds.
3. Production Scale: When hooping becomes the bottleneck, systems like a hoop master embroidery hooping station or similar alignment jigs allow you to prep the next garment while the machine is running, doubling your output.

Warning: Magnetic Safety. These are not fridge magnets. They are industrial Neodymium magnets.
* Pinch Hazard: Keep fingers clear of the snap zone.
* Medical: Keep away from pacemakers and insulin pumps.
* Electronics: Keep phones and credit cards at least 12 inches away.

Start with the registration line method. Master the physics of the "float." But when the physical toll of the process outweighs the joy of the finish, remember that better tools exist to put the fun back into the fabrication.

Happy Quilting. Keep your rows straight and your bobbins full.

FAQ

• Q: On a domestic single-needle embroidery machine quilting an E2E (edge-to-edge) pattern, why do quilting rows drift or “droop” after several re-hoopings?
  A: This is common—row drift usually comes from hooping friction (micro-shifts) plus quilt weight dragging the hoop, so the fix is to build a physical registration line and remove drag.
  • Build a registration rail: mark repeat “Truth” spacing with tick marks, align blue painter’s tape, then floss-baste along the tape edge and remove the tape before hooping.
  • Support the quilt: puddle the quilt bulk on the table so nothing hangs and pulls backward.
  • Slow down: cap stitching speed at 500–600 SPM to reduce needle deflection from drag.
  • Success check: the tape/floss line looks laser-straight across the quilt and the machine sound stays a steady “thump-thump,” not a strained buzz.
  • If it still fails: re-check that every tick mark was measured from the same reference point on the previous stitched row.
• Q: For domestic machine E2E quilting, what is the correct “Truth number” repeat spacing method to keep every row aligned?
  A: Use the design height from software and subtract 0.25 inches as a safety gap, then measure that exact distance every time (do not eyeball).
  • Measure the design height in embroidery software and write the final repeat distance on a sticky note on the machine.
  • Plot coordinates: measure down from the previous stitched row and make small vertical tick marks every 12 inches across the quilt.
  • Align the top edge of blue painter’s tape to the tick marks, then floss-baste along the tape edge for a durable line.
  • Success check: the template crosshair can be aligned to the floss line within ±1 mm across the hoop area.
  • If it still fails: verify the design is meant to interlock; if not, keep the 0.25-inch safety gap.
• Q: On a domestic embroidery machine quilting a thick quilt sandwich, what needle, thread, and speed settings reduce broken needles and thread shredding?
  A: A safe setup from the field is a fresh Topstitch 90/14 (or Quilting 90/14), quality 40wt polyester thread, and a reduced speed of 500–600 SPM.
  • Install a new Topstitch 90/14 or Quilting 90/14 needle before starting the row.
  • Run a scrap sandwich tension test by stitching an “H” shape and adjust top tension instead of guessing.
  • Dial speed down: avoid 800+ SPM, which can increase needle deflection when the quilt drags.
  • Success check: the back of the test shows about 1/3 top thread visible with bobbin thread centered, and stitching sounds rhythmic—not frantic.
  • If it still fails: stop and check for quilt drag (weight hanging off the table) before changing more settings.
• Q: When quilting an E2E design with a domestic machine, how can top tension be checked without guessing so loops and “pops” don’t ruin alignment?
  A: Do a quick scrap sandwich test and adjust top tension until the bobbin thread sits centered (not loops on top).
  • Make a small test sandwich (fabric/batting/fabric) using the same materials as the quilt.
  • Stitch a test “H” shape and inspect the back side immediately.
  • Tighten top tension if loops appear on top or if you feel/hear a thread “pop” during stitching.
  • Success check: the back shows bobbin thread centered with roughly 1/3 top thread visible, not a loose top-thread ladder.
  • If it still fails: confirm the needle is a Topstitch 90/14 (or Quilting 90/14) and that the quilt is not pulling against the hoop during stitching.
• Q: On domestic machine E2E quilting, why should blue painter’s tape be removed before stitching, and what is the correct alternative registration line?
  A: Never stitch through painter’s tape—the adhesive can gum up needles; instead, use tape only as a straightedge and create a floss-basted line you can hoop against.
  • Lay tape with the top edge aligned to measured tick marks, smooth it flat, then sew a running stitch with bright embroidery floss along the tape edge.
  • Remove the tape completely before hooping and stitching the design.
  • Align the paper template crosshair to the floss line when positioning the next row.
  • Success check: the floss sits on top of the fabric texture and stays visible after re-hooping, unlike pen marks that can disappear.
  • If it still fails: increase floss contrast (neon on dark fabric) and keep basting stitches long (~1 inch) for visibility.
• Q: In Embrilliance (Enthusiast level), how can a directional E2E quilting design be stitched correctly after rotating a quilt 180° due to throat space limits?
  A: Do not rely on Flip alone; use Embrilliance Stitch Edit “Reverse Point Order” (Reverse) first, then Flip Vertical and Flip Horizontal, and verify in the Simulator.
  • Open the design and confirm start/end points in Stitch Simulator.
  • Enter Stitch Edit (arrow with blue dots), then right-click stitches and choose “Reverse.”
  • Verify the design now stitches right-to-left in Simulator, then apply Flip Vertical and Flip Horizontal.
  • Run Simulator again to confirm correct visual orientation with entry/exit points suited for the rotated quilt.
  • Success check: Simulator shows the intended left-to-right visual motion after rotation with no “jump” to the wrong side to start.
  • If it still fails: do not stitch—re-check that the reversed file (not the original) is the one loaded for the rotated half.
• Q: What needle safety rules prevent hand-needle injuries and machine damage when using floss basting on a quilt sandwich?
  A: Treat lost hand needles as a real hazard—never park a hand needle in the quilt; park it in a pincushion every time.
  • Stop and store the hand needle in a pincushion whenever floss basting pauses (even briefly).
  • Scan the quilt surface and hoop area by hand before machine stitching starts.
  • Keep basting stitches long and visible so the floss can be removed cleanly without hunting near the needle.
  • Success check: no metal needle is ever left in the quilt sandwich, and the machine area is clear before pressing Start.
  • If it still fails: pause the job and do a deliberate “needle count” (one hand needle in pincushion, none in the quilt) before continuing.
• Q: For domestic machine quilting, when should the workflow move from Tape-and-Baste to magnetic embroidery hoops, then to a multi-needle machine for production?
  A: Use a tiered decision: optimize technique first, upgrade to magnetic hooping when thick quilts or hoop burn make screw hoops unreliable, and consider a multi-needle open-arm machine when throat space and re-hooping time become the bottleneck.
  • Level 1 (Technique): use the Tape-and-Baste registration line, support quilt weight, and keep speed at 500–600 SPM.
  • Level 2 (Tooling): switch to magnetic hooping when thick batting causes screw hoops to pop, fabric shows hoop burn, or re-hooping friction keeps shifting rows.
  • Level 3 (Capacity): move to a multi-needle open-arm style when repeated throat-space “wall” forces frequent rotations and re-hooping time dominates production.
  • Success check: re-hooping becomes repeatable (alignment holds across rows) and hooping time drops without new alignment drift.
  • If it still fails: treat it as a drag/support issue first—uneven quilt weight can mimic “bad hooping” even with better tools.
