Stop Wrestling Jackets: Dial In Repeatable Placement with the HoopTalent Station + Magnetic Hoops

When you are hooping heavy garments—think Carhartt work jackets, stiff denim, or lined winter coats—the real enemy isn’t your machine. It isn’t even your software. The enemy is inconsistency.

One jacket lands perfectly. The next one is 6mm too high. The third one is slightly twisted to the left. Suddenly, you are un-hooping, re-measuring, and feeling that familiar spike of adrenaline that comes from ruining a client’s expensive inventory.

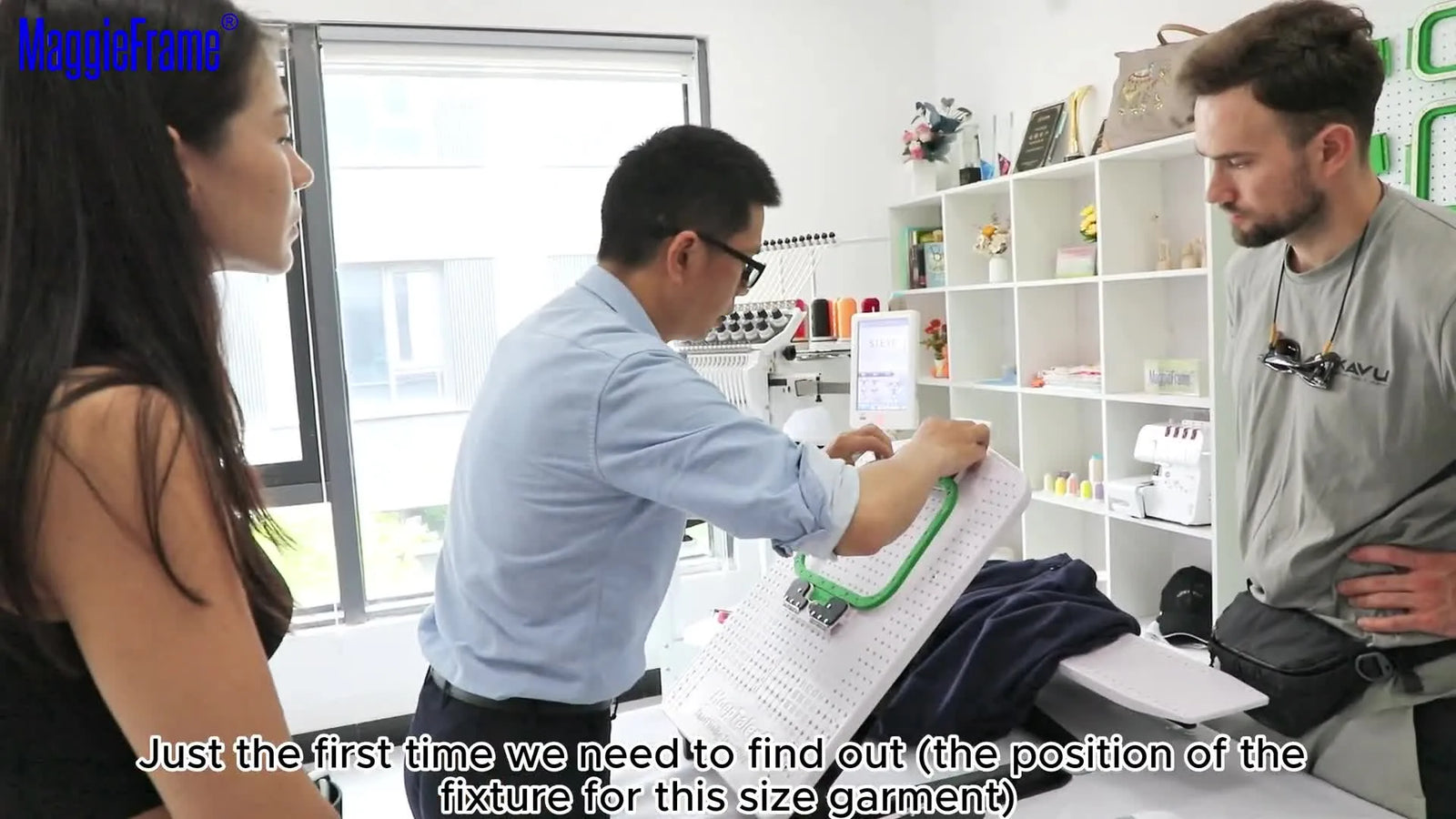

This guide analyzes a showroom demo from MaggieFrame that utilizes a HoopTalent calibration board and a magnetic hoop system. But I’m going to do more than describe the video. I am going to rebuild this into a production-ready SOP (Standard Operating Procedure). This is the exact workflow you need to hand to a new staff member to ensure that Jacket #1 and Jacket #50 look identical, without you hovering over their shoulder.

The Hard Truth About a Brother Tubular Hoop: “Finding the Middle” Eats Your Profit

In the video, the demonstrator holds a standard gray Brother tubular hoop next to a green MaggieFrame. He points out a physical reality that catches many shop owners off guard: while the usable stitching areas are similar, the physics of loading them are night and day.

When you use a standard tubular hoop on a finished jacket, you are forced to work inside the garment. You are fighting three things simultaneously:

1. Visual Blindness: You cannot see the platen clearly because the jacket fabric is bunching up around your hands.
2. Fabric Resistance: The seams and lining are fighting against the plastic ring’s tension.
3. Gravity: The weight of the jacket pulls the back panel down, shifting your carefully marked center.

That moment of "struggling to try... to find the middle" is not just annoying; it is where your profit margin disappears. On a complex jacket order, if you spend 3 minutes wrestling with a hoop for a 5-minute stitch-out, your efficiency is cut in half.

This specific bottleneck is why a dedicated station matters. It transforms the hooping process from a manual struggle into a mechanical certainty. This is the moment where investing in a hooping station for machine embroidery stops being a luxury and becomes a necessary business tool for volume control.

Lock In the HoopTalent Board + Universal Fixture Before You Touch the Garment

The demonstrator begins by placing the universal fixture onto the perforated HoopTalent board. The genius here is the grid system. The fixture pins into specific holes, locking it in place.

Here is the concept you must embrace: Your station setup is your "Jig."

In manufacturing, a jig holds work in a fixed location so a tool can act on it repeatedly. If your jig is loose or sloppy, every single garment you produce will be sloppy in the exact same way.

The “Hidden” Prep That Saves the Whole Batch

Before you even look at the first jacket, you must perform a "Pre-Flight Check." Heavy garments hide problems until you are already hooped, at which point un-hooping leaves marks that are hard to steam out.

Prep Checklist (Complete this BEFORE Garment #1):

• System Check: Confirm you have the correct magnetic hoop size (e.g., 5.1" x 5.1" or larger for jacket backs) and clear the table of standard tubular hoops to avoid confusion.
• Obstruction Audit: Run your hand inside the back panel of the jacket. Are there internal mesh pockets? Is there a hidden yoke seam? These will deflect the needle if they sit under the hoop edge.
• Contrast Marking: Choose a marking tool that contrasts sharply. On Navy/Black jackets, standard white chalk rubs off too fast. Recommendation: Use a white wax tailor's crayon or a bright pink air-erase pen for visibility.
• Consumable Check: Ensure you have your spray adhesive (like 505) and stabilizer ready. For jackets, have your Cutaway stabilizer pre-cut.
• Dry Run: Slide the un-hooped jacket over the station once just to verify it fits. If the jacket is a size Small and your station is set wide, you might stretch the seams.

Warning: Pinch Point Hazard. When adjusting the station fixture or handling magnetic hoops, keep your fingers flat and away from the edges. These magnets generate significant force (often 10lbs+ of pull). A snap-closure on a fingertip can cause blood blisters or severe pinching. Treat the station like a hydraulic press: slow hands, deliberate placement.

Mark the First Jacket Like a Master Pattern: Your Template Ruler Is the “Truth”

In the video, the operator places a plastic template ruler on the back of the garment and draws a crosshair. She aligns the garment’s center line with the center of the embroidery area.

Do not skip this. This is not "busy work." This is how you translate a digital design into physical reality.

The "Center" vs. "Visual Center" Dilemma

On heavy workwear, the measured center and the visual center are often different. A jacket might have a center back seam, but if that seam is twisted, relying on it will make your logo look crooked.

Your Action Plan:

1. Measure: Find the true center between the armpit seams.
2. Mark: Draw a distinct crosshair (+) about 3 inches wide.
3. Verify: Step back 5 feet. Does it look centered? The human eye is often better at detecting "crooked" than a ruler, especially on garments that drape effectively.

The goal of the template is to create a "Master Pattern." You only need to think hard about placement once (on this first jacket). Every jacket after this is just a clone.

The Template-to-Board Transfer: Make the Garment Match the Station, Not Your Eyeballs

The video shows the template ruler being used to verify the vertical center line on the station. This is a subtle but critical step used by veteran operators.

When you slide the jacket onto the station, you are tempting fate. The fabric wants to twist. By using the ruler to verify the station's alignment lines against your chalk mark, you are calibrating the machine to the fabric.

The Golden Rule of Training: Teach your staff this mantra: "We do not eyeball placement; we match the marks to the metal."

If the chalk crosshair lines up with the laser etched lines on the station, the hoop will be perfect. You stop guessing and start verifying.

The “Old Way” Demo: Why Manual Hooping Inside a Jacket Keeps Going Wrong

The demonstrator briefly shows the "difficult method"—placing a standard plastic hoop manually inside the jacket. This demonstrates the "Pain Point" we are trying to solve.

Why does manual hooping fail on jackets?

• The "Trampoline Effect": To get a thick jacket into a plastic outer ring, you have to push down hard. This creates a drum-tight surface. While tight is usually good, too tight creates "hoop burn" (permanent crushing of fibers) and puckering once the tension is released.
• Wrist Fatigue: Doing this for 50 jackets will wreck your wrists. Tired wrists apply uneven pressure, leading to crooked hoops.

This is where the physics of magnetic embroidery hoops change the game. Instead of friction and brute force, they use vertical magnetic clapping force. They hold the fabric firmly without strangling the fibers, which is crucial for maintaining the loft of a winter jacket.

Use the R and Q Letter Codes on the HoopTalent Board to Save Your Future Self

At about 03:47–04:05, the demonstrator highlights the grid system on the board, specifically pointing out letter codes like "R" and "Q".

This is the most under-utilized feature of these boards. This is your Data Logging System.

How to Build a "Repeat Order" Database

Imagine the client calls you in 6 months ordering 20 more of the same jackets. Do you want to re-measure everything? No.

Create a simple "Job Sheet" for your shop:

• Client: Construction Co.
• Garment: Heavy Duck Canvas Jacket.
• Hoop Size: 5.5" Magnetic.
• Station Setting: Fixture at Row Q, Width R.

By recording "Q" and "R", you can set up the station in 30 seconds next time and be guaranteed the exact same placement height. This turns a custom job into a standardized commodity. This level of organization is what separates a hobbyist from a production manager utilizing a hoop talent hooping station.

The Double Positioning System (Pins + Slide): The Small Mechanic That Prevents Bunching

The demonstrator describes the fixture as having a "futuristic" double positioning system. Let's decode that into engineering terms.

The fixture has Pins (to lock the hoop relative to the board) and an Internal Slide (protection against tension).

The Physics of the "Slide"

When you clamp a thick jacket, the fabric needs to move slightly as the magnets engage. If the hoop was bolted down 100% rigidly, the fabric would have nowhere to go, causing a "bubble" or pucker near the top of the hoop.

The Slide feature allows the hoop to "float" upward slightly—maybe just a few millimeters—as the magnets snap shut.

• Why it matters: It relieves the internal stress of the fabric.
• The Result: A flat embroidery field with no "pre-puckering." If you see a wave in your fabric before you stitch, you will definitely see pleats after you stitch. The slide prevents this.


The Final Hooping Workflow on the Main Station: Slide the Garment, Then Let the Magnet Do the Work

The video recap shows the full flow. It looks effortless because the variables have been removed.

The Sequence:

1. Bottom Ring: Place the bottom magnetic ring into the fixture. It sits flat.
2. Backing: Place your stabilizer (Cutaway recommended for jackets) over the ring. Tip: Use a light mist of adhesive to keep it from sliding.
3. The Slide: Pull the jacket over the station board. This is the only part that requires "feel."
   • Sensory Check: The jacket should slide freely. If it drags, lift it slightly.
4. The Alignment: Match your chalk crosshair to the station's notches.
5. The Snap: Bring the top magnetic frame down.


Setup Checklist (Execute right before Garment #2)

• Fixture Lock: Is the fixture pinned securely in the recorded (Q/R) holes?
• Orientation: Is the garment right-side up? (Sounds silly, until you embroider a logo upside down).
• Tactile Check: Run your hand over the hooped area. It should feel like a firm drum skin, but not so tight that the fabric grain is distorted.
• Clearance: Ensure no zippers or thick seams are trapped directly under the magnetic path, which would weaken the hold.

Warning: Magnetic Safety. People with pacemakers, insulin pumps, or other implanted medical devices should maintain a safe distance (usually 6-12 inches) from industrial magnetic hoops. The magnetic field can interfere with electronics. Also, keep credit cards and phones away from the station.

Decision Tree: Pick the Right Stabilizer Strategy for Heavy Jackets

Stabilizer is the foundation of your house. The video implies usage, but let's make it explicit. Wrong stabilizer on a jacket equals puckering, no matter how good your station is.

Use this logic flow to decide:

1. Is the fabric woven and stable? (e.g., Denim, Canvas, Carhartt)
   • Basic: Medium-weight Tearaway (2.5oz).
   • Better: Cutaway (2.5oz) for longevity. Jackets get washed; tearaway eventually dissolves, leaving the embroidery unsupported.
2. Is the fabric thick but stretchy? (e.g., Softshell, Fleece-lined)
   • Mandatory: Cutaway (3.0oz or double layer).
   • Why: A magnetic hooping station holds the fabric flat, but the needle penetrations will push the fabric around. Only Cutaway stops the design from distorting.
3. Is the surface textured? (e.g., Corduroy, Deep Texture)
   • Add-on: Use a Water Soluble Topping film on top to keep stitches from sinking into the fabric pile.


Troubleshooting the Two Problems Everyone Hits: Off-Center Logos and Bunched Fabric

Even with a station, things can go wrong. Here is your quick-fix guide.

The Upgrade Path That Actually Makes Sense: From Struggle to Flow

If you are doing one-off gifts, meticulous manual hooping is fine. But if you are trying to run a profitable business, you need to identify your bottlenecks.

The "Pain-Based" Upgrade Logic:

• Pain: "I spend more time measuring than stitching."
  • Solution Level 1: Get a Hooping Station. It standardizes placement.
• Pain: "My wrists hurt, and I leave hoop marks on delicate items."
  • Solution Level 2: Upgrade to SEWTECH Magnetic Hoops. They save your body and the garment. Note: Many users specifically search for magnetic embroidery hoops for brother to fix the specific "hoop burn" issues common with standard grey hoops.
• Pain: "I can't change threads fast enough for these multi-color logos."
  • Solution Level 3: This is when you graduate to a SEWTECH Multi-Needle Machine.

In our product ecosystem, these aren't just gadgets—they are productivity multipliers. A magnetic hoop on a single-needle machine is good; a magnetic hoop on a 15-needle machine with a dedicated hooping station is an industrial powerhouse.

Operation Checklist: The Repeat-Order Routine That Keeps Every Jacket Identical

Once you have successfully hooped Garment #1, your goal is boring, repetitive excellence.

Operation Checklist (For Garments #2 through #100):

• Reset: Ensure the bottom hoop is seated in the exact same fixture slots.
• Slide: Pull the garment on.
• Match: Align the chalk mark to the station crosshair.
• Snap: Drop the top magnet.
• Audit: Do a 2-second visual check—does it look exactly like the last one?
• Stitch.


One Last Reality Check: Speed Is Nice, but Repeatability Is What Clients Pay For

The video ends with a confident display of the hooped jacket. That confidence comes from certainty. The operator knows it is straight because the machine (the station) made it straight.

When you use a hooping station, you are buying insurance against error.

Try this experiment:

1. Time yourself hooping 5 jackets the "old way" (manual measuring, struggling with the liner).
2. Time yourself hooping 5 jackets using the station workflow described above.

You will likely find the station method is not only 50% faster but, more importantly, 100% less stressful. That mental bandwidth you save can be used to focus on what matters: selling the next big order.

FAQ

• Q: How do I set up a HoopTalent hooping station universal fixture for repeatable jacket back placement on heavy garments?
  A: Lock the universal fixture into the same perforated board holes every time before the first jacket is ever hooped.
  • Pin the fixture into the selected grid holes on the HoopTalent board and confirm it cannot wiggle.
  • Clear standard tubular hoops from the table to prevent loading the wrong system mid-run.
  • Do a dry run by sliding an un-hooped jacket over the station to confirm the station width does not stress seams (especially on smaller sizes).
  • Success check: the fixture feels mechanically “locked,” and the jacket slides on without dragging or twisting.
  • If it still fails… re-seat the pins and re-check that the board/fixture is not partially engaged in the holes.
• Q: Which marking tools work best for center placement on navy/black work jackets when using a HoopTalent hooping station and magnetic hoops?
  A: Use a high-contrast mark that stays visible long enough to align to the station lines—white wax tailor’s crayon or a bright pink air-erase pen are reliable options.
  • Mark a clear crosshair (+) about 3 inches wide so it can be matched to the station reference lines.
  • Measure true center between armpit seams first, then visually verify from about 5 feet away to catch twisted center seams.
  • Avoid relying on faint chalk on dark jackets because it often rubs off during handling.
  • Success check: the crosshair is easy to see while the jacket is on the station and aligns cleanly to the station’s lines/notches.
  • If it still fails… re-mark on a flat table and confirm the “measured center” is not being overridden by a twisted seam.
• Q: What is the correct stabilizer strategy for embroidering heavy jackets (denim/canvas vs softshell/fleece-lined) with a magnetic hooping station?
  A: Match stabilizer to fabric behavior—woven stable jackets can use tearaway or cutaway, while thick stretchy jackets need cutaway.
  • Choose medium-weight tearaway (2.5oz) as a basic option for stable woven denim/canvas; choose cutaway (2.5oz) as the better long-wear option.
  • Use cutaway (3.0oz or a double layer) for thick but stretchy jackets like softshell or fleece-lined garments.
  • Add water-soluble topping on textured surfaces (for example corduroy/deep texture) to prevent stitch sink.
  • Success check: the hooped area stitches without puckering and the design does not look distorted after un-hooping.
  • If it still fails… move one level more supportive (tearaway → cutaway, single cutaway → double cutaway) and re-check hoop tension before stitching.
• Q: How do I know a heavy jacket is hooped correctly in a magnetic embroidery hoop on a hooping station (before stitching)?
  A: The embroidery field should feel firm and flat without fabric grain distortion or pre-ripples near the hoop edge.
  • Run a hand over the hooped area and confirm it feels like a firm drum skin, not “strangled” tight.
  • Check that no zipper tape, thick seam, mesh pocket edge, or hidden yoke seam is trapped under the magnetic clamping path.
  • Confirm the jacket is right-side up and the crosshair matches the station crosshair before snapping the top frame down.
  • Success check: there are no visible waves/ripples before stitching and the fabric looks naturally laid—not stretched.
  • If it still fails… remove and re-hoop while paying attention to jacket drag during the slide-on step.
• Q: How do I fix off-center logo placement on jacket backs when using a HoopTalent hooping station with magnetic hoops?
  A: Stop eyeballing and force the process to “match the marks to the station lines” every time.
  • Mark the jacket flat on a table using a template ruler and a clear crosshair.
  • Slide the jacket onto the station and align the chalk crosshair to the station’s etched lines/notches before closing the magnetic frame.
  • Step back and visually confirm the placement looks straight (heavy garments can have twisted seams that lie).
  • Success check: Jacket #2 lines up identically to Jacket #1 when the crosshair is matched to the station references.
  • If it still fails… re-check that the fixture is pinned in the correct holes and that the jacket is not twisting as it slides onto the station.
• Q: How do I fix fabric bunching or ripples near the top edge of a magnetic hoop when hooping thick jackets on a hooping station fixture?
  A: Make sure the fixture slide mechanism is working so the hoop can “float” slightly during magnet closure and release tension.
  • Check that the fixture is not over-constraining the hoop; the internal slide should move freely.
  • Re-hoop and let the garment move slightly as the magnets engage instead of forcing the fabric to stay rigid.
  • Inspect the hooped area before stitching—pre-ripples usually become stitched pleats later.
  • Success check: the fabric is flat in the hoop with no wave at the top edge before the first stitch.
  • If it still fails… reduce drag during the slide-on step by lifting the jacket slightly so it slides freely onto the station.
• Q: What safety precautions should operators follow when using industrial magnetic embroidery hoops and a hooping station on heavy garments?
  A: Treat magnetic hoops like a pinch-point tool and treat the magnetic field like an electronic interference risk.
  • Keep fingers flat and away from hoop edges when closing magnets to avoid blood blisters or severe pinching.
  • Adjust the station fixture slowly and deliberately; do not “snap” parts together near fingertips.
  • Keep people with pacemakers, insulin pumps, or implanted medical devices at a safe distance (commonly 6–12 inches) and keep phones/credit cards away from the magnets.
  • Success check: the top frame is lowered under control with no sudden snap onto fingers and no devices are placed near the hooping area.
  • If it still fails… stop the process, reposition hands/tools, and re-train the closing motion before continuing production.
