Stop Wrestling Files on Your Mac: A Calm, Repeatable Embrilliance Essentials Workflow for the Brother PE770 (PES + BX Done Right)

Mastering the Digital Workflow for Brother PE770: From Mac to Stitch

If you’ve ever bought a cute applique design, downloaded it on your Mac, and then stared at a folder full of “mystery files” while your Brother PE770 sits idle, you are not alone. The panic usually isn’t about the embroidery mechanics—it’s about file handling.

Machine embroidery is a two-part discipline: digital architecture and physical engineering. This guide rebuilds the workflow demonstrated in the tutorial: Download → Import (PES) → Rotate (Fit 5x7) → Personalize (BX Fonts) → Save (USB).

But we will go deeper. As a veteran in this industry, I will overlay the "old hand" safety checks and sensory cues that keep you from wasting an hour on a corrupt file, nudging single letters out of place, or experiencing the heartbreak of a needle break on the first stitch.

The Mental Model: What the Brother PE770 Actually Needs

Your embroidery machine doesn't care how beautiful the Etsy listing photo was. It is a blind robot that follows a coordinate map. It has strict physical limits—specifically, the 130mm x 180mm field of the standard 5x7 hoop.

Here is the mental model to eliminate confusion:

1. PES is the architecture. This is your applique, sketch stitch, or motif.
2. BX is the keyboard. This is a font file that lets you type names instead of dragging distinct letters.

When you master the software side (BX fonts), the bottleneck inevitably shifts to the physical side. If you are customizing team shirts or gifts, you will soon find that hooping takes longer than stitching. This is the specific "pain point" where professionals transition from standard hoops to magnetic embroidery hoops for brother pe770. While beginners struggle with fabric burns and alignment markings, pros use magnetic frames to clamp fabric in seconds without distortion.

The "Hidden" Prep on macOS: Hygiene Before Creativity

The video highlights a classic Mac workflow trap: clicking download in Safari and letting ZIP files pile up in the "Downloads" folder. This is dangerous. If you buy 20 designs, finding the right "Sawyer" file three months later becomes impossible.

The Pro Standard: Before opening Embrilliance, perform File Hygiene:

• Unzip immediately.
• Isolate by format. You will see folders for DST, EXP, JEF, etc. You only need the PES folder (for the design) and BX folder (for the font).
• Check the size. Ensure the design folder says "5x7" or smaller.

This matters because the most expensive embroidery mistake isn’t wasted thread—it’s wasted time. If you build a layout using the wrong file density or size, you won't know until the machine refuses to stitch it.

Phase 1: Prep Checklist (Digital Hygiene)

• Download & Unzip: Locate the file in Finder; do not work from inside a ZIP.
• Isolate Formats: Identify the PES folder (Design) and BX folder (Font).
• Verify Limits: Confirm the design size is under 130x180mm.
• Launch First: Open Embrilliance Essentials before dragging files in.
• Hidden Consumable Check: Do you have a formatted USB drive (2GB-8GB preferred) ready?


Importing the PES Design: The "Container" Rule

In the tutorial, the applique design is imported by selecting the PES subfolder.

The Rule: If it is an image (flower, truck, applique), it must be a PES file.

Action Steps:

1. Open Embrilliance Essentials.
2. Use the "Merge Stitch File" button (or drag and drop).
3. Navigate to your unzipped folder → PES → 5x7.

Sensory Check: If the design appears huge or "cut off" on the screen, do not panic. It is not corrupt. It is simply oriented for a multi-needle machine or a different hoop direction. This brings us to the most critical software fix.

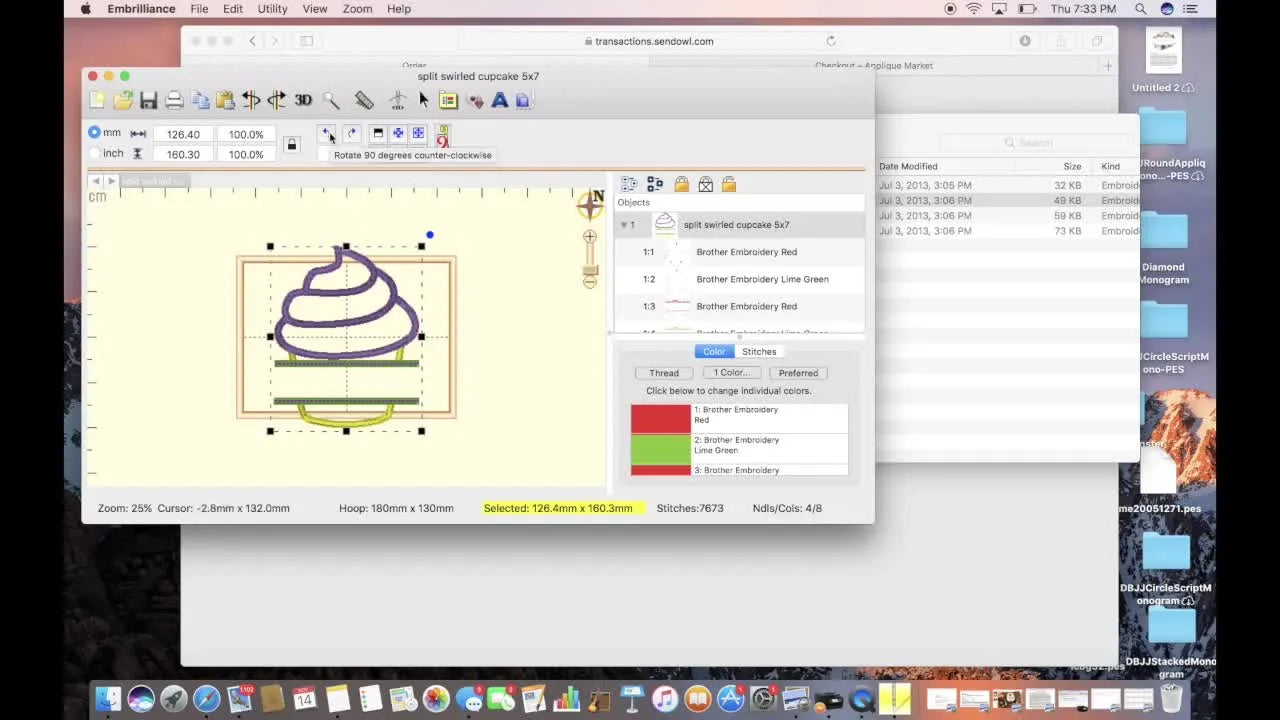

The 90° Rotation Fix: Aligning Logic with Reality

The Brother PE770's 5x7 hoop is vertically oriented relative to the attachment arm, but many digitizers save files horizontally to maximize screen view.

The Fix: Select the design (look for the perimeter box) and click the Rotate 90° button in the top toolbar.

Why this happens: A 5x7 inch hoop is physically 130mm x 180mm. If your design is 170mm wide, the software shouts "Too Big!" until you rotate it to fit the 180mm vertical axis.

Pro Tip: If you are doing volume production, constant rotation is a "micro-friction." Efficiency experts often create pre-rotated templates. Similarly, in the physical realm, sticking with the default plastic brother 5x7 hoop for a 50-shirt order is a recipe for wrist fatigue. This is when upgrading physical tools matches the efficiency of your software tools.

The BX Font Shortcut: Automation vs. Manual Labor

This is the "lightbulb moment" for most beginners.

• The Wrong Way: Importing "A.pes", then "l.pes", then "e.pes", and trying to align them manually. The spacing will be uneven, and you will lose hours.
• The Right Way (BX): dragging a BX file onto the Embrilliance window once.

Action Steps:

1. Locate the BX subfolder in your download.
2. Drag the BX file (e.g., "1 inch.bx") onto the open Embrilliance workspace.
3. Auditory Anchor: Listen/Look for the dialog box saying "Font Installed."

This turns your font into a keyboard/typeable asset. It is the highest ROI (Return on Investment) setup task you can do. It removes manual labor from the design process, just as a hooping station for machine embroidery removes manual measuring from the hooping process.

Composition: Using the Lettering Tool

Now that the software "knows" the font, use it.

Action Steps:

1. Click the "A" (Lettering Design) icon.
2. In the text box, type "Sawyer".
3. Critical Step: Click Set.
4. Select your installed font (e.g., "Watermelon Sketch") from the dropdown menu.

Visual Check: Ensure the text is legible. If the stitches look like solid blocks, you may have viewed the "stitch view" too zoomed out, or the font is too small for the thread weight. Standard 40wt thread needs letters at least 6-8mm tall to be crisp.

The Selection Trap: Move the Object, Not the Atom

A common beginner panic: You try to drag the name "Sawyer" to center it, but only the "S" moves.

The Principle: Embroidery software treats letters as individual objects grouped together.

The Fix:

1. Visual Anchor: Look for the green/black handles around the entire word.
2. If you grab just one letter, press Command+Z (Undo) immediately.
3. Click the text in the Object Pane (right side) to ensure the full group is active.
4. Rotate the text 90° to match your applique.

Warning: Mechanical Safety
When you move from computer to machine, remember that embroidery machines are industrial tools. Never place your hands near the needle bar while the machine is running. Ensure your workspace is clear of scissors and spare needles before pressing "Start."

The "Template" Workflow for Bulk Orders

Melissa points out a vital workflow: do not delete your file after stitching. Save it as a "Master Template."

Next time you need a baby onesie, open "Master_Boy_Applique.BE", select "Sawyer", change text to "Liam", click Set, and Save As new.

The Upgrade Path: When your software workflow becomes this fast (under 2 minutes), your bottleneck is absolutely the hoop. Standard hoops require loosening screws, pushing inner rings, and tugging fabric—often leading to "hoop burn" (crushed fibers). High-volume shops switch to embroidery hoops magnetic because they snap closed in 2 seconds and float the fabric, eliminating burn marks.

saving "Stitch and Working" Files: The Final Handoff

The Brother PE770 requires a PES file. It cannot read the working file (.BE).

Action Steps:

1. Insert a reliable USB drive (avoid generic promotional drives).
2. File > Save As (Stitch and Working).
3. Naming convention: DesignName_HoopSize_Version.pes (e.g., Cupcake_5x7_Sawyer.pes).

Phase 2: Setup Checklist (Pre-Flight)

• Orientation: Is the design vertical (tall) to match the 5x7 hoop mechanics?
• Selection: Is the text centered and fully selected (no rogue letters)?
• Font Source: Did you use the BX file (typing) rather than dragging individual PES letters?
• Consumables Check: Do you have the correct stabilizer? (Cutaway for knits/wearables, Tearaway for towels).
• Needle Check: Is a fresh 75/11 needle installed? (Dull needles cause looping).


Decision Tree: PES vs. BX

Use this logic gate when you open a downloaded folder to stop the confusion instantly.

What is your goal?

• A. I want to stitch a picture (Flower, Truck, Shape).
  • 📂 Open PES Folder.
  • 👉 Select the file matching your hoop size (e.g., 5x7).
• B. I want to TYPE a name using my keyboard.
  • 📂 Open BX Folder.
  • 👉 Drag file into Embrilliance. Use the "A" tool.
• C. I want to stitch a specific letter manualy (Monogram).
  • 📂 Open PES Folder (only if BX is unavailable).
  • 👉 Import letters one by one (The slow way).

If you are consistently customizing items, the time lost in the "Slow Way" adds up. Just as BX fonts save software time, a brother 5x7 magnetic hoop saves physical reset time between items.

Troubleshooting: The "Why is this happening?" Matrix

When things go wrong, do not guess. Follow this diagnostic path.

Beyond the Software: The Physical Upgrade Path

Once you master the file prep, standard hooping becomes the enemy of your productivity.

The Evolution of a Sticker:

1. Beginner: Struggles with standard hoops, experiences wrist pain and hoop burn.
2. Intermediate: Masters stabilizer (Cutaway for stretch, Tearaway for stability).
3. Pro: Upgrades tools.

If you are stitching on delicate fabrics (velvet, performance wear) or bulky items (towels), the friction of standard hoops ruins the nap of the fabric. This is why professionals invest in magnetic frames. Specifically, brother embroidery machine hoops have evolved; magnetic variants allow you to slide the garment in, snap the magnets down, and stitch without forcing inner and outer rings together.

For those producing repeat orders, pairing these hoops with hooping stations creates a standardized, error-free physical workflow that matches the speed of your new digital workflow.

Warning: Magnet Safety
Magnetic hoops use powerful Neodymium magnets.
* Pinch Hazard: They snap together instantly. Keep fingers clear.
* Medical Devices: Maintain a safe distance from pacemakers.
* Electronics: Do not place directly on laptops or near credit cards.

Phase 3: Operation Checklist (The Final Launch)

• USB Transfer: File is visible on the PE770 LCD screen.
• Stabilizer Match: Cutaway for "wearables" (items that stretch), Tearaway for stable items.
• Tension Check: Pull a few inches of thread. It should feel like flossing teeth—resistance, but smooth.
• Hooping: Fabric is "drum-tight." Tap it—you should hear a dull thump.
• Clearance: No fabric bundled under the needle area.
• GO: Press the green button.

By following this strict protocol—Format Hygiene, Correct Rotation, BX Typing, and Physical Safety—you transform from a frustrated hobbyist into a confident operator.

FAQ

• Q: How do I stop an embroidery design from showing “Too Big” in Embrilliance Essentials when the design is for a Brother PE770 5x7 hoop (130mm x 180mm)?
  A: Rotate the PES design 90° so the tall (180mm) direction matches the Brother PE770 5x7 hoop orientation.
  • Select the entire design so the perimeter/bounding box is active, then click Rotate 90° in the top toolbar.
  • Confirm the design size is under 130mm x 180mm after rotation.
  • Save the rotated layout as a template if the same issue happens repeatedly in production.
  • Success check: the design preview fits fully inside the hoop boundary with no cut-off edges.
  • If it still fails: verify you imported the correct hoop-size file from the PES folder (for example, the 5x7 version).
• Q: Which file type should be used for a Brother PE770 in Embrilliance Essentials: PES design files or BX font files?
  A: Use PES for pictures/appliques and use BX to install a typeable font for names in Embrilliance Essentials.
  • Open the unzipped download and isolate the PES folder (design) and BX folder (font).
  • Merge/import a PES file when stitching a motif (truck/flower/applique).
  • Drag a BX file onto the Embrilliance workspace once to install the font, then type with the Lettering tool.
  • Success check: after dragging the BX file, an “Font Installed” dialog appears and the font shows in the font dropdown.
  • If it still fails: do not build names by dragging individual PES letters unless the font has no BX version.
• Q: How do I fix Embrilliance Essentials moving only one letter when trying to center a name for a Brother PE770 PES file?
  A: Undo and reselect the entire text object (the whole word group) before moving or rotating.
  • Press Command+Z immediately if a single letter slides out of place.
  • Click the word until the full bounding box with handles surrounds the entire name, not one character.
  • Use the Object Pane (right side) to select the full text group, then move/rotate the whole word.
  • Success check: dragging moves the entire word together and spacing stays consistent.
  • If it still fails: recreate the name using the BX-installed font and the “A” Lettering tool instead of manual letter imports.
• Q: What is the safest way to transfer a Brother PE770 embroidery file to USB, and why does a Brother PE770 sometimes not read a USB drive?
  A: Save as a PES file and use a small, reliably formatted USB drive (2GB–8GB preferred, FAT32) because the Brother PE770 may reject large or incorrectly formatted drives.
  • Use File > Save As (Stitch and Working) to create the PES needed by Brother PE770 (the machine cannot read the working file).
  • Use a dedicated USB (avoid generic promotional drives) and format it to FAT32.
  • Name files clearly (example format: DesignName_HoopSize_Version.pes) so the PE770 screen is easy to navigate.
  • Success check: the PES file appears by name on the Brother PE770 LCD and loads without an error.
  • If it still fails: try a different USB drive or USB port and keep capacity under 8GB.
• Q: How do I know if fabric hooping is correct before starting a Brother PE770 embroidery job, and what is the quick fix for hoop burn risk?
  A: Hoop the fabric drum-tight and avoid over-compressing delicate materials; if hooping is slow or leaves marks, consider switching from standard hoops to a magnetic hoop system.
  • Tighten and smooth the fabric until it is drum-tight before stitching (do not trap excess fabric under the needle area).
  • Match stabilizer to the project: cutaway for wearables/knits, tearaway for towels/stable items.
  • If hoop burn happens often on delicate fabrics, reduce handling and re-hooping time by upgrading hooping tools (magnetic frames clamp fast with less distortion).
  • Success check: tap the hooped fabric and hear a dull thump with no visible slack or ripples.
  • If it still fails: re-hoop with fresh stabilizer and confirm the design orientation matches the PE770 hoop mechanics.
• Q: What is the recommended Brother PE770 pre-flight checklist for needle, stabilizer, and orientation before pressing Start?
  A: Do a fast “pre-flight” check: correct orientation, correct stabilizer, and a fresh 75/11 needle to prevent looping and first-stitch failures.
  • Confirm the layout is vertical for the Brother PE770 5x7 hoop mechanics (rotate 90° if needed).
  • Install a fresh 75/11 needle if the last needle is unknown or has seen heavy use.
  • Choose stabilizer by item type: cutaway for wearables, tearaway for towels/stable items.
  • Success check: thread pull feels like “flossing teeth”—smooth resistance (not jerky), and the design preview fits the hoop.
  • If it still fails: stop and re-check selection/grouping (no rogue letters) and verify the machine is reading the correct PES file.
• Q: What mechanical safety rules should be followed when operating a Brother PE770, and what extra safety rules apply when using magnetic embroidery hoops?
  A: Keep hands clear of the needle bar during operation, and handle magnetic hoops as a pinch hazard with added precautions around medical devices and electronics.
  • Keep fingers, scissors, and loose fabric away from the needle area before pressing Start; never reach near the needle bar while running.
  • Clear the workspace of spare needles and tools before the machine starts moving.
  • When using magnetic hoops, keep fingers out of the snap zone because magnets close instantly and can pinch.
  • Success check: the stitch area remains unobstructed throughout the run, with no tools or fabric bundles drifting under the needle.
  • If it still fails: pause the machine, remove obstructions, and re-check hoop clearance before resuming (and keep magnetic hoops away from pacemakers and sensitive electronics).
