Stop “Wonky” Satin in Embrilliance StitchArtist TrueType Fonts: Break Across, Inclinations, and Level 3 Breaklines That Actually Stitch Clean

If you’ve ever typed a TrueType font, hit “satin,” and then watched the stitch simulator do something that looks… possessed, you’re not alone. The panic is real. You hear the machine struggling—that rhythmic thump-thump turns into a hesitant grind—and you see the thread bunching up.

The good news: nothing is “wrong” with you or your machine. What you’re seeing is the software making a "best guess" on how to turn 2D ink into 3D thread. It struggles with tight turns and V-shapes (like the center of an "M"). Your job is simply to give it better instructions.

This guide rebuilds the three specific methods for fixing these issues—Level 1, Level 2, and Level 3 in StitchArtist—but adds the missing shop-floor logic: safety parameters, sensory checks, and production workflows. We will cover how to avoid the dreaded "birds nest," how to handle letters with holes (R/O/b), and when to upgrade your physical tools to match your new digital skills.

The “Wonky Satin” Reality Check: Why TrueType Fonts Fight You in StitchArtist

TrueType fonts are vector shapes designed for printers, not needles. When you force them into satin columns, the software must calculate stitch angles.

Think of satin stitches like cars on a racetrack. On a straightaway, they run parallel. But in a sharp corner (like the V of an "M"), if the "cars" don't bank correctly, they crash. In embroidery terms, the software might abruptly flip the stitch direction 90 degrees.

• Visual Check: Look for "fractured" light reflection. Good satin shines smoothly; "wonky" satin looks rough or twisted.
• Tactile Check: Run your fingernail over the simulation screen (or a test sew). If the unexpected angle creates a ridge, that ridge will be 10x worse on a shirt.

Here’s the principle that saves you hours: Satin columns behave best when the shape acts like a simple "rope" or "lane." When a letter twists, we must manually tell the "rope" how to bend.

The “Hidden” Prep in Embrilliance StitchArtist: Set Your Baseline Before You Touch Nodes

Before we start cutting shapes, we need a safe baseline. If you edit nodes on a file with unstable density, you are building a house on quicksand.

In the tutorial, the specific settings used are solid "Sweet Spot" values for standard cotton or twill:

• Density: 4.0 pt (approx 0.4 mm). Expert Note: Avoid going below 3.5 pt on standard fabrics without heavy stabilizer, or you risk cutting the fabric fibers.
• Length: 4.0 mm.
• Edge pad: 0.4 mm.

Why Underlay Matches Matter: The tutorial highlights removing "Edge Run" and keeping "Parallel." Underlay is the foundation.

• Why use Edge Run? It creates a "rail" for the satin to wrap around, lifting the thread so it looks premium.
• Why use Parallel? It stabilizes the fabric to prevent puckering.

Warning: Never start digitizing without checking your Bobbin Tension. Before you worry about software settings, pull your bobbin thread. It should feel like pulling a spiderweb—smooth resistance, but not tight. If the bobbin creates loops on top, software adjustments won't fix it.

Prep Checklist (Pre-Flight):

• Software Level: Confirm you are in Create Mode (Level 1, 2, or 3).
• Baseline Stats: Set Density to ~4.0 pt (0.4mm).
• Visual Logic: Toggle 3D View OFF to see the wireframe. Identify the "Problem Geometry" (Is it a sharp V? A tight corner?).
• Safety Copy: Always File > Save As before splitting nodes. There is no "Undo" for some complex breaks.


The Level 1 “Break Across” Fix: Split the Letter M into Simple Columns You Can Control

If you are on StitchArtist Level 1, you cannot add fancy inclination lines. Your strategy is Divide and Conquer.

The Concept

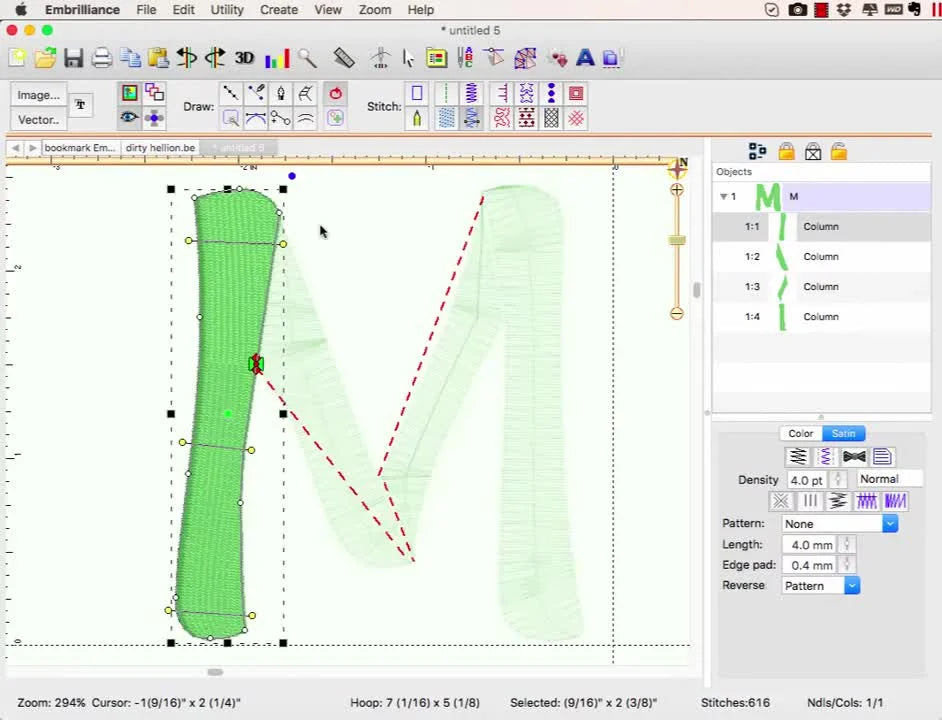

We are going to take a complex shape (the letter M) and physically slice it into separate rectangles (columns). The software handles simple rectangles perfectly.

How to do it (Step-by-Step)

1. Enter Create Mode.
2. Lasso Select: Click the Lasso tool. Draw a circle around two specific nodes that sit across from each other on the column width.
3. The Trigger: Right-click on one of the red selected nodes.
4. The Action: Select Break Across.
5. The Result: The satin fill might disappear momentarily. Do not panic.
6. Re-Apply: Look at your Object Pane. The "M" is now split into multiple "Line" objects. Select them and click the "Satin Column" button to re-apply stitches.

Checkpoint + Expected Outcome

• Visual Check: The Object Pane now lists multiple objects (e.g., Line 1, Line 2) instead of one "Letter."
• Success Metric: The stitch capability should look smooth on the straightaways, even if the corners need a little nudging.

Warning: Physical Safety. Node editing requires precision. If you accidentally leave a tiny "shard" or "sliver" of an object (a shape smaller than 1mm), the machine will deposit a knot of thread there. This creates a "bird's nest" that can suck the garment into the needle plate. Always delete tiny accidental objects in the object tree.

Pro tip: The "Closed Outline" Rule

A common frustration: "I right-clicked, but Break Across isn't there!" The Cause: Your shape is likely an Open Outline (a line) rather than a Closed Shape (a container). Even if it looks like a letter, if the path isn't closed, the software treats it like a running stitch path. Ensure your shape is closed before attempting to break.

The Stitch Order Trap After Breaking Shapes: Fix the Object Pane Before You Fix Anything Else

When you break an object, the new piece often drops to the bottom of the list. This creates a Sequence Hazard.

The Symptom

The machine stitches the left leg of the M, then jumps to the right leg, then comes back to stitch the middle V.

• The Look: Visible jump threads (trims) that you have to cut by hand.
• The Risk: The middle piece might push the fabric, causing a gap between the segments.

The Fix

1. Go to the Object Pane.
2. Find the segment that should stitch second (e.g., the middle V).
3. Right-click -> Move Last (or drag and drop).
4. Logic: Arrange them like you would write with a pen: Left -> Middle -> Right.

Checkpoint

• Simulator Check: Run the stitch simulator. Does the virtual needle move in a fluid, continuous line? Or does it hop around? It should flow like specific handwriting.


The Jump Stitch Cleanup Button: Auto Entry/Exit (and When It’s Not Optional)

Splitting shapes creates "Jump Stitches"—long threads that travel from one object to another.

The Problem

If the first leg ends at the bottom and the middle V starts at the top, the machine has to jump.

The Quick Fix

1. Select all your new segments.
2. Go to menu Create > Auto Entry/Exit.
3. The Meaning: The software calculates the shortest distance between objects and moves the Start/Stop nodes automatically.

Reality Check

Auto Entry/Exit is a 90% solution. Sometimes, you still need to manually grab the Green Bowtie (Start) and Red Bowtie (Stop) handles and move them so they touch.

• Success Metric: In the simulator, you should see zero long straight lines connecting your satin columns.


The Level 2 Upgrade: Add Inclinations to Tell Satin Exactly Which Way to Lay

Level 2 allows you to be the "Traffic Cop." You don't need to break the object; you just tell the stitches how to bank the turn.

The Action

1. Select the satin column.
2. Click the Inclinations button (looks like a line through a column).
3. Drag a line across the column where the angle is bad (like the crook of the V).
4. Sensory Check: As you drag, watch the 3D rendering update instantly. You want the stitches to fan out evenly, like the pages of an open book.

Why Level 2 is Safer

Because you aren't breaking the object, you don't have to worry about sequencing or jump stitches. The object stays whole. This is safer for beginners.

The Level 3 Breakline Advantage: Keep One Object, Control the Flow

Level 3 is the professional standard. It gives you the "Break" power of Level 1 with the "Single Object" safety of Level 2.

The Action

1. Select two nodes across the width.
2. Right-click -> Add Breakline.
3. The Difference: You see a line appear, but looking at the Object Pane, it is still ONE OBJECT.

The "Global Edit" Benefit

If you decide later that density needs to be 4.5 pt instead of 4.0 pt:

• Level 1 (Broken Objects): You have to select 5 different pieces and update them all.
• Level 3 (Breakline): You update the single "M" object, and the whole letter updates. This reduces human error significantly.


Break Across vs Add Breakline (Summary)

• Break Across (Level 1): Destructive edit. Splits the object into pieces. Good for total control, requires re-sequencing.
• Add Breakline (Level 3): Non-destructive. Keeps object whole. Best for workflow efficiency.


Curving Breaklines for Cleaner Flow: The “Turkey Bone” Trick

Straight lines create robotic, stiff turns. Curves create organic flow.

The Technique

The tutorial shows dragging the Bezier handles of the breakline to curve it.

• Visual Goal: You want the breakline to mimic the natural curve of the letter geometry.
• The "Turkey Bone": By flaring the ends of the breakline, you preserve the width of the column, preventing the "pinched" look that screams "amateur digitizer."


One-Click Global Effects in Level 3: Pattern and Underlay Changes

Because Level 3 keeps the letter as a unified object, you can apply texture effects instantly.

The Move

Change the Stitch Type from "Satin" to "Corn Row" or "Texture."

• Level 3 Advantage: The texture flows seamlessly across the breaklines.
• Level 1 Disadvantage: If you do this on broken objects, the texture pattern might restart at every break, looking disjointed.


The Comment Question Everyone Has: Why Breakline/Break Across Disappears on Letters with Holes (R, O, b, d, p)

This is the #1 Panic Point for new users. You try to break the letter "O" or "R," and the option is grayed out or missing.

The Physics of the Hole: The software treats a letter with a hole as a "Complex Fill" initially. It doesn't know it's a column yet.

The Missing Step (The Solution)

1. Select a node on the Outer border.
2. Hold Ctrl/Cmd and select a node on the Inner (hole) border.
3. Right-click -> Connect to Hole.
4. Now the software sees it as a continuous ring/column.
5. Success: You can now proceed with Break Across or Inclinations.

A Fast Decision Tree: Which Method to Use?

When you are staring at a messy "M", use this logic flowsheet:

1. Do you have Level 3?
   • YES: Use Add Breakline. It is non-destructive and allows global edits.
   • NO: Go to step 2.
2. Do you have Level 2?
   • YES: Use Inclinations. Steer the stitches without breaking the object.
   • NO: Go to step 3.
3. Level 1 Users:
   • Use Break Across.
   • Mandatory Step: Re-sequence objects in the Object Pane immediately.
   • Mandatory Step: Run "Auto Entry/Exit" to kill jump stitches.

Setup Habits That Prevent Rework: The "Production Mindset"

Great digitizing is useless if the physical setup fails. You can have perfect stitch angles, but if your hooping is loose, you will get gaps.

Setup Checklist:

• Underlay: Verify Edge Run + Parallel are on for stability.
• Tie-ins/Tie-offs: Ensure specific tie-offs are set (usually "Auto") so the thread doesn't unravel.
• Simulator: Watch the whole video. Do you see jumps? Do you see the needle jumping from left to right excessively?

Troubleshooting “Scary” Symptoms

The “Production Mindset” Upgrade: When Software Fixes Meet Real Hooping

Digitizing fixes the instructions, but your tools determine the execution. If you find yourself perfectly digitizing a file, but the result on the shirt is still puckered or misaligned, the bottleneck has shifted from software to hardware.

The "Hoop Burn" & Fatigue Cycle Traditional hoops rely on friction. To hold fabric tight enough for satin lettering, you have to screw them down tight.

• The Risk: This creates "Hoop Burn" (permanent rings on delicate fabrics) and leads to wrist strain if you are running production.
• The Trigger: If you are doing repeats or battling slippery performance wear, this is where you upgrade.

The Solutions (Tiered Upgrade Path):

1. For Consistency: Many pros use a hooping station for machine embroidery to ensure every "Left Chest Logo" lands in the exact same spot. It removes the "eyeballing" error.
2. For Speed & Ergonomics: If you are fighting the screw mechanism, an embroidery hooping station paired with magnetic frames can double your speed.
3. The "No-Burn" Fix: magnetic embroidery hoops are the industry specific cure for hoop marks. Because they clamp straight down rather than pulling the fabric, they hold tension without crushing the fibers.
   • Note: Always check compatibility. magnetic hoops for embroidery machines come in specific brackets for Brother, Tajima, Ricoma, etc.
4. For Home Users: Even single-needle users benefit. magnetic embroidery frames allow you to float stabilizers and avoid wrestling with stiff backing.

Warning: Magnetic Safety.
Commercial-grade magnetic embroidery hoops are industrial tools with crushing force.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Health Hazard: Keep away from pacemakers.
* Tech Hazard: Keep away from credit cards, phones, and hard drives.

If you are new to this gear, search for guides on how to use magnetic embroidery hoop properly. The technique is different—you "slap" and slide rather than "press" and screw.

Operation Checklist: The 60-Second Final Pass

Do not press "Start" until you pass this list.

Operation Checklist:

1. Simulation: Did I watch the digital sew-out for jumps?
2. Bobbin: Is there enough bobbin thread? (Running out mid-satin letter is a nightmare).
3. Needle: Is the needle sharp? (A burred needle shreds satin thread).
4. Hoop: Is the fabric "drum tight" (but not distorted)?
5. Test: Always run a test sew on scrap fabric with the same stabilizer.

Mastering specific lettering takes patience. Soften the learning curve by isolating the variables: Fix the geometry (Level 1/2/3), then fix the sequence, and finally, ensure your physical holding method (hoops) isn't undermining your digital work.

FAQ

• Q: In Embrilliance StitchArtist Level 1, how do embroidery users fix a TrueType letter “M” that produces twisted satin angles in the stitch simulator?
  A: Use Break Across to split the “M” into simple satin columns, then re-apply Satin Column stitches.
  • Enter Create Mode, lasso-select two nodes across the column width, then right-click a red node and choose Break Across.
  • Re-select the new “Line” objects in the Object Pane and click Satin Column to restore stitches.
  • Delete any tiny accidental slivers (<1 mm) in the Object Pane to prevent thread clumps.
  • Success check: Satin columns should look smooth on straight sections, without sudden 90° flips or rough “fractured” shine.
  • If it still fails: Switch to wireframe (3D OFF) and confirm the letter is a closed shape, not an open outline.
• Q: In Embrilliance StitchArtist after using Break Across, how should embroidery users fix the Object Pane stitch sequence to avoid jump threads on a TrueType “M”?
  A: Reorder the split segments in the Object Pane so the machine stitches in a logical left-to-middle-to-right flow.
  • Open the Object Pane and identify which segment should stitch second (often the middle V).
  • Right-click and use Move Last (or drag/drop) to place segments in the intended order.
  • Run the stitch simulator to confirm the needle path flows continuously instead of hopping.
  • Success check: The simulator needle movement should look like smooth handwriting, not left-right-left jumps.
  • If it still fails: Use Create > Auto Entry/Exit to correct poor start/stop locations between segments.
• Q: In Embrilliance StitchArtist, how can embroidery users remove long jump stitches after splitting satin letters using Create > Auto Entry/Exit?
  A: Select the segments and run Create > Auto Entry/Exit, then manually adjust Start/Stop handles if needed.
  • Select all split satin segments created from the letter.
  • Click Create > Auto Entry/Exit to auto-calculate shorter travel between objects.
  • Manually drag the Green Bowtie (Start) and Red Bowtie (Stop) so endpoints touch when Auto Entry/Exit isn’t perfect.
  • Success check: The simulator shows zero long straight connector lines between satin columns.
  • If it still fails: Re-check object order in the Object Pane because bad sequencing can force unnecessary travel.
• Q: In Embrilliance StitchArtist, why does “Break Across” disappear when a TrueType letter is an open outline, and how do embroidery users restore the option?
  A: “Break Across” may be unavailable because the letter is an open outline instead of a closed shape; convert/ensure the path is closed before splitting.
  • Toggle 3D View OFF to inspect the outline geometry clearly.
  • Confirm the letter shape is a closed container path (not just a line path).
  • Retry the lasso-select of two nodes across the width and right-click to look for Break Across.
  • Success check: The right-click menu shows Break Across, and the Object Pane updates into multiple objects after the break.
  • If it still fails: Verify the selected nodes are truly across the column width (not along the same edge).
• Q: In Embrilliance StitchArtist, how do embroidery users enable Breakline/Break Across or Inclinations on letters with holes like “O” or “R” using “Connect to Hole”?
  A: Use Connect to Hole by selecting one outer-border node and one inner-hole node so the software recognizes a continuous column.
  • Select a node on the outer border, then hold Ctrl/Cmd and select a node on the inner (hole) border.
  • Right-click and choose Connect to Hole.
  • Proceed with Break Across, Inclinations, or Add Breakline after the connection is created.
  • Success check: The option to split/control the column becomes available and the stitch preview behaves like a continuous ring/column.
  • If it still fails: Re-check that one node is on the outer border and the other is on the inner border (not both on the same contour).
• Q: What baseline satin settings in Embrilliance StitchArtist are a safe starting point for TrueType satin lettering before node editing to reduce bird’s nests and fabric damage?
  A: Start from stable “sweet spot” settings before editing nodes: Density ~4.0 pt (0.4 mm), Length 4.0 mm, Edge pad 0.4 mm, and confirm underlay choices.
  • Set Density to about 4.0 pt (0.4 mm) and avoid going below 3.5 pt on standard fabrics without heavy stabilizer.
  • Set Length to 4.0 mm and Edge pad to 0.4 mm before making geometry cuts.
  • Verify underlay logic (the tutorial notes removing Edge Run and keeping Parallel in that example) and be consistent for the fabric type used.
  • Success check: Satin preview shows even coverage without overly tight packing, and corners don’t look over-twisted.
  • If it still fails: Check bobbin tension first—if bobbin loops appear on top, software changes will not solve the stitch formation.
• Q: What magnetic embroidery hoop safety rules should embroidery shops follow when switching from screw hoops to magnetic frames to reduce hoop burn?
  A: Treat magnetic embroidery hoops as high-force industrial tools and prevent pinch, health, and device damage hazards.
  • Keep fingers out of the “snap zone” to avoid pinch/crush injuries when the magnetic frame clamps down.
  • Keep magnetic embroidery hoops away from pacemakers and follow medical-device guidance.
  • Keep magnetic embroidery hoops away from credit cards, phones, and hard drives to avoid magnetic damage.
  • Success check: The fabric is held securely without crushing rings, and handling feels controlled (no uncontrolled snapping).
  • If it still fails: Stop and review the correct “slap and slide” handling method before continuing production.
