Stop “Winging It”: Dial In Janome & Brother Bobbin Tension with the FOX Test (and Get Clean Backs Every Time)

If you have ever stared at the back of an embroidery design with a sinking feeling—wondering, “Is this tension loose, or am I about to destroy this garment?”—you are experiencing a universal axiom of our trade: Embroidery is 90% preparation and 10% stitching.

Most issues that beginners diagnose as "bad digitizing," "cheap stabilizer," or "my machine hates me" are actually simpler, boring physics issues. Specifically, your bobbin system—the foundation of every lockstitch—is likely unstable.

In this guide, we are going to reconstruct a professional calibration workflow. We will move beyond vague advice like "check your tension" and move into empirical steps: exactly what bobbin fill to use, how to identify case markings for Janome versus Brother, why re-using cores is a structural disaster, and how to execute the FOX Test—the industry-standard method to see tension rather than guessing at it.

The Bobbin Fill Choice That Keeps Your Backing Clean: Fil-Tec Glide Pre-Wound Bobbins (Part No. 13305)

In the referencing video, the presenter identifies their "secret weapon" for consistent tension: Fil-Tec Glide pre-wound bobbins (specifically Part No. 13305). But why does this specific consumable matter?

It comes down to friction coefficients. In embroidery, you are balancing two forces: the top thread trying to pull the bobbin thread up, and the bobbin case trying to hold it down.

• The Problem with "Slippery" Threads: If a bobbin thread is too smooth (like high-sheen poly), it slips through the tension spring too fast, causing "birdnesting" on top.
• The Problem with "Fuzzy" Threads: If it’s too matte or cotton-like, it creates erratic drag, leading to tight, puckering designs.

Fil-Tec Glide sits in the "Goldilocks zone." It is described as having a texture "in-between" ultra-shiny and matte.

Sensory Check: When you run your finger over a spool of high-quality bobbin fill, it should not feel like fishing line (too slick) nor like a cotton ball (too fuzzy). It should feel smooth but with a microscopic "grip"—similar to high-grit sandpaper worn smoother. This texture ensures the thread unspools with constant, predictable drag.

In a production environment, consistency is currency. Using pre-wounds eliminates the variable of "how well did I wind this bobbin today?"

The video highlights that this thread works across platforms—from a Janome 500 to various Brother models. However, the machine "liking" the thread is only half the battle; the machine must be set up to accept it.

Prep Checklist: The "Clean Room" Approach

Before you touch a screwdriver, you must eliminate environmental variables.

• Clean the Race: Use a brush or air duster to remove lint from the bobbin hook. Even a grain of lint under the tension spring renders calibration useless.
• Check the Bobbin: Confirm you are using a Pre-wound bobbin for the test (do not mix with self-wound for calibration).
• Visual Contrast: Load White bobbin thread and a dark or bright top thread (like Orange or Blue). You need maximum contrast to read the ratio.
• Standardize the Top: Use a brand new 75/11 embroidery needle. Old needles utilize more force to penetrate, which distorts tension readings.
• Hidden Consumable: Have a small, flat-head precision screwdriver ready. A standard eyeglass screwdriver is often too thick; you need one that fits the tiny bobbin screw slot perfectly to avoid stripping it.

Don’t Guess the Bobbin Case: Janome Red/Yellow Dots vs. Brother Painted/Unpainted Screws

This is the "Silent Killer" of embroidery projects. You buy a spare bobbin case online, or swap one from your sewing kit, and suddenly your embroidery quality vanishes.

Different bobbin cases are calibrated for different thread weights and tension requirements. A case set for sewing (heavier drag) will strangle delicate embroidery thread.

The video clarifies the decoding system:

• Janome logic: Look for a Red Dot (often high tension/sewing) versus a Yellow Dot (often lower tension/embroidery). Note: always verify your specific machine manual, as color codes can vary by model generation.
• Brother logic: They often use Green Dots, or differentiate using Painted vs. Unpainted screws on the side of the case.


The Tactile "Click": When inserting your bobbin case into the machine, listen for a distinct, sharp click.

• Soft thud? It’s not seated. You will break a needle.
• Sharp click? The anti-rotation tab is locked. You are safe.

The "Floss" Test: When you hold the bobbin case (out of the machine) with the bobbin loaded, pull the thread tail. It should flow smoothly. If it jerks, snags, or requires force similar to pulling a tight shoelace, your case is dirty or damaged. It should feel like pulling dental floss—slight resistance, but smooth movement.

The Hidden Trap: Why Refilling Pre-Wound Bobbin Cores Wrecks Tension (Even If It Seems Fine at First)

Novices often see the empty plastic core of a pre-wound bobbin and think, "I'll just reuse this to wind a custom color." Do not do this.

The presenter demonstrates the physics of failure by squeezing the empty core. It collapses easily. Compare this to the rigid, hard plastic bobbins that came with your machine.

The Physics of Deformation: When you wind thread onto a bobbin, the thread exerts inward crushing pressure (like a rubber band ball).

1. Hard Plastic Bobbin: Resists this pressure, maintaining its width.
2. Flimsy Pre-Wound Core: Buckles under pressure.

If the core buckles, the bobbin becomes narrow. It will rattle inside the case, causing tension to fluctuate wildy between "loose" (rattle) and "tight" (snag). If you need to wind a custom color, always use the manufacturer-supplied hard plastic bobbins.

Warning: Mechanical Safety
Never adjust the bobbin case tension screw while the case is inside the machine. If your screwdriver slips, or if you accidentally hit the "Start" button or foot pedal, the needle bar can descend, crushing your hand or shattering the screwdriver into your eyes. Always remove the case to adjust it.

The FOX Test That Makes Tension Obvious: Why “F-O-X” Beats Random Stitch-Outs

Stop testing tension on random squiggles or the letter "I". You need a stress test that forces the machine to pull thread in every vector. The Industry Standard is the word: FOX.

Why FOX? The Geometry of Calibration:

• F: Tests vertical columns and horizontal bars (X and Y axis pull).
• O: Tests curves. If tension is tight, the O will look like an oval or have gaps.
• X: The ultimate test. It contains diagonals and a cross-over point where stitch density doubles.

If your machine can stitch a clean FOX, it can stitch anything.

Read the Back Like a Technician: The 1/3–1/3–1/3 Rule on the Letter “X”

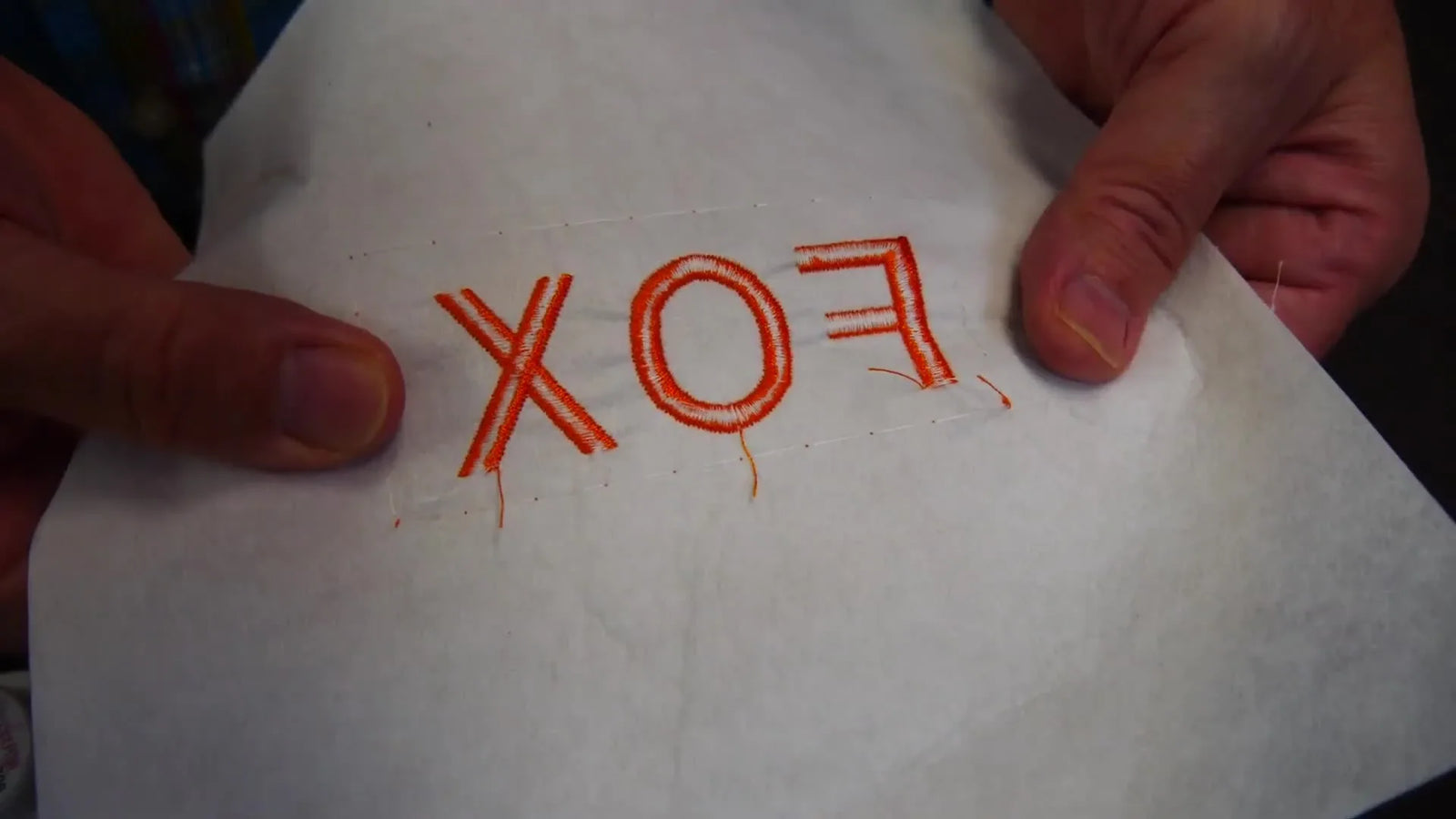

Stitch the word FOX using your standard satin font (about 1 inch / 25mm tall). Now, ignore the front. Flip it over. We are inspecting the satin column of the letter X.

The Golden Ratio (1/3 - 1/3 - 1/3): Visualise the width of the satin column on the back.

• Left 1/3: You should see the Top Thread (e.g., Orange).
• Center 1/3: You should see the Bobbin Thread (White).
• Right 1/3: You should see the Top Thread (Orange).




Interpreting the Data:

• Perfect: A clean white strip down the middle.
• Too Loose (Top) / Tight (Bobbin): The white strip is very narrow or invisible (Top thread dominates).
• Too Tight (Top) / Loose (Bobbin): The white strip is wide, perhaps covering 50-80% of the back. You might even see white poking up on the front of the design (called "peppering").

This visual gives you binary feedback. There is no feeling involved; simple geometry.

Setup Checklist: The "FOX" Flight Plan

• Hooping: Hoop a piece of Calico (woven cotton) with two layers of tear-away stabilizer. Drum-tight. (Loose hooping fabricates false tension errors).
• Thread: Top = Dark/Bright. Bobbin = White.
• Speed: Run the machine at your standard speed (e.g., 600-800 SPM). Do not test at slow speeds if you plan to sew at high speeds; physics changes with velocity.
• Design: FOX, Block font, Satin stitch, ~1 inch height.

The Quarter-Turn Rule: Adjusting the Bobbin Tension Screw Without Creating New Problems

So, your FOX test failed. The white strip is too wide (Bobbin too loose) or too narrow (Bobbin too tight). You must adjust the screw on the bobbin case.

The "Clock Face" Method: Visualize the screw slot as a minute hand on a clock.

• Righty Tighty: Turn Clockwise to increase tension (make white strip narrower).
• Lefty Loosey: Turn Counter-Clockwise to decrease tension (make white strip wider).

The Rule: Move only 15 minutes (1/4 turn) at a time.

• Make the adjustment.
• Re-thread.
• Stitch a new FOX next to the old one.
• Compare.

Never turn the screw multiple rotations. The "sweet spot" is often a operational window of less than half a turn.

Operation Checklist: The iterative Fix

1. Diagnostic: Stitch FOX. Flip to back.
2. Analysis: Is the white column < 1/3 or > 1/3?
3. Action: Remove case. Adjust screw 15 minutes (1/4 turn).
4. Verification: Stitch FOX again.
5. Repeat: Continue until the Golden Ratio is achieved.

Why Your “Perfect Settings” Don’t Stay Perfect: New Reel = New FOX Test

A hard truth of manufacturing: Thread is an organic product. Two spools of the same brand, same color, but different dye lots can have different friction properties. Humidity changes how cotton stabilizer behaves.

The Professional Habit: Experienced operators run a FOX test (or a small "H" test) every morning, or every time they open a new box of bobbin thread. It takes 2 minutes and saves 2 hours of picking out bad stitches.

A Practical Decision Tree: Fabric + Stability → Stabilizer Choice

Sometimes, your tension is perfect, but the embroidery looks terrible because the fabric is distorting. You cannot tension-fix a stability problem. Use this decision tree to ensure you aren't blaming the bobbin for a stabilizer failure.

Step 1: Identify Fabric Structure

• Is it Stretchy? (T-shirt, Polo, Performance Wear)
  • YES: You MUST use Cutaway Stabilizer. No exceptions. Tearaway will allow the stitches to distort and pull the fabric, mimicking "tight tension."
  • NO: Go to Step 2.

Step 2: Identify Fabric Weave

• Is it Loose/Open? (Linen, loosely woven cotton)
  • YES: Use Fusible Mesh or a heavy starch + Tearaway to lock fibers.
  • NO: (Denim, Canvas, Calico) -> You can likely use Tearaway.

Step 3: Identify Design Density

• Is it a heavy block (Like a badge)?
  • Result: Use Two Layers of stabilizer. The "pull" of the thread will overpower a single sheet.

Pro Tip: To ensure your test results are valid, keep a "Calibration Kit" near your machine containing consistent Calico fabric and standard Cutaway stabilizer. Always test on this setup first to verify the machine is mechanically sound before testing on your final garment.

Troubleshooting the FOX Test: Symptoms → Likely Cause → Fix

If the FOX test is behaving erratically, use this triage table. Always fix from Top to Bottom (Cheapest Fix to Expensive Fix).

The Hooping Reality Check: If Your Fabric Shifts, Your Tension Reading Lies

You can have the perfect 1/3-1/3-1/3 ratio on your Calico test strip, but when you switch to a polyester polo shirt, the design puckers. Diagnosis: This is broadly not a tension issue. It is a Hooping Issue.

Traditional screwed hoops utilize friction (inner ring vs outer ring) to hold fabric. On slippery garments, the fabric micro-slides toward the center as the needle pounds it. This creates a slack "bubble" that ruins tension.

This is why professionals often upgrade to magnetic embroidery hoops. Unlike friction hoops, magnetic hoops clamp the fabric with vertical force. This prevents the "slide."

• Home Users: For a user on a janome embroidery machine or a brother embroidery machine, a magnetic hoop (like the MaggieFrame) eliminates the "Hoop Burn" (shiny rings) caused by forcing plastic rings together.
• Production: It ensures that the tension you calibrated on your test strip is the tension you get on the final product, because the fabric stability is constant.

Warning: Magnet Safety
Industrial magnetic hoops utilize Neodymium magnets. They snap together with immense force.
1. Pinch Hazard: Keep fingers clear of the mating surfaces.
2. Medical: Keep away from pacemakers or insulin pumps.
3. Electronics: Do not place phones or credit cards directly on the magnets.

The Upgrade Path: When Better Tools Actually Save You Money

If you are a hobbyist stitching once a month, patience and the standard plastic hoops are sufficient. However, if you are hitting specific pain points, consider these tool upgrades to close the gap between "Struggling" and "Production."

Scenario 1: "My wrists hurt from tightening hoops, and I can't get garments straight."

• The Upgrade: A magnetic hooping station.
• Why: It holds the hoop and garment in a fixed position, allowing you to use both hands to smooth the fabric. Combined with magnetic hoops, it eliminates the wrist strain of "screwing" frames tight.

Scenario 2: "I have hoop burn marks on dark fabrics that won't iron out."

• The Upgrade: magnetic embroidery hoops for janome 500e (or your specific model).
• Why: Magnetic frames sit on top of the fabric rather than crushing it inside a ring, eliminating the friction burn.

Scenario 3: "I need to do 50 shirts by Friday."

• The Upgrade: This is where you outgrow single-needle domestic capabilities. Moving to a multi-needle machine is about speed, but also about capacity. However, you can bridge the gap by equipping your current machine with efficient machine embroidery hoops that allow for faster change-overs.

Where People Get Stuck (and How to Unstick Fast)

A common question is availability: "Where do I get Fil-Tec?" or "Where do I get a red-dot bobbin case?" Don't get hung up on brands. Fil-Tec is a standard, but Pre-wound is the category. Magna-Glide is another excellent term to search for.

If you are switching ecosystems—say, moving from a brother embroidery machine to a Janome—never assume your old accessories work. Run a fresh FOX test.

The Calm, Repeatable Workflow

1. Prep: Clean race, new needle, use Pre-wound bobbin (e.g., Fil-Tec Glide).
2. Verify: Check your bobbin case markings (Red/Yellow/Green). Listen for the Click.
3. Test: Stitch FOX on Calico with Tearaway.
4. Analyze: 1/3 - 1/3 - 1/3 ratio on the back of the "X".
5. Adjust: 1/4 turn on the screw if needed.

Once you trust your eyes and the FOX test, you stop reacting to the machine, and you start commanding it.

FAQ

• Q: How do I choose the correct bobbin thread type for consistent embroidery tension when using Fil-Tec Glide pre-wound bobbins (Part No. 13305)?
  A: Use a consistent pre-wound bobbin fill with “medium grip” texture (not too slick, not too fuzzy) and do not mix bobbin types during calibration.
  • Standardize: Run the same pre-wound bobbin type for all tension tests before changing anything else.
  • Contrast: Load white bobbin thread with a dark/bright top thread to make tension results readable.
  • Clean: Brush/blow lint out of the bobbin race before testing.
  • Success check: The bobbin thread should pull smoothly from the case with slight, even resistance (like dental floss).
  • If it still fails: Stitch a FOX test and evaluate the 1/3–1/3–1/3 ratio before adjusting any screws.
• Q: How do I identify the correct embroidery bobbin case for a Janome embroidery machine using red dot vs yellow dot markings?
  A: Use the Janome bobbin case marking system (red vs yellow) as a guide, but confirm with the specific Janome machine manual because markings can vary by model generation.
  • Inspect: Look for the dot color on the bobbin case before installing it.
  • Verify seating: Insert the case and listen for a distinct sharp “click” so the anti-rotation tab is locked.
  • Test drag: Pull the bobbin tail by hand; it should be smooth, not jerky.
  • Success check: You hear a sharp click on install and the thread pull feels smooth with light resistance.
  • If it still fails: Suspect the wrong bobbin case type (sewing vs embroidery) or a dirty/damaged case and switch to a verified embroidery case.
• Q: How do I identify the correct embroidery bobbin case for a Brother embroidery machine using painted vs unpainted screws or green dots?
  A: On many Brother bobbin cases, identification is commonly done by markings like green dots or painted vs unpainted screws—use those cues and confirm with the Brother manual for the exact model.
  • Inspect: Compare the side screw area for painted vs unpainted screws and any colored dot markings.
  • Install correctly: Seat the case fully and listen for a sharp click.
  • Do the floss test: Pull the thread tail; it should feed smoothly without snags.
  • Success check: Smooth “dental floss” pull and a sharp click when the bobbin case locks in.
  • If it still fails: Clean lint from the bobbin area and re-test; if drag is still jerky, replace the bobbin case.
• Q: Why does reusing an empty pre-wound bobbin core to wind custom bobbin thread cause unstable tension in a home embroidery machine?
  A: Do not rewind on empty pre-wound cores because the core can deform under winding pressure, making the bobbin rattle or snag in the case and causing wild tension swings.
  • Avoid: Throw away the empty pre-wound core instead of refilling it.
  • Use: Wind custom colors only on the manufacturer-supplied hard plastic bobbins.
  • Re-test: Run a FOX test after switching back to a rigid bobbin.
  • Success check: The bobbin no longer rattles in the case and the stitch-out becomes consistent (no wide/narrow swings on the back).
  • If it still fails: Clean the bobbin race and confirm the bobbin case is the correct embroidery type.
• Q: How do I run the FOX embroidery tension test and judge correct tension using the 1/3–1/3–1/3 rule on the back of the letter X?
  A: Stitch “FOX” in a satin block font and judge tension by the back of the X: top thread should show on the left third and right third, with bobbin thread centered in the middle third.
  • Hoop: Use calico with two layers of tear-away stabilizer, hooped drum-tight.
  • Thread for contrast: Top thread dark/bright; bobbin thread white.
  • Stitch at real speed: Test at the same speed you normally run (don’t calibrate slow if you stitch fast).
  • Success check: On the back of the satin column of the “X,” the white bobbin strip is clean and centered at about 1/3 of the width.
  • If it still fails: Adjust bobbin case tension in 1/4-turn steps and stitch a new FOX next to the last one to compare.
• Q: How do I adjust the bobbin case tension screw safely and correctly using the 1/4-turn “clock face” method?
  A: Remove the bobbin case from the machine and adjust the bobbin screw only 15 minutes (1/4 turn) at a time—clockwise tighter, counter-clockwise looser—then re-test with a new FOX stitch-out.
  • Remove: Take the bobbin case out before touching the screw (never adjust it inside the machine).
  • Turn small: Move the screw 1/4 turn maximum per adjustment using a correctly sized precision flat-head screwdriver.
  • Verify with data: Re-thread and stitch a fresh FOX next to the previous test.
  • Success check: The back of the X returns to the 1/3–1/3–1/3 ratio (a clean white strip down the middle).
  • If it still fails: Stop turning multiple rotations; clean the thread path and bobbin area, then repeat the FOX workflow.
• Q: How do I troubleshoot inconsistent FOX test results when the bobbin white strip changes width from wide to narrow across the same stitch-out?
  A: Treat “wide then narrow” white strip changes as a consistency problem first—usually a dirty thread path or spool/spindle drag—before changing tension settings again.
  • Floss: Clean the tension discs with un-waxed dental floss.
  • Clean: Blow/brush lint out of the bobbin race and around the hook.
  • Check feed: Confirm the spool is not catching and the spool cap is not creating drag.
  • Success check: A new FOX test shows the white strip on the back staying consistent across the satin columns.
  • If it still fails: Re-thread with presser foot up and confirm the bobbin case is seated with a sharp click.
• Q: How do I stop embroidery puckering and fabric shifting on slippery garments after passing the FOX tension test, and when should I upgrade to magnetic hoops or a multi-needle embroidery machine?
  A: If FOX looks perfect on calico but garments pucker, treat it as a stability/hooping problem first; upgrade tools only after hooping and stabilizer choices are correct.
  • Level 1 (technique): Hoop drum-tight and match stabilizer to fabric (stretch fabrics require cutaway; dense designs may need two layers).
  • Level 2 (tool): Switch from friction hoops to magnetic hoops to prevent micro-sliding and reduce hoop burn on delicate/dark fabrics.
  • Level 3 (capacity): Consider a multi-needle machine when volume deadlines make changeovers and speed the bottleneck, even after hooping is stable.
  • Success check: The garment stays flat in the hoop (no slack “bubble”) and the finished embroidery matches the FOX test behavior without new puckering.
  • If it still fails: Re-check stabilizer choice (stretch vs woven, loose weave vs dense design) before changing tension again.
