Stop Winding Bobbins the Hard Way: Pre-Wound Bobbins That Keep Your Tajima Running (and Your Sanity Intact)

If you have ever started an embroidery project full of excitement, only to find yourself staring at a bobbin winder like it is a punishment, you are not alone. The video referenced nails a truth I have seen on factory floors and in home studios for 20 years: winding your own bobbins feels charming for the first few weeks of your hobby. Then, it becomes the bottleneck that quietly destroys your production momentum.

In professional circles, we view embroidery as an equation of variables. The more variables you control, the better your output. Hand-winding introduces a variable called "human inconsistency." Pre-wound bobbins are one of those "small" upgrades that change the entire equation: fewer stops, mathematically consistent tension, and zero time spent babysitting a winder.

But there is a disciplined way to adopt them. Whether you are running a single-needle unit at home or scaling up a commercial shop stitching caps, understanding the physics of your bobbin system is non-negotiable.

The Real Cost of Hand-Winding Bobbins on a Domestic Machine: It Starts Cute, Then It Eats Your Time

The video opens with the classic beginner phase: hands guiding fabric and thread at a domestic machine while winding bobbins manually. It is hands-on, and it feels like you are "doing the craft." However, from an operational efficiency standpoint, this is a trap.

Here is the data most people don’t calculate: manual winding does not just cost minutes—it costs tension stability. When we wind bobbins by hand (or using the machine's side-winder), the tension fluctuates based on how fast the motor spins and how tightly you hold the thread. A bobbin wound at variable tension delivers thread at variable rates.

The Sensory Check: When you hold a hand-wound bobbin, it often feels "spongy" if you squeeze it. A factory pre-wound bobbin feels rock-hard, like a solid cylinder. That density is the difference between a clean satin stitch and a bird's nest.

If you are doing this on a schedule—trying to fulfill Etsy orders, team hats, or shop deadlines—that "chore" phase becomes a business liability. You are essentially paying yourself less than minimum wage to do a machine's job poorly.

Pre-Wound Bobbins on a Tajima Multi-Needle Run: The “Secret Shortcut” That Doesn’t Sacrifice Quality

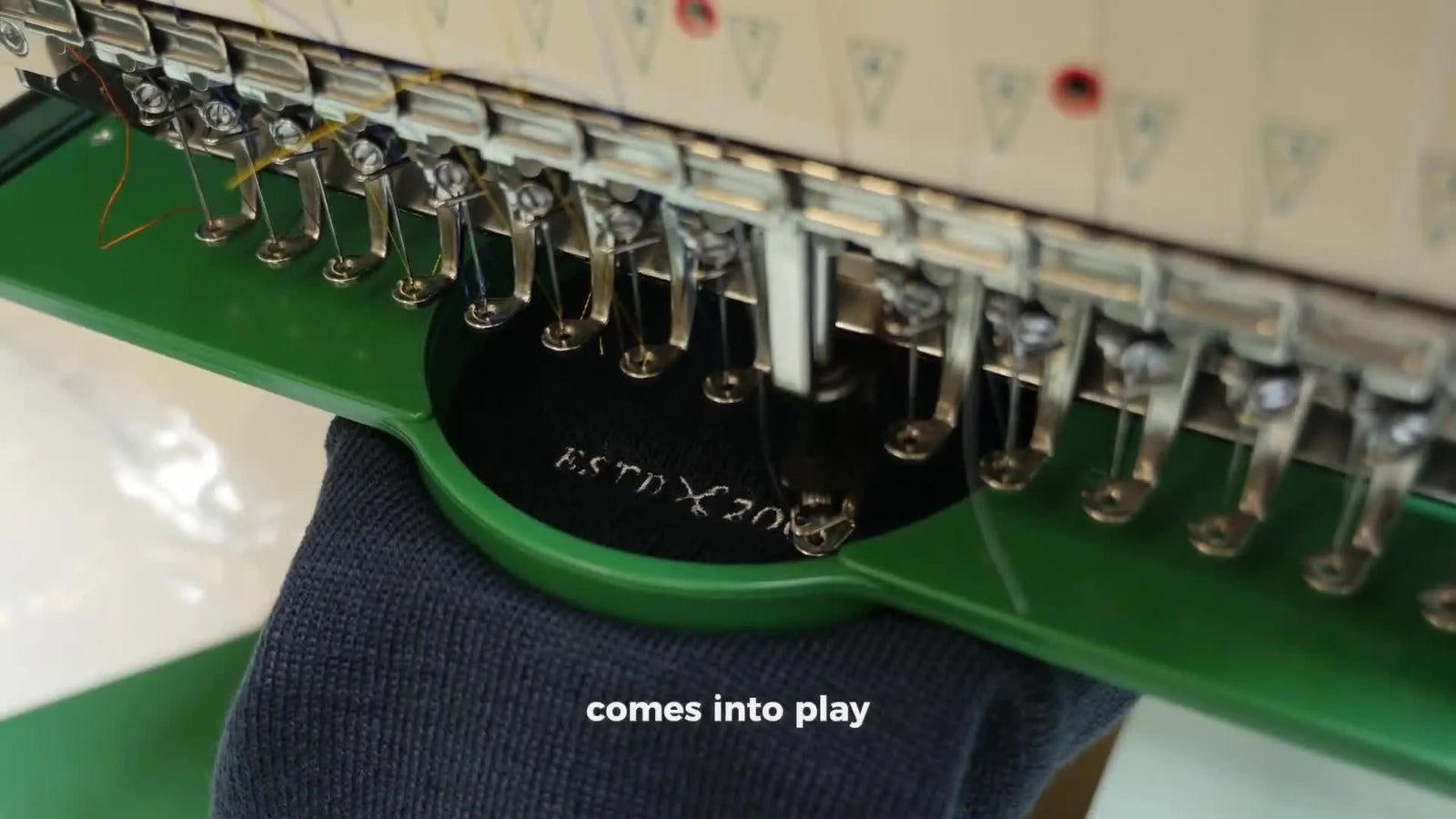

The video jumps to a high-speed commercial run on a Tajima, stitching a logo while the machine stays in motion. This is where pre-wounds shine. In a production environment, you are not stopping constantly to wind, swap, and re-check.

In production, we define downtime as the "Silent Profit Killer." Every stop is more than just lost time; it is a disruption to the machine's thermal rhythm. Every stop introduces:

• Restart Risk: Thread nests, mis-trims, or missed stitches upon startup.
• Quality Drift: Tension often shifts slightly after rethreading or re-seating a case.
• Operator Fatigue: Constant interruptions drain your focus.

That is why pre-wounds feel like a shortcut, but they are actually a standardization protocol. They remove a repetitive task without lowering standards.

If you are operating a high-performance tajima embroidery machine, utilizing high-quality pre-wound bobbins is one of the easiest ways to stabilize output across long runs. When multiple heads are moving at 1000 stitches per minute (SPM), you simply cannot afford the variance of hand-wound supplies.

The “Hidden” Prep Pros Do Before Buying Pre-Wounds: Match Bobbin Type A, L, or M (or Pay for It Later)

The video is very clear on the biggest avoidable mistake: assuming all bobbins are created equal. It specifically calls out Type A (Class 15), Type L, and Type M. This is the first place beginners fail.

Understanding the Physics of the Fit:

• Style L: The standard for most commercial machines and many home embroidery units. They are shorter and smaller diameter (~20.5mm).
• Style A (Class 15): Taller and slightly wider. Common on domestic sewing/embroidery combos (like Brother SE series).
• Style M: Massive bobbins used on long-arm quilters and huge industrial multi-heads.

If you put a Class 15 bobbin into an L-style case, it will drag, break the case latch, or destroy your timing.

Prep Checklist (Do this BEFORE you spend money)

• Measure the Height: Use calipers or a ruler. Class 15 is taller (~11.5mm) than Style L (~8.9mm).
• Consult the Manual: Look for the "Specifications" page. Do not guess.
• Check the Sensor: Some machines require specific cores (magnetic vs. cardboard vs. plastic) to trigger the "low bobbin" sensor correctly.
• Volume Test: Buy a small test pack (10-count) before committing to a gross (144-count).

Warning: Mechanical Hazard. Never force-fit a bobbin that is "close-but-not-right." A jammed bobbin area can escalate from a nuisance into damaged hook assemblies or thrown timing. If you hear a grinding noise, hit the Emergency Stop immediately.

Black and White Pre-Wound Bobbins in Commercial Embroidery: The Staples That Keep Multi-Head Lines Moving

The video shows a row of Tajima heads running in unison and calls out a production truth: black and white bobbins are the absolute workhorses of the industry.

Why? Because in 95% of commercial workflows, we are not trying to perfectly match the bobbin thread color to the top thread. We are prioritizing machine uptime. As long as your tension is balanced (the "1/3 Rule"—where you see 1/3 bobbin thread on the back of a satin column), the bobbin thread should not be visible from the front.

For many shops, black and white cover the majority of needs—especially when you are producing logos repeatedly.

If you are utilizing hooping stations to speed up your workflow, standardizing your bobbins further reduces friction. You don't want to load a shirt in 15 seconds only to spend 5 minutes winding a custom turquoise bobbin that will never be seen.

The 3 Benefits the Video Shows (and What They Mean on Real Jobs): Consistency, Capacity, Convenience

The video highlights three core advantages of pre-wounds. Let’s translate these from marketing terms into "Shop Floor Reality."

1) Consistency (Tension You Can Trust)

Factory bobbins are wound on industrial equipment that maintains perfect torque from the core to the outer rim.

• The Sensory Anchor: When you pull the thread tail from a pre-wound bobbin sat in the case, the resistance should feel smooth and constant, like pulling dental floss. Hand-wound bobbins often "jerk" or snag as the thread comes off the spool.

2) Capacity (The "Yardage" Advantage)

The video notes that factory winding is denser. A magnetically core-less or sided pre-wound bobbin uses thinner, stronger filament polyester (usually 60wt) compared to the 40wt top thread you might wind yourself.

• The Math: A pre-wound L-style bobbin can hold 120-130 yards. A hand-wound one might hold 70-80. That is nearly double the run time.

3) Convenience (Process Control)

Convenience isn’t laziness—it is risk mitigation. When you remove the task of winding, you remove the opportunity to wind poorly.

Setup Checklist (Build a “No-Drama” Bobbin System)

• Stock Levels: Keep at least one box (144 count) of White and Black 60wt polyester pre-wounds.
• Segregation: Store Class 15 and Style L bobbins in physically different drawers. Do not let them mix.
• The 3-Second Visual Check: Before inserting, check the bobbin for fraying.
• Cleaning Routine: Every time you change a bobbin, blow out the lint from the hook assembly. Lint buildup changes tension.
• Tension Test: Perform the "Drop Test" (yo-yo test) with the bobbin case to ensure tension is set correctly for the thinner pre-wound thread.


Cap Embroidery on a Tajima Cap Frame: Why Even Bobbin Tension Matters More on Curves

The video’s cap segment is the part I wish every beginner watched twice. Caps are unforgiving. The stitching surface is curved, the material is structured (buckram), and the stitch path often crosses thick seams.

The video points out that factory-wound bobbins provide even, reliable tension—something that is hard to replicate manually. On caps, that reliability matters because the machine is already dealing with extra friction from the cap structure. If your bobbin tension is loose, you will get loops on top. If it is too tight, you will break needles or pucker the cap front.

If you are stitching on a heavy-duty tajima cap frame, treat bobbin consistency as your primary insurance policy. It won't solve bad digitizing, but it ensures the machine mechanics are stable.

A Practical Hooping Note (The Commercial "Pivot Point")

This is where many users hit a wall. Caps demand stable holding and repeatable placement. If your workflow involves frequent mounting and unmounting, your hooping method becomes the bottleneck.

If you find yourself physically fighting the cap driver, or if your fingers hurt from snapping traditional ring hoops, consider the "Tool Upgrade" path:

1. Trigger: You are doing a run of 20+ caps or bags.
2. Pain: Hooping takes longer than the actual 5-minute stitch time.
3. Solution (Tool Level): Magnetic Hoops.

Magnetic frames clamp instantly without the "screw-tightening" fatigue. They also reduce "hoop burn" (the ring mark left on fabric). While traditional hoops are fine for hobbies, moving to a magnetic system is often the first step toward commercial efficiency.

Listen to Your Machine While It Runs: Tension Assemblies Don’t Lie

The video gives a close look at the tension assembly and thread path while the Tajima is running. That visual matters because tension isn’t just a "setting"—it’s a dynamic system.

In real shops, I teach operators to use Auditory Anchors:

• The Rhythm: A happy machine makes a rhythmic, sewing-machine "hum-thump-hum."
• The Warning: A sharp "clack-clack" usually means the bobbin case is hitting something, or the top thread has snapped out of the take-up lever.
• The Slap: If you hear thread slapping against the plastic cover, your tension is way too loose.

Pre-wound bobbins reduce the "slap" variable because the thread delivery is perfectly smooth. This makes it easier to diagnose the variables that do remain.

Colored Bobbins for Custom Work: When Black/White Isn’t Enough (and the Video’s Exception Matters)

The video makes an important distinction: Commercial shops live on black and white, but custom projects may need color.

The "Show-Through" Rule: If you are confident in your tension (top thread pulls 1/3 to the back), you rarely need matching bobbins. However, there are exceptions:

1. Free Standing Lace (FSL): The bobbin is visible on both sides. You must match color.
2. Sheer Fabrics: Organza or thin chiffon where a black bobbin would shadow through.
3. Towels: Sometimes the loops of the towel allow the bobbin to peek through; matching helps hide imperfections.

In these cases, manual winding is acceptable. But do it slowly, and check the tension immediately.

Decision Tree: Choose Bobbin Color Strategy + Stabilizer Mindset Before You Stitch

Use this logic flow to stop overthinking and start stitching.

START: What is your project?

A. Structured Items (Caps, Canvas Bags, Jackets)

• Bobbin: Pre-wound Black or White (High tension is key here).
• Stabilizer: Tear-away is usually sufficient due to fabric thickness.
• Tool Tip: Often requires strong clamping; magnetic hoops excel here to hold thick seams.

B. Stretchy Garments (Performance Polos, T-Shirts)

• Bobbin: Pre-wound White (softer feel).
• Stabilizer: Cut-away (Non-negotiable). If you use tear-away on knits, the design will distort.
• Hooping: Do not stretch the fabric! Use a magnetic hoop to "lay and snap" rather than "pull and screw."

C. Delicate/Sheer (Chiffon, Thin Linen)

• Bobbin: Custom wound to MATCH fabric color.
• Stabilizer: Water Soluble or thin No-Show Mesh.

D. High-Volume Production (Corporate Logos)

• Bobbin: Pre-wound White (Standardize everything).
• Priority: Speed.

If you are researching the best techniques for hooping for embroidery machine setups, you will find that pairing the right stabilizer with the right bobbin type is 90% of the battle.

Fix the Three Most Common Bobbin-Related Problems the Video Calls Out (Before You Touch the Tension Dial)

The video’s troubleshooting points are spot-on. Here is how to apply them in a logical "Low Cost to High Cost" order.

Symptom 1: Bird nesting (Huge knot under the throat plate)

• Likely Cause: Upper thread acts loose because there is NO tension on the bobbin, or the bobbin was inserted backward.
• The Fix: Remove the hoop. Cut the mess carefully. Re-insert the bobbin ensuring it unspools in the correct direction (usually counter-clockwise/P-shape for drop-in, check manual for side-load).
• Standard: You should hear a distinct "click" when the bobbin case locks in.

Symptom 2: Bobbin showing on top

• Likely Cause: Top tension is too tight OR bobbin tension is too loose.
• The Fix: Check for lint first. A tiny piece of lint in the bobbin tension spring acts like a wedge, opening the spring and killing all tension. Blow it out.

Symptom 3: Machine stops but thread isn't broken

• Likely Cause: Bobbin sensor error.
• The Fix: Clean the sensor eye. If using pre-wounds with clear plastic cores, some sensors can't "see" them. You may need to turn off the low-bobbin sensor in your settings.

Warning: High Voltage & Moving Parts. When digging out a bird's nest, always power off the machine. It is easy to accidentally bump the "Start" button while your fingers are under the needle bar trying to cut thread. Safety first.

The Upgrade Path That Actually Makes Sense: From Hobby Pace to Production Pace

The video ends by reinforcing that pre-wound bobbins are a foundational efficiency tool. But they are just the first step.

Here is the "Commercial Growth Logic" I recommend to my students:

Phase 1: Consumable Upgrade Switch from manual winding to Pre-wound Bobbins and high-quality Polyester Thread.

• Result: Better tension, fewer breaks.

Phase 2: Tool Upgrade (The "Sanity Saver") If you are struggling with hoop burn, wrist pain, or slow loading times on garments, it is time to look at your holding method. Many professionals eventually switch to tajima embroidery hoops that utilize magnetic force.

• Result: Faster hooping (5 seconds vs 45 seconds), no screw tightening, better fabric care.

Phase 3: Machine Upgrade When your single-needle machine runs 24/7 and you still can't keep up, look at High-Speed Multi-Needle Machines (like Sewtech's commercial lineup).

• Result: True scale.

Magnet Safety Warning: Magnetic hoops are industrial tools. They carry a Pinch Hazard. Keep fingers clear of the snapping zone. Medical Alert: Users with pacemakers or ICDs should maintain a safe distance (usually 6-12 inches) or consult their physician before handling high-power magnetic frames.

Operation Checklist: Run Pre-Wounds Like a Pro (So You Don’t Create New Problems)

• Case Match: Verified my machine uses Type L (or A, or M).
• Tension Drop Test: Held the bobbin thread; the case should hold its weight but drop slightly when I jerk my hand (like a yo-yo).
• Clean Seat: Blew out the bobbin area with compressed air before inserting.
• Thread Path: Ensured the bobbin thread is under the tension spring leaf (this is the #1 error—missing the continuous tension).
• Hidden Consumable Check: Do I have fresh needles (75/11 Ballpoint for knits, Sharp for caps) and temporary spray adhesive nearby?

If you are shopping for a specialized cap hoop for embroidery machine, remember that a stable hoop is useless without stable bobbin tension. They work together.

One Last Practical Note on Scaling: Pre-Wounds Don’t Just Save Time—They Make Your Results Repeatable

The biggest win with pre-wound bobbins isn’t that you save three minutes of winding time. It is that you remove a chaotic variable from your equation.

Repeatability is what turns "I can embroider" into "I can deliver the same quality on the 50th cap as the 1st."

And if you are aiming for that level of production efficiency, pairing standardized bobbins with modern, ergonomic tooling is the secret. For Tajima and other commercial machine users, moving toward magnetic hoops for tajima embroidery machines allows you to fully utilize the speed your machine was built for.

Where the Video Points Next: Designs, Custom Work, and Keeping Your Workflow Clean

The video mentions an Etsy design store link, which is a reminder that great designs need a great foundation. The cleaner your process—bobbins, hooping, stabilizers—the more confidently you can stitch complex files.

If you are doing custom work at home, keep your color options open but your tension strict. If you are running commercial jobs, keep your system standardized. Either way, upgrading to pre-wound bobbins is one of the simplest, cheapest changes you can make today that will pay you back in time and quality every single session.

FAQ

• Q: How do I confirm my embroidery machine needs Style L, Class 15 (Type A), or Style M pre-wound bobbins before buying in bulk?
  A: Verify the exact bobbin style first—mixing Style L, Class 15, and Style M can cause dragging, jams, or hook damage.
  • Measure: Check bobbin height with a ruler/calipers (Class 15 is taller ~11.5 mm; Style L is shorter ~8.9 mm).
  • Confirm: Open the machine manual “Specifications” page and match the listed bobbin type.
  • Test: Buy a small test pack (about 10 bobbins) before committing to a full box.
  • Success check: The bobbin seats cleanly, the case closes/locks normally, and there is no grinding sound at start-up.
  • If it still fails… Stop immediately and re-check bobbin type and case fit—never force a “close-but-not-right” bobbin.
• Q: What is the correct “drop test” (yo-yo test) for embroidery machine bobbin case tension when using 60wt pre-wound bobbins?
  A: Use the bobbin case drop test as a safe starting check—60wt pre-wound bobbin thread should feed smoothly without free-falling.
  • Hold: Insert the bobbin and pull the thread under the tension spring leaf.
  • Test: Hold the thread tail so the bobbin case hangs; give a small jerk like a yo-yo.
  • Adjust: If the case free-drops, tension is too loose; if it will not drop at all, tension may be too tight (adjust only if the manual allows).
  • Success check: The case holds its weight but drops slightly when you jerk your hand.
  • If it still fails… Clean lint from the bobbin tension spring area before touching any screw—lint often “kills” tension.
• Q: How do I stop bird nesting under the needle plate on an embroidery machine when switching to pre-wound bobbins?
  A: Re-seat the bobbin correctly and restore real bobbin tension—most bird nests come from incorrect insertion direction or the thread not being under the tension spring.
  • Power off: Turn the machine off before cutting out a nest (hands near moving parts is a real hazard).
  • Remove: Take the hoop off, cut thread carefully, and clear the hook area.
  • Re-insert: Load the bobbin so it unwinds in the correct direction for the machine (check the manual; many systems are counter-clockwise).
  • Success check: The bobbin case locks with a clear “click,” and the first stitches form cleanly without a wad underneath.
  • If it still fails… Inspect that the bobbin thread is actually under the tension spring leaf—missing that path is the #1 repeat mistake.
• Q: What should I do when bobbin thread shows on top of an embroidery design on caps, jackets, or structured items?
  A: Clean the hook area first—bobbin thread showing on top is often lint-related before it is a true tension-dial problem.
  • Clean: Blow out lint from the hook assembly and the bobbin tension spring area.
  • Re-test: Stitch a small satin column after cleaning before changing settings.
  • Standardize: Use consistent pre-wound black/white bobbins for structured production items to reduce variables.
  • Success check: Satin columns show the “1/3 rule” on the back (about 1/3 bobbin thread visible), with no bobbin thread peeking on the front.
  • If it still fails… Re-check top-thread path and listen for abnormal “slap” sounds that indicate tension is too loose.
• Q: Why does an embroidery machine stop even when the thread is not broken when using pre-wound bobbins (possible low-bobbin sensor issue)?
  A: Treat it as a sensor visibility/cleanliness problem first—some sensors may not “see” certain bobbin cores reliably.
  • Clean: Wipe/clean the sensor eye and remove lint around the bobbin area.
  • Verify: Confirm the pre-wound bobbin core type (some machines react differently to clear plastic vs other cores).
  • Adjust: If the machine allows it, consider turning off the low-bobbin sensor setting when using incompatible cores.
  • Success check: The machine runs without false stops and only alerts when the bobbin is truly low/empty.
  • If it still fails… Switch to a different pre-wound bobbin core style that your sensor detects more consistently (follow the machine manual guidance).
• Q: What consumables should be checked every time I install a new pre-wound bobbin on an embroidery machine to prevent tension problems?
  A: Build a “no-drama” routine—pre-wounds help most when the hook area is clean and needles are fresh.
  • Clean: Blow out lint from the hook assembly at every bobbin change.
  • Inspect: Do a 3-second visual check for fraying or damaged bobbin thread before inserting.
  • Prepare: Keep fresh needles on hand (ballpoint for knits; sharp for caps/structured items) and temporary spray adhesive if used in your workflow.
  • Success check: Thread pulls from the seated bobbin smoothly and consistently (no jerking/snags), like pulling dental floss.
  • If it still fails… Re-check the bobbin thread is routed under the tension spring leaf and confirm the bobbin style matches the case.
• Q: When should an embroidery business upgrade from technique tweaks to magnetic hoops or a multi-needle embroidery machine to reduce downtime from bobbin winding and slow hooping?
  A: Use a tiered upgrade path—first remove inconsistency (pre-wounds), then remove loading friction (magnetic hoops), then scale production (multi-needle machine).
  • Level 1 (Technique): Standardize on quality pre-wound bobbins and consistent thread to reduce stops and tension variance.
  • Level 2 (Tool): If hooping time or hoop burn/wrist fatigue is the bottleneck on runs (often 20+ items), consider magnetic hoops to clamp faster and more evenly.
  • Level 3 (Capacity): If a single-needle machine runs constantly and deadlines still slip, a high-speed multi-needle machine is often the next logical step.
  • Success check: Fewer restarts, fewer nests after stops, and repeatable results from the 1st item to the 50th.
  • If it still fails… Track exactly where time is lost (winding vs hooping vs rework) and address the biggest bottleneck first.
• Q: What are the safety precautions for using magnetic embroidery hoops/frames and for removing bird nests near the needle area?
  A: Treat both as real injury risks—power off for nest removal, and keep fingers clear of magnetic “snap zones.”
  • Power off: Always shut down the machine before digging out a bird nest under/near the needle bar and hook area.
  • Guard hands: Use tools (snips/tweezers) instead of fingers when clearing thread near moving parts.
  • Avoid pinches: Keep fingers out of the closing gap when magnetic hoops clamp—strong magnets can pinch hard.
  • Success check: The hoop closes cleanly without finger contact in the clamp path, and the machine is fully off before hands enter the needle area.
  • If it still fails… Stop and reset the workflow: users with pacemakers/ICDs should keep a safe distance (often 6–12 inches) or consult a physician before handling high-power magnetic frames.
