Stop Wasting Polos: A Repeatable Hoop Master Station + 5.5" Magnetic Hoop Workflow for Side-Chest Logos (Even on 3XL)

Left Chest Polo Hooping Masterclass: The Hybrid Workflow for Perfect Placement

If you’ve ever hooped a polo shirt, stitched the first few hundred stitches, and then felt your stomach drop because the logo is drifting toward the placket… you are not alone. Side-chest placement on stretchy knit fabrics is the ultimate stress test for new embroiderers. It is deceptive; it looks easy, but it ruins shirts faster than almost any other job—especially when you’re fulfilling a client order and the sizes aren’t consistent (mixing Mediums with 3XLs).

This workflow is built directly from a field-tested video usage case. It introduces a hybrid method that combines:

1. Manual Measurement: For absolute safety and visual confirmation.
2. Hooping Station Speed: To standardize the physical loading process.
3. Magnetic Hoop Technology: To eliminate “hoop burn” and hand strain.

We are going to move beyond theory. This is the operational standard for ensuring Shirt #1 and Shirt #40 look exactly the same.

The Calm-Down Moment: Why Side-Chest Logos Go Wrong on Polos (and How This Workflow Prevents It)

Before you touch the fabric, understand the enemy. Side-chest logos usually fail for three predictable, physical reasons:

1. The "Ghost" Zero: The shirt isn’t truly referenced to a consistent starting point.
2. The Knit Drift: The fabric stretches while you are clamping it.
3. The Screen Lie: The design is centered on your machine screen, but the physical hoop is slightly skewed on the garment.

The video’s host solves this by doing two smart things that we will replicate. First, she establishes a repeatable reference using the collar edge and the button placket. Second, she manually marks every shirt—even while using a station.

Why mark if you have a station? Because in a blend of machine embroidery hooping station setups and varying garment sizes, manual marking is your failsafe. It is the redundancy that keeps you profitable by preventing rejected garments.

The “Hidden” Prep Pros Don’t Skip: Shirt, Stabilizer, and a Clean Marking System

In professional embroidery, preparation isn't just about gathering tools; it's about "Mise-en-place"—everything in its place to prevent friction later.

What the workflow uses (and why it works)

• Garment: A 3XL Propper polo (poly/cotton blend). Note: Larger sizes behave like heavy fluid; they slide more than small sizes.
• Stabilizer: Cut-away stabilizer.
• Marking: Tape crosshair at the logo center (Target Stickers work too).
• Adhesion: Temporary adhesive spray (Quilt Basting Spray).

Expert Material Science: Why Cut-Away?

You might be tempted to use Tear-Away because it’s cleaner to remove. Don't. Polos are unstable knits. If you use Tear-Away, the stitches will eventually distort the fabric as the stabilizer degrades after washing. Cut-away stabilizer acts as a permanent suspension bridge for your stitches.

Pro Tip: If you notice your designs "sinking" into the pique knit of a polo, consider adding a layer of Water Soluble Topping (Solvy) on top. It keeps the stitches sitting high and proud on the fabric surface.

Prep Checklist (Do this before measuring)

• Audit the Design: Confirm the logo fits inside a 5.5" x 5.5" sew field with a 10% safety margin.
• Identify Reference Edges: Locate the exact seam of the collar and the straight edge of the button placket.
• Pre-cut Stabilizer: Cut your stabilizer 1 inch larger than the hoop on all sides.
• Tape Check: Have painter’s tape or specific target stickers ready. Avoid ink pens on light-colored polos.
• Tool Check: Ensure you have a clear quilting ruler.


The “7-Down, 4-In” Rule on a Polo Shirt: Marking Side-Chest Placement Without Guessing

Precision comes from rigid rules. This method uses the 7-Down, 4-In standard, which works for adult sizes M through 3XL.

The Measurement Procedure

1. Vertical Anchor: Place the "0" line of your clear ruler at the shoulder/collar seam edge (where the collar meets the body). Measure down 7 inches.
2. Horizontal Anchor: Measure inward 4 inches from the center edge of the button placket.
3. The Intersection: Place a crosshair of tape (or a target sticker) exactly where these two lines meet.


The Visual "Gut Check"

Before trusting the math, trust your eyes. The host uses a smart trick: she places a previously stitched patch or a printout onto the shirt at the mark to “see” the placement. Does it look too low? Too high? Adjust now.

Even if you have the most expensive equipment, this step is your insurance policy. If you are struggling with standardizing mighty hoop left chest placement across different brands of shirts, this manual marking step bridges the gap between different garment cuts.

Setting Up the Hoop Master Station Fixture: The “Number 6” Detail That Saves You Rework

A station is a tool of leverage, but it must be calibrated. The video demonstrates configuring a station for a free-arm style setup with a 5.5" fixture.

Operational Settings

• Fixture: Install the bottom fixture sized for the 5.5" hoop.
• Grid Setting: Set the station guide to position “6.”




Expert Note on Station Variables

Why setting #6? This is specific to the geometry of the station shown. Crucial: Your station might be different. Do not blindly use #6 if your manual says otherwise.

• Action: Test a scrap shirt. Once you find the perfect setting for your specific hoop master station, take a photo of it. Print that photo and tape it to the wall. That is your shop standard.

Adhesive Spray + Cut-Away Stabilizer: How to Get the Benefits Without Gumming Up Your Hoop

Adhesive spray is a controversial topic. Used wrong, it ruins machines. Used right, it is a "third hand" that holds the stabilizer in place.

The Safe Application Method

1. Spray Zone: Step away from the machine and the hoop. Move to a cardboard box or designated spray area.
2. Technique: Spray a light mist onto the stabilizer only. Never spray the hoop or the shirt.
3. Placement: Place the stabilizer sticky side up on the bottom fixture of the station.


Warning: Respiratory & Flammability Hazard
Spray adhesives are flammable and airborne particles can coat your lungs and your machine’s sensors. Use in a well-ventilated area. If you do production volume, consider upgrading to Fusible (Iron-on) Stabilizer to eliminate sprays entirely.

Why use adhesive with Magnetic Hoops?

If you are using magnetic embroidery hoops, the closure helps secure the fabric, but it snaps shut fast. If the stabilizer slips in that split second before the snap, you get a bubble. The adhesive spray ensures the stabilizer stays flat against the shirt back during that critical moment of closure.

Loading a 3XL Polo on a Standard Hooping Station: Use the Placket as Your Truth Line

Here is the real-world friction point: The shirt is a 3XL, but the station is standard size. The shirt hangs off the edges, and gravity wants to pull it crooked.

The Alignment Technique

1. Drape: Pull the shirt over the station board.
2. Register: Align the edge of the button placket directly against the station’s vertical guide. This is your "True North."
3. Cross-Check: Look at your manual tape crosshair. It should be roughly centered in the hoop window. If it is way off, adjust the shirt, trusting the placket alignment first.


Why this matters

On a 3XL shirt, the side seams are miles away from the center. You cannot trust the side seams for alignment. You must use the structure of the placket vs. the station guide.

Closing the 5.5" Magnetic Hoop Safely: Fast, Clean, and No Finger Pain

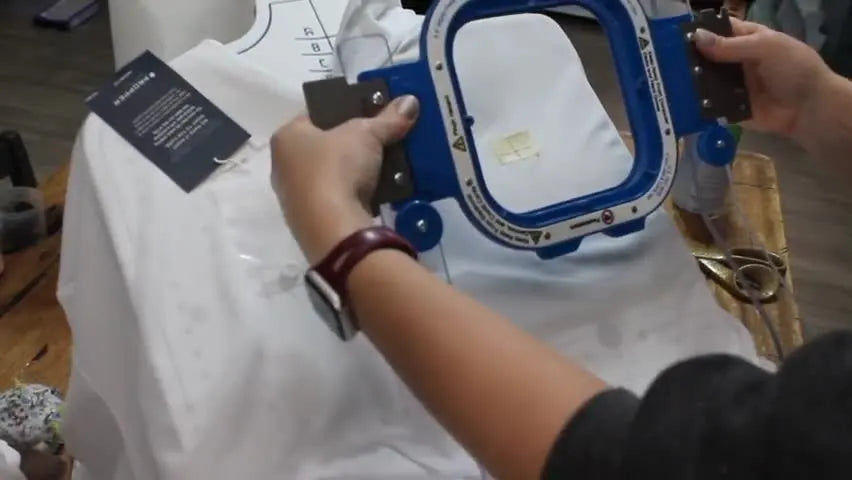

The video utilizes a 5.5" x 5.5" Mighty Hoop. The transition from manual hoops (thumbscrews) to magnetic hoops is the single biggest "quality of life" upgrade for an embroiderer.

The "Snap" Technique

1. Grip: Hold the top hoop by the side tabs/wings. Do not put your fingers underneath.
2. Hover: Align the top frame over the bottom fixture. You will feel the magnetic pull.
3. Release: Let the magnets snap shut.


Warning: Pinch Hazard & Magnet Safety
Powerful magnetic hoops can exert over 30lbs of force instantly. They can crush fingers.
* Do not let children handle them.
* Do not place them near pacemakers.
* Do not slide them near computer hard drives.

Solving "Hoop Burn"

Traditional hoops rely on friction, leaving a shiny "burn" ring on delicate polos. Magnetic hoops distribute pressure vertically, virtually eliminating hoop burn. If you are struggling with wrist pain or rejected shirts due to ring marks, upgrading to a magnetic system (like SEWTECH’s compatible magnetic frames) is not just a luxury; it’s an ergonomic and quality necessity.

The Machine Check That Prevents Disaster: Trace/Laser + Centering on the Tape Crosshair

You are at the machine. The shirt is hooped. Stop. Do not press start. This is the integration phase.

The "Pre-Flight" Sequence

1. Load: Slide the hoop onto the machine arm.
2. Clearance Audit: Physically tuck the collar, the back of the shirt, and the sleeves out of the way. Re-check the underside. Sewing a sleeve to the chest is a rite of passage, but let's skip it today.
3. Laser/Needle Check: Use your machine’s trace function. Watch the needle/laser travel the perimeter.
4. The Jog: It is highly likely the needle is slightly off your tape crosshair (due to the 3XL bulk shifting). Use the machine's arrow keys to jog the needle until it is dead center on your tape X.






Why Placement “Drifts” on Oversized Shirts: The Physics Behind the Video’s Fix

In the video, the host notices the alignment is "still off just a little bit" despite using the station. She jogs the machine to fix it.

This is not a failure. This is physics. When a heavy 3XL shirt hangs off a smaller hoop master embroidery hooping station, the weight of the fabric creates drag. The magnetic hoop locks that position instantly. The specific combination of specific bulk and gravity means microscopic shifts happen.

• The Lesson: The station gets you 95% of the way there (straight and square). The manual crosshair + machine jog gets you the final 5% (perfect placement).

Decision Tree: Stabilizer + Hooping Choice for Polos vs. Others

A professional doesn't guess; they follow a logic tree. Use this to determine your setup.

Start: What is the Fabric?

• PATH A: Polo / Pique Knit (Stretchy & Porous)
  • Stabilizer: Cut-Away (2.5oz or 3.0oz).
  • Adhesive: Light Spray on Stabilizer.
  • Hoop: Magnetic 5.5" (Preferred) or Standard Hoop (Medium Tension - drum sound "thump" not "ping").
• PATH B: T-Shirt / Jersey (Very Stretchy & Thin)
  • Stabilizer: Fusible Mesh (Iron-on) OR Sticky Stabilizer.
  • Hoop: Magnetic Hoop (Essential to prevent stretching while hooping).
• PATH C: Work Shirt / Woven (Stable)
  • Stabilizer: Tear-Away is acceptable here, but Cut-Away is still safer.
  • Adhesive: Not usually required.

Setup Checklist (The "Go/No-Go" Gauge)

Before you snap that hoop shut, verify these 5 points:

1. [ ] Fixture: 5.5" Fixture installed?
2. [ ] Grid: Set to #6 (or your custom calibrated number)?
3. [ ] References: Placket tight against the guide? Tape Crosshair visible?
4. [ ] Stabilizer: Cut-away positioned (sticky side up)?
5. [ ] Safety: Fingers clear of the magnet zone?

Operation Checklist (The Start Button Protocol)

1. [ ] Clearance: Back of shirt and sleeves tucked away?
2. [ ] Trace: Did the design clear the hoop edges?
3. [ ] Center: Did you jog the needle to match the tape crosshair?
4. [ ] Topping: Did you add water-soluble topping (if needed for fluffiness)?
5. [ ] Start: Listen for the first few stitches. A smooth rhythm means success.




The Upgrade Path: When Your Hands Are the Bottleneck, Not Your Talent

The video concludes with a perfect stitch-out. The key concept here is that the host used tools to augment her skill, not replace it.

If you are a hobbyist doing one shirt a month, manual hooping is fine. But if you are feeling the "pain points" of production, here is your diagnostic:

• Pain Point: "My wrists hurt from tightening screws." / "I have hoop burn rings."
  • Prescription: Upgrade to Magnetic Hoops (such as Mighty Hoops or SEWTECH Magnetic Frames). They pay for themselves in labor savings and saved garments.
• Pain Point: "I spend more time measuring than sewing."
  • Prescription: Invest in reliable hooping stations. Standardize your setup so you stop measuring from scratch every time.
• Pain Point: "I have orders for 50 shirts and my single-needle machine is too slow."
  • Prescription: Capability upgrade. Move to a Multi-Needle Machine (like the SEWTECH series). This allows you to hoop Shirt #2 while Shirt #1 is sewing, doubling your throughput.

Final Thought: Mastery in embroidery isn't about never making mistakes. It's about building a workflow—like the 7-Down, 4-In + Station + Jog method—that catches the mistakes before the needle drops.

Quick Recap of the Winning Specs:

• Target: 7" Down, 4" In.
• Station: Set to #6 (Calibrate yours!).
• Stabilizer: Cut-Away + Light Spray.
• Verification: Tape Crosshair + Machine Laser Jog.

FAQ

• Q: How do I mark left chest placement on an adult polo shirt using the “7-down, 4-in” rule to avoid logo drift toward the button placket?
  A: Use the collar seam and button placket as hard reference edges, then mark the intersection at 7" down and 4" in.
  • Measure down 7" from the shoulder/collar seam edge (where the collar meets the body).
  • Measure in 4" from the center edge of the button placket.
  • Place a tape crosshair (or target sticker) exactly at the intersection before hooping.
  • Success check: The crosshair looks visually “right” on the chest and stays visible/centered in the hoop window after loading.
  • If it still fails: Do a machine trace/laser check and jog the needle to dead-center on the tape X before stitching.
• Q: What stabilizer should be used for embroidery on pique polo shirts to prevent distortion after washing: cut-away stabilizer or tear-away stabilizer?
  A: Use cut-away stabilizer for pique polos because polos are unstable knits and need permanent support.
  • Choose cut-away (commonly 2.5oz or 3.0oz) for stretchy, porous polo fabric.
  • Pre-cut stabilizer at least 1" larger than the hoop on all sides to keep the hoop edge supported.
  • Add water-soluble topping if stitches look like they are sinking into the knit texture.
  • Success check: The finished logo stays flat and does not ripple or distort around the stitch field after handling.
  • If it still fails: Re-check that the fabric was not stretched during hooping and consider adding topping for better stitch definition.
• Q: How do I use temporary adhesive spray with cut-away stabilizer for polo embroidery without gumming up an embroidery hoop or contaminating machine sensors?
  A: Spray a light mist on the stabilizer only, away from the machine, then place the stabilizer sticky-side up on the station fixture.
  • Move to a cardboard box or dedicated spray area—never spray near the machine.
  • Spray only the stabilizer (not the hoop and not the shirt), using a light mist.
  • Lay the stabilizer sticky-side up on the bottom fixture so it stays flat during hoop closure.
  • Success check: The stabilizer stays smooth with no bubbles or shifting when the hoop closes.
  • If it still fails: Reduce spray amount and keep the spray zone farther from the machine; for production volume, consider switching to fusible (iron-on) stabilizer to eliminate sprays.
• Q: How do I calibrate a Hoop Master-style hooping station grid setting (example: “position 6”) for a 5.5" fixture without blindly copying another setup?
  A: Use the station’s setting as a starting point, then test and lock in a verified setting for that specific station and fixture.
  • Install the correct bottom fixture sized for the 5.5" hoop.
  • Run a test hooping on a scrap shirt and evaluate where the mark lands in the hoop window.
  • Photograph the confirmed grid/stop setting and post it as the shop standard for repeatability.
  • Success check: Shirts loaded on the station repeatedly place the tape crosshair in the same hoop location with minimal correction needed at the machine.
  • If it still fails: Follow the station manual for that exact model; station geometry varies and the “best number” may differ.
• Q: How do I align and hoop a 3XL polo shirt on a standard hooping station using the button placket to prevent skew and off-center left chest embroidery?
  A: Use the button placket edge as the “truth line” against the station’s vertical guide, then verify the tape crosshair in the hoop window.
  • Drape the oversized shirt over the station board so gravity is not twisting the front panel.
  • Register the button placket edge tight to the station’s vertical guide before worrying about side seams.
  • Cross-check the manual tape crosshair and adjust the garment while keeping the placket aligned.
  • Success check: The placket stays parallel to the station guide and the crosshair sits roughly centered in the hoop opening before closing.
  • If it still fails: Expect small shifts from garment weight; plan to do a final needle jog to the tape X at the machine.
• Q: How do I safely close a 5.5" magnetic embroidery hoop (Mighty Hoop-style) without finger pinch injuries and while preventing stabilizer bubbles?
  A: Hold the magnetic top frame by the side tabs, keep fingers out of the closure zone, and ensure the stabilizer is secured flat before the snap.
  • Grip the top hoop by the wings/tabs—never place fingers underneath the frame.
  • Hover and align over the bottom fixture, then release and let the magnets snap shut.
  • Use light adhesive on the stabilizer to prevent the stabilizer from slipping in the split second before closure.
  • Success check: Fingers stayed clear, the fabric is not stretched, and the stabilizer/fabric lay flat with no bubble ridge.
  • If it still fails: Re-open and re-seat the stabilizer flat; do not “force” a bubbled hoop closed because it will sew distorted.
• Q: What is the machine pre-flight check for left chest polo embroidery to prevent stitching a sleeve/collar and to ensure the design centers on a tape crosshair?
  A: Always do clearance + trace/laser, then jog the needle until it is dead-center on the tape crosshair before pressing start.
  • Tuck the collar, sleeves, and the rest of the shirt away from the needle path and re-check the underside.
  • Run the machine trace/laser to confirm the design clears hoop edges.
  • Use the arrow keys to jog the needle/laser to the exact center of the tape X (especially on bulky 3XL garments).
  • Success check: The trace clears the hoop and the needle/laser lands precisely on the tape crosshair center before sewing.
  • If it still fails: Re-hoop with the placket aligned to the station guide and repeat the trace/jog sequence—small physical shifts are common on oversized polos.
• Q: When should an embroiderer upgrade from standard screw hoops to magnetic hoops, and when should an embroiderer upgrade from a single-needle machine to a SEWTECH multi-needle embroidery machine for polo production?
  A: Match the upgrade to the bottleneck: technique first, then magnetic hoops for hooping pain/marks, then a multi-needle machine when throughput is the limiter.
  • Level 1 (technique): Standardize marking (7-down, 4-in), placket alignment, and always trace + jog to the tape crosshair.
  • Level 2 (tool): Upgrade to magnetic hoops if hoop burn rings or wrist/finger strain happens, or if knit fabric shifts during clamping.
  • Level 3 (capacity): Upgrade to a SEWTECH multi-needle machine when order volume is high and color changes/slow cycle time are limiting output.
  • Success check: Rejections drop (placement and hoop marks improve) and the time per shirt decreases without adding stress to the operator.
  • If it still fails: Audit the prep stack (cut-away choice, light adhesive use, topping when needed) and re-calibrate the hooping station setting for repeatability.
