Stop Wasting Hours on “Free” Embroidery Software: Pick the Right Viewer/Converter, Then Hoop It Right

The "Missing Manual" for Free Embroidery Software: A Veteran's Guide to Workflow, Safety, and Sanity

If you’ve ever downloaded “free embroidery software,” opened a design, and thought, “Why can’t I just turn my logo into a stitch file already?”—you’re not alone.

I’ve watched this cycle for 20 years: people buy a machine, thread, needles, stabilizers, scissors, USB drives… then discover the software side is a maze. You watch a video, get excited, and then hit a wall of terminology. The underlying problem is that the internet blurs the line between viewing tools and creation tools.

This post rebuilds the common advice into a military-grade, do-this-next workflow. I’m going to walk you through these tools not just as software, but as the "Pre-Flight Check" that keeps your machine from eating your favorite sweatshirt.

We will cover the "Big Five" free tools, but more importantly, we’ll cover the physics of embroidery—the tension, the hooping, and the tangible "thump-thump" sound of a machine running correctly.

First, Breathe: “Free Embroidery Software” Usually Means Viewer/Converter—Not True Digitizing

When beginners ask “What is the best embroidery software?”, they are often mixing up three distinct distinct jobs. Understanding this hierarchy will save you weeks of frustration.

1. Viewing (The Safety Inspector): Opening a design to check colors, stitch order, and simulation.
2. Editing (The Mechanic): Rotating, mirroring, resizing (with density compensation), and merging.
3. Digitizing (The Architect): Creating new stitches from flat artwork (JPG/PNG) using underlay, density, and pull compensation logic.

The tools we discuss below are primarily Viewers and Editors. That is not a flaw; it is a safety feature. You need a viewer to:

• Confirm the file fits your hoop's physical limits.
• Catch density issues (bulletproof vests) before you break a needle.
• Convert generic formats (DST) to your machine's native language (PES, JEF, VP3).

If your goal is "turn my SVG/JPG into a stitch file," that is digitizing. Free viewers will not do this reliably. One commenter wisely noted: "MyEditor is not for digitizing—it’s for editing." That single sentence is the difference between a successful project and a bird's nest of thread.

If you are starting out with basic hoops for embroidery machines, treat software as your safety inspection, not your manufacturing plant.

The “Hidden” Prep Pros Do Before Downloading Anything (So You Don’t Get Burned)

Before you install a single program, we need to do a "Physical & Digital Protocol." This setup prevents the dreaded "Unexpected File Format" error.

The Physical Reality Check

• Machine Limits: Write down your machine's actual max sew field (e.g., 4x4 inches or 100x100mm). Note: The plastic hoop is often larger than the sew field. Trust the manual, not the plastic.
• Operating System: Are you Mac or Windows? Most embroidery utility software is Windows-native. (Mac users, read the troubleshooting section below).
• Current Asset: Do you have a Stitch File (PES, DST, EXP) or an Image (JPG, PNG)?

Warning: Never download "Free Wilcom" or "Cracked PE Design" from torrent sites. Beyond the legal risk, these are prime vectors for malware. Stick to official manufacturer trials and genuinely free utilities.

Prep Checklist: The "Go/No-Go" Gauge

• OS Check: I have confirmed my computer (Windows/Mac) matches the software requirements.
• File Logic: I am trying to open a Stitch File (.PES/.DST), not a photo (.JPG).
• Hoop Truth: I have measured my sewing field, not just the outer edges of the hoop.
• Folder Hygiene: I created a folder named "Originals" (Never edit your only copy!) and "Working".
• Mission Set: I know if I am here to View, Resize, or Convert.


My Editor (Wings XP): The Fastest Way to Preview 3D Thread Texture—With a Big Expectation Trap

In the video, My Editor by Wings XP is showcased for its 3D Preview Mode. This isn't just cosmetic; it's a vital density check.

The "Why" Behind 3D Views: In 2D mode, you see lines. In 3D mode, you see bulk. If a design looks like a solid block of color in 3D preview, it might be too dense.

• Beginner Sweet Spot: Look for clear definition between satin stitches.
• Red Flag: If stitches layer over each other repeatedly, your needle will struggle to penetrate, leading to thread shredding.

The "Auto-Density" Feature: When you resize a design, stitches get closer together (shrinking) or further apart (enlarging). My Editor’s ability to "Auto-Adjust Density" is crucial.

• Rule of Thumb: Never resize a design more than 10-15% without software that recalculates stitch count. My Editor helps you do this safely.

Pro Tip: If you are trying to reduce hooping mistakes, pair a viewer like this with a physical template. Many shops eventually move to specialized hooping stations for consistency, but software visualization is your first line of defense against crooked logos.

Sew-What Pro (Trial): The Project-Tracking Features Are Great—But Don’t Call It “Free”

Sew-What Pro is industry-beloved, but note the video clarifies it is a Trial (usually 30 days or limited saves).

Why Professionals Use It (The Metadata Secret): The "Editable Table" mentioned in the video is a business goldmine. When you find a formula that works, you must record it.

• The Data You Need: Needle Size (e.g., 75/11), Thread Brand, Stabilizer Type, and Tension settings.
• The Scenario: A customer comes back 6 months later wanting the same shirt. If you didn't save the metadata, you are guessing.

Mac Users: As noted in comments, this is generally Windows-only. See the troubleshooting section for Mac alternatives.

My Pro Take: If you’re running even a small side business, project metadata matters more than the design itself. If you are building a workflow around repeat orders, efficiency becomes king. That’s where tools like hoopmaster and similar alignment systems start paying for themselves by reducing setup time, while software like Sew-What Pro reduces "remembering time."

TES Viewer (Barudan): The Stitch Simulator + Hoop Matching Combo That Prevents Costly “Doesn’t Fit” Mistakes

TES Viewer offers two critical features for the risk-averse embroiderer: Sewing Simulation and Hoop Matching.

1. The Sewing Simulator (Your Virtual Test Run)

You can "scrub" through the design stitch-by-stitch.

• What to look for: Does the machine jump across the design frantically? Excessive movement wastes time and increases the chance of the hoop hitting an obstruction.
• The Sensory Check: Watch the simulator. If you see thousands of tiny stitches in one spot, that is a "bird's nest" waiting to happen.

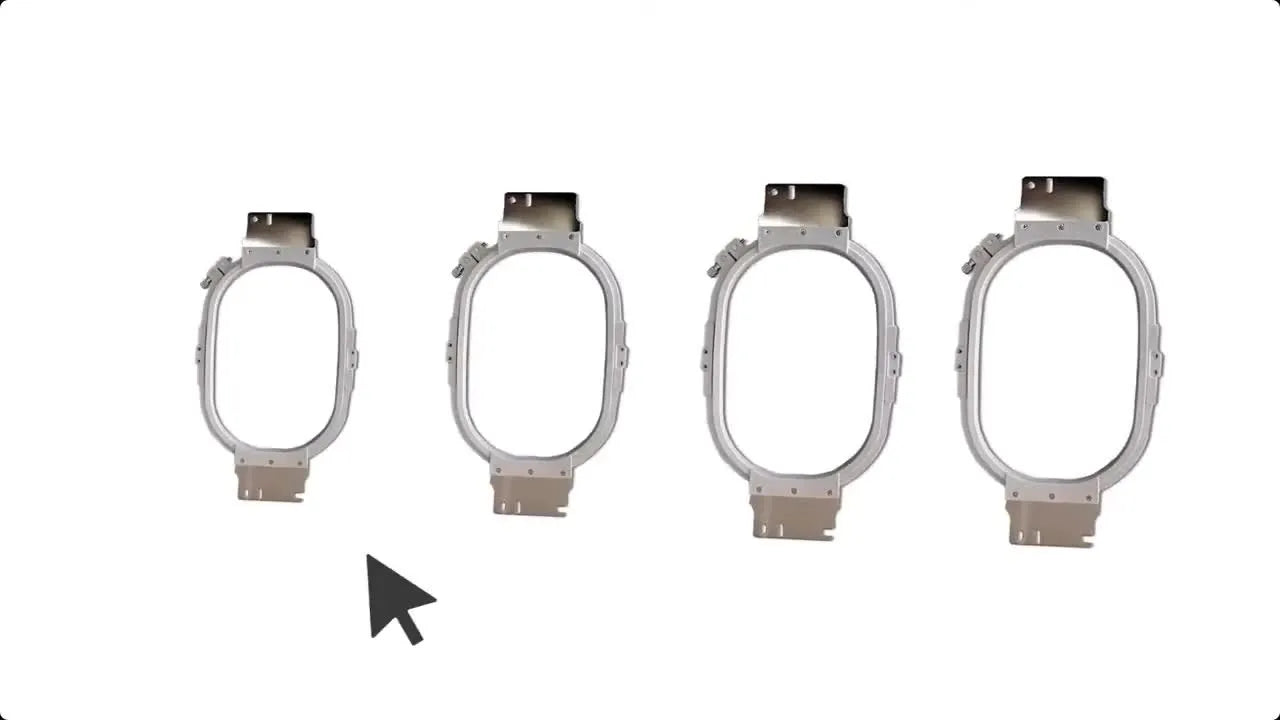

2. Hoop Matching (The Frame saver)

Visualizing the design inside the hoop template is non-negotiable.

• The Physical Reality: Just because a design fits the area (e.g., 3.9" x 3.9") doesn't mean it fits the shape. A square design won't fit a round hoop properly if the corners poke out.
• The Protocol: Select your hoop frame in the software. Ensure there is a 10mm (1/2 inch) safety margin on all sides.

If you are using magnetic embroidery hoops, this pre-check is vital. Magnetic hoops are fantastic for speed, but they often have different internal dimensions than standard plastic hoops. Verify in TES Viewer before you magnetize your fabric.

ARTsizer (OESD): The Centering Button Is Your Best Friend When Placement Must Look “Expensive”

ARTsizer is highlighted for its ability to handle household formats (.ART, .VP3) and its Automatic Centering tool.

Why Centering is Physics, Not Just Aesthetics: When a machine starts stitching, it expects to be in the center. If your file is slightly off-center, and you manually center your needle on the fabric, you might hit the hoop frame near the end of the design.

• Action: Always hit "Center Design" (usually a target icon) before exporting.
• Result: The needle starts exactly where you expect.

Expert Insight on "Hoop Burn": Traditional hooping requires jamming inner and outer rings together, often crushing delicate fabrics (velvet, performance wear). This is called "hoop burn."

• The Fix: Using the "Slow Redraw" in ARTsizer helps you see where the stress points are.
• The Upgrade: If you are battling hoop burn on Brother machines, looking into a brother magnetic embroidery frame can be a game-changer. These clamps hold fabric without the crushing friction of traditional rings, preserving the nap of the fabric.


Wilcom TrueSizer: The Free Tool That Teaches You to “Read” a Design Like a Technician

Wilcom TrueSizer is the heavyweight of the free list. It allows you to convert professional formats and offers the specific "Needle Points" view.

How to "Read the Matrix": Turn on the "Show Needle Points" view (usually looks like little dots).

1. Look for White Static: If you see a solid white mass of dots, that area is bulletproof. It will likely break your needle.
2. Look for "Gaps": A satin column (the snake-like stitch) needs to be at least 1mm wide to stitch cleanly. If TrueSizer shows it as hair-thin, it will sink into the fabric (especially towels) and disappear.

The "Rotate" Function: TrueSizer allows 45-degree rotations.

• Pro Tip: If a design is wider than your hoop but fits if rotated, rotate it in the software, not on the machine. It is much easier to visually confirm the orientation on a large screen than on a tiny 3-inch machine LCD.

If you are learning the workflow of an embroidery file converter, TrueSizer is the industry standard for accuracy. It preserves the stitch data better than almost any other free tool.

Setup That Actually Works: A Simple “Viewer-to-Machine” Workflow (No Guessing)

Stop guessing. Follow this workflow for every single file you download.

1) The Digital Inspection

• Open in TrueSizer / TES Viewer.
• Check Dimensions: Is it actually 4x4, or 4.01 x 4.01? (That 0.01 will stop your machine from loading it).
• Check Colors: Does the stitch order make sense (e.g., background first, outline last)?

2) The Compatibility Export

• File -> Save As / Export.
• Choose your machine's native language (e.g., Brother = .PES, Janome = .JEF).
• Naming Convention: Save as DesignName_FabricType_HoopSize.pes. (e.g., Logo_Tshirt_4x4.pes). This saves future-you a lot of headaches.

3) The USB Transfer

• Use a low-capacity USB drive (2GB - 8GB). Modern 64GB drives often confuse older specialized embroidery computers.

Setup Checklist (Before you touch the machine)

• Geometry Check: Design fits the hoop with a 10mm safety buffer.
• Physics Check: No ultra-dense "white noise" areas in needle point view.
• Format Check: File is exported to the exact format my machine needs.
• Bakcup: I have saved the edited file separately from the original.


The Decision Tree I Wish Every New Embroiderer Had: Fabric → Stabilizer → Hooping Method

Software is only 50% of the battle. The other 50% is "The Sandwich" (Fabric + Stabilizer). If you get this wrong, the best software in the world can't save you.

Hidden Consumables You Need:

• Temporary Spray Adhesive (e.g., KK100): To stick fabric to stabilizer without hooping the fabric itself (floating).
• New Needles: Change them every 8 hours of stitching. Seriously.
• 75/11 Ballpoint Needles: For knits (T-shirts).
• 75/11 Sharp Needles: For wovens (cotton, denim).

The "don't-mess-it-up" Decision Tree:

1. Is the fabric Stretchy (T-shirt, Polo, Hoodie)?
   • YES -> Cutaway Stabilizer. (Must handle the stretch). Use a Ballpoint needle.
   • NO -> Go to step 2.
2. Is the fabric flimsy/sheer/light?
   • YES -> Cutaway or Fused Mesh. Even if not stretchy, it needs structure.
   • NO -> Go to step 3.
3. Is the fabric stable thick woven (Denim, Canvas, Cap)?
   • YES -> Tearaway Stabilizer. The fabric supports itself. Use a Sharp needle.
   • NO -> Check step 4.
4. Is the fabric "fluffy" (Towel, Fleece, Velvet)?
   • YES -> Water Soluble Topper (Solvy) on top + Stabilizer on bottom. The topper prevents stitches from sinking into the fluff.

Hooping Choice Overlay:

• If you encounter hoop burn or cannot tighten the screw enough on thick items, search for how to use magnetic embroidery hoop techniques. Magnets rely on clamping force, not friction, which handles thick seams (like Carhartt jackets) much better than plastic rings.


Troubleshooting the Comment-Section Problems (Symptoms → Likely Cause → Fix)

These are real issues pulled from the community comments, mapped to solutions.

Mac User Survival Guide

• Problem: Most free tools listed are Windows only.
• Solution: Look for Embrilliance Express (runs on Mac, free for viewing/saving) or run Windows via Parallels (advanced).

Warning: Safety First
* Needles: A broken needle tip can fly at high velocity. Always wear glasses or keep the safety shield down.
* Scissors: Never cut jump stitches while the machine is running.
* Magnets: If using Magnetic Hoops, keep them away from pacemakers. They are industrial strength.

The "Why" Behind Better Results: Hoop Tension, Fabric Distortion, and Why Your Software Preview Lies Sometimes

A simulator shows a perfect rectangle. Reality gives you a distorted hourglass. Why? The Rhythm of Embroidery: Every time the needle enters the fabric, it pulls the fabric slightly inward (The "Pull Compensation" factor).

• The Sound: A happy machine makes a rhythmic "chug-chug-chug" sound.
• The Unhappy Sound: A loud "CLACK-CLACK" usually means the hoop is bouncing (loose screws) or the needle is blunt.

The Hooping Variable: If your hooping technique is inconsistent, your results will be inconsistent. If you are fighting the inner ring, trying to stretch canvas tight, you are physically distorting the fabric fibers. This is why professional shops often upgrade to magnetic hoop for brother or similar standardized systems. It removes the "human strength" variable. The magnets clamp with consistent pressure every time, reducing the "Push/Pull" distortion that ruins geometric logos.

Warning: Magnet Pinch Hazard
Magnetic frames snap together with extreme force (often 10lb+ of force). Keep fingers clear of the mating surface. Do not let two magnets snap together without fabric in between—they can be nearly impossible to separate and can pinch skin severely.

Free vs Paid vs Outsourcing: The Real Cost Isn’t the Software—It’s Your Time

The video concludes with an honest truth: Free tools have limits.

The "Time-Money" Calculation:

• Hobbyist: If you have 3 hours on a Sunday, fighting with free software is part of the learning fun.
• Business: If you have 10 orders due Friday, fighting with software is a loss of profit.

Your Roadmap:

1. Stage 1 (Use Free Tools): View, resize, and stitch purchased files.
2. Stage 2 (Outsource): When a client wants a custom logo, pay a professional digitizer ($15-$30). It is cheaper than learning to digitize for 50 hours.
3. Stage 3 (Paid Software): When you spend more than $200/month on outsourcing, buy standard software (Hatch, Embrilliance, etc.).


The Upgrade Path That Actually Feels Like a Win (Not a Sales Pitch)

Once your software workflow is clean, your bottleneck will move to the physical world. Here is how to diagnose when you need to upgrade your toolkit.

LEVEL 1: The Consumables Upgrade

• Trigger: Thread breaks often; white bobbin thread shows on top (tension issues).
• Solution: High-quality Polyester thread (Isacord/Madeira/Simthread) and pre-wound bobbins. Don't use cheap sewing kit thread.

LEVEL 2: The Efficiency Upgrade (Hooping)

• Trigger: Hooping takes longer than stitching. Your wrists hurt. You have "hoop burn" marks.
• Solution: magnetic embroidery hoops.
  • Why: faster clamping, less strain, better hold on thick garments.
  • Check: Ensure compatibility with your specific machine arm width.

LEVEL 3: The Production Upgrade (Machine)

• Trigger: You are turning down orders because you can't change thread colors fast enough (Single needle limitation). You want to stitch hats properly.
• Solution: A Multi-Needle Machine (like the SEWTECH line).
  • Why: 10-15 needles mean the machine handles color changes automatically. You press "Start" and walk away.
  • Context: If you are stitching hooping station for machine embroidery scale batches (50+ shirts), a single needle machine is a bottleneck, not a tool.


Operation Checklist: Your “No-Regrets” Test Stitch Routine

This is the final barrier between you and a ruined garment. Perform this sequence exactly.

1. The "Scrap" Test: Always stitch on a scrap piece of similar fabric first.
2. The Bobbin Check: Look at the back of your test stitch. You should see a "caterpillar" of white bobbin thread taking up the middle 1/3 of the satin column.
   • Too much white? Top tension is too tight.
   • No white? Top tension is too loose.
3. The Hoop "Tap": Tap the hooped fabric. It should sound distinct (like a drum). If it sounds like a dull thud, re-hoop.
4. The "Trace": Run the machine's "Trace" or "Check Size" function to watch the needle move around the perimeter without stitching. Ensure it doesn't hit the plastic frame.

If you follow this routine—PREP digitally, SECURE physically, and CHECK sensually—you will stop fearing the "Start" button and start enjoying the hum of production.

FAQ

• Q: Why does a Brother embroidery machine show “Unexpected File Format” when loading a .JPG or .SVG from a “free embroidery software” download?
  A: Brother embroidery machines cannot stitch from .JPG/.SVG—use a real stitch file (.PES/.DST/.EXP) or have the artwork digitized.
  • Confirm: Check the file extension; photos/artwork (.JPG/.PNG/.SVG) are not stitch data.
  • Open: Preview the design in a stitch-file viewer (for stitch files) and verify it shows stitches, colors, and stitch order.
  • Export: Save/export to Brother .PES only after confirming the source is already a stitch file.
  • Success check: The file appears on the machine screen with design preview and loads without the format warning.
  • If it still fails: Re-check whether the “design” is actually an image file renamed as .PES, or outsource digitizing for logos.
• Q: Why does a Brother embroidery machine refuse to load a 4x4 design that shows as 4.01" x 4.01" in Wilcom TrueSizer?
  A: Reduce the design slightly (often 2–5%) so it stays within the actual sew field, not the outer hoop size.
  • Measure: Confirm the machine’s true maximum sew field in the manual (the hoop plastic can be larger than the sew field).
  • Inspect: Check exact dimensions in the viewer; tiny overages can block loading.
  • Resize: Scale down a small amount and re-save in the correct machine format (Brother = .PES).
  • Success check: The machine lists the file and allows “Trace/Check Size” without hitting the frame.
  • If it still fails: Verify a 10mm safety margin inside the hoop template and confirm the export format matches the machine.
• Q: How can a machine embroiderer confirm correct hooping tension to prevent fabric puckering on T-shirts and hoodies?
  A: Use cutaway stabilizer for stretchy garments and hoop until the fabric is firm without distortion.
  • Choose: Use cutaway stabilizer for stretchy fabric (T-shirt, polo, hoodie) and a ballpoint needle as a safe starting point.
  • Hoop: Tighten and smooth so the fabric is held evenly; avoid stretching the knit out of shape.
  • Test: Stitch a scrap test first with the same fabric/stabilizer “sandwich.”
  • Success check: Tap the hooped fabric; it should sound like a tight drum (not a dull thud) and the test stitch lies flat without ripples.
  • If it still fails: Re-hoop tighter and upgrade stabilizer strength (cutaway rather than tearaway), then re-test.
• Q: What is the fastest way to diagnose and stop thread nesting (bird’s nest) on the underside when using a home embroidery machine?
  A: Rethread the upper thread with the presser foot UP so the tension discs open and the thread seats correctly.
  • Stop: Cut thread, remove the hoop, and clear the nest without pulling hard on the fabric.
  • Rethread: Raise the presser foot fully, then rethread the entire top path carefully.
  • Test: Run a small test stitch on scrap before returning to the garment.
  • Success check: The stitching resumes with normal tension and no new thread pile-up forming underneath.
  • If it still fails: Check for missed thread guides and confirm the top tension is not too loose.
• Q: How can Wilcom TrueSizer “Needle Points” view help prevent needle breakage caused by overly dense embroidery designs?
  A: Use “Show Needle Points” to spot “white-noise” density and avoid stitching designs that are effectively bulletproof.
  • Enable: Turn on the needle points/dots view before exporting the file.
  • Scan: Look for solid masses of dots (overly dense zones) and very thin satin columns that may not stitch cleanly.
  • Adjust: Choose a safer size change (avoid large resizing without density compensation) or select a better-suited design.
  • Success check: The design preview shows defined stitch structure rather than a solid block, and the machine runs without repeated needle snaps.
  • If it still fails: Confirm the design has a 10mm safety margin so the needle is not striking the hoop frame.
• Q: What is the safest routine to verify embroidery tension and placement before pressing Start on a single-needle home embroidery machine?
  A: Always run a scrap test + bobbin-back check + hoop tap + machine trace to catch problems before the real garment.
  • Stitch: Sew a test on scrap fabric that matches the garment and stabilizer.
  • Inspect: Check the back—aim for a “caterpillar” of white bobbin thread sitting in the middle 1/3 of satin columns.
  • Tap: Tap the hooped fabric; re-hoop if it sounds dull.
  • Trace: Use the machine’s “Trace/Check Size” to confirm the needle path clears the frame.
  • Success check: The trace clears the hoop and the test stitch shows balanced tension (not all white on top, not no-white on back).
  • If it still fails: Re-hoop, rethread with presser foot up, and verify the file truly fits the sew field.
• Q: What needle and magnet safety rules should new users follow to avoid injury when operating embroidery machines and magnetic embroidery hoops?
  A: Treat needles and magnetic frames as industrial hazards—use shields/eye protection and keep fingers clear of snapping magnets.
  • Protect: Keep the safety shield down or wear glasses; broken needle tips can fly at high velocity.
  • Pause: Never cut jump stitches while the machine is running.
  • Separate: Keep fingers away from the mating surfaces of magnetic frames; magnets can snap together with extreme force and pinch badly.
  • Avoid: Keep magnetic hoops away from pacemakers and similar medical devices.
  • Success check: Hands stay clear during clamping, and the machine runs without unsafe reaching or mid-run cutting.
  • If it still fails: Stop the job, power down, and reset the setup—rushing is what causes most accidents.
• Q: When should a home embroidery business upgrade from technique tweaks to magnetic embroidery hoops or a SEWTECH multi-needle embroidery machine?
  A: Upgrade based on the bottleneck: fix consumables/tension first, then hooping speed/pain, then thread-change production limits.
  • Level 1 (Technique/consumables): Switch to better thread and pre-wound bobbins when thread breaks and tension becomes inconsistent.
  • Level 2 (Hooping efficiency): Move to magnetic hoops when hooping takes longer than stitching, wrists hurt, thick seams won’t clamp well, or hoop burn marks appear.
  • Level 3 (Production capacity): Move to a SEWTECH multi-needle machine when single-needle color changes slow orders down or force you to turn down work.
  • Success check: Setup time drops, re-hooping/rejects decrease, and jobs run with fewer stops (especially on multi-color designs).
  • If it still fails: Track repeat issues in a project log (needle, thread, stabilizer, tension) to identify whether the true bottleneck is files, hooping, or throughput.
