Stop Wasting Hats: Set the Embrilliance 130×60 Hat Hoop, Resize Safely, and Stitch Clean on a Brother SE1900

Master Hat Embroidery on the Brother SE1900: A Field Guide to Safe, Clean Results

Hat embroidery on a single-needle home machine is the ultimate "courage test." It looks deceptively simple until you hear that sickening CRACK of a needle striking the frame, followed by the hum of a jammed motor.

If your stomach drops every time you mount a cap on your Brother SE1900, let me tell you: You are not "doing it wrong." You are working against physics.

A flatbed machine wants to stitch on a flat plane. A hat is a curved, structured 3D object that fights being flattened. When you combine tight clearances with a stiff bill that bangs against the machine head, you have a recipe for anxiety.

However, after 20 years in this industry, I can tell you that successful hat embroidery isn't about luck; it's about respecting the "Kill Zone." This guide rebuilds the workflow into a repeatable, safe process: setting the correct virtual environment, enforcing physical safety margins, and choosing tools that reduce the risk of failure.

The Calm-Down Check: Why the Hat Field Feels So Unforgiving

The standard embroidery field for a hat hoop on a home machine gives you roughly a 5" × 2" (130mm x 60mm) playground.

The width isn't the problem; the height is the killer. Many commercial designs are digitized for flat shirts or industrial cap drivers, meaning they stitch top-to-bottom without worrying about a plastic frame edge. On your SE1900, that frame edge is a physical wall.

The Sensory Reality Check:

• Visual: If your design touches the yellow boundary lines in your software, in reality, it is already hitting the frame.
• Auditory: If you hear a rhythmic "slapping" sound while stitching, your cap bill is likely hitting the machine head. This causes design registration errors (gaps in outlines).

Hats force you to be disciplined. You cannot just "eyeball it."

The "Hidden" Prep: Files, Formats, and the Hat-First Mindset

Most hat failures happen before you even turn on the machine. They start with a messy file selection.

The Rule of Smallest Origin: Never take a 5x7 design and shrink it to fit a 2-inch hat space. You will create a "bulletproof vest" patch of thread that is so dense it breaks needles. Always start with the smallest available file size (usually 3x3 or 4x4) and edit from there.

Essential Consumables Check: Before you open software, check your physical inventory.

• Needles: Use a Titanium 75/11 Sharp. Hats are thick; standard ballpoints often deflect and break.
• Stabilizer: You cannot hoop a hat like a t-shirt. You need Adhesive Tear-Away or a combination of Cut-Away with temporary spray adhesive.
• Painter's Tape: To secure the brim to the hoop so it doesn't vibrate.

Prep Checklist (Pre-Software):

• Confirm designs are .PES format (native to Brother).
• Locate the folder with the smallest size (e.g., 3 inches).
• Verify you have a fresh, sharp needle installed (bent needles deviate and hit frames).
• Identify the hat type: Unstructured (floppy) requires more stabilizer; Structured (stiff buckram) requires slower speeds.


Software Step 1: Lock In the Hat Hoop (The Virtual Safety Net)

Beginners often skip this, thinking the machine "knows" what hoop is attached. It doesn't. You must tell the software the boundaries so it can warn you.

In Embrilliance:

1. Navigate to Embrilliance > Preferences.
2. Under Environment, select Hoops.
3. Choose 130mm × 60mm (Hat) (Brother SE1900 compatible).
4. Click Apply.

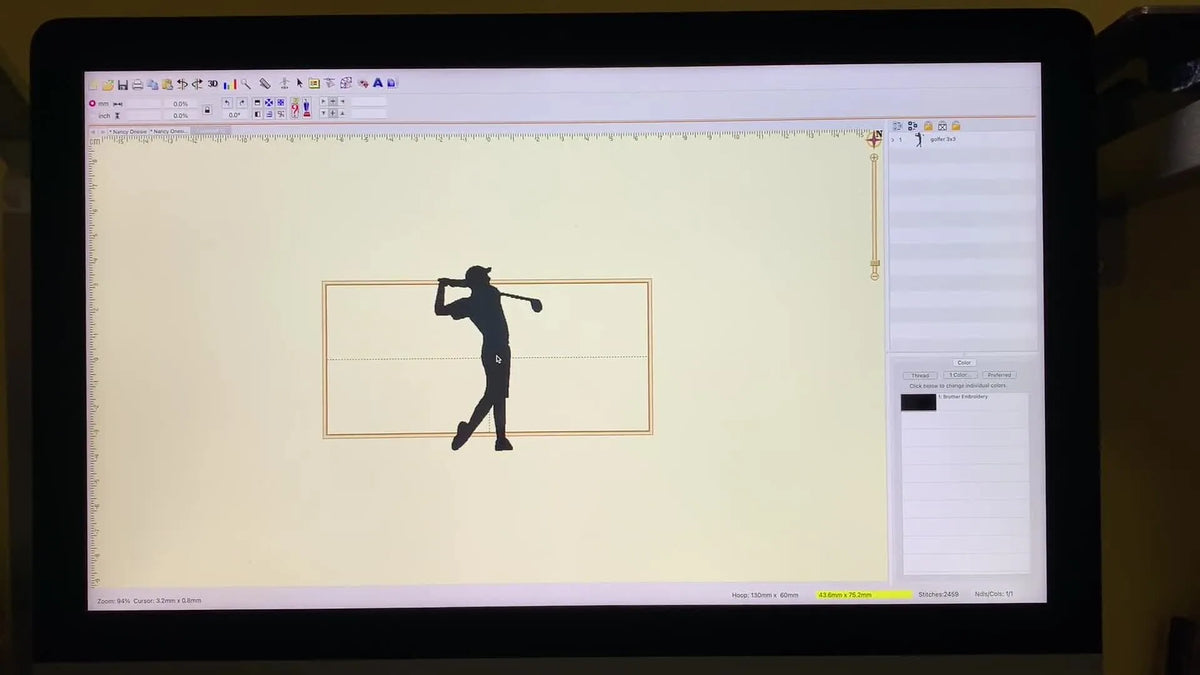

The "Yellow Line" Rule: You will see a yellow rectangle. Treat this not as a guideline, but as a cliff edge.

Note on confusion: You might see 130x50 and 130x60 options. As Jeanette (the original workflow architect) suggests, 130x60 is the standard target, but verify your specific physical hoop. If you are researching brother se1900 hat hoop options online, ensure the aftermarket hoop matches these dimensions exactly to avoid alignment crashes.

Software Step 2: The Design-Size Shortcut

Load your smallest file version (e.g., the 3x3 golfer).

Why we do this (Experience Note): The smaller file has lower stitch counts and likely different underlay settings. If you shrink a large file, the software simply squishes the stitch points closer together.

• Result: A dense, hard knot of thread that puckers the hat and snaps thread.
• Goal: A lighter, cleaner design that "floats" on the curved fabric.

If you are hunting for a safe hat hoop for brother embroidery machine workflow, this is the golden rule: Start small, resize less.

Software Step 3: The "Life-Saving" Buffer Zone

Once the design is on screen:

1. Click to Select: Look for the selection handles (black boxes).
2. Scale Down: Drag a corner handle inward to shrink it proportionally.
3. Center It: Move the design to the absolute center of the yellow box.

The Critical Move: Do not stop when it "just fits." Make it smaller than the field. You need a Safety Buffer of at least 1/4 inch (6-10mm) at the top and bottom.

Why? The "Squash Factor": When you flatten a 3D cap into a 2D hoop, the fabric distorts. When it stitches, the fabric pulls inward (the "push-pull effect"). A design that is 1mm away from the edge on screen will likely drift into the frame during actual stitching due to fabric movement.

Warning: Machine Safety Critical. Never place designs on the perimeter line. A needle strike at 600 stitches per minute can shatter the bobbin case, bend the needle bar, or send metal shrapnel flying. Always leave a 10mm buffer.

Refining your hooping for embroidery machine technique implies understanding that software perfection does not equal physical reality. Give yourself room to be imperfect.

The Physics of Stitching on a Curve

Why do we leave space? It’s not just about hitting the frame.

1. Flagging: The cap fabric bounces up and down with the needle. Closer to the frame, the fabric is tighter; in the center, it's looser. This variation causes distortion.
2. Optical Distortion: A straight line on a flat screen looks curved when worn on a forehead. By keeping the design smaller and centered, you minimize the "warped" look on the finished product.


Saving the File: The .PES Protocol

Once your design sits safely in the "Kill Zone" buffer:

1. File > Save Stitch File As.
2. Format: .PES (The language your Brother speaks).
3. Naming Convention: Use descriptive names like Hat_Golfer_Sm_SAFE.pes. Avoid generic names like design1.pes.

Pro Tip: Also save the Working File (.BE in Embrilliance). This saves the object data, allowing you to resize again later without quality loss. You can't cleanly resize a stitch file (.PES) once it's baked, but you can resize a working file indefinitely.

Muscle Memory: The Deer Example

The workflow must be consistent. Whether it's a golfer, a deer, or a company logo:

1. Open Hat Hoop template.
2. Import Smallest Design.
3. Resize with Buffer.
4. Export.

Repetition reduces panic. When you do this identically every time, you spot errors (like a wrong hoop size) instantly because it "looks wrong."

Dealing with Density: The "Stiff Patch" Problem

A common question: "Does the software fix the density when I shrink it?"

The Expert Answer: Embrilliance does recalculate stitch counts, removing stitches as you shrink. However, software algorithms aren't perfect. They don't know you are stitching on stiff canvas (hat) vs. soft cotton.

My Shop Rule: If you shrink a design by more than 10-15%:

• Check Density: If you have "Density Repair Kit" or a similar tool, run it.
• Manual Check: Look at the simulation. If satin stitches look like solid bricks, the machine will struggle.
• Symptom: If your machine sounds like it's hammering (heavy THUD-THUD-THUD), stop. The density is too high. You are risking a needle break.


The "Float" Technique: Names on the Back/Side

The back arch of a hat is easier than the front because it's softer and has no buckram (stiffener).

The Method: You don't need the specialized hat hoop here.

1. Use your standard 5x7 hoop.
2. Hoop piece of Adhesive Tear-Away Stabilizer (sticky side up) OR hoop regular tear-away and apply temporary spray adhesive.
3. "Float" the cap: Press the back of the cap flat onto the sticky stabilizer. Pin the edges (far from the sew area) for security.
4. Alignment: Print a paper template of your design to check placement before you stitch.


Decision Tree: The Hat Workflow Selector

Don't guess. Follow this logic path for every project.

• Q1: Where is the design going?
  • Front Center (Rigid): Go to Path A.
  • Side/Back (Soft): Go to Path B.
• Path A: Front Panel Execution
  • Constraint: Vertical space is limited (max 2 inches safe).
  • Action: Must use "Hat Hoop" setting in software. Must resize with 10mm top/bottom buffer. Must use slow speed (400 SPM).
  • Stabilizer: Cut-away (if structured cap) or Tear-away (if very stiff).
• Path B: Back/Side Execution
  • Constraint: Fabric creates a "bowl" shape that creates extra fabric bunching.
  • Action: Use 5x7 Hoop + Sticky Stabilizer (Float Method).
  • Critical Check: Watch the bill of the hat! Tape it out of the way so it doesn't hook onto the machine arm.


Setup Rituals for "No-Surprise" Stitching

Before you press the green button, perform a "Cockpit Check."

The Centering Trap: Don't trust the machine's LCD screen blindly.

1. Trace Function: Use the trial key to trace the design area.
2. Visual Confirmation: As the needle moves to the top edge of the trace, physically look at the gap between the presser foot and the plastic hoop.
3. The "Pinky Rule": If you can't fit the tip of your pinky finger in the gap, IT IS TOO CLOSE. Move it.

Setup Checklist (Machine Side):

• Speed: Reduced to 350-600 SPM. (High speed on hats causes "flagging" and needle deflection).
• Needle: Fresh 75/11 or 80/12 Titanium Sharp.
• Hoop Check: Inner hoop ring is pushed slightly past the outer ring (creates a domed tension).
• Bill Clearance: Verify the hat bill will not hit the machine body as the hoop moves back.
• Trace: Run the trace and verify the safety gap.


Troubleshooting: The "Why is this happening?" Table

When things go wrong, stay calm and consult this chart.

The Upgrade Path: When to Stop Fighting the Machine

If you are doing one hat a month, the standard plastic hoop is fine. It's frustrating, but free.

However, if you are doing 10 hats for a local team, the standard hoop becomes a torture device. It causes wrist strain and "Hoop Burn" (permanent shiny rings on dark fabric).

The Commercial Solution Logic:

• Pain Point: Hand fatigue from tightening screws; "Hoop Burn" ruining expensive Nike/Adidas caps.
• The Fix: A brother se1900 magnetic hoop.
  • Why: Magnets clamp instantly without forcing rings together. This eliminates the friction burn on the fabric.
  • Production Speed: You can hoop a hat in 10 seconds versus 2 minutes.
• The Next Level: If you struggle with crooked logos, pairing a magnetic hoop with a magnetic hooping station guarantees the logo is straight every single time using a grid system.

When to Buy:

• Level 1 (Consumer): Stick to the included plastic hoop + sticky stabilizer.
• Level 2 (Pro-Sumer): If you sell your work, buy a Magnetic Hoop (e.g., from Sewtech) to save time and reduce fabric damage.
• Level 3 (Business): If you receive orders for 50+ hats, stop. A flatbed machine (SE1900) is not designed for this volume. Look into a Multi-Needle machine with a cylindrical cap driver.

Warning: Magnetic Hazard. Magnetic hoops use industrial-strength magnets (N52 usually). They can pinch fingers severely (blood blister risk). Keep away from pacemakers, credit cards, and children. Do not let two magnets snap together without fabric in between.

Buying Designs: Spend Smart

Don't buy "All-in-One" bundles typically found on shady sites. Buy from reputable digitizers who understand underlay and density.

• Thumbnailer Software: Mentioned in the video. It allows you to see embroidery files in Windows Explorer/Mac Finder.
• Verdict: Nice to have, but not required for stitching. Spend that money on better stabilizer or a magnetic hoop first.


Operation Habits: The Final Safety Layer

You are the pilot. The machine is the plane.

• Watch the First Layer: Do not walk away during the first minute. This is when the thread tail might get caught, or the bill might snag.
• Listen for the "Click": When hooping, ensure the hoop locks into the machine carriage with a distinct click. If it's loose, your design will drift.
• The Tape Trick: Use painter's tape to tape the extra stabilizer and the hat sweatband out of the way. If the Sweatband flips under the needle, it will ruin the hat instantly.

If you purchase a generic embroidery magnetic hoop, remember they are heavier than plastic. Check that your pantograph (machine arm) can handle the weight without skipping steps. (Sewtech hoops are generally designed within the weight tolerence of Brother machines).

Operation Checklist (Go/No-Go):

• Stabilizer is sticky and holding the hat firm.
• Sweatband is taped back/pinned out of the stitch zone.
• Design center matches Hat center seam.
• Trace is complete with no frame collision.
• Hands are clear of the stitching area.


The Result: Confidence

Successful hat embroidery on a Brother SE1900 is about managing limitations.

1. Accept the Limit: You have 2 inches of height. Not 2.5, not 3. Just 2.
2. Respect the Buffer: Give the machine room to breathe.
3. Secure the Object: If the hat moves, the design fails.

Follow Jeanette's resizing workflow and my physical safety checks, and you will move from "holding your breath" to "hitting start and walking away." And if you find yourself doing this daily, seriously consider that magnetic hoop for brother upgrade—your wrists will thank you.

FAQ

• Q: What needle and stabilizer should be used for hat embroidery on a Brother SE1900 to reduce needle breaks and shifting?
  A: Use a fresh Titanium 75/11 Sharp needle and sticky support (adhesive tear-away, or cut-away with temporary spray adhesive) before starting any software work.
  • Install: Replace the needle if it is not brand-new/sharp; hats are thick and bent needles deflect into frames.
  • Choose: Use adhesive tear-away for quick grip, or cut-away plus temporary spray adhesive for stronger support on structured hats.
  • Secure: Add painter’s tape to control the brim and stop vibration.
  • Success check: The hat feels firmly held with no “wobble” when you lightly tug near the stitch area.
  • If it still fails: Slow the machine speed and re-check design placement buffer before stitching.
• Q: How do you set the correct hat hoop size in Embrilliance for Brother SE1900 hat embroidery so the design does not hit the frame?
  A: Set the Embrilliance environment to the 130mm × 60mm hat hoop so the yellow boundary represents the real collision zone.
  • Open: Embrilliance > Preferences > Environment > Hoops.
  • Select: Choose 130mm × 60mm (Hat) and click Apply.
  • Treat: Consider the yellow rectangle a hard safety limit, not a suggestion.
  • Success check: The full design sits comfortably inside the yellow box with extra space top and bottom.
  • If it still fails: Verify the physical hoop matches the selected size (some hoops differ).
• Q: What is the minimum safety buffer for Brother SE1900 hat embroidery designs to avoid needle strikes and frame crashes?
  A: Keep at least a 1/4 inch (6–10mm) buffer at the top and bottom of the design inside the hat hoop boundary.
  • Resize: Make the design smaller than “just fits,” then re-center it.
  • Center: Position the design in the absolute middle of the hoop field.
  • Respect: Do not place stitches on the perimeter line because fabric distortion and pull can drift the sew-out into the frame.
  • Success check: During a trace, there is clearly visible space between the presser foot path and the hoop edge at the closest point.
  • If it still fails: Stop immediately at any contact sound and reduce design height further before retrying.
• Q: How can Brother SE1900 users verify hat hoop clearance before stitching to prevent the needle from hitting the hoop?
  A: Use the Brother SE1900 trace function and physically confirm clearance—do not rely on the LCD preview alone.
  • Trace: Run the trace/trial key to outline the design area.
  • Inspect: Watch the needle travel near the top and bottom edges and look for the smallest gap to the plastic frame.
  • Check: Use the “pinky rule”—if the pinky fingertip cannot fit in the gap, move/resize the design.
  • Success check: The trace completes without any slapping, clicking, or near-contact moments.
  • If it still fails: Re-center the design and increase the buffer before stitching at speed.
• Q: Why does Brother SE1900 hat embroidery show gaps in outlines (registration issues) and how can the hat be secured?
  A: Gaps usually mean the hat shifted during stitching, so secure the hat more aggressively and slow the stitch speed.
  • Tape: Use painter’s tape to stabilize the brim so it does not vibrate.
  • Slow: Reduce speed (a safe starting point in this workflow is around 350 SPM for hats).
  • Stabilize: Use sticky stabilizer so the fabric cannot creep during the stitch cycle.
  • Success check: You do not hear rhythmic “slapping,” and outlines meet cleanly without breaks.
  • If it still fails: Re-hoop tighter and re-run a trace to confirm the bill is not catching the machine arm.
• Q: What causes loud needle breaks on Brother SE1900 hat embroidery (the “CRACK” sound) and what should be done immediately?
  A: A loud “CRACK” is commonly a frame strike or excessive density—stop immediately and correct placement or density before continuing.
  • Stop: Cancel the stitch-out right away to avoid bobbin case damage or needle bar issues.
  • Re-center: Move the design farther from the hoop edge and reduce design height.
  • Reduce: If the machine sounds like heavy hammering (THUD-THUD-THUD), treat it as density too high and choose a smaller original file version rather than shrinking a large one.
  • Success check: Restart only when a full trace shows safe clearance and the machine runs without impact sounds.
  • If it still fails: Switch to a fresh Titanium 75/11 (or 80/12) Sharp and reduce speed before attempting again.
• Q: When should Brother SE1900 hat embroiderers upgrade from a plastic hoop to a magnetic hoop or to a multi-needle machine for higher-volume hat orders?
  A: Upgrade in layers: first optimize technique, then use a magnetic hoop to reduce hoop burn and hooping time, and move to a multi-needle system when hat volume outgrows a flatbed workflow.
  • Level 1 (technique): Use sticky stabilizer, slow speed, trace for clearance, and maintain a 6–10mm buffer.
  • Level 2 (tool): Choose a magnetic hoop if screw-tightening causes wrist strain or hoop burn damages premium caps.
  • Level 3 (capacity): Consider a multi-needle machine when orders reach high volume (for example, 50+ hats) because a flatbed single-needle setup is not designed for that throughput.
  • Success check: Hooping becomes consistent and fast, and hats show fewer shiny rings and fewer registration problems.
  • If it still fails: Add a hooping station/grid system to improve repeatable straight placement.
• Q: What magnetic hoop safety rules should Brother SE1900 users follow to avoid finger injuries and magnet-related hazards?
  A: Treat magnetic hoops as industrial pinch hazards and keep them away from sensitive items and people at risk.
  • Handle: Keep fingers clear when closing magnets; do not let magnets snap together without fabric in between.
  • Separate: Keep magnetic hoops away from pacemakers, credit cards, and children.
  • Control: Place and remove magnets deliberately—never “drop” them into place.
  • Success check: No sudden snapping during hoop closure, and hands stay fully outside the clamp area.
  • If it still fails: Slow down the hooping process and reposition using a controlled, two-handed approach before stitching.
