Stop Wasting Cutaway: Dial In the Mighty Hoop 13×4.25 on a Melco EMT16X for Clean, Fast T-Shirt Chest Text

The Economics of the 13×4.25 Hoop: Stop Wasting Stabilizer on Chest Logos

In commercial embroidery, the fastest way to bleed profit isn't buying expensive thread—it’s bad geometry. specifically, using oversized hoops that force you to burn through backing and operator time for small designs.

Consider this scenario: You have a standard order for a heavyweight LA Apparel T-shirt. The design is a simple, one-line text logo on the chest, about 9–10 inches wide but only an inch tall. The novice mistake is helping grabbing the standard 11×13 hoop because "the width fits."

The professional move, as demonstrated in this case study, is switching to a 13×4.25 magnetic hoop. By matching the hoop height to the design height, you fundamentally change the physics and economics of the job.

This guide will walk you through the mental and physical shift from "making it fit" to "production efficiency," utilizing magnetic frames to eliminate hoop burn and waste.

The "Dead Zone" Problem: Why 11×13 Hoops Kill Margins on Text

If you are effectively running wide text that is only a couple of inches tall, a tall hoop forces you to stabilize fabric you will never stitch. You pay for that backing on every single shirt, and you risk "hoop burn" (the shiny ring left by friction) on a much larger surface area.

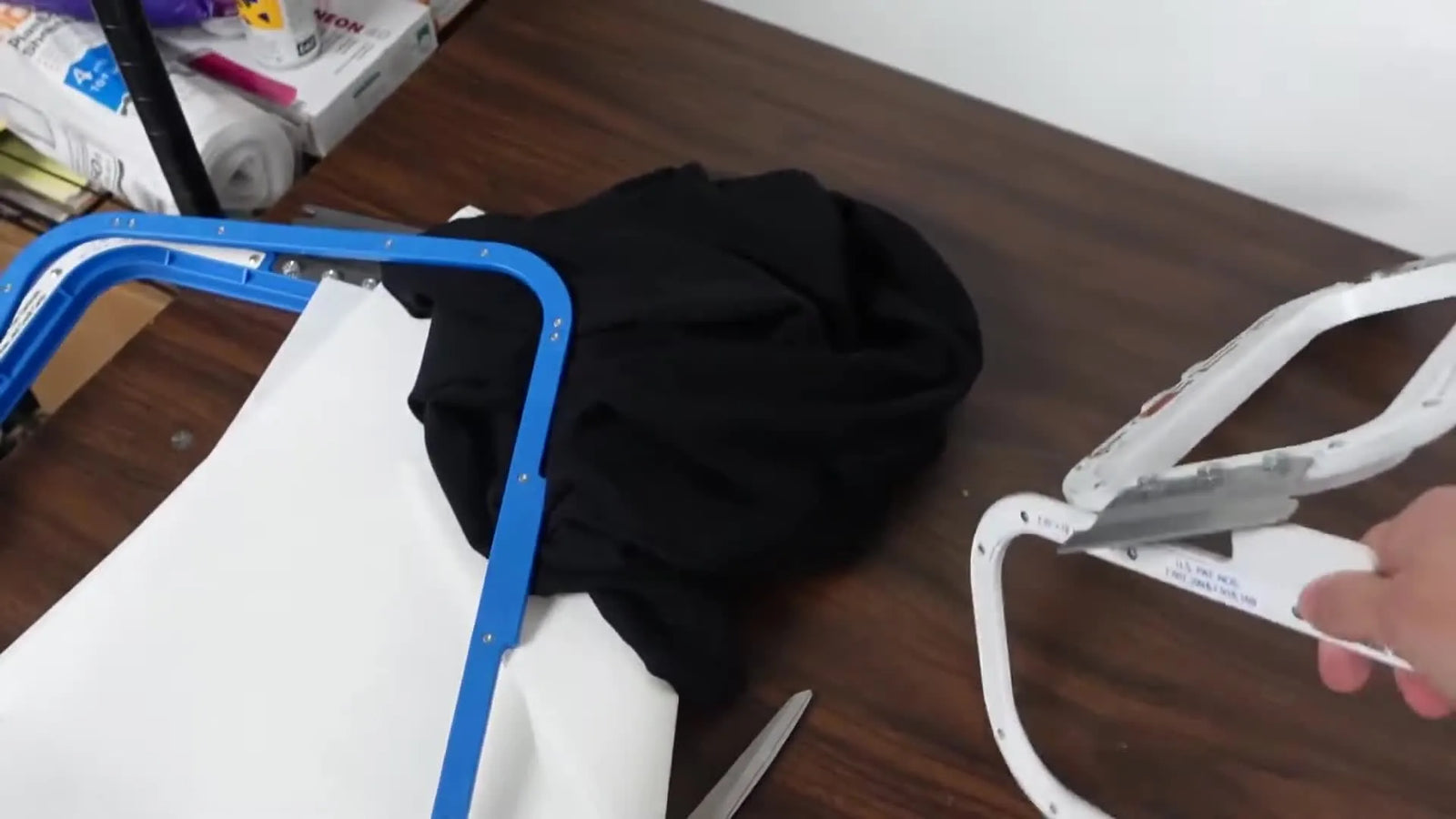

In the video, the comparison is visual and stark: the large hoop works, but it utilizes a massive amount of "dead zone" space. The narrow hoop retains the necessary horizontal clearance (13 inches) while eliminating the vertical waste.

In production terms, using a specialized tool like the mighty hoop 11x13 should be reserved for full-back designs or large crests. Using it for a chest logo is like using a sledgehammer to hang a picture fram—it works, but it causes collateral damage.

The 13×4.25 Magnetic Hoop: The Sweet Spot for Chest Logos

The featured hoop measures 4.25 inches tall by 13 inches wide. This dimension is critical: it keeps the width required for 10-inch text while removing the vertical bulk that interferes with the shirt’s collar and sleeves.

The Sensory Shift: Friction vs. Clamping

This is where you need to retrain your hands.

• Traditional Hoops: You fight friction. You push the inner ring into the outer ring, dragging the fabric. You feel resistance, and often, you see the fabric grain distort (the "smile" effect).
• Magnetic Hoops: You manage alignment and tension. You place the top ring, and it snaps shut. There is no drag.

From a shop-owner perspective, upgrading to magnetic embroidery hoops is often the highest ROI investment for a growing business. They reduce wrist strain, eliminate hoop burn marks on sensitive fabrics (like performance wear), and drastically speed up the loading process.

The Stabilizer Fold Trick: Double Strength, Half Waste

The creator demonstrates a brilliant specific efficiency hack: taking a sheet of 15"×15" cutaway stabilizer and folding it in half.

Why this matters for your bottom line:

1. Geometry: A folded 15" sheet becomes roughly 15" × 7.5". This perfectly covers the 13×4.25 hoop window.
2. Stability: You create a double layer of support immediately.
3. Economy: You use one sheet to get the strength of two, without cutting two separate pieces.

Process Note: When folding, ensure the fold is at the bottom (away from the needles initially) or perfectly flat. A bulky fold can sometimes catch the presser foot if not managed, though on a flat fold like this, the risk is minimal. This setup is ideal for a 6.5 oz heavyweight T-shirt, providing the stiffness needed for clean text without turning the shirt into a cardboard shield.

Prep Checklist: The "Mise-en-place"

Do this before you even touch the garment. If these aren't ready, you aren't ready.

• Design Check: Confirm the logo is a wide/short layout (approx. 9–10" width).
• Consumables: Pull 15"×15" cutaway stabilizer; fold in half and crease sharply.
• Hidden Consumable: Have a light temporary spray adhesive (optional but helpful) or a lint roller to clean the hoop surface.
• Measurement: Have your ruler or T-Square ready (Target: 4 inches down from collar).
• Hardware: Confirm you have the matching top and bottom rings for the 13×4.25 hoop.
• Organization: Stage shirts by size to avoid constant re-adjustment of the station.

Reconfiguring the Hooping Station: Fixture Logic

The video utilizes a HoopMaster station, a standard in professional shops. To switch from a large hoop to the narrow 13×4.25, you must move the fixtures.

The Golden Rule of Upper Chest Placement: When moving to a smaller hoop for high-chest placement, move the bottom fixture UP. Do not move the top fixture down unless necessary. Moving the bottom fixture up brings the hoop closer to the collar/shoulder area of the station, which mimics where the embroidery actually lands on the body.

If you are using a hoop master embroidery hooping station, trust the grid. Record the letter/number coordinates of your fixture placement (e.g., "Fixture at E-12"). Write this down on the job sheet. Next time a repeat order comes in, you won't have to guess.

The Physics of Hooping: What "Square" Feels Like

Hooping is controlled tension. If you clamp fabric while it is skewed, you lock in distortion. When the needle penetrates, the fabric tries to return to its natural state, resulting in puckering.

The Sensory Check

• Visual: Look for the vertical rib lines of the knit fabric. They should be running straight up and down, perpendicular to the hoop's bottom edge.
• Tactile: When you smooth the fabric, it should feel "taut, like a fitted sheet," not "stretched like a rubber band." If you pull it too tight, the text will shrink when you unhoop it.

This is why magnetic hoops are superior for beginners and pros alike—they clamp straight down without the "drag" that traditional hoops introduce.

The Hooping Sequence: Precision Repeatability

The creator’s specific sequence prevents errors:

1. Load Backing: Place the folded cutaway over the bottom fixture.
2. Load Shirt: Slide the T-shirt fully over the station.
3. Measure: Place the ruler at the point where the collar seam meets the shoulder seam. Measure 4 inches down.
4. Square: Smooth the fabric hands moving from center to outside.
5. Clamp: Bring the top magnetic ring down.

The "Click" Moment: Listen for the solid thwack of the magnets engaging. It should be a single, uniform sound. If it sounds like a click-crunch, check the edges—you likely caught a sleeve or a wrinkle under the magnet.

Warning: Magnetic Force Hazard
Commercial magnetic hoops utilize powerful neodymium magnets. They can snap shut with enough force to pinch skin severely or damage watches/pacemakers.
Always keep fingers on the outside* handles, never between the rings.
* Do not slide the magnets together; allow the hinge or fixture to guide them.

Setup Checklist: The "Pre-Flight" Inspection

Perform this right after hooping, before walking to the machine.

• Stabilizer Coverage: Flip the hoop over. Is the folded stabilizer fully covering the sewing field?
• Squareness: Are the shirt's side seams hanging straight?
• Placement: Verify the 4" drop measurement one last time.
• Obstructions: Ensure the back of the shirt is not bunched up behind the hoop.
• Clearance: Double-check that no sleeves are caught under the magnetic rim.

Software Logic: Tell the Machine the Truth

A common frustration for operators using the melco emt16x embroidery machine (or any computerized model) is the "Hoop Limit" error. This happens when the machine thinks you have a round 15cm hoop attached, but you are trying to sew a 10-inch wide design.

You must synchronize the physical reality with the digital brain:

1. Navigate to Tools/Settings → Hoop Setup.
2. Select "Mighty Hoop (13 × 4.25 in)" from the database.
3. Customize the list if it doesn't appear standard.

If the machine knows the correct boundary, it will protect you from hitting the frame. If you skip this step, you risk a catastrophic needle strike against the metal hoop, which can throw the machine's timing off.

Resolving "Hoop Limit Detected"

If you receive this error, do not force the machine. It means the mathematical center of your design places the edge of the logo into the "No Sew Zone" of the defined hoop.

The Fix:

1. Center the hoop physically on the machine.
2. Use the "Center Design" command in the software.
3. Visually inspect the screen. Is the design inside the dotted safety line?
4. If it is still close, physically move the hoop arms (jog) to center the fabric better.


The Laser Trace: Your Last Line of Defense

Never press "Start" without a trace. The creator mounts the hoop and runs the perimeter trace.

What to watch for:

• The Red Dot: Does the laser light stay on the flat fabric the entire time?
• The Rim: Does the laser lead get uncomfortably close (within 1-2mm) to the magnetic wall? If so, judge your risk tolerance. A safe buffer is 3–5mm.
• The Bulk: As the hoop moves to the back, does the shirt collar bunch up against the machine head?

This 10-second step saves hours of garment replacement costs.

The Stitch Out: Sensory Monitoring at 800 SPM

The job runs at 800 stitches per minute (SPM). For an industrial machine, this is a "cruising" speed—fast enough to be profitable, slow enough to be safe for a wide logo.

Needle Sequence: The video uses needles 1–8. Ensuring your colors are pre-programmed avoids stops.

Auditory Diagnostics:

• Good Sound: A rhythmic, low-pitch thump-thump-thump.
• Bad Sound: A high-pitched slap (thread too loose), a grinding noise (needle hitting plate), or a sharp snap (thread break).

If you are new to this, start at 600 SPM. Once the machine settles into the fill stitch and sounds smooth, bump it up to 800. Speed is a result of good setup, not a setting button.

Operation Checklist: During the Run

• The First 50: Watch the first 50 stitches closely. This is when bird-nesting (thread bunching) usually happens.
• Flagging: Is the fabric bouncing up and down with the needle? If yes, your backing is too loose or hoop tension is weak.
• Bobbin: Listen for the bobbin running out (the sound often changes to a clearer, hollower tone just before it ends).
• Safety: Keep hands at least 6 inches away from the moving hoop.

Warning: Mechanical Safety
Embroidery needles are sharp and move at 13+ hits per second. If a needle breaks, it can shatter and fly. Always keep the safety guard (if equipped) closed, and wear glasses if you are closely inspecting the needle area while running high speeds.

Finishing: To "Tender Touch" or Not?

The creator addresses the use of "Tender Touch" (a soft fusible mesh meant to cover rough backing).

• Verdict: On a standard adult heavyweight tee with this specific design, it is likely overkill.
• When to use it: Baby clothes (skin sensitivity), performance wear (where backing feels rough against sweat), or very dense designs that create a "bulletproof vest" feel.


Decision Tree: The Logic of Production

Use this flow chart to make decisions on the shop floor:

• Scenario A: Design is wide (>8") but short (<4").
  • Action: Use 13×4.25 Magnetic Hoop. Fold Cutaway backing.
• Scenario B: Design is tall (Full Front/Back).
  • Action: Use 11×13 or larger hoop. Use full sheet backing.
• Scenario C: Fabric is slippery/delicate (Performance wear).
  • Action: Use Magnetic Hoop (prevents burn). Use No-Show Mesh + Tearaway combo.
• Scenario D: Production run > 50 shirts.
  • Action: Setup Fixture Station. Lock movement. Use laser alignment.

The Upgrade Path: Scaling Your Business

If you are doing one shirt for fun, standard tools work. If you are building a business, you need to remove friction.

1. Level 1 (Technique): Use the folded stabilizer trick and proper placement (4" down). Cost: $0.
2. Level 2 (Tooling): Upgrade to SEWTECH Magnetic Hoops. Whether you have a home machine or a commercial beast, magnetic hoops reduce the hooping time by ~40% and virtually eliminate hoop burn.
3. Level 3 (System): Implement a fixture system. Terms like mighty hoop hoopmaster are industry shorthand for "repeatable perfection."
4. Level 4 (Capacity): When hooping is no longer the bottleneck and sewing time is, it’s time to look at multi-head or faster multi-needle machines, such as the efficient lineup from SEWTECH.

A Final Reality Check

The best hoop isn't the biggest one—it's the one that fits the job. The creator finishes with a clean result and a stack of consistent garments. That is the goal.

If you are setting up a hooping station for machine embroidery, remember that the station provides the consistency, but the magnetic hoop provides the speed. Together, they turn a frustrating afternoon into a profitable hour. Match the tool to the task, respect the physics of the fabric, and your machine will reward you with perfect stitches.

FAQ

• Q: How do I choose between an 11×13 hoop and a 13×4.25 magnetic hoop for a wide chest text logo on a LA Apparel heavyweight T-shirt?
  A: Use a 13×4.25 magnetic hoop when the design is wide (about 9–10") but short (under ~4") to avoid stabilizing “dead zone” fabric and to reduce hoop burn risk.
  • Match hoop height to design height: keep the 13" width, remove unnecessary vertical space.
  • Reserve an 11×13 hoop for tall placements (full front/back, large crests) where the height is actually stitched.
  • Stage a quick placement plan: target about 4" down from the collar for upper chest text.
  • Success check: the hoop window surrounds the design with a small safety margin, and the collar/sleeves are not fighting the hoop.
  • If it still fails: run a perimeter trace and re-check hoop selection in the machine/software hoop setup before stitching.
• Q: How do I fold a 15"×15" cutaway stabilizer for a 13×4.25 magnetic hoop to get double strength without wasting backing?
  A: Fold one 15"×15" cutaway sheet in half to create a double-layer that covers the 13×4.25 sewing field with far less waste.
  • Fold cleanly to roughly 15" × 7.5" and crease it flat.
  • Place the folded cutaway so it fully covers the sewing field before loading the shirt.
  • Keep the fold flat and controlled; avoid leaving a bulky ridge where moving parts could catch.
  • Success check: flipping the hooped frame over shows full stabilizer coverage under the entire sew area with no gaps.
  • If it still fails: re-fold flatter or reposition the stabilizer so the coverage aligns with the hoop’s sew window.
• Q: What are the correct hooping steps for a 13×4.25 magnetic hoop to prevent “smile” distortion and puckering on a knit T-shirt chest logo?
  A: Load backing first, measure placement, square the knit grain, then clamp—magnetic hoops work best when alignment is done before the snap.
  • Place the folded cutaway on the bottom fixture, then slide the T-shirt fully onto the station.
  • Measure from the collar/shoulder seam point and mark/target about 4" down for placement.
  • Smooth from center outward and keep knit rib lines straight up-and-down (perpendicular to the hoop’s bottom edge).
  • Clamp the top ring straight down—do not drag fabric like a traditional hoop.
  • Success check: fabric feels “taut like a fitted sheet” (not stretched), and the knit ribs look square with no curved “smile.”
  • If it still fails: unhoop and re-square before clamping; distortion locked into the clamp usually won’t sew out cleanly.
• Q: How can I tell a 13×4.25 magnetic hoop is clamped correctly by sound, and what does a “click-crunch” mean during hooping?
  A: A correct magnetic clamp closes with one solid, uniform “thwack”; a “click-crunch” usually means a sleeve, wrinkle, or obstruction is caught under the rim.
  • Keep hands on the outside handles and bring the top ring down in a controlled motion.
  • Listen for a single, even engagement sound across the frame.
  • Inspect the full perimeter immediately if the sound is uneven or crunchy—especially near sleeves and seams.
  • Success check: the ring sits flat with even contact, and the closure sound is consistent (no multiple snaps).
  • If it still fails: remove the top ring, clear trapped fabric, re-smooth, and clamp again without sliding the magnets.
• Q: How do I fix “Hoop Limit Detected” on a Melco EMT16X when sewing a 10-inch wide chest logo in a 13×4.25 magnetic hoop?
  A: Set the hoop type correctly in the machine settings and re-center the design so it sits inside the defined safety boundary.
  • Go to Tools/Settings → Hoop Setup and select the 13 × 4.25 hoop from the hoop database (add/customize if it is not listed).
  • Center the hoop physically on the machine, then use the software/machine “Center Design” command.
  • Confirm the design is inside the dotted safety line; jog/shift if the design is still near the boundary.
  • Success check: the on-screen design fits comfortably inside the safety boundary and the trace stays off the hoop wall.
  • If it still fails: re-check that the correct hoop is selected (machine must match the physical hoop) and reduce risk by increasing clearance before starting.
• Q: What laser trace checks prevent a needle strike on a 13×4.25 magnetic hoop when running a wide text logo at 800 SPM?
  A: Always run a perimeter trace and confirm fabric clearance, hoop-wall clearance, and garment bulk clearance before pressing Start.
  • Trace the full perimeter and watch the laser stay on flat fabric the entire path.
  • Verify the laser path is not riding dangerously close to the magnetic rim; keep a comfortable buffer before sewing.
  • Watch the collar and bulk as the hoop moves rearward; stop if the shirt bunches into the head path.
  • Success check: the full trace completes smoothly with no rim contact risk and no garment bunching near the needle area.
  • If it still fails: re-center the hoop/design, remove trapped bulk behind the hoop, and re-trace until the path is clearly safe.
• Q: What safety rules prevent finger injuries with commercial magnetic embroidery hoops and prevent needle-break hazards during a high-speed run?
  A: Treat magnetic hoops and needles as pinch-and-shatter hazards: keep fingers outside the rings, don’t slide magnets together, and keep hands clear during stitching.
  • Keep fingers on the outside handles only; never place fingers between the top and bottom rings.
  • Let the hinge/fixture guide closure; do not slide magnets together to “walk” the hoop shut.
  • During stitching, keep hands at least 6 inches away from the moving hoop and keep the safety guard closed if equipped.
  • Success check: hooping is completed without any pinch points, and the run sounds smooth without sharp snaps that suggest a break.
  • If it still fails: stop immediately, re-hoop safely, and avoid close-in inspection while running at speed (use trace and screen checks first).
• Q: What is the fastest upgrade path to reduce hoop burn, stabilizer waste, and slow loading time when producing 50+ chest-logo shirts?
  A: Start with technique, then upgrade tooling, then systemize—reduce waste and rework before chasing more machine speed.
  • Level 1 (Technique): fold cutaway to match the 13×4.25 sewing field and use consistent placement (about 4" down).
  • Level 2 (Tooling): switch from traditional hoops to magnetic hoops to reduce fabric drag, hoop burn, and loading time.
  • Level 3 (System): lock in fixture coordinates on a hooping station so repeat orders don’t require re-guessing setup.
  • Success check: operators load consistently without fabric “smile,” the trace clears reliably, and per-shirt setup time drops without quality loss.
  • If it still fails: treat hooping as the bottleneck first; only consider higher-capacity multi-needle systems once setup is repeatable and stable.
