Stop Trimming Twill: Make “Pop-Out” Patches with Madeira Badge Master Film + an 8x13 Mighty Hoop

Patches are the "gateway drug" of the embroidery business. They are portable, high-margin, and can turn a standalone machine into a production powerhouse. But if you have ever made twill patches the traditional way, you know the specific heartbreak of the final step: taking a pair of scissors to a finished patch, trying to trim close to the satin border, and accidentally snipping the threads.

That single slip destroys 45 minutes of work.

The workflow details below replace the traditional fabric-trimming method with a Badge Master film technique. This uses a heavy water-soluble stabilizer as the base, allowing the final satin stitch to perforate the film so the patch simply "pops out" like a die-cut part. No scissors, no fraying, and most importantly—no fear.

However, sewing on film is not like sewing on fabric. It has no grain, it is slippery, and it is unforgiving. Below involves the "Master Class" version of this workflow, calibrated with safety margins to ensure your first attempt is a success.

Badge Master Film vs Twill Patch Fabric: the “Pop-Out” Advantage That Saves Your Border

In traditional patch making, you stitch onto twill fabric. The background color is "free" (it's just the fabric), but the finishing process is manual labor. You must cut the patch out by hand. The friction here is high: one sneeze while cutting, and the patch is ruined.

The Badge Master method flips this script. You are stitching on a transparent, water-soluble film (think of it as a heavy-duty plastic wrap that dissolves in water). You stitch the entire background of the patch with thread.

Why does this matter? Because film has no woven fibers, it can be perforated. When you stitch a high-density satin border as the very last step, the needle acts like a stamp perforation tool. When the machine stops, you don't cut the patch out; you simply push it, and it separates from the film sheet cleanly.

The Trade-off:

• Twill: Low stitch count (faster), high labor (manual trimming).
• Film: High stitch count (slower), zero labor (auto-release).

If you are building an inventory for hats, jackets, or velcro-backed swaps, the film method guarantees that Patch #1 looks exactly like Patch #50. There is no human error in the cutting phase.

The “Hidden” Prep Pros Don’t Skip: Film Layers, Fresh Bobbin, and a Clean Cutting Rhythm

Film is structurally different from fabric. It does not stretch, but it can endure "tunneling" (where the stitches pull the film together, warping the design). To combat this, we need stability.

The video recommends three layers of Badge Master film. This is the industry "Goldilocks" zone—two layers is often too weak for dense fills, and four is wasteful.

The Tactile Trick: Badge Master film typically has a smooth side and a rough/textured side.

• Action: Stack your three layers perfectly aligned.
• Check: Ensure the top layer has the rough side facing UP.
• Why: The texture provides "tooth" for the presser foot and helps the thread lay flatter without sliding.

The "Bobbin Chicken" Risk: Patches on film require a full background fill (often a Complex Fill). This consumes massive amounts of bobbin thread.

• Rule: Never start a film patch run with a partial bobbin. A bobbin change mid-patch can leave a visible knot or tension change on the back, and on a standalone patch, the back is visible.

Inventory Note: Keep a stash of 75/11 Sharp needles (not ballpoint). Ballpoint needles push fibers aside; we want a Sharp needle to pierce the film cleanly.

Prep Checklist (do this before you touch the machine):

• Cut three separate layers of Badge Master film (80-100 microns each) sized to fit inside your hoop.
• Stack layers with the rough side facing up on the top sheet.
• Insert a fresh, full bobbin.
• Install a new 75/11 or 80/12 Sharp Needle.
• Gather your threads: White, Green, Yellow, Black (per the video sequence).
• Hidden Consumable: Have a can of compressed air ready to blow away film dust after the run.


Hooping 3 Layers in an 8x13 Mighty Hoop: “Set It and Forget It” Without Wrinkles

Hooping three layers of slippery film with a traditional screw-tightened hoop is a recipe for frustration. The film slides, the layers separate, and you end up with "bubbles" that will ruin the embroidery.

This is where the physics of magnetic embroidery hoops completely changes the game. Unlike screw hoops that drag the material as you tighten them, magnetic hoops clamp straight down.

The Hooping Procedure:

1. Place the bottom metal bracket on your table.
2. Lay the three-layer film stack over it. Smooth it with your palms.
3. Hover the top magnetic frame over the stack.
4. Allow it to snap down.

Sensory Check:

• Touch: Tap the center of the hooped film. It should sound like a drum—a sharp "thud," not a floppy rattle.
• Sight: Look at the edges. The film should be taut but not stretched to the point of turning white (stress marks).

If you are using a standard hoop, you must be vigilant about "hoop burn" or slippage. Magnetic hoops eliminate this variable, which is why they are the standard recommendation for anyone moving from hobby to production.

Warning: Pinch Hazard. Magnetic hoops clamp with extreme force (often 10lbs+ of pressure). Keep fingers clear of the rim when the top frame snaps down. Do not hold the frame by the inner blending edge.

Warning: Magnetic Field Safety. These magnets are powerful. Keep them at least 6 inches away from pacemakers, insulin pumps, credit cards, and computerized machine screens to prevent interference or data loss.

Ricoma Creator 10S Panel Setup: Select the Hoop, Move to a Corner, Trace, Then Lock It In

Film is expensive. The amateur moves the design to the center of the hoop, stitches one patch, and throws the rest of the film away. The professional maximizes "yield per sheet."

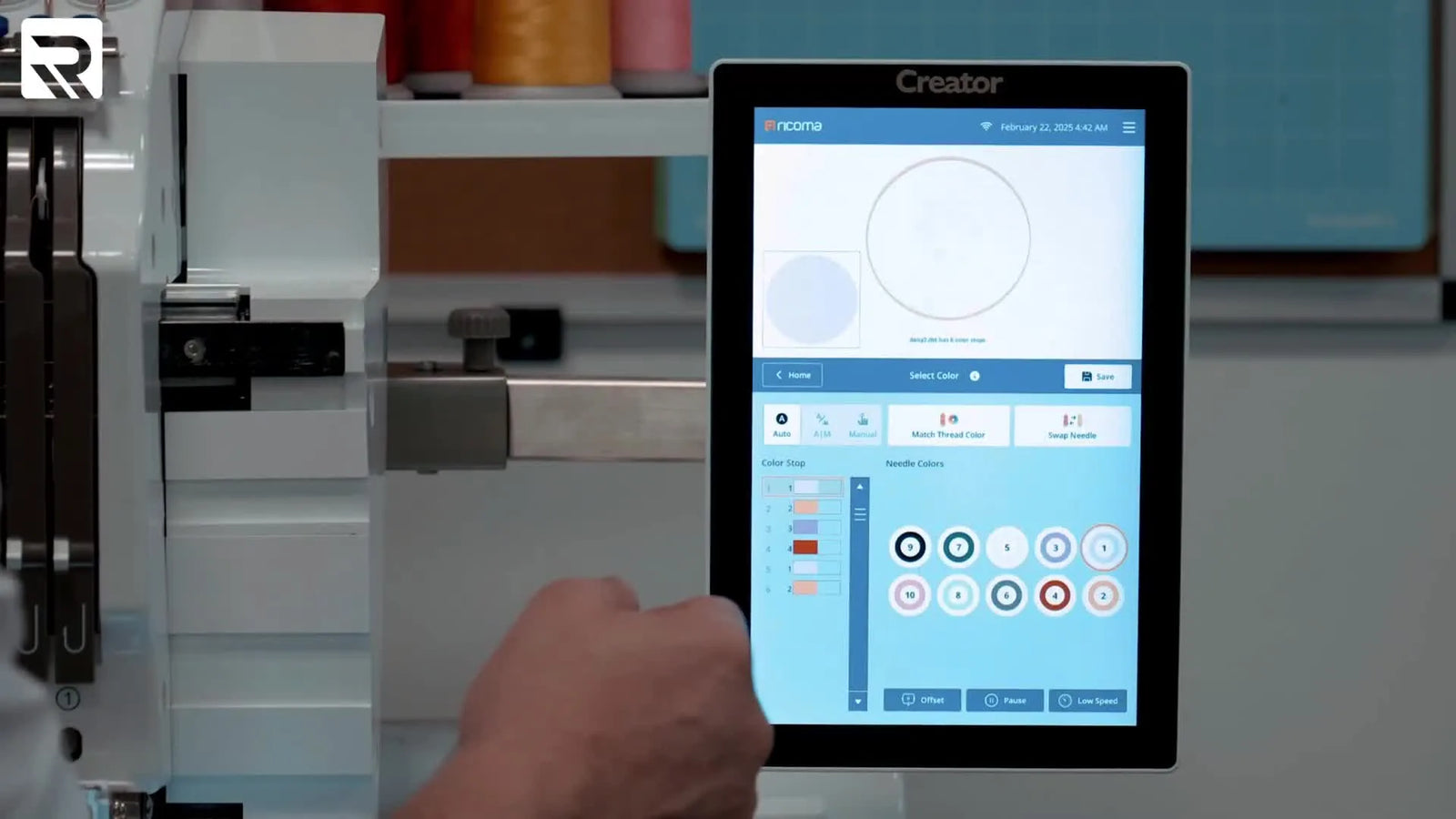

On the interface (demonstrated here on the Ricoma Creator 10S panel):

1. LOAD the design.
2. SELECT the correct hoop size (e.g., 8x13).
3. OFFSET the design: Manually drag the design to the top-left corner of the hoop on the screen. Leave about 15mm of clearance from the edge.
4. TRACE: This is non-negotiable. Press the "Trace" button and watch the machine move the pantograph (the hoop arm).

Why Trace? You are checking for Hard Strikes. If the needle bar hits the plastic hoop frame, you will break the needle, bend the presser foot, or throw the machine's timing out.

The Production Mindset: By starting in the corner, you can leave the hoop on the machine after the first patch is done, move the origin point on the screen next to the first patch, and stitch a second one. You can often fit 6-8 patches on a single sheet of film. Users searching for ricoma embroidery machines often prioritize this panel efficiency, but the "corner strategy" applies to any machine from a Brother SE1900 to a multi-needle Tajima.

Success Metric: The trace completes without the presser foot crossing the inner boundary of the hoop frame.

Thread Color Mapping on the Ricoma Creator: Follow the Sequence So the Border Releases Cleanly

The sequence of your colors is not just about aesthetics; it is a structural assembly instruction.

The Critical Path:

1. White (Base Fill): Creates the "fabric" of the patch.
2. Green (Design): Stitches on top of the white base.
3. Yellow (Design): Stitches on top of the white base.
4. Black (Text): Final detail.
5. Yellow (THE CUTTER): This is the Satin Border.

The Danger Zone: If you accidentally map the Yellow Border to run before the Black Text, the patch will perforate and detach from the stabilizer while the machine is still trying to embroider the text. The patch will flap loose, the needle will snag it, and you will get a "bird's nest" jam that sucks the film down into the bobbin case.

Setup Checklist (right before you stitch):

• Hoop Check: Is the arm clear? Nothing behind the machine?
• Trace Check: Did I visually confirm the needle is inside the safe zone?
• Sequence Check: Is the Satin Border absolutely the LAST color stop?
• Thread Check: Is the thread path clear? Pull the thread at the needle—it should pull with slight resistance (like flossing teeth), not loose and not impossibly tight.


The Stitch-Out Moment: What You Should See on Badge Master Film (and What Should Feel “Off”)

Hit Start. The first minute is the most critical.

Sensory Diagnostics:

• Sound: You want a rhythmic thrum-thrum-thrum. If you hear a loud bap-bap-bap, the film is flagging (bouncing up and down). This means your hooping wasn't tight enough. Pause and tighten.
• Sight: Watch the white base fill. It should lay down flat. If the edges of the filled area start to curl upward like a potato chip, your Thread Tension is too high. The thread is strangling the film. Loosen the top tension slightly.

The "Pause" Strategy: The host in the workflow removes the hoop after the run but leaves the patch inside. This is crucial. Do not pop the patch out yet. Inspect the back. Is the bobbin tension even? If yes, re-hoop a fresh sheet or move to the next open spot on the current sheet.

Chroma Digitizing Strategy from an Adobe Illustrator File: Complex Fill Base + Satin/Run Control

The magic of this method happens in the software (Chroma, Hatch, Wilcom, etc.). You cannot take a standard JPG and hope for the best.

The Layer Cake:

1. Bottom Layer (The Base): You must create a "Complex Fill" or "Tatami Fill" object that matches the exact shape of your patch.
   • Density: Standard fabric density is ~0.40mm. For film, increase density slightly to 0.35mm - 0.38mm to ensure solid coverage (so you can't see through it).
   • Angle: set to 45 degrees.
2. Underlay: Mandatory. Use a "Cross Hatch" or "Double Zig-Zag" underlay. This builds a "net" for the top stitches to sit on, preventing them from punching through the film.

Consistency in digitizing relies on consistency in hardware. Using a hooping station for embroidery machine ensures that your physical placement matches your digital coordinates every time, reducing the need to constantly tweak software position.

The Perforation Trick That Makes the Patch “Pop”: Yellow Satin Border Density 0.30 (Last Step)

This is the specific parameter that makes the "pop-out" possible. A standard satin stitch usually has a density/spacing of 0.40mm to 0.45mm.

To make the border act like a perforation knife/stamp, we need the needle penetrations to be much closer together.

The Formula:

• Stitch Type: Satin / Column.
• Width: Broad (4.0mm to 5.0mm). A wide column provides structural integrity to the patch edge.
• Density: 0.30mm.
• Sizing: The border should sit 50% on the patch background and 50% on the raw film.

Expert Note on Heat: Stitching at 0.30mm density generates significant friction heat.

• Speed Limit: Do not run this final border at 1000 SPM (Stitches Per Minute). Slow your machine down to 600-700 SPM.
• Why: If the needle gets too hot, it will melt the Badge Master film rather than perforating it, leaving gummy residue on your needle and hook.


“It’s Cheaper to Use Regular Stabilizer and Fabric…”—Here’s the Real Cost Math for Patch Production

A common objection is: "Badge Master film is expensive ($1.50/sheet) compared to Twill ($0.20/square)."

This is true for raw materials, but false for profit.

The "Time is Money" Equation:

• Twill Method: 10 mins stitch time + 5 mins skilled trimming time. Total: 15 mins. Risk of ruin: High.
• Film Method: 14 mins stitch time (due to background fill) + 0 mins trimming. Total: 14 mins. Risk of ruin: Low.

In a commercial shop, you pay for labor. The film method allows an operator to run the machine while doing other tasks, rather than sitting at a table with scissors.

Furthermore, standardizing on machine embroidery hoops that are magnetic means your change-over time between sheets drops from 2 minutes (screwing/unscrewing) to 15 seconds.

Decision Tree: Choose Your Patch Base

1. Is the patch fully covered in thread (100% coverage)?
   • Yes -> Use Film Method. It's faster and cleaner.
   • No (Background shows) -> Use Twill/Fabric Method. film is transparent; you can't have "empty" space.
2. Is the shape complex (stars, jagged edges)?
   • Yes -> Use Film Method. Trimming a star shape by hand is a nightmare.
   • No (Circle/Square) -> Twill is acceptable if you have a circle cutter.
3. Volume:
   • < 10 Patches -> Hobby methods are fine.
   • > 50 Patches -> Film + Magnetic Hoops are required for sanity.


Troubleshooting Patch Problems: Symptoms → Likely Cause → Fix (Without Guessing)

When film patches fail, they fail dramatically. Use this diagnostic table to save your garment and sanity.

Warning: Safety First. If a patch comes loose inside the machine while running, HIT THE EMERGENCY STOP. Do not try to grab it. A loose patch can shatter a needle, sending metal shards towards your eyes. Always wear safety glasses when testing new techniques.

If you find yourself constantly fighting alignment issues—where the border misses the background fill—consider a magnetic hooping station. This tool locks the hoop in place while you layer the film, ensuring perfect alignment before you even get to the machine.

Turning This into a Repeatable Patch Product (Etsy, Team Orders, and “Don’t Waste Your First Week” Advice)

If you plan to sell these, scalability is your goal.

1. Standardize Sizes: Offer 2.5", 3", and 4" patches. Do not offer "custom sizing" efficiently until you are a master.
2. Batching: Use the corner-placement method to fill a sheet. Don't run one patch at a time.
3. Pricing: Factor in the stitch count. Film patches have high stitch counts (often 15k+ stitches). Charge for machine time, not just size.

The Upgrade Path: When you hit 50 orders a week, your bottleneck will be the single-needle machine. The thread changes (White -> Green -> Yellow -> Black) take more time than the sewing. This is the trigger point to look at SEWTECH multi-needle embroidery machines or similar pro-sumer models. A 6-needle machine allows you to set the colors once and run all day only pausing to swap hoops.

The Upgrade Path I’d Recommend After You Nail the First 10 Patches (Tools That Actually Move the Needle)

Start with what you have. Once you prove the concept works, upgrade in this order to reduce friction:

1. Stability Upgrade: Magnetic Hoops. (Level 1). Stop fighting screws.
2. Software Upgrade: Digitizing software that supports "Auto-Basting" and advanced underlay control (Chroma, Hatch, etc.).
3. Capacity Upgrade: A magnetic embroidery hoop set for your specific machine model facilitates continuous production (hoop one while the other runs).
4. Hardware Upgrade: A Multi-needle machine to eliminate thread-change labor.

Operation Checklist (end-of-run quality control):

• Visual: Check the back. Is the bobbin thread width roughly 1/3 of the total width? (Standard tension).
• Tactile: Gently push the patch from the back. Does it start to separate? (Good).
• Clean: Use water or a wet Q-tip to dissolve any remaining jagged film bits on the edge.
• verify: ensure no "bird nesting" occurred on the underside.


Quick FAQ from the Comments (Answered Like a Shop Owner, Not a Sales Page)

“Which film—80 mic or 100 mic?” Go heavy. 100 micron (or "Heavyweight") is the safety standard. 80 mic is fine for light designs, but for a full patch, the extra rigidity of 100 mic prevents warping.

“Where did you get that Badge Master?” The video references Madeira Badge Master. It is the industry standard. Another search term is "heavyweight water-soluble stabilizer." Do not use "topping" (the thin saran-wrap stuff)—it will disintegrate instantly.

“Do you pop it out and iron it onto something?” Once popped out, you have a "Sew-On" patch. To make it "Iron-On," you must apply a heat-seal backing (like Heat n Bond) to the back of the patch before you pop it out, or apply it manually afterwards.

“Why not just cut the film?” You can. But the point of the 0.30mm density border is to create a perforated "tear line." If you have to use scissors, your density was too low.

The Takeaway: Clean Edges, Less Stress, and a Workflow You Can Scale

The transition from "crafting" to "manufacturing" happens when you remove variables.

• Variable: Hand cutting tension. Solution: Badge Master Film.
• Variable: Hoop screw tension. Solution: Magnetic Frames.
• Variable: Edge Quality. Solution: 0.30mm Satin Density.

Follow the Rule of Layers (3 layers), the Rule of Sequence (Border last), and the Rule of Physics (Rough side up), and you will produce patches that look like they came from a factory, right out of your spare room.

FAQ

• Q: Which needle type and size should be used for making patches on Madeira Badge Master water-soluble film?
  A: Use a new Sharp-point needle—75/11 is the safe default for this film workflow.
  • Install: Switch to a fresh 75/11 Sharp needle (80/12 Sharp is also acceptable).
  • Avoid: Do not use ballpoint needles because they are designed to push fabric fibers aside, not pierce film cleanly.
  • Stock: Keep multiple new needles ready because dense fills and borders dull needles faster.
  • Success check: The needle pierces cleanly without popping sounds, skipped stitches, or gummy buildup.
  • If it still fails… Slow the border speed to 600–700 SPM and re-check for heat-related melting or needle residue.
• Q: How many layers of Madeira Badge Master film should be hooped for high-density patch stitching, and which side faces up?
  A: Hoop three aligned layers, with the rough/textured side facing up on the top sheet.
  • Cut: Prepare three separate film layers sized to fit fully inside the hoop area.
  • Stack: Align all three layers carefully and place the rough side facing up on the top layer for better “tooth.”
  • Prep: Start with a full bobbin because film patches consume heavy bobbin thread during the full background fill.
  • Success check: The film surface stays stable during stitching and does not slide or “skate” under the presser foot.
  • If it still fails… Re-hoop and verify the film is not wrinkled or bubbled before restarting.
• Q: What is the correct hooping “success standard” when using an 8x13 magnetic embroidery hoop for three layers of Badge Master film?
  A: Clamp straight down and verify the hooped film is drum-tight without stress whitening at the edges.
  • Place: Set the bottom bracket flat, lay the stacked film on top, smooth with palms, then lower the magnetic frame and let it snap down.
  • Check: Inspect edges for even tension; avoid overstretching the film until it turns white (stress marks).
  • Listen: Tap the center to confirm a sharp “thud,” not a loose rattle.
  • Success check: The film stays flat (no bubbles) and does not flag/bounce during the first minute of stitching.
  • If it still fails… Pause immediately if you hear loud “bap-bap-bap” flagging and re-hoop tighter before continuing.
• Q: What safety precautions are required when using magnetic embroidery hoops for patch production?
  A: Treat magnetic hoops as a pinch-and-magnet hazard—keep fingers clear and keep magnets away from sensitive devices.
  • Protect: Keep fingers away from the rim when the top frame snaps down; the clamp force can be 10 lbs+.
  • Handle: Do not grip the hoop by inner edges where fingers can get caught.
  • Separate: Keep magnets at least 6 inches away from pacemakers, insulin pumps, credit cards, and computerized machine screens.
  • Success check: The hoop closes cleanly without pinching, and there is no device interference or unexpected screen behavior.
  • If it still fails… Stop using the hoop in that area and follow the device and machine manufacturer safety guidance.
• Q: How should the Ricoma Creator 10S color sequence be mapped for Badge Master film patches so the satin border releases cleanly?
  A: Run the satin border last—mapping the border early can release the patch mid-run and cause a bird’s nest jam.
  • Map: White base fill → Green design → Yellow design → Black text → Yellow satin border (last).
  • Verify: Confirm on-screen that the satin border is the final color stop before pressing Start.
  • Prevent: Never let the “cutter” border run before final details like text.
  • Success check: The patch remains attached to the film until the machine finishes, then separates only when you intentionally push it out.
  • If it still fails… Re-open the design’s color stops and correct the order before stitching again.
• Q: What satin border settings make a Madeira Badge Master film patch “pop out” without scissors, and what speed prevents melting?
  A: Use a wide satin border at 0.30 mm density and slow the final border to 600–700 SPM to avoid heat melting the film.
  • Set: Satin/Column border width to 4.0–5.0 mm for a strong edge.
  • Set: Density/spacing to 0.30 mm to create a perforation line.
  • Place: Position the border so it sits ~50% on the stitched patch and ~50% on the raw film.
  • Success check: After stitching completes, the patch separates cleanly with a firm push instead of stretching the film.
  • If it still fails… Increase density slightly toward 0.30–0.33 mm range and confirm a sharp needle is installed; if residue appears, slow down and clean/replace the needle.
• Q: What should be upgraded first when patch production on Badge Master film is slowed by hooping time and thread changes (magnetic hoops vs multi-needle machine)?
  A: Upgrade in layers: optimize technique first, then magnetic hoops for faster, consistent hooping, then a multi-needle machine when thread-change labor becomes the bottleneck.
  • Level 1 (Technique): Standardize three film layers, full bobbin starts, and correct border-last sequencing to reduce failures.
  • Level 2 (Tooling): Switch from screw hoops to magnetic hoops to cut change-over time and reduce slippage/hoop-burn risk.
  • Level 3 (Capacity): Move to a multi-needle machine when weekly volume is high and repeated color changes waste more time than stitching.
  • Success check: Your cycle time becomes predictable and Patch #1 matches Patch #50 without rework.
  • If it still fails… Track where time is lost (hooping vs thread changes vs re-stitching from jams) and upgrade the step causing the most downtime.
