Stop Towel Monograms From Sinking: The Heat-and-Gone “Sandwich” on a Brother PR1050X with a Magnetic Hoop

Terry towels are the classic "Trojan Horse" of machine embroidery. They arrive looking soft and innocent, but they hide a structural trap: the "loop pile." These millions of tiny, springy loops are eager to swallow your satin columns, deflect your needles, and frustrate your efforts to get a crisp, professional monogram.

If you have ever presented a gift towel only to see the recipient’s initials "melting" into the fabric, you are fighting physics, not skill.

In this master class, we break down Linda’s production-grade workflow. Her solution is simple but changes the physics of the stitch: she creates a rigid "sandwich" using a textured Heat and Gone stabilizer on both sides of the towel, clamped in a powerful magnetic frame. This method neutralizes the loops before the first needle strikes.

The Calm-Down Moment: Why Thick Terry Towels Make Monograms Look “Flat”

To master towels, you must understand Loft vs. Tension. On flat cotton, your thread sits on the surface. On terry cloth, the loops act like springs. When the needle penetrates, the top thread tension naturally pulls the stitch down between the loops towards the bobbin. This is the "sinking" effect.

Standard embroidery hoops exacerbate this. To get a towel tight in a traditional ring hoop, you often have to crush the pile, creating "hoop burn"—a permanent ring of flattened fabric that ruins the plush look.

The logic in this tutorial reverses that problem. Instead of crushing the towel, Linda uses the stabilizer to create a "false floor" and "false ceiling." By placing Heat and Gone underneath and on top, she creates a controlled, compressed zone just for the embroidery.

This is why upgrading your tooling matters. If you are struggling with thick goods, a magnetic frames for embroidery machine is not just a luxury; it is a mechanical necessity. It holds the thickness by suspension (vertical clamping force) rather than friction (wedging fabric between rings), preserving the towel's fluffiness outside the stitch area.

The “Hidden” Prep Pros Do First: Test on a Scrap Towel Before You Touch the Gift Towel

Professionals operate by a rule: Never let the first stitch touch the customer's item. Detailed monograms that look perfect in software often fail on terry because the software cannot simulate the "springiness" of the loops.

Linda runs a sample on a "rag bag" towel first. This confirms two vital data points:

1. Density & Pull Compensation: Does the 40wt thread cover the loops completely? ( Expert Sweet Spot: For towels, utilize a standard 40wt embroidery thread but increase your Pull Compensation to at least 0.4mm to account for the fabric sinking).
2. Scale: Is the monogram too small? ( Rule of Thumb: Avoid satin columns narrower than 1.5mm on terry; they simply vanish).

She also notes cleanliness: while she uses a pre-wound white bobbin for the demo, matching the bobbin thread color to the top thread is the hallmark of high-end gift work.

Prep Checklist (Do this before hooping)

• Consumables Check: Ensure you have enough Heat and Gone (or heavy micron heat-away film) for both sides of the hoop.
• Needle Inspection: Replace your needle with a fresh Size 75/11 or 80/12 Sharp. Ballpoints can deflect off thick piles; Sharps penetrate straight.
• Thread Weight: Load 40wt top thread (Poly or Rayon) and 60wt bobbin thread.
• The "Rag" Test: Run the design on a scrap towel. Check for loop poke-through.
• Machine Clearance: If using a SEWTECH or similar multi-needle machine, clear the table area so the heavy towel doesn't snag during movement.

Warning: Needle Deflection Risk. Towels vary in density. If the needle hits a dense seam or a thick folded hem, it can deflect and strike the needle plate. Safety First: Keep your face away from the needle bar area during the first few stitches, and consider wearing safety glasses when testing new, thick materials.

Stabilizer Reality Check: Heat and Gone Has a “Bumpy Side” for a Reason

Not all stabilizers are created equal. Linda uses a specialized "Heat and Gone" film that features a tactile difference:

• Side A: Smooth.
• Side B: Bumpy/Textured.

This texture is functional, not decorative. The "bumps" provide grip against the slippery terry loops, preventing the stabilizer from sliding around inside the magnetic sandwich.

Why not standard water-soluble topping? Linda makes a controversial but valid production call: she does not use thin water-soluble topping (Solvy) for this specific high-pile towel. Thin water-soluble films often dissolve or tear too easily on aggressive heavy towels, allowing stitches to sink. The Heat and Gone creates a semi-rigid "veneer" that stays solid until you deliberately remove it with heat, guaranteeing the monogram stays raised.

The Fast Multi-Needle Trick: Swap Needle Colors on the Brother PR1050X Screen Instead of Rethreading

Working on a Brother Entrepreneur Pro X PR1050X, Linda demonstrates a workflow efficiency standard in professional shops: Virtual Re-threading.

Rather than physically cutting and tying on new thread for a quick monogram, she reassigns the needles digitally. She swaps the design from Needle 10 (Black) to Needle 6 (Turquoise) directly on the screen.

The "Touch-Once" Rule: In a production environment, every time you touch the thread path, you risk a mis-thread or tension issue. By using the on-screen swap, you utilize a needle that is already threaded, tension-tested, and ready to fire.

Whether you are using a brother 10 needle embroidery machine or a robust SEWTECH multi-needle workhorse, mastering the "Needle Assignment" page is the quickest way to shave 5 minutes off every job.

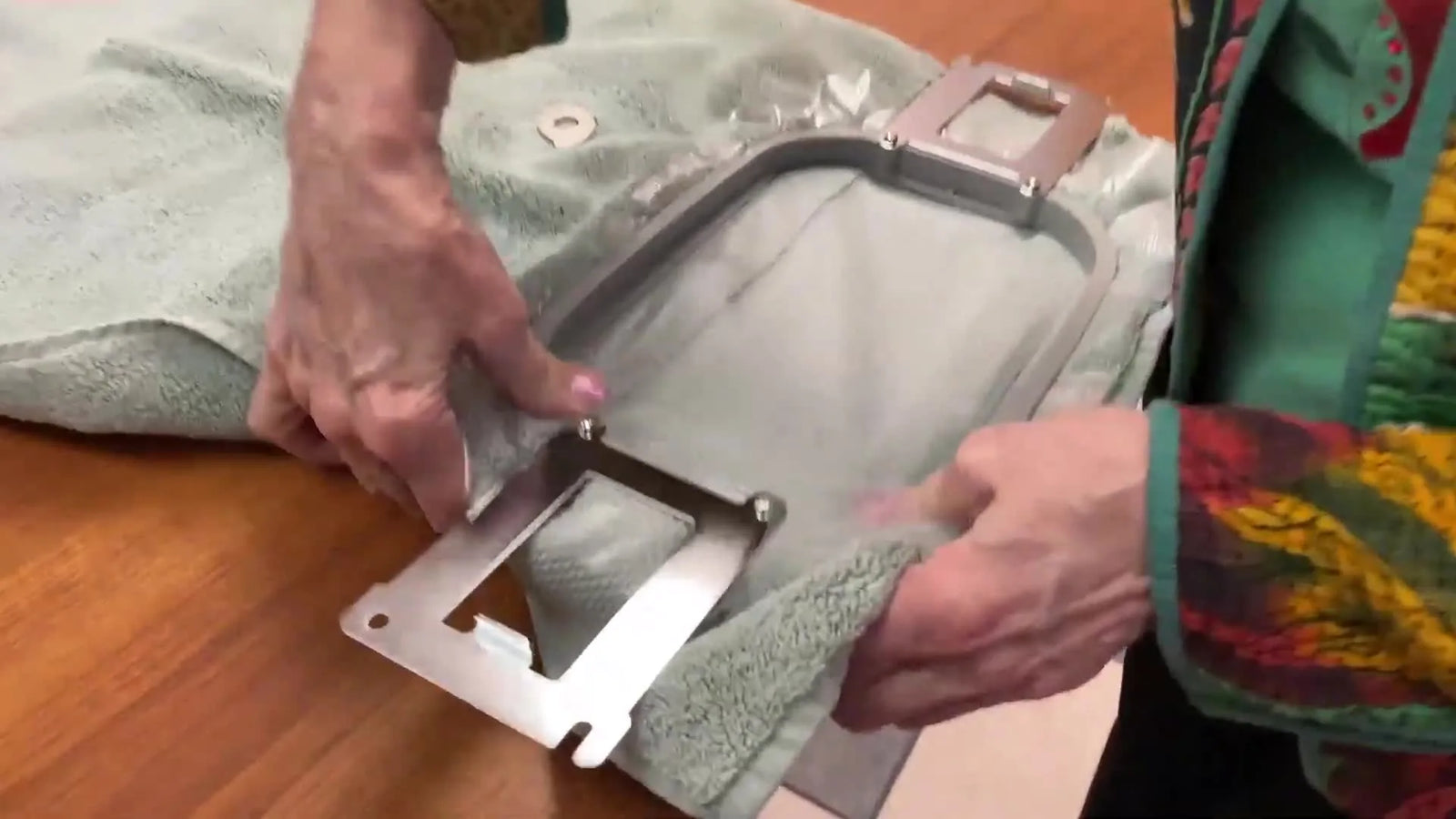

The Magnetic Hoop “Sandwich”: Heat and Gone + Towel + Heat and Gone (Exact Orientation)

This is the core technique. We are building a structured laminate that just happens to have a towel in the middle. We use a magnetic frame because it accommodates the 5mm-8mm thickness of the stack without popping open.

1) The Foundation (Bottom Frame)

• Action: Place the bottom metal frame on a flat, stable table.
• Layer: Lay the Heat and Gone sheet over it.
• Tactile Check: The bumpy side must face UP. This ensures the grip digs into the back of the towel.

2) The Towel Placement

• Action: Center the towel over the bottom frame.
• Alignment: Use a marking tool (chalk or pins) to align the center point of your monogram area with the center notches of the frame.
• Visual Check: Ensure the towel is smoothed out but not stretched. Stretching terry causes distortion later.


3) The "Veneer" (Top Layer)

• Action: Place the second sheet of Heat and Gone on top.
• Tactile Check: The bumps must face DOWN, gripping the top loops of the towel.
• Result: The towel is now trapped between two textured surfaces.

4) The Magnetic Clamp

• Action: hover the top magnetic frame over the stack to alignment, then let it snap into place.
• Sensory Check: You want to hear a solid "THUD," not a weak click.
• Adjustment: If using magnetic embroidery hoops, smooth the stabilizer edges gently. Do not pull them like a drum skin; the magnet should do the holding.


Warning: Magnetic Force Hazard. Professional magnetic hoops (like those from SEWTECH) utilize industrial-strength magnets (N52 grade). They can snap together with over 30lbs of force. Never place your fingers between the frames. Pacemaker Safety: Keep these magnets at least 6 inches away from implanted medical devices.

The “Click Test” on the PR1050X: Dock the Magnetic Hoop Without Sewing the Towel to Itself

Loading a heavy towel onto a multi-needle machine is where 80% of disasters happen. The weight of the towel drags the hoop down, potentially causing alignment errors.

The Docking Protocol:

1. Slide the hoop arms into the carriage driver.
2. Listen: You must hear a sharp "Click" on both the left and right arms.
3. Physical Verify: Wiggle the hoop gently. If it moves, it's not locked.


The "Fold-Under" Trap: Linda highlights a critical error: the bulk of the towel folding under the needle plate. If this happens, you will stitch the towel to itself.

• The Fix: Aggressively manage the bulk. Clip the excess towel to the sides or push it firmly to the back of the machine.
• Tool Upgrade: This is where a hooping station for machine embroidery is invaluable. It holds the heavy towel square while you hoop, and keeps the bulk organized so you can transport it to the machine without the layers shifting.

Screen Check Before You Stitch: Confirm Design Size and Placement on the Brother PR1050X

Linda validates the dimensions (1.71" x 4.59") on screen.

The "Spring" Factor Calculation: Visual size can be deceiving on texture. A 4-inch letter looks huge on screen but can look modest on a bath sheet.

• Pro Tip: If your machine has a "Trace" function, use it now. Watch not just the area (rectangular box), but the exact outline. Ensure the presser foot high-steps over the towel pile without snagging loops.

Stitching the Monogram: The Lock-to-Green Habit and the “Popping” Sound That’s Actually Normal

Linda engages the safety lock (turning the button green) and begins.

Understanding the Soundscape: As the machine runs, you will hear a distinct, rhythmic "popping" or "crunching" sound.

• Good Sound: Pop-Pop-Pop. This is the needle cleanly piercing the textured Heat and Gone layers. It indicates your stabilizers are doing their job—providing a crisp barrier.
• Bad Sound: Clank-Tick-Clank. Metal on metal. Stop immediately—your needle may be deflecting off the magnetic frame or a dense hem.
• Speed Limit: For heavy towels like this, cap your machine speed at 600-700 SPM. Speed kills quality on plush fabrics.

Setup Checklist (Right BEFORE you press Start)

• The Tug Test: Is the hoop locked into the driver arm? (Pull firmly).
• The Under-Belly Check: Put your hand under the hoop—is the path clear? Is the towel tail folded safely away?
• Needle Clearance: Does the presser foot height need raising? (Set to standard "Thick Fabric" mode on your machine settings).
• Canopy Check: Is the top stabilizer laying flat and not bubbled up?

Unhooping and Cleanup: Remove the Top Frame First, Then Tear Away the Excess Heat and Gone

The embroidery is done. Do not rip the towel out of the machine.

1. Unlock: Remove the hoop from the driver arms.
2. Release: Lift the top magnetic frame using the leverage tab. (Do not slide it; lift it).


The Reveal: Linda tears the top Heat and Gone away. It should tear cleanly at the perforation line created by the needle.

• Note: You will remove the stabilizer from both top and bottom. Small remnants inside the letters (centers of O's and A's) are removed with a heat gun or iron later.
• Warning: When tearing, support the stitches with your thumb. Tearing too aggressively can pull satin stitches, distorting the crisp edge you just worked so hard to create.

The “Why It Works” (So You Can Repeat It on Any Towel, Not Just This One)

Linda's sandwich method succeeds because it addresses the three enemies of towel embroidery:

1. Sinking: The top layer of Heat and Gone acts as a suspension bridge, holding the thread above the loop pile.
2. Loop Poking: The bottom layer adds density, preventing the loops from pushing up from underneath.
3. Distortion: The magnetic frame claims the fabric without stretching the weave, ensuring the monogram stays perfectly rectangular.

Quick Decision Tree: Which Stabilizer Stack Should You Try on Towels?

Not every towel needs the "Nuclear Option." Use this logic flow to save money and time:

Comment-Driven Pro Tips: What Viewers Asked (and What I’d Do in a Real Shop)

Viewer Query: "Where do you get Heat and Gone?" Expert Context: Linda refers to a specific brand, but the generic industry term is "Textured Heat-Away Film" or Heavy-Duty Heat-Wait. In a pinch, a heavy-micron Water Soluble Stabilizer (like Badgemaster) can work, but it lacks the rigidity of the heat-away films.

Viewer Query: "I use water-soluble all the time." Expert Context: And that is fine for 90% of hobby work! However, water-soluble toppings dissolve with the first wash, sometimes leaving the thread loosely "floating" over the pile. Linda's heat-away method leaves a permanent (invisible) residue under the stitch, keeping it propped up forever.

The Upgrade Path: When Magnetic Hoops and Better Threading Habits Pay You Back

Embroidery is a journey from "Making it Work" to "Maximum Efficiency." If you are strictly a hobbyist, struggle through with your standard hoops. But if you value your time (or your wrists), recognize the triggers for an upgrade:

1. The Trigger: "Hoop Burn" and Rejection

• The Pain: You ruin a $20 towel because the standard hoop left a shiny, crushed ring that won't steam out.
• The Fix: magnetic hoop for brother pr1050x. The magnetic force distributes pressure evenly across the frame surface, eliminating the "pinch points" that cause burn.

2. The Trigger: Physical Fatigue

• The Pain: After hooping 12 towels for a team gift, your wrists ache from tightening screws and forcing inner rings.
• The Fix: Magnetic frames snap on. Zero torque, zero wrist strain.

3. The Trigger: Production Bottlenecks

• The Pain: You spend more time changing thread colors than actually sewing.
• The Fix: This is the sign to move to a brother 10 needle embroidery machine or a high-value SEWTECH multi-needle. Having 10-15 colors docked and ready eliminates the downtime of threading, turning embroidery into a "Load and Go" operation.

Operation Checklist (The "Save Your Towel" Final Review)

• File Check: Did you add underlay? (Double Zigzag is best for towels).
• Hoop Check: Is the magnetic frame fully seated?
• Path Check: Is the towel bulk pushed back?
• Sensory Check: Listen for the "Pop," stop for the "Clank."
• Visual Check: Watch the first 100 stitches. If loops poke through, stop and add another layer of topping floating on top.




FAQ

• Q: How do I prevent monogram satin columns from sinking and “melting” into thick terry towels on a Brother PR1050X?
  A: Use a textured Heat-and-Gone “sandwich” (top + bottom) and clamp it in a magnetic frame to physically neutralize the loop pile.
  • Add Heat and Gone under the towel (bumpy side UP) and another sheet on top (bumps DOWN).
  • Digitize/adjust with Pull Compensation at least 0.4 mm and avoid satin columns narrower than 1.5 mm for terry.
  • Slow the machine down to about 600–700 SPM for plush towels.
  • Success check: satin edges look crisp and sit “on top” of the pile with minimal fuzz/loop poke-through.
  • If it still fails: run a scrap-towel test again and add an extra floating topping layer before restarting.
• Q: What is the correct Heat and Gone orientation when hooping a terry towel in a magnetic embroidery hoop?
  A: Bottom sheet bumps UP, top sheet bumps DOWN—both textured sides must grip the towel loops.
  • Place the bottom frame on a flat table, lay Heat and Gone with the bumpy/textured side facing UP.
  • Center the towel without stretching, then place the top Heat and Gone with bumps facing DOWN.
  • Hover-align the magnetic top frame and let it snap closed—do not “drum-tight” pull the layers.
  • Success check: you hear a solid “THUD” when the magnet clamps and the stack does not creep when lightly rubbed.
  • If it still fails: re-center and re-clamp; slipping usually means the textured sides were flipped or the towel was stretched.
• Q: How do I avoid stitching a towel to itself when docking a heavy terry towel hoop on a Brother PR1050X?
  A: Manage the towel bulk before the first stitch and confirm the hoop is fully locked into the carriage.
  • Slide both hoop arms into the carriage driver until you hear a sharp “click” on left and right.
  • Push or clip the excess towel aggressively to the sides or the back so nothing folds under the needle plate.
  • Wiggle-test the hoop gently to confirm it is locked before pressing Start.
  • Success check: the hoop does not move when wiggled, and the towel tail stays completely clear under the hoop path.
  • If it still fails: stop immediately, un-dock, and re-stage the towel bulk (a hooping station can help keep layers square during transport).
• Q: What does the “popping/crunching” sound mean when sewing through Heat and Gone on thick towels, and when should I stop the embroidery machine?
  A: Rhythmic “pop-pop-pop” is normal penetration through Heat and Gone; any “clank-tick-clank” metal sound means stop immediately.
  • Listen during the first 100 stitches; sound changes show contact issues early.
  • Stop right away if you hear metal-on-metal, especially near hems or dense seams (needle deflection risk).
  • Reduce speed to 600–700 SPM on heavy terry to prevent quality loss and deflection.
  • Success check: consistent popping sound with no needle strike marks and no sudden thread breaks.
  • If it still fails: re-check towel positioning for thick hems and confirm the hoop is not in the needle path.
• Q: What needle and thread setup is a safe starting point for monogramming terry towels with a multi-needle embroidery machine?
  A: Start with a fresh Size 75/11 or 80/12 Sharp needle, 40wt top thread, and 60wt bobbin thread, then confirm on a scrap towel first.
  • Replace the needle before the job; sharps penetrate straight while ballpoints may deflect on thick pile.
  • Stitch a test run on a scrap (“rag bag”) towel to confirm coverage and scale.
  • Match bobbin color to top thread for high-end gift work when the back may be seen.
  • Success check: the test shows full coverage with clean satin edges and no loop poke-through.
  • If it still fails: increase pull compensation (a common towel fix) or scale up the monogram to avoid tiny satin columns.
• Q: Is it safe to use industrial-strength magnetic embroidery hoops, and what precautions should be taken?
  A: Yes, but treat magnetic hoops as pinch hazards and keep them away from implanted medical devices.
  • Keep fingers completely clear when closing; magnets can snap together with very high force.
  • Lift the top frame off using the leverage tab—do not slide it to open.
  • Keep magnetic hoops at least 6 inches away from pacemakers and similar implanted devices.
  • Success check: the hoop closes cleanly without finger contact and opens only by lifting (controlled release).
  • If it still fails: switch to a safer handling routine (two-hand grip on frame edges) and re-train anyone assisting before continuing.
• Q: When should towel embroidery users upgrade from standard hoops to magnetic hoops, or from single-needle habits to a multi-needle machine workflow?
  A: Upgrade when repeated towel jobs trigger hoop burn, physical fatigue, or time loss from rethreading—fix technique first, then upgrade tools, then upgrade capacity.
  • Level 1 (Technique): test on a scrap towel, use Heat and Gone correctly, slow speed to 600–700 SPM, and avoid <1.5 mm satin columns.
  • Level 2 (Tool): move to a magnetic hoop to clamp thick towel stacks by vertical force, reducing hoop burn and wrist strain.
  • Level 3 (Capacity): use on-screen needle reassignment on machines like the Brother PR1050X (or step up to a multi-needle workhorse) to cut downtime from thread handling.
  • Success check: fewer rejected towels (no hoop burn), faster hooping, and less time spent touching the thread path.
  • If it still fails: document the exact failure (sinking vs distortion vs loop poke-through) and change only one variable per test run.
